Yellow Machinery Hydraulic Maintenance A10vso45

1 / 5

Yellow Machinery Hydraulic Maintenance A10vso45

Customization:	Available
Type:	Plunger Pump
Transport Package:	Carton

Send Inquiry

Product Description

📊 Basic Information

Model NO.: A10VSO45

Specification: A10VSO45

Origin: China

Production Capacity: 500,000

⚙️ Product Description

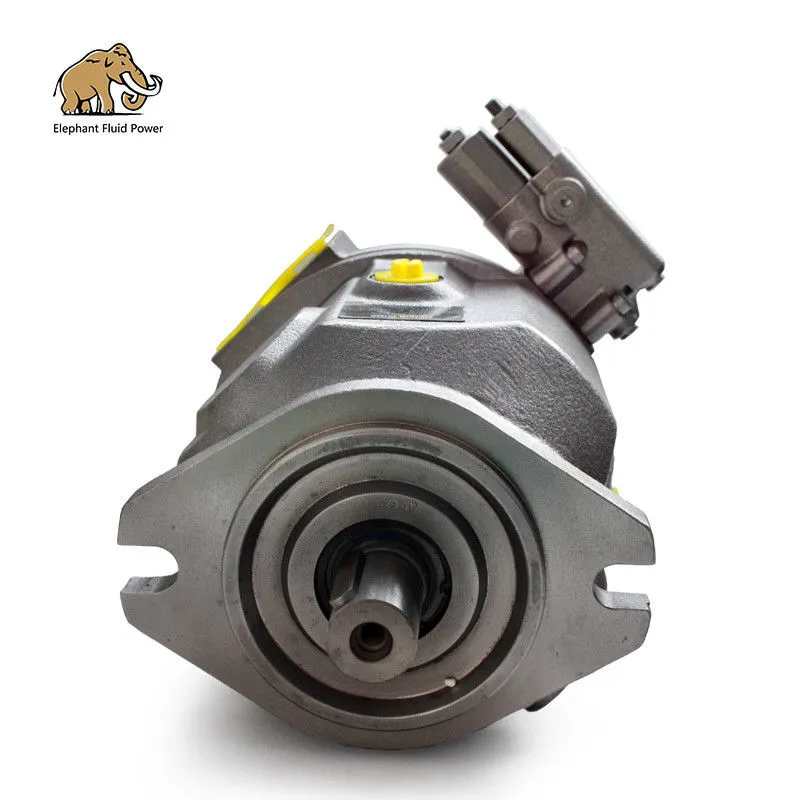

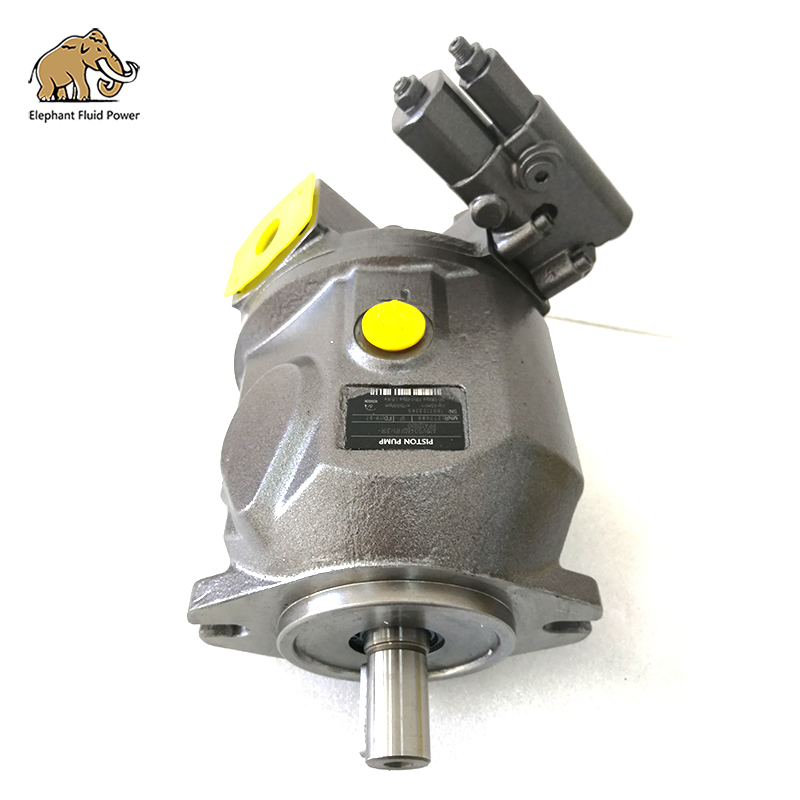

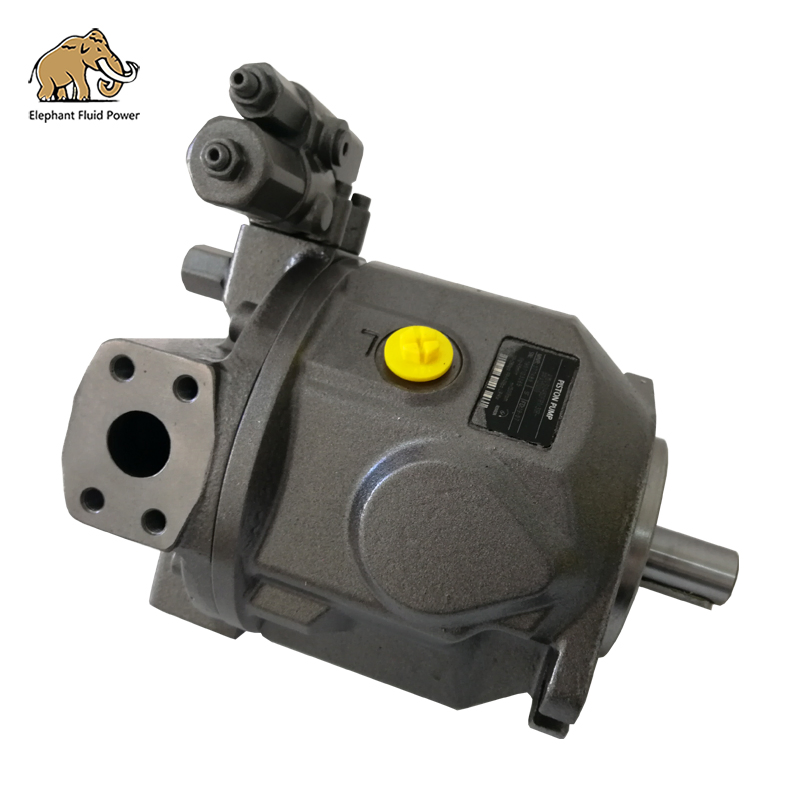

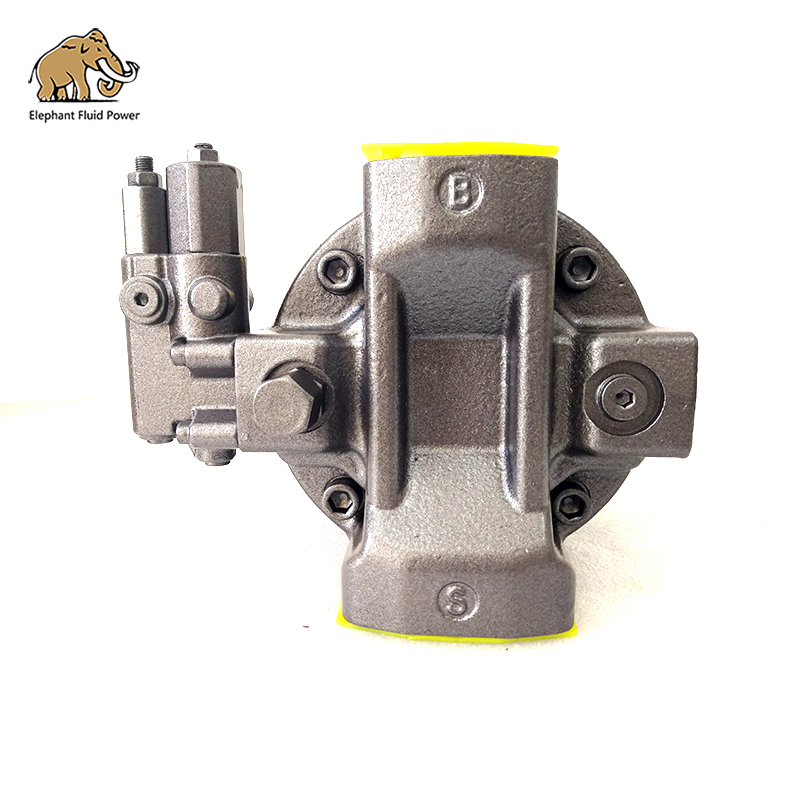

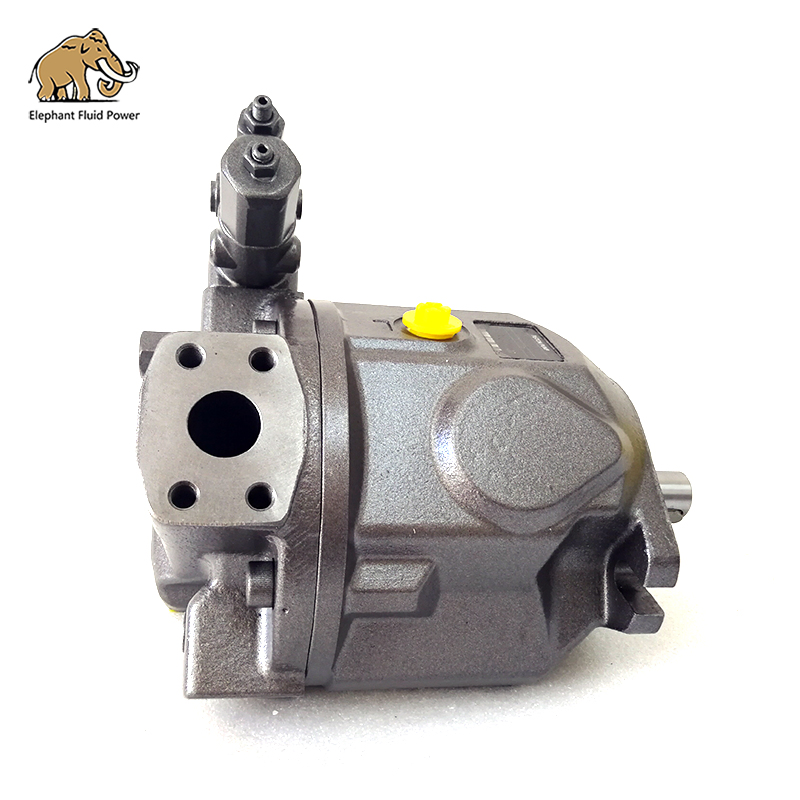

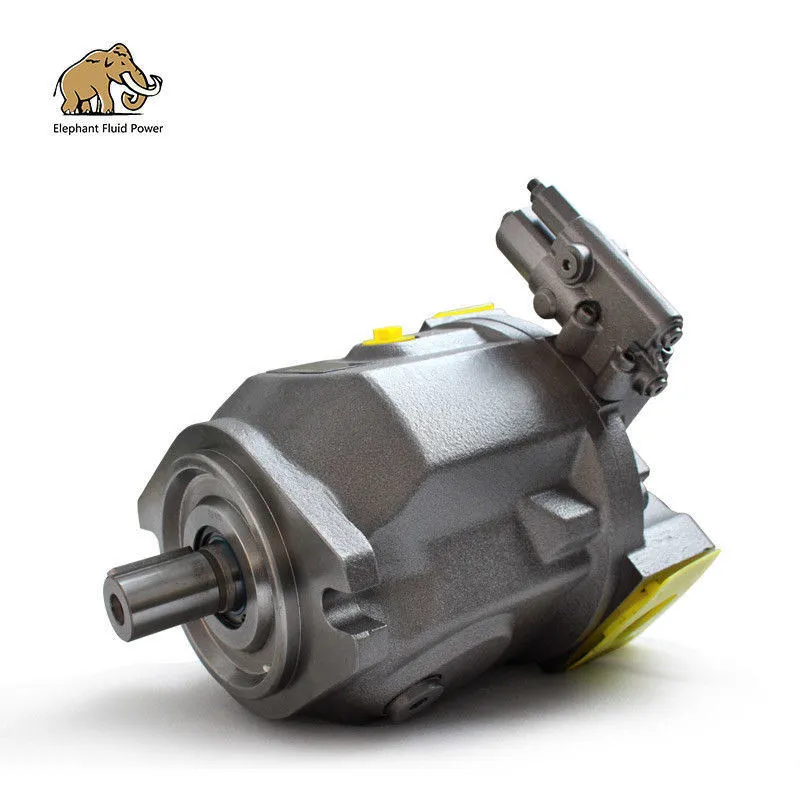

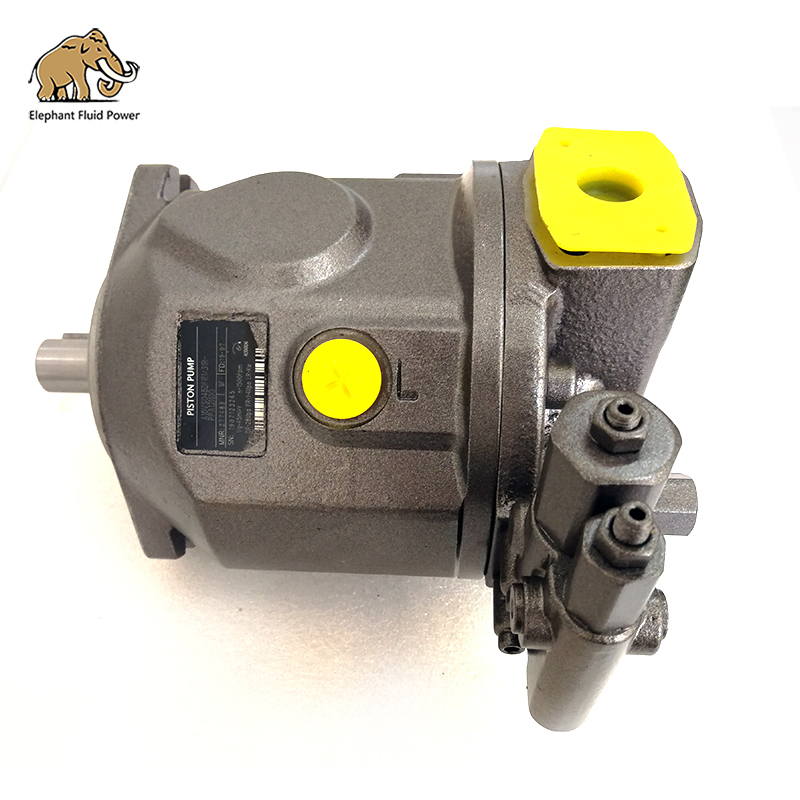

Yellow Machinery Hydraulic Maintenance A10VSO45

Variable pump in axial piston swashplate design for hydrostatic drives in an open circuit
The flow is proportional to the drive speed and the displacement
The flow can be steplessly varied by adjustment of the swashplate angle
2 case drain ports with excellent suction characteristics
Low noise level and long service life
Axial and radial load capacity of drive shaft
Favorable power/weight ratio and versatile controller range
Short control time
100% through drive capacity for adding further pumps

Industrial Application Features

Robust high pressure pump (A4VSO series) suitable for sizes 40 to 1000. Features nominal pressure of 350 bar and maximum pressure of 400 bar.

Robust pump with very long service life
Low operating noise and short control response times
Excellent suction characteristics
Metric version for global compatibility

📋 Technical Data

Nominal Size				A4VSO71	A4VSO125	A4VSO180	A4VSO250
Nominal pressure		pN	bar	350	350	350	350
Maximum pressure		pmax	bar	450	450	450	450
Displacement		Vg max	cm³	71	125	180	250
Speed	Max. speed	n max	rpm	2200	1800	1800	1500
Flow	at n max	q V max	l/min	156	225	324	375
Power	Δ p = 350 bar	P max	kW	91	131	189	219
Torque	Δ p = 350 bar	T max	Nm	395	696	1002	1391
Weight (approx.)		m	kg	53	88	102	184

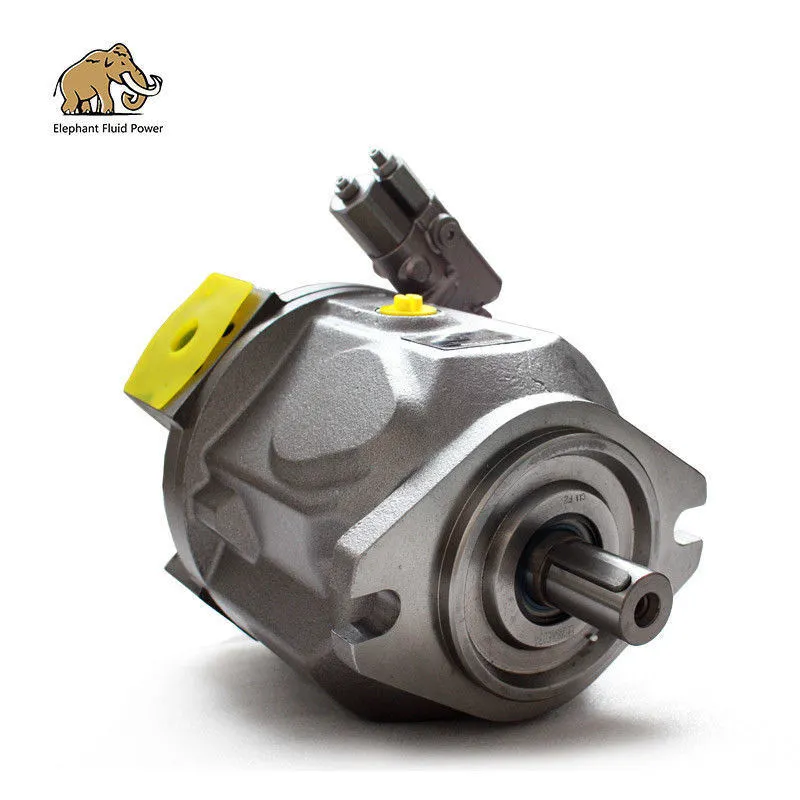

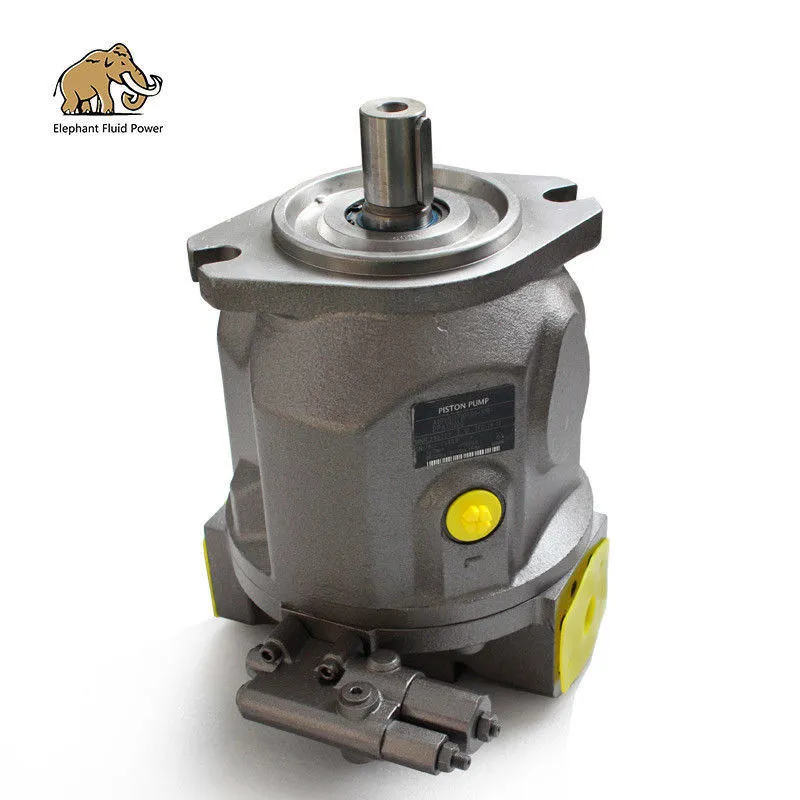

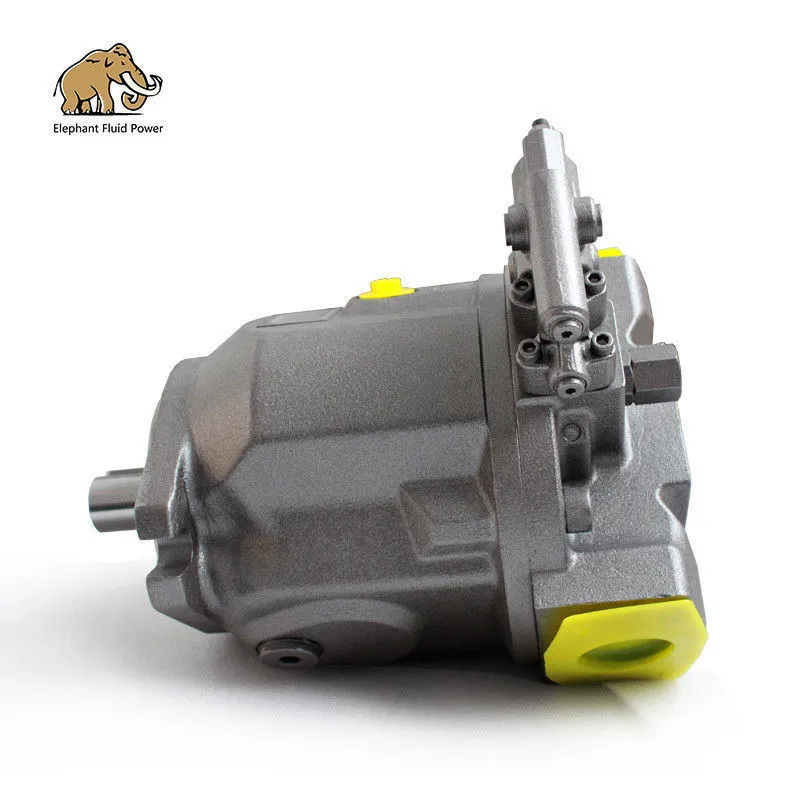

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the main application of the A10VSO45 pump?

It is designed for hydrostatic drives in open circuits, widely used in yellow machinery and industrial hydraulic systems for its variable displacement capabilities.

What are the noise characteristics of this series?

The A10VSO series is engineered for a low noise level, making it ideal for industrial environments where noise reduction is critical.

Does it support mounting additional pumps?

Yes, it features a 100% through drive capability, which is suitable for adding gear pumps or axial piston pumps of the same size.

What is the maximum pressure for the A4VSO industrial series?

The A4VSO series has a nominal pressure of 350 bar and can reach a maximum pressure of up to 450 bar.

How is the flow controlled in these pumps?

The flow is proportional to the drive speed and displacement; it can be steplessly varied by adjusting the swashplate angle.

What contributes to the long service life of these pumps?

The robust axial piston swashplate design combined with high-quality radial and axial load capacity drive shafts ensures durability in heavy-duty applications.
