| Model NO. | WS11M-L |
| Function | Monitor The Vibration, Temperature, Sound, Rpm |
| IP Grade | IP68 |
| Explosion Proof | Exiaiict4ga |
| Battery | 3 Years Replaceable |
| Waveform Length | 64K |
| Spectrum Lines | 25600 |
| Analysis Frequency | Z: 0.1-10kHz (±3dB), Xy: 0.1 -1.6 kHz |
| Velocity Analysis Frequency | 0.1-3125Hz |
| Vibration Range | Z: ±50 G Peak Zy: ±16 G Peak |

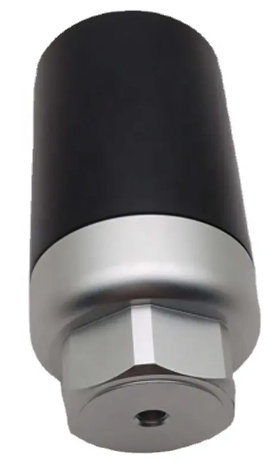

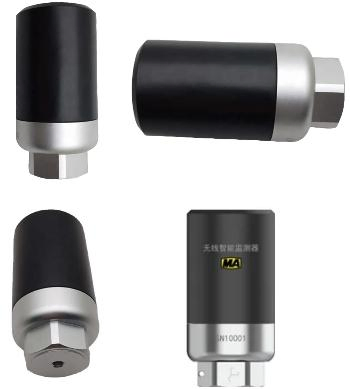

| Product Name | Wireless Condition Monitoring System |

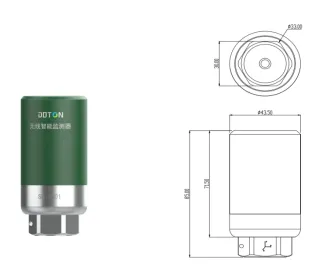

| Specification | 218g Height: 85 mm Diameter: 34 mm |
| Package Size | 8.00cm * 5.00cm * 5.00cm |

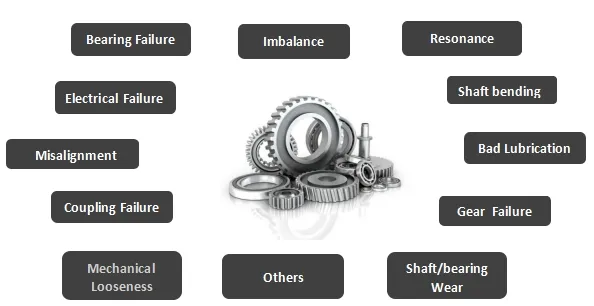

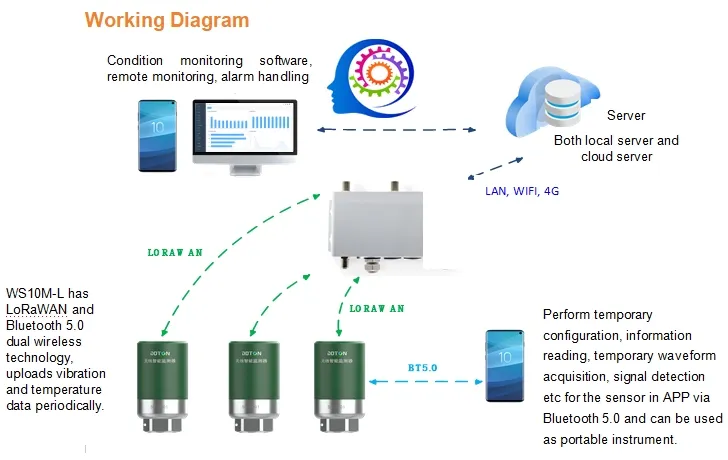

The LoRaWAN wireless condition monitoring system is designed to replace manual inspections of pumps, motors, and fans in industrial environments. It integrates vibration and temperature acquisition, enabling early detection of potential issues before they lead to costly failures.
By identifying problems early, unplanned downtime is prevented, repair costs are reduced, and operational efficiency is maximized, ensuring smooth production while extending asset lifespan.

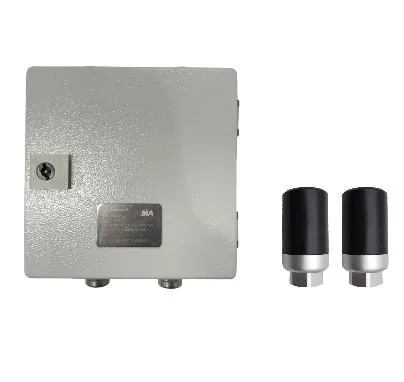

The SG500L is an outdoor LoRaWAN gateway supporting up to 8 channels. It features a built-in Chirpstack v4 server and supports Cat 4 cellular networks, Ethernet, WIFI, and 4G connectivity.

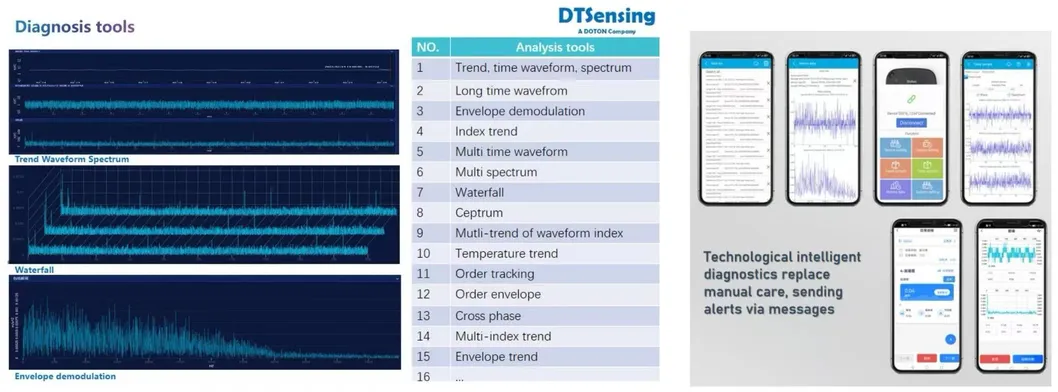

A professional real-time condition monitoring platform for vibration analysis, equipment management, and predictive maintenance.
Focusing on industrial monitoring and artificial intelligence, the system utilizes patented technologies in wireless sensors and intelligent diagnosis. It achieves fast implementation and stability for asset management, combining AI diagnosis models with big data to empower industrial efficiency.
