System Features
●All channels synchronous collection
●One sensor collects both vibration and temperature
●Alarm SMS/EMAIL for both vibration and temperature data
●Intelligent alarm: minimal sampling value(RMS) interval 5min
●Wireless work mode, no wiring cost, Easy to Install
●2 years battery life of wireless accelerometer

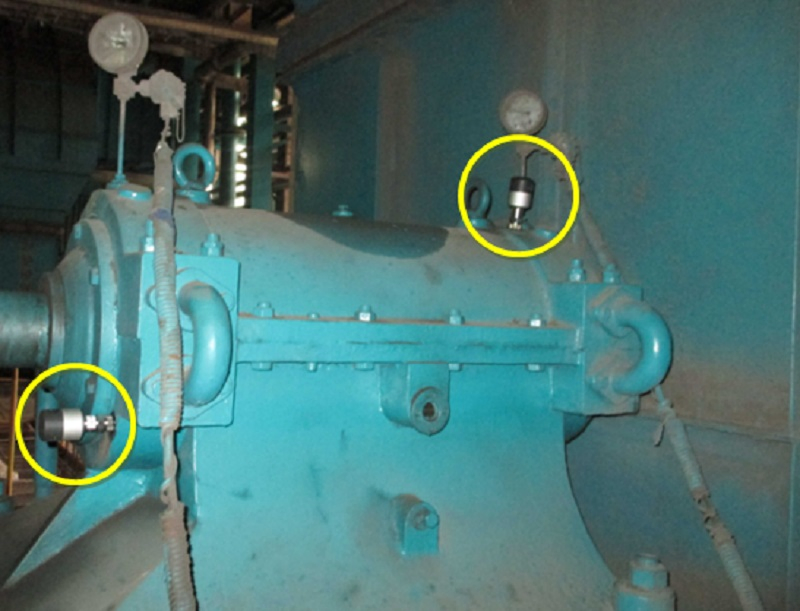

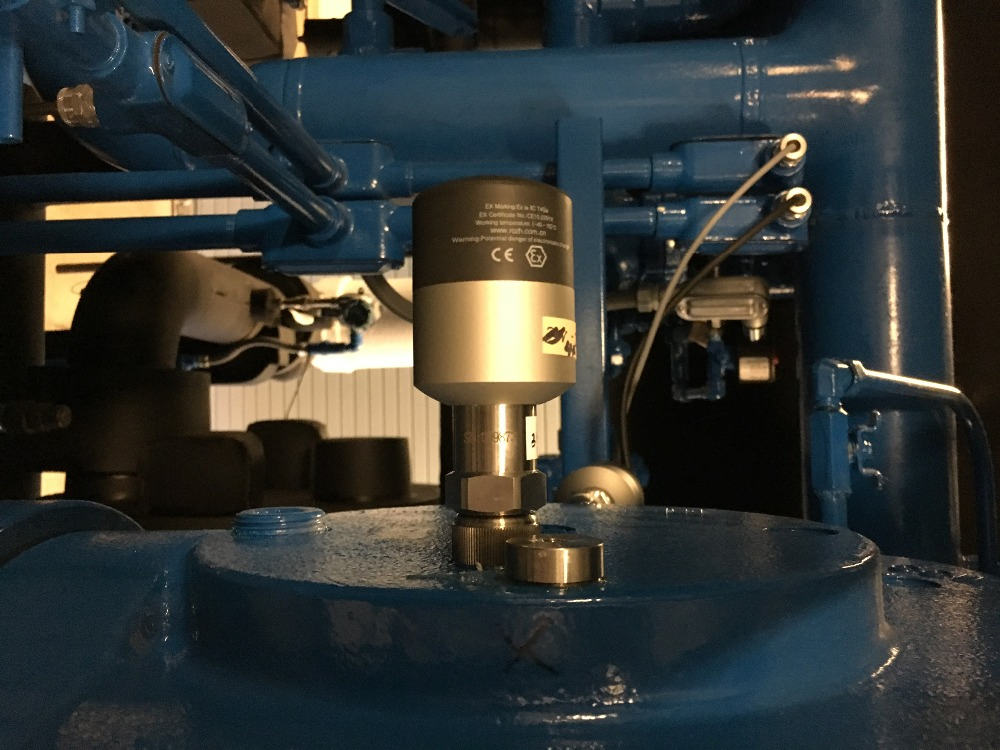

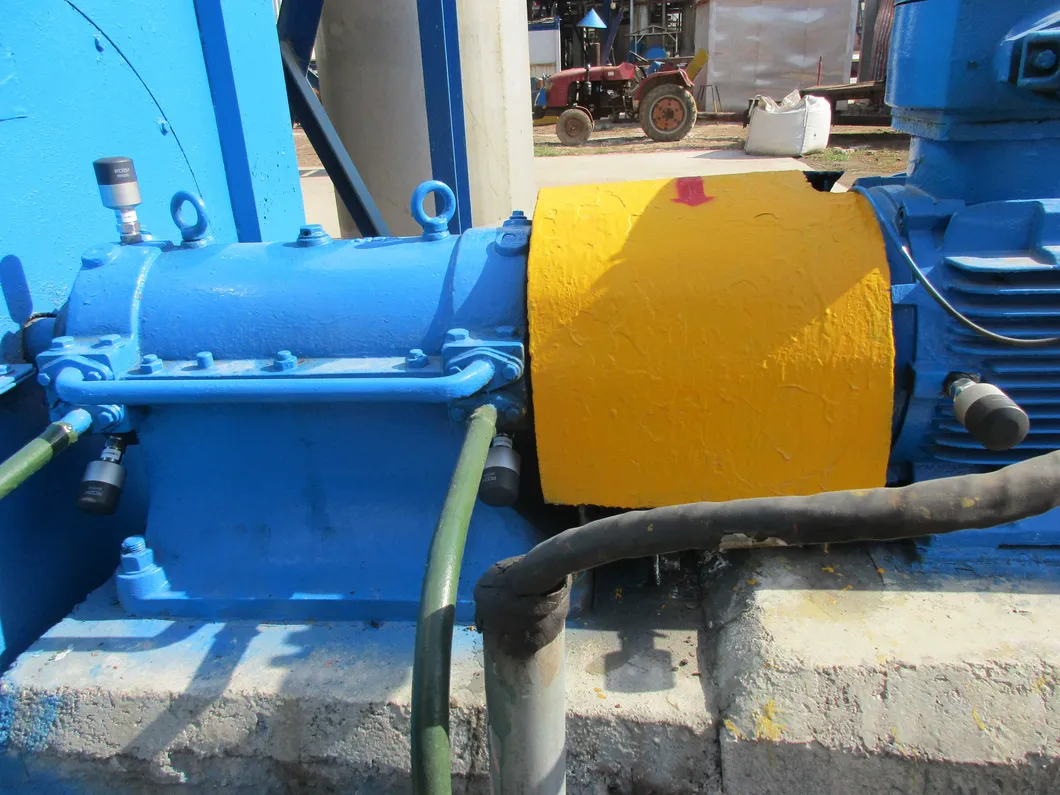

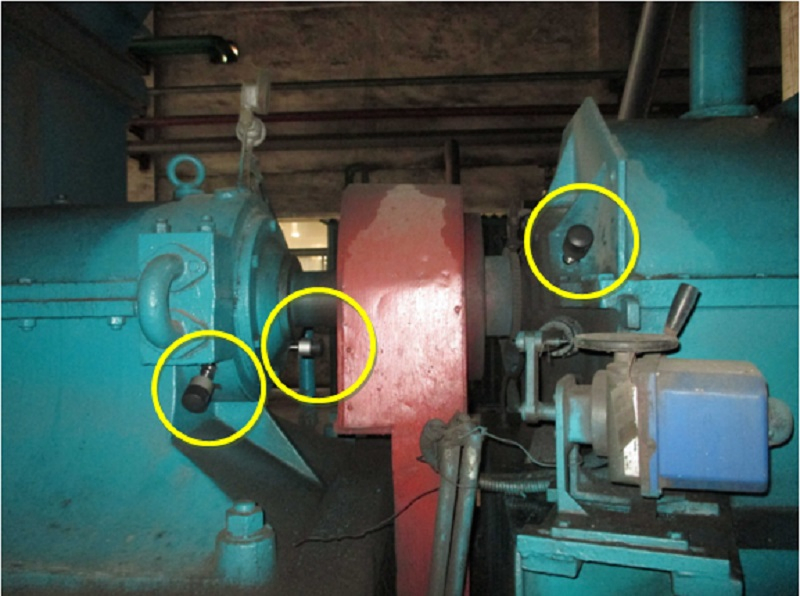

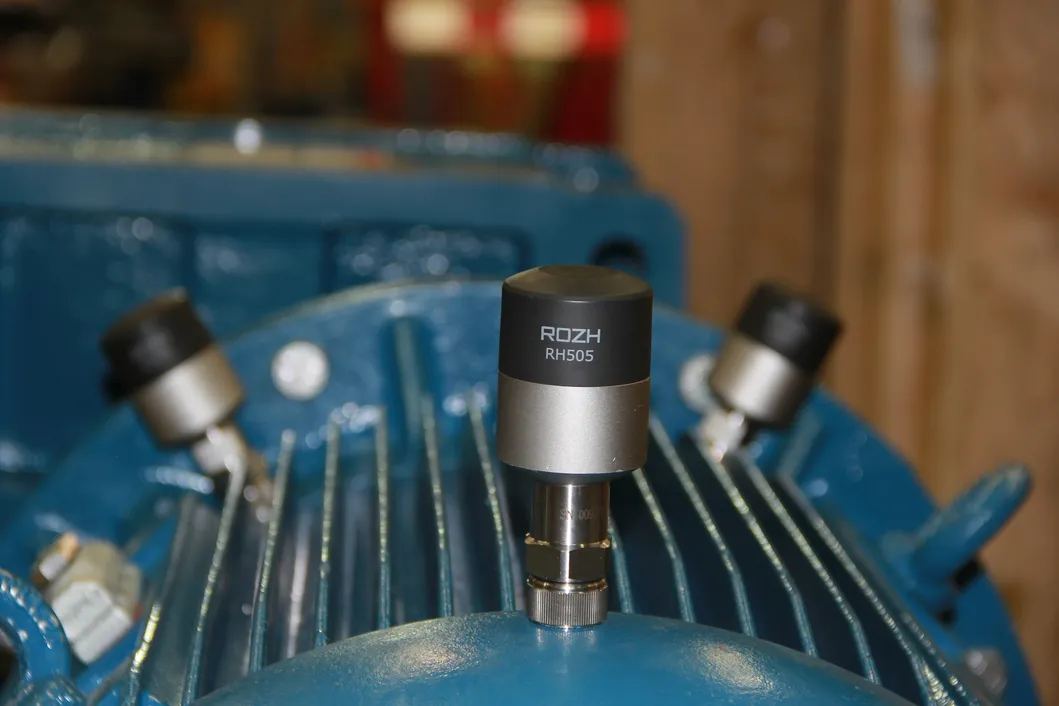

●Secure installation with magnet base and M6 bolt
●Four in one sensor: Synchronous collection of acceleration, velocity, displacement and temperature
Frequently Asked Questions

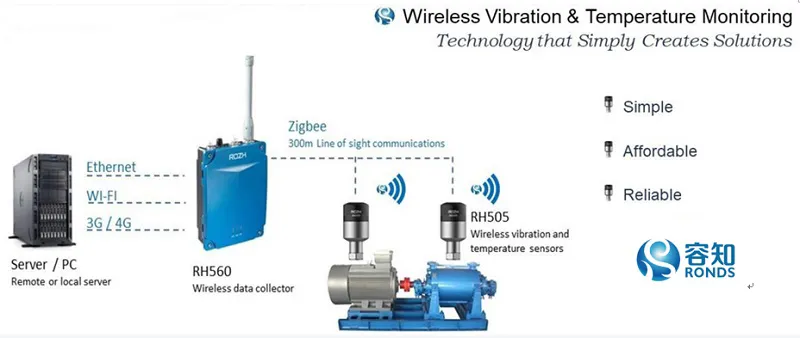

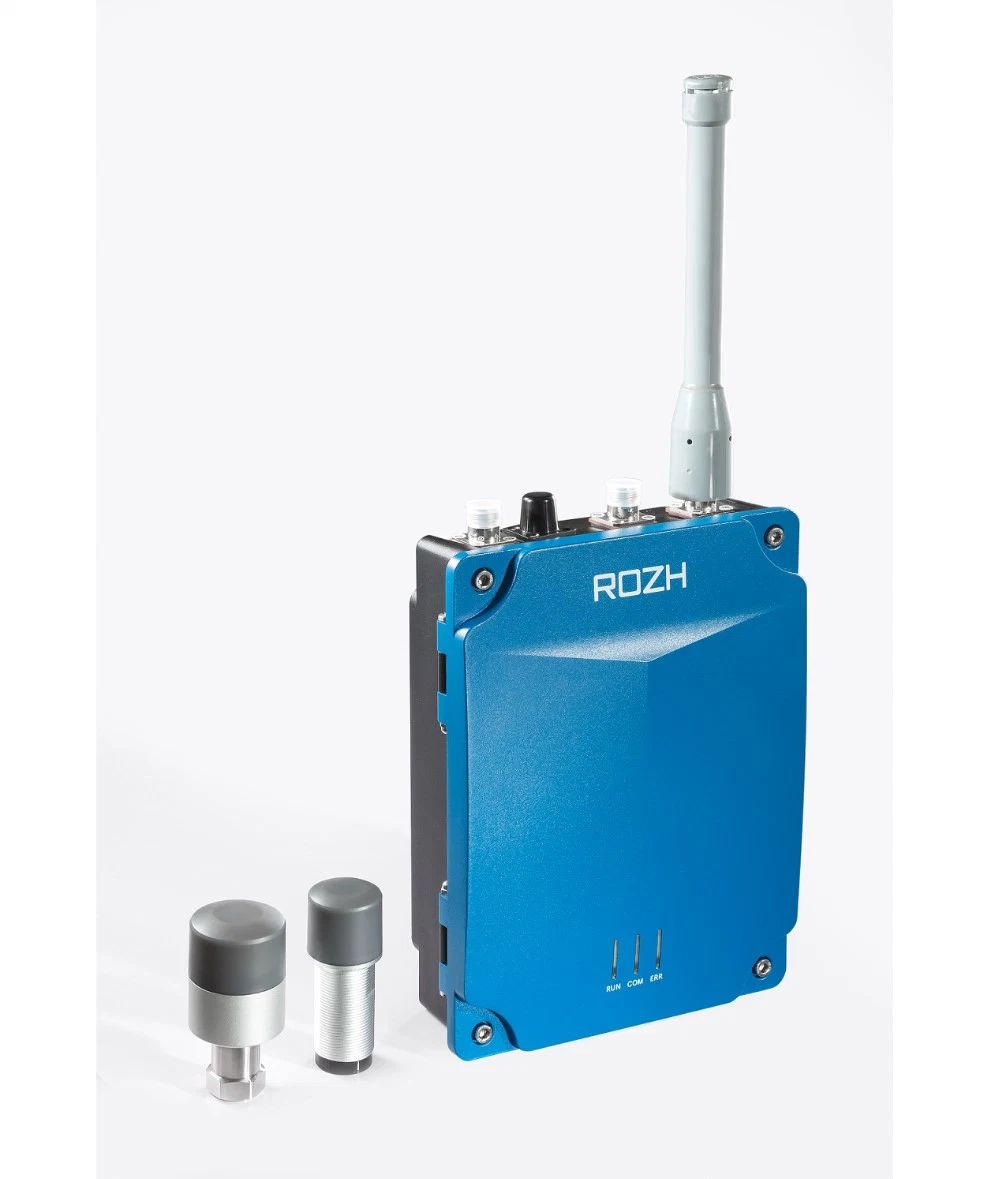

Q1: How many sensors can one RH560 collector manage?
A: One RH560 wireless data collector can connect 30 to 60 units of RH505 sensors depending on the site application conditions.
Q2: What is the battery life of the wireless sensors?

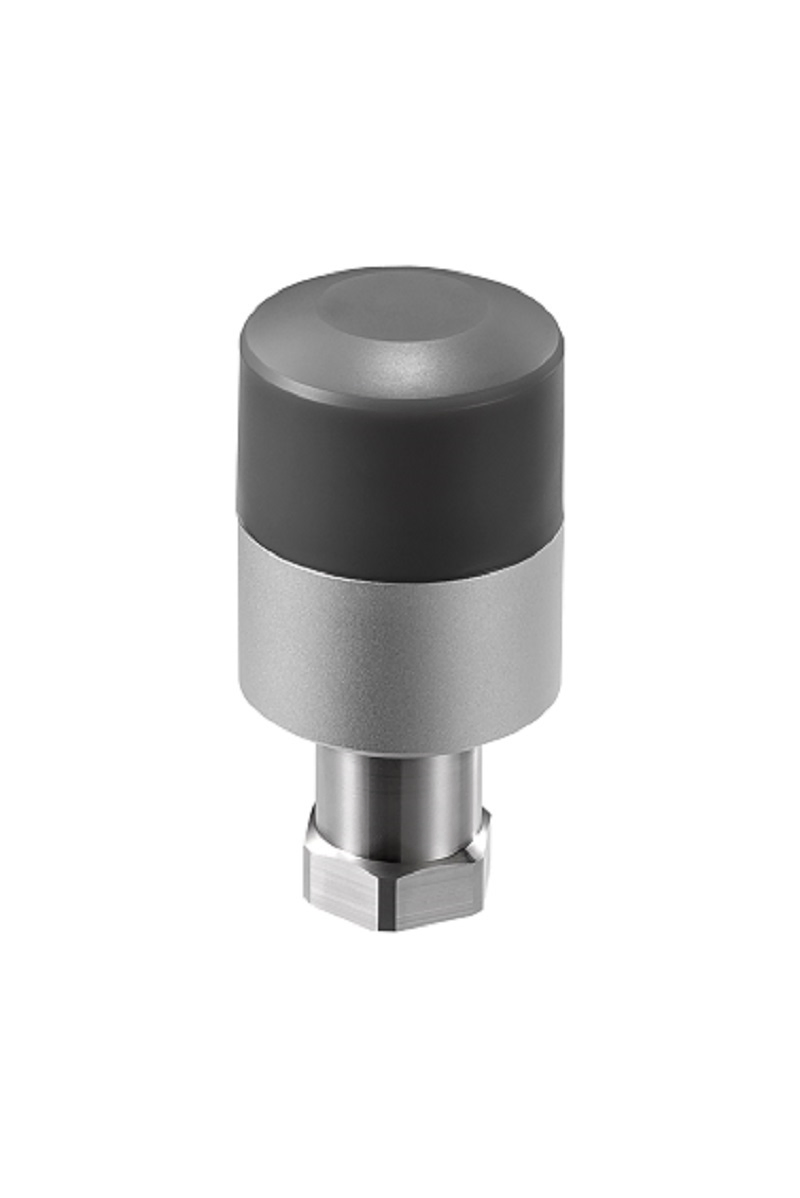

A: The RH505 wireless accelerometer features a long battery life of approximately 2 years.
Q3: Does the system support remote alerts?
A: Yes, the system provides intelligent alarm notifications via SMS and Email for both vibration and temperature data.
Q4: Is the equipment suitable for harsh industrial environments?
A: Absolutely. The sensors are IP67 rated and the data collector is IP66 rated, with a working temperature range of -40 to 70 ºC.
Q5: Can the RH505 sensor collect multiple types of data?
A: Yes, it is a four-in-one integrated sensor that synchronously collects acceleration, velocity, displacement, and temperature.
Q6: What communication protocol does the system use?
A: The system utilizes 2.4GHz IEEE 802.15.4 wireless communication for stable and efficient data transmission.
