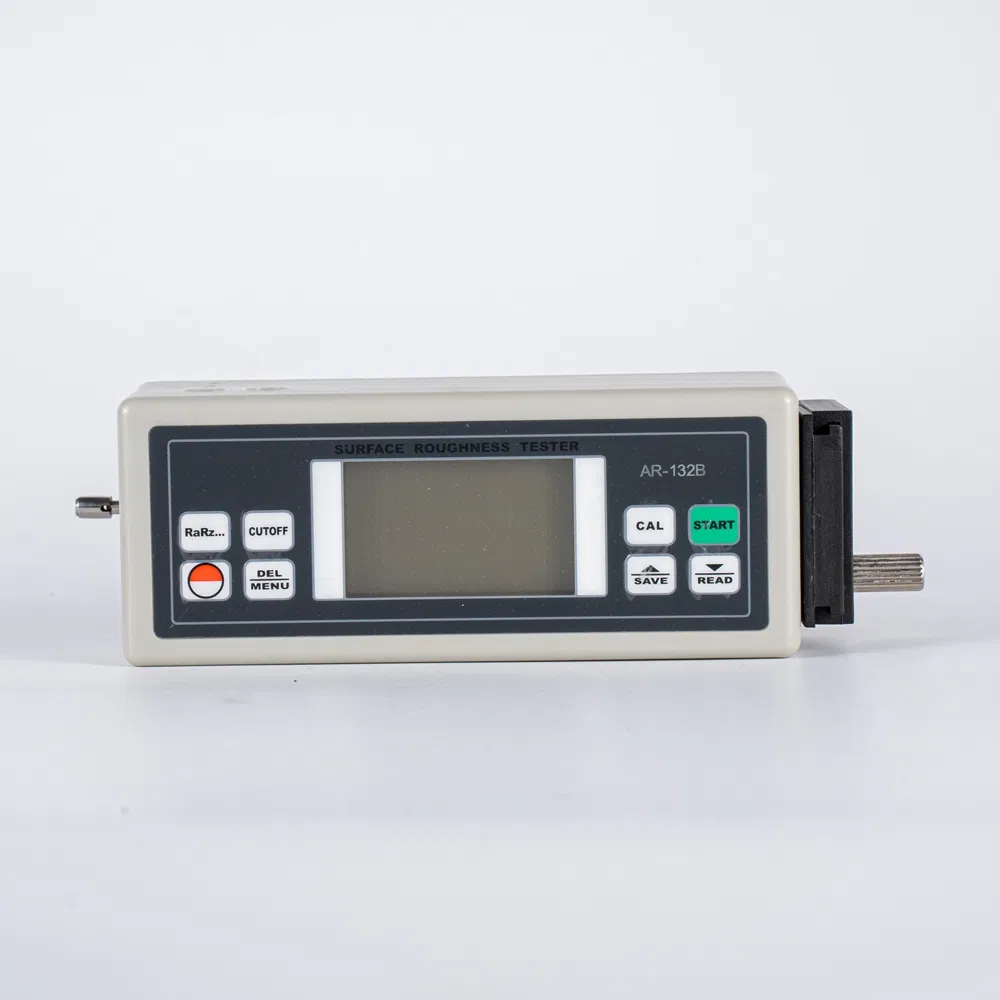

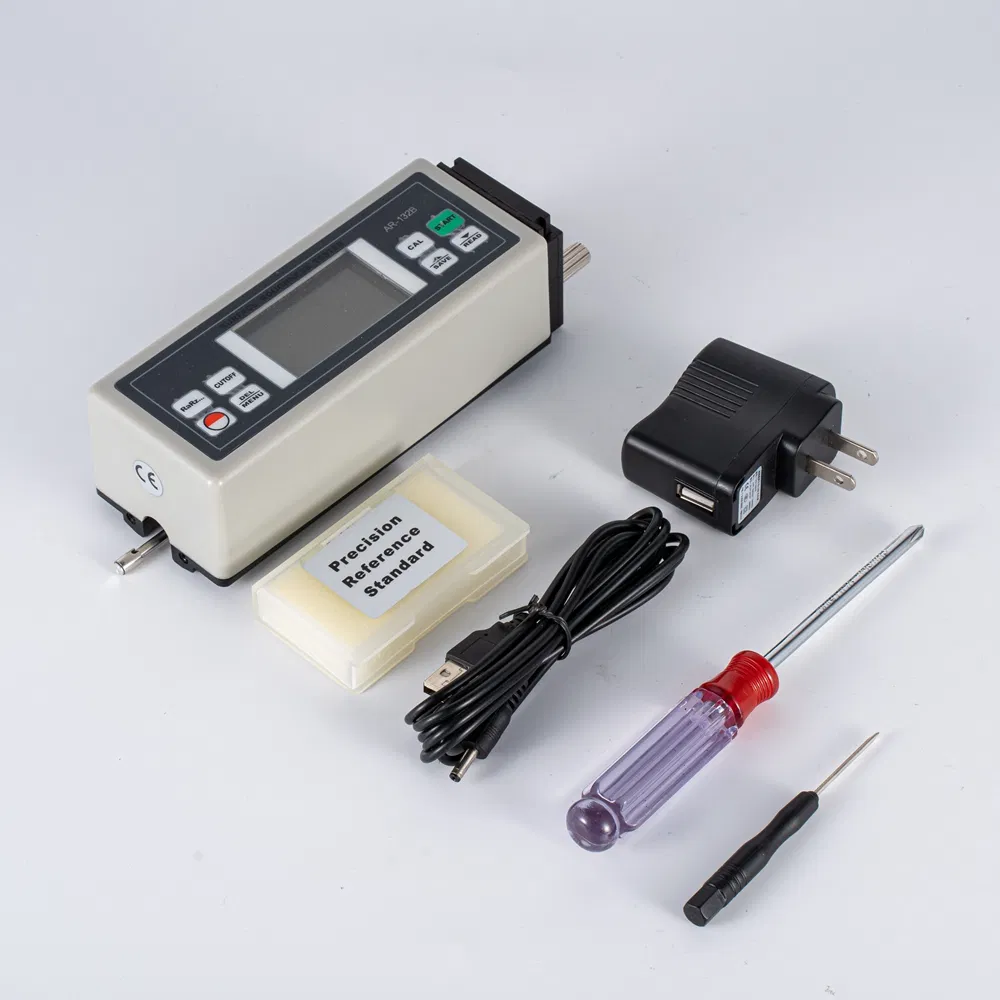

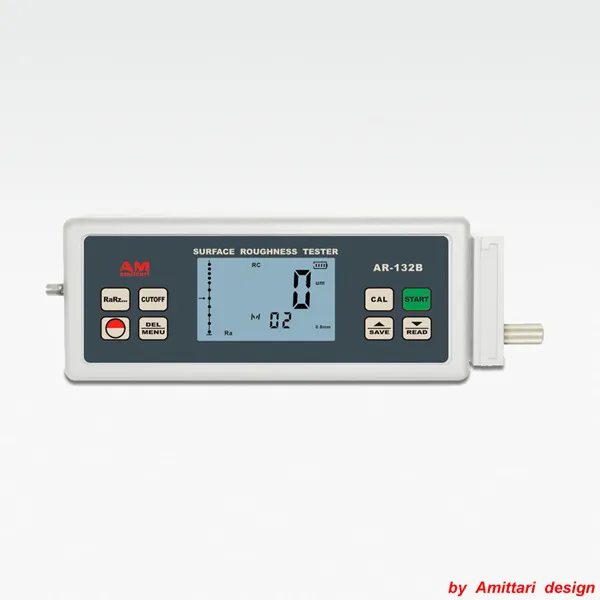

The Surface Roughness Tester is widely used in production sites to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.
- Compatible with four standards: ISO, DIN, ANSI and JIS.
- Multiple parameter measurement: Ra, Rz, Rq, Rt.
- Highly sophisticated inductance sensor for precision.
- Four wave filtering methods: RC, PC-RC, GAUSS and D-P.
- Built-in high capacity lithium-ion rechargeable battery.
- Metric / Imperial Conversion and data memory for 7 groups.
- USB and Bluetooth data output options available.
Frequently Asked Questions
What surface roughness parameters can this device measure?
The tester can measure four key parameters: Ra, Rz, Rq, and Rt, covering most industrial measurement requirements.
Is the AR-132B compatible with international standards?
Yes, it is fully compatible with four major international standards: ISO, DIN, ANSI, and JIS.
How long does the battery last and is it rechargeable?
The device features a built-in high-capacity lithium-ion rechargeable battery and includes a control circuit to manage charging.
Can I export measurement data to a computer?
Yes, the device supports USB data output for PC connection. Bluetooth data output is also available as an optional accessory.
What materials is the sensor probe made of?

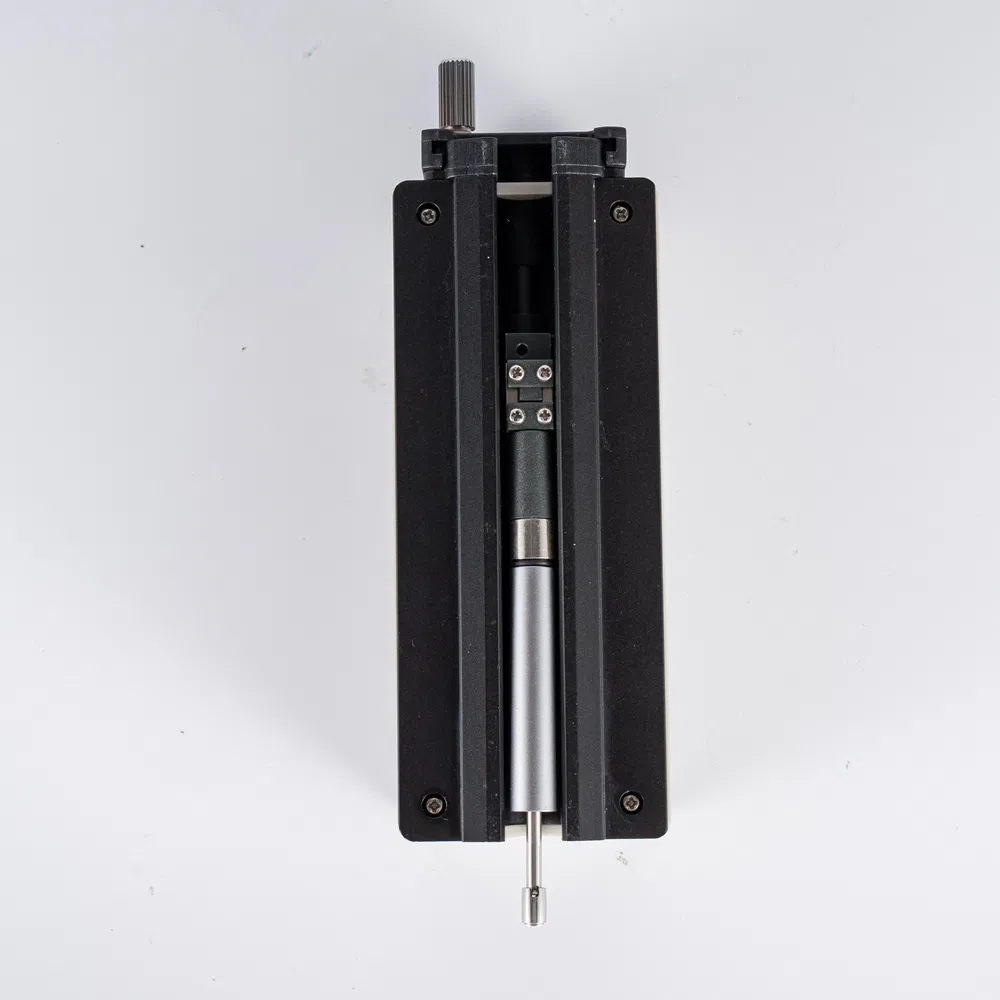

The probe uses a highly sophisticated diamond tip with a radius of 5μm for durable and accurate performance.
Can the tester store measurement results?
The instrument can memorize 7 groups of measurement results and their corresponding conditions for later review or download.
