Product Description

Basic Specifications
Model NO.
AR-132B
Type
Roughness Tester
Parameters
Ra, Rz, Rq, Rt
Accuracy
Not More Than ±10%
Display
Digital
Power Source
Built-in Rechargeable Li-ion Battery
Weight
420 g
Dimensions
140x52x48 mm

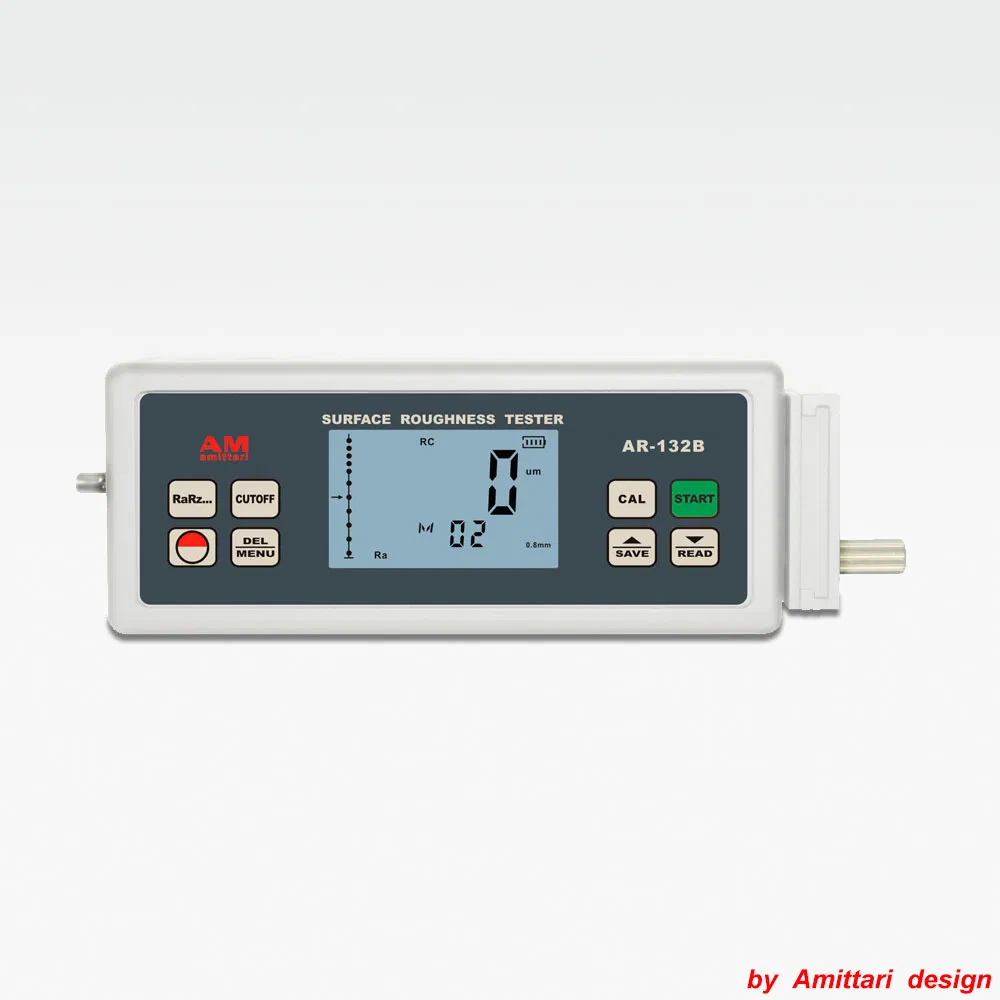

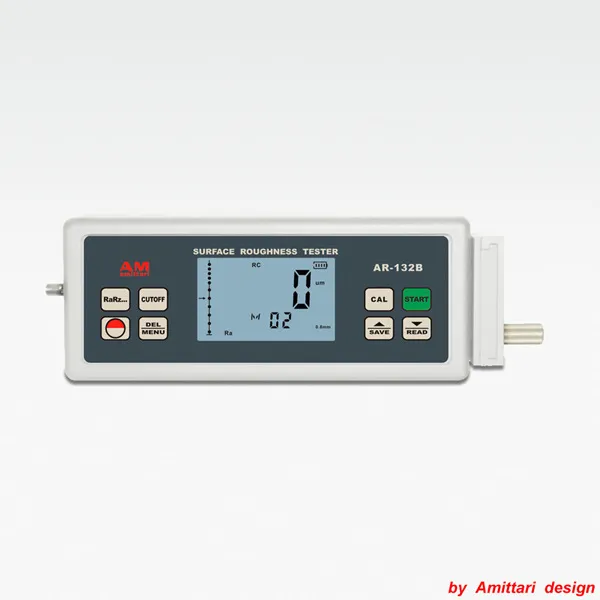

Surface Roughness Measuring Instrument AR-132B
Product Description

The Surface Roughness Tester is widely used in production sites to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions, and clearly display all measurement parameters.

✓Compatible with ISO, DIN, ANSI, and JIS standards.
✓Multiple parameter measurement: Ra, Rz, Rq, Rt.
✓Highly sophisticated inductance sensor with diamond probe.
✓Four wave filtering methods: RC, PC-RC, GAUSS, and D-P.
✓Built-in high capacity lithium-ion rechargeable battery.
✓Memory storage for 7 groups of measurement results.
✓Metric/Imperial conversion and USB/Bluetooth data output.
✓Small, lightweight, and easy to operate manually.
Technical Parameters
Measurement Item Specifications
Measuring Range Ra, Rq 0.005~16.00 um / 0.020~629.9 uinch
Rz, Rt 0.020~160.0 um / 0.078~6299 uinch
Resolution 0.001μm, 0.01μm, 0.1μm
Probe Details Radius / Material 5μm / Diamond
Measurement Force 4mN (0.4gf)
Angle 90°
Cutoff Length 0.25mm, 0.8mm, 2.5mm
Evaluation Length 1~5L optional
Driving Speed Vt: 0.135mm/s - 1mm/s (varies by sampling length)
Packing & Accessories

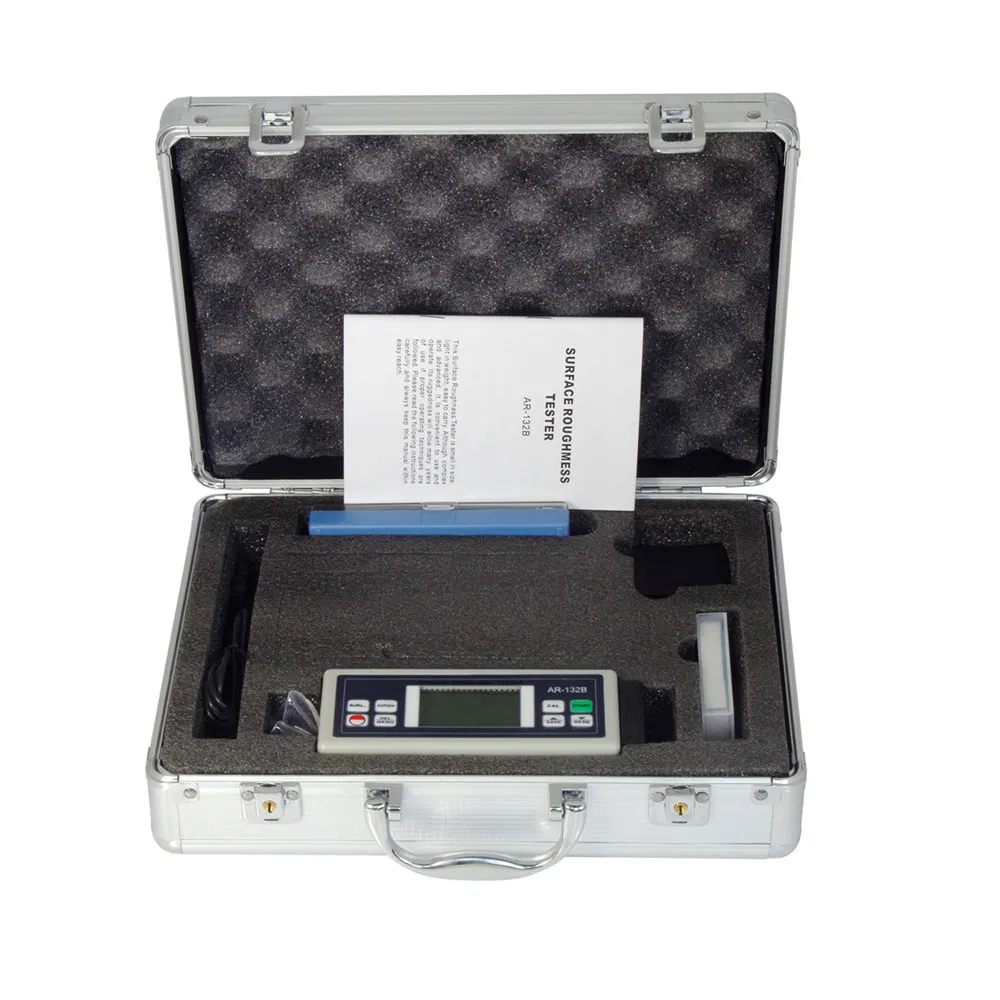

Standard Accessories:

  • Main Unit
  • Standard Boilerplate & Sensor
  • Small Screwdriver

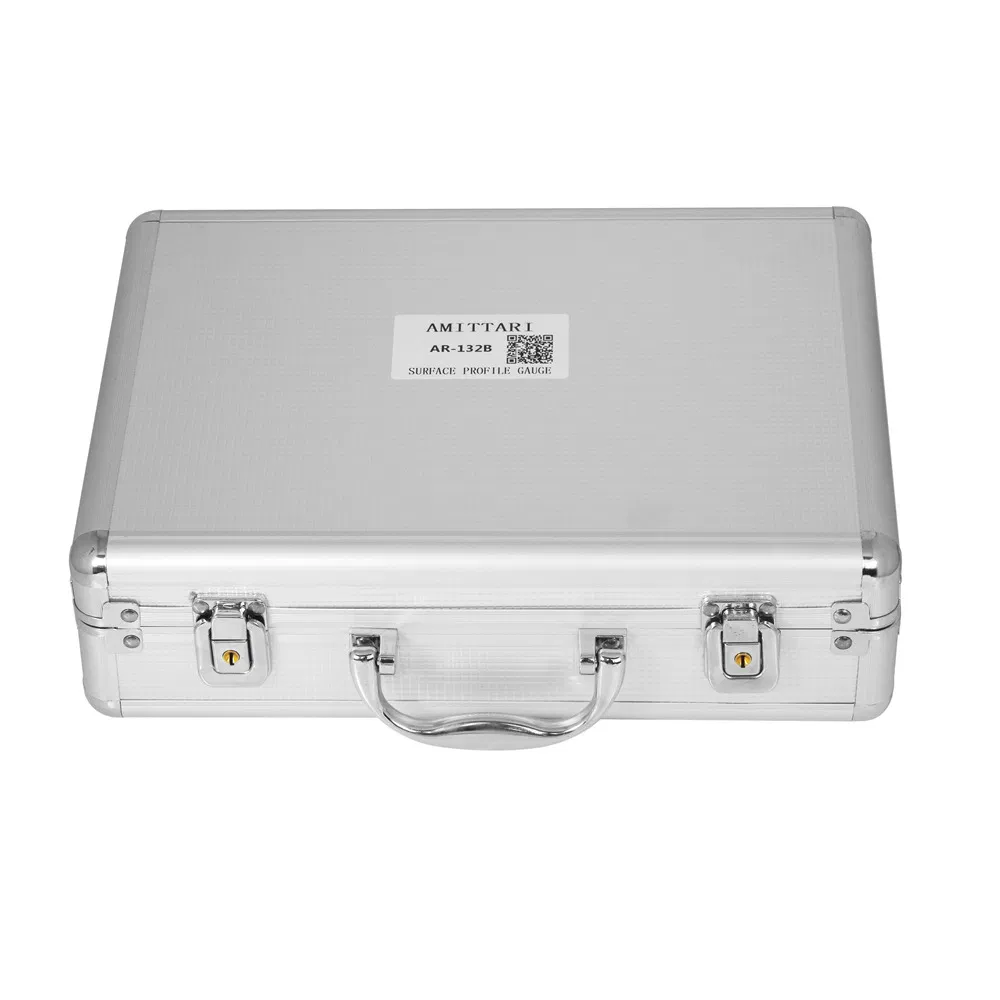

  • Portable Aluminum Carrying Case
  • Operation Manual

Optional Choices:

  • USB Data Output
  • RS-232 Data Output
  • Bluetooth™ Data Output

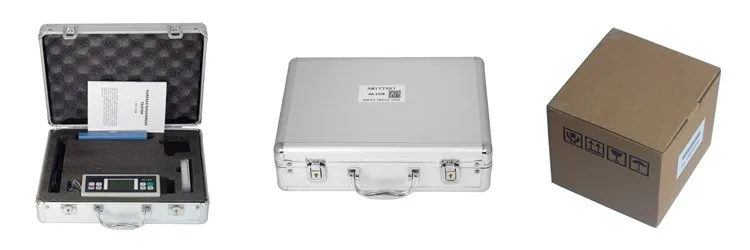

AR-132B Packaging
Frequently Asked Questions
Which international standards is the AR-132B compatible with?
It is fully compatible with four major international standards: ISO, DIN, ANSI, and JIS.
What surface roughness parameters can this device measure?
The instrument measures four key parameters: Ra, Rz, Rq, and Rt.
Does the device support data storage and PC connection?
Yes, it can memorize up to 7 groups of measurement results and supports USB or Bluetooth data output for PC connection.
What type of sensor and probe does it use?
It features a highly sophisticated inductance sensor with a 5μm diamond probe for high-precision measurements.
How is the device powered?
It uses a built-in high-capacity rechargeable lithium-ion battery with integrated control circuits.
Is there a choice for wireless data transmission?
Yes, Bluetooth data output is available as an optional accessory, supporting distances from 10 to 100 meters.
