| Model NO. | HZG-40x/40/50/60/80/100/120 | Pipe Material | Stainless Steel |
| Application | Industry | Type | Pipe Production Line |
| O.D. Range | 6-325 mm | Thickness | 0.38-10.0 |
| Welding | Laser/TIG/Plasma Welding | Production Speed | 1-15 M/Min |
| Control Type | PLC | Origin | China |

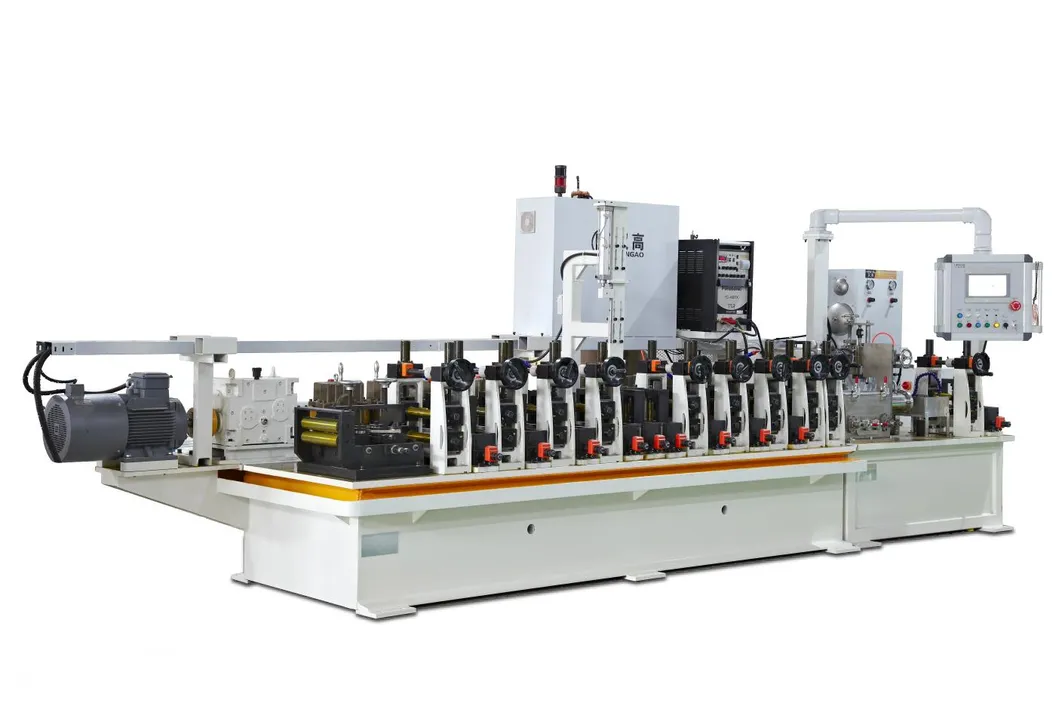

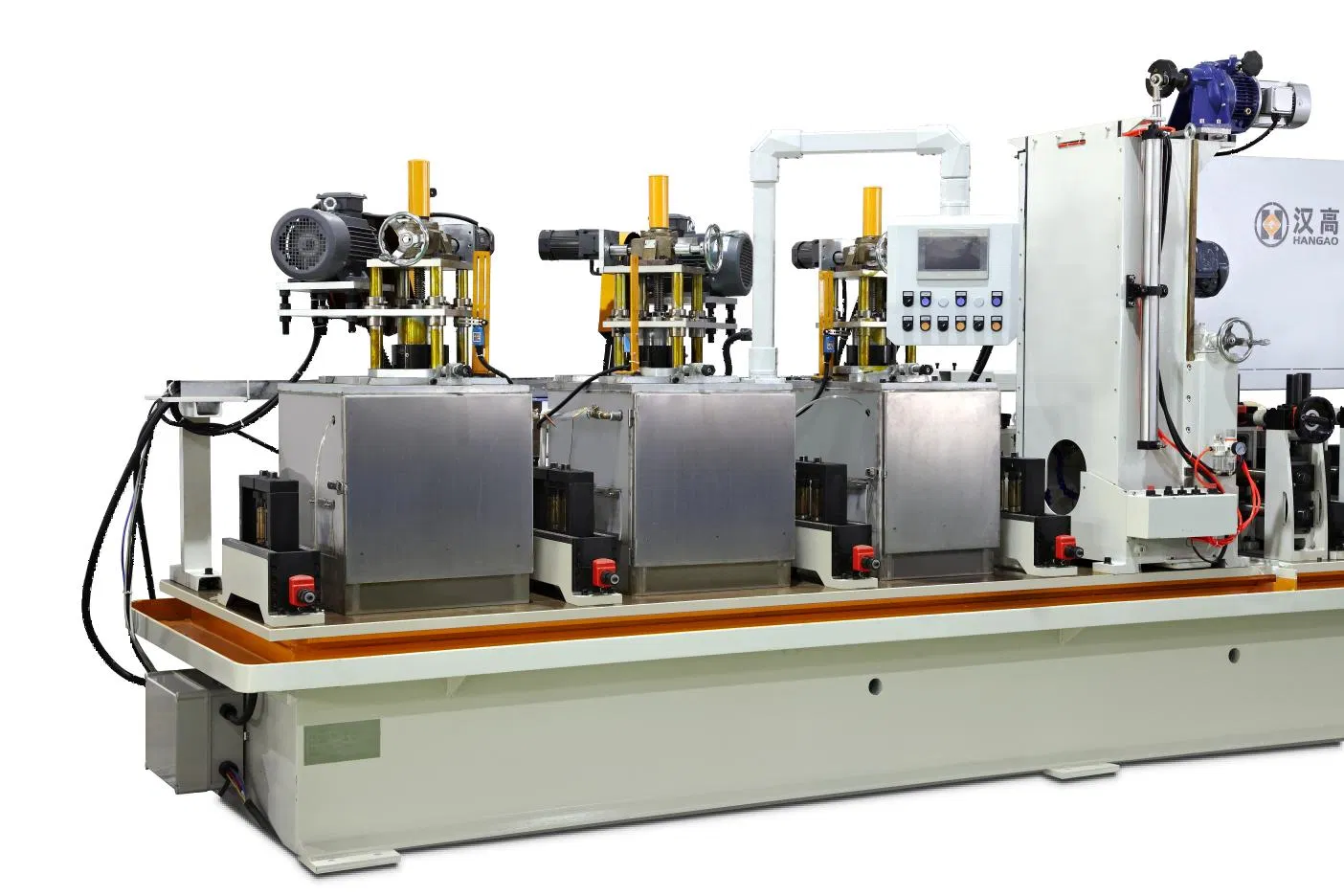

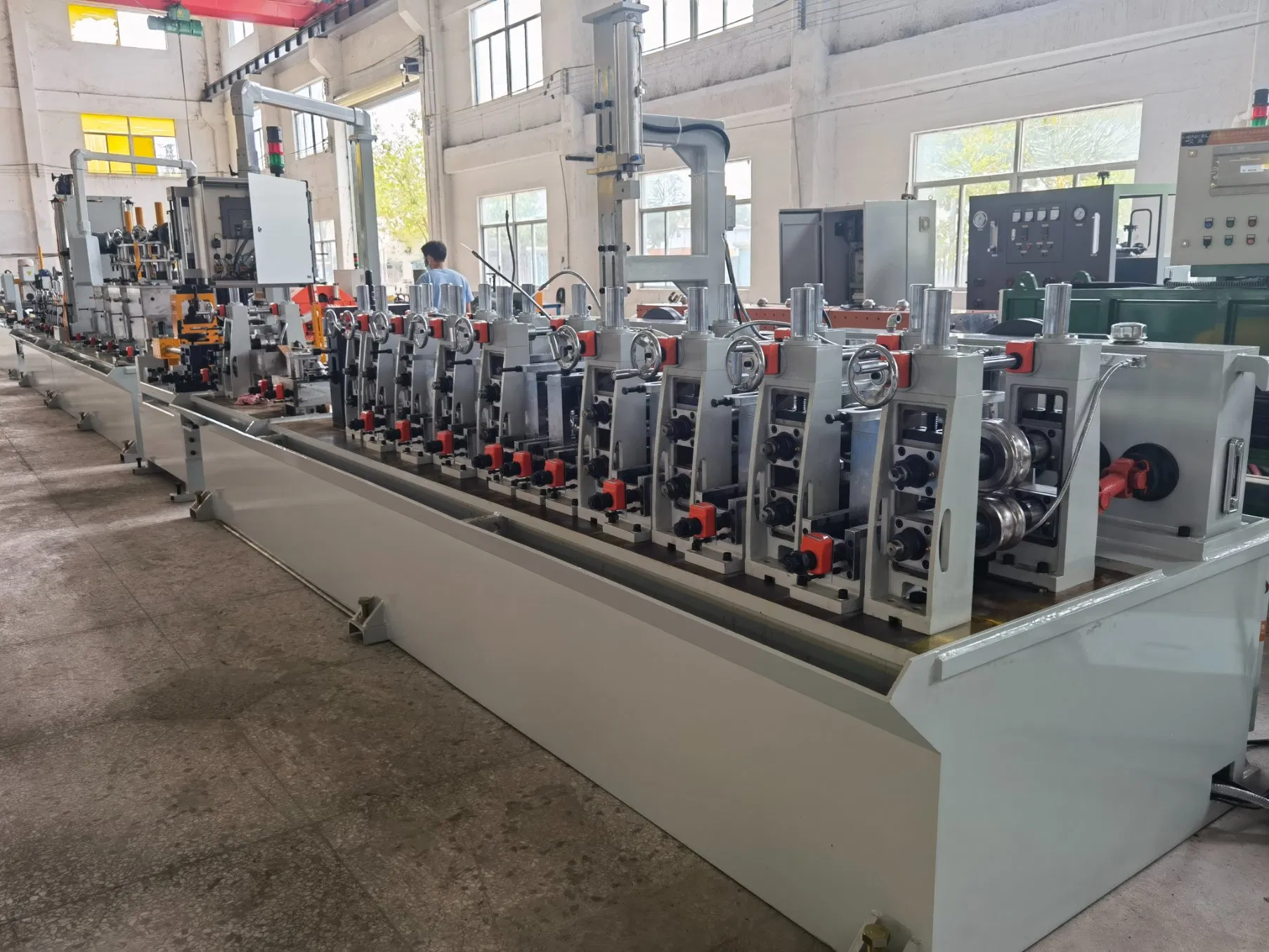

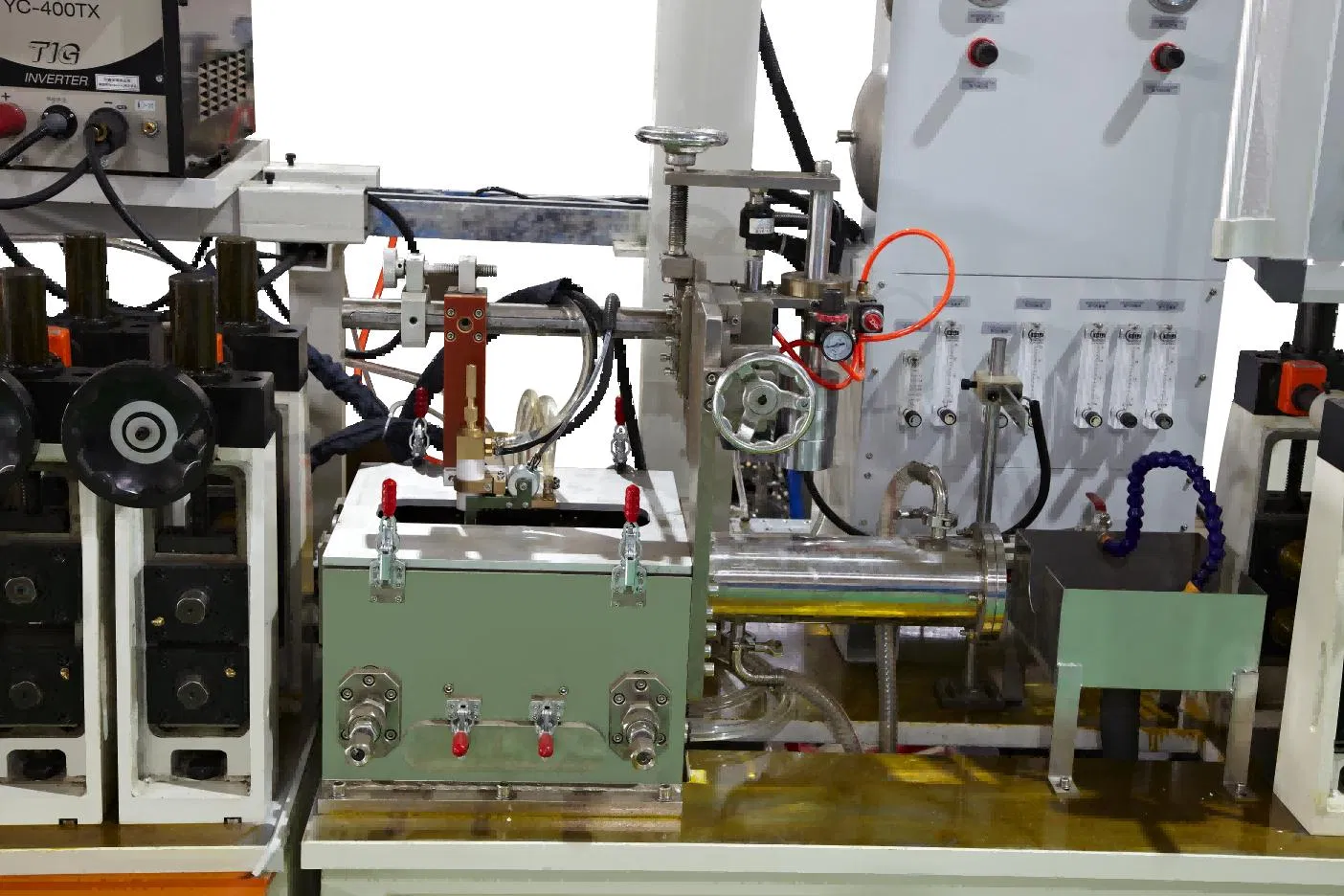

15m/Min Steel Water Pipe Production Line Duct Double Phase Steel Tube Making Machine
| Type | Material | Welding | O.D. (mm) | Thickness (mm) | Capacity | Power (KW) |
|---|---|---|---|---|---|---|
| HZG-40x | SST | TIG | 6-16 | 0.4-1.5 | Adjustable | 5.5 |
| HZG-40 | SST | TIG | 16-50.8 | 0.5-2.5 | Adjustable | 7.5 |
| HZG-50 | SST | TIG | 25.4-76 | 0.5-3.0 | Adjustable | 11 |
| HZG-60 | SST | TIG | 50.8-114 | 1.0-4.0 | Adjustable | 15 |
| HZG-80 | SST | TIG | 89-168 | 1.0-5.0 | Adjustable | 18.5 |
| HZG-100 | SST | TIG | 114-219 | 2.0-8.0 | Adjustable | 30 |
| HZG-120 | SST | TIG | 168-325 | 3.0-10.0 | Adjustable | 37 |
Main Configuration:

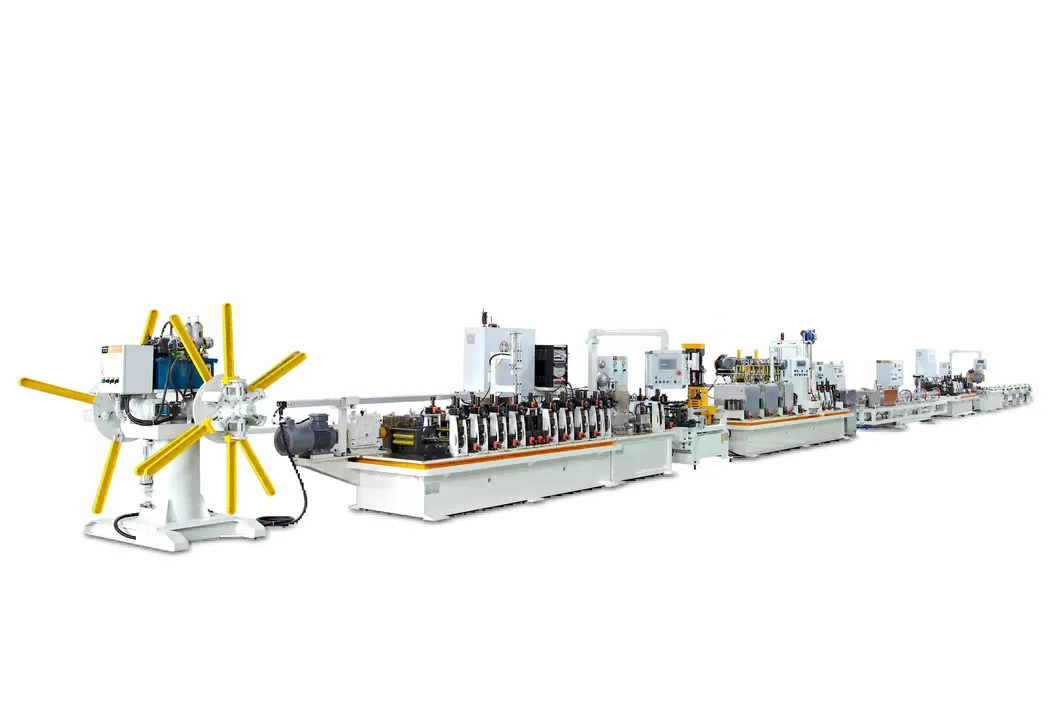

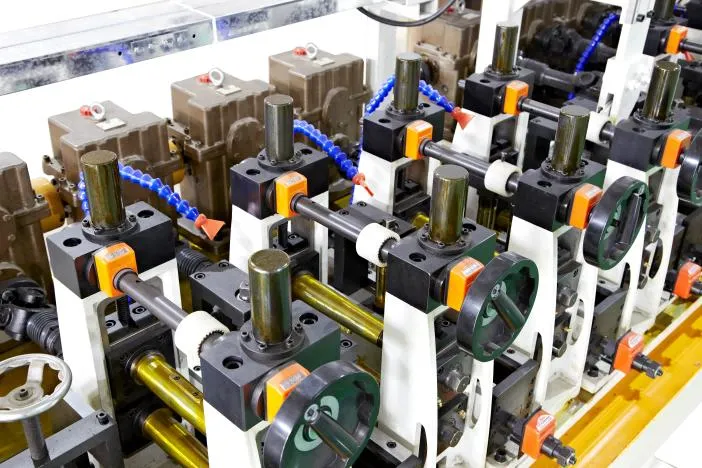

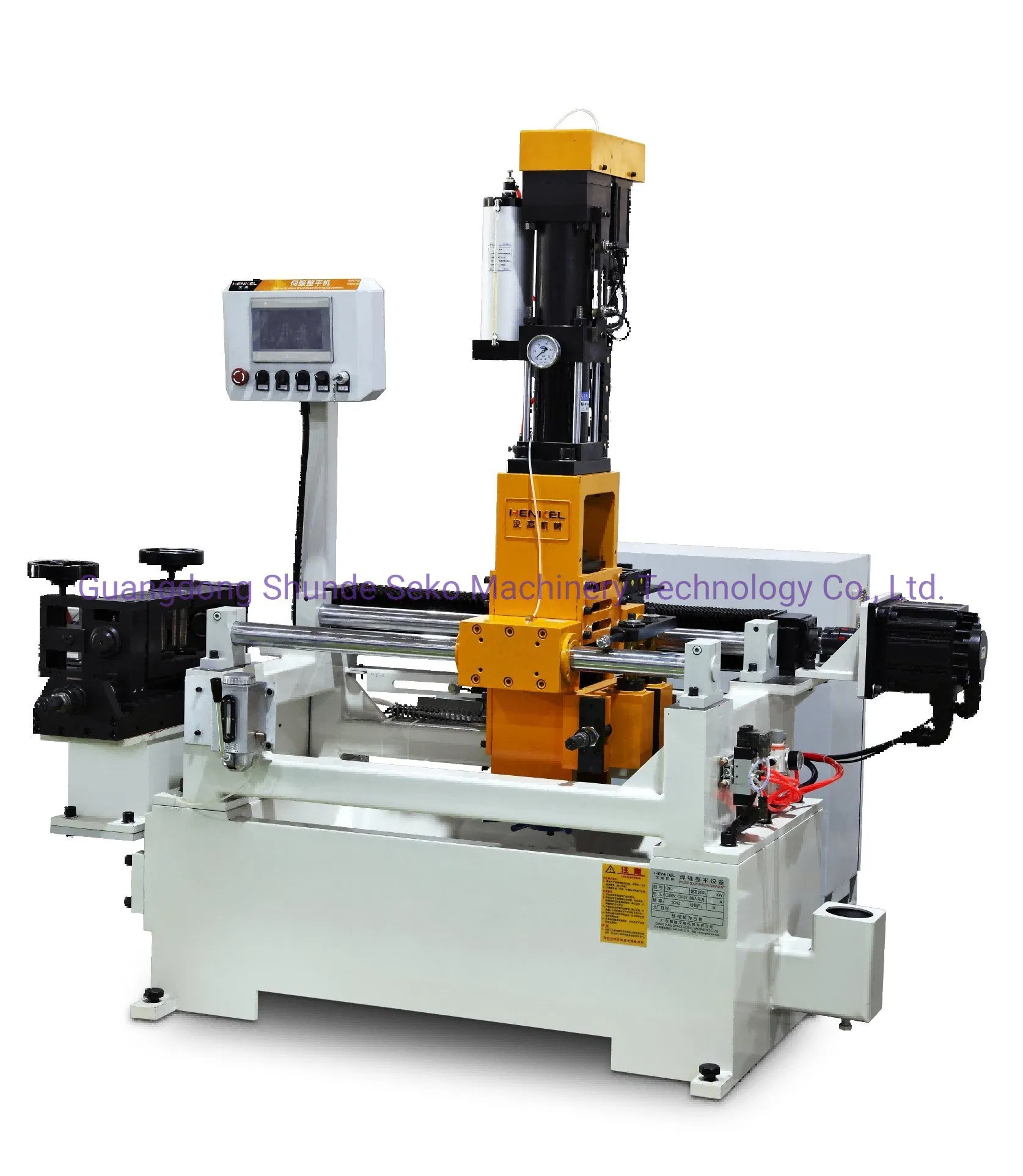

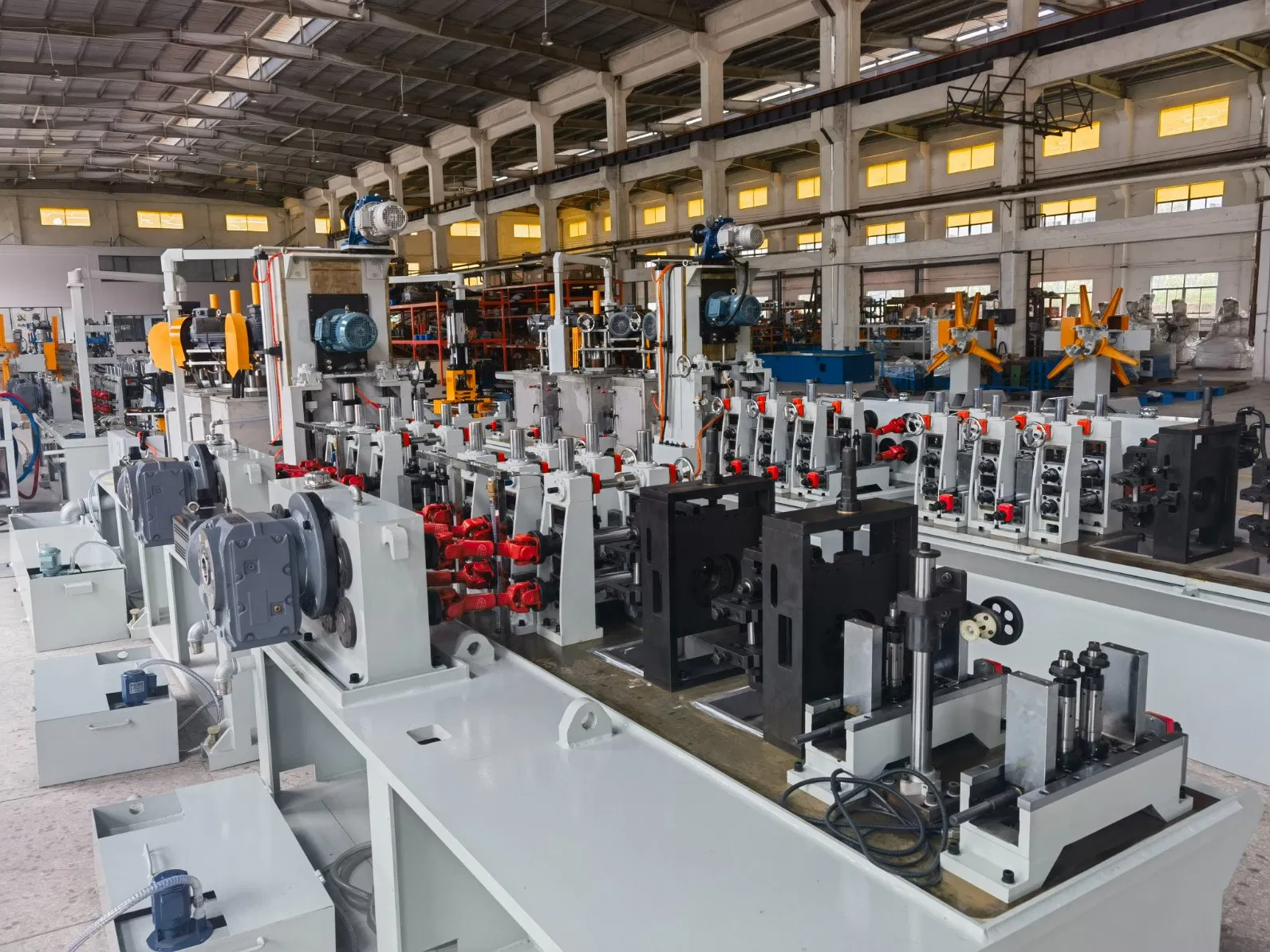

Uncoiler → Shearing butt welding → Storage → Rolling & welding → Seam leveling → Grinding → Initial sizing → Bright annealing → Final sizing → Servo cutting → Output table.

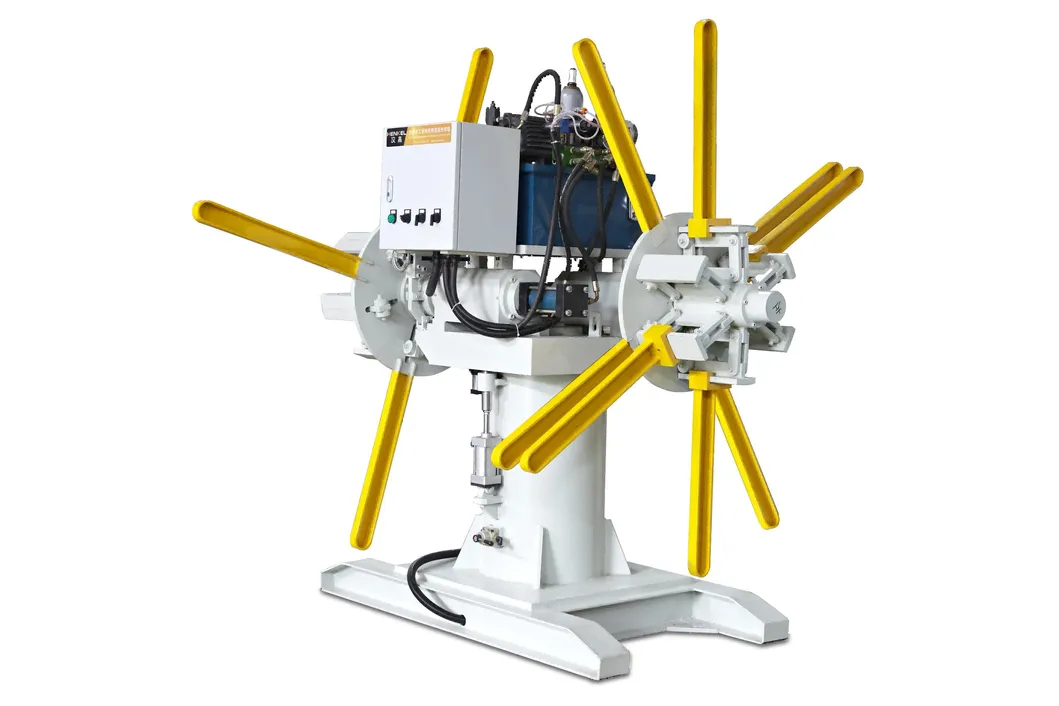

Support and uncoil steel strip coils with manual dual-axis expansion.
NTN bearings and heavy-duty turbine box for higher precision.
