Product Description

Basic Specifications

Model NO.

FGTP - 500

Cartridge Filter

Filtration Felt

Filter Type

Pocket Filter

Usage

Dust Filter, Air Filter

Grade

Medium Filter

Shape

Round Bag

Environment

High-Temperature

Weight

500 GSM

Thickness

1.96 mm

Capacity

50000 PCS/Month

Product Description

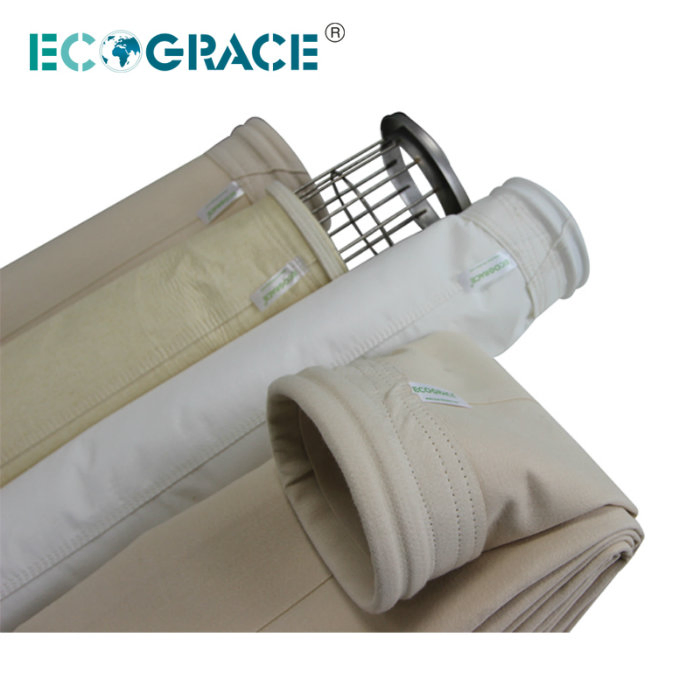

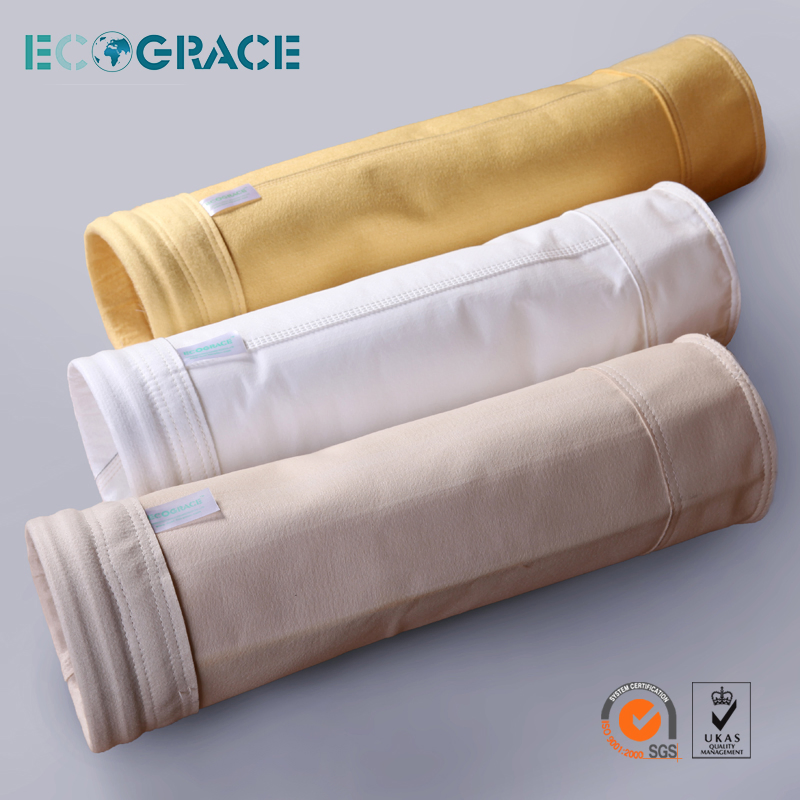

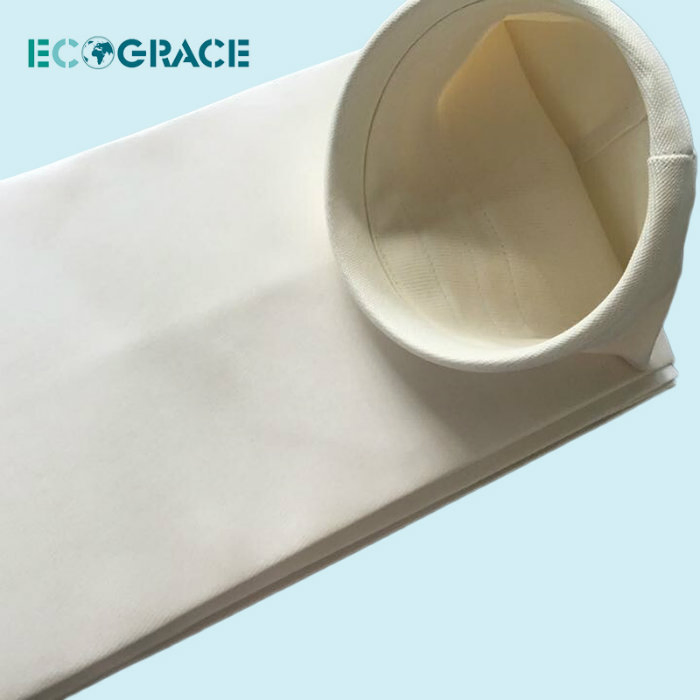

Steel Iron Scrap Smelting Furnace Dust Extraction System Filters

All types of dust filter bags for dust collector systems. Various coatings and finishing on the fabrics can be applied to either side to enhance cleaning efficiencies and prolong service life.

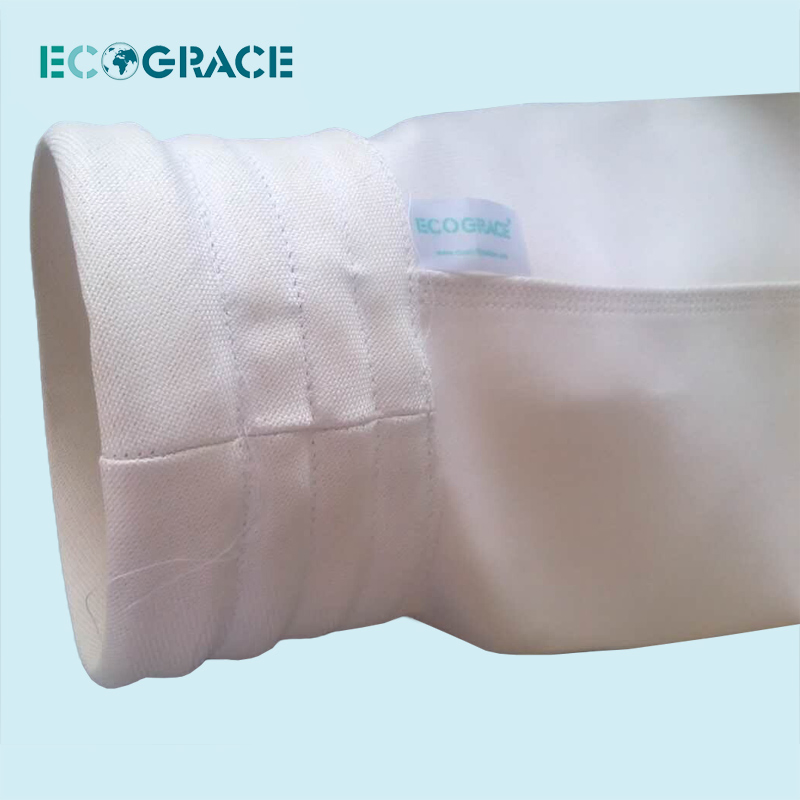

Dust filter bags are carefully fabricated and sized to ensure ease of installation. Generally, they are designed to be mounted firmly into place with a snap band, corded cuff, or clamp to ensure a dust-tight seal.

Specialized in air filter bags for different production process dust filtration in steel mills and plants. These industrial-grade fabric filters are made from heavy-duty materials for process filtration or pollution control.

Media	Weight(g/m2)	Material Scrim	Thickness (mm)	Temp (Cont/Max)	Surface Treatment
Polyester filter felt	600g/m2	PE/PE	1.9	135 / 150	Singed on one side
Polyester, Oil & Water Repellent	550g/m2	PE/PE	1.7	135 / 150	Singed, Oil/Water repellent finish
PPS High-Temp Resistant	550g/m2	PPS/PPS	1.7	190 / 200	Singed on one side
PTFE High-Temp Resistant	700g/m2	PTFE/PTFE	1.2	250 / 280	Singed, Corrosion prevention
P84 High-Temp Resistant	550g/m2	P84/P84	2.8	240 / 260	Singed, Corrosion prevention

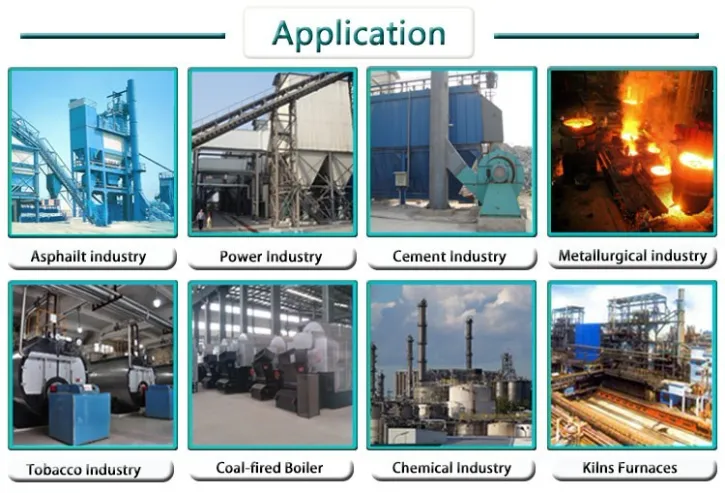

Applications

Iron, steel mill, ferroalloy plant, refractory plant, foundry, and power plant flue gas dedusting systems.
Waste incinerators, coal-fired boilers, and fluid fluidized bed boiler flue gas filters.
Asphalt mixing, building materials, cement, ceramic, lime, and gypsum production sites.
Aluminum electrolysis, smelting of lead, tin, zinc, copper, and other rare metals; superfine material recovery.

Smelting furnace Dust Extraction Filters

Frequently Asked Questions

Q1: What materials are used for high-temperature filtration? A: We utilize PPS, PTFE, P84, and Polyimide materials which can withstand temperatures ranging from 190°C to 280°C.

Q2: Can the filter bags handle moisture and oil? A: Yes, we provide specialized finishes like oil and water repellent treatments specifically for environments with high humidity or oily mist.

Q3: What industries are these filter bags suitable for? A: They are widely used in steel mills, cement plants, power generation, waste incineration, and non-ferrous metal smelting.

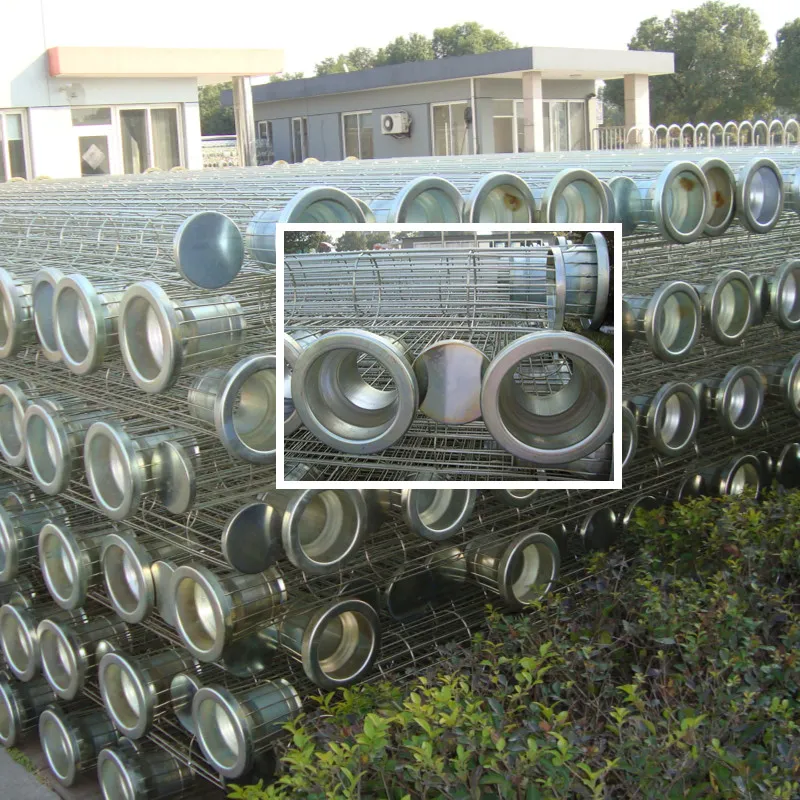

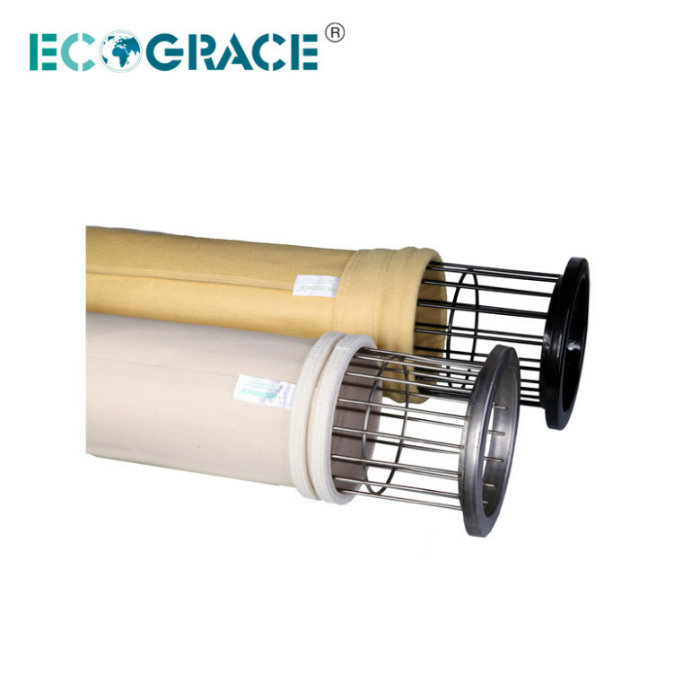

Q4: How is the sealing of the filter bag ensured? A: Bags are designed with snap bands, corded cuffs, or clamps to ensure a firm fit into the filter cage and a dust-tight seal.

Q5: What is the standard weight of the filter felt? A: The standard medium filter weight is 500-600 GSM, though specialized options are available depending on the application.

Q6: What surface treatments are available? A: Treatments include singeing on one or both sides, antistatic finishes, PTFE membrane lamination, and corrosion-resistant coatings.
