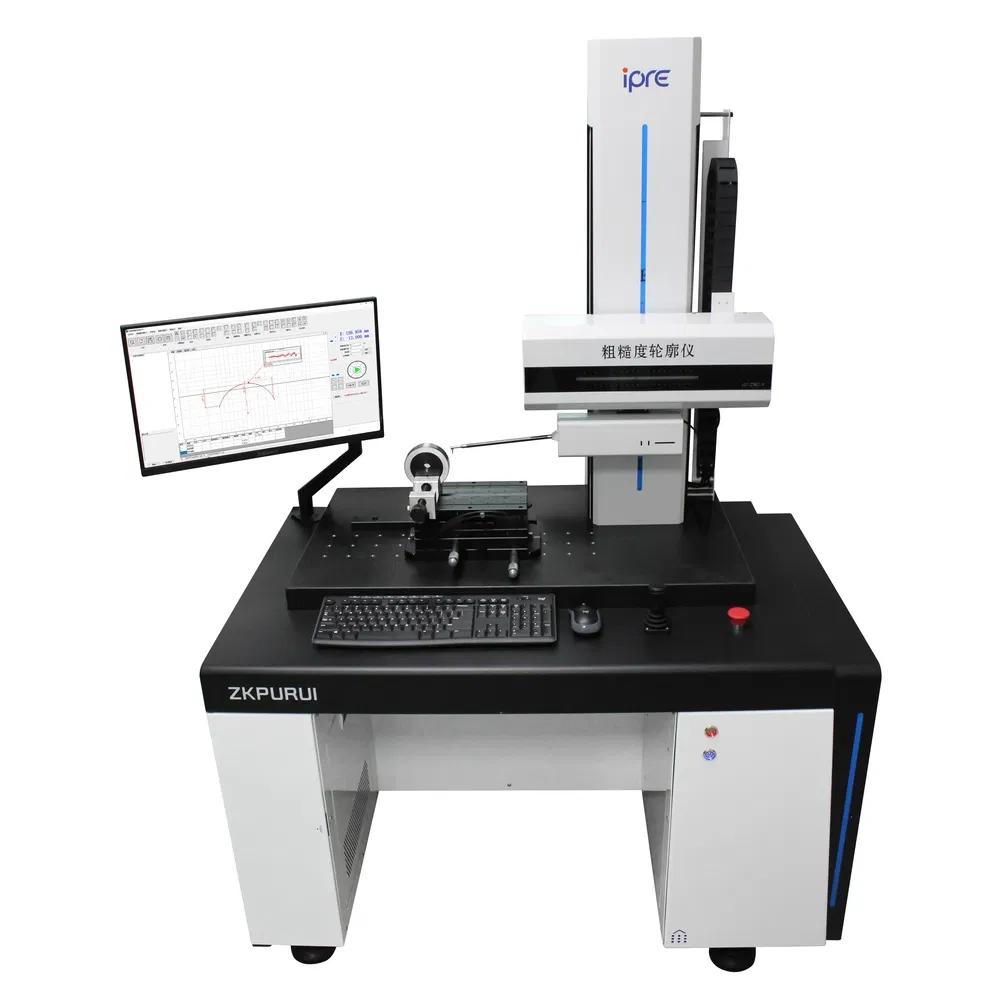

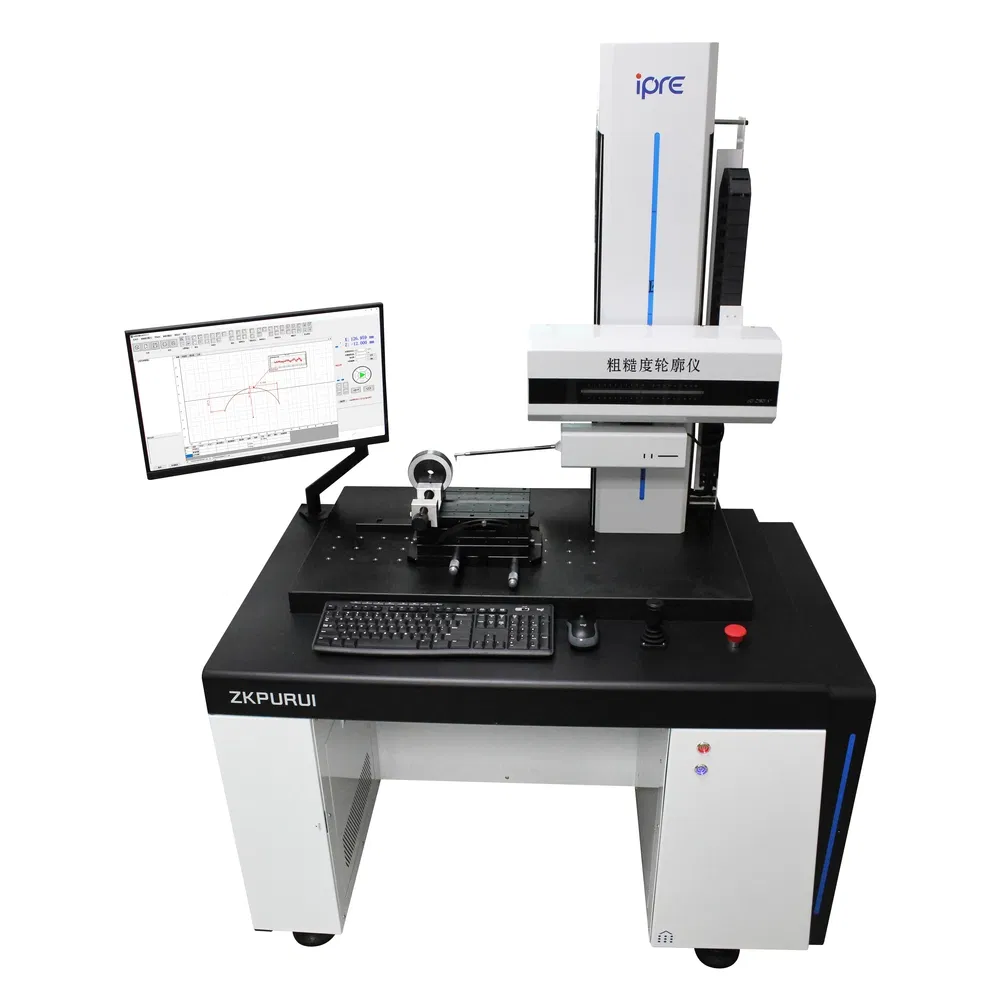

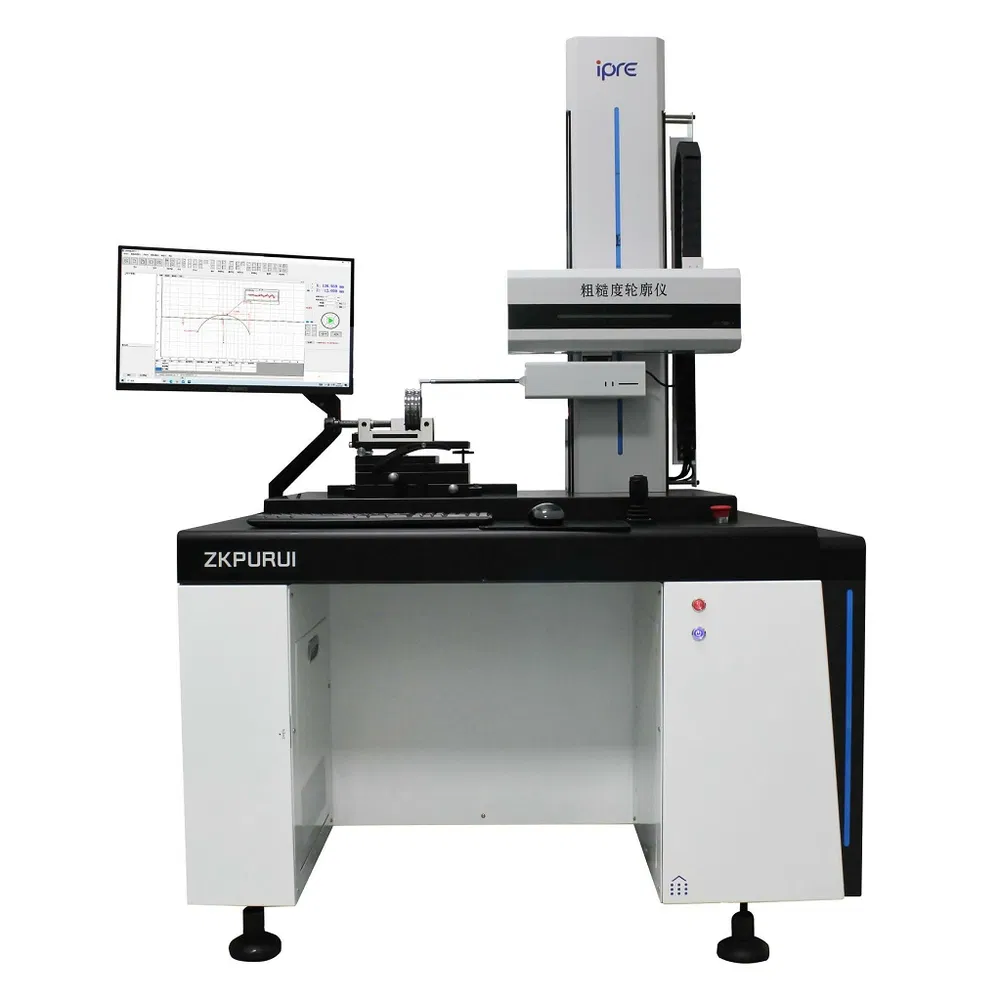

Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
1 / 5
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer
Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer

Stable High Resolution Ra150s Bench Top High-Accuracy Surface Profilometer

Customization: Available
Product Name: Surface Roughness Profilometer
Keywords: Roughness Contour Meter
Send Inquiry

Product Description

High-Accuracy Surface Profilometer
Basic Information
Model NO.RA150S
MaterialMetal
FeatureHigh Range, Accuracy, Resolution
ApplicationRoughness Value and Profile Test
PackageWooden Box
StandardInternational Standards
Capacity500 Sets
Product Description

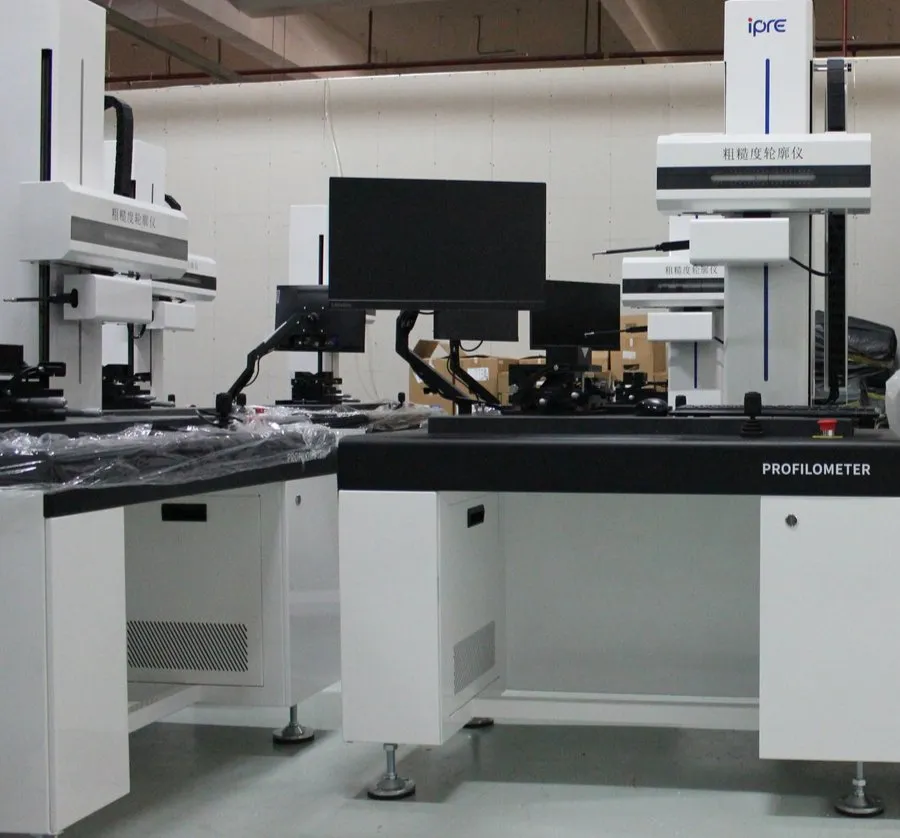

Roughness Profilometer

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE SOLUTION

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced system combines high-precision grating technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Equipped with a multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability for micron-level quality control.

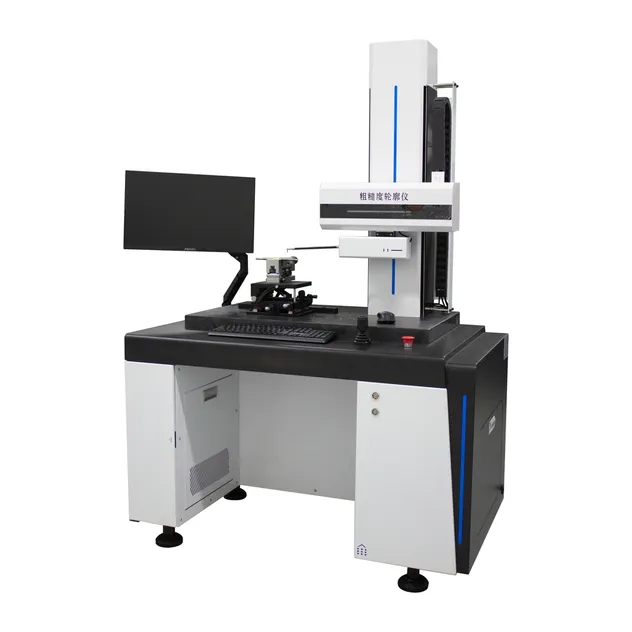

Detail 1
Detail 2
Detail 3
Technical Specifications
Project / Model RA150S
X-axis Guide Rail Moving accuracy ≤±(1+|0.02L|)μm
X-axis Grating Resolution 0.01μm
Date Sensor Resolution 0.001μm (Roughness test)
Linear precision ≤±(0.8+|0.05H|)μm
Straightness ≤0.5μm/100mm
Z1 Axis Test Range ±20mm (Full range)
Evaluation Parameters Ra, Rz, Rq, Rt, Rp, Rv, Rc, Wa, Wz, Wq, Wt, Pa, Pz, Pq, Pt, etc.
Sampling Length 0.08, 0.25, 0.8, 2.5, 8 (mm)
Power Supply 220V 50Hz, 0.5Kw
Instrument Weight About 350Kg
Key Features & Highlights

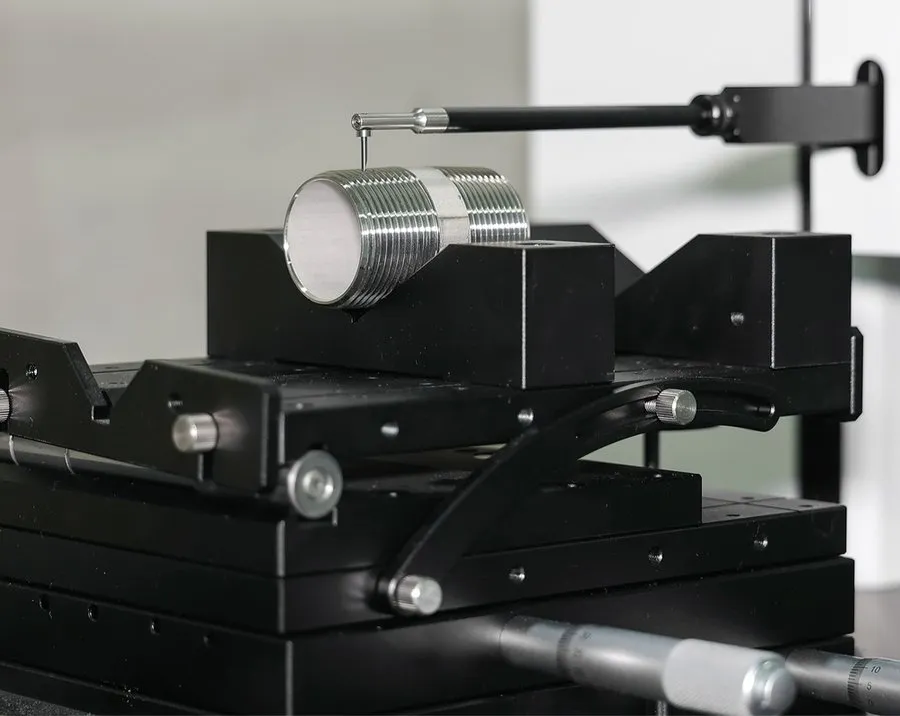

Grating System

High-Precision Grating System: Ensures exceptional measurement accuracy and repeatability for demanding analysis.

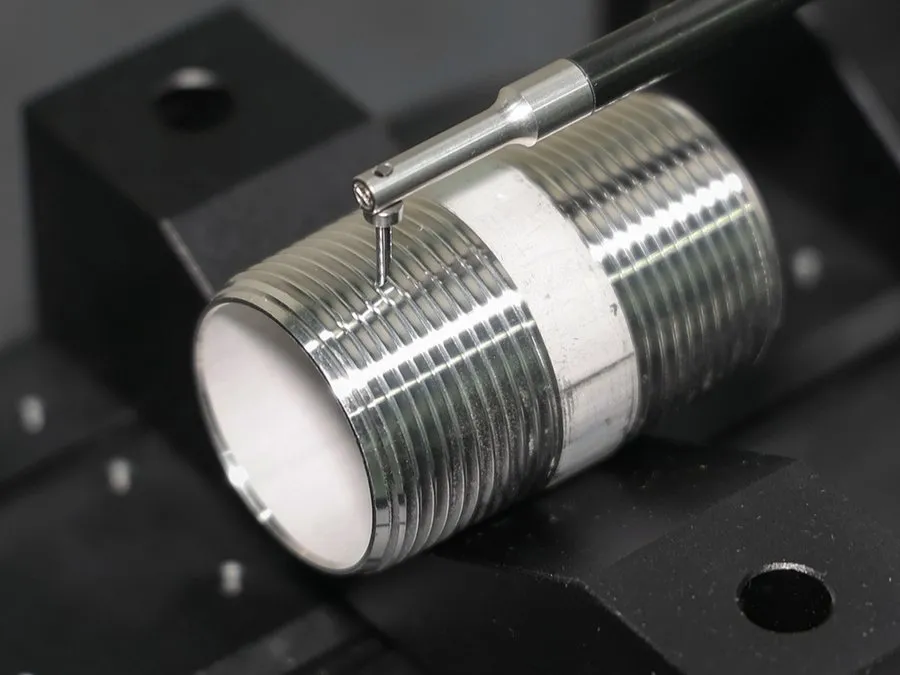

Surface Detection

High-Resolution Detection: Captures micro-level surface details for precise evaluation of roughness and profiles.

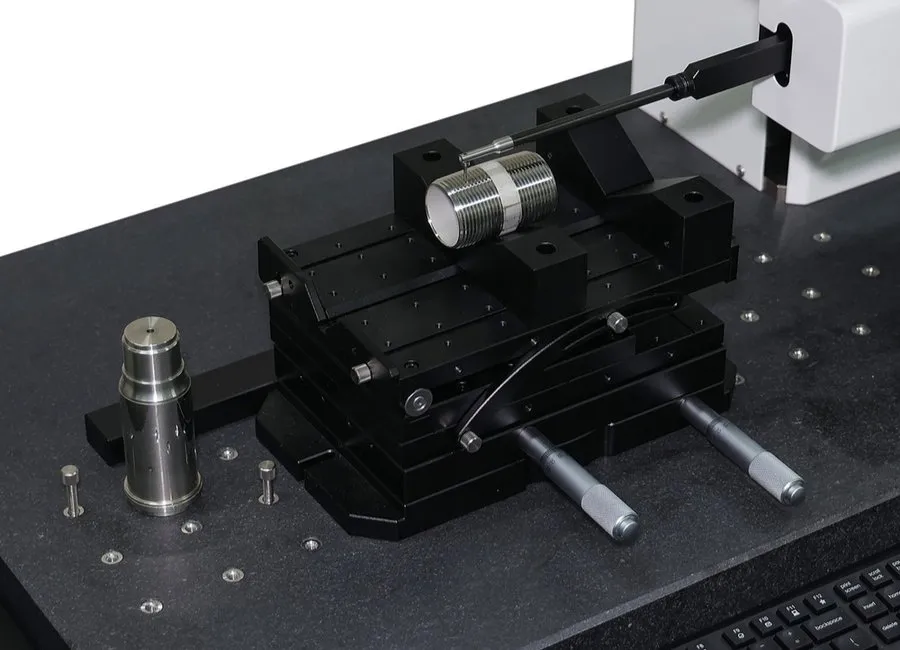

Linear Motor

Non-Contact Linear Motor: High-performance drive for smooth, vibration-free scanning and distortion-free results.

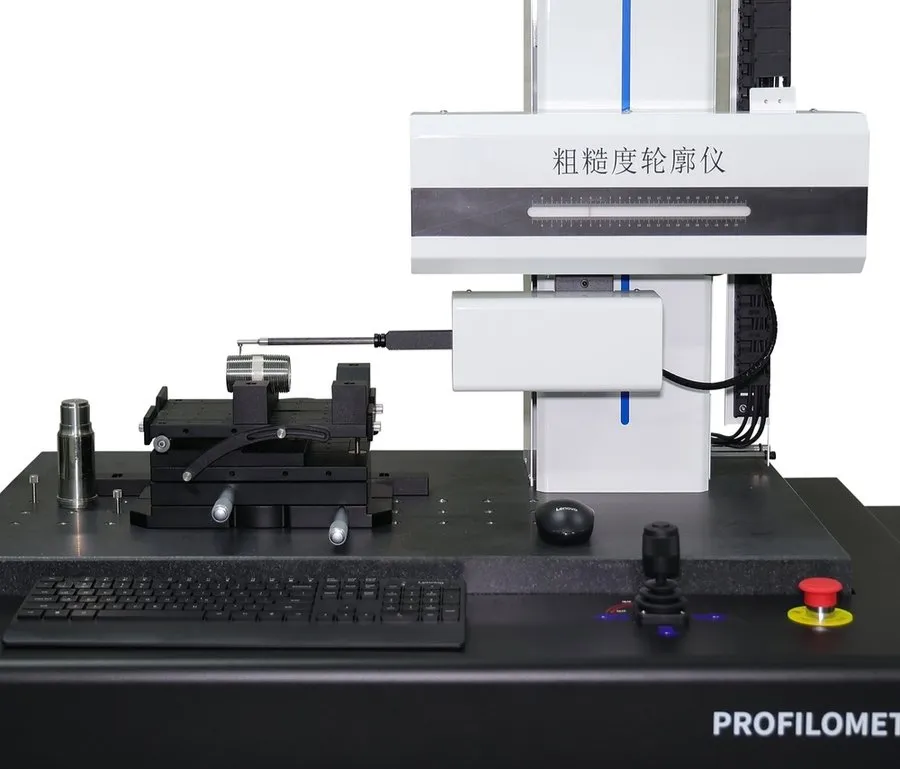

Analysis

Comprehensive Analysis: Measures roughness, waviness, straightness, arc radius, groove depth, and more.

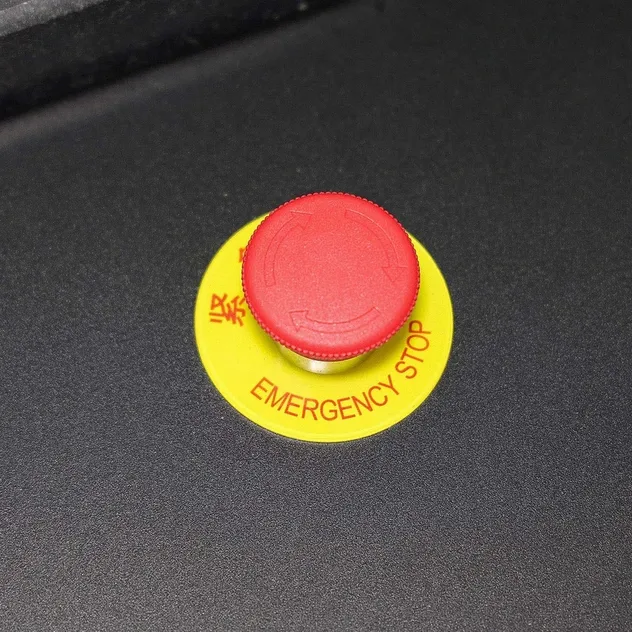

Feature 1
Feature 2
Feature 3

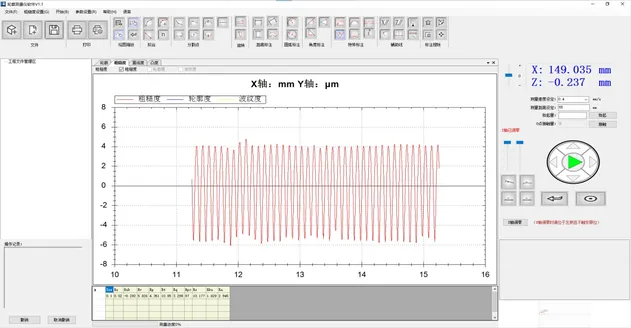

Intelligent Software System

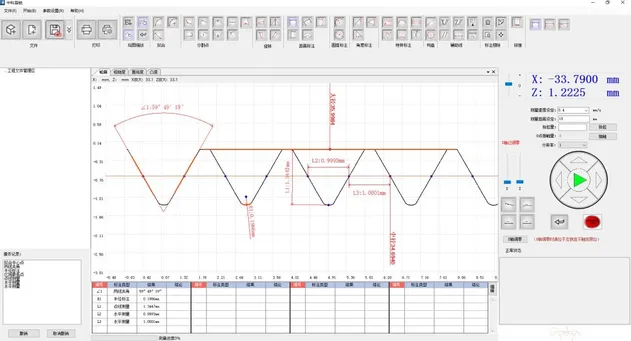

Software UI 1

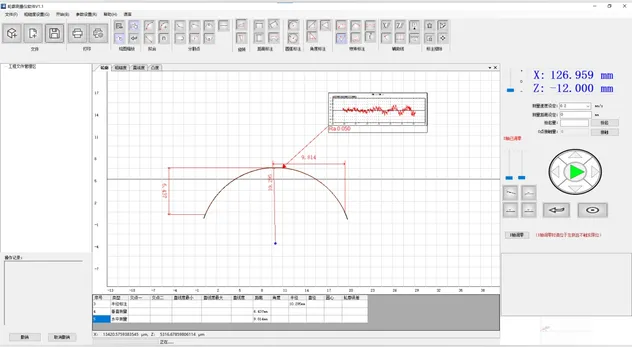

Software UI 2
Software UI 3
▶Processes data automatically and prints reports in various formats.
▶Wide measurement range covering wire rods, bearings, threads, and more.
▶Customizable software functions and automatic/manual section evaluation.
▶Supports multiple international standards: ISO, DIN, JIS, ANSI.
▶Large-capacity database for complete verification record storage.

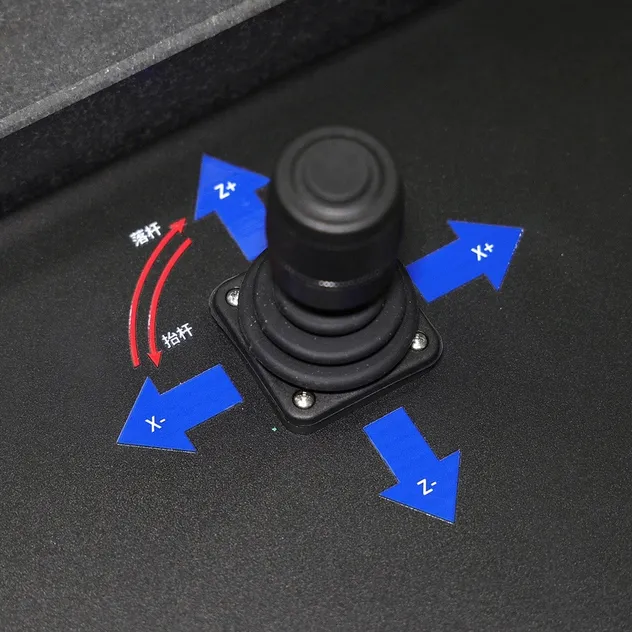

▶Convenient speed adjustment with 4 gears for fast positioning.

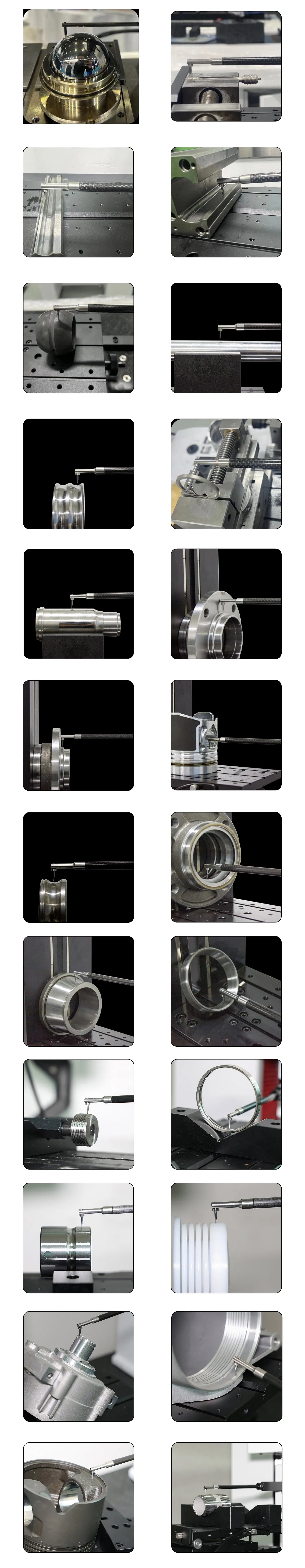

Application Scenarios
Application 1 Application 2 Application 3 Application 4 Application 5
Frequently Asked Questions
Q1: Are you a manufacturer or a trader?
Established in 2013, we operate our own factory while simultaneously managing international trade business.
Q2: What international certifications do you hold?
We have passed ISO9001, ISO14001, ISO45001, and EU CE certifications among others.
Q3: What is the delivery time for regular products?
Most products are in stock. Delivery usually takes no more than 7 days. Customized orders require approximately 1 week.
Q4: What are the available payment methods?
We accept LC, T/T, D/P, PayPal, Western Union, and MoneyGram.
Q5: What is the minimum order quantity (MOQ)?
For our standard range of products, the minimum order quantity is 1 set.
Q6: Do you provide software customization?
Yes, the intelligent software functions can be customized according to specific customer requirements and measurement needs.
