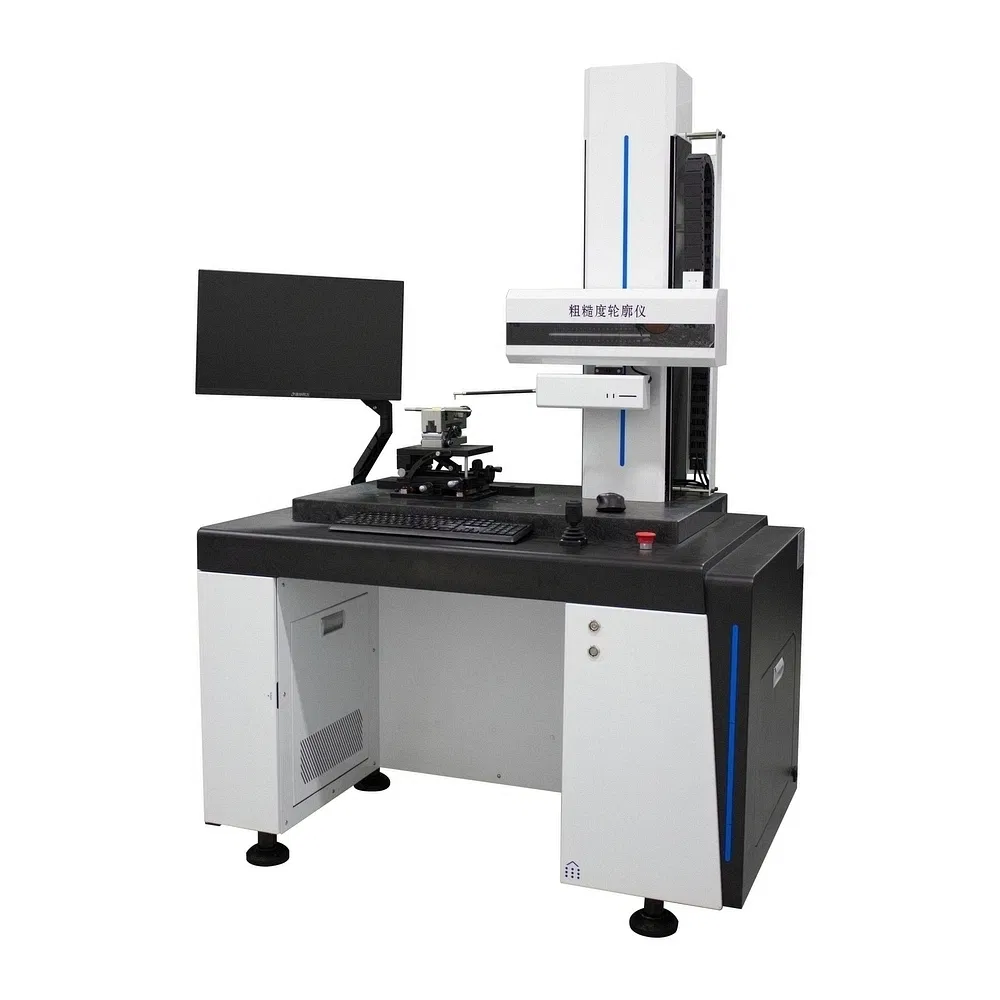

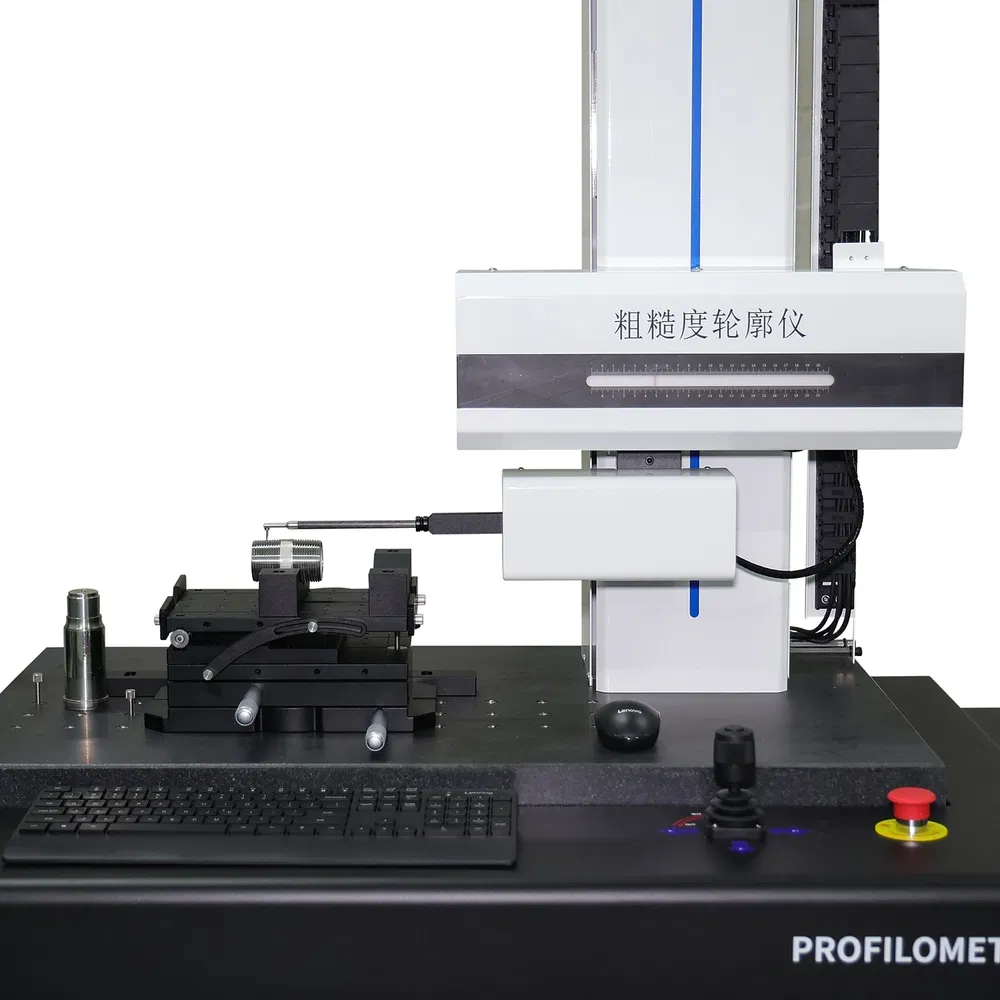

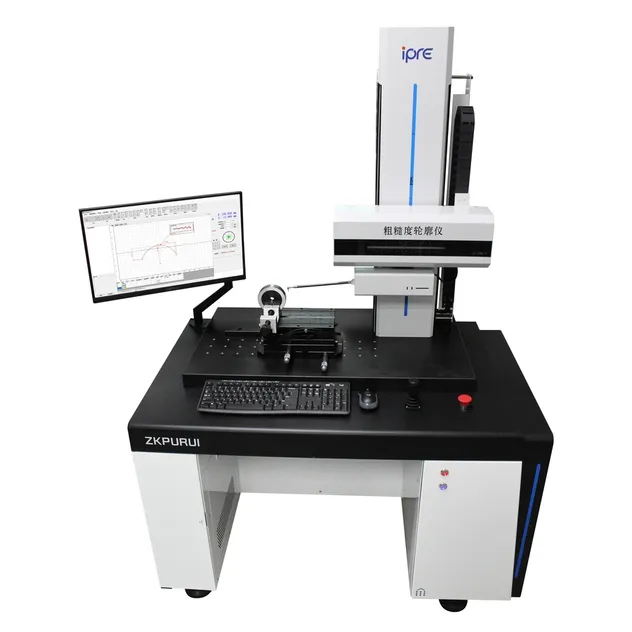

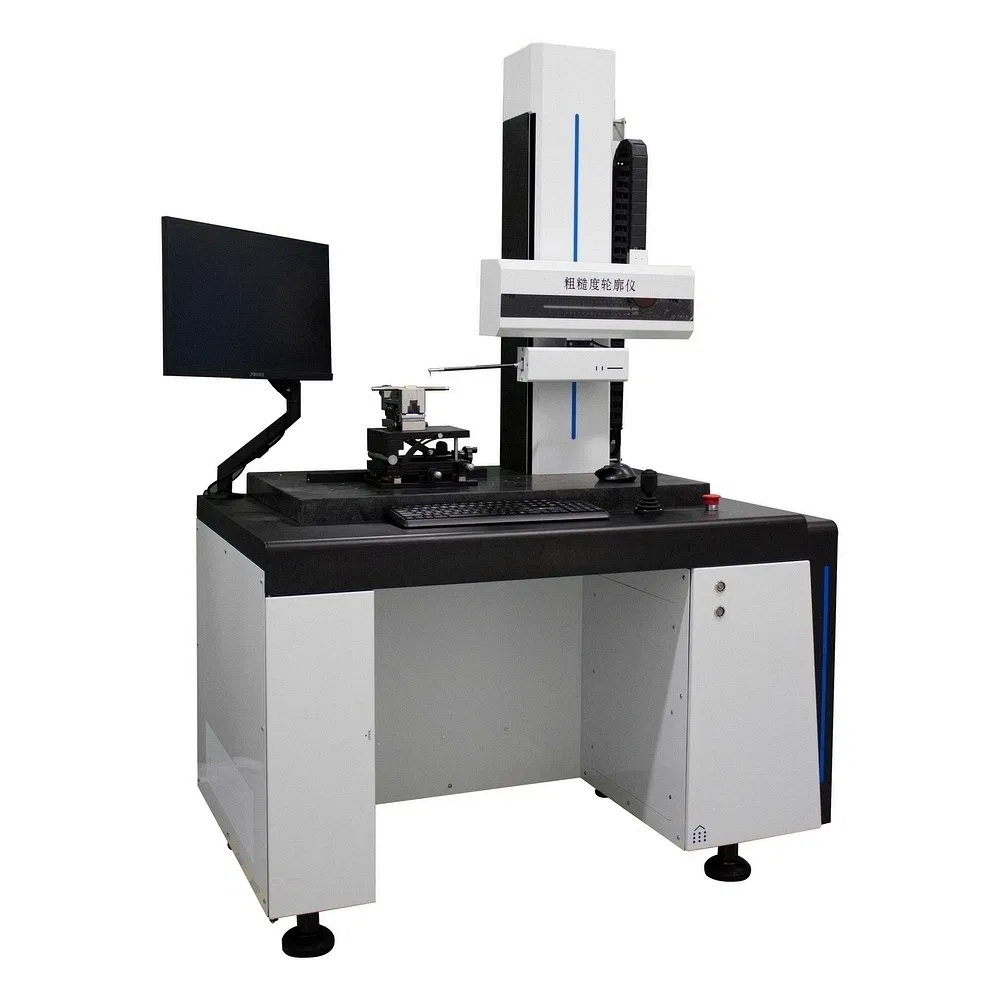

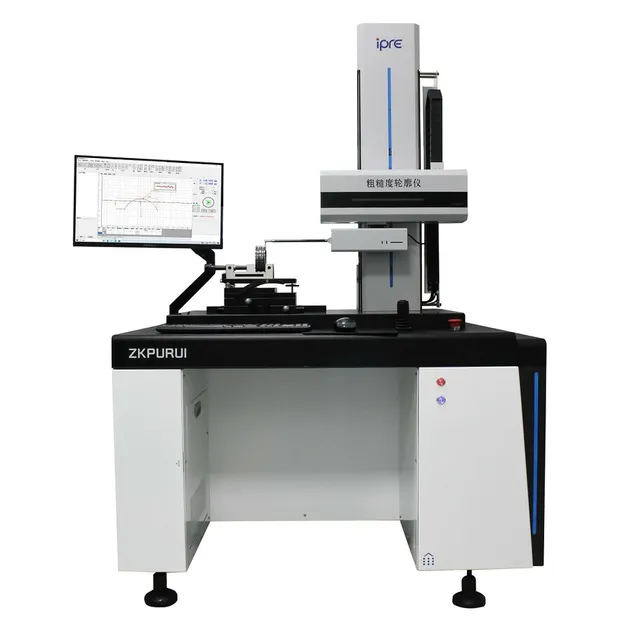

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing.
This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

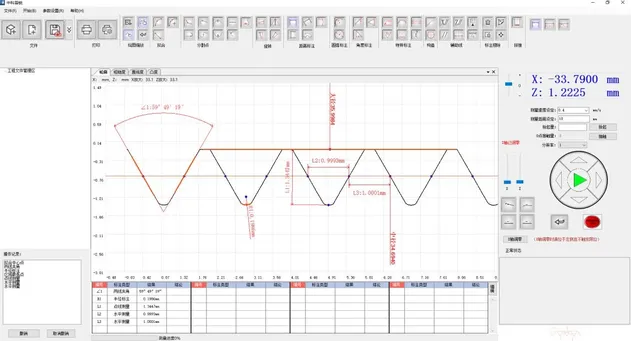

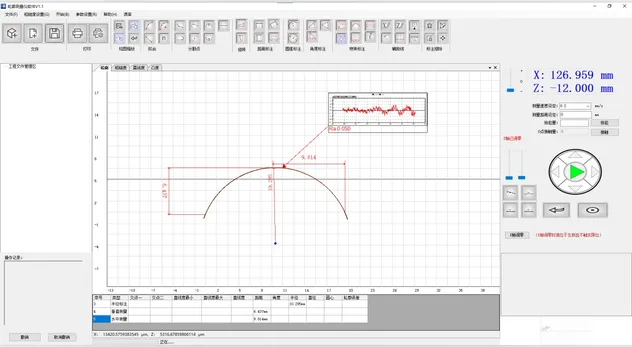

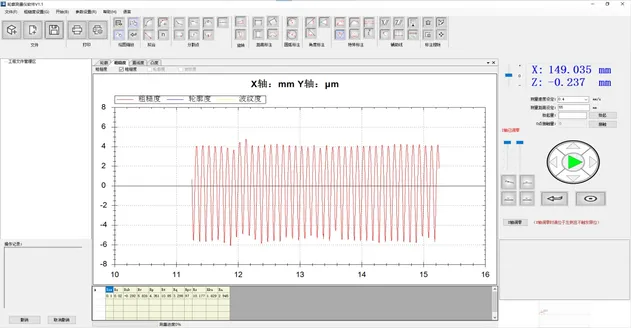

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability. Ideal for industries demanding micron-level precision.
| Project / Model | Resolution / Accuracy | Details |
|---|---|---|
| X-axis Guide Rail | Moving Accuracy | ≤±(1+|0.02L|)μm |
| X-axis Grating | Resolution | 0.01μm |
| Date Sensor | Resolution | 0.001μm (Roughness test) |
| Linear Precision | - | ≤±(0.8+|0.05H|)μm |
| Circular Arc | - | ≤±(1.2+R/12)μm |
| Straightness | - | ≤0.5μm/100mm |
| Z1 Axis Range | Test Range | ±20mm (Full range) |
| Roughness Parameters | Evaluation | Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, etc. |
| Indication Error | - | ±5% |
| X-axis Measurement | Range | ≤180mm |
| Instrument Size | Dimensions | 1200×750×1800(mm) |

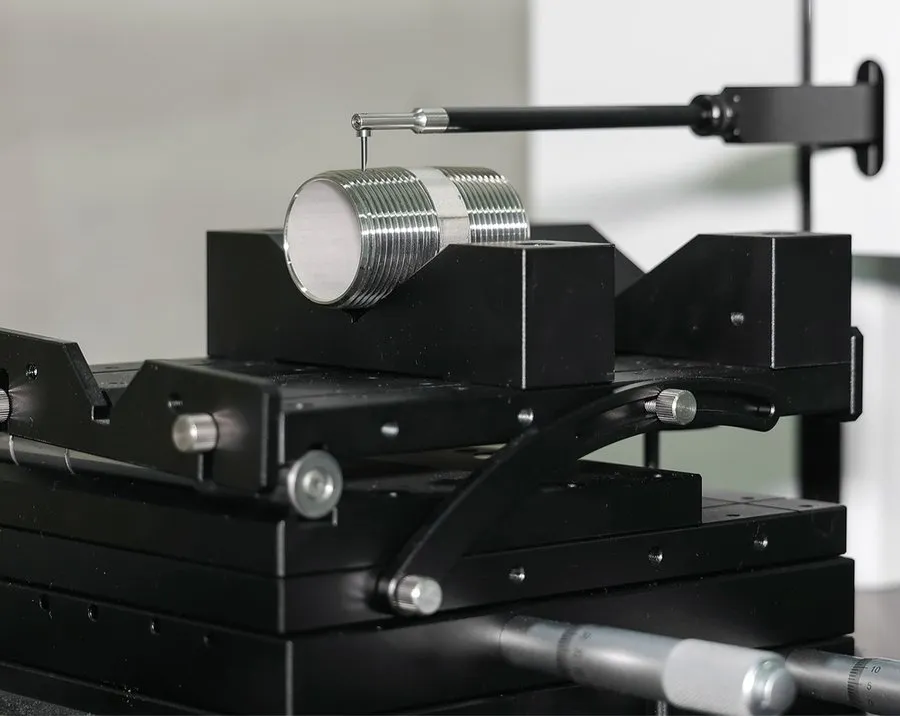

Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for demanding surface analysis.

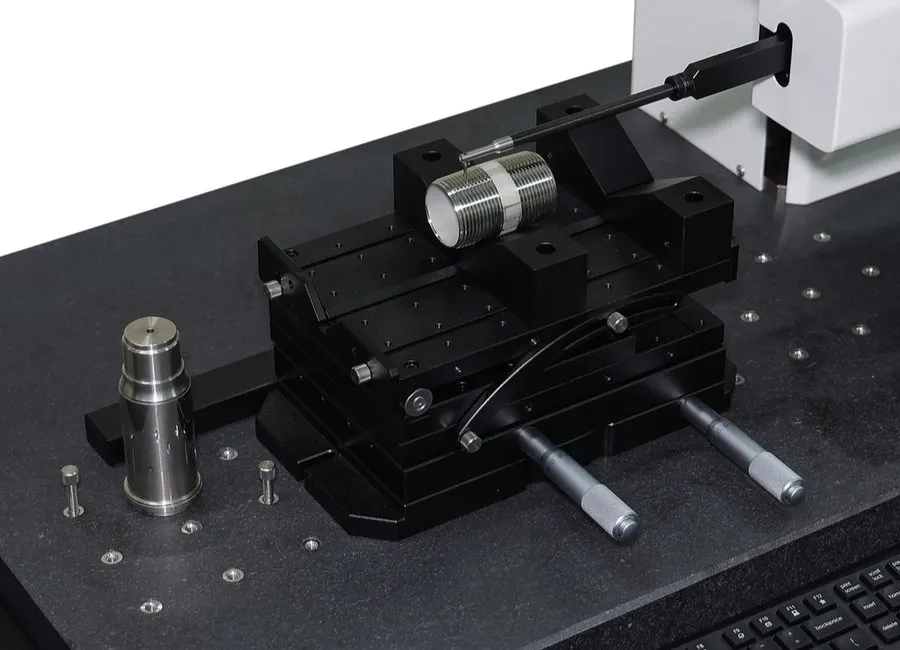

Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent results.
