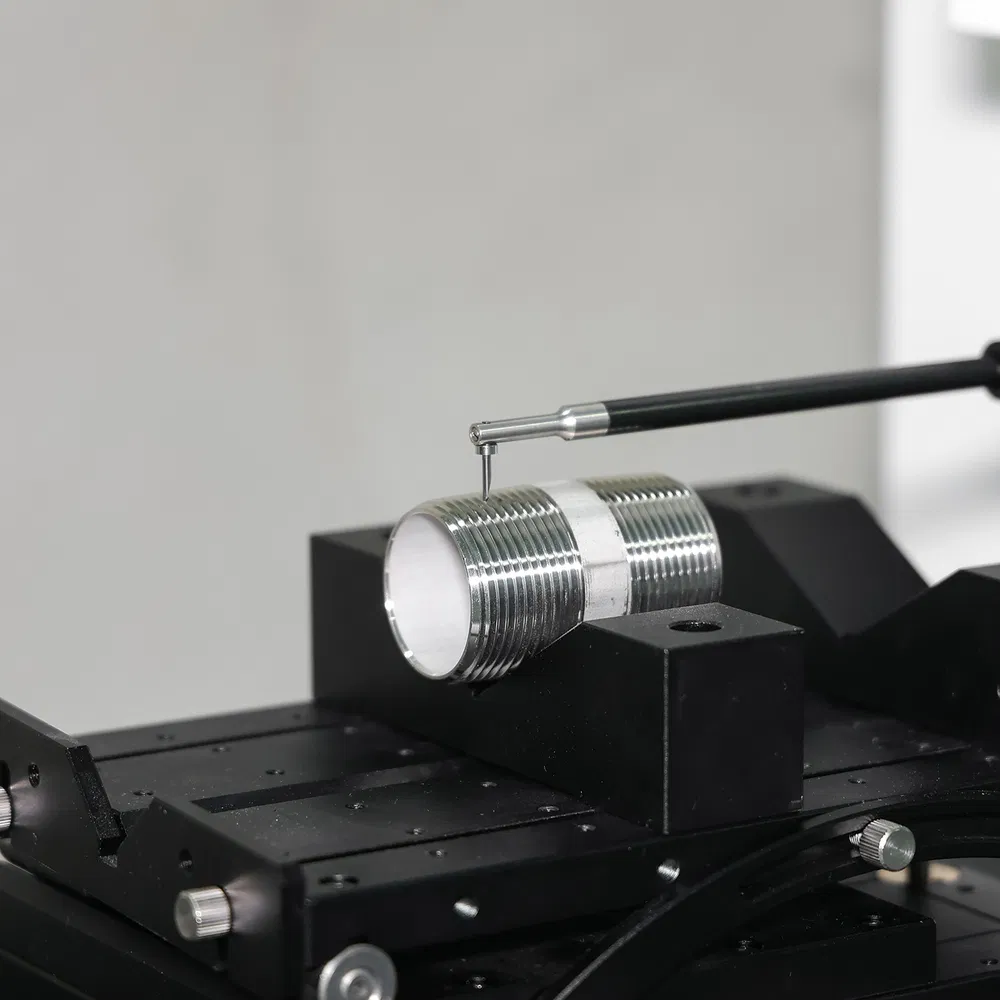

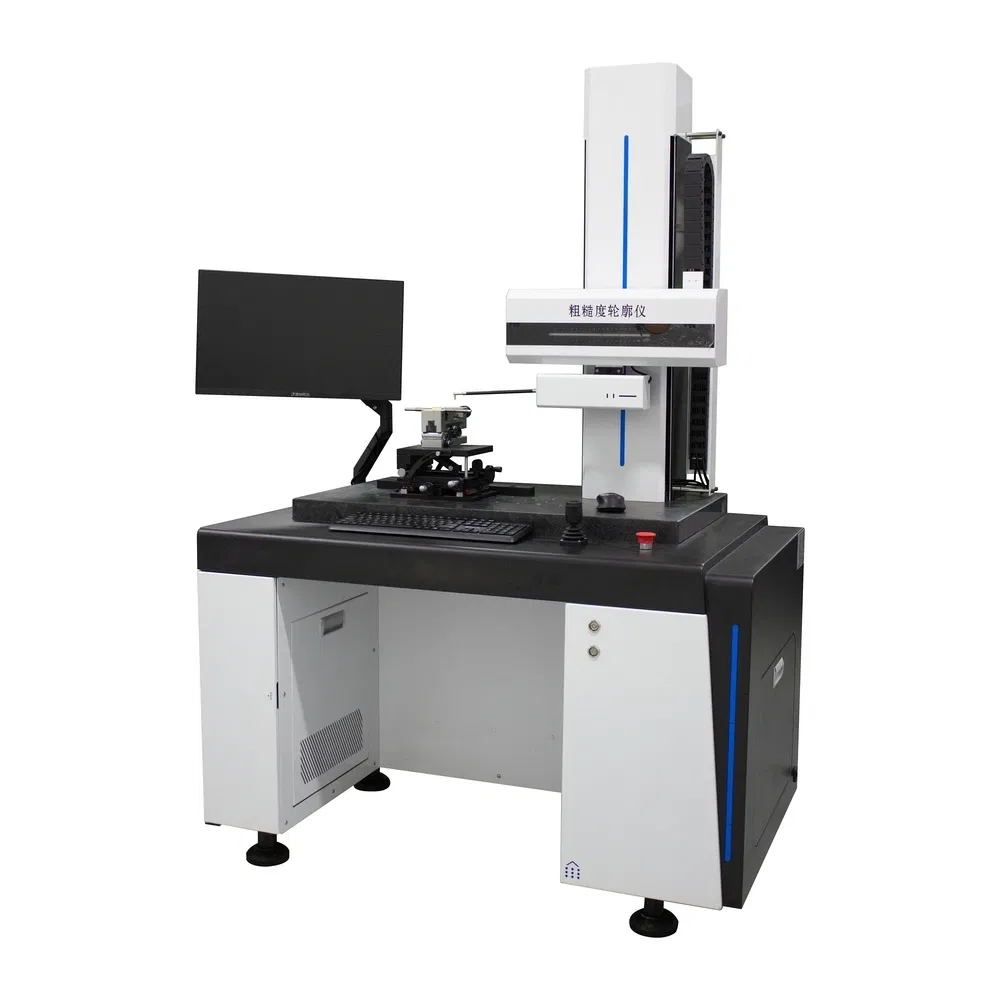

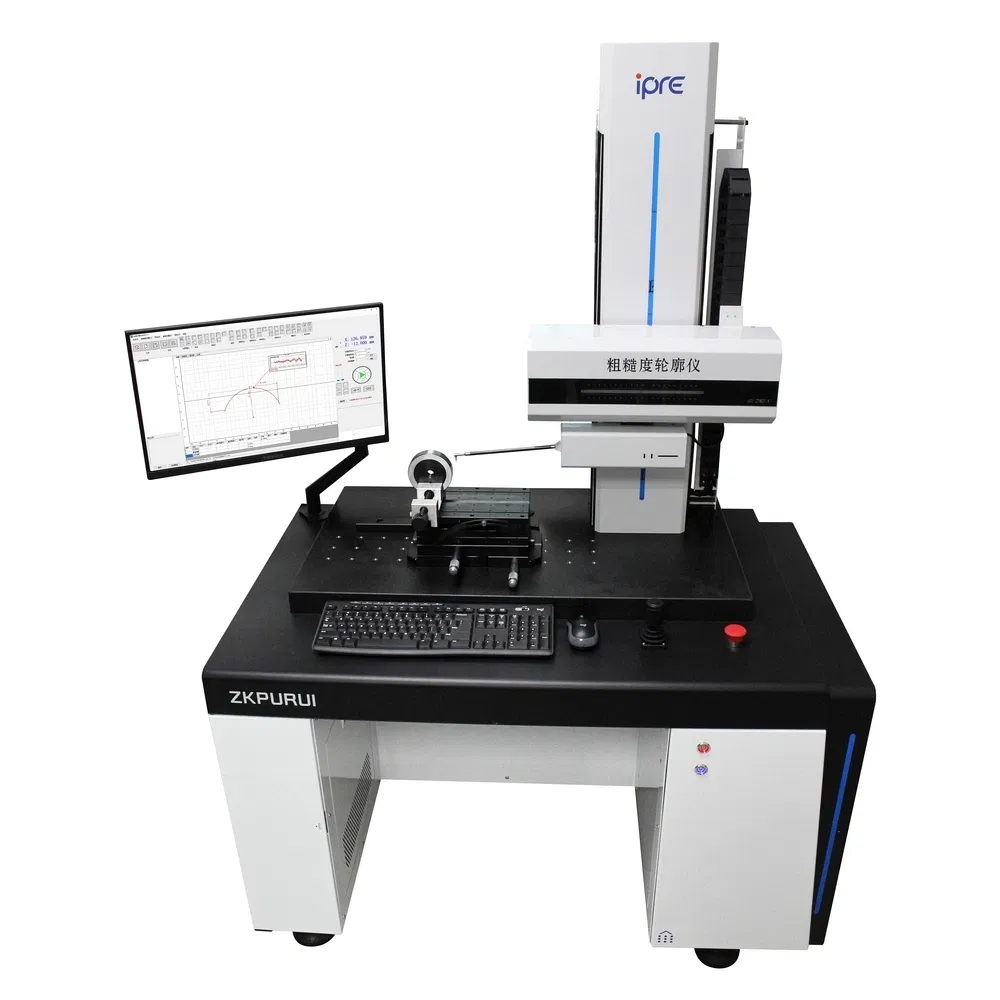

Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
1 / 5
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer
Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer

Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer

Customization: Available
Product Name: Surface Roughness Profilometer
Keywords: Roughness Contour Meter
Send Inquiry

Product Description

Surface Roughness Profilometer Overview
Basic Information
Model NO.RA150SMaterialMetal
FeatureHigh Range, High Accuracy, High ResolutionApplicationTest Roughness Value and Profile
Transport PackageWooden BoxProduction Capacity500 Sets
Product Description

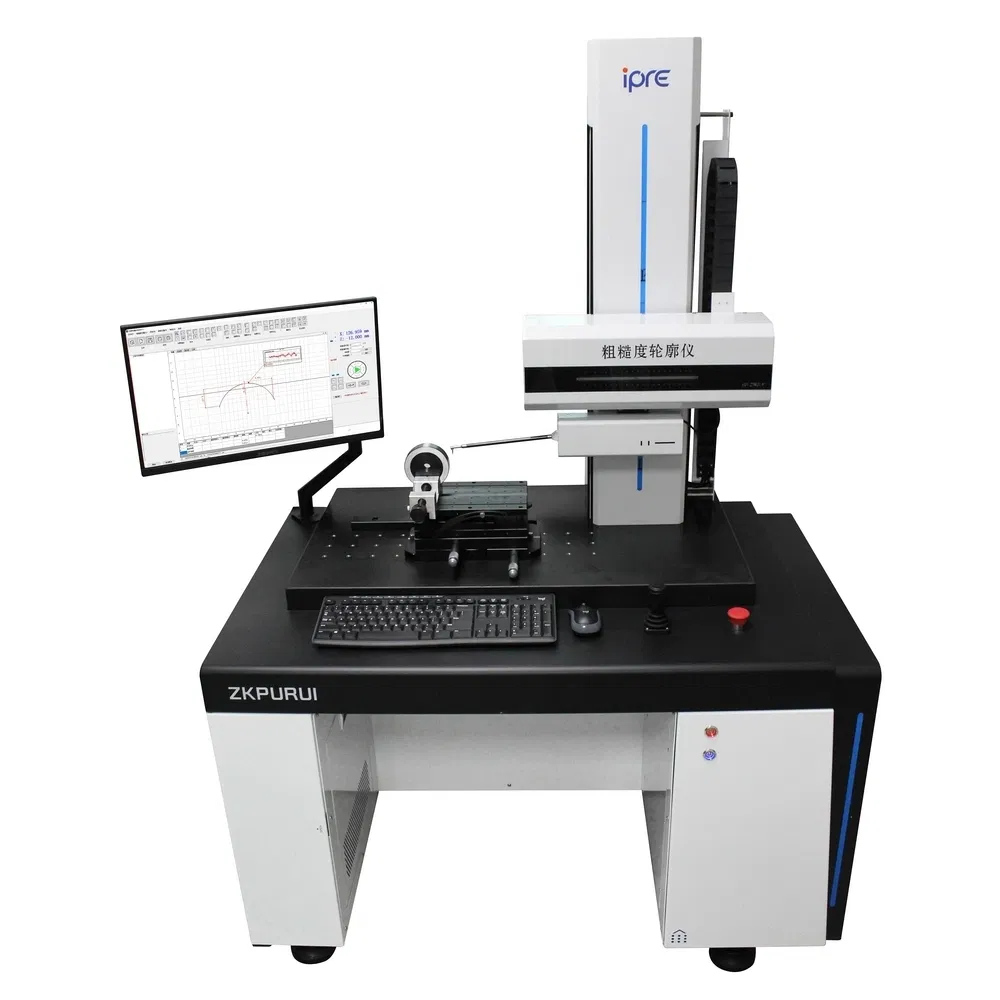

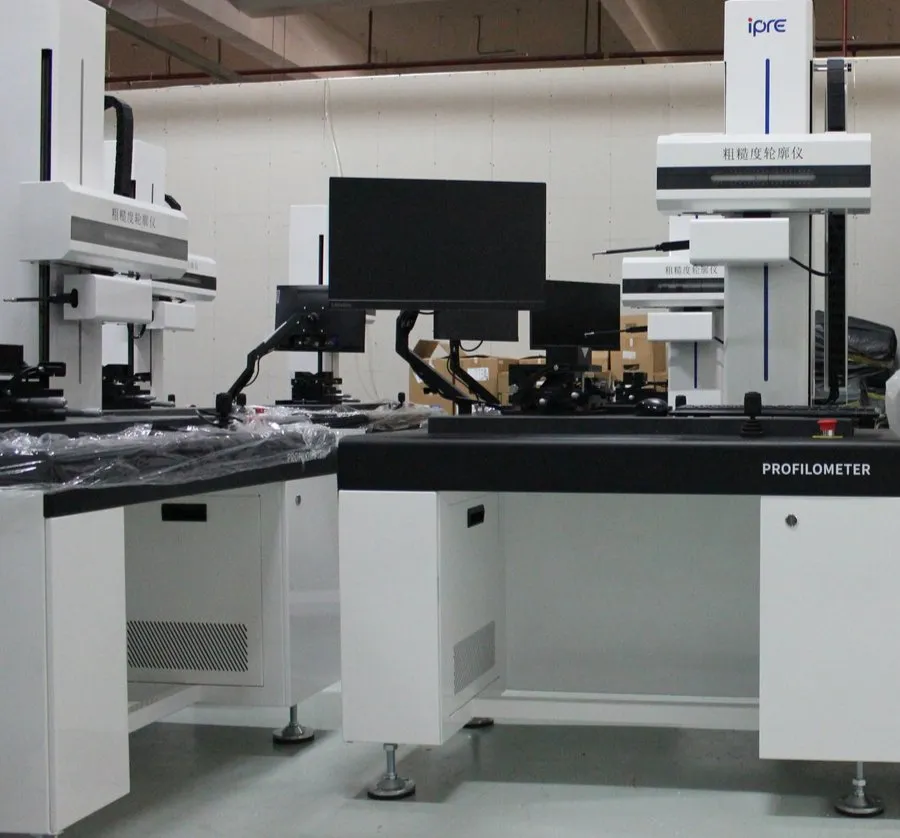

RA150S Profilometer Main Unit

Precision Measurement Solution

This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Ideal for industries demanding micron-level precision, this profilometer is your trusted partner for quality control and dimensional inspection.

Detail 1
Detail 2

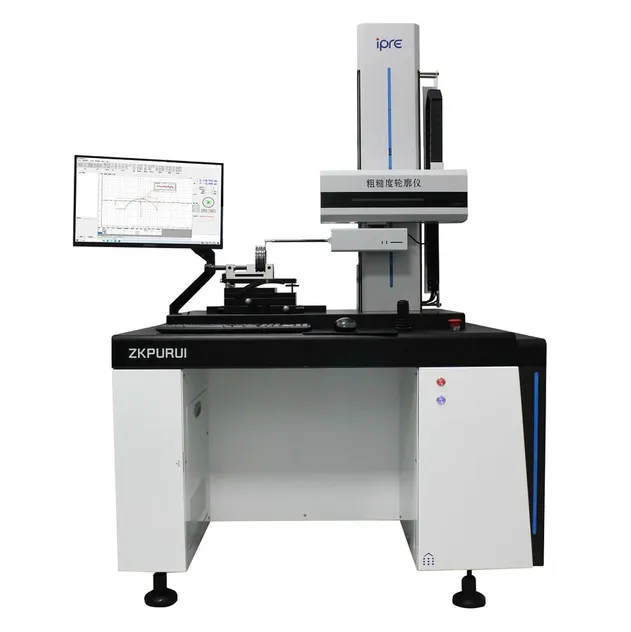

Detail 3
Technical Specifications
Project / Model IPRE-RA150S
X-axis Guide RailMoving accuracy≤±(1+|0.02L|)μm
X-axis Grating RulerResolution0.01μm
Date SensorResolution0.001μm (Roughness test)
Straightness≤0.5μm/100mm
Roughness ParametersRa, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c)
Sampling Length0.08, 0.25, 0.8, 2.5, 8 (mm)
Contour RangeX-axis / Z-axis≤180mm / ≤500mm
Power Supply220V 50Hz, 0.5Kw
WeightAbout 350Kg
Detailed Features

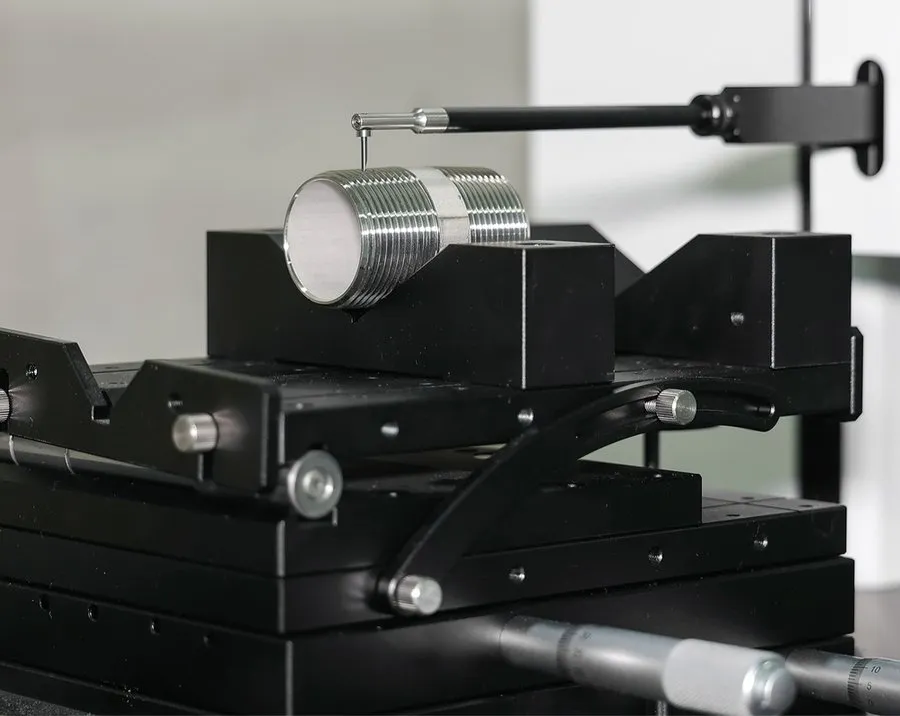

Grating System
High-Precision Grating System
Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for even the most demanding surface analysis tasks.

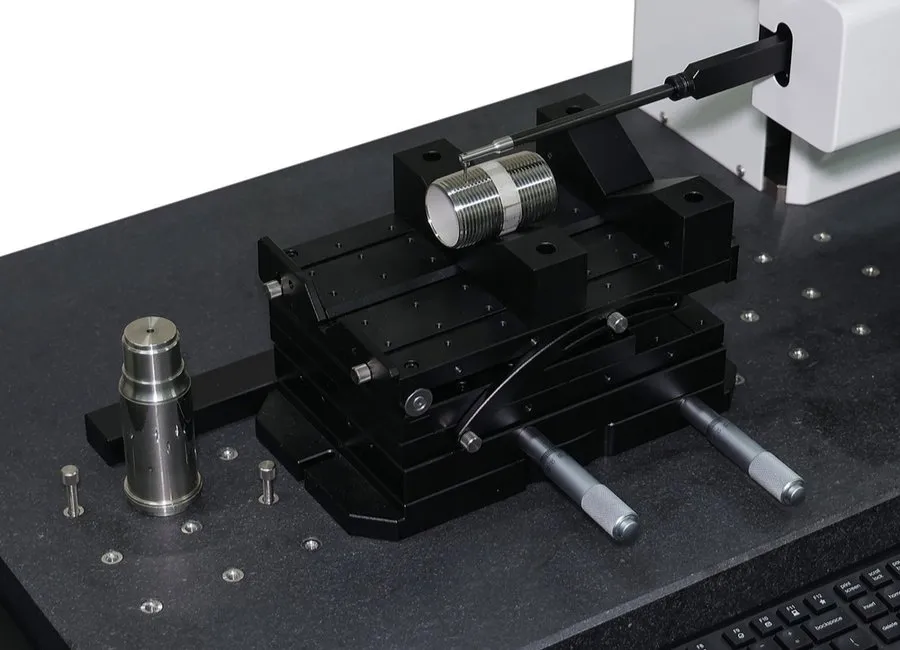

Non-Contact Linear Motor Drive
Utilizes high-performance scanning for smooth, vibration-free results, ensuring consistent and distortion-free measurement.
Linear Motor
Intelligent Software System

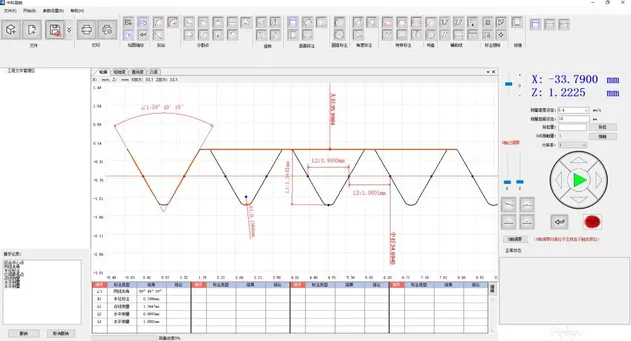

Software 1

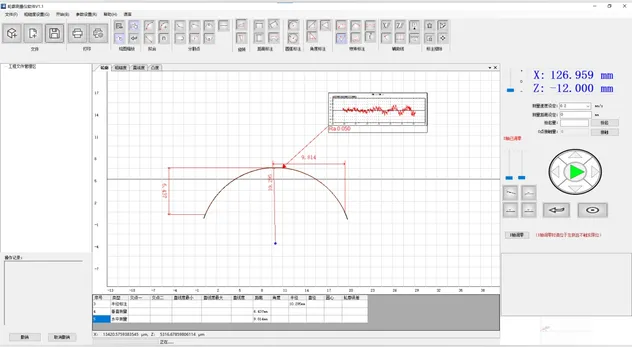

Software 2

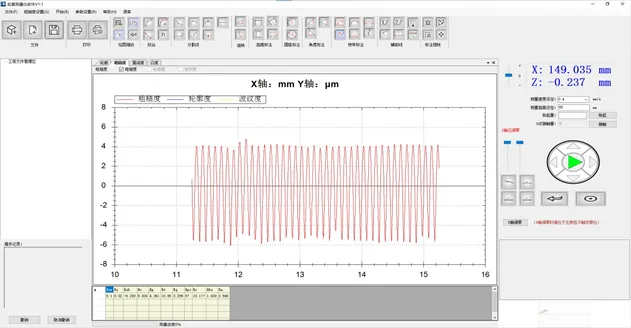

Software 3
  • Automatically processes data and prints reports in various formats.
  • Supports ISO, DIN, JIS, and ANS multi-standard parameter settings.
  • Customizable software functions according to customer requirements.
  • Large-capacity database for recording and saving all verification results.
  • Fast positioning and convenient speed adjustment for Z and X axes.
Application Scenarios

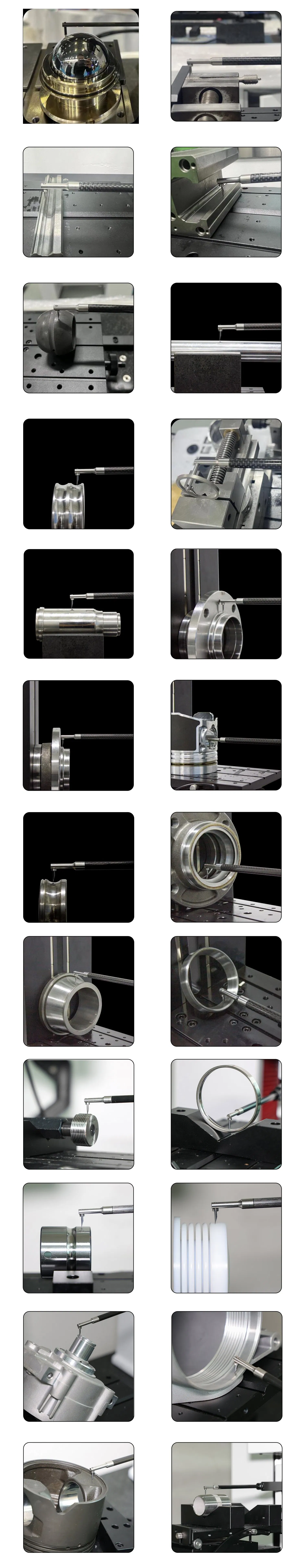

Application 1
Application 2
Application 3
Frequently Asked Questions
Are you a manufacturer or a trader?
We were established in 2013 with our own factory and also engage in trade business.
What international certifications do you have?
We have passed ISO9001, ISO14001, ISO45001, and EU CE certifications.
What is the delivery time for regular products?
Most products are in stock. Delivery usually takes no more than 7 days, or about 1 week for customized orders.
What are the available payment methods?
We accept LC, T/T, D/P, PayPal, Western Union, and MoneyGram.
What is the minimum order quantity (MOQ)?
The minimum order quantity for our products is 1 set.
Does the software support international standards?
Yes, our software supports ISO, DIN, JIS, and ANS multi-standard parameter settings.

Related Products

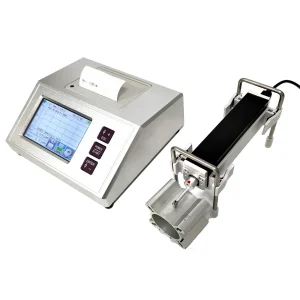

Digital Surface Roughness Tester Gauge Embedded Printer Compatible with ISO, DIN, ANSI, JIS Standards

Digital Surface Roughness Tester Gauge Embedded Printer Compatible with ISO, DIN, ANSI, JIS Standards
High Accuracy Ra150s Surface Roughness Finish Form Contour Meter Profilometer

High Accuracy Ra150s Surface Roughness Finish Form Contour Meter Profilometer
Abrasion Resistant Multifunctional Ra150s Bench Top Metal Surface Roughness Profilometer

Abrasion Resistant Multifunctional Ra150s Bench Top Metal Surface Roughness Profilometer

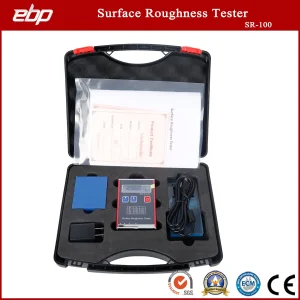

Metal Surface Roughness Test Equipment Machine with Ra, Rz, Rq, Rt

Metal Surface Roughness Test Equipment Machine with Ra, Rz, Rq, Rt
Surface Roughness Tester Meter Profilometer with 4 Parameters Roughness Parameter Ra Rz Rq Rt Resolution 0.01um

Surface Roughness Tester Meter Profilometer with 4 Parameters Roughness Parameter Ra Rz Rq Rt Resolution 0.01um

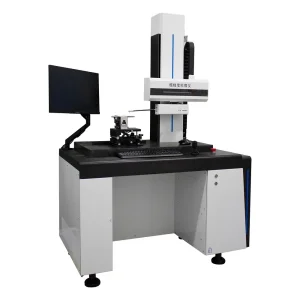

Dustproof Accurate Data Ra150s Bench Top Surface Photometry Profilometer

Dustproof Accurate Data Ra150s Bench Top Surface Photometry Profilometer
Dustproof Accurate Data Ra150s Bench Top Surface Photometry Profilometer

Dustproof Accurate Data Ra150s Bench Top Surface Photometry Profilometer

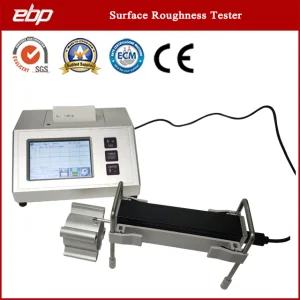

Digital Surface Roughness Tester Ra Rz

Digital Surface Roughness Tester Ra Rz
Digital Surface Roughness Tester Ra Rz

Digital Surface Roughness Tester Ra Rz

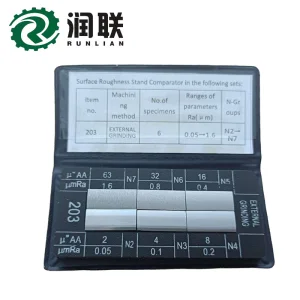

Surface Roughness Tester for Ra, Rz, Rq, Rt Parameters
