Smart Robotic Arm System for Streamlined Material Handling

Customization:	Available
Application:	burnishing, polishing, machine loading/unloading a
Control Mode:	Point to Point Control

Basic Specifications

Model NO.RB300A1-2850

Drive ModeServo Drive

Axes6 Axes

Motion Radius2850mm

Payload Range300kg

Machine Weight1650kg

StructureArticulated

Mounting TypeGround, Bracket, Ceiling

CertificationISO, CE

Production Capacity50000 Sets/Year

Industrial General Robot Features

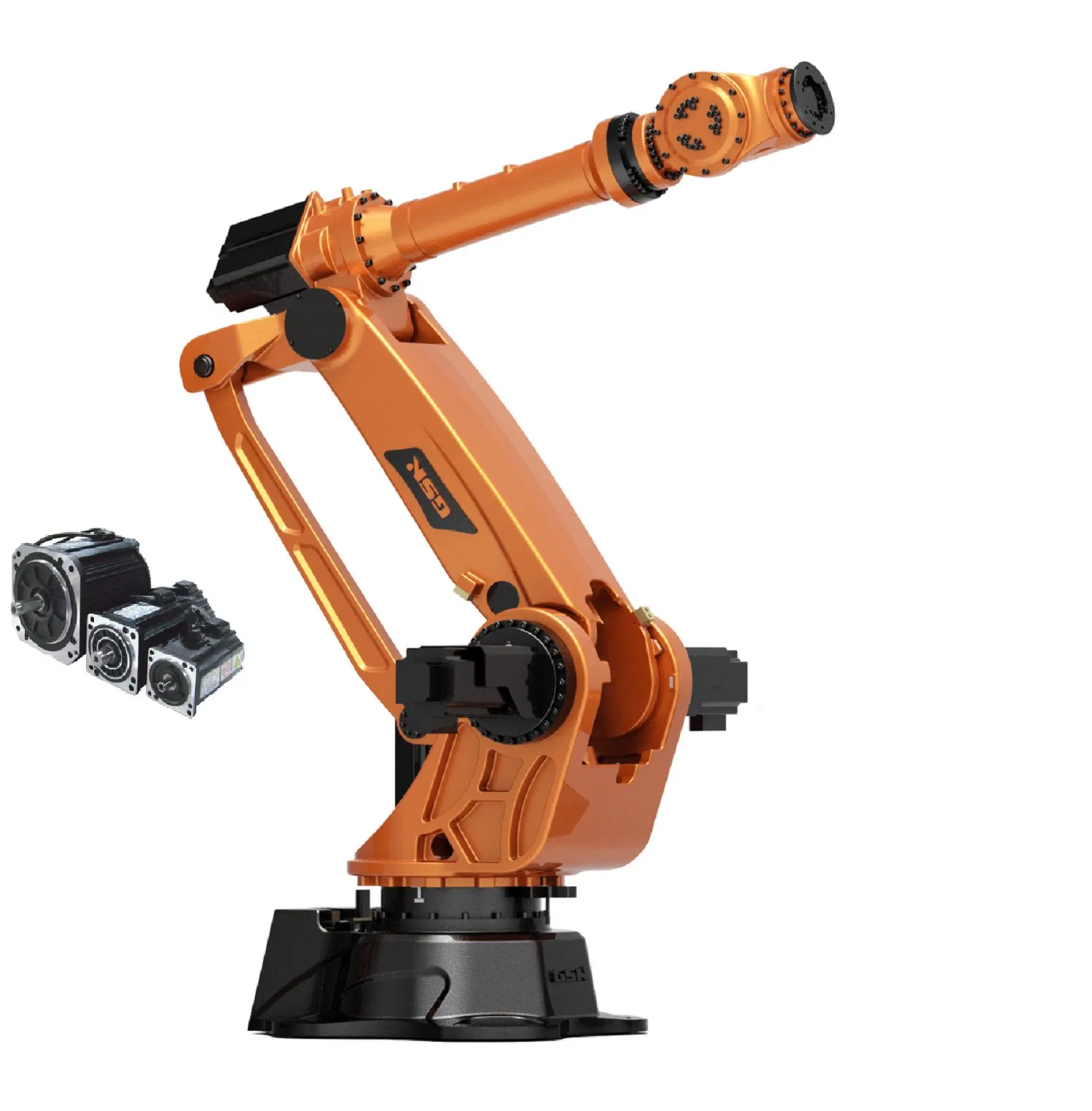

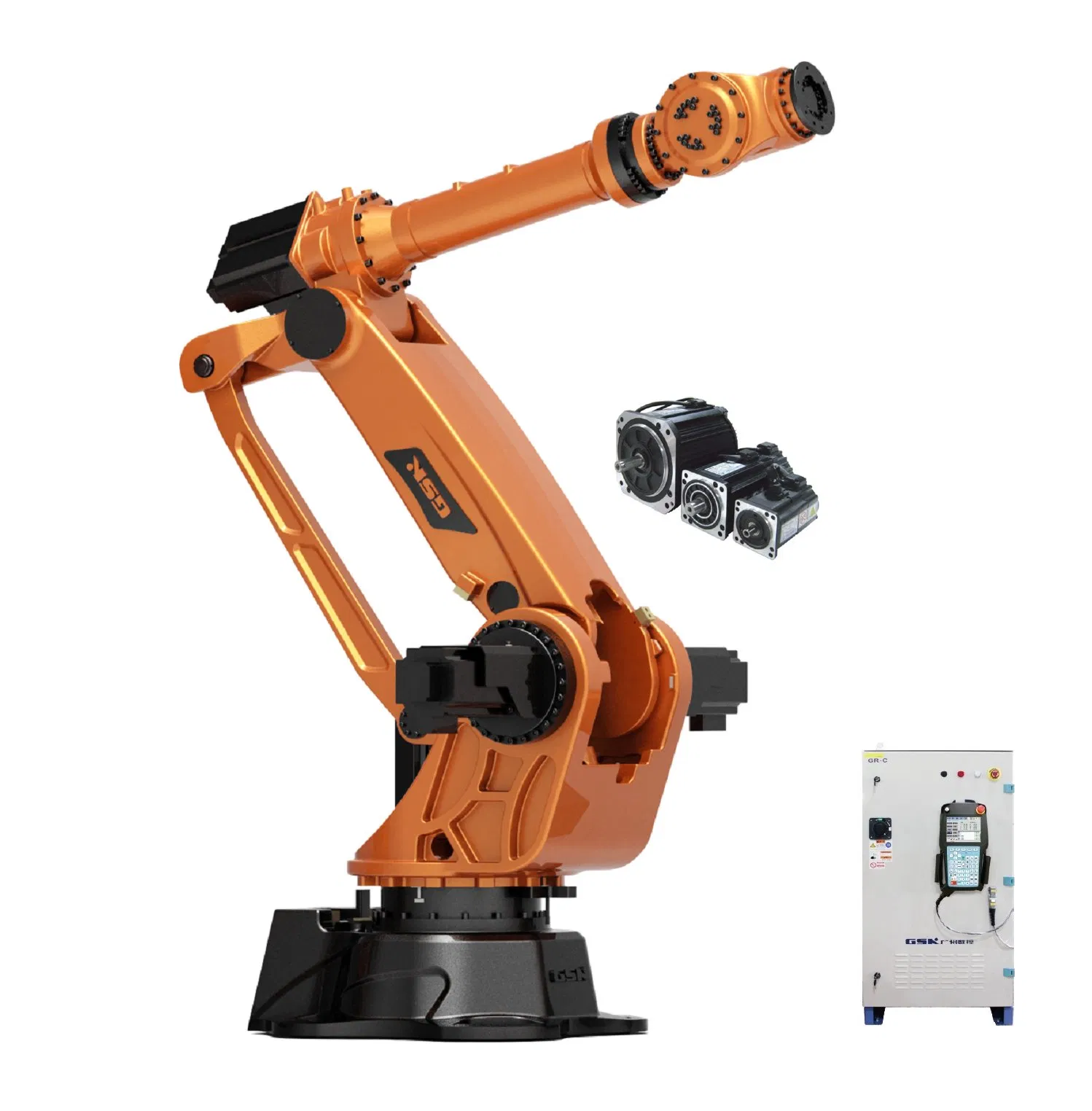

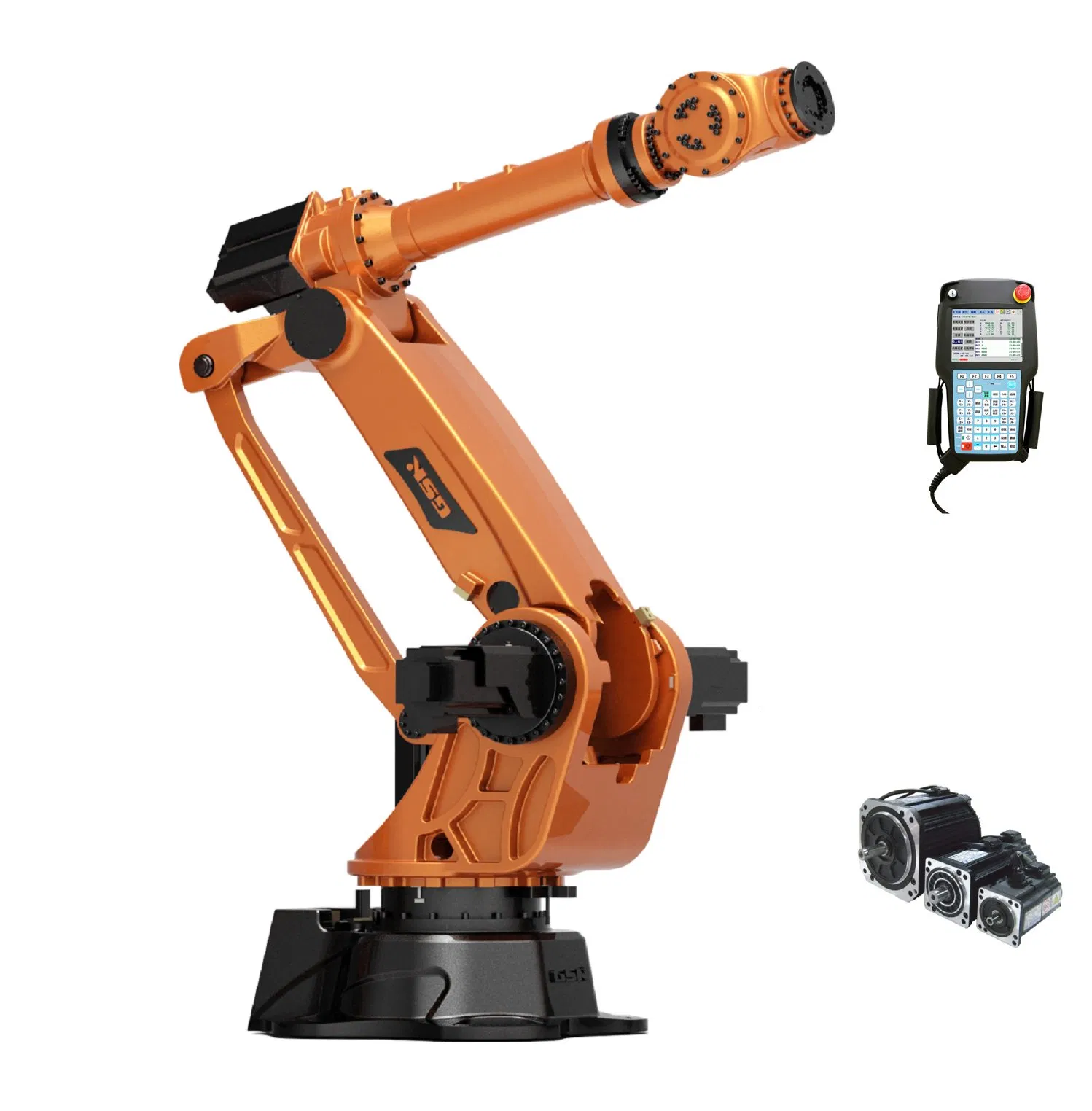

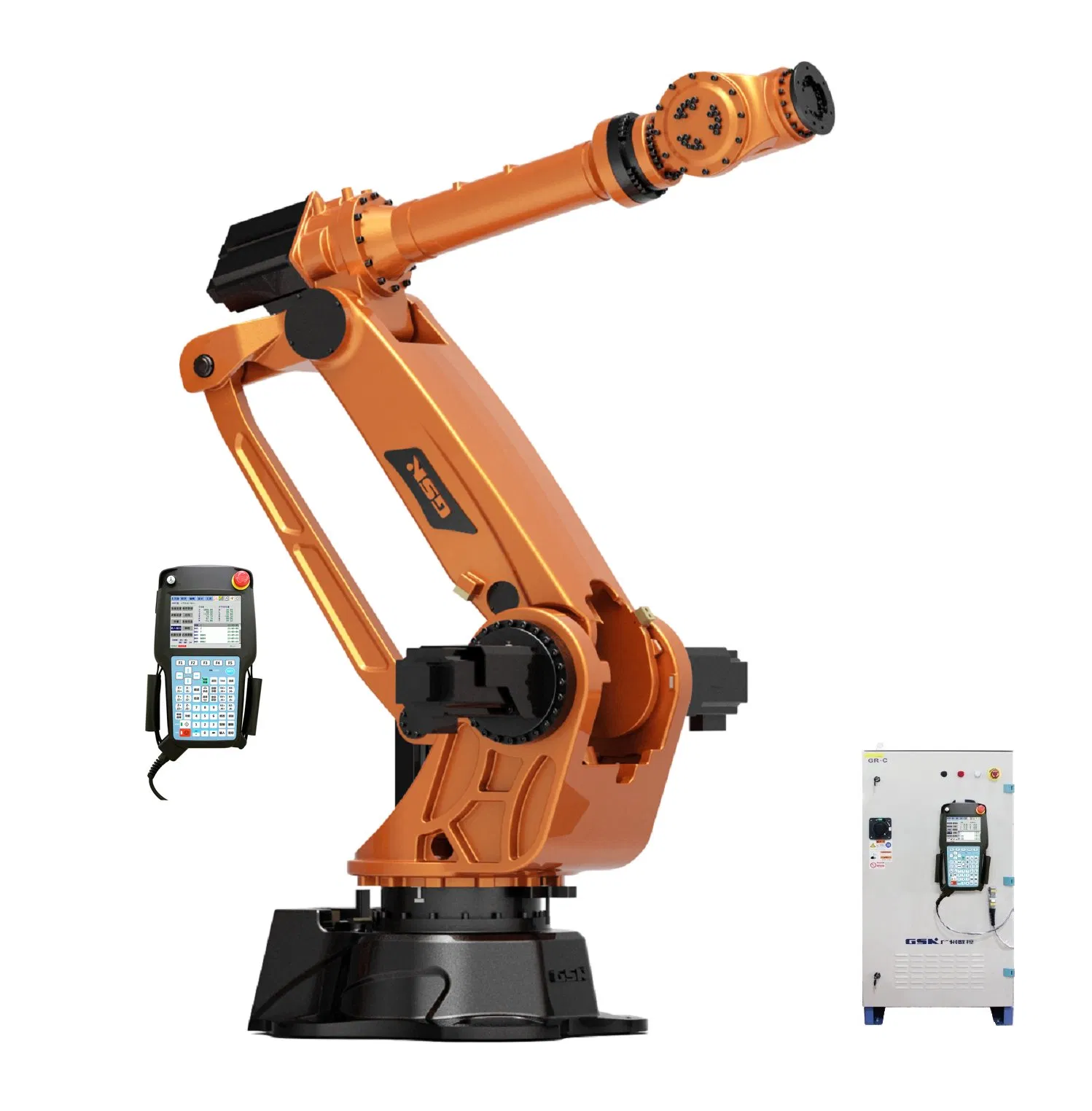

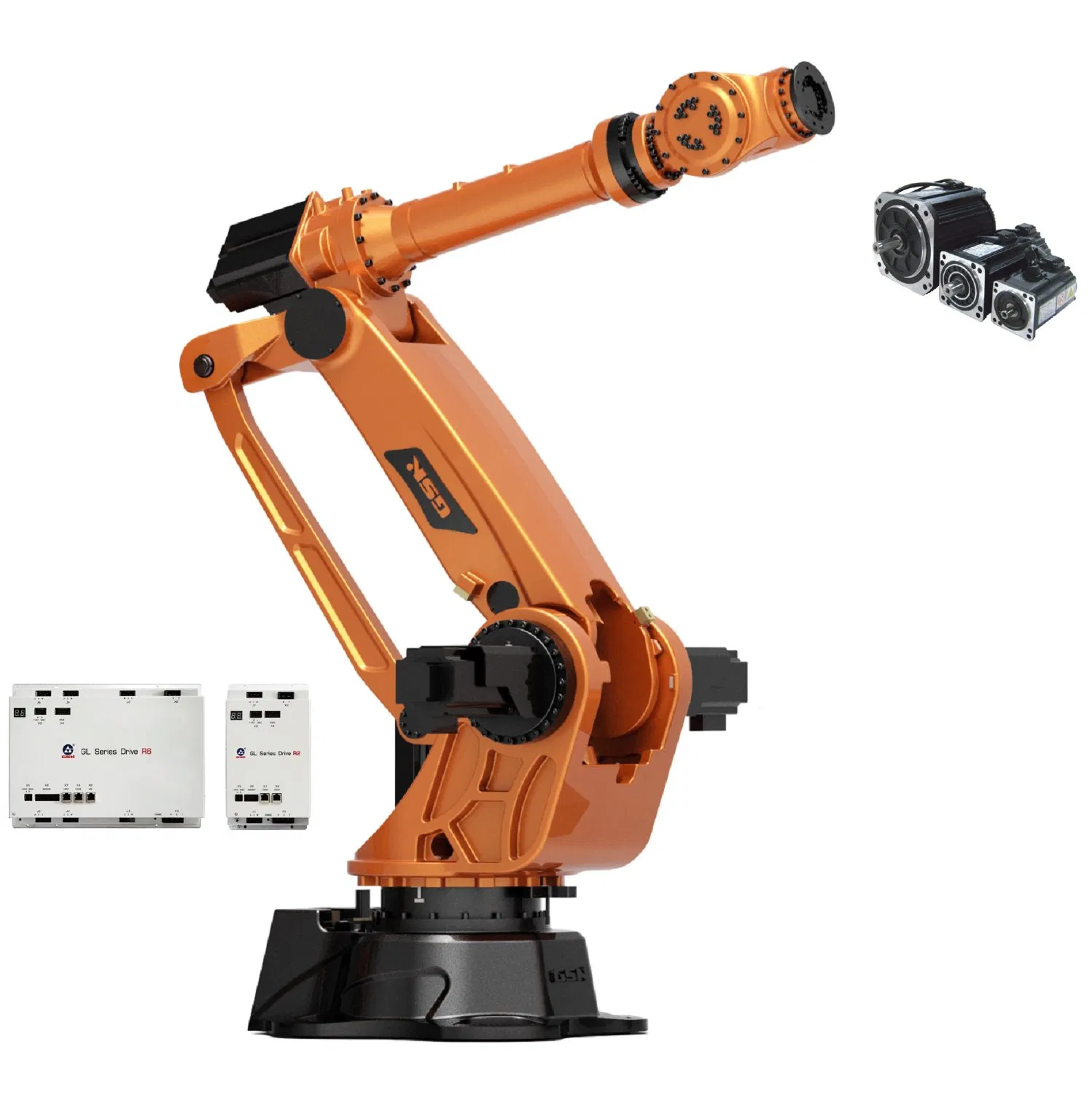

RB300A1-2850 Industrial General Robot | Payload 300kg | Reach 2850mm

This heavy-duty robotic arm is widely used in burnishing, polishing, spraying/painting, machine loading/unloading, and automatic transport on punching automation production lines.

Simplified Mechanical Design: High reliability, stable performance, and good product consistency.
Superior Protection: Perfect seal design with local protection level up to IP65 (J4~J6 axis) for harsh environments.
High Efficiency: High speed and precision to improve production efficiency and reduce costs.
Flexible Range: Different movement radii and loads meet diverse market needs.

Advanced Applications

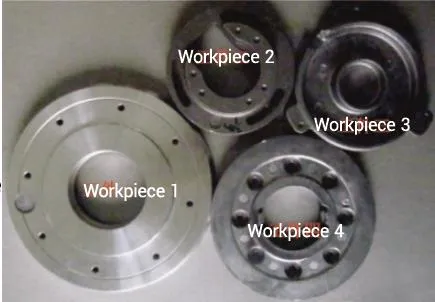

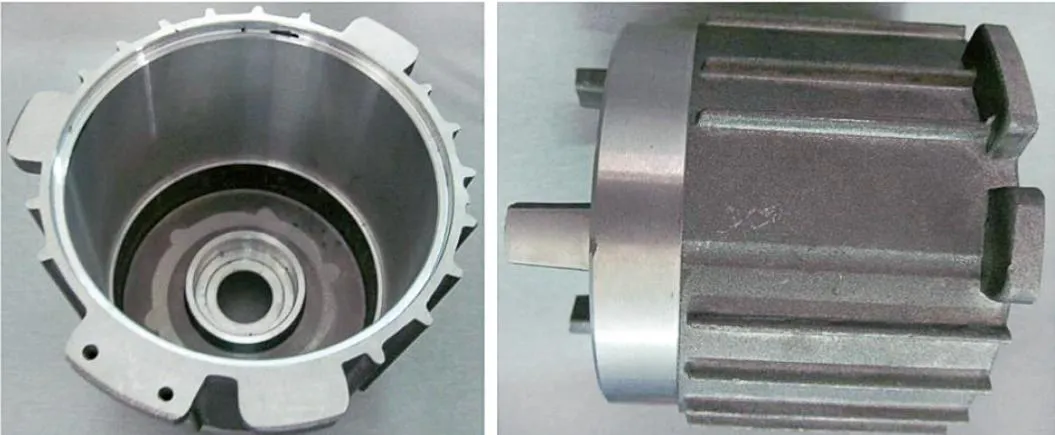

Machine Tool Loading/Unloading

The system consists of robot arms, CNC turning machines, and automatic auxiliary devices to create high-efficiency production cycles.

Safety interlock systems prevent collisions during machine entry.
Supports three-shift working for continuous machining.
Soft/Hard limit control with emergency stop functionality.

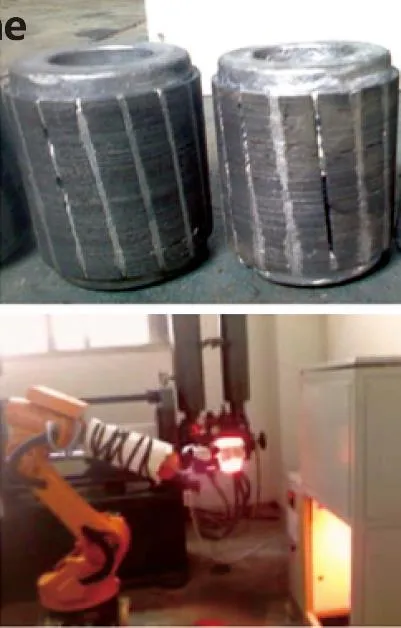

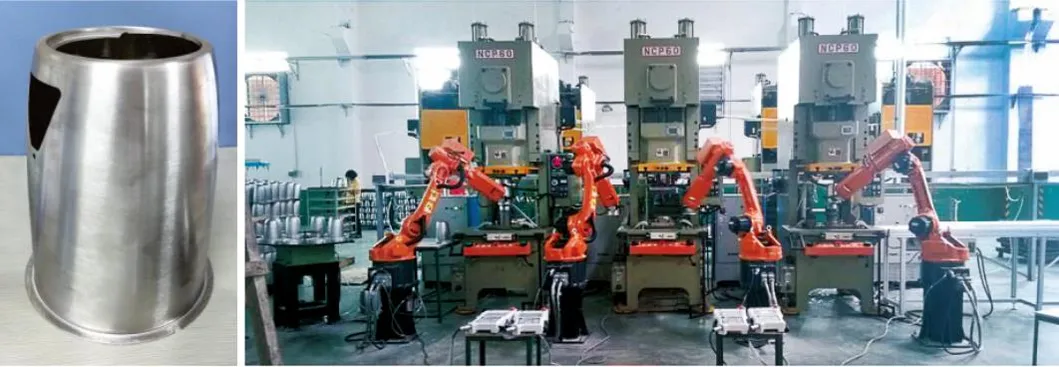

Automation in Punching & Die-Casting

Applied to automatic lines for electric kettles and high-temperature pouring processes.

Robotic pouring replaces manual labor in dangerous, high-temperature environments, ensuring 24-hour stable operation and employee safety.

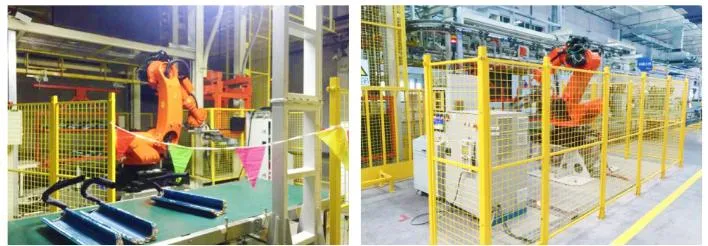

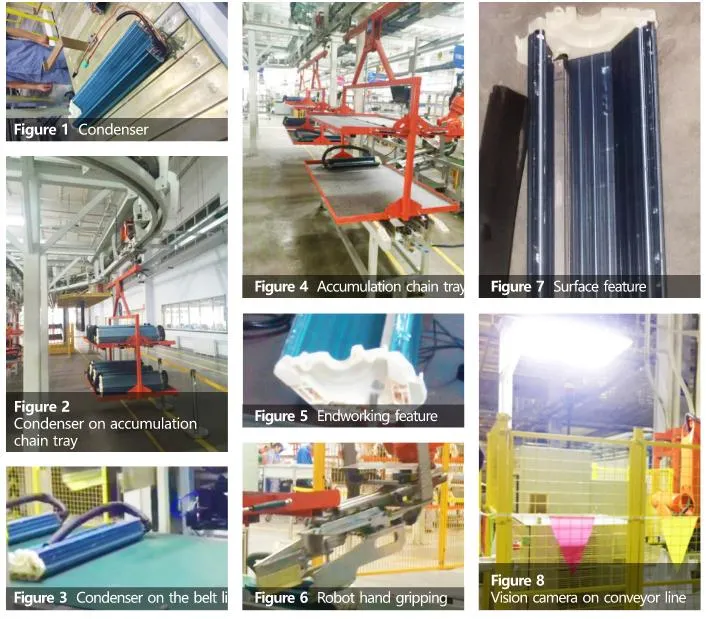

3D Vision Guided Transfer

Utilization of high-payload robots with irregular workpiece recognition for complex logistics.

Robots can identify and transport up to six different products simultaneously using white plastic feature recognition and polyurethane soft grippers.

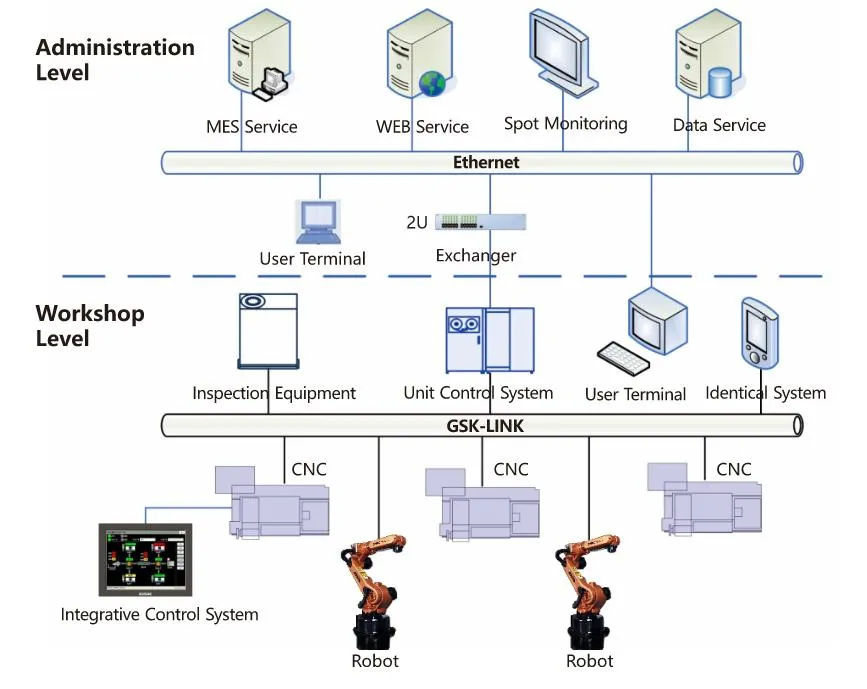

Control & Management Systems

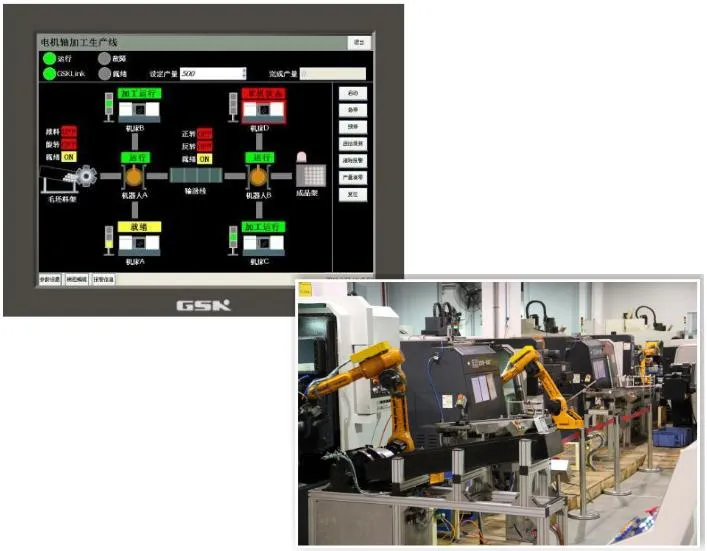

Production Line Unit Control: High-speed connection between CNC machines and robots via on-site bus.
Intelligent Workshop Management: Digitalized factory statistics, equipment utilization monitoring, and C/T elevation.
CAM/CAPP Application: Integrated management for optimized production flow.

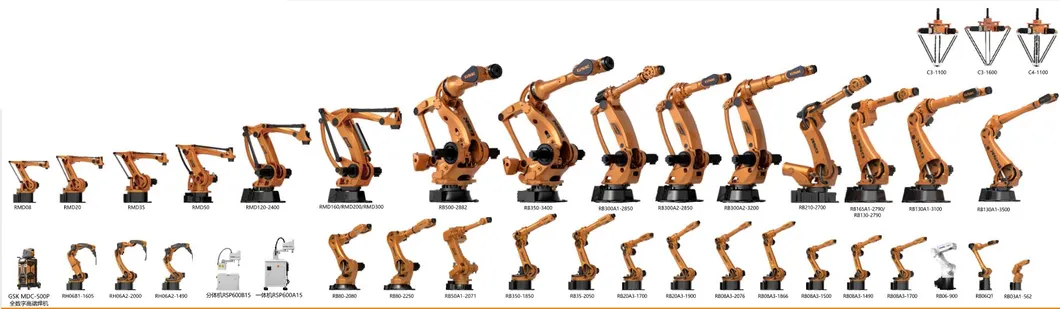

Industrial Robot Series

The robot portfolio includes 6 main series covering transportation, welding, polishing, painting, stacking, and paralleling, with over 30 specialized models.

Type	Dof	Drive Method	Payload (kg)	Repeatability (mm)	Motion Radius (mm)	Weight (kg)
RB03A1-562	6	AC Servo	3	±0.02	562	36
RB06-900	6	AC Servo	6	±0.03	900	60
RB12-1500	6	AC Servo	6	±0.04	1500	186
RB20A3-1700	6	AC Servo	20	±0.04	1700	265
RB50-1956	6	AC Servo	50	±0.05	1956	650
RB165A1-2790	6	AC Servo	165	±0.08	2790	1350
RB300A1-2850	6	AC Servo	300	±0.1	2850	1650
RB500-2882	6	AC Servo	500	±0.1	2882	3300

Core Product Categories

CNC Systems

Industrial Robots

Injection Molding Machines

Frequently Asked Questions

Q1: What is the maximum payload and reach of the RB300A1-2850?

The RB300A1-2850 supports a heavy payload of up to 300kg and has a maximum motion radius of 2850mm.

Q2: Can these robots work in harsh industrial environments?

Yes, the robots feature a perfect seal design with protection levels up to IP65 for specific axes, making them suitable for environments involving spraying, polishing, and burnishing.

Q3: What types of drive systems are used in these robots?

The entire robot series utilizes high-precision AC Servo Drive systems for stable, high-speed, and accurate motion control.

Q4: Are the robots compatible with smart factory management?

Absolutely. Our General Control Management System is designed for "Digitalized Factories" and "Intelligent Workshops," offering real-time equipment utilization statistics and production flow management.

Q5: What safety features are integrated into the loading/unloading systems?

The systems include soft/hard limit controls, emergency stop functions, and signal interlocking with CNC machines to prevent accidents during automated operation.

Q6: What certifications do the industrial robots hold?

All industrial robots are manufactured to high standards and hold ISO and CE certifications, ensuring international compliance and quality.
