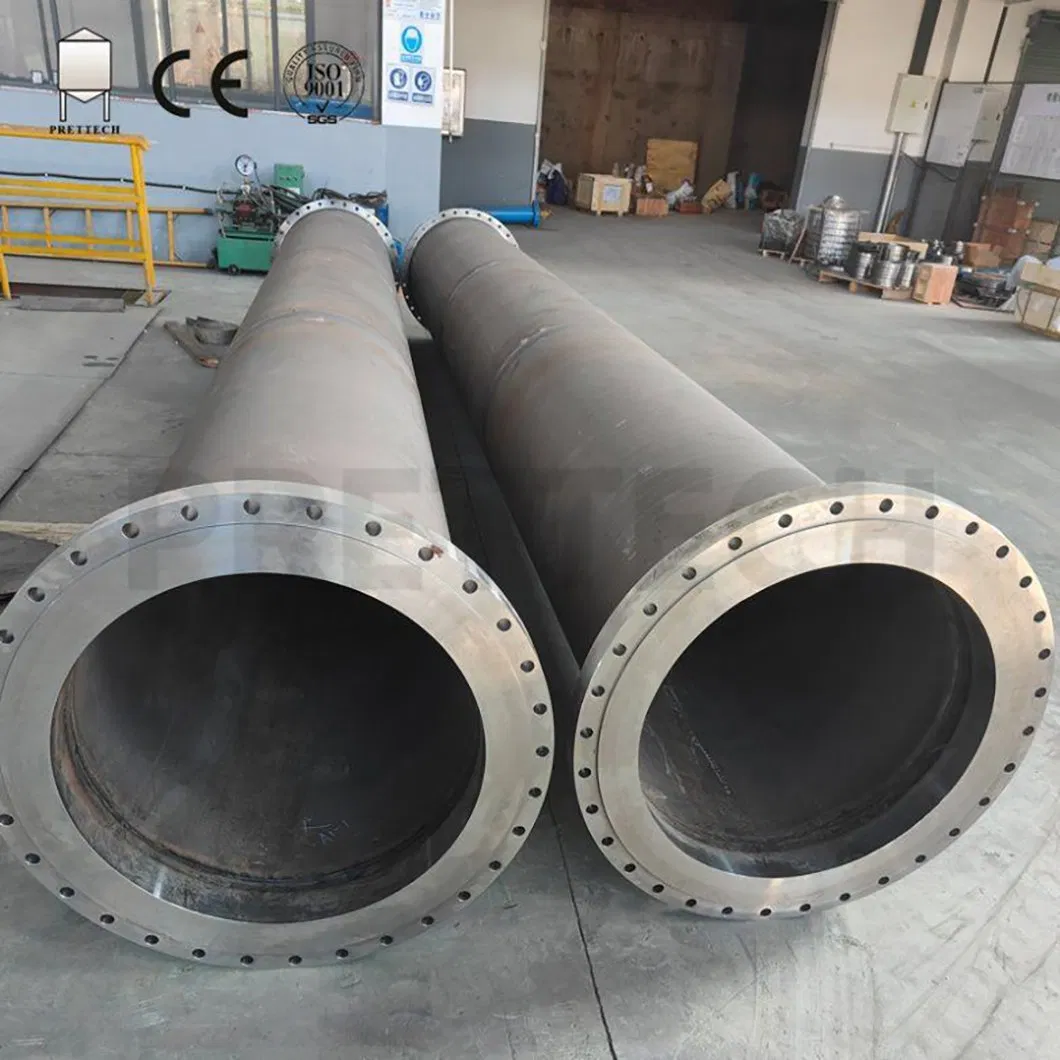

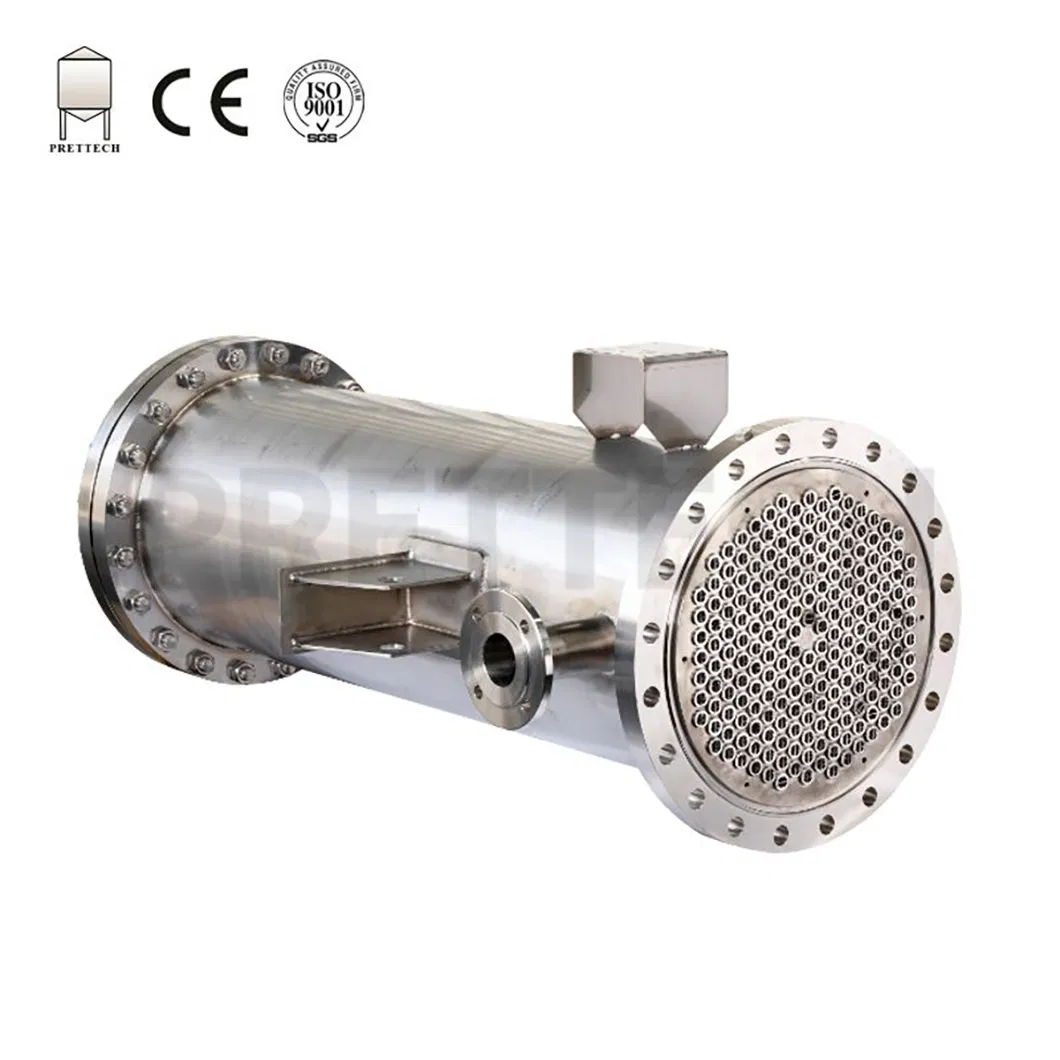

Shell tube Heat Exchangers are very popular and commonly found in industrial use. A shell and tube exchanger consists of a shell, tube bundle and two heads or caps at both ends of the shell. Including fixed tube exchanger, U tube exchanger, and floating head exchanger three types.
Application: Evaporating, Heating, Condensing, Cooling process.
| No | Name | Parameter |
| 1 | Heating area | 0.5~500M² |
| 2 | Working pressure | 0.1-100bar |
| 3 | Working temperature | ≤350ºC |
| 4 | Nominal diameter | 150-2000mm |
| 5 | Installation | Vertical, Horizontal |
| 6 | Material | SS304, SS316, Hastelloy C-276, Nickle, Titanium |

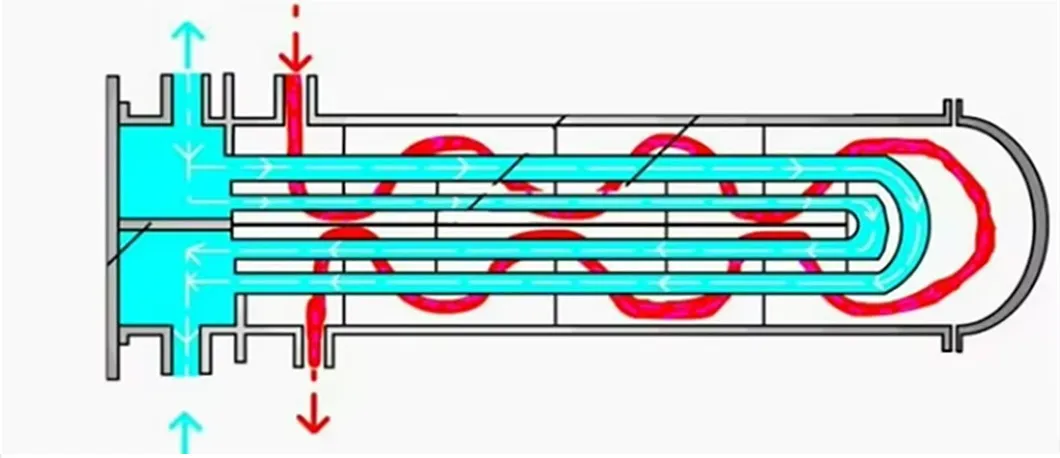

U-tube heat exchanger

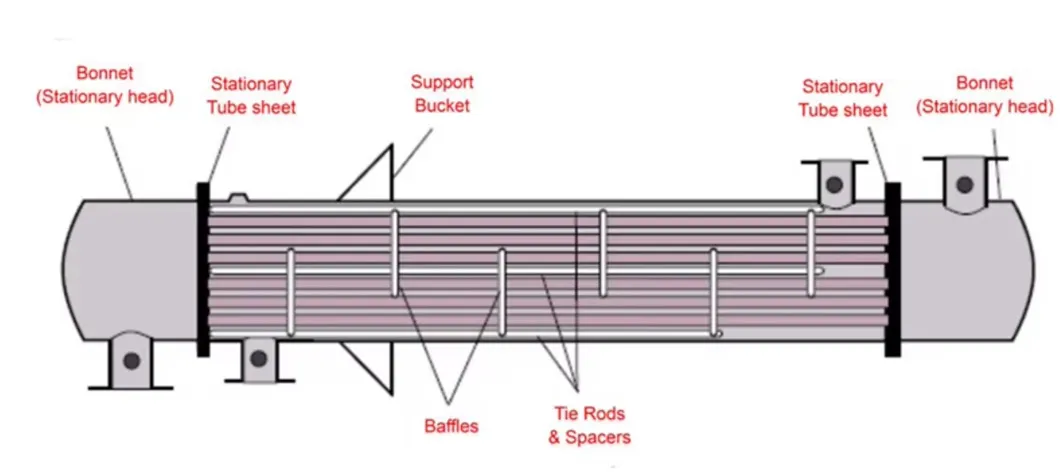

Fix tube heat exchanger
Floating head heat exchanger

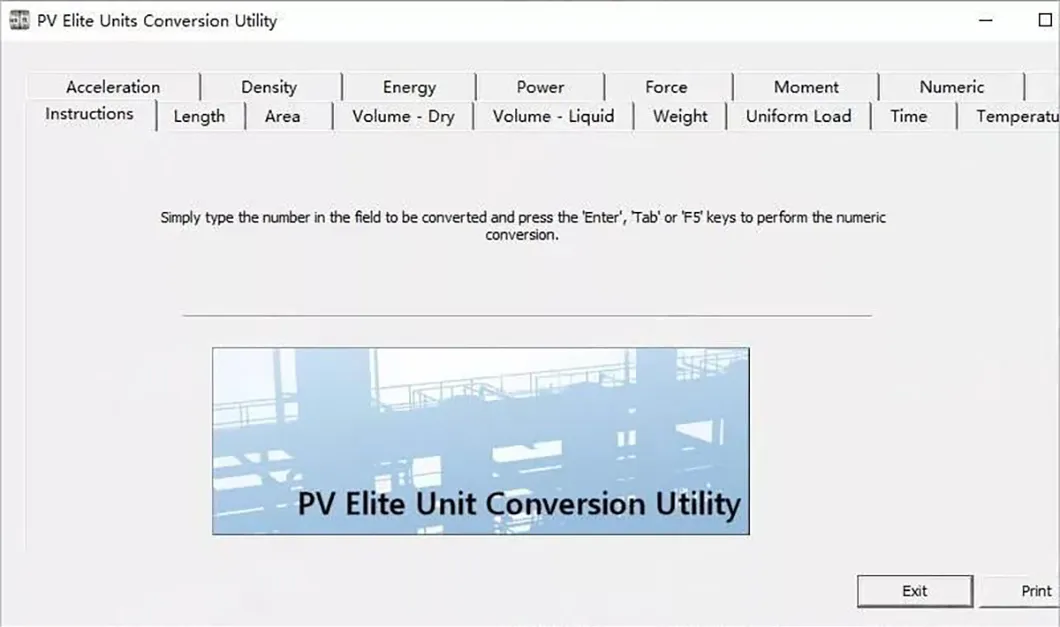

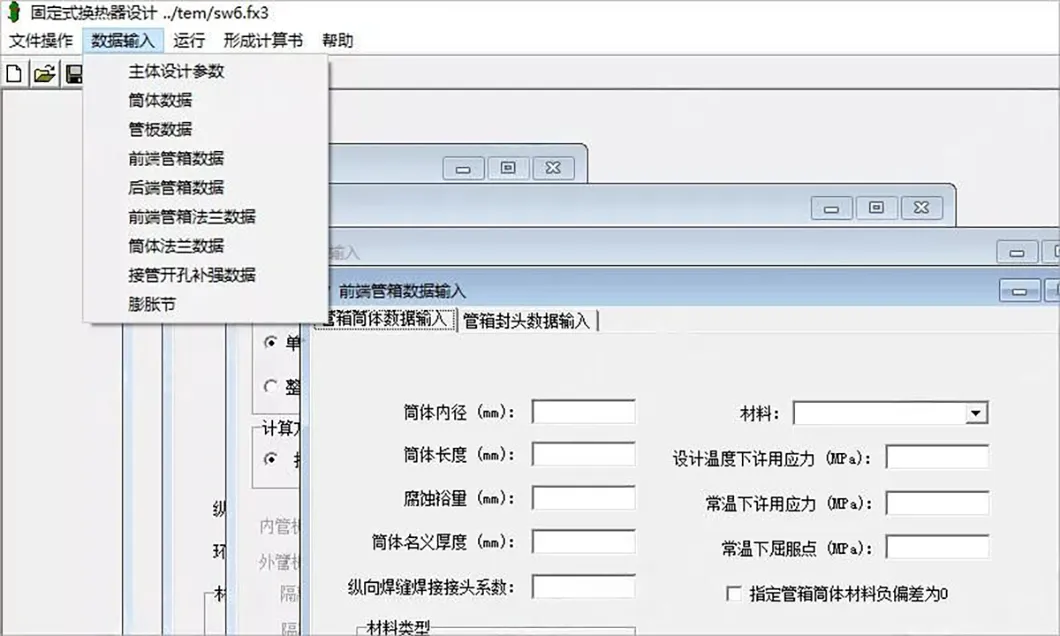

The heat exchanger design by SW6-2011 and PV Elite. Thermal Rating Calculation Software and Pressure Vessel Mechanical Design Software.
1. We have passed the ISO9001 system certification, all departments are well managed.

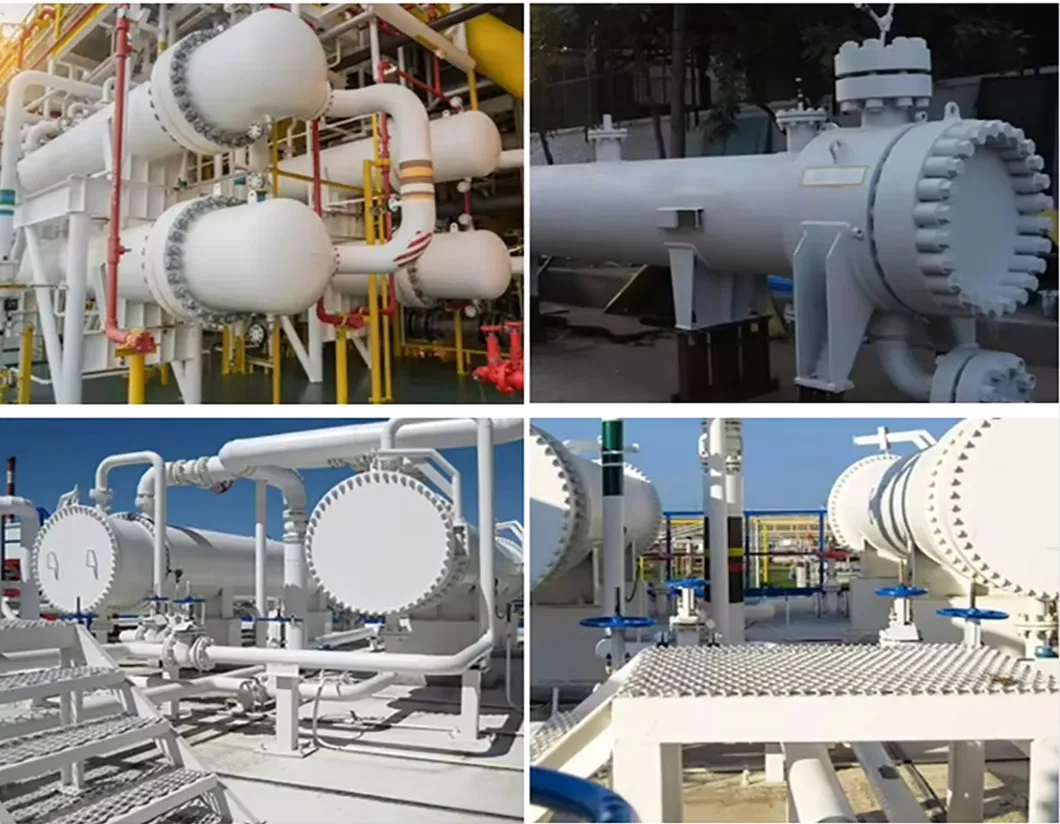

2. Each heat exchanger must be inspected and tested before leaving the factory.
3. Rapid response for any damage or quality defect to protect customers' interests.
Seaworthy packaging and braced by steel strips. Lead time guaranteed with no delay. Help to arrange shipping or deliver to customer's door.
