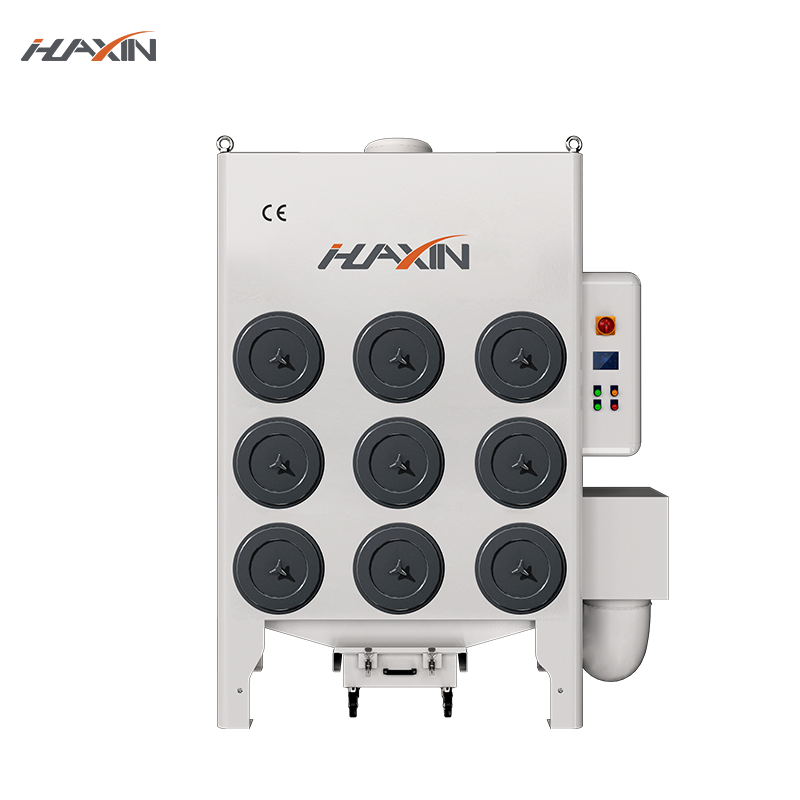

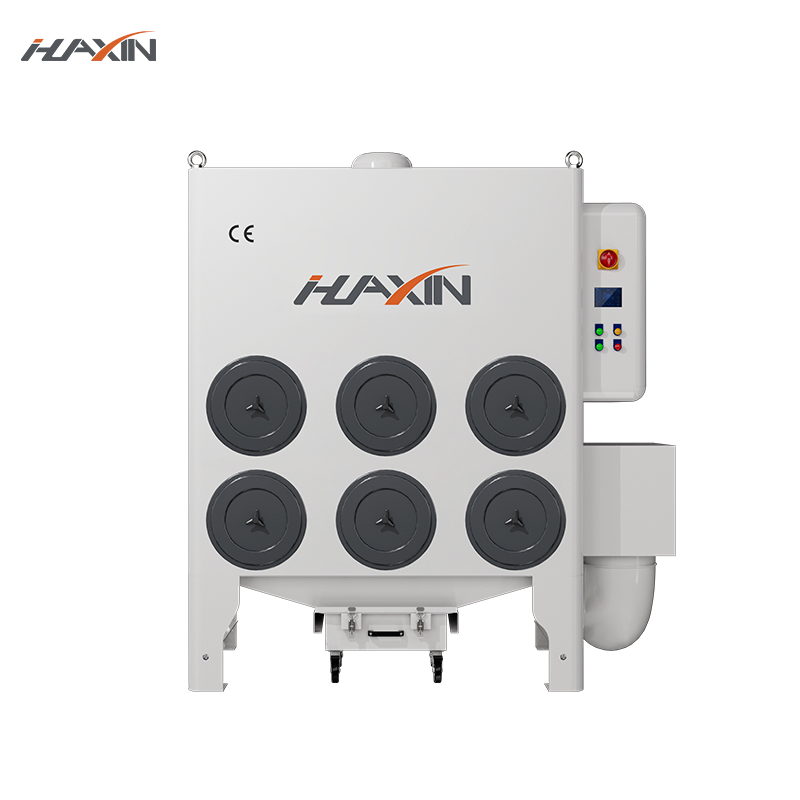

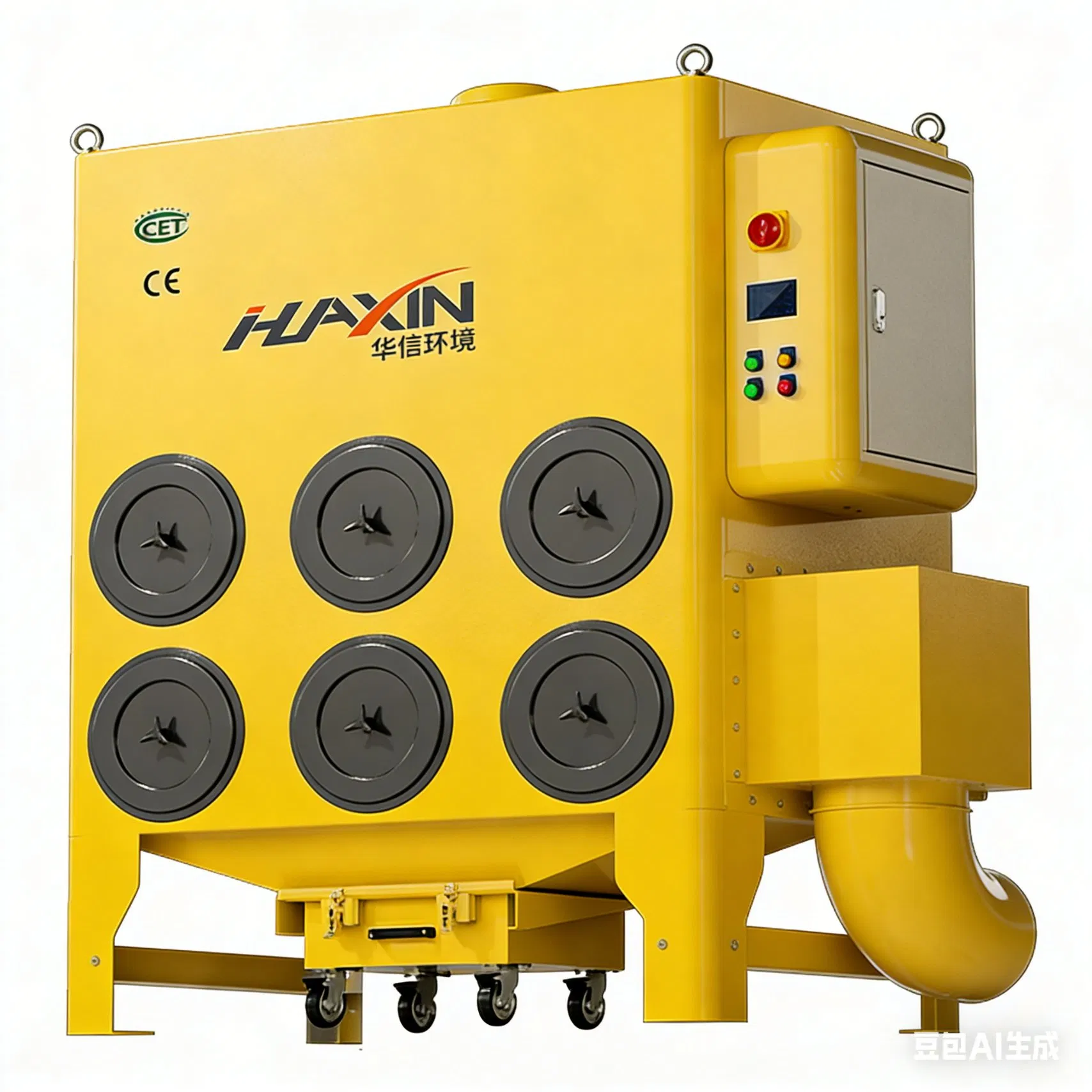

Robust 7.5kw Dust Collector/Fume Extraction for Laser and Welding

1 / 5

Robust 7.5kw Dust Collector/Fume Extraction for Laser and Welding

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Overview

Model NO.	JG06	Operation Type	Automatic
Medium Material	Chemical Synthetic Fiber	Dust Collecting Method	Dry
Type	Filter Cartridge Dust Collector	Power	7.5kw
Voltage	380V/400V/415V/220V	Application	Welding/Soldering/Lasering Position
Filtration Area	78m2	Filtration Accuracy	99.99%
Weight	585kgs	Dimensions	180010502200mm

⚙️ Product Description

For Capturing:

Welding Fumes & Grinding Dusts
Dry Dusts & Soldering Dusts
Powders & Cutting Scraps
Polishing Residue

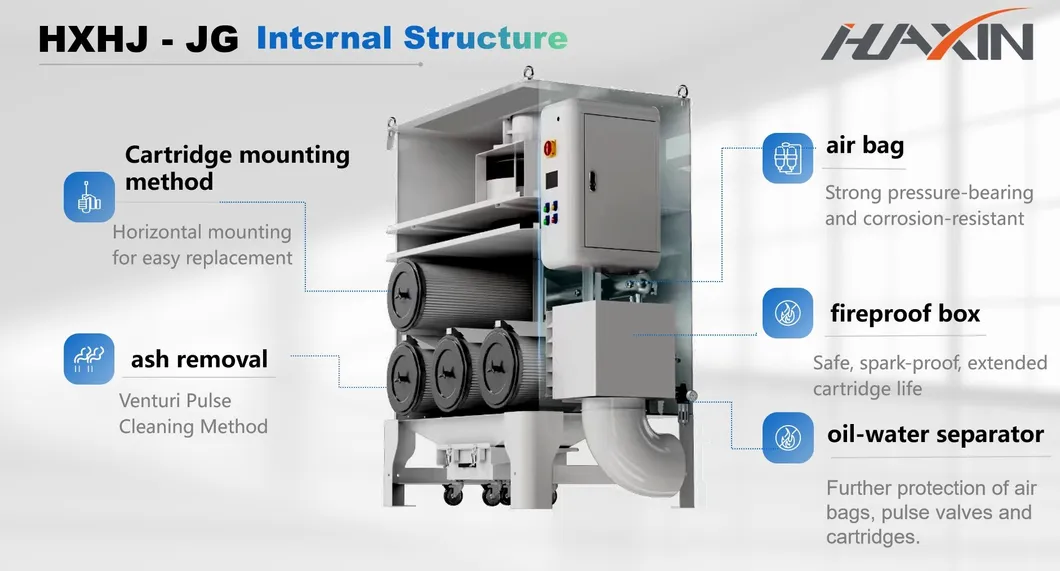

Key Features:

1000~500000m3/h airflow capacity.
Advanced Spark Trap for hazard prevention.
Auto-Pulse Cleaning system for easy maintenance.

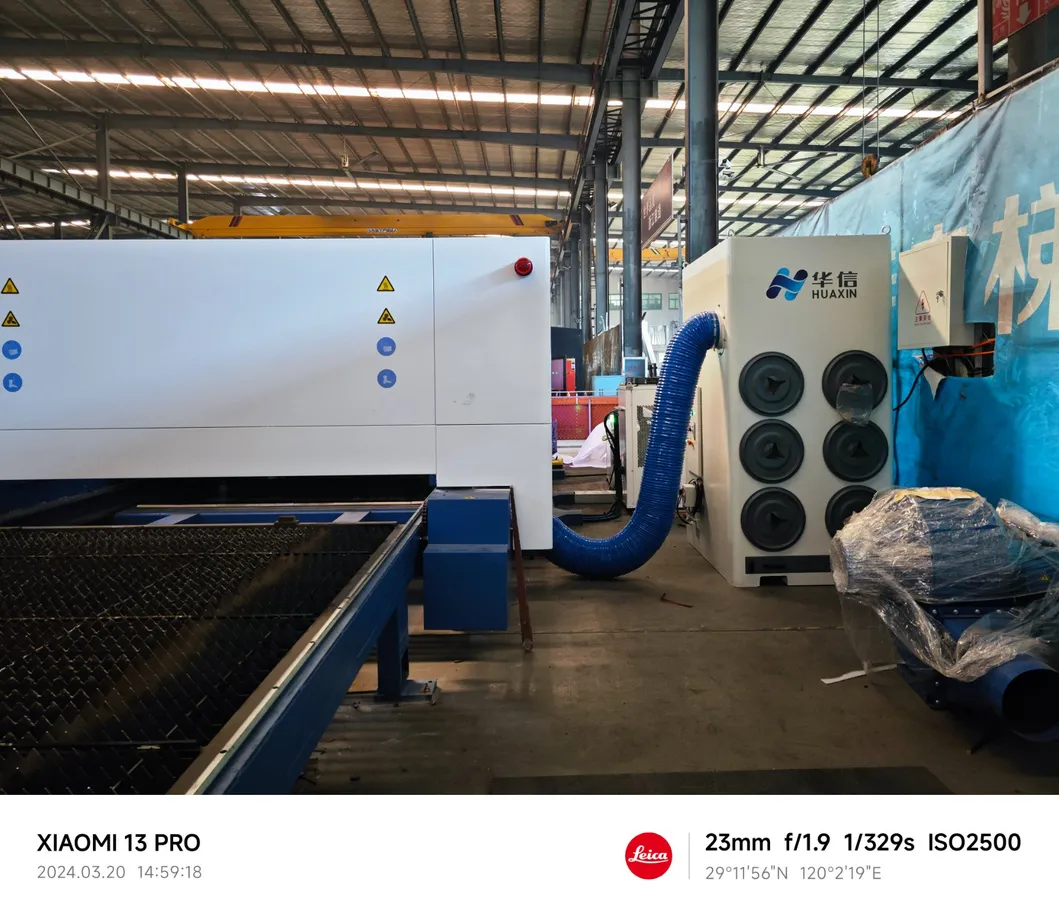

Seamlessly Compatible with Laser/Plasma Cutting Machines.

1. Meticulously crafted for large airflow needs, integrating robust motor capacity.
2. Split type design ensuring operational excellence and peak performance.
3. Unique fan isolation sound box and sound eliminator for quiet operation.
4. Multi-stage resistance fire device guarantees operational security.

📋 Product Parameters

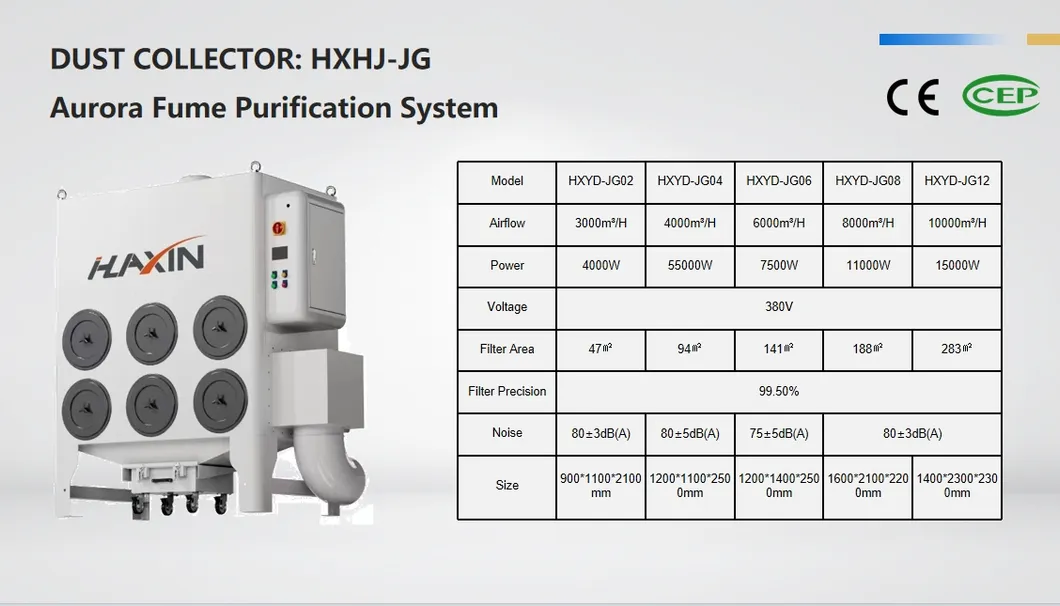

Model Range	Airflow (m³/h)	Power (kW)	Voltage	Filter Area (m²)	Precision	Size (mm)

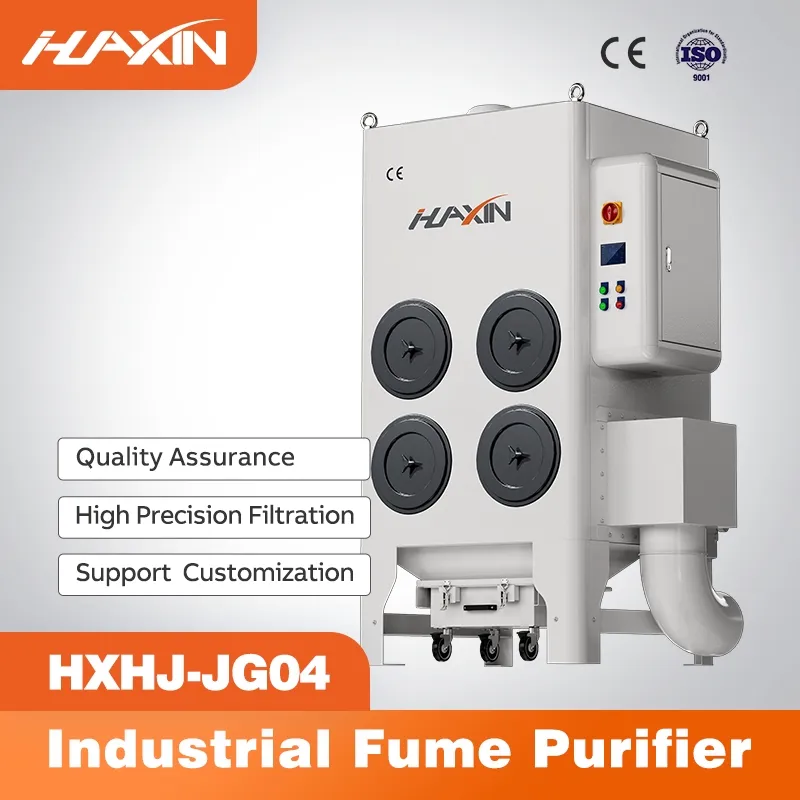

JG04	4000	5.5KW	380V-415V/50-60Hz	94	99.50%	13009402200

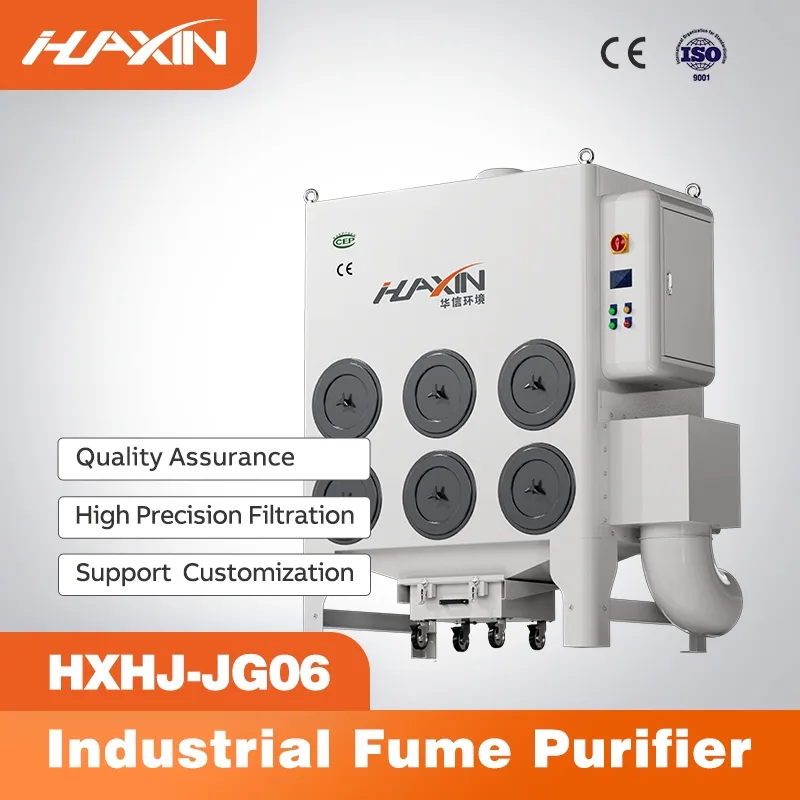

JG06	6000	7.5kW		140	99.50%	180010502200

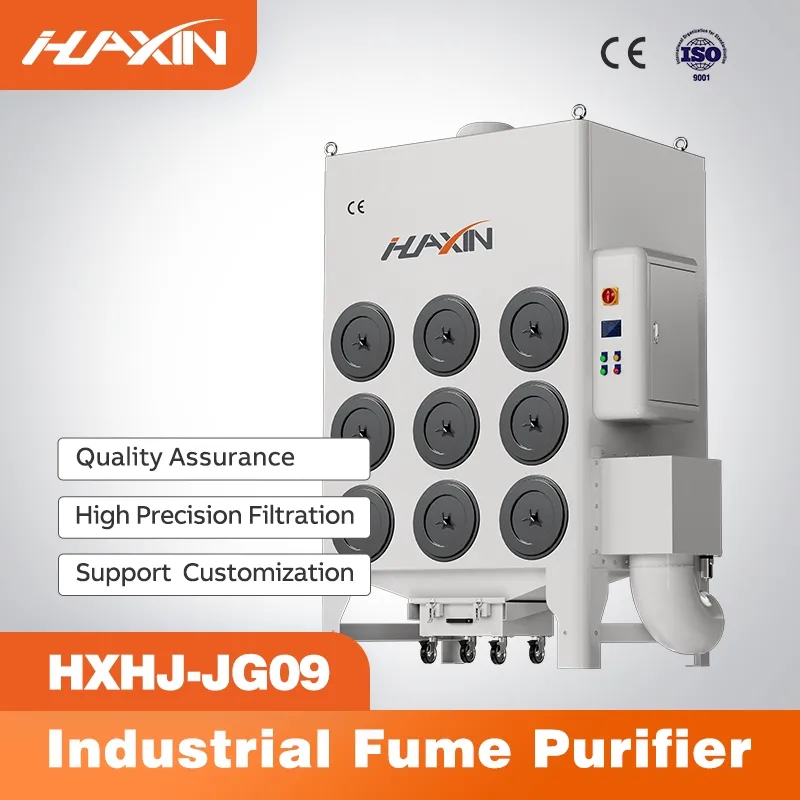

JG09	9000	11kW		188	99.50%	180011002820
JG12	10000	15kW		284	99.50%	180012003300

🌟 Our Advantages

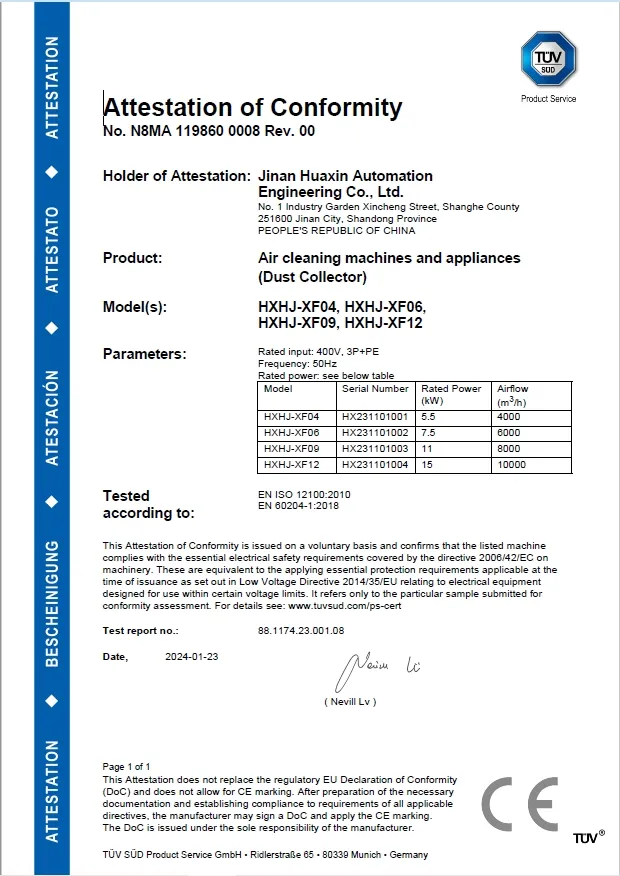

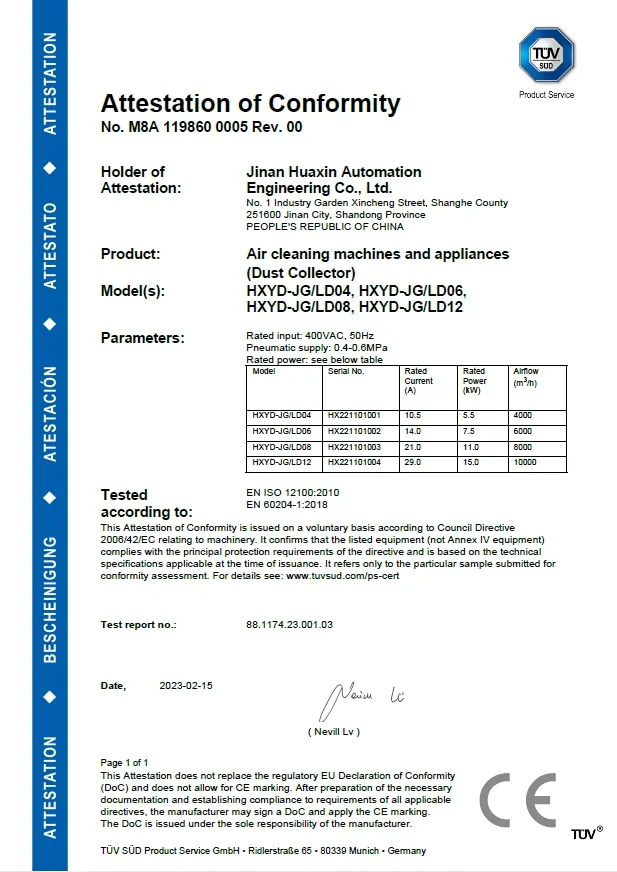

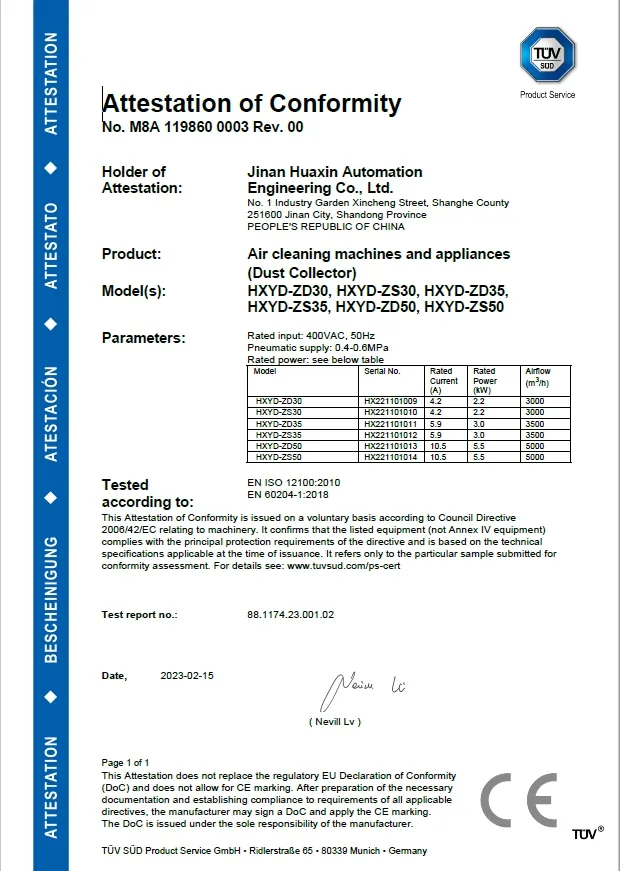

📜 Certifications

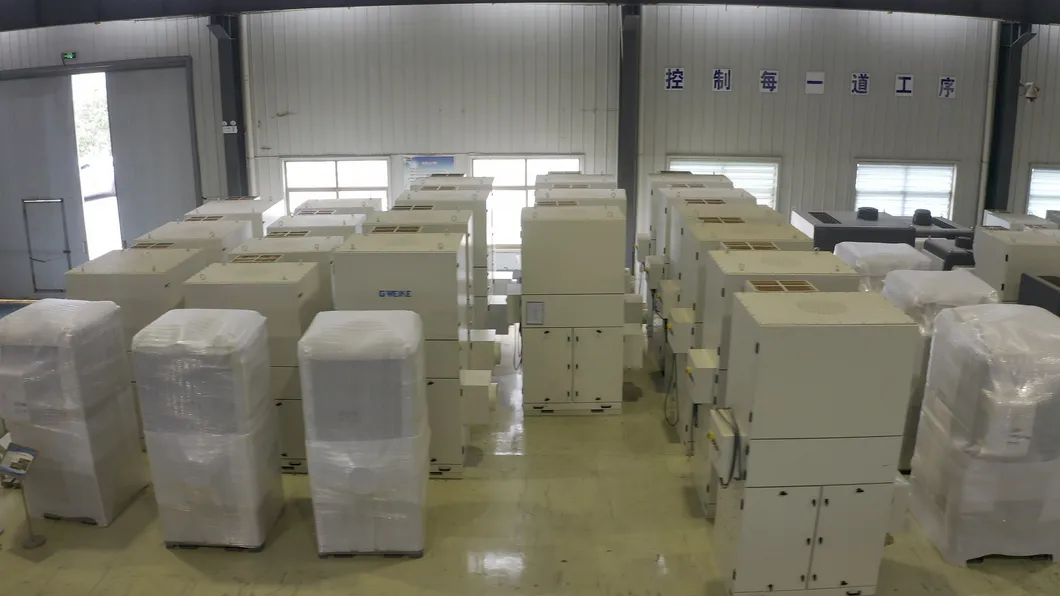

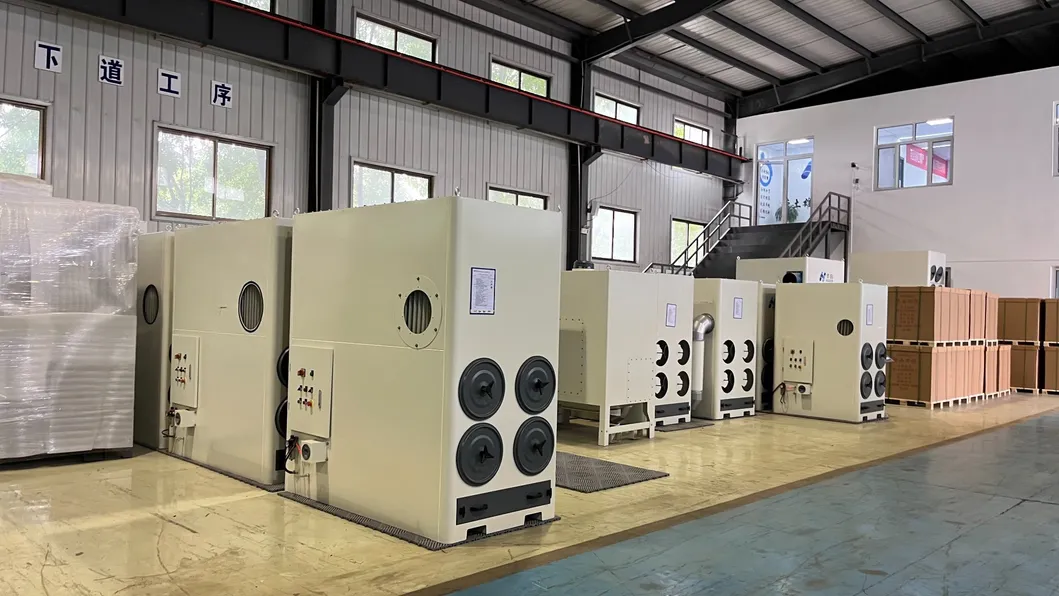

📸 Detailed Photos

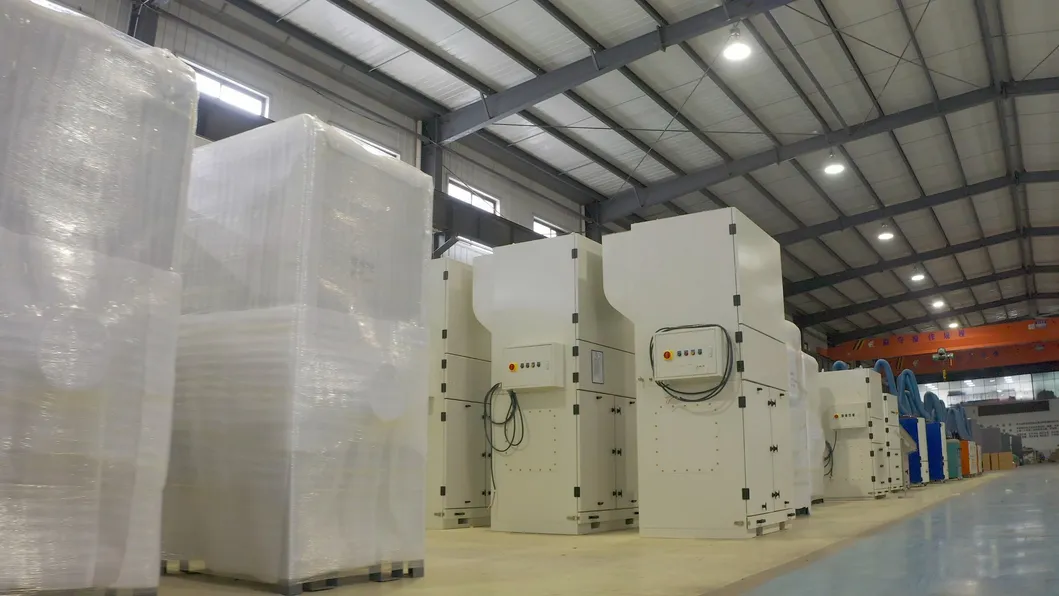

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: Is there any noise during operation? The fans are equipped with sound insulation cotton to ensure they do not produce excessive noise, maintaining a quiet work environment.

Q2: Why is the plastic spraying process used for surface treatment? This process ensures the paint is durable and resistant to falling off, providing a long-lasting protective finish for the dust collector.

Q3: How do I configure the required air volume? Simply measure the diameter of your laser cutting machine's exhaust pipe. We can calculate the exact air volume needed based on those dimensions.

Q4: How are fire hazards from sparks avoided during cutting? We install specialized spark catchers (labyrinth structure) that force sparks to hit cold plates multiple times, effectively extinguishing them before they reach the filter.

Q5: Does the system require an external chimney for venting? No, it doesn't. We use high-precision filter material (99% efficiency for 0.3um dust) which allows the cleaned air to be discharged directly indoors safely.

Q6: What is the warranty and after-sales policy? We offer a one-year warranty with free maintenance. Beyond the warranty period, we only charge for the cost of replacement parts.
