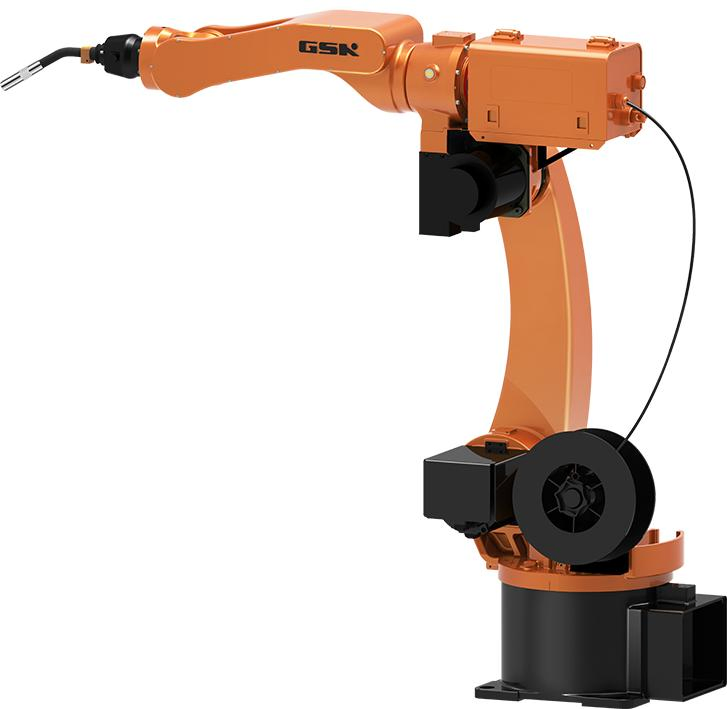

Application field: It is widely used in automobiles and their accessories, motorcycles and their accessories, and agricultural machines, engineering machines and other hardware welding fields.

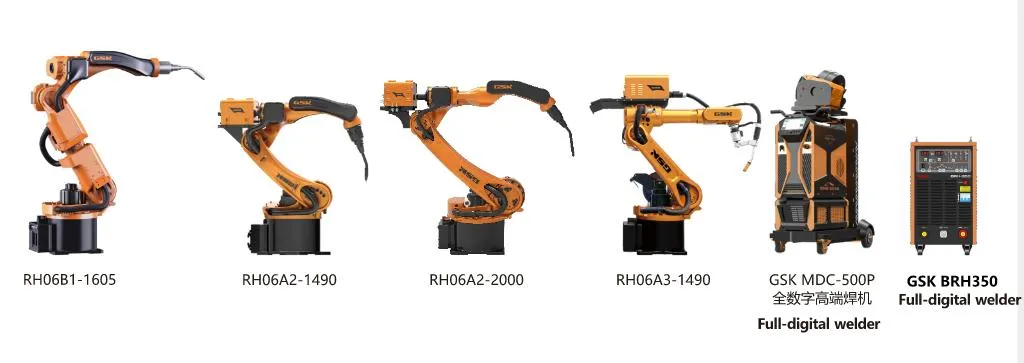

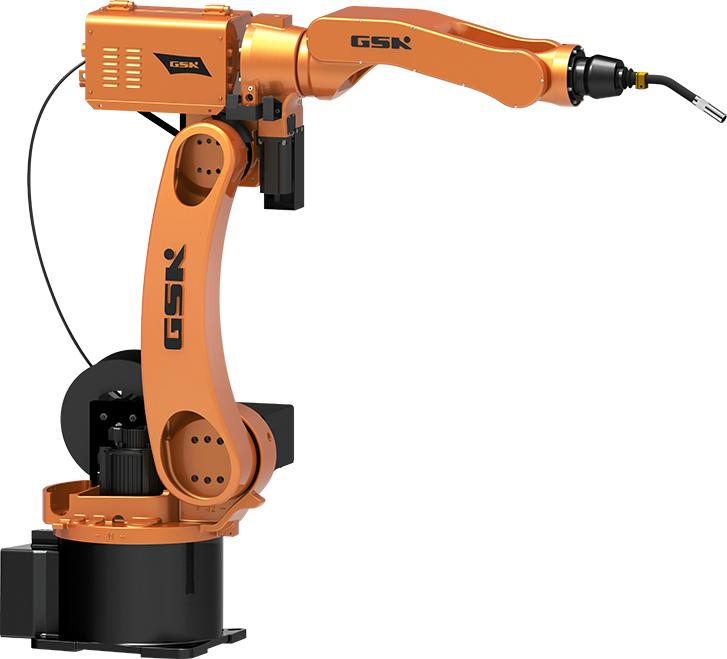

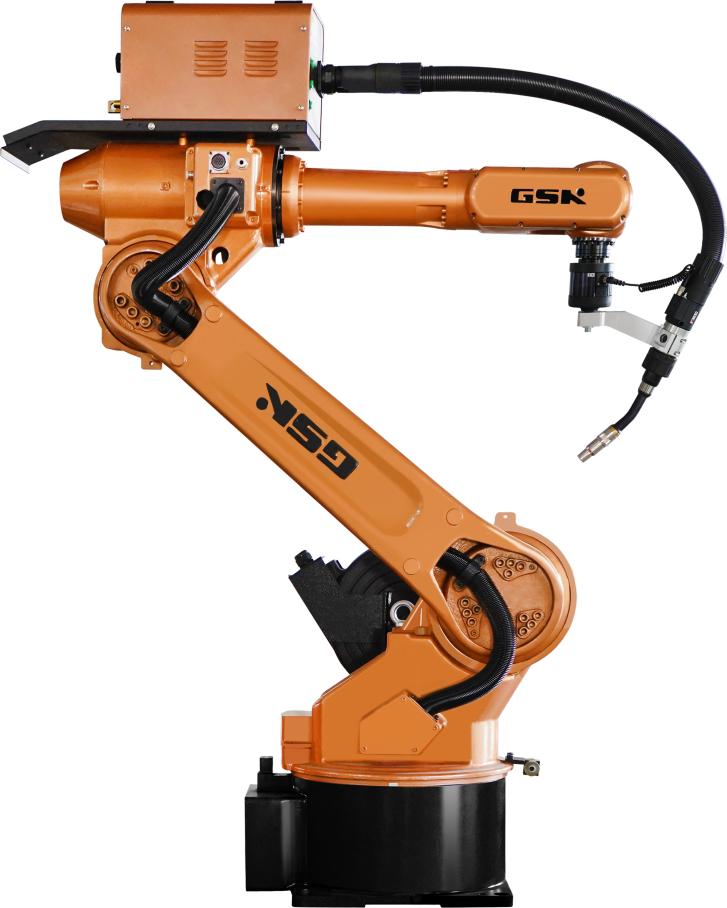

| Type | Dof | Drive Method | Payload(kg) | Repeatability(mm) | Radius(mm) | Weight(kg) |
|---|---|---|---|---|---|---|
| RH06A2-1490 | 6 | AC Servo Drive | 6 | ±0.05 | 1490 | 190 |
| RH06A3-1490 | 6 | AC Servo Drive | 6 | ±0.05 | 1490 | 185 |
| RH06A2-2000 | 6 | AC Servo Drive | 6 | ±0.05 | 2000 | 265 |
Note: Avoid contact with inflammable and explosive gases; protect from oil, dust, and electrical noise sources.

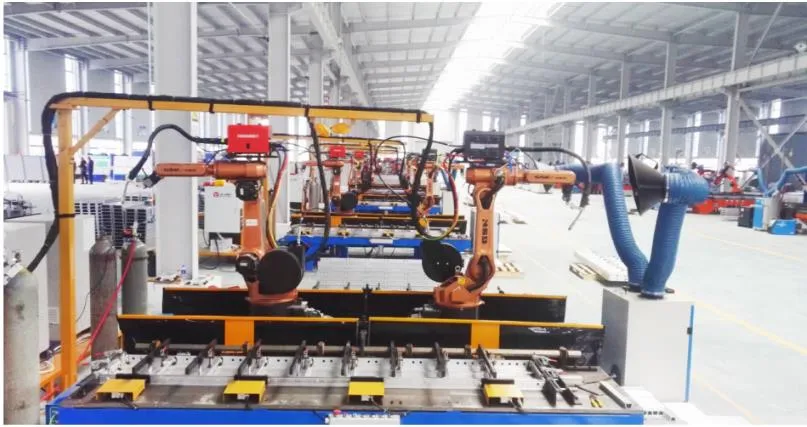

Robot replaces manual work with double-position alternative welding. Equipped with automatic torch cutting mechanism to guarantee continuity.

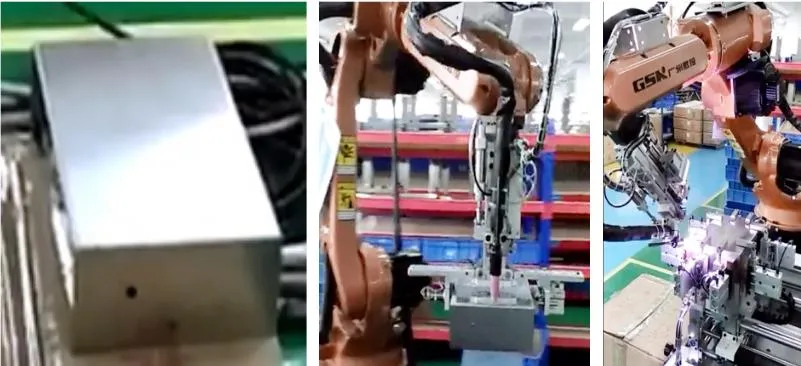

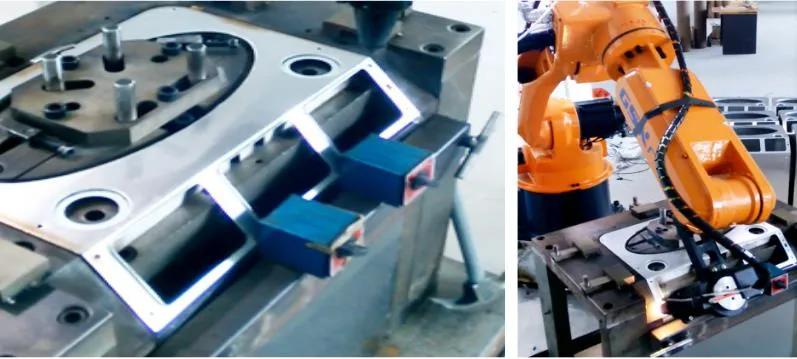

Used in small appliance industry for 0.6mm stainless steel sheet welding. High-speed continuous welding with minimal deformation.

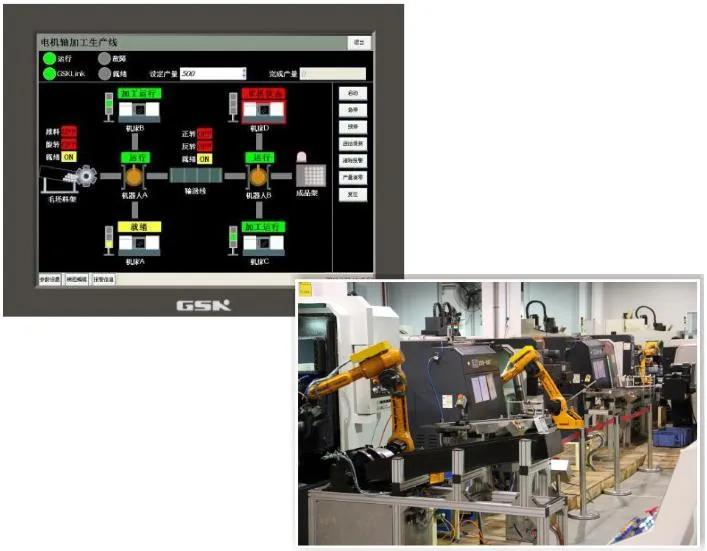

Full-automatic loading, unloading, and welding. Tooling is flexible; length and width adjust automatically according to procedure.

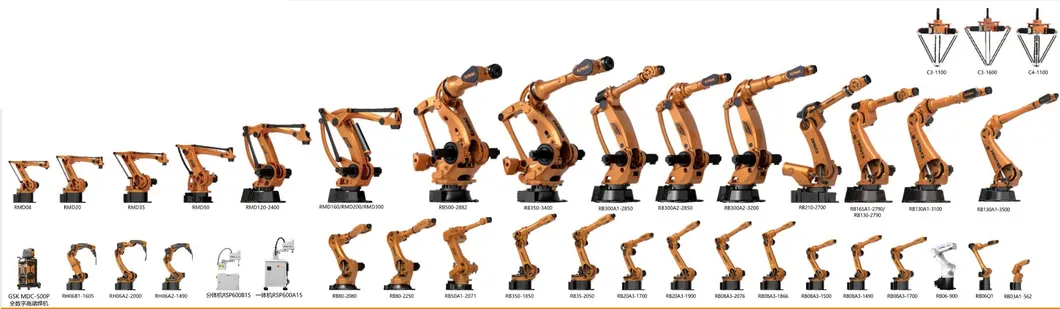

With over 30 years of R&D experience, industrial robots are produced with independent intellectual property rights. The family includes 6 series covering transportation, welding, polishing, painting, stacking, and paralleling.
