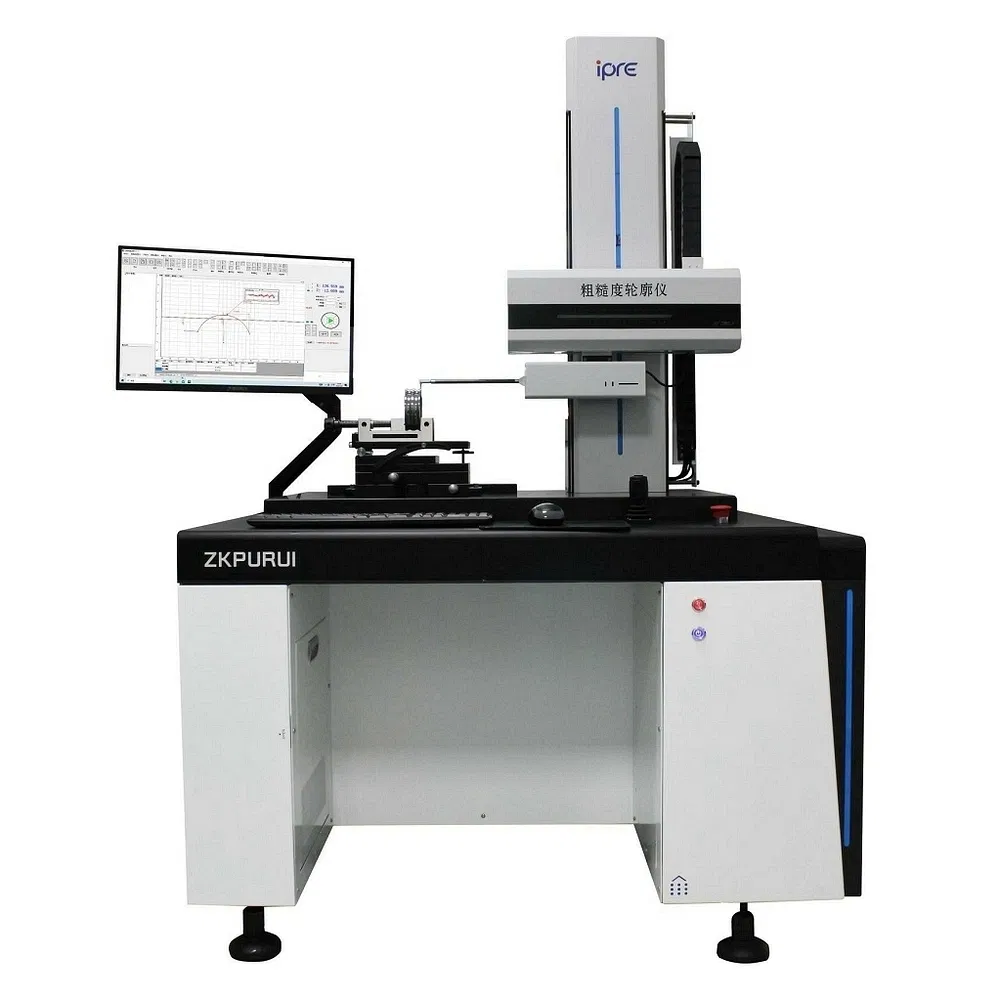

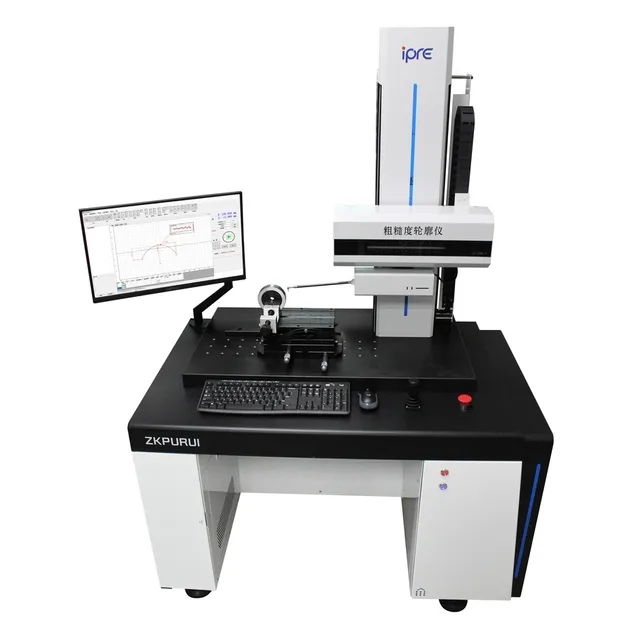

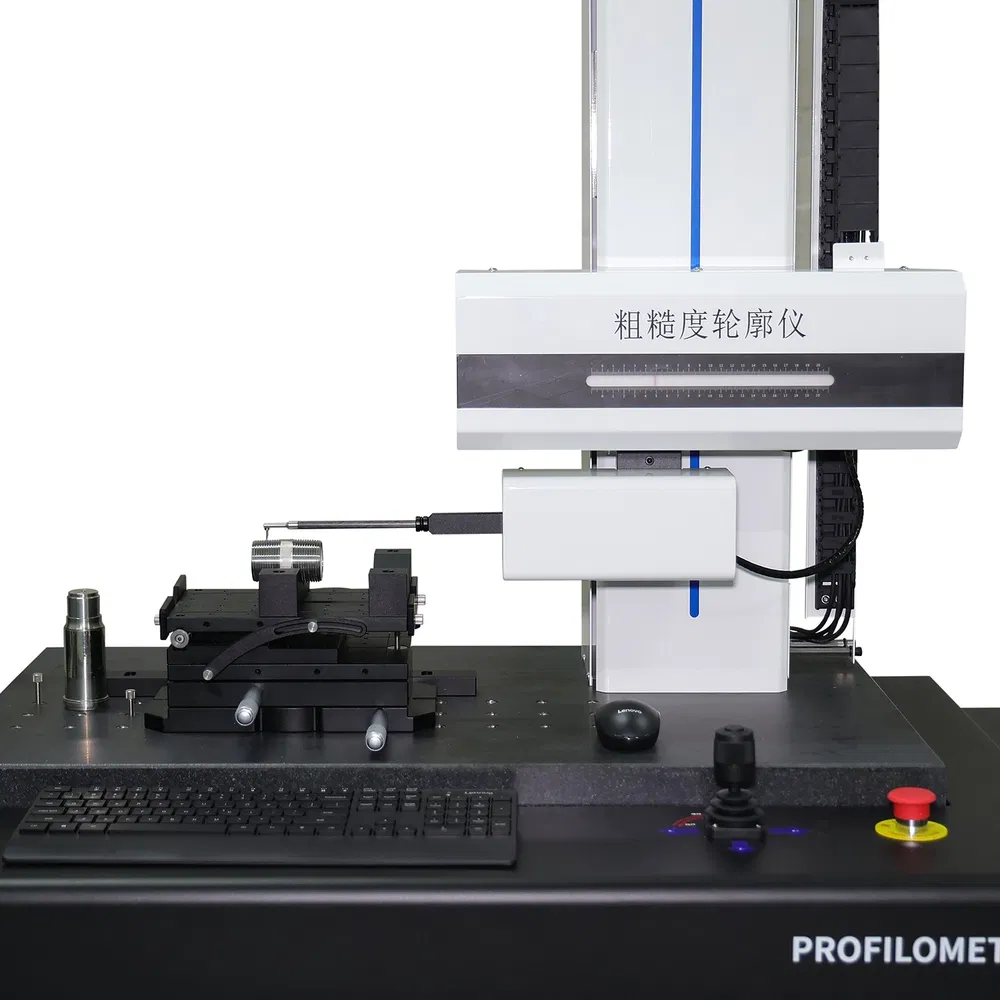

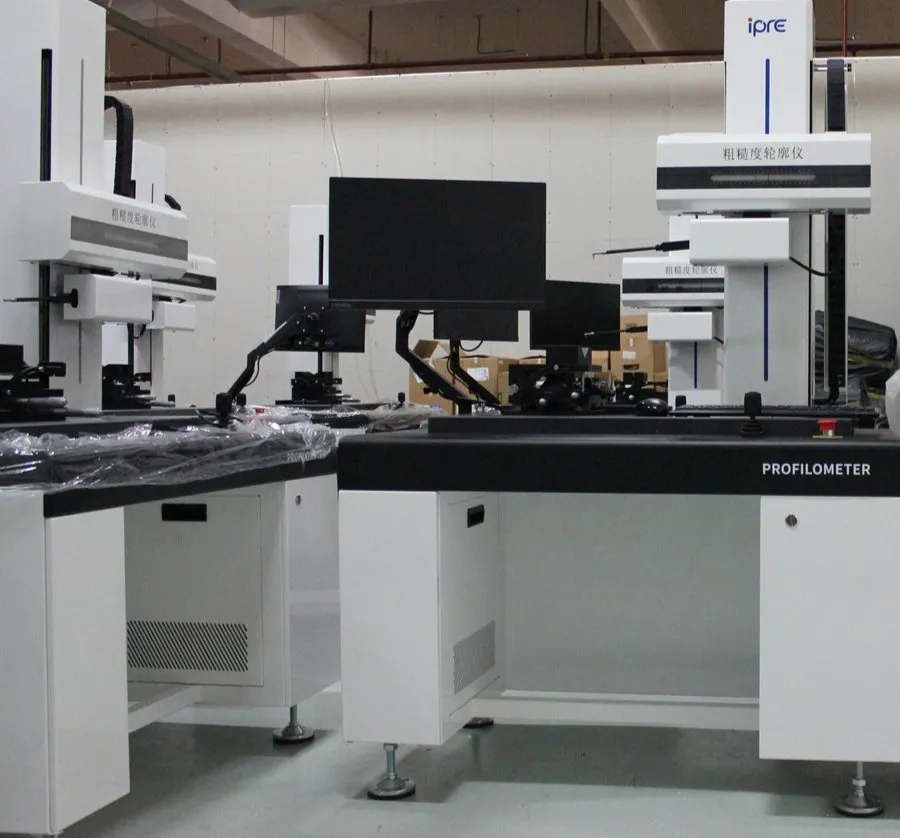

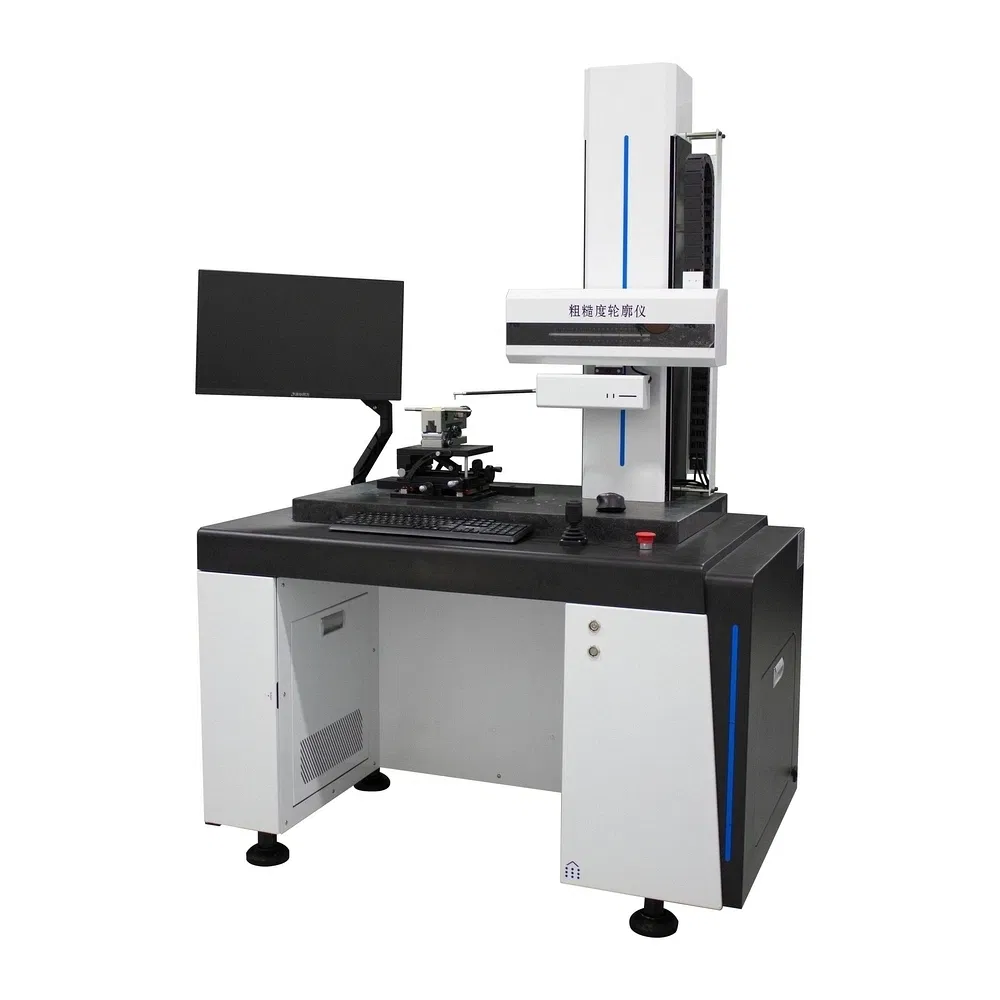

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor.
Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.
| Project / Model | Detail | Specification (IPRE-RA150S) |
|---|---|---|
| X-axis Guide Rail | Moving accuracy | ≤±(1+|0.02L|)μm |
| X-axis Grating | Resolution | 0.01μm |
| Date Sensor | Resolution | 0.001μm (Roughness test) |
| Linear Precision | - | ≤±(0.8+|0.05H|)μm |
| Straightness | - | ≤0.5μm/100mm |
| Roughness Test Range | Z1 axis | ±20mm (Full range) |
| Measurement Range | X-axis | ≤180mm |
| Power Supply | - | 220V 50Hz, 0.5Kw |

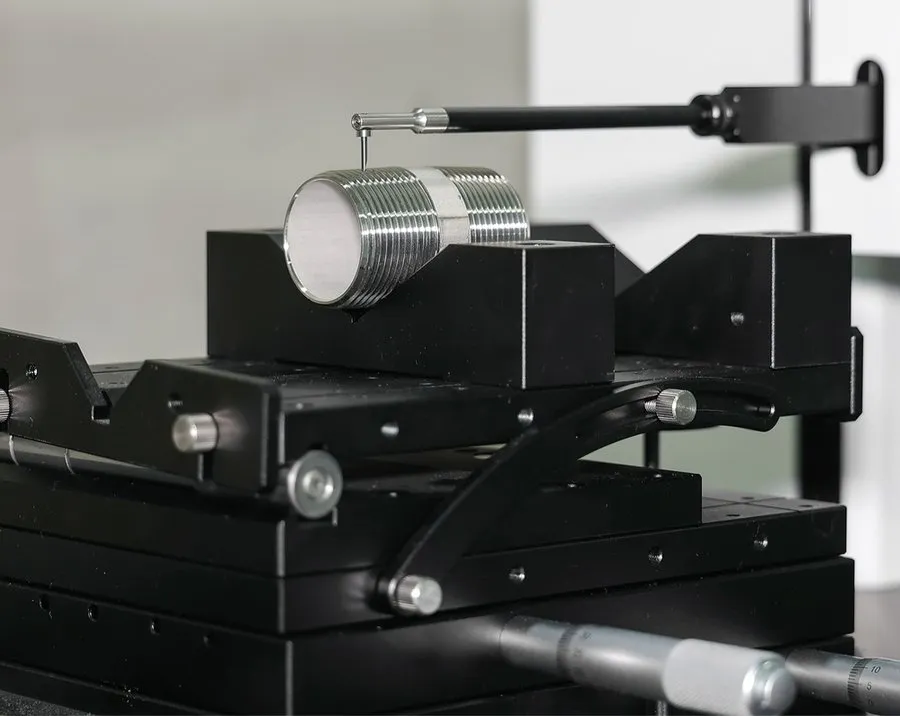

Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for demanding surface analysis tasks.

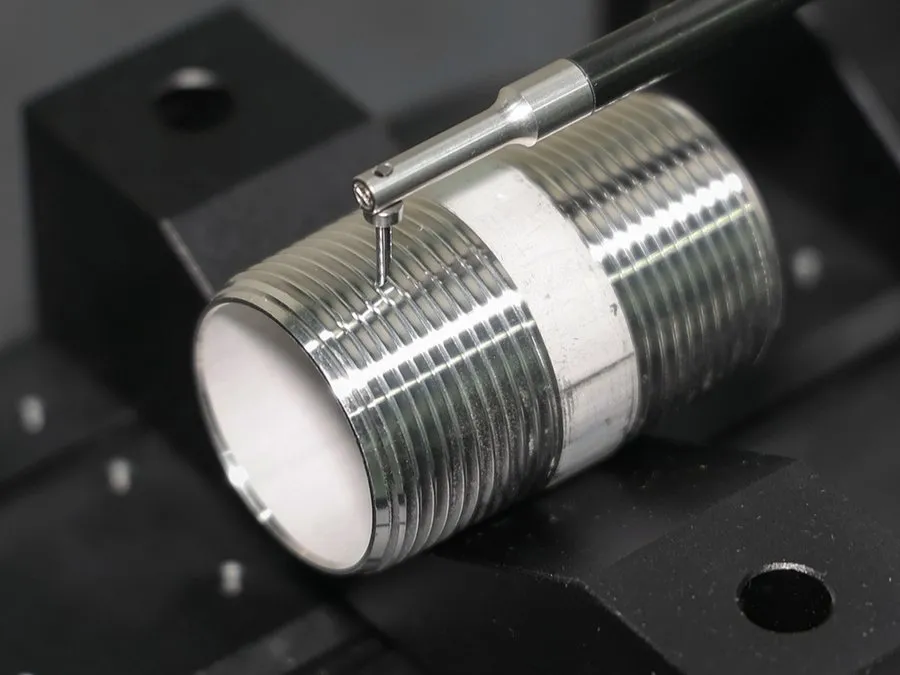

Captures micro-level surface details with superior resolution, enabling precise evaluation of roughness values.

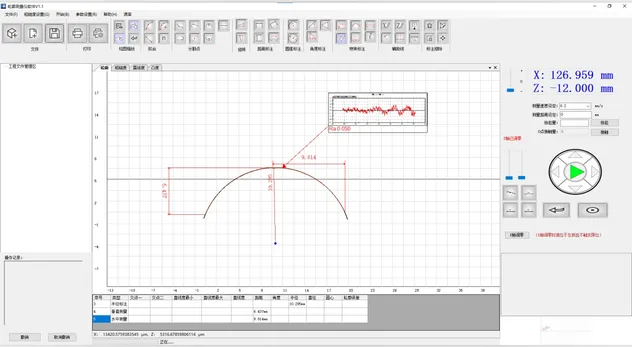

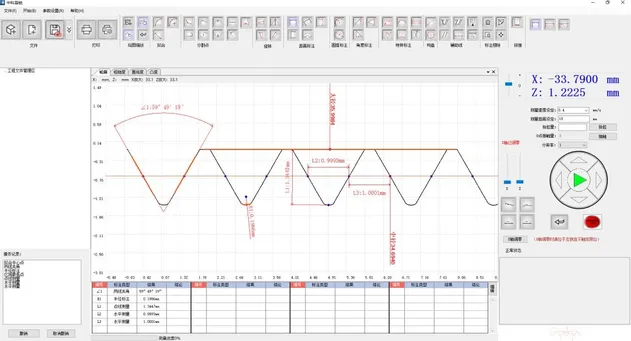

1) Data Processing: Automatically processes data and prints reports in various formats.

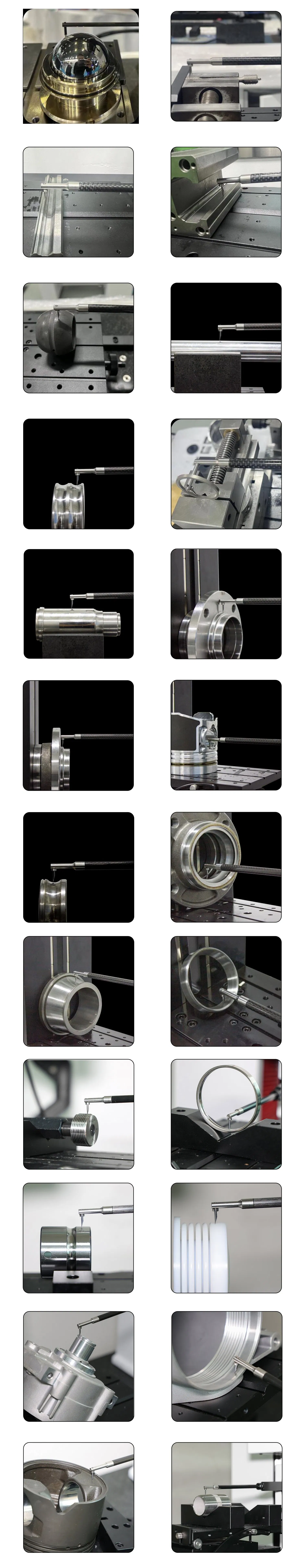

2) Wide Range: Meets almost all types of workpiece contour measurement including bearings and threads.
3) Multi-Standard: Supports ISO, DIN, JIS, and ANSI standards.
4) Large Storage: Computer-based database for recording and saving all results.
