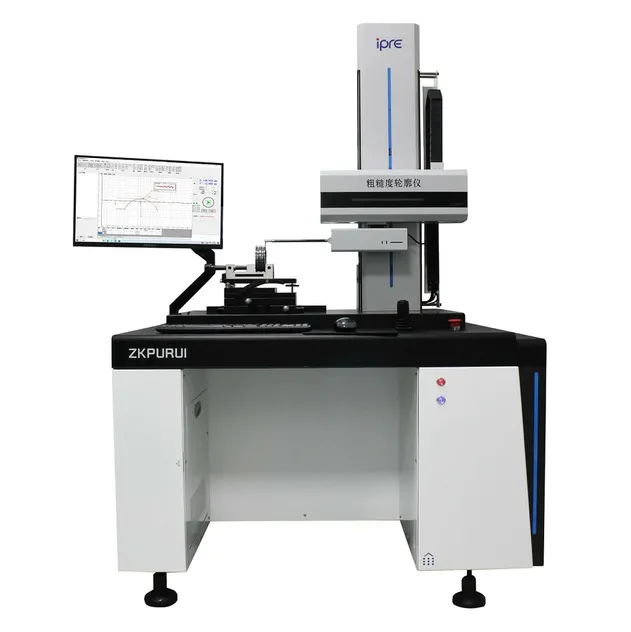

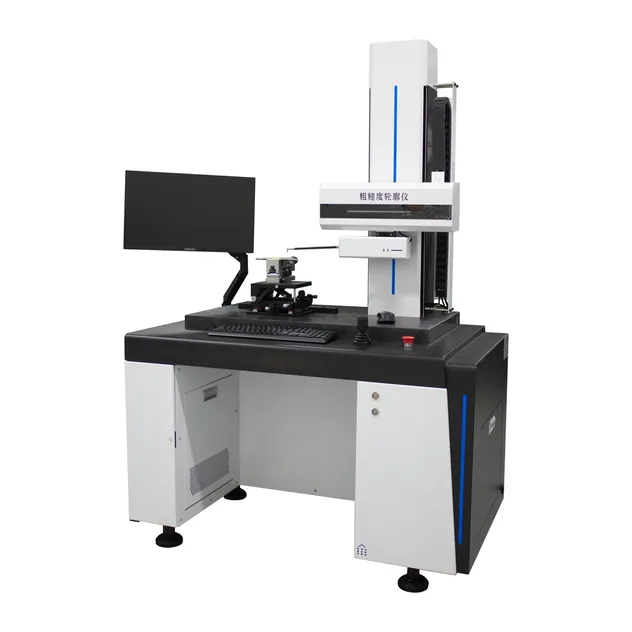

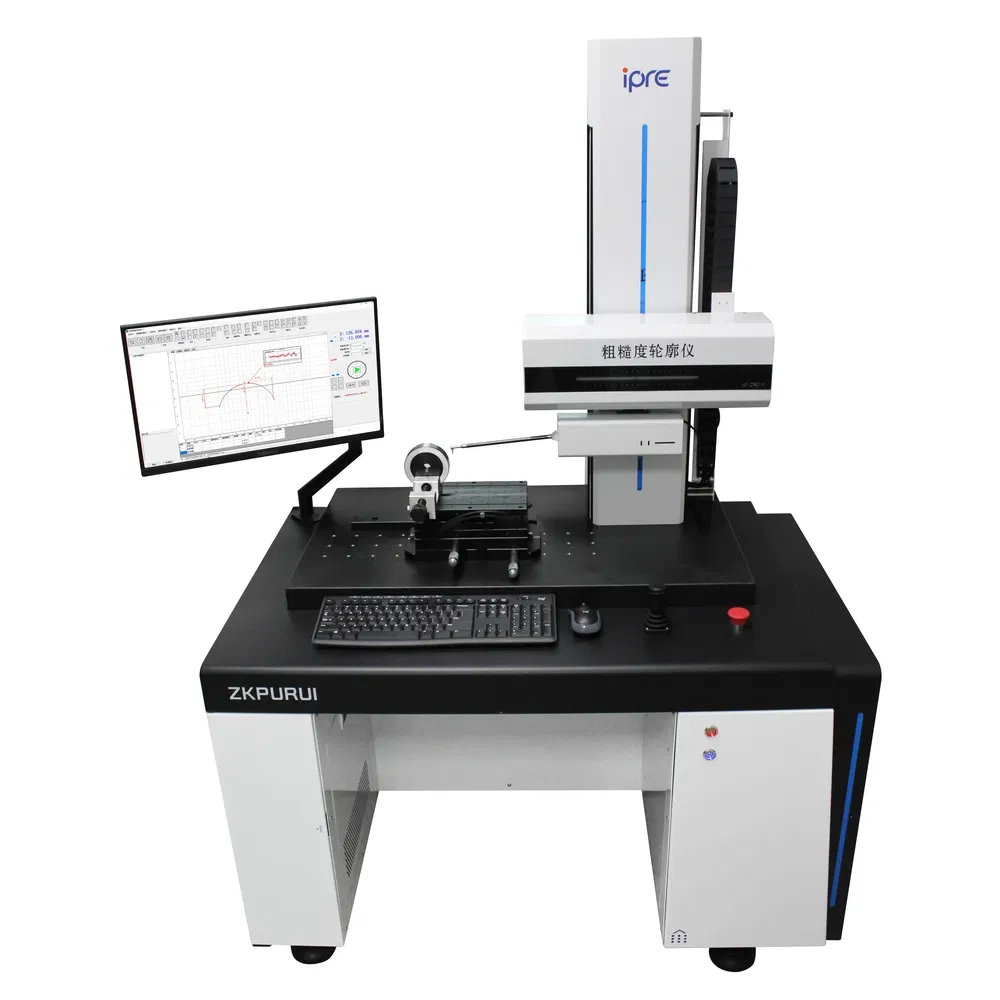

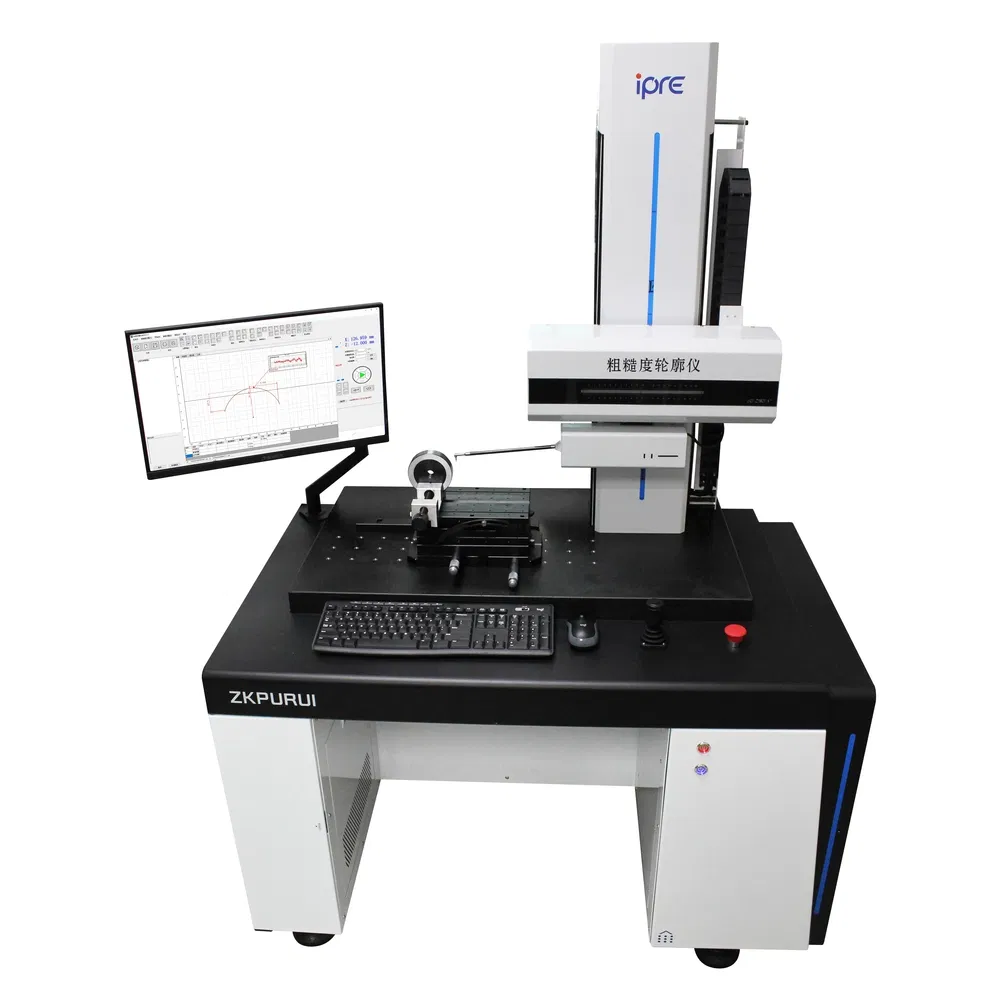

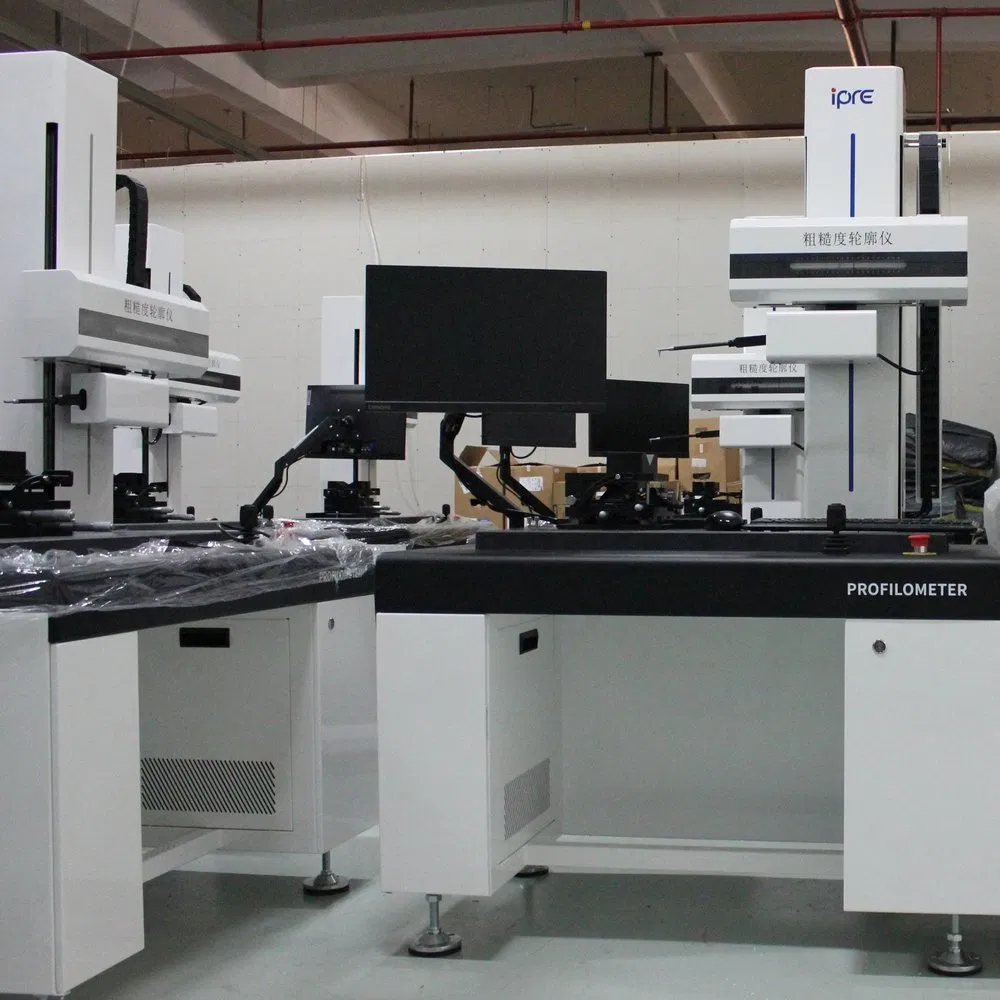

Reliable High Performance Ra150s Bench Top Surface Roughness Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Basic Specifications

CORE INFO

Model: RA150S

Material: Metal

Feature: High Range, High Accuracy, High Resolution

Application: Test Roughness Value and Profile

Capacity: 500 Sets

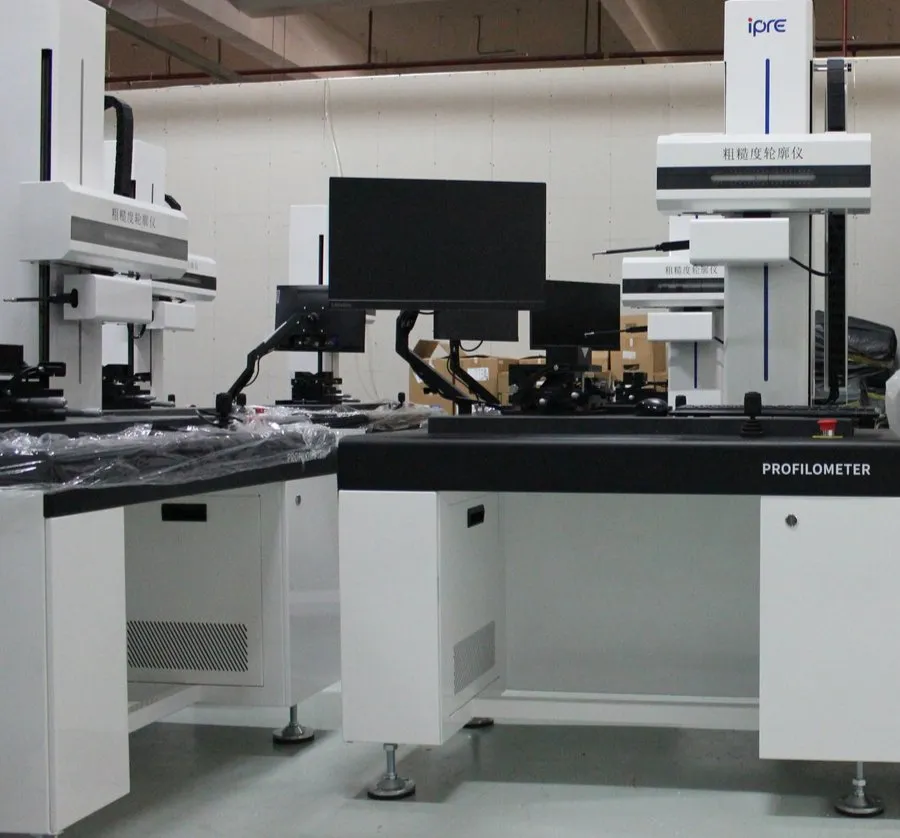

Precision Surface Roughness Profilometer

This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy. Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.

Technical Specifications

Project / Model	IPRE-RA150S
X-axis Accuracy	≤±(1+\|0.02L\|)μm
X-axis Resolution	0.01μm
Date Sensor Resolution	0.001μm (Roughness test)
Linear Precision	≤±(0.8+\|0.05H\|)μm
Circular Arc	≤±(1.2+R/12)μm
Straightness	≤0.5μm/100mm
Z1 Axis Range	±20mm (Full range measurement)
Evaluation Parameters	Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Wa, Wz, Wq, Wt, Pa, Pz, etc.
Sampling Length	0.08, 0.25, 0.8, 2.5, 8 (mm)
Power Supply	220V 50Hz, 0.5Kw
Instrument Weight	About 350Kg

Key Features & Hardware

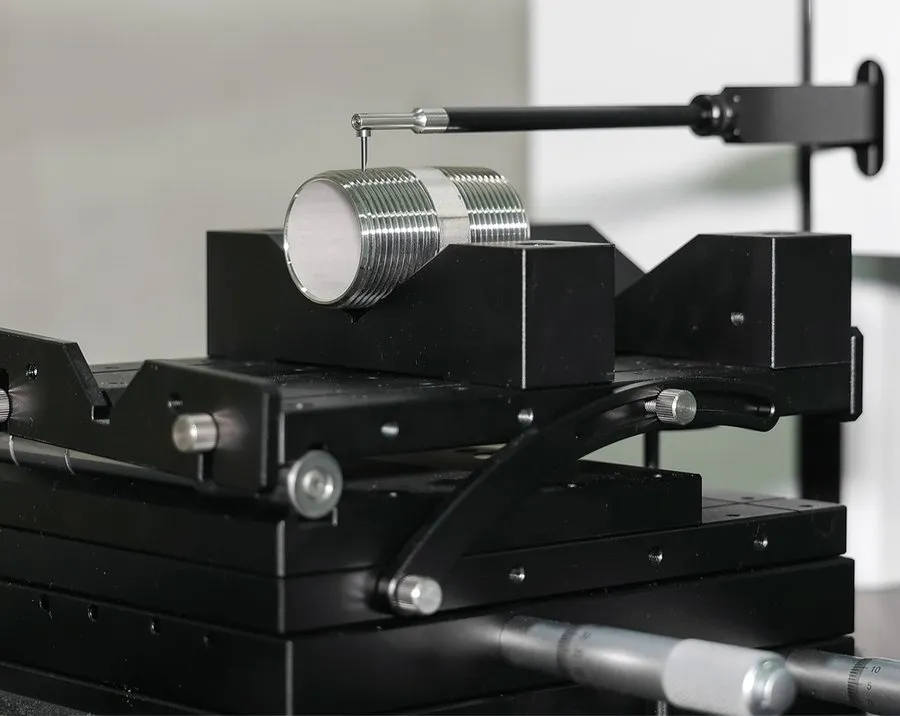

High-Precision Grating System: Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability.

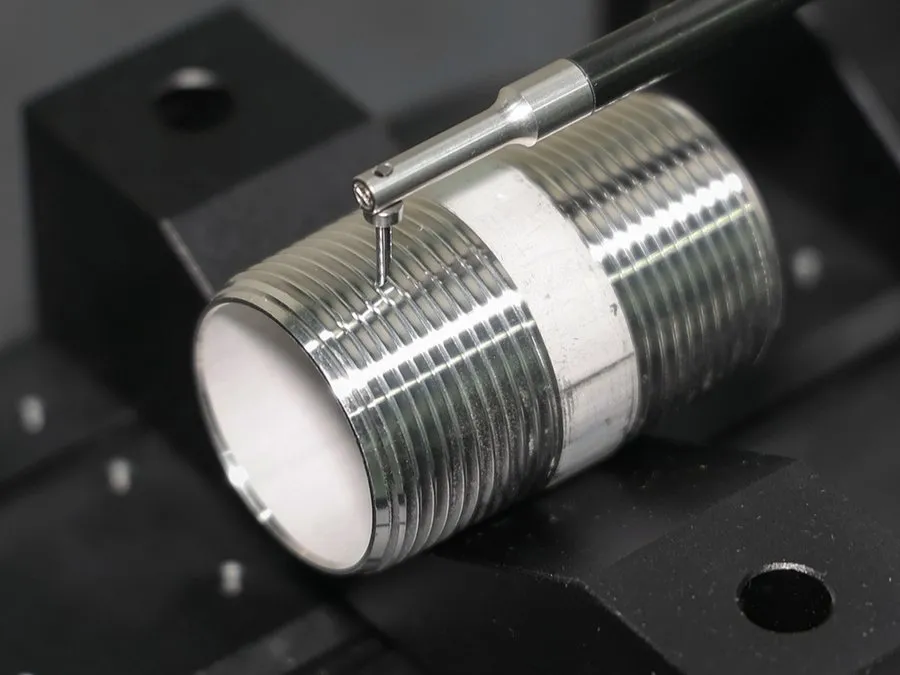

Non-Contact Linear Motor: Vibration-free scanning for consistent and distortion-free measurement results.

High-Resolution Detection: Captures micro-level surface details and subtle profile variations.

Comprehensive Analysis: Measures roughness, surface waviness, straightness, inclination, arc radius, and groove geometry.

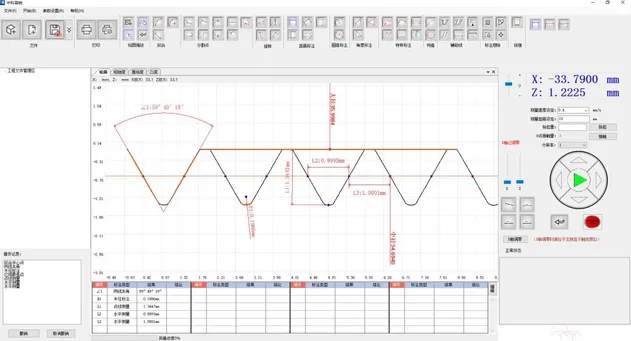

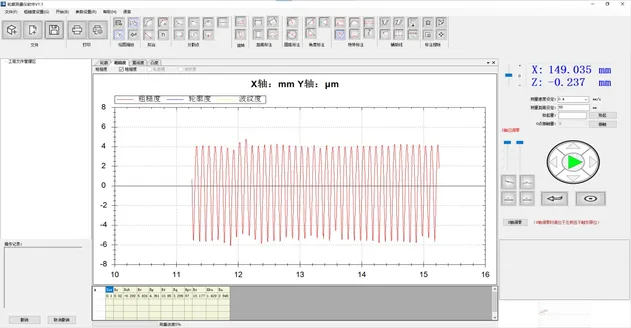

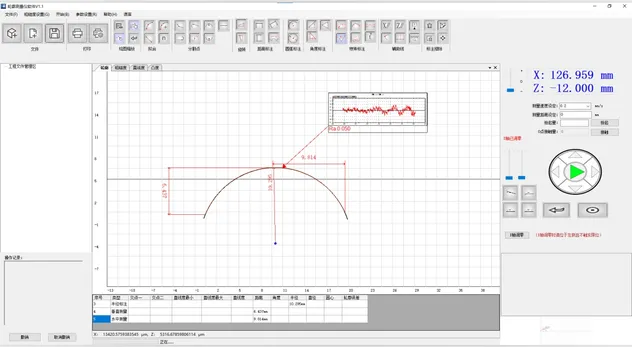

Intelligent Software System

Automatically processes data and prints reports in various formats.
Meets all types of workpiece contour measurement (wire rod, bearing, thread).
Customizable software functions according to customer requirements.
Supports ISO, DIN, JIS, and ANSI international standards.
Large-capacity database for saving all verification results.
Convenient speed adjustment and fast positioning for Z and X axes.

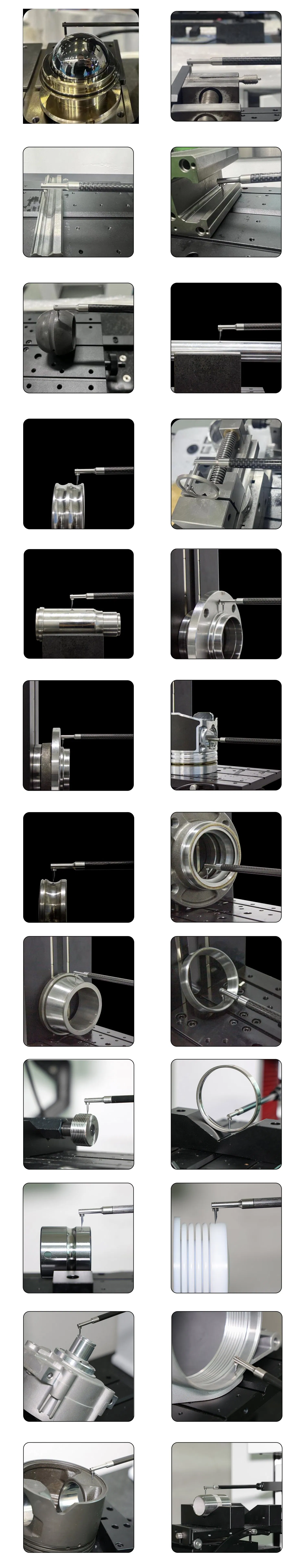

Application Scenarios

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a specialized manufacturer established in 2013 with our own factory facility, while also managing international trade operations.

What international quality certifications do you hold?

We have successfully passed ISO9001 (Quality), ISO14001 (Environmental), ISO45001 (Health & Safety), and EU CE certification.

What is the typical lead time for regular orders?

Most standard products are kept in stock. Depending on quantity, delivery usually takes no more than 7 days. Customized orders require approximately 1 week.

What payment methods are supported?

We accept a variety of methods including L/C, T/T, D/P, PayPal, Western Union, and MoneyGram.

What is the Minimum Order Quantity (MOQ)?

The minimum order quantity for our precision measurement products is 1 set.

Can the software be customized for specific workpiece requirements?

Yes, our intelligent software system allows for manual and automatic section selection and can be customized to meet specific customer analysis needs.
