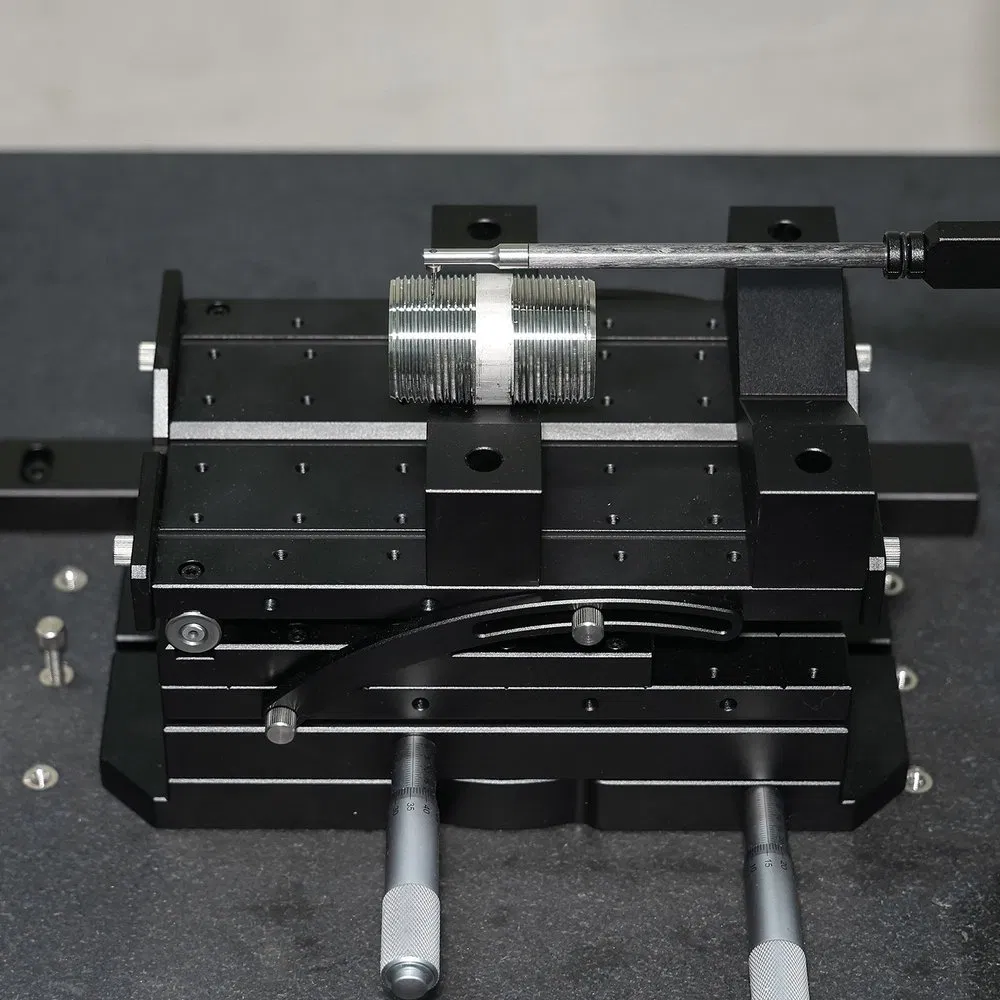

Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
1 / 5
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer
Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer

Rapid Measurement Shock Resistant Ra150s Bench Top Surface Finish Profilometer

Customization: Available
Product Name: Surface Roughness Profilometer
Keywords: Roughness Contour Meter
Send Inquiry

Product Description

Basic Information
Model NO.:RA150S
Material:Metal
Feature:High Range, High Accuracy, High Resolution
Application:Test Roughness Value and Profile
Transport:Wooden Box
Specification:International Standards
Capacity:500 Sets
Surface Finish Profilometer Banner
Product Description

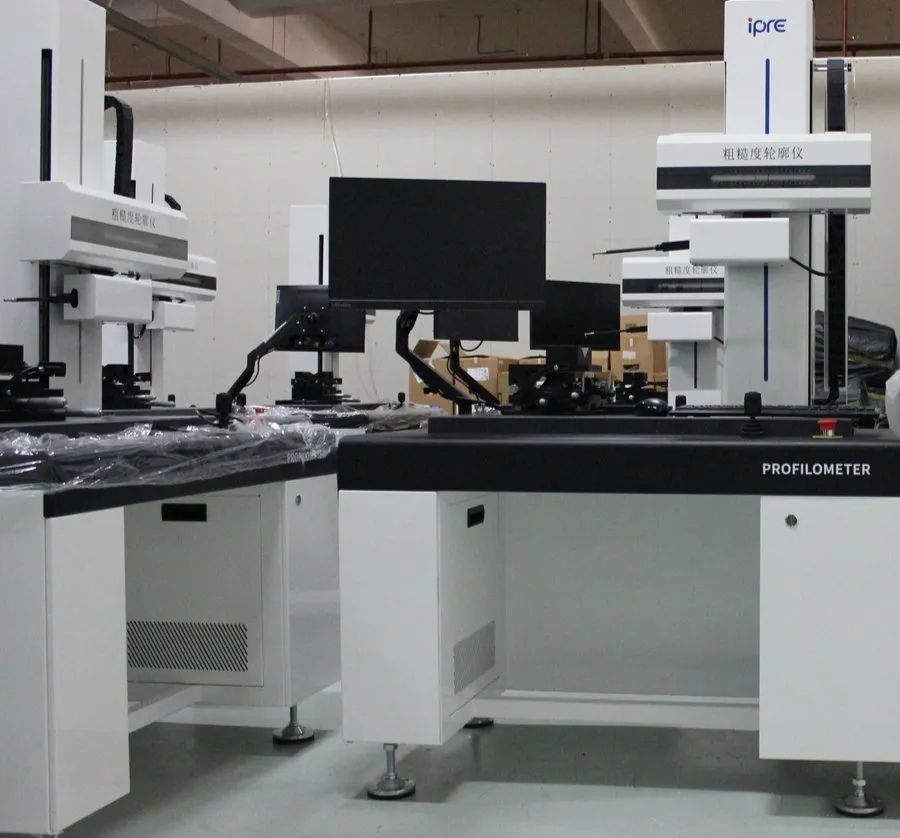

Product Overview

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability. Ideal for industries demanding micron-level precision.

Detail 1
Detail 2

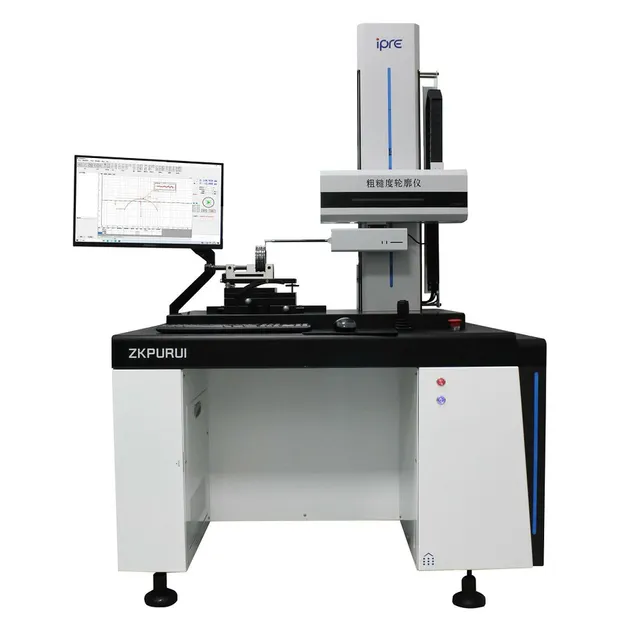

Detail 3
Specification
Project / Model IPRE-RA150S
X-axis Accuracy ≤±(1+|0.02L|)μm
X-axis Resolution 0.01μm
Sensor Resolution 0.001μm (Roughness test)
Linear Precision ≤±(0.8+|0.05H|)μm
Straightness ≤0.5μm/100mm
Roughness Range (Z1) ±20mm
Evaluation Parameters Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Wa, Wz, Wq, Wt, Pa, Pz, Pq, Pt, etc.
Sampling Length L 0.08, 0.25, 0.8, 2.5, 8 (mm)
Instrument Weight About 350Kg
Detailed Features

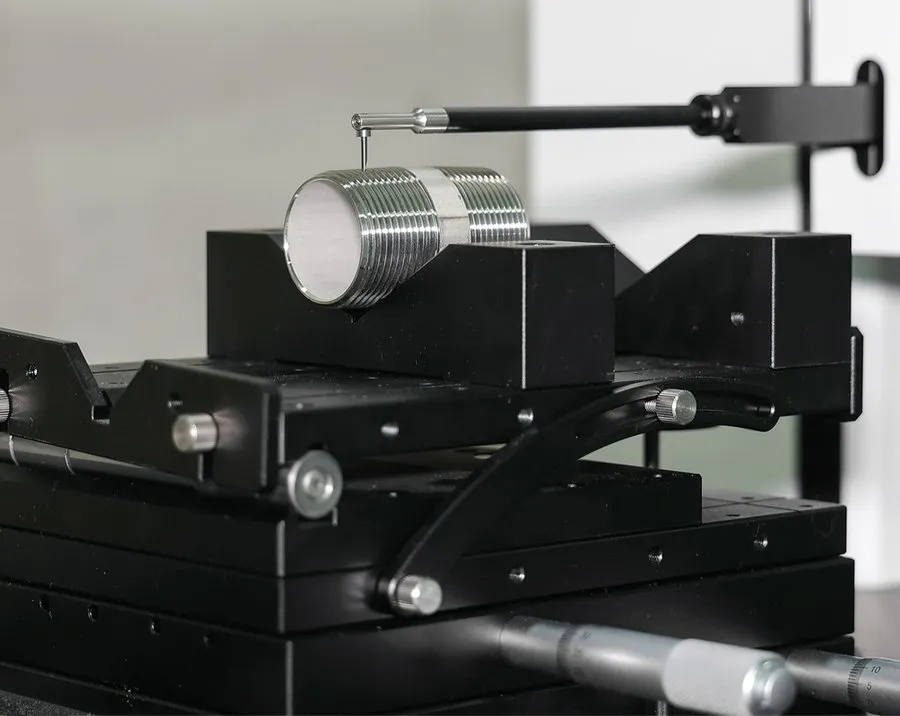

Grating System

HIGH-PRECISION GRATING MEASUREMENT SYSTEM

Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for demanding surface analysis tasks.

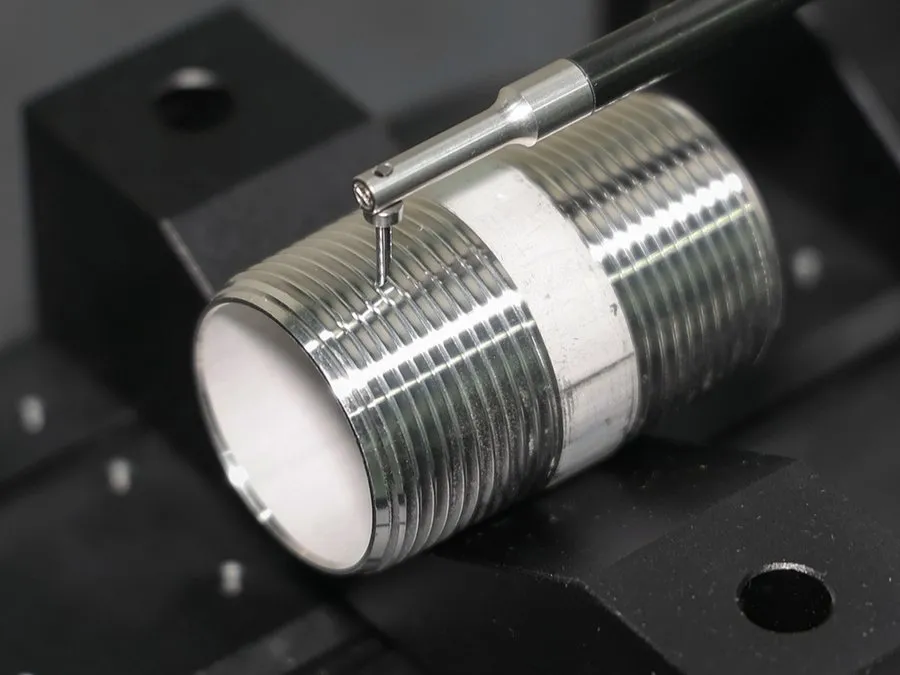

Detection

HIGH-RESOLUTION SURFACE DETECTION

Captures micro-level surface details with superior resolution, enabling precise evaluation of roughness values and subtle profile variations.

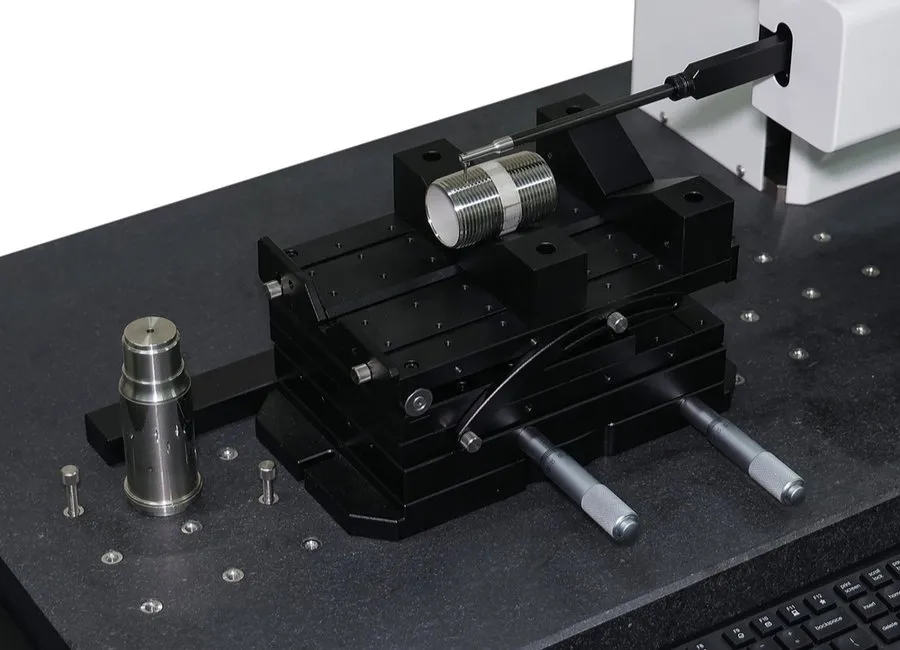

Motor Drive

NON-CONTACT LINEAR MOTOR DRIVE

Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent measurement results.

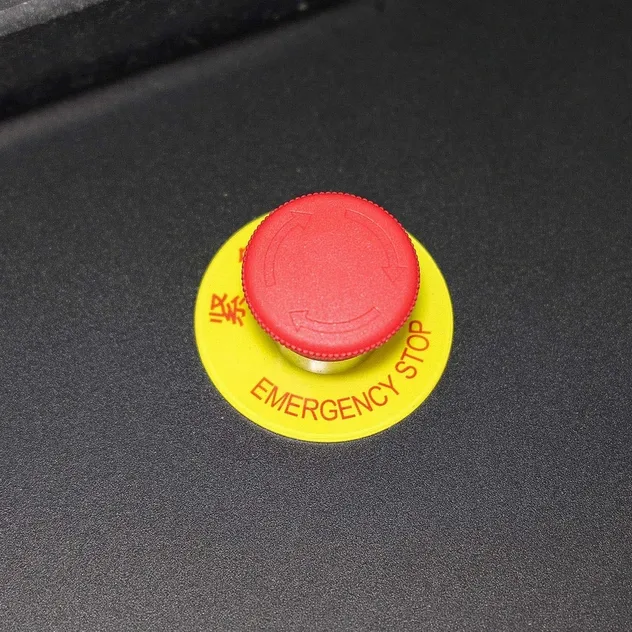

Module 1

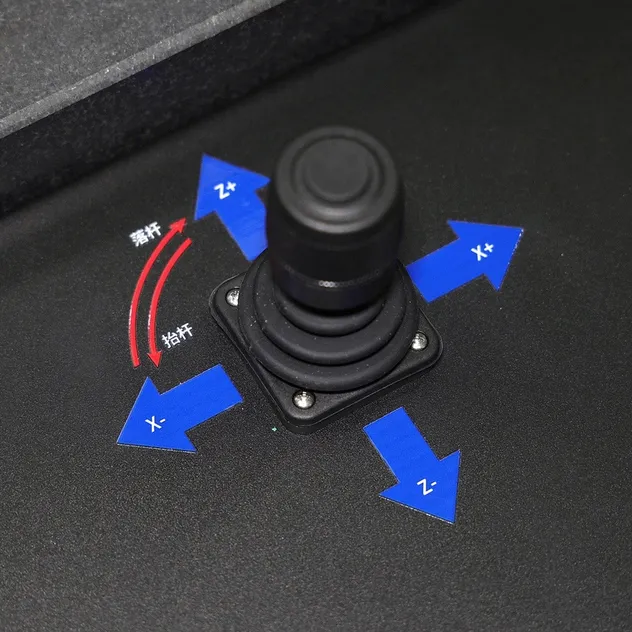

Module 2

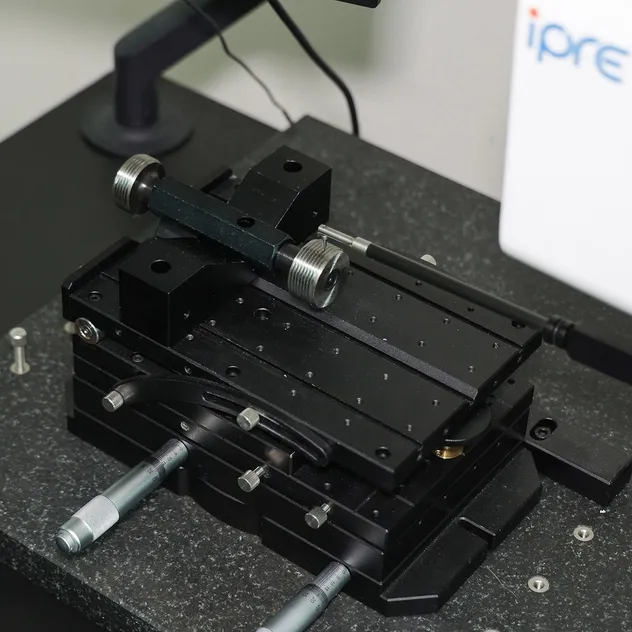

Module 3
Intelligent Software System

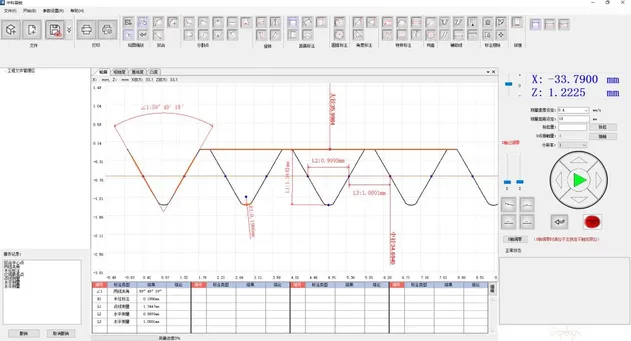

Software UI 1
Software UI 2

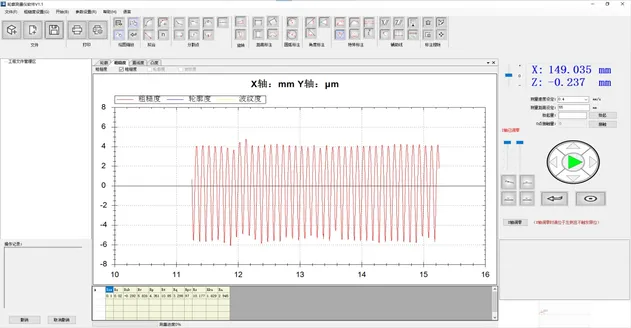

Software UI 3
  • Automatic Processing: Displays, prints, and queries measurement records automatically.
  • Versatile Range: Suitable for wire rod, bearing, thread, and special contour measurement.
  • Customization: Software functions can be tailored to specific customer requirements.
  • Multi-Standard Support: Compatible with ISO, DIN, JIS, and ANSI standards.
  • Data Storage: Large-capacity database for all verification result records.
Application Scenarios

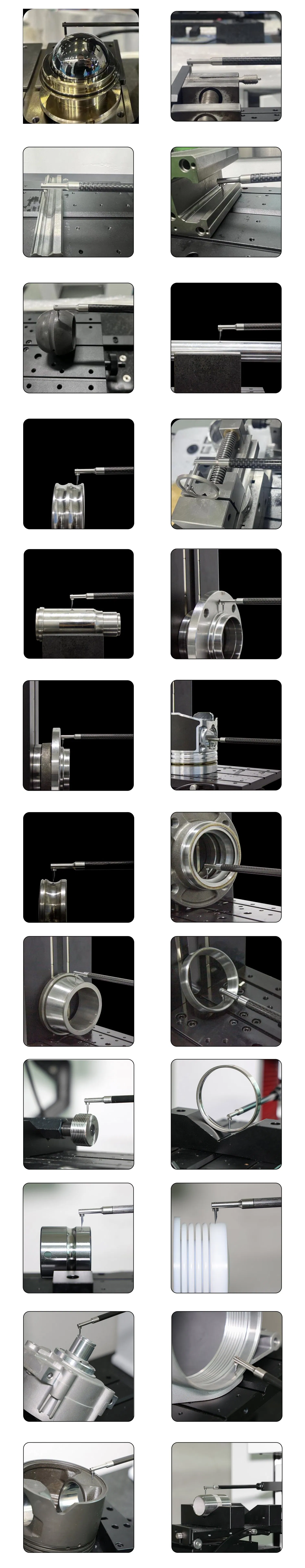

App Scenario 1
App Scenario 2
App Scenario 3
Frequently Asked Questions
Q1: Is your company a manufacturer or a trader?
A1: Established in 2013, we operate our own factory while simultaneously engaging in international trade.
Q2: What international certifications do you have?
A2: We have passed ISO9001, ISO14001, ISO45001, and EU CE certifications among others.
Q3: What is the delivery time for regular products?
A3: Most products are in stock. Delivery typically takes no more than 7 days. Custom orders require approximately 1 week.
Q4: What are the payment methods?
A4: We support LC, T/T, D/P, PayPal, Western Union, and MoneyGram.
Q5: What is the minimum order quantity (MOQ)?
A5: For our products, the minimum order quantity is 1 set.
Q6: What parameters can the software assess?
A6: It supports multi-standard assessment including Ra, Rz, Rq, Rt, and ripple parameters like Wa, Wz, Wq.
