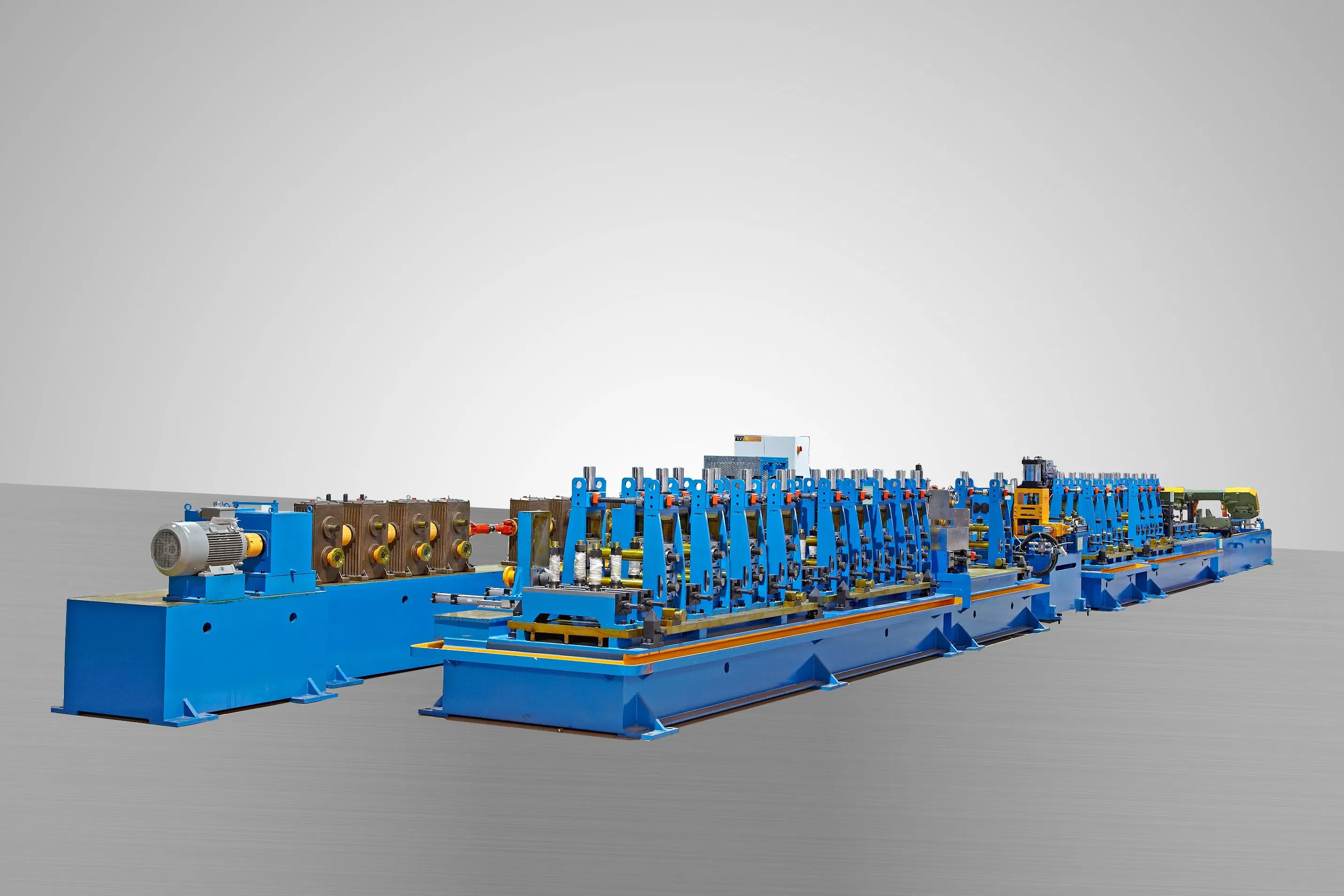

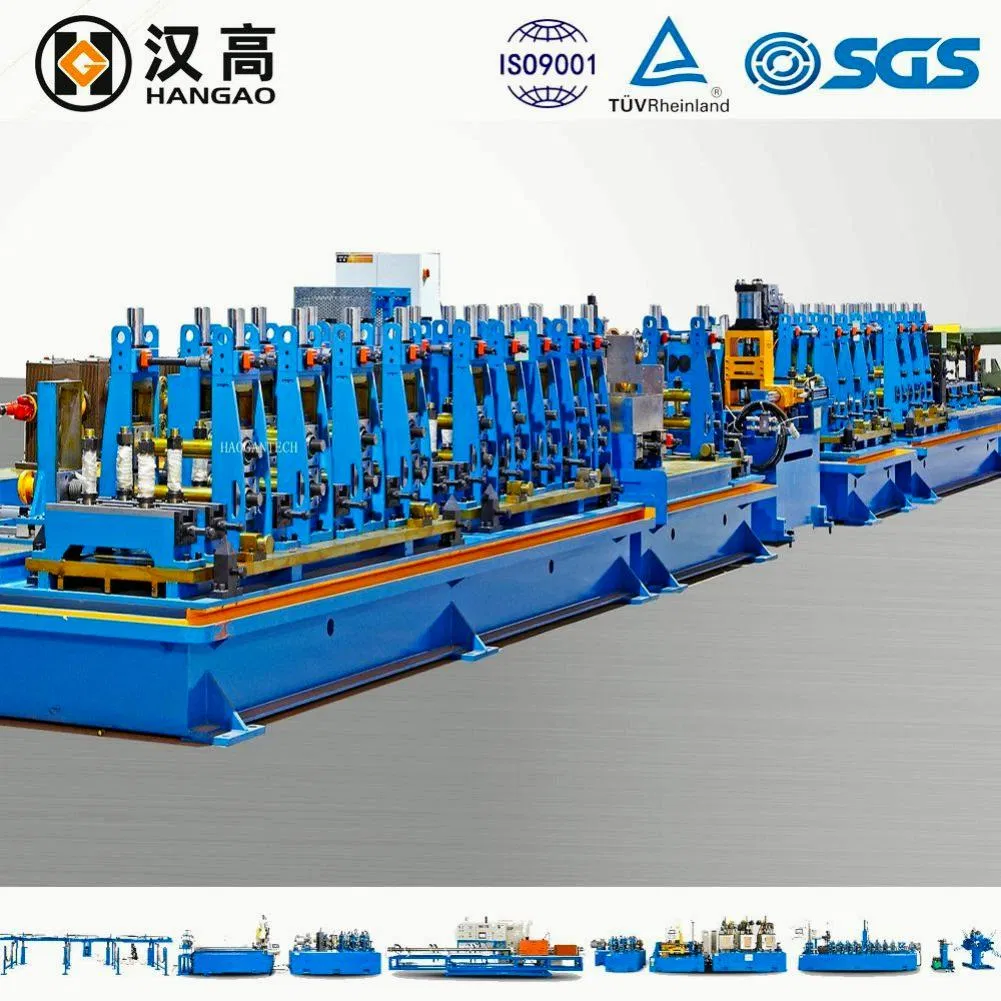

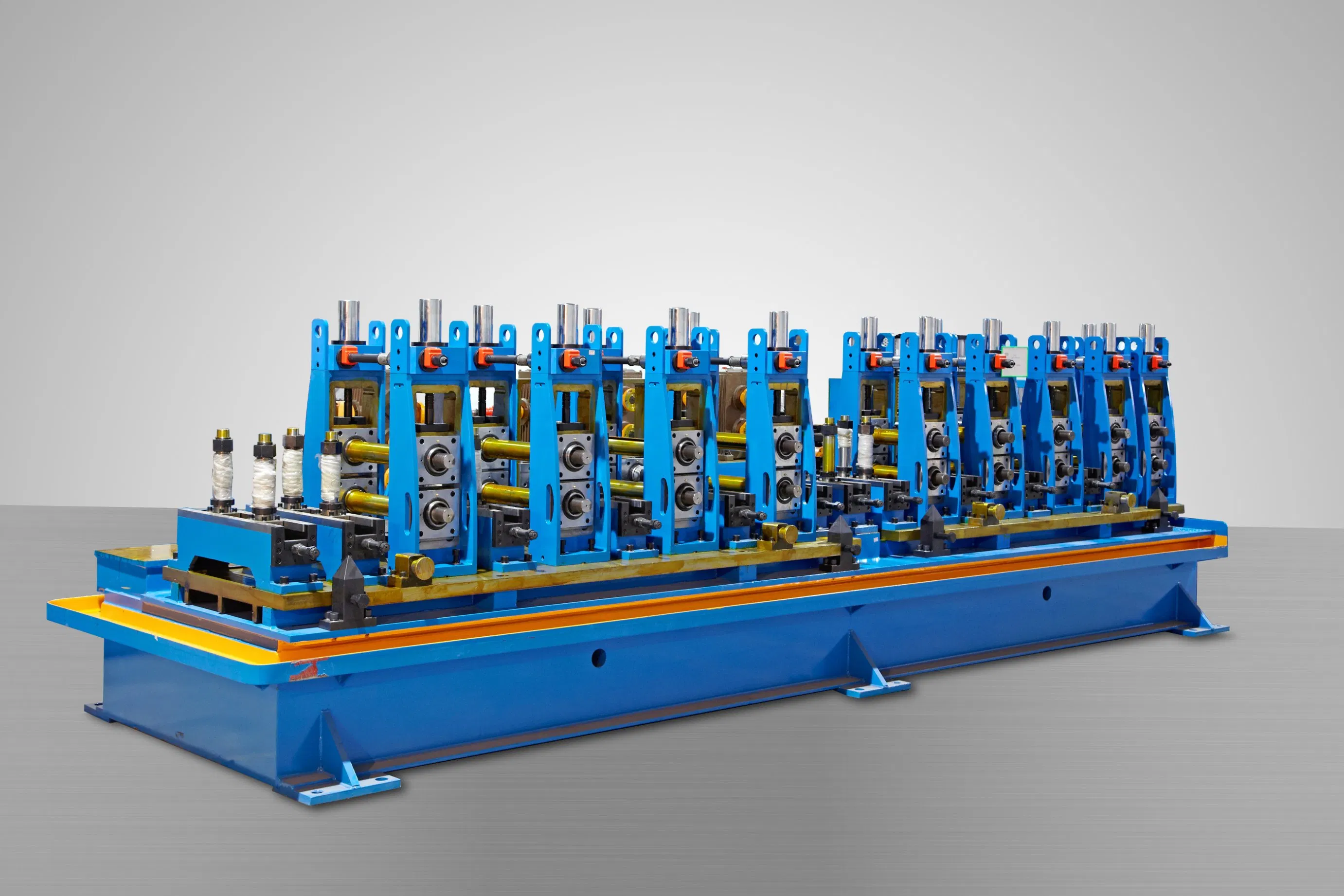

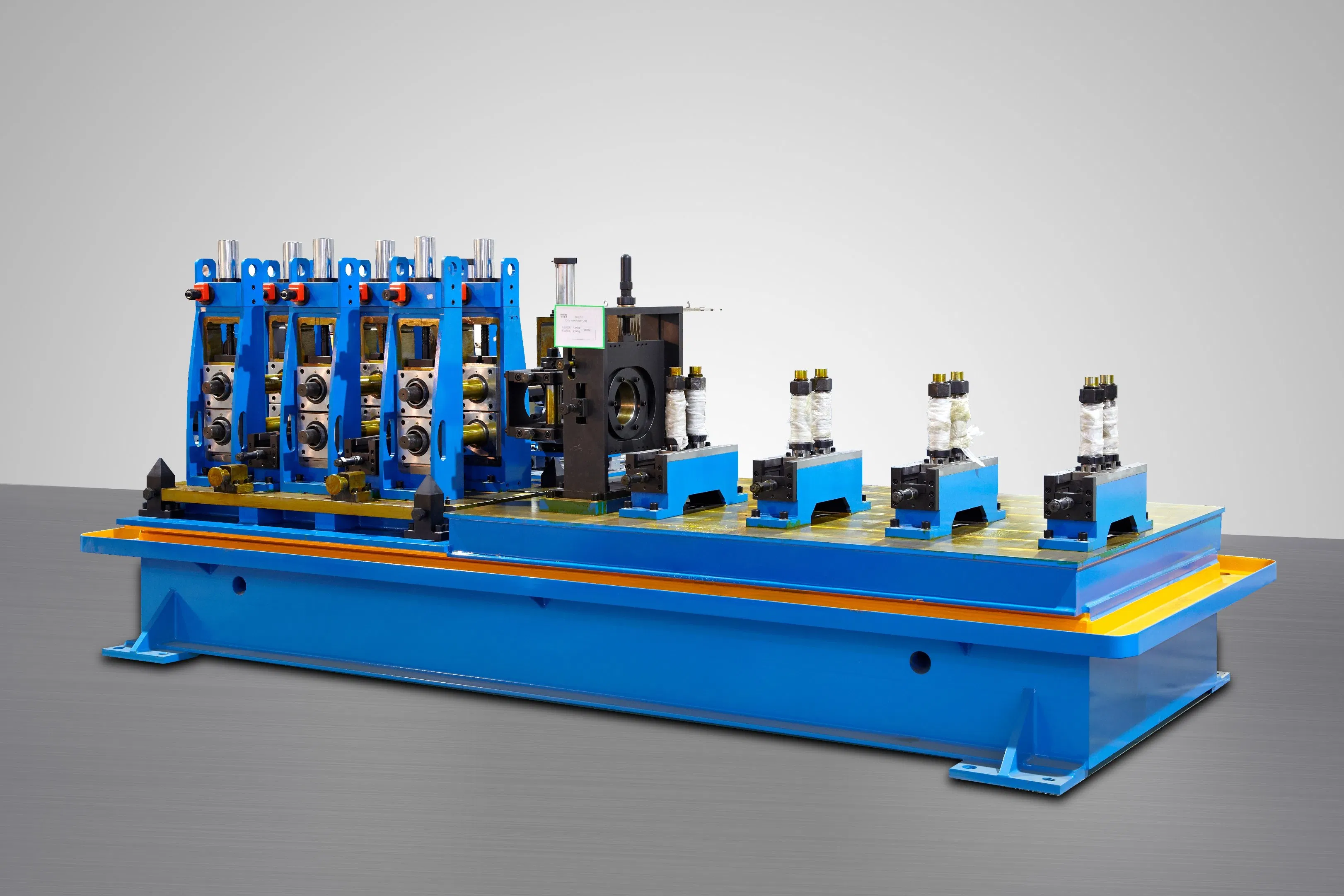

Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
1 / 5
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine
Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine

Pipe Production Line Laser Welding Tube Mill Heat Exchanger Pipe Making Machine

Customization: Available
After-sales Service: Engineers Service Machinery Overseas Available
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.SZG-30/40/50/60/80/100/120
Pipe MaterialStainless Steel
WeldingLaser Welding/TIG Welding/Plasma Welding
Production Speed1-18 M/Min
O.D. Range6-325 mm
Thickness0.38-10.0
Material Processing304, 316L, Duplex, 2205, Titanium
Control TypePLC
Power Supply380V/410V/415V
⚙️ Product Description
Steel Pipe Production Line Laser Welding Machinery Tube Mill Heat Exchanger Pipe Making Machine

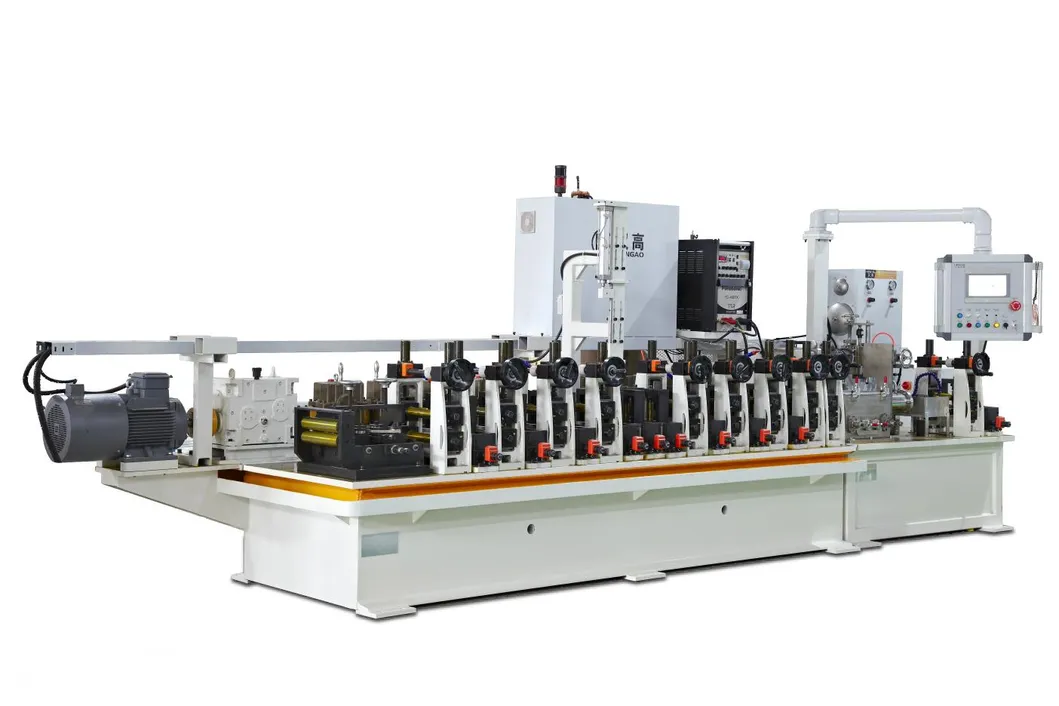

Pipe Production Line
Type Material Welding Type O.D. (mm) Thickness (mm) Capacity (m/min) Motor Power (KW)
SZG-30SSTTIG6-160.4-1.5Adjustable5.5
SZG-40SSTTIG16-50.80.5-2.5Adjustable7.5
SZG-50SSTTIG25.4-760.5-3.0Adjustable11
SZG-60SSTTIG50.8-1141.0-4.0Adjustable15
SZG-80SSTTIG89-1681.0-5.0Adjustable18.5
SZG-100SSTTIG114-2192.0-8.0Adjustable30
SZG-120SSTTIG168-3253.0-10.0Adjustable37
Precision Pipe Mill Line Configuration: Uncoiler → Shearing butt welding machine → Storage device → Rolling & welding machine → Weld seam leveling machine → Weld grinding machine → Initial sizing section → Bright annealing heat treatment furnace → Final sizing section → Servo cutting machine → Output unloading table.

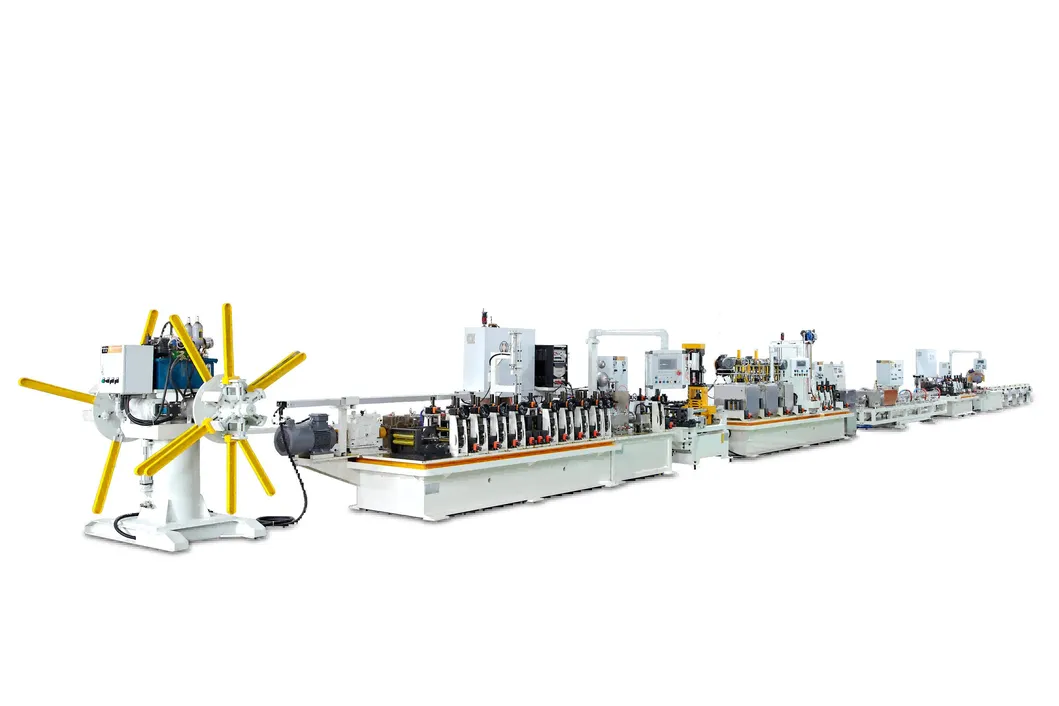

Mill Line

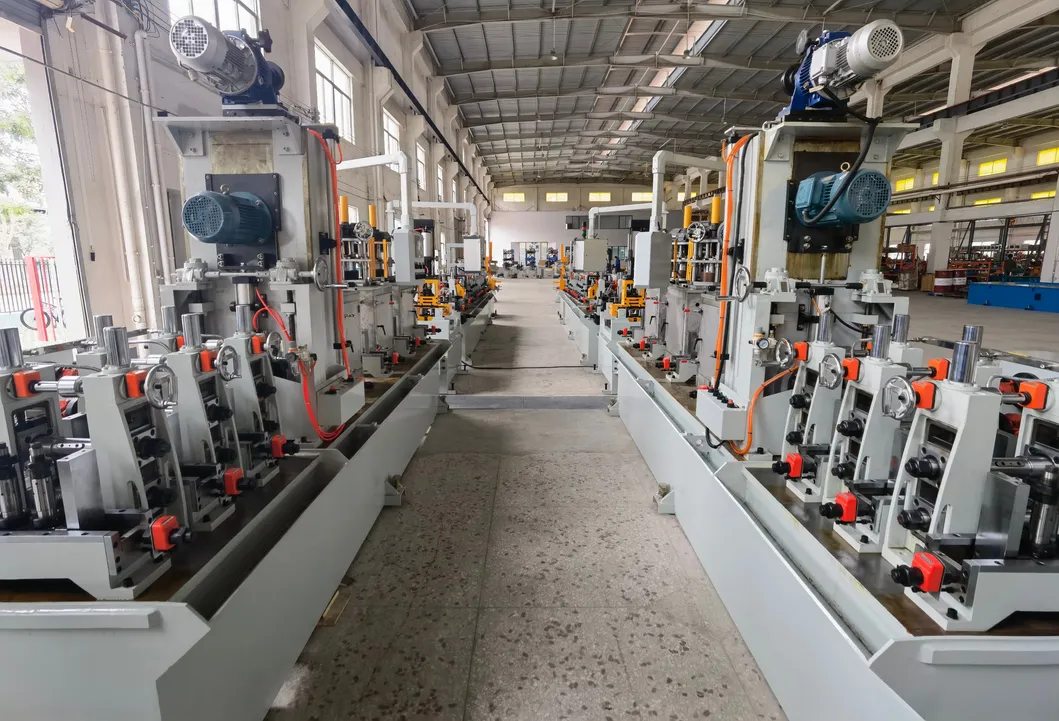

Production Line
🔍 Detailed Features

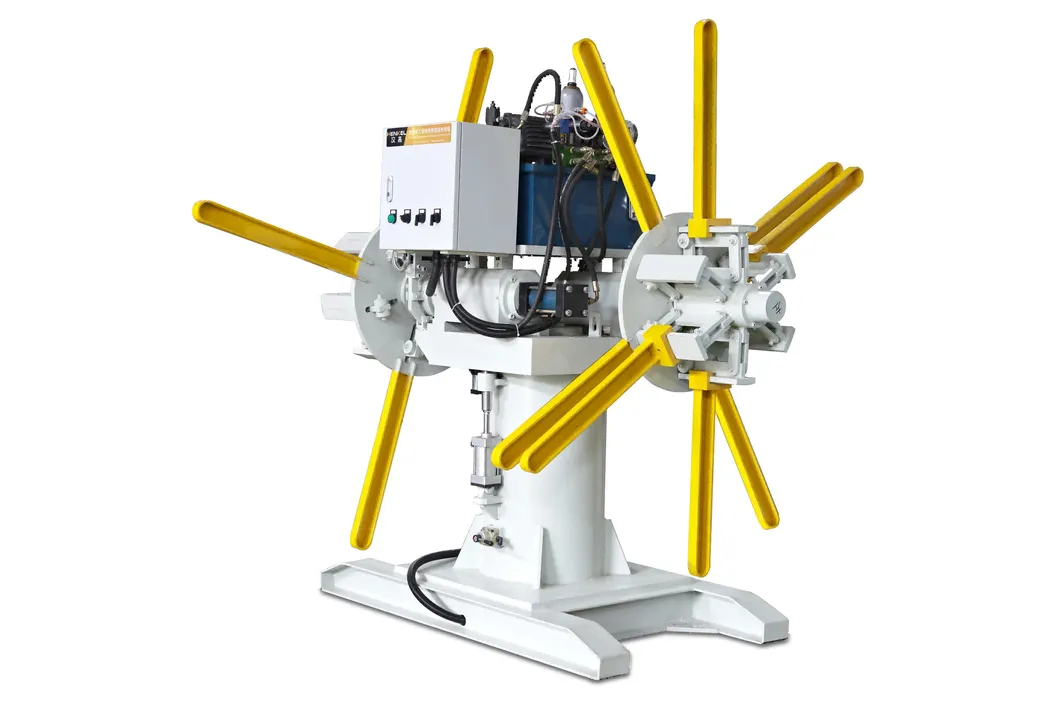

Automatic Double Uncoiler Support and uncoil the steel strip coils with manual dual-axis expansion. Allows for continuous production without stopping the machine.
Uncoiler

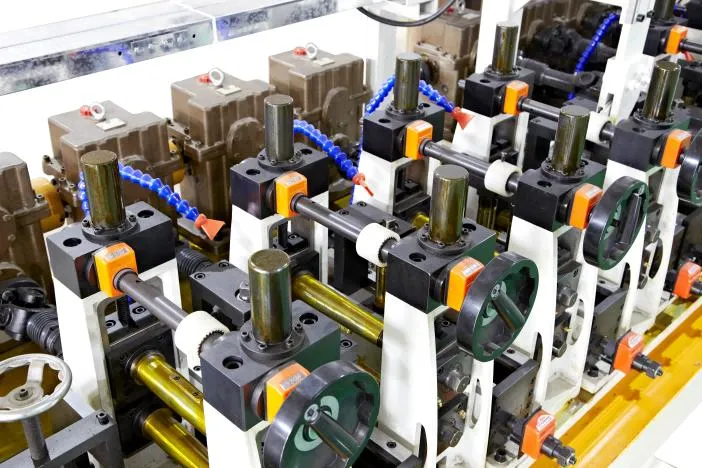

Forming & Welding Section Equipped with NTN needle roller bearings and high-precision molds to decrease shaft runout. Includes heavy-duty custom turbine box.
Welding Section

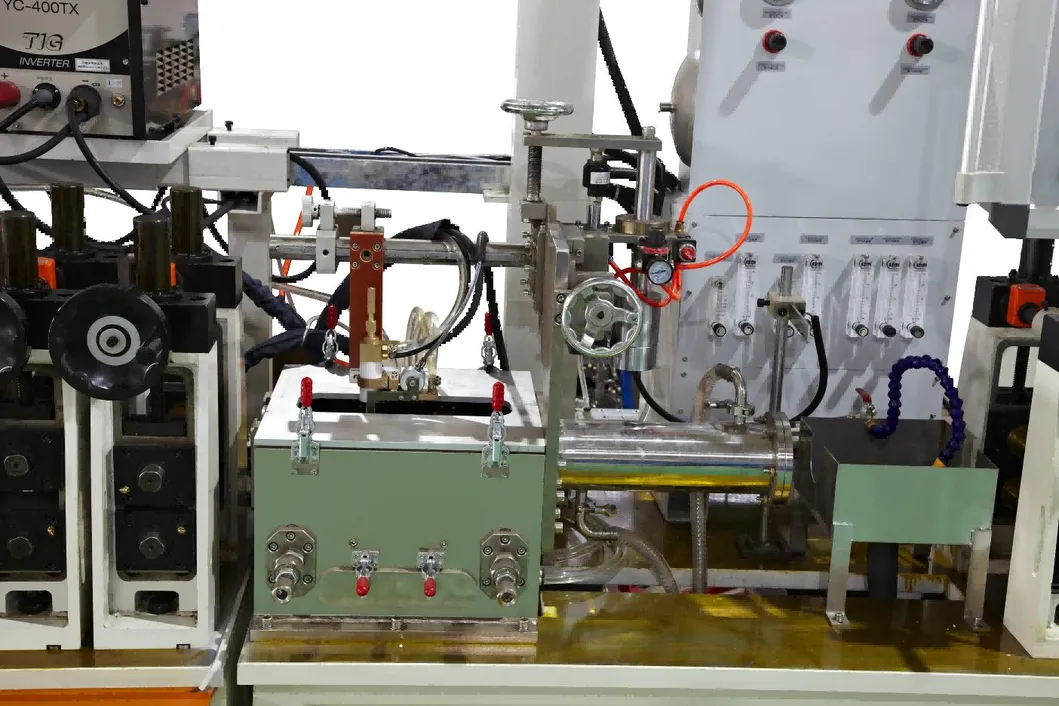

Welding Protection Atmosphere Box Water cooling bearing supports for longer life. Prevents oxygen from entering the molten pool to ensure high-quality industrial weld seams.
Atmosphere Box
🚀 Efficiency & Automation

Working Speed: At least 25% higher efficiency using electromagnetic control systems. Speed reaches 10-15 m/min for TIG welding.

Labor Saving: One person can monitor 2-3 production lines simultaneously via self-developed PLC systems.

Accuracy: Precise CNC processing controls tolerances within +0.5-1.0 mm.

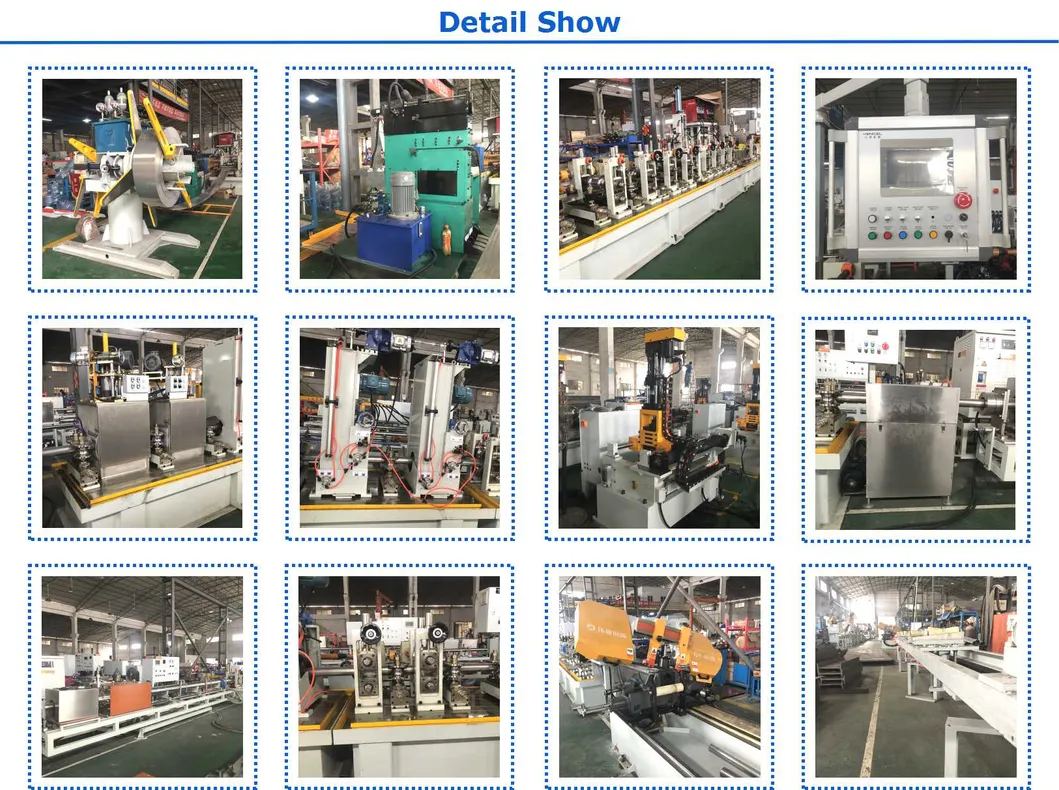

Client Case 1
Client Case 2
🛠️ More Choices

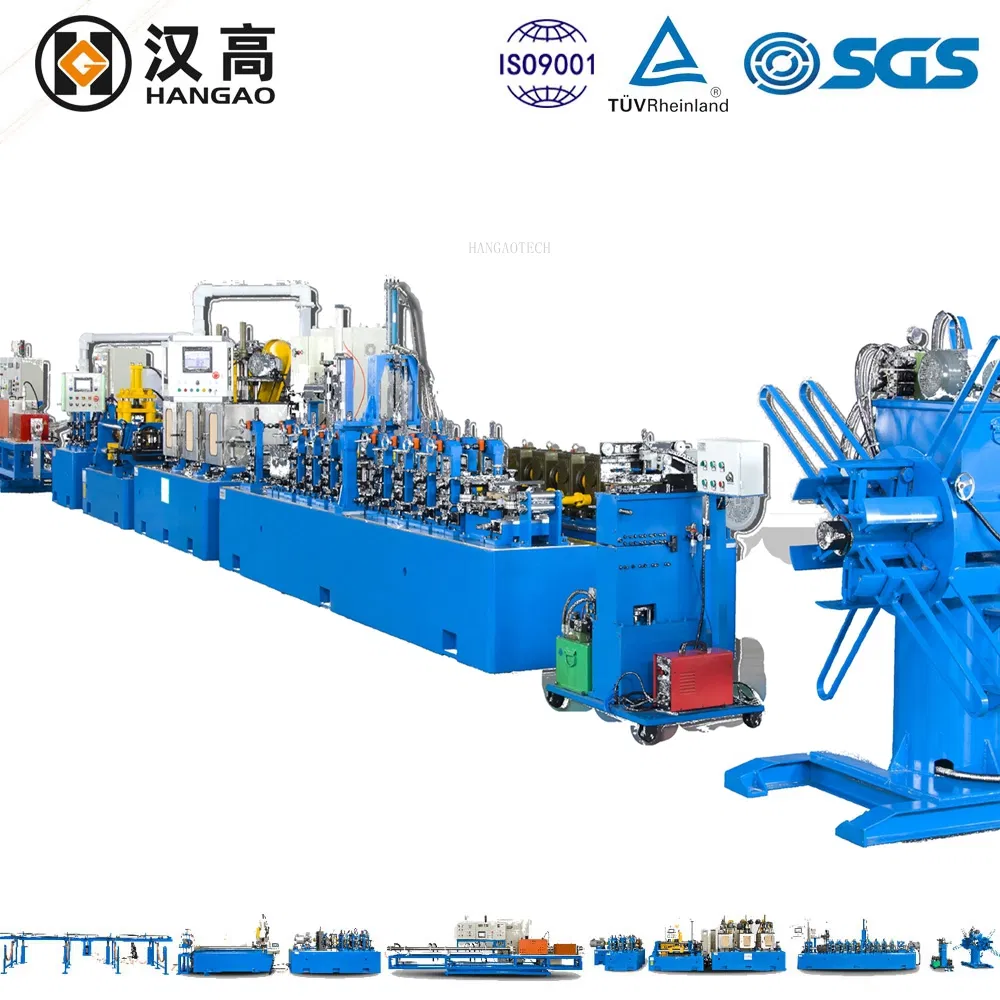

Option 1

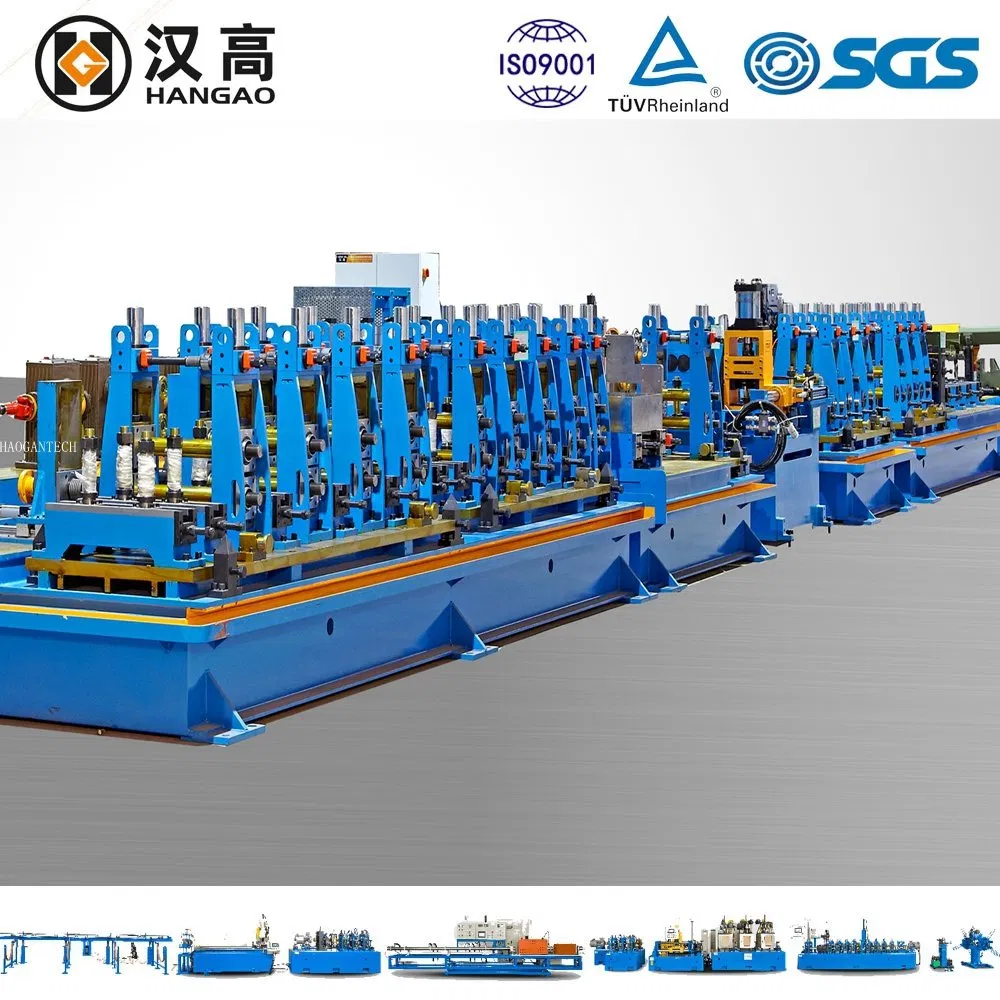

Option 2

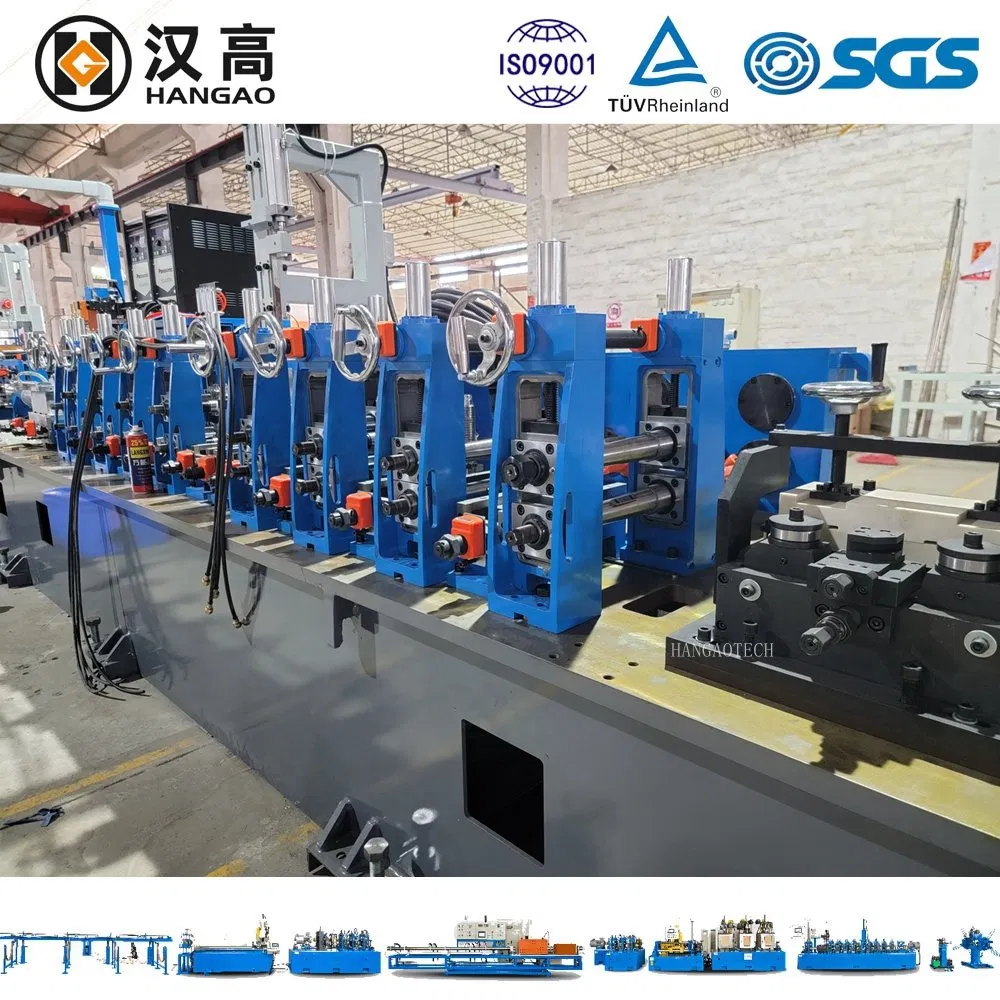

Option 3
❓ Frequently Asked Questions
Which countries are your products exported to?
Our products are sold all over the world and come with related international certifications.
How about the warranty period?
All products have a one-year quality warranty. During this time, spare parts replacement is free. We also provide lifelong technical support.
How is the machine installation handled?
Engineers are typically sent to your factory to assist with installation and adjustment. We also provide comprehensive manuals and video instructions.
What are the payment terms and delivery time?
For large machinery: 40% deposit, 60% before shipment. Delivery time is usually within 45-90 days via major Chinese ports.
Are your goods certified?
Yes, all our products hold ISO9001 certification and are manufactured to high-quality standards.
Are you a dealer or a factory?
We are a direct manufacturer with a large-scale factory, welcoming clients for on-site visits and technical discussions.
