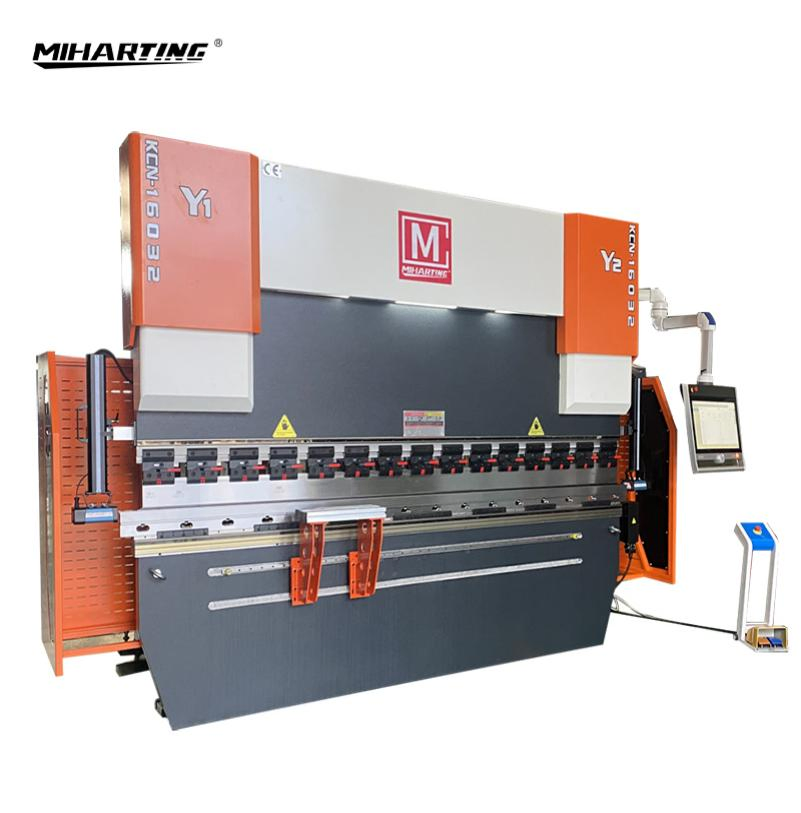

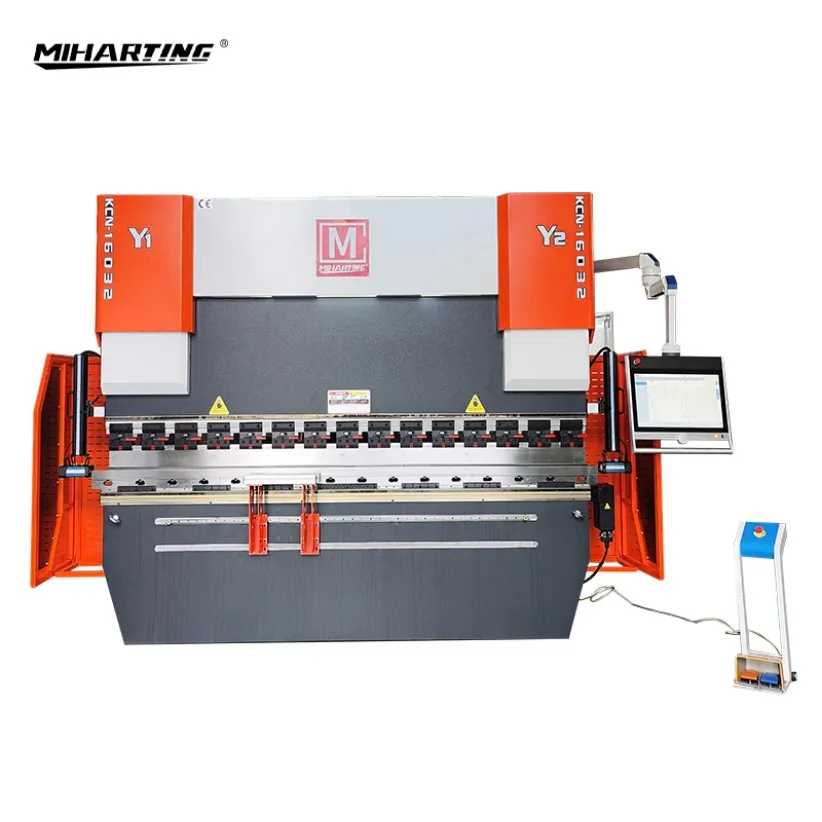

Multi-Axis CNC Press Brake for Complex Architectural Metalwork

Customization:	Available
After-sales Service:	Support
Warranty:	2-year

📊 Overview

Condition

New

Certification

ISO 9001:2000, ISO 9001:2008, CE

Automation

Automatic

Suitable for

Aluminum, Carbon Steel, Stainless Steel

Type

Press Brake

Control System

Da66s

Capacity

400kN

Power

5.5kw

Package Weight

4000.000kg

HS Code

8462230000

⚙️ Key Features

Overall welded and processed structure.

Mechanical stop and steel torsion bar for high precision.

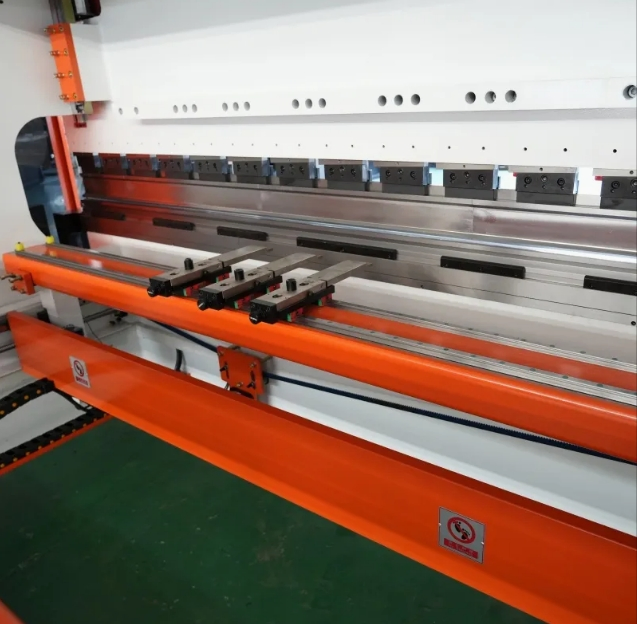

Servo-controlled backgauge and ram stroke.

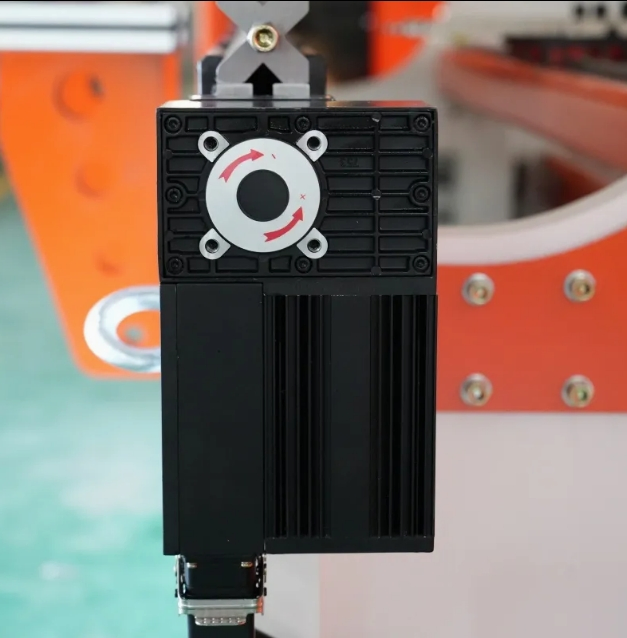

X, Y, and R axes controlled by servo motors.

Imported hydraulic system for stable performance.

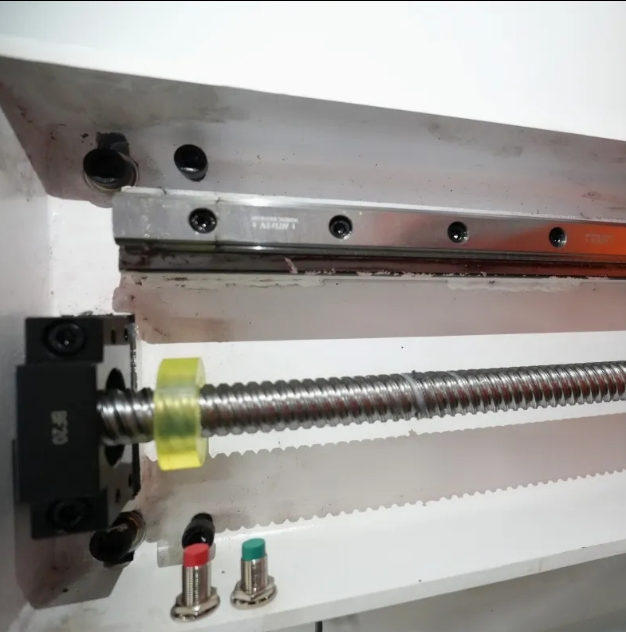

High-precision ball bearing lead screw and linear guide rail.

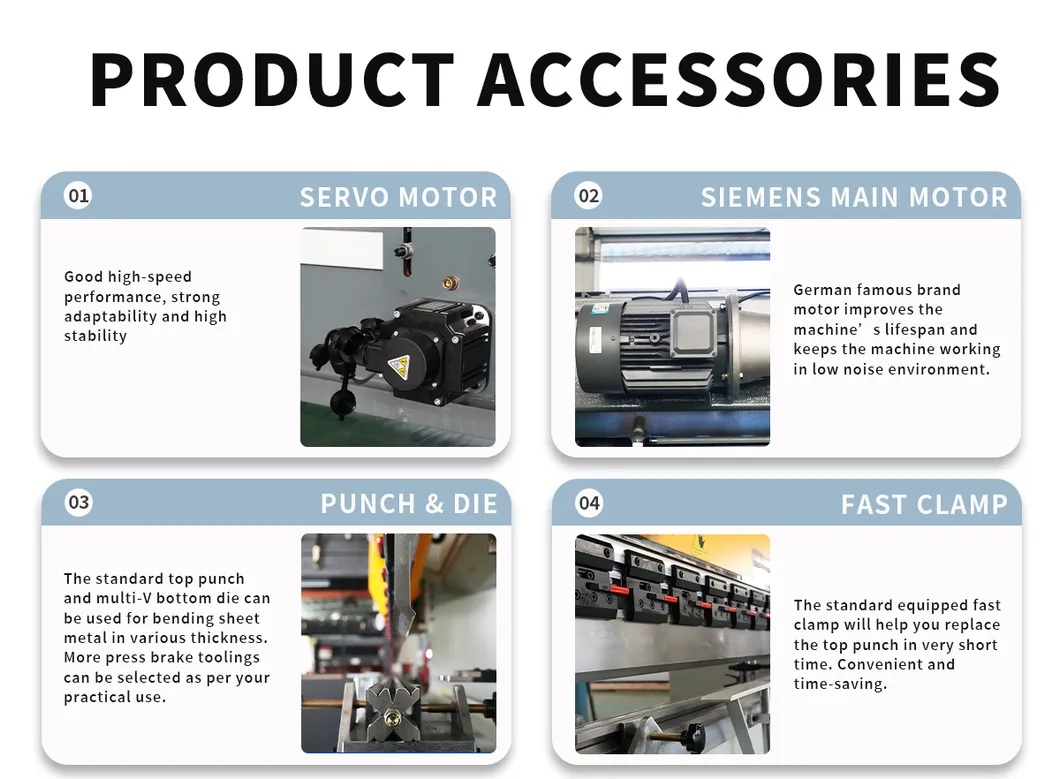

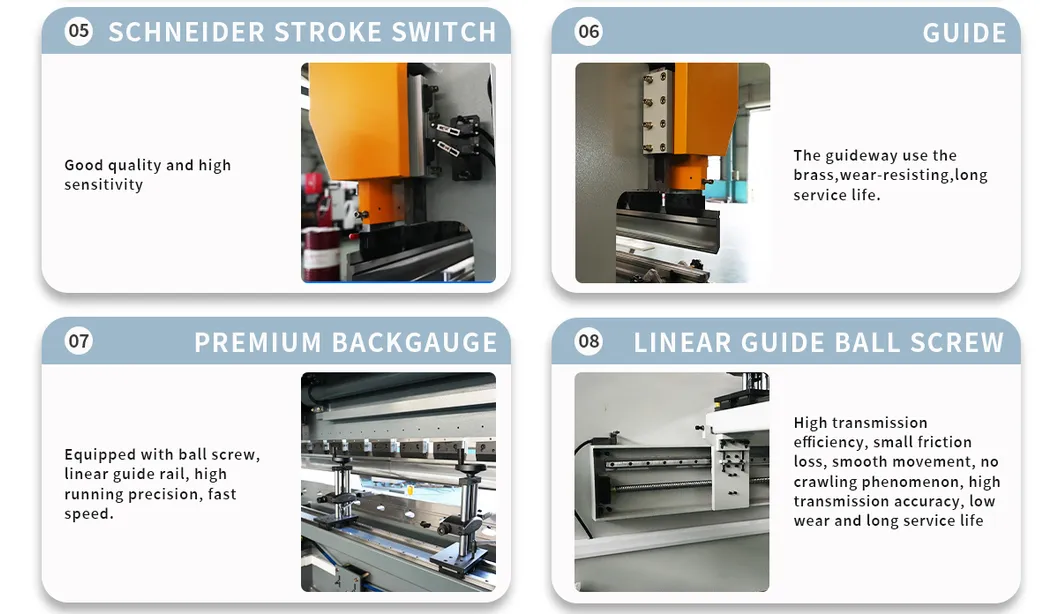

🛠️ Standard Configuration

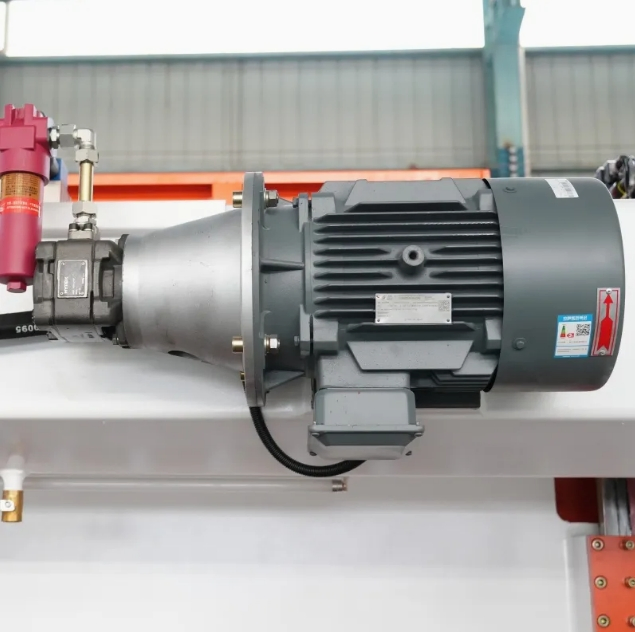

1. Siemens Main Motor (Germany)

2. Rexroth Hydraulic System

3. High-durability Stroke Switch

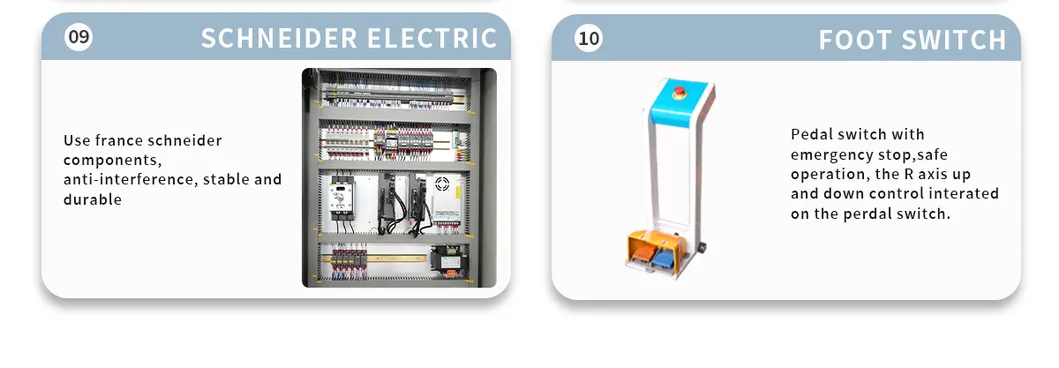

4. Premium French electronic components

5. Pedal switch with emergency stop

6. Wear-resistant brass guide ways

📏 Technical Specification

Model	Pressure(KN)	Length(mm)	Throat(mm)	Stroke(mm)	Opening(mm)	Power(kw)	Dimensions (mm)
WC67K-40/2500	400	2500	280	100	320	5.5	260011001900
WC67K-63/3200	630	3200	250	100	380	5.5	330017252355
WC67K-100/3200	1000	3200	320	140	395	7.5	329017402400
WC67K-160/3200	1600	3200	330	200	457	11	328019302800
WC67K-250/5000	2500	5000	400	200	560	20	555019003100

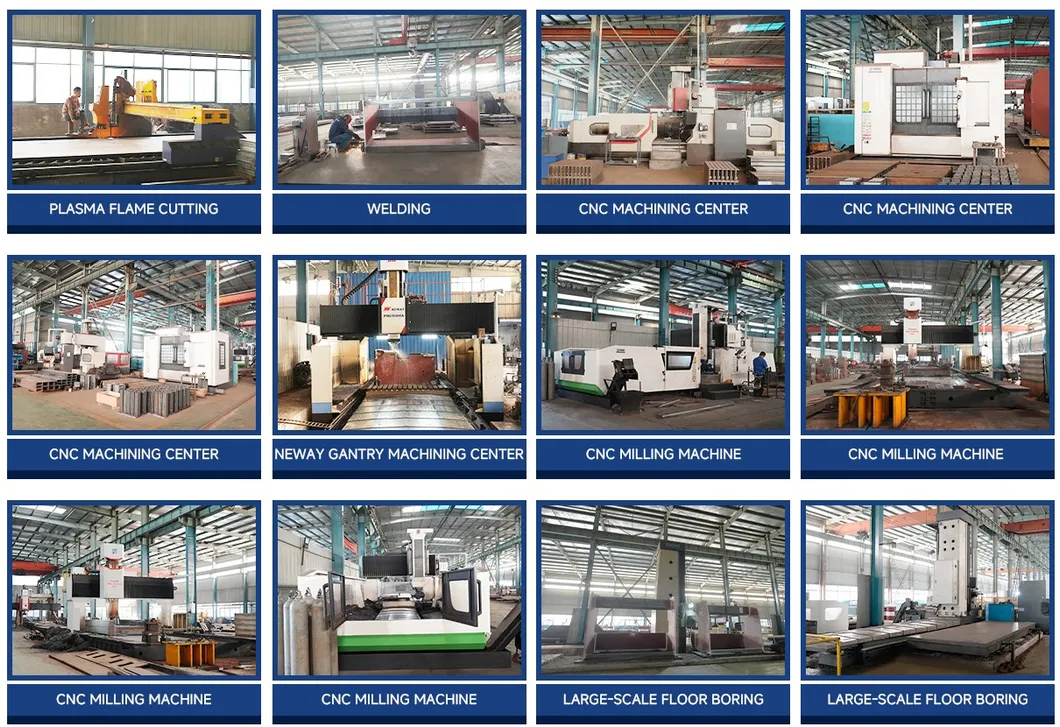

🏢 Manufacturing Excellence

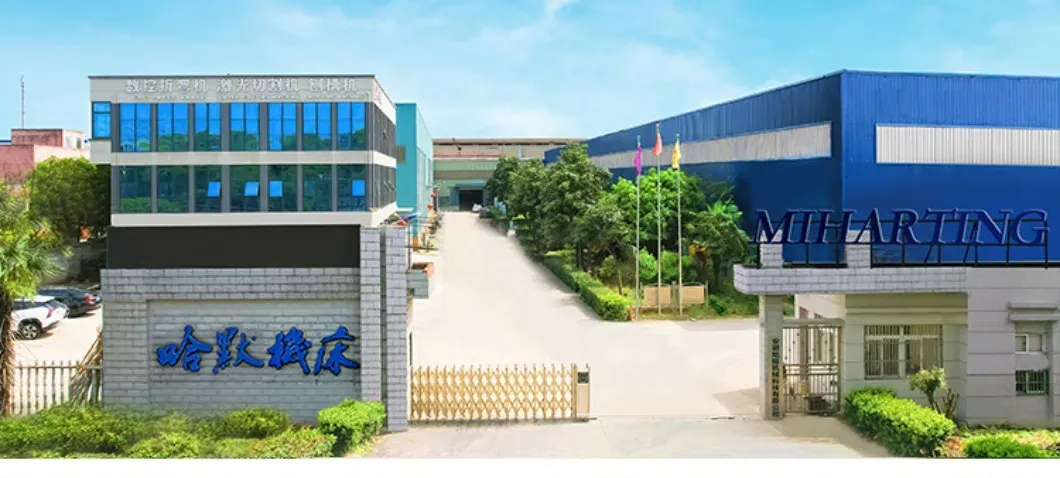

A professional manufacturer and exporter dedicated to the development and production of high-quality sheet metal processing equipment. Our facilities cover 60,000 square meters across three specialized factories focused on forging tools, ventilation ducting equipment, and high-precision bending machines.

❓ Frequently Asked Questions

Q1: How do I choose the right press brake machine?

Please provide the material of your plate, the maximum thickness, and the maximum plate width. Our engineers will recommend the most suitable model based on these details.

Q2: What is the average lead time for production?

The standard lead time is approximately 7 days for stock items. For mass production or customized orders, it typically ranges from 20 to 30 days after receiving the deposit.

Q3: What payment methods do you accept?

We accept T/T, Western Union, Money Gram, and PayPal. Our standard terms are a 30% deposit with the 70% balance paid before shipment.

Q4: Can you provide export documentation?

Yes, we provide all necessary documentation including Certificates of Analysis/Conformance, Insurance, Origin certificates, and other required export documents.

Q5: How is the after-sales service handled?

We use advanced ERP software to manage the entire process. This ensures systematic responsibility for consultation, remote support, or door-to-door commissioning and installation.

Q6: What makes your machines high precision?

Our machines feature overall welded structures, mechanical stops with steel torsion bars for synchronization, and imported hydraulic systems combined with servo-controlled axes.
