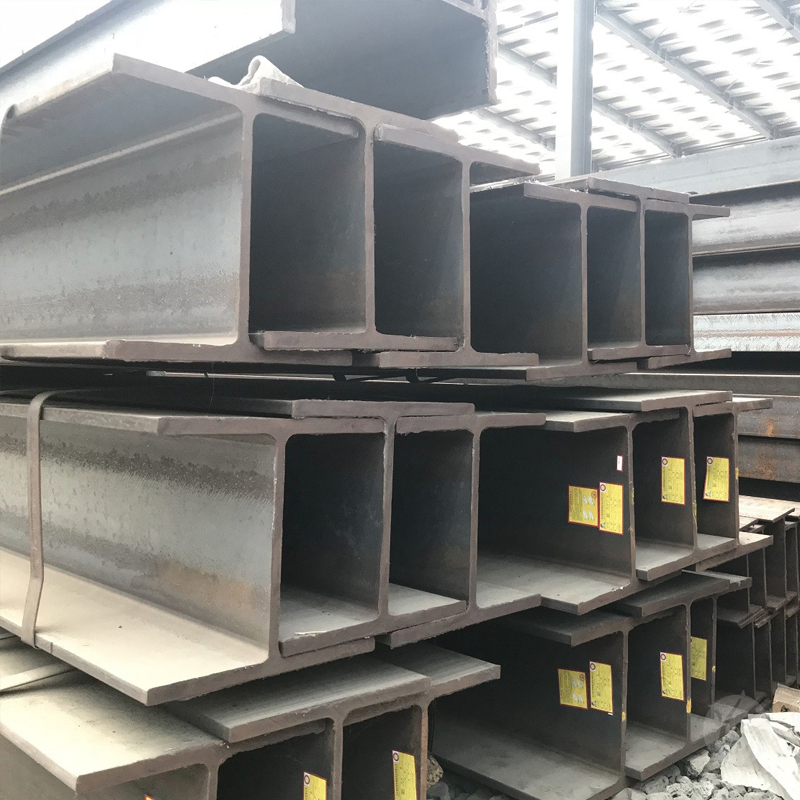

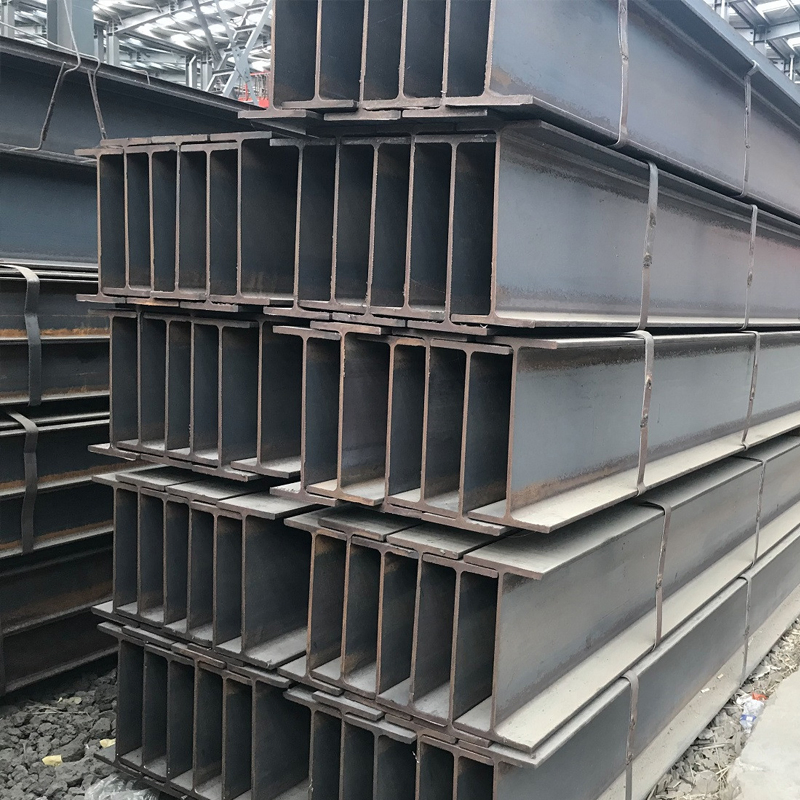

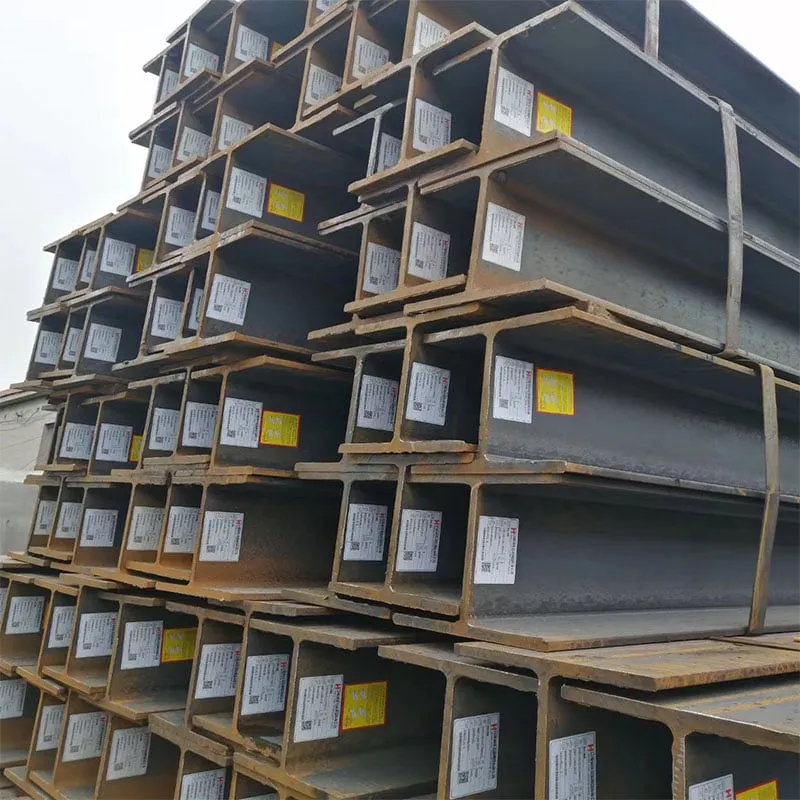

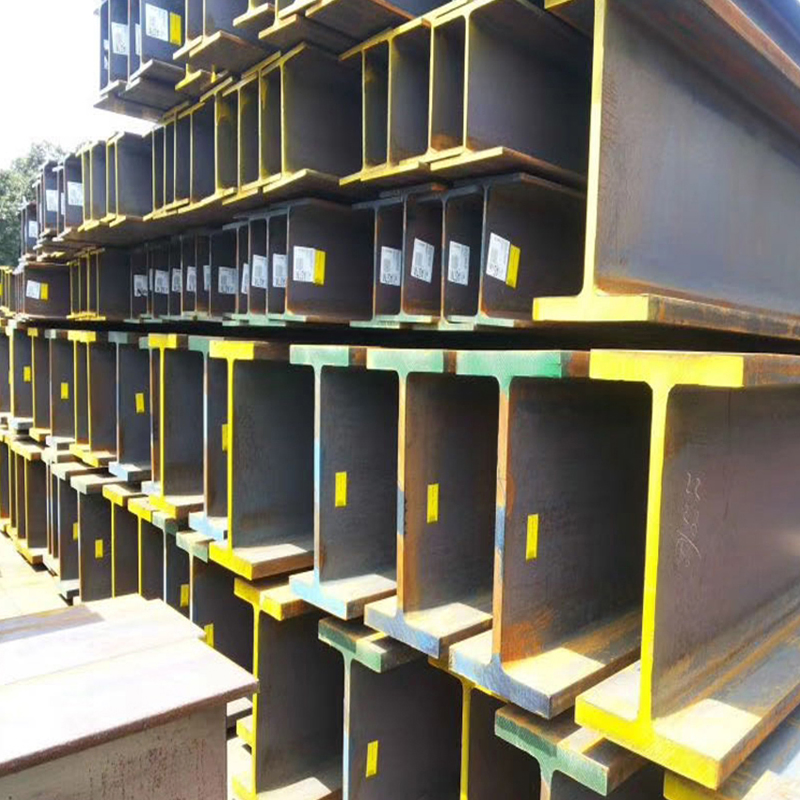

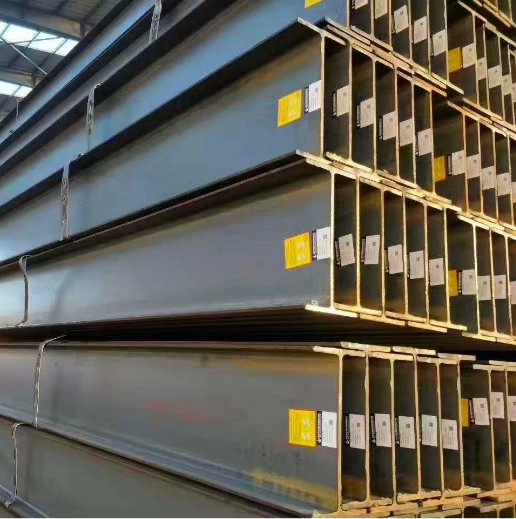

Our structural carbon steel H-beams are high-performance building materials produced using advanced hot-rolling techniques. With strong load-bearing capacity and precise dimensions, they are essential for modern industrial and civil construction.

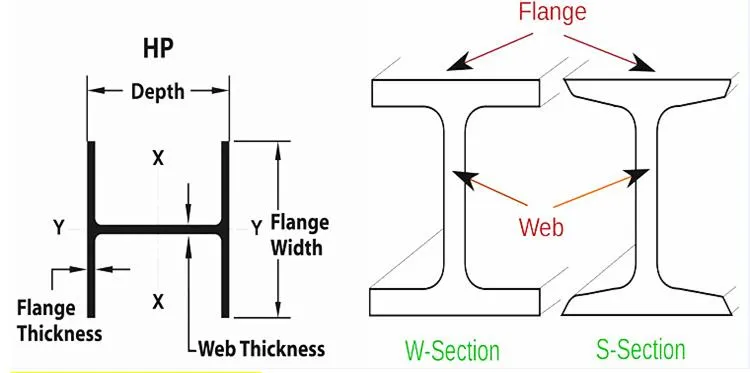

| Product Specification | Details |
|---|---|
| Material Grade | Q235~Q345 / SS440~SS540 / S235JR / JIS G3192 / ASTM A36 |
| Height | 100 - 900mm |
| Width | 100 - 408mm |
| Web Thickness (t1) | 6 - 21mm |
| Flange Thickness (t2) | 8 - 35mm |
| Length | 6 - 12m |
| Technique | Hot Rolled |
H beams are widely used in many constructions, such as building structures, highways, bridges, railways, tunnels, petroleum chemical industry, and electric power industry equipment structures. H beam is environmentally friendly and helps reduce nuisance dust during construction. It also significantly saves working time because it is easy to carry and can be utilized in various weather conditions.
| Height × Breadth (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|
| 100 × 100 | 6 | 8 | 16.9 |
| 150 × 150 | 7 | 10 | 31.1 |
| 200 × 200 | 8 | 12 | 49.9 |
| 300 × 300 | 10 | 15 | 93.0 |
| 400 × 400 | 13 | 21 | 171.7 |
| 200 × 100 | 5.5 | 8 | 20.9 |
| 400 × 200 | 8 | 13 | 65.4 |
| 600 × 200 | 11 | 17 | 103.4 |
| 900 × 300 | 16 | 28 | 240.1 |

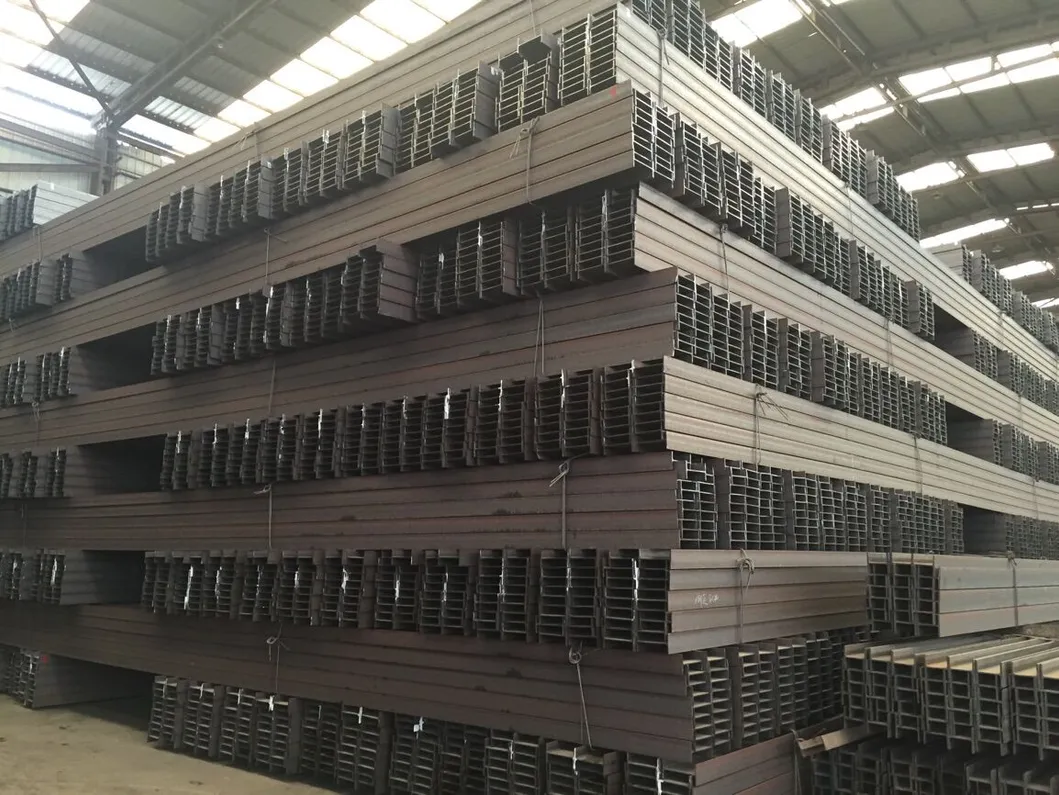

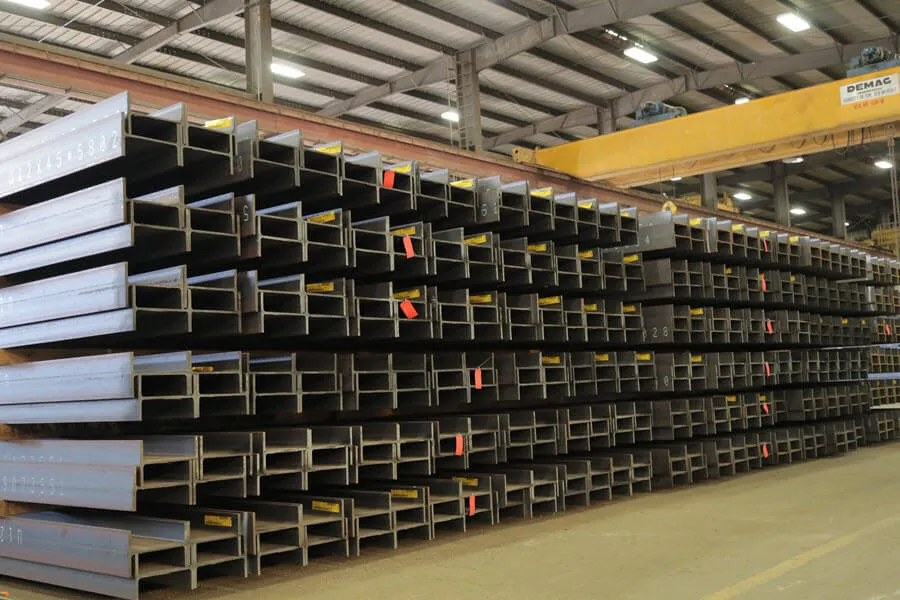

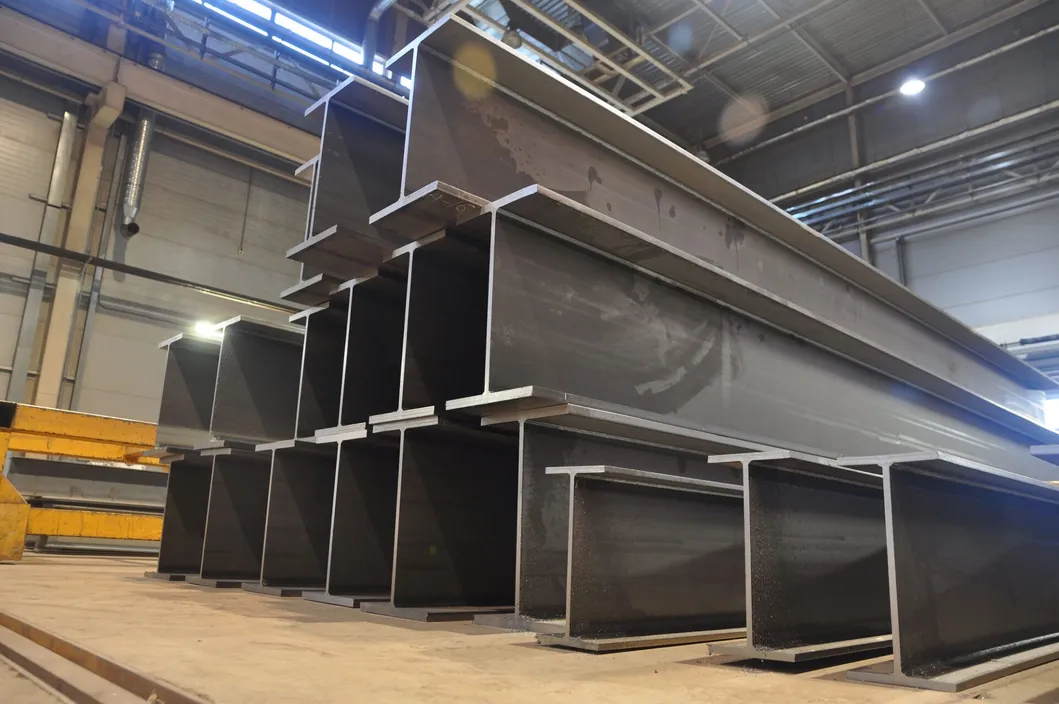

Our raw materials processing facility spans 100,000 square meters, equipped for laser cutting, surface treatment, and further processing. We maintain a consistent stock of over 20,000 tons to ensure rapid delivery for global construction projects.
