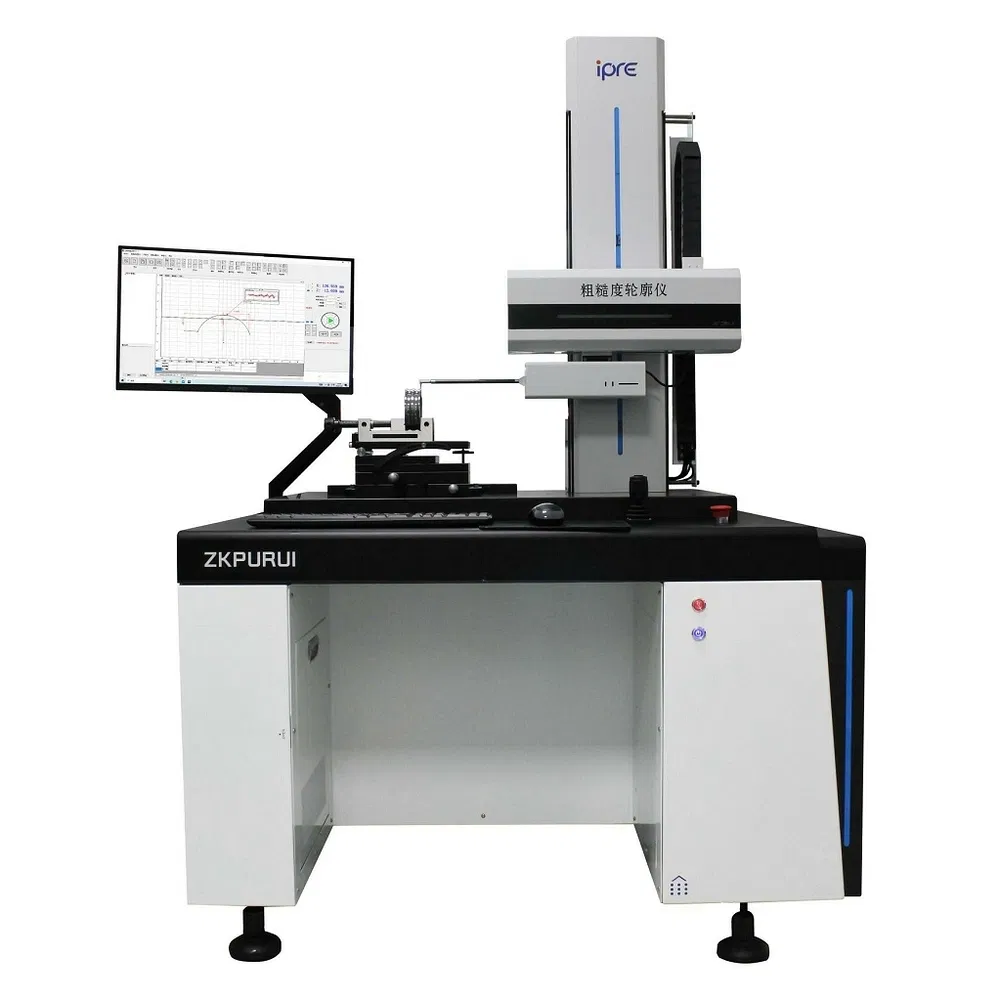

High Adaptability Lightweight Ra150s Bench Top Surface Finish Profilometer

1 / 5

High Adaptability Lightweight Ra150s Bench Top Surface Finish Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Send Inquiry

Product Description

Basic Info

Model NO.:

RA150S

Material:

Metal

Feature:

High Range, High Accuracy

Application:

Test Roughness and Profile

Package:

Wooden Box

Production:

500 Sets

Product Description

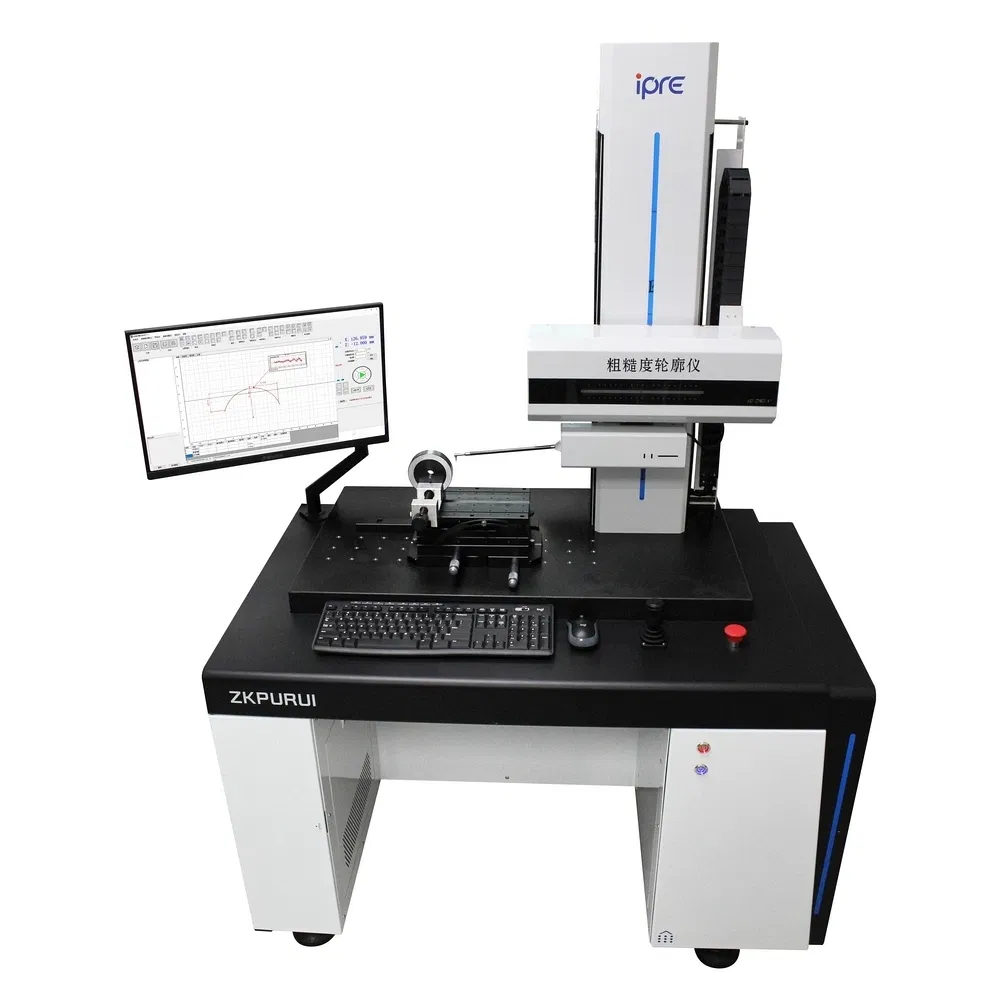

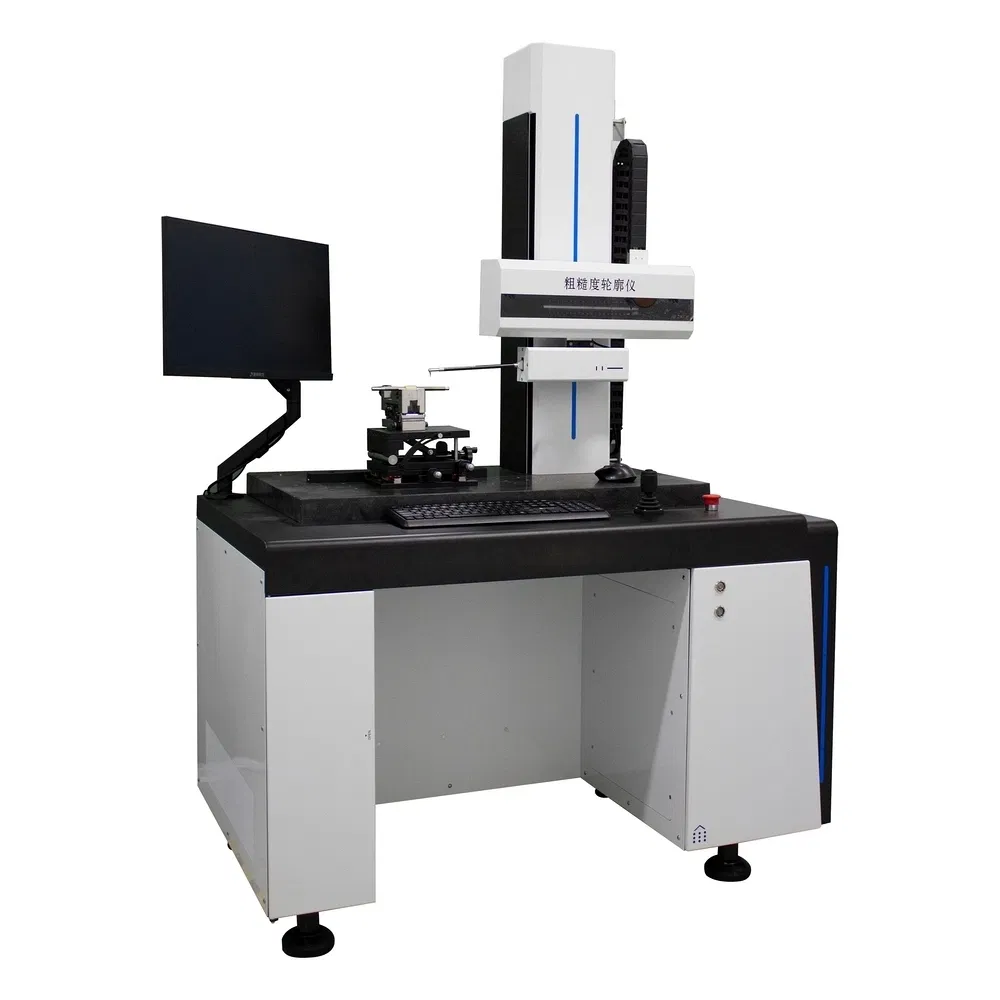

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE SOLUTION

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced system combines high-precision grating technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.

Specification

Project / Model		IPRE-RA150S
X-axis Rail	Moving accuracy	≤±(1+\|0.02L\|)μm
X-axis Grating	Resolution	0.01μm
Data Sensor	Resolution	0.001μm (Roughness)
Linear precision		≤±(0.8+\|0.05H\|)μm
Straightness		≤0.5μm/100mm
Roughness Measurement
Z1 axis Range	±20mm (Full range measurement)
Evaluation Parameters	Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Wa, Wz, Wq, Wt, Pa, Pz, Pq, Pt, etc.
Instrument Size	1200×750×1800(mm)
Weight	About 350Kg

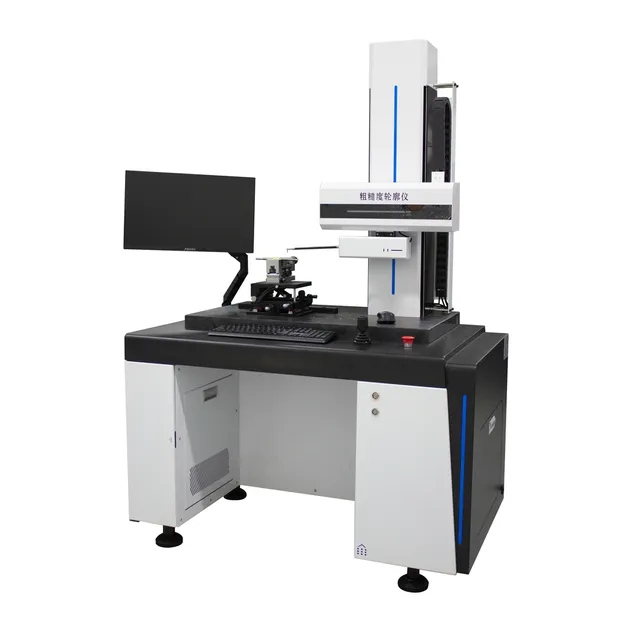

Detailed Pictures & Features

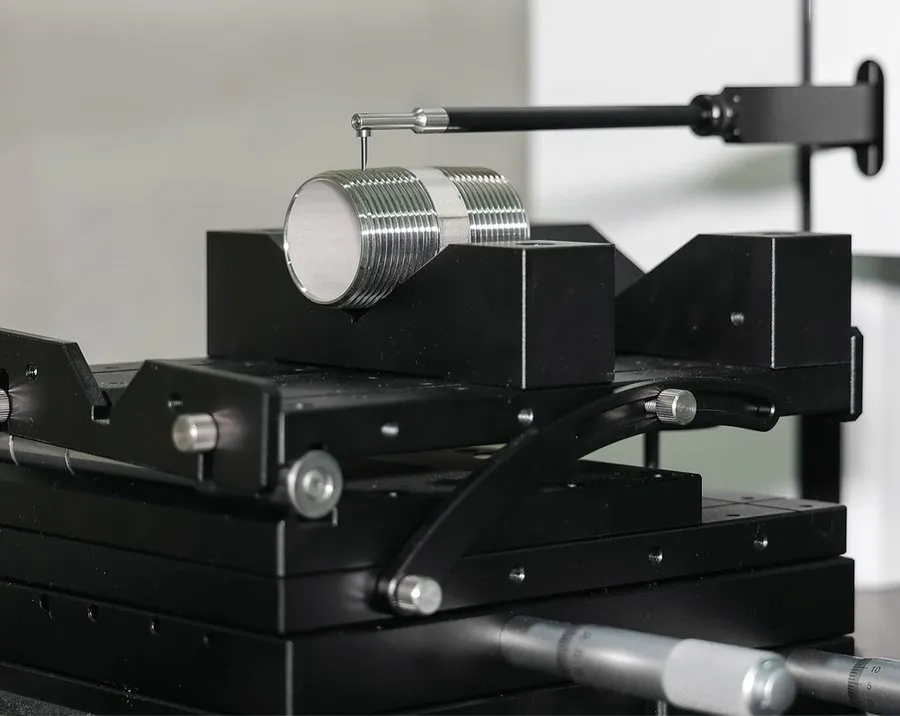

HIGH-PRECISION GRATING SYSTEM

Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for even the most demanding surface analysis tasks.

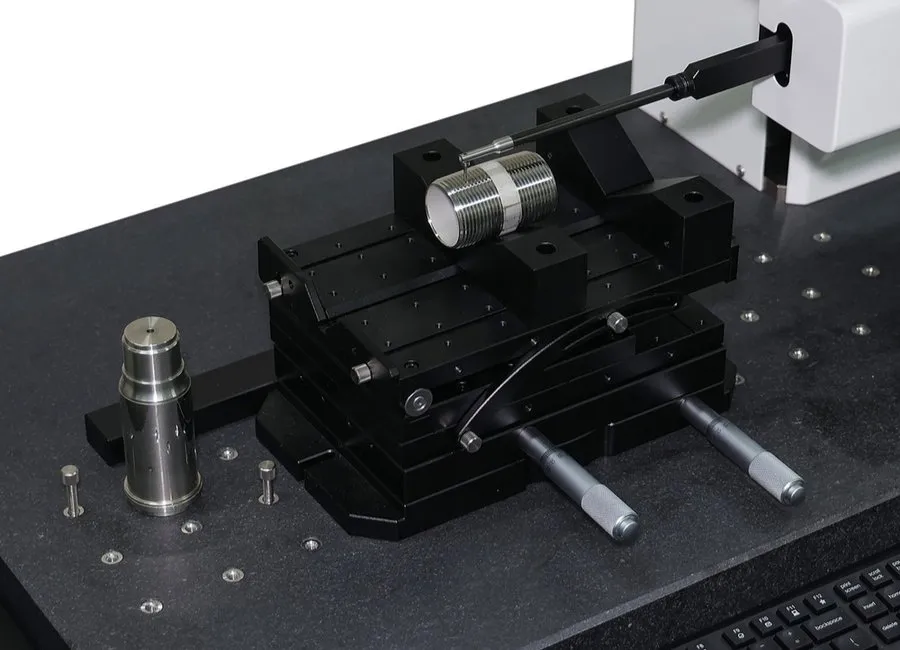

NON-CONTACT LINEAR MOTOR DRIVE

Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent and distortion-free results.

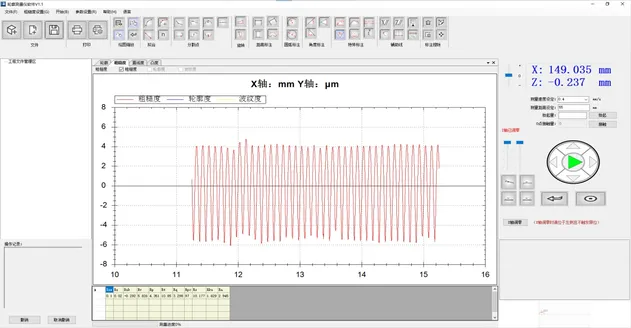

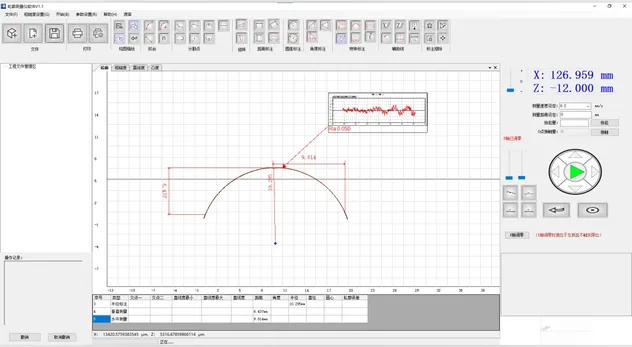

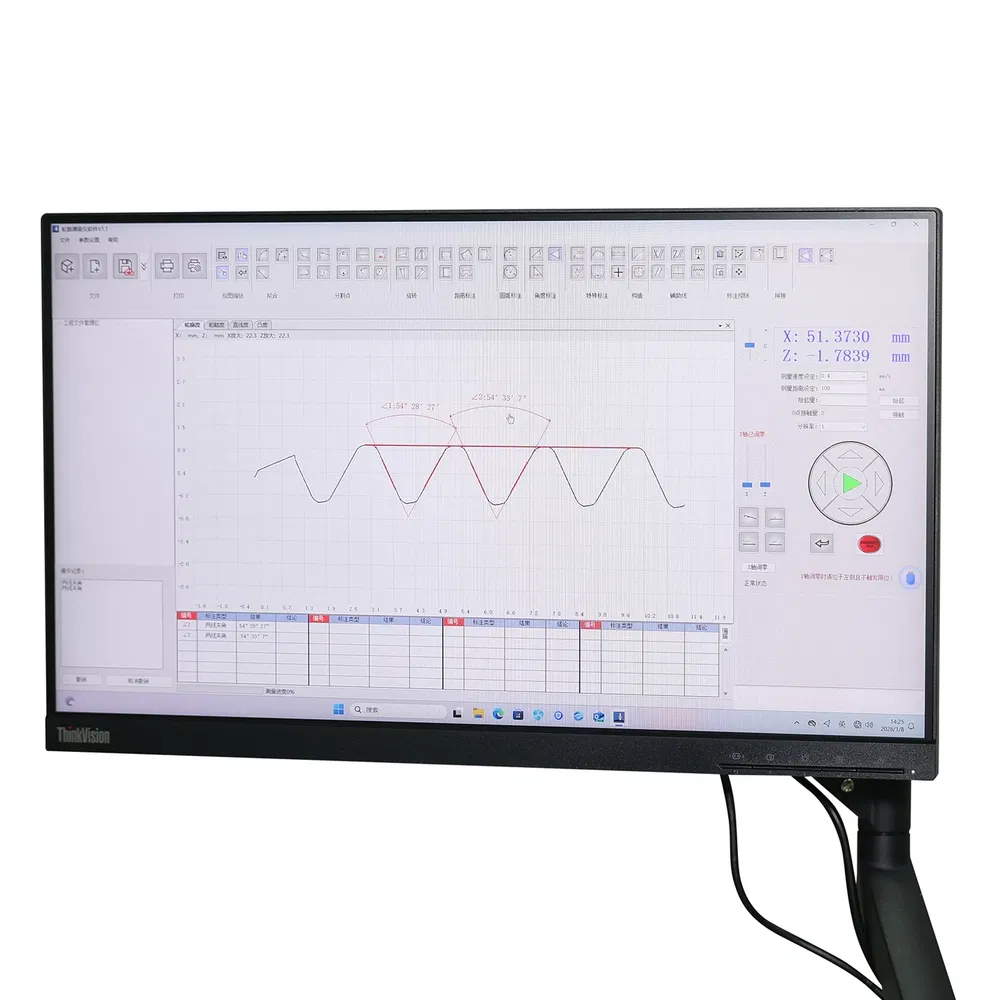

Intelligent Software System

Powerful data processing: automatically prints reports and displays measurement records.

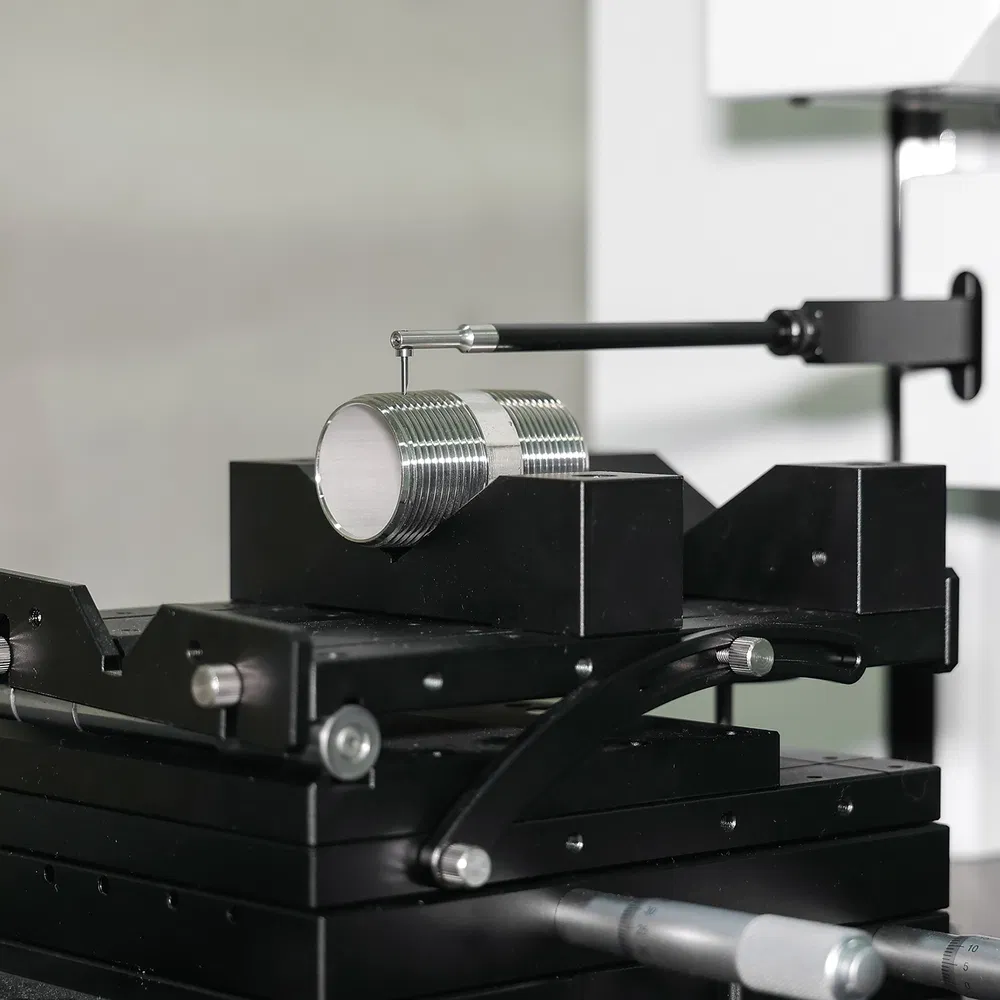

Wide measurement range: suitable for wire rod, bearing, thread, and other contour measurements.
Multi-standard support: complies with ISO, DIN, JIS, and ANSI standards.
Large-capacity storage: computer-based database for all verification results.
Adjustable speed: 4-gear adjustment for X and Z axis for fast positioning.

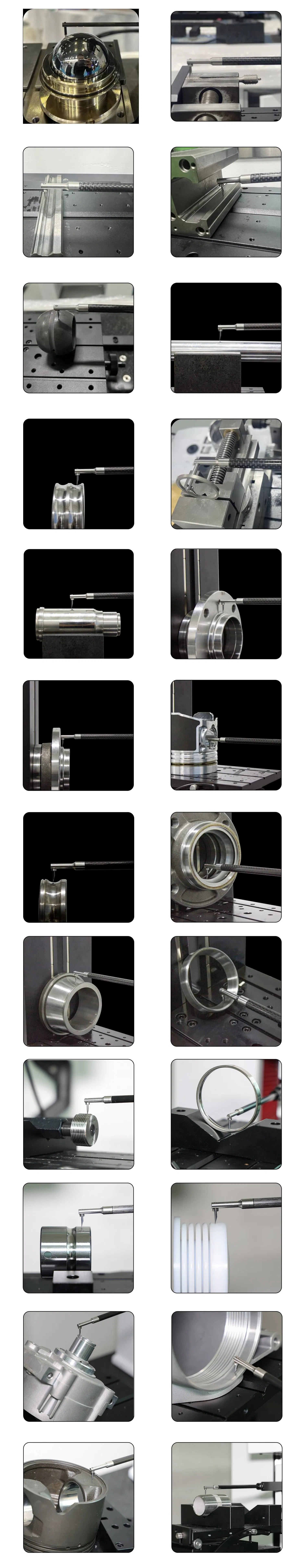

Application Scenarios

FAQ

Q1: Is your company a manufacturer or a trader? A1: Established in 2013, we have our own factory and simultaneously engage in trade business to provide comprehensive solutions.

Q2: What international certifications do you have? A2: We have passed ISO9001 quality management, ISO14001 environmental management, ISO45001 occupational health and safety, and EU CE certifications.

Q3: What is the delivery time for regular products? A3: Most products are in stock. Delivery typically takes no more than 7 days. For customized orders, the lead time is approximately 1 week.

Q4: What are the accepted payment methods? A4: We accept LC, T/T, D/P, PayPal, Western Union, and MoneyGram.

Q5: What is the minimum order quantity (MOQ)? A5: For our standard products, the minimum order quantity is 1 set.

Q6: Does the software support international standards? A6: Yes, the roughness analysis supports multi-standard settings including ISO, DIN, JIS, and ANSI.
