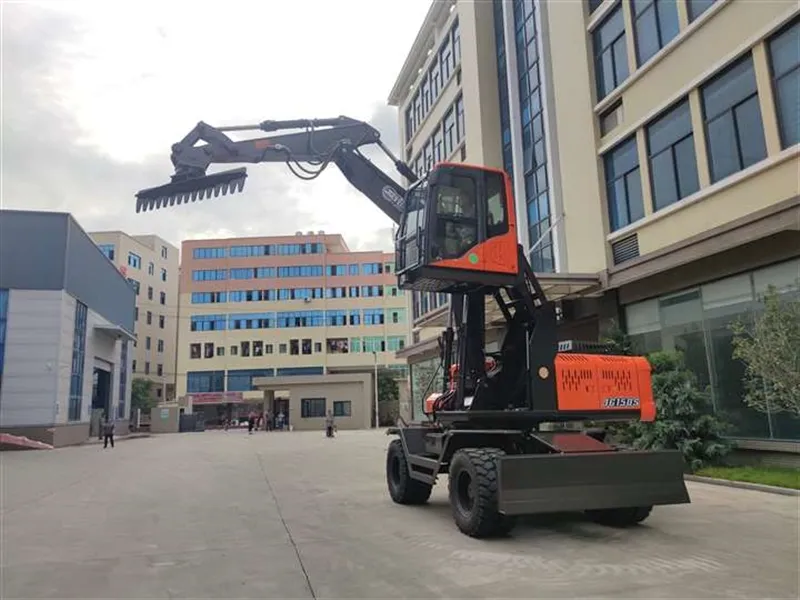

This mechanical construction equipment is specifically designed for railway departments to handle loose materials such as iron sand, iron ore, coal mines, grain, and other bulk goods.
To meet "leveling of cargo" safety requirements for rail transport, this technological solution replaces the manual labor of 8 workers, achieving significant speed improvements and enabling mechanized, high-efficiency operations.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| RANGE OF OPERATION | |
| Boom Length | 3680mm |
| Arm Length | 1850mm |
| Max Extended Distance of Arm | 800mm |
| Max Lifting Height of Cab | 1800mm |
| Width of Leveler | 2500mm |
| Maximum Leveling Height | 3800mm |
| DIMENSIONS & WEIGHT | |
| Travel Position (L*W*H) | 5400*2500*3200mm |
| Machine Weight | 8500kg |
| Wheel Base | 2590mm |
| Min Ground Clearance | 200mm |
| POWER & PERFORMANCE | |
| Engine Model | YUCHAI |
| Rated Power | 48KW |
| Walking Speed | 25km/h |
| Grade Climbing Ability | 58% / 30° |
| Hydraulic Tank Capacity | 110L |
