Japan Kubota Mbr Membrane Flat Sheet Type

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

RGE-100

Usage

Industrial, Home, Agriculture, Hospital

Membrane Pore Size

0.1 micron

Membrane Material

PVDF with Pet

Effective Area

1.0 Square Meter

Water Capacity

400-700L Per Day

Size

1200*510*5 mm

Service Life

5-8 years

MLSS

8000-15000mg/L

pH Range

2-12

HS Code

8421999090

Production Capacity

10000m² Per Month

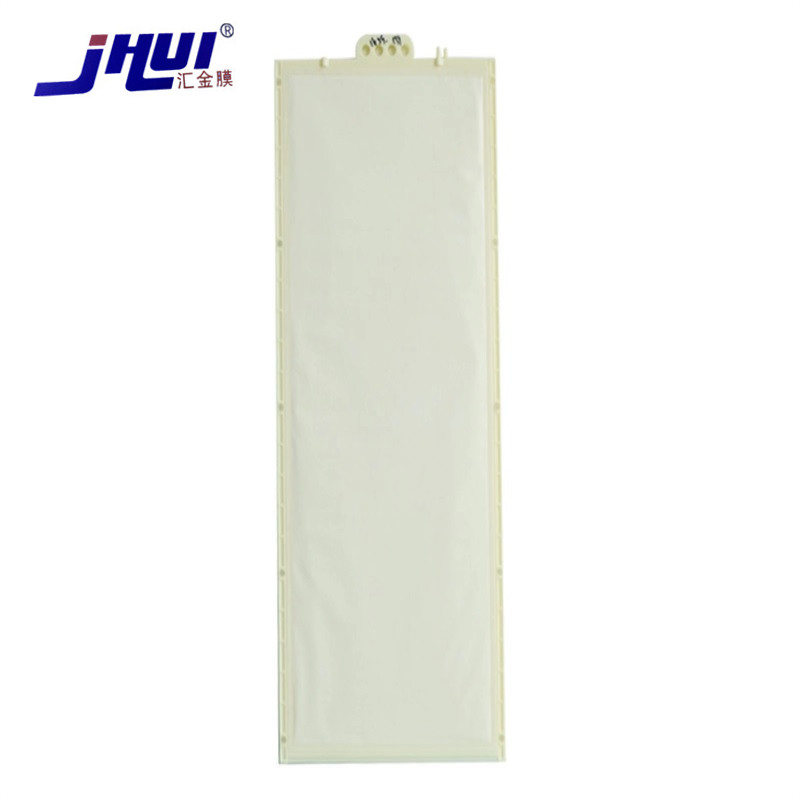

Flat Sheet Membrane MBR

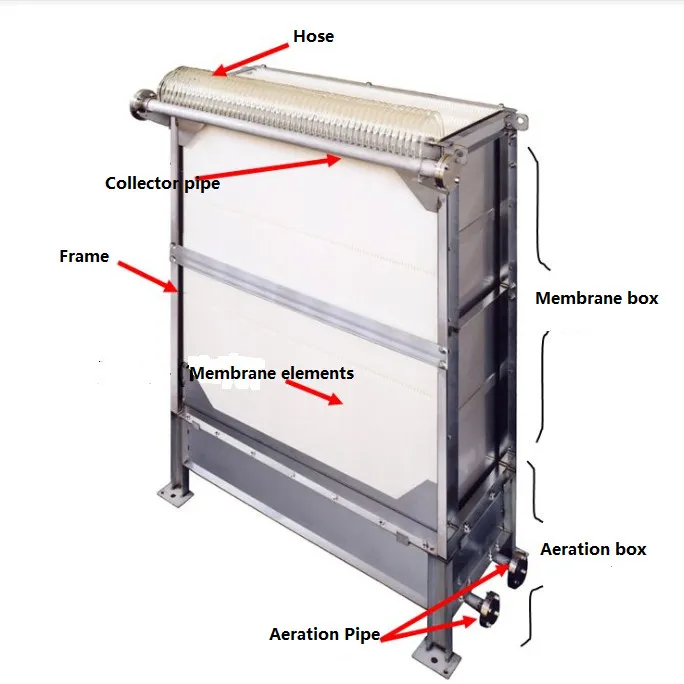

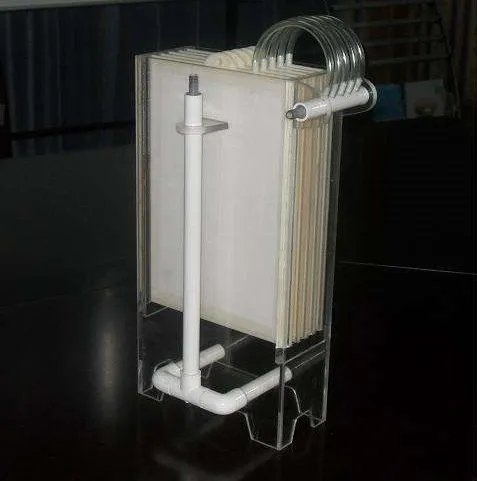

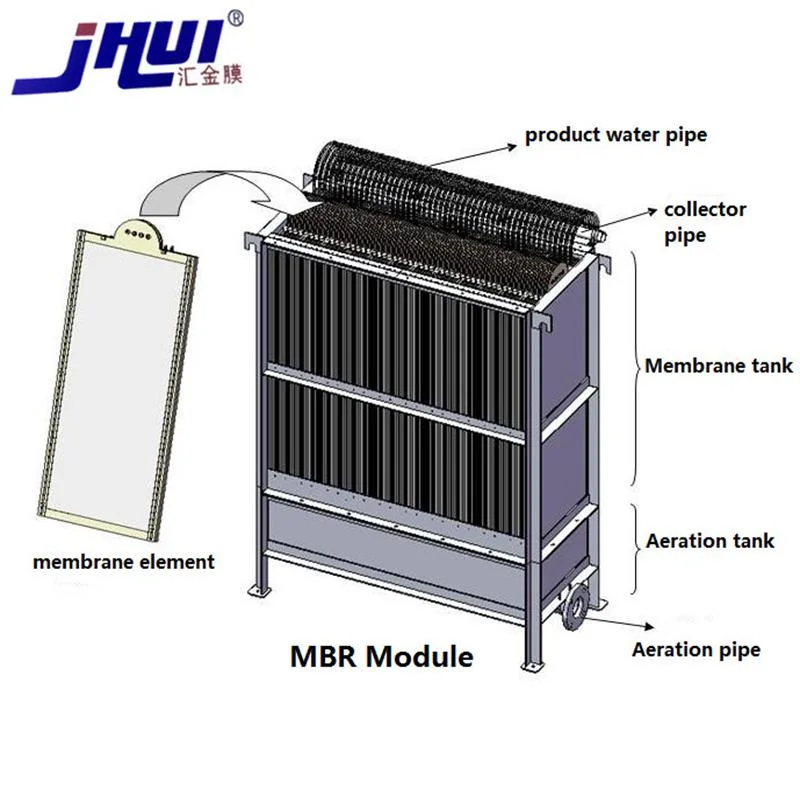

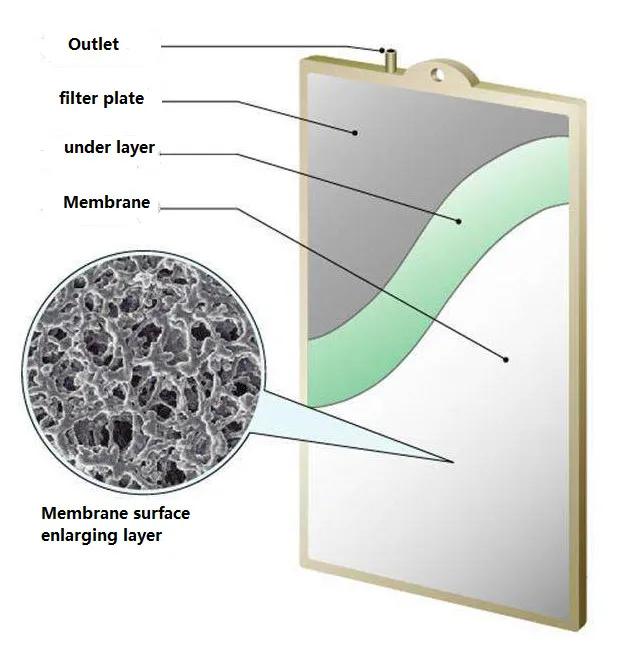

Flat sheet membrane elements are specialized components used in submerged membrane bioreactors (MBR). The element is composed of a membrane, diversion cloth, and a honeycomb board. Activated sludge is blocked by the external membrane element while filtered water is drawn through under negative pressure.

Key Characteristics

✔Low preprocessing requirements and long service life; surface resists jamming.
✔Operates normally under high concentrations of activated sludge.
✔Simple daily management; no back flush needed, clean only 1-2 times per year.
✔Low filtration resistance allows for liquid level difference operation, saving energy.
✔Compact two-layer structure design reduces device volume and construction costs.

Technical Advantages

Utilizing independent MBR multilayer flat membrane technology, our solutions solve various water treatment challenges with the following benefits:

🚀 Filling density increased 20%

💨 Aeration saving 20%

🛠️ Installation efficiency increased by 100%

Produced water quality exceeds national sewage discharge level A standards, suitable for greening irrigation, car washing, fire fighting, and landscape water.

Membrane Element Parameters

Element Parameters	RGE-10	RGE-100	RGE-150	RGE-150A
Effective Area (M²/piece)	0.1	1.0	1.5	1.5
Size (LWD mm)	3202205	12005105	18005105	18005105
Weight (kgs)	0.42	3.3	4.9	4.9
Daily Water (L/day)	40~70	400~700	600~900	700~1000
Aeration Rate (L/min)	≥ 6	11~14	11~14	11~14
Pore Size (µm)	0.1 ~ 0.4
Support Plate Material	ABS (Acrylonitrile Butadiene Styrene)
Membrane Material	PVDF with PET

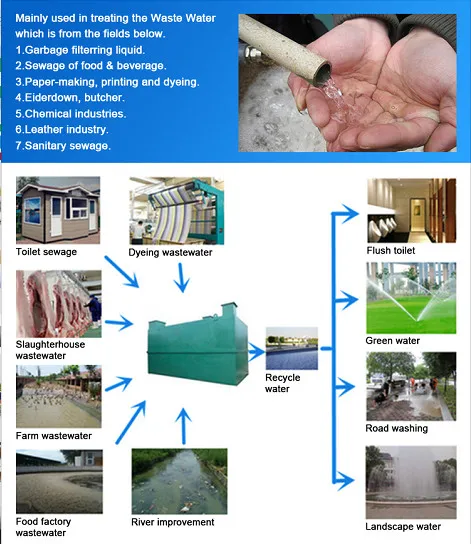

Wide Applications

Ideal for Municipal, pharmaceutical, chemical, metallurgy, food processing, and aquaculture industries.

➜ Sewage treatment and reuse in new rural constructions.
➜ Water reuse for industrial/mining enterprises and tourist attractions.
➜ Areas with strict site constraints and water scarcity.

Compliance & Global Presence

Frequently Asked Questions

💡 What is the typical service life of the RGE-100 membrane?

The service life of our flat sheet MBR membrane typically ranges from 5 to 8 years depending on the wastewater conditions and maintenance.

💡 Does this membrane require frequent back-flushing?

No, one of the primary advantages of our flat sheet design is that it does not require daily back-flushing. Professional cleaning is only needed 1 or 2 times a year.

💡 What is the quality of the treated effluent?

The effluent turbidity is consistently less than 1.0 NTU, making the water suitable for non-drinking reuse such as irrigation, car washing, and fire fighting.

💡 What materials are used for the membrane construction?

The membrane is made of high-quality PVDF (Polyvinylidene Fluoride) with a PET support, and the support plate is made of durable ABS.

💡 How does the flat sheet membrane handle high sludge concentrations?

The RGE series is designed to operate efficiently in MLSS concentrations ranging from 8,000 to 15,000 mg/L (and up to 20,000 mg/L for specific models).

💡 Is the system energy efficient?

Yes, the low filtration resistance allows for operation using liquid level differences, which can omit the need for suction pumps and significantly reduce energy consumption.
