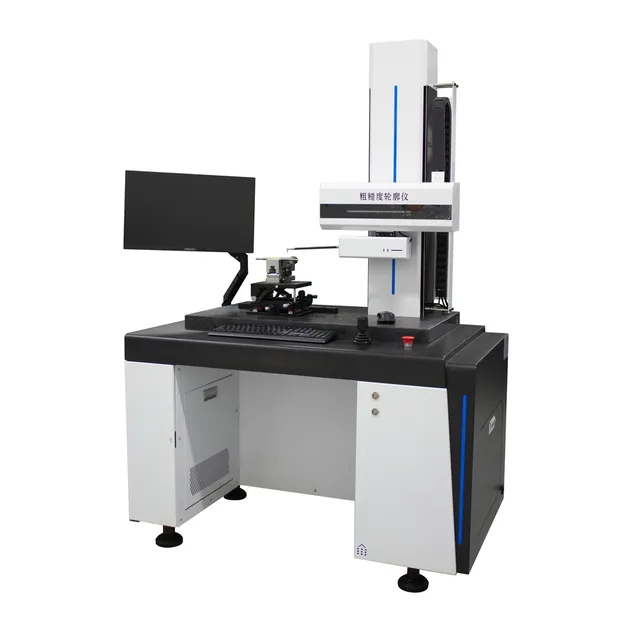

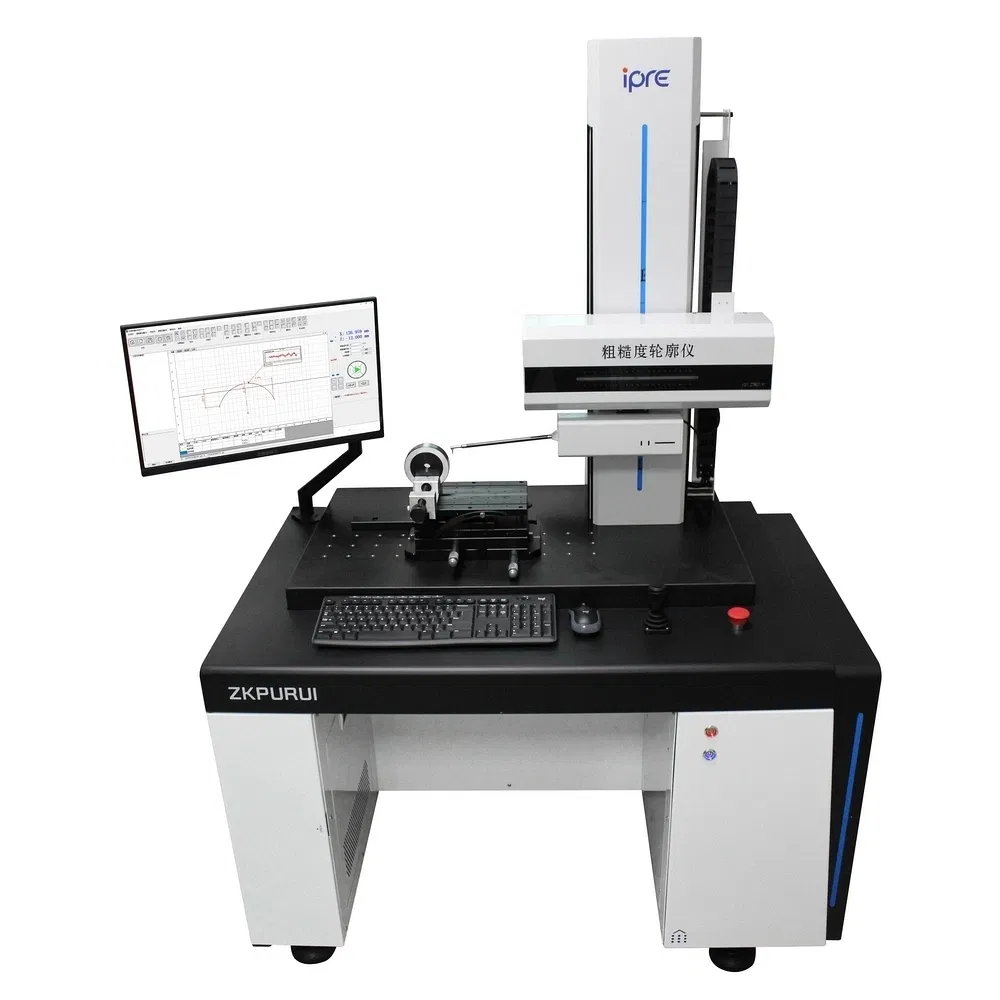

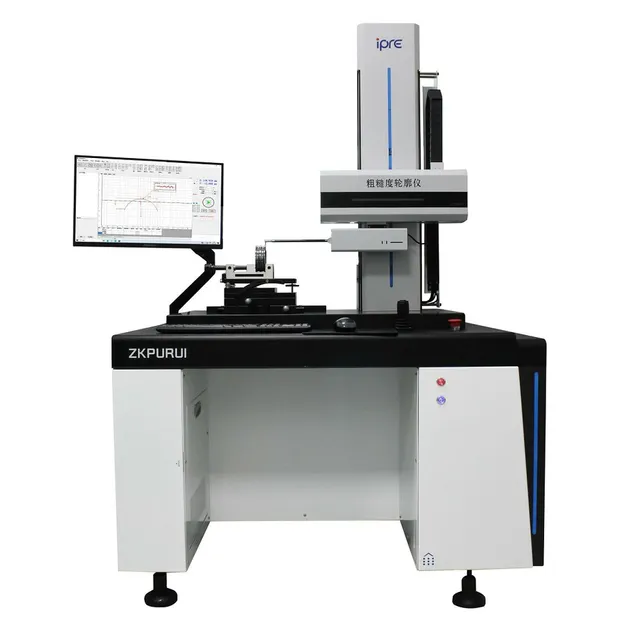

Industrial Grade High Quality Ra150s Bench Top Surface Roughness Contour Meter

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Basic Information

Model NO.	RA150S
Material	Metal
Feature	High Range, High Accuracy, High Resolution
Application	Test Roughness Value and Profile
Transport Package	Wooden Box
Specification	International Standards
Origin	China
Production Capacity	500 Sets

Product Description

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing.

This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.

Technical Specification

Project / Model	IPRE-RA150S
X-axis Accuracy	≤±(1+\|0.02L\|)μm
X-axis Resolution	0.01μm
Date sensor Resolution	0.001μm (Roughness test)
Linear precision	≤±(0.8+\|0.05H\|)μm
Straightness	≤0.5μm/100mm
Roughness Test Range	Z1 axis	±20mm
Evaluation Parameters	Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Wa, Wz, Wq, Wt, Pa, Pz, Pq, Pt, etc.
Sampling length L	0.08, 0.25, 0.8, 2.5, 8 (mm)
Contour Range	X/Z axis	X≤180mm / Z≤500mm

Detailed Features

HIGH-PRECISION GRATING MEASUREMENT SYSTEM

Equipped with advanced grating sensor technology ensuring exceptional repeatability for demanding surface analysis.

NON-CONTACT LINEAR MOTOR DRIVE

Utilizes a high-performance linear motor for vibration-free scanning and consistent results.

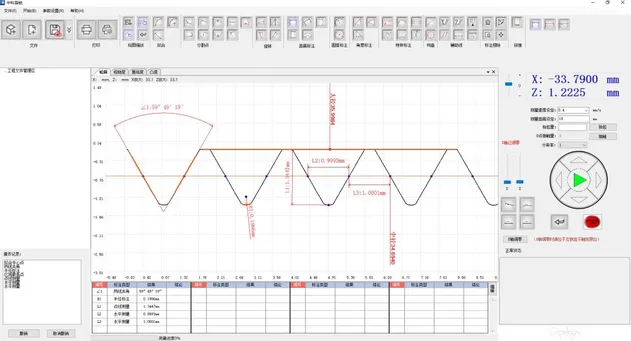

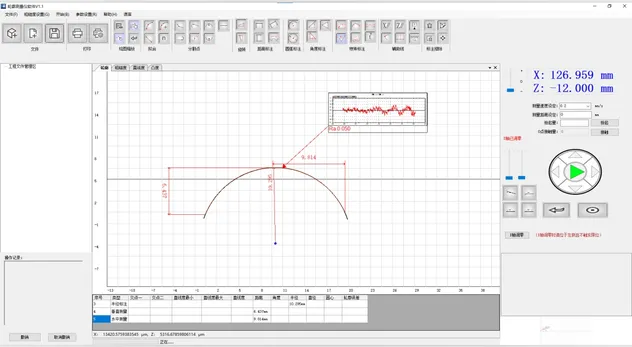

Intelligent Software System

Data Processing: Automatically processes data and prints reports in various formats.

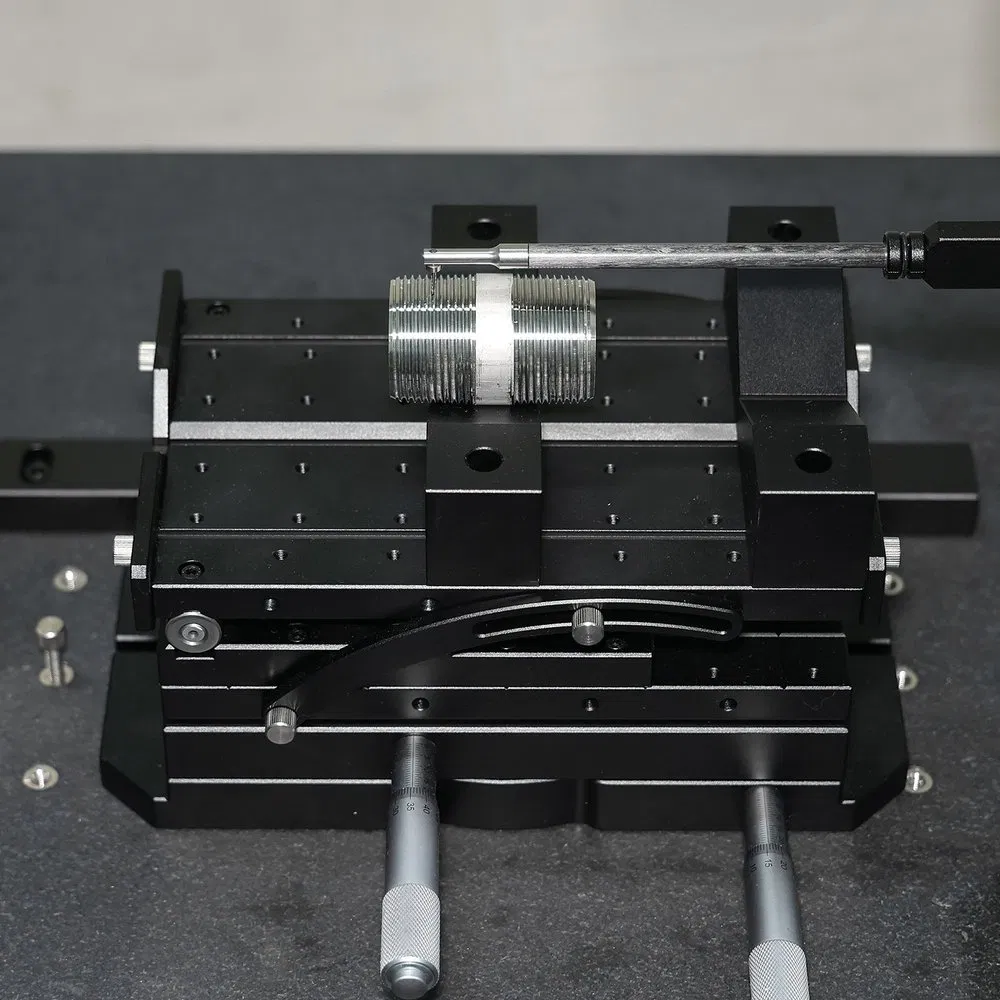

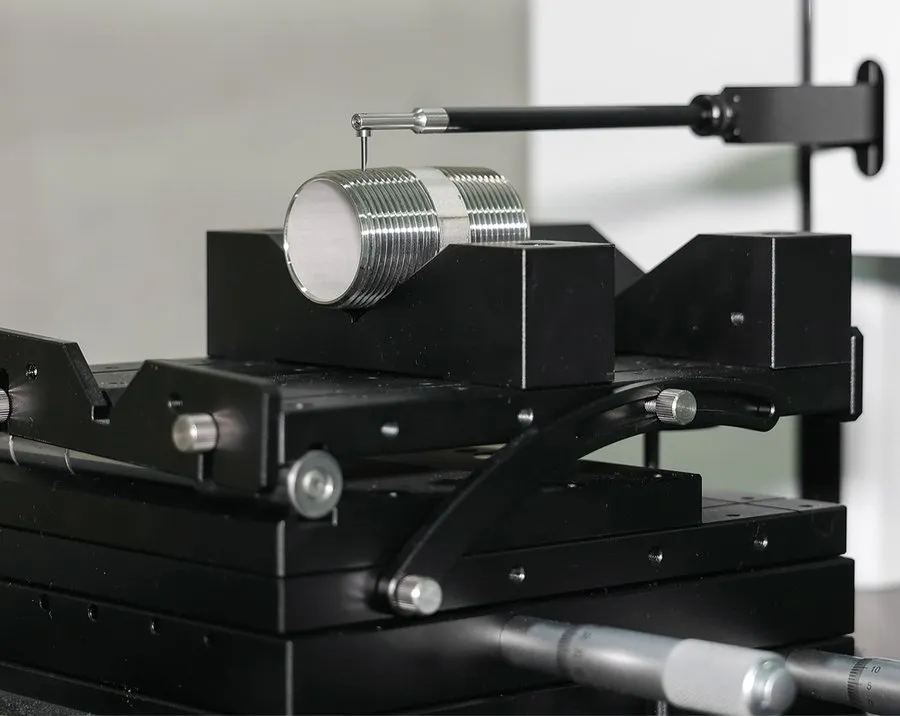

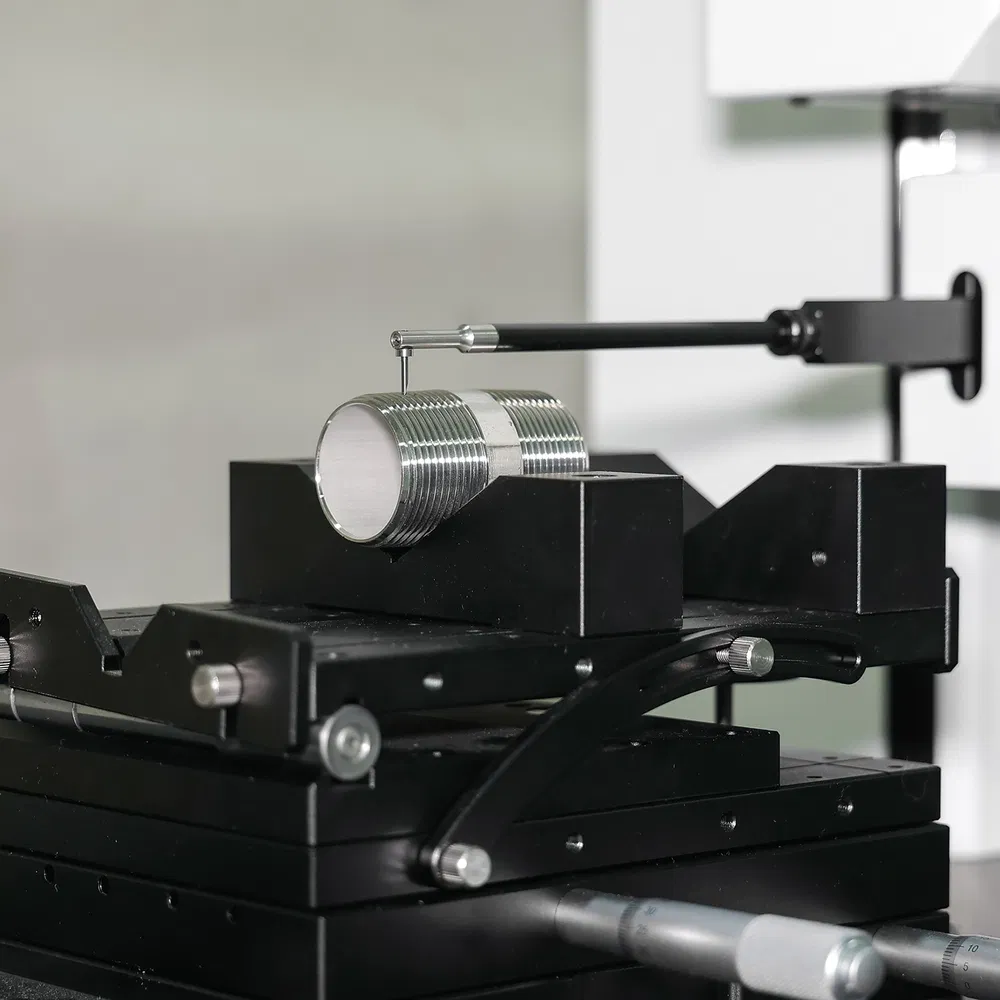

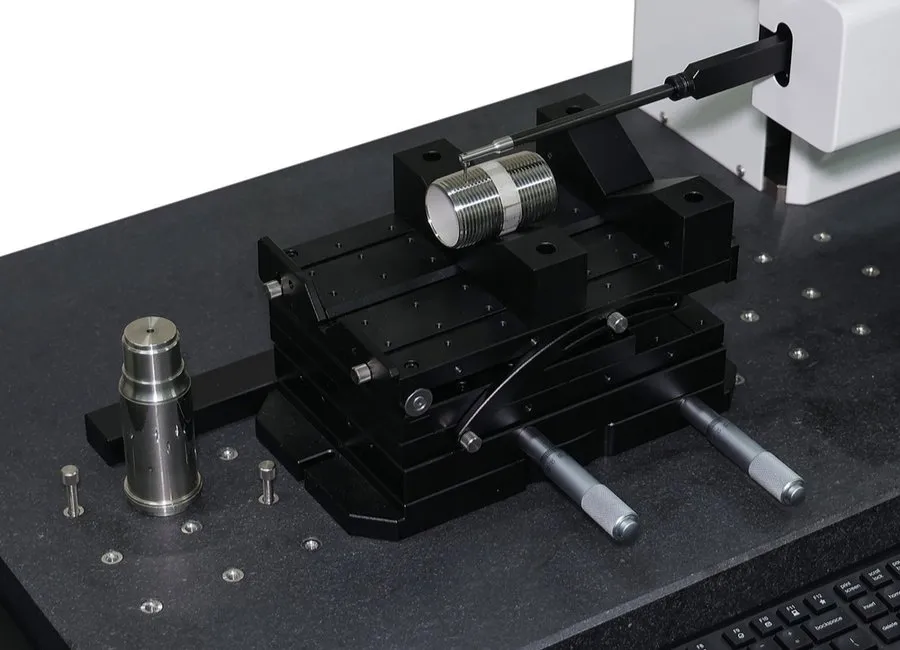

Wide Application: Meets contour measurement needs for wire rods, bearings, and threads.
Multi-Standard Support: Roughness supports ISO, DIN, JIS, and ANSI standards.
Storage: Large-capacity database for recording all verification results.

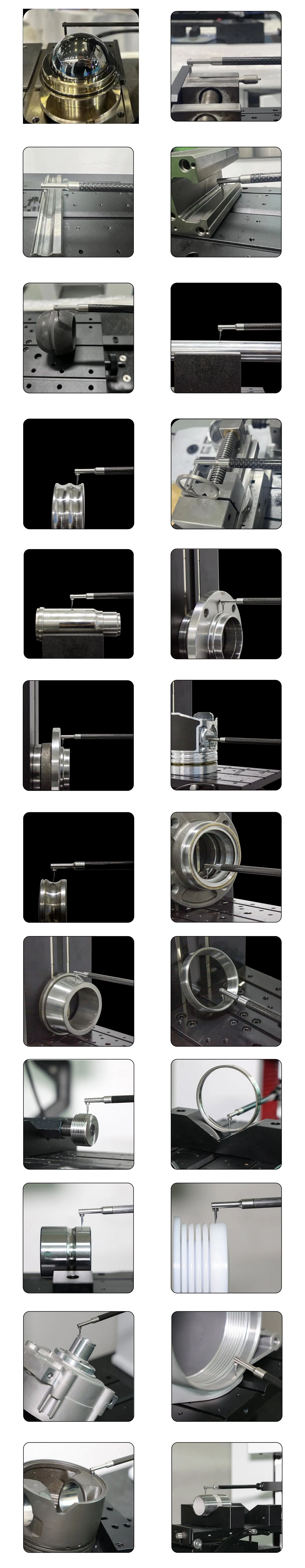

Application Scenarios

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer established in 2013 with our own factory and integrated trading capabilities.

What international certifications do your products hold?

We have passed ISO9001, ISO14001, ISO45001, and EU CE certifications to ensure global quality standards.

What is the typical delivery time for your instruments?

Standard products are usually in stock and can be delivered within 7 days. Customized orders typically require about 1 week.

What payment methods do you accept?

We support various payment options including T/T, L/C, D/P, PayPal, Western Union, and MoneyGram.

What is the Minimum Order Quantity (MOQ)?

The MOQ for our high-precision measurement instruments is 1 set.

Does the software support international measurement standards?

Yes, the intelligent software system supports ISO, DIN, JIS, and ANSI multi-standard parameters.
