| Model NO. | RA150S | Material | Metal |
| Feature | High Range, High Accuracy, High Resolution | Application | Test Roughness Value and Profile |
| Transport Package | Wooden Box | Production Capacity | 500 Sets |

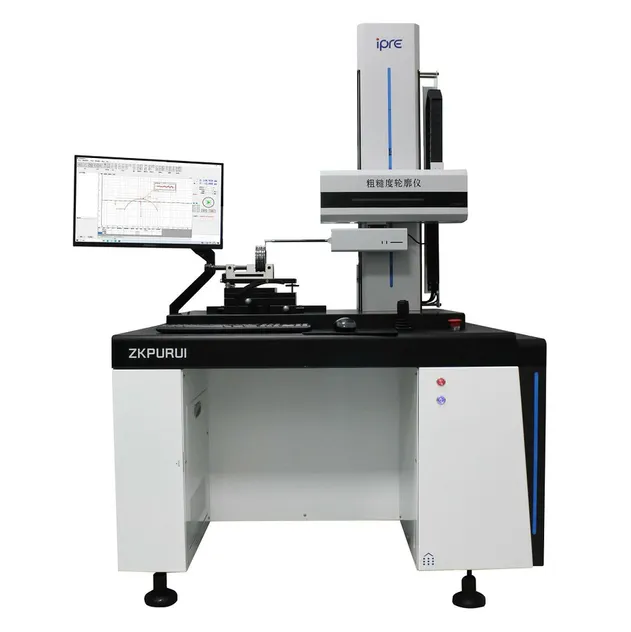

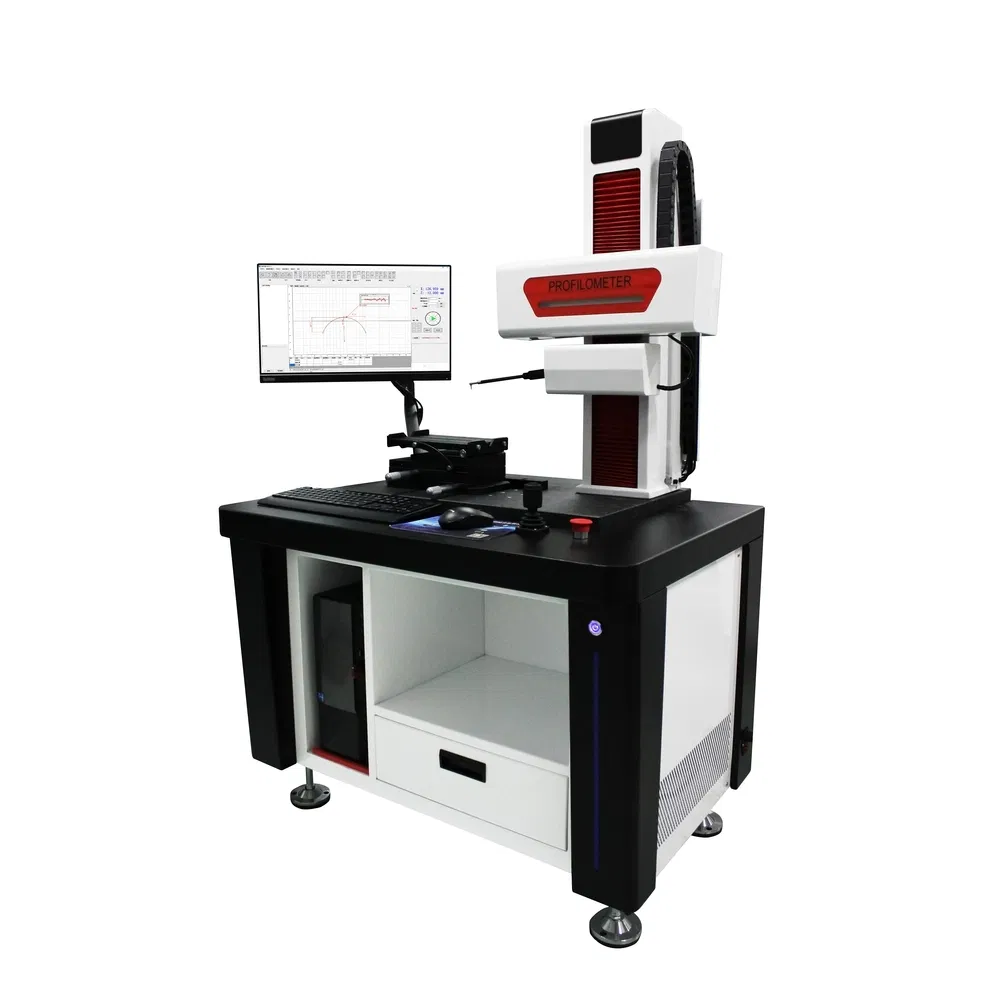

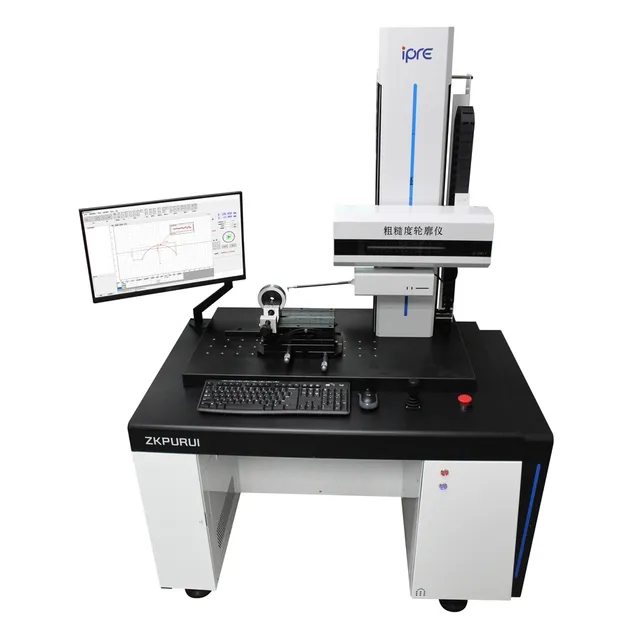

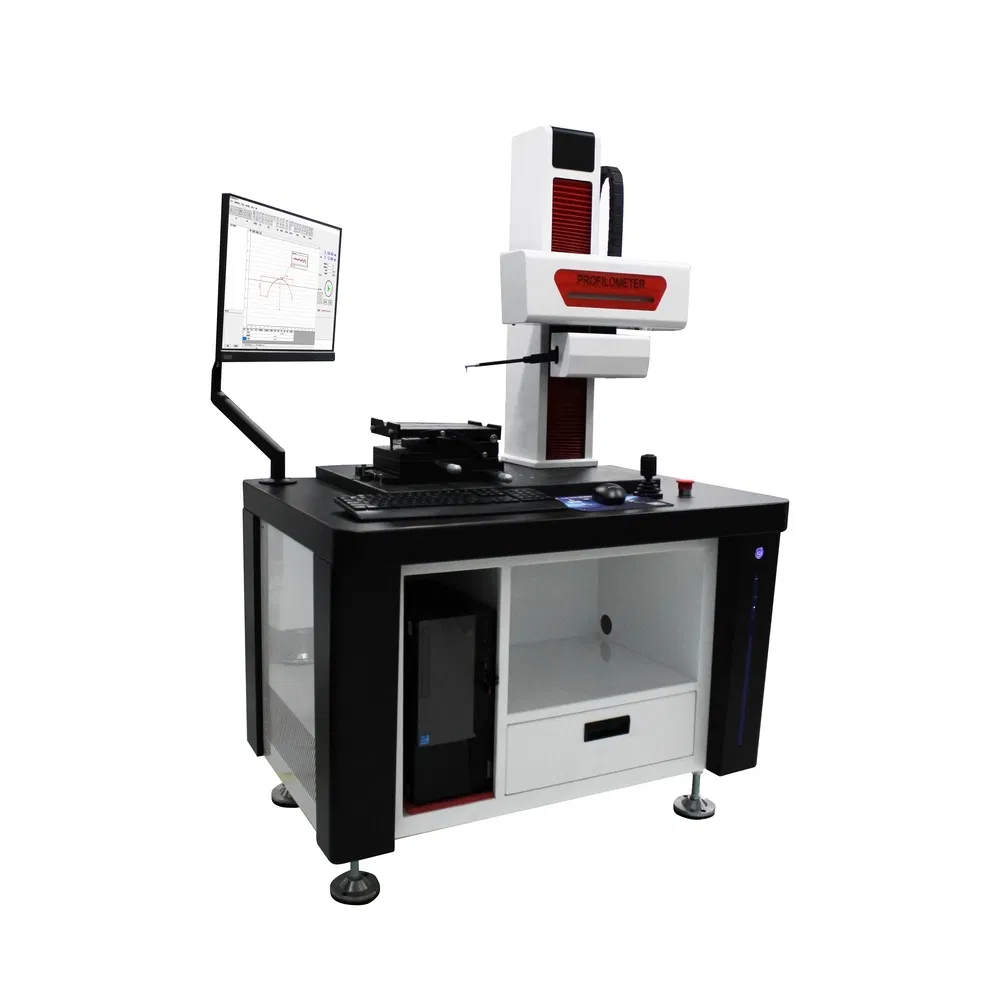

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing.
This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.
Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability. Ideal for industries demanding micron-level precision.
| General Parameters | ||
| Model | IPRE-RA150S | |
| X-axis Guide Rail | Moving accuracy | ≤±(1+|0.02L|)μm |
| X-axis Grating Ruler | Resolution | 0.01μm |
| Date sensor | Resolution | 0.001μm (Roughness test) |
| Straightness | ≤0.5μm/100mm | |
| Roughness Measurement | ||
| Test range | Z1 axis | ±20mm (Full range) |
| Evaluation parameters | Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c); Wa, Wz, Wq, Wt, Wp, Wv, Wc... | |
| Sampling length L | 0.08, 0.25, 0.8, 2.5, 8 (mm) | |
| Physical & Environment | ||
| Environment | 20 ± 2℃; Humidity 20-80% RH | |
| Power supply | 220V 50Hz, 0.5Kw | |
| Size / Weight | 1200×750×1800 (mm) / Approx. 350Kg | |

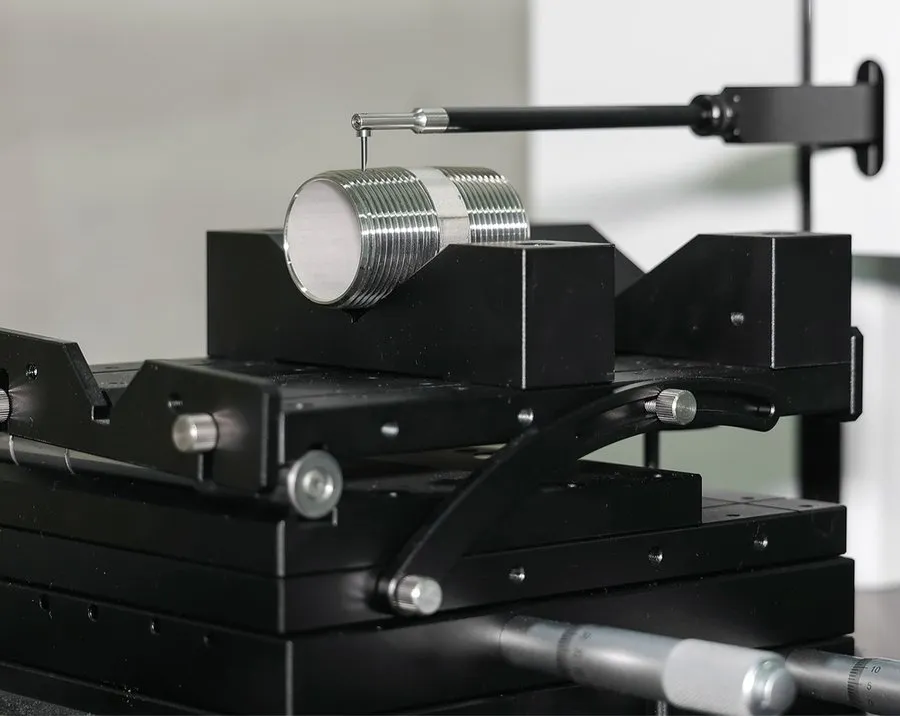

High-Precision Grating System

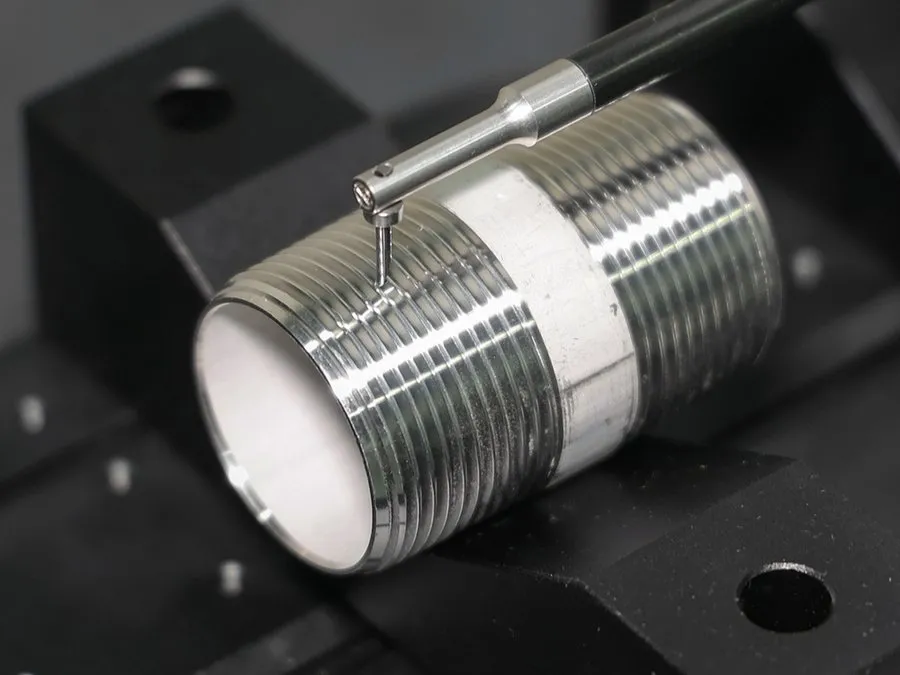

High-Resolution Detection

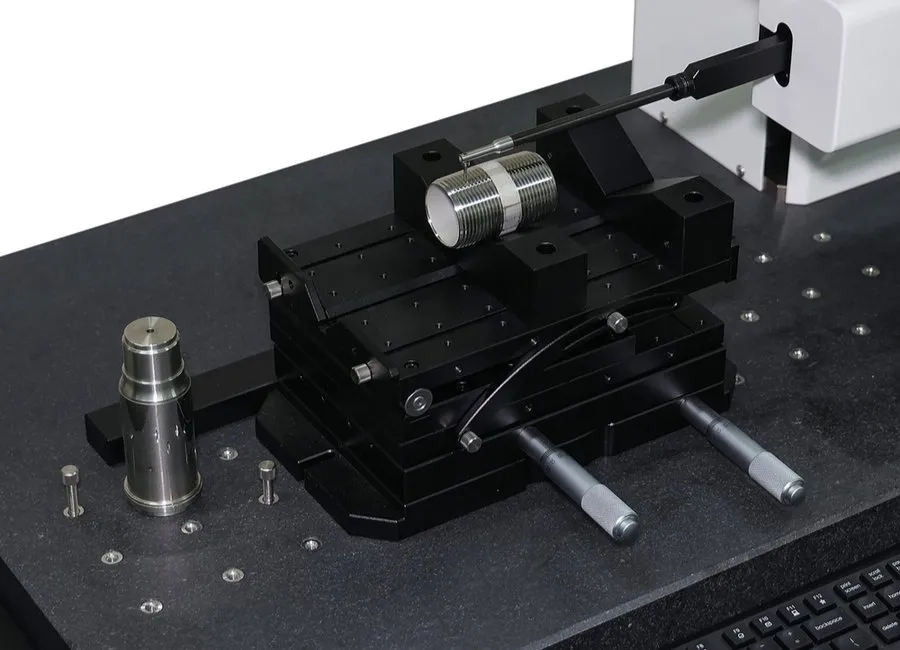

Non-Contact Linear Motor

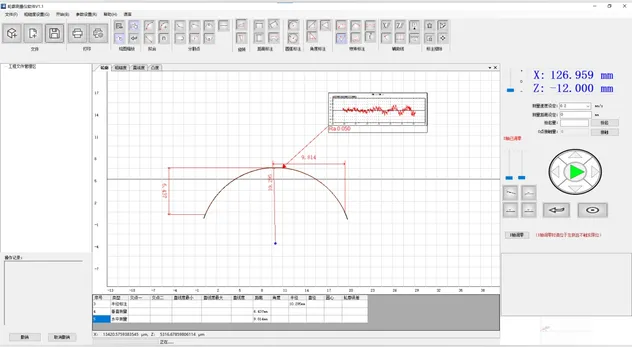

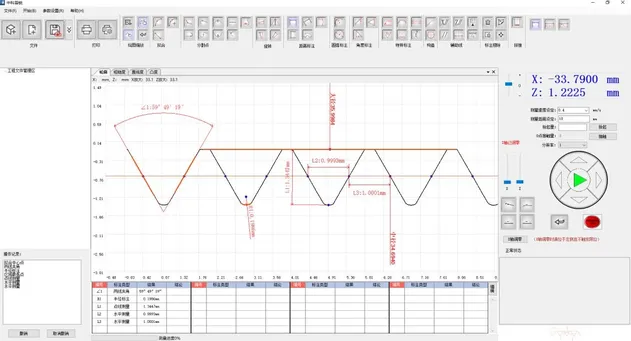

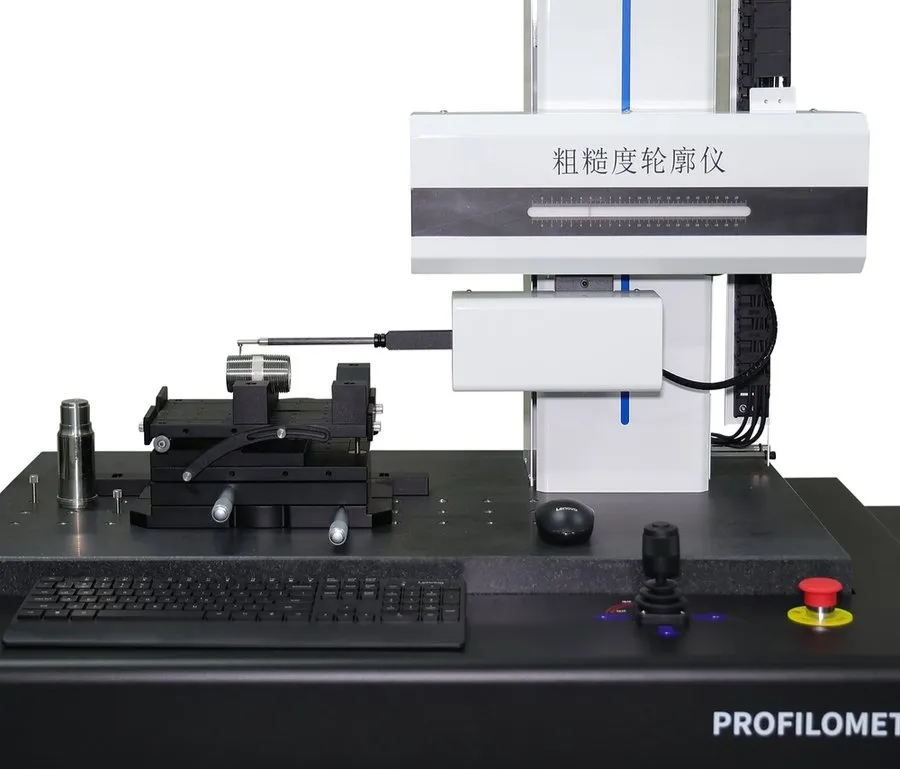

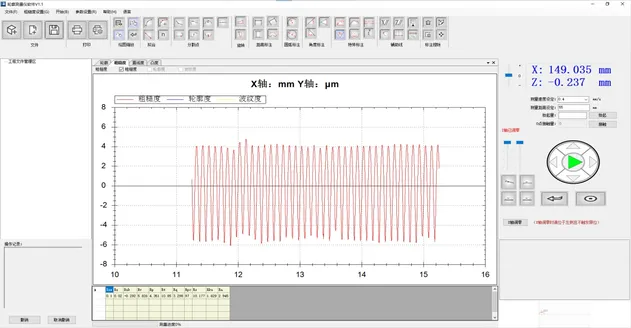

Comprehensive Analysis
A1: Established in 2013, we operate our own factory while simultaneously managing trade business to provide comprehensive solutions.
A2: We have successfully passed ISO9001 (Quality), ISO14001 (Environment), ISO45001 (Health & Safety), and EU CE certifications.
A3: Most products are in stock. Delivery typically takes no more than 7 days. For customized orders, the lead time is approximately 1 week.
A4: We accept LC, T/T, D/P, PayPal, Western Union, and MoneyGram for your convenience.
A5: The MOQ for our measurement instruments is 1 set.
A6: Yes, the intelligent software system supports ISO, DIN, JIS, and ANSI multi-parameter settings.
