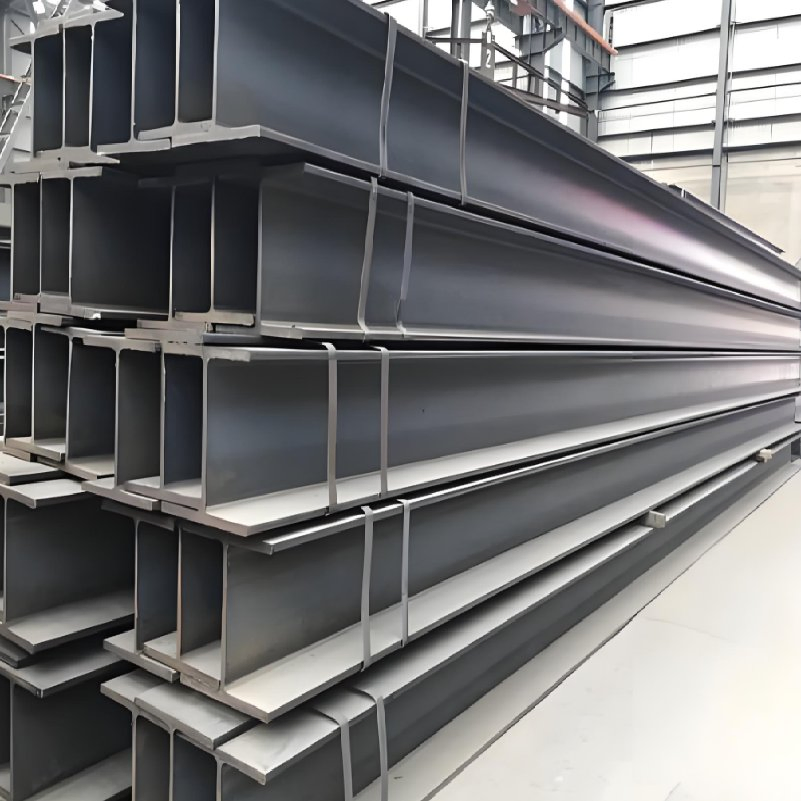

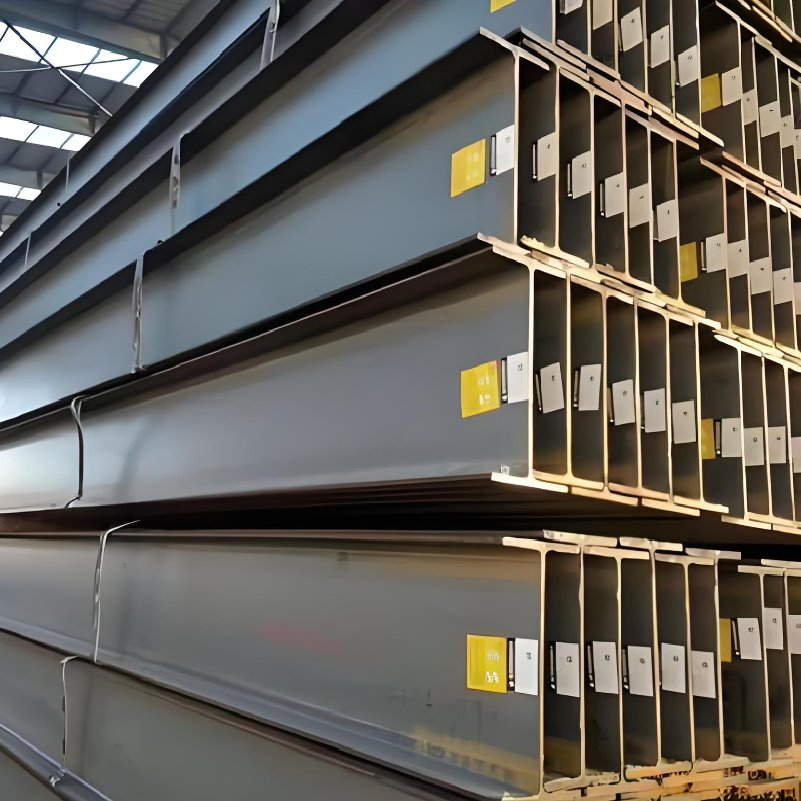

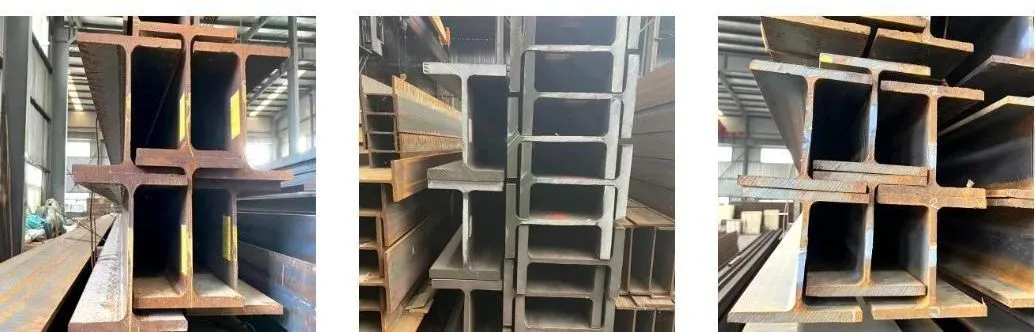

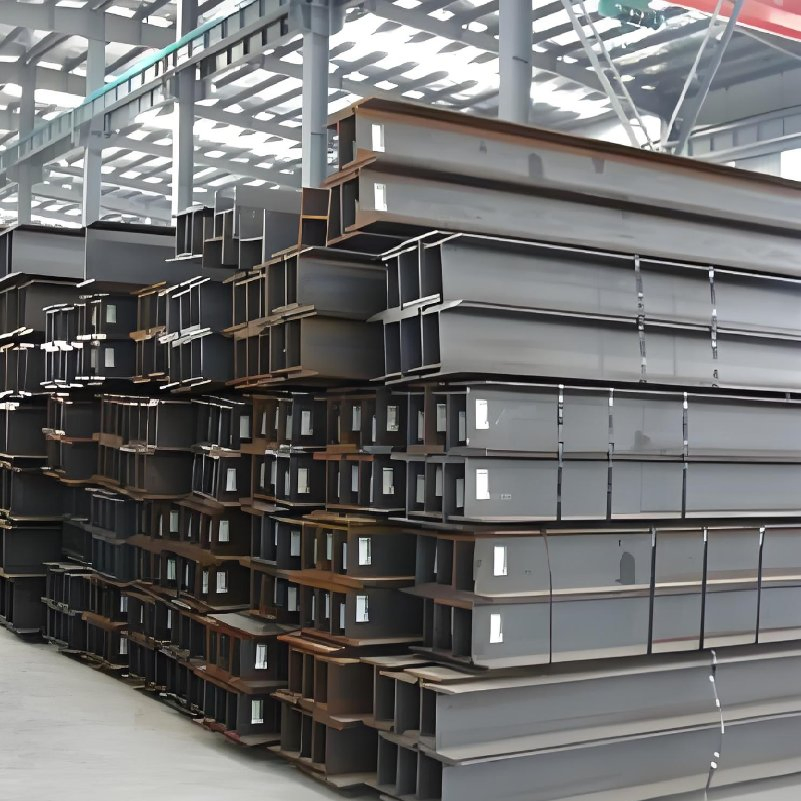

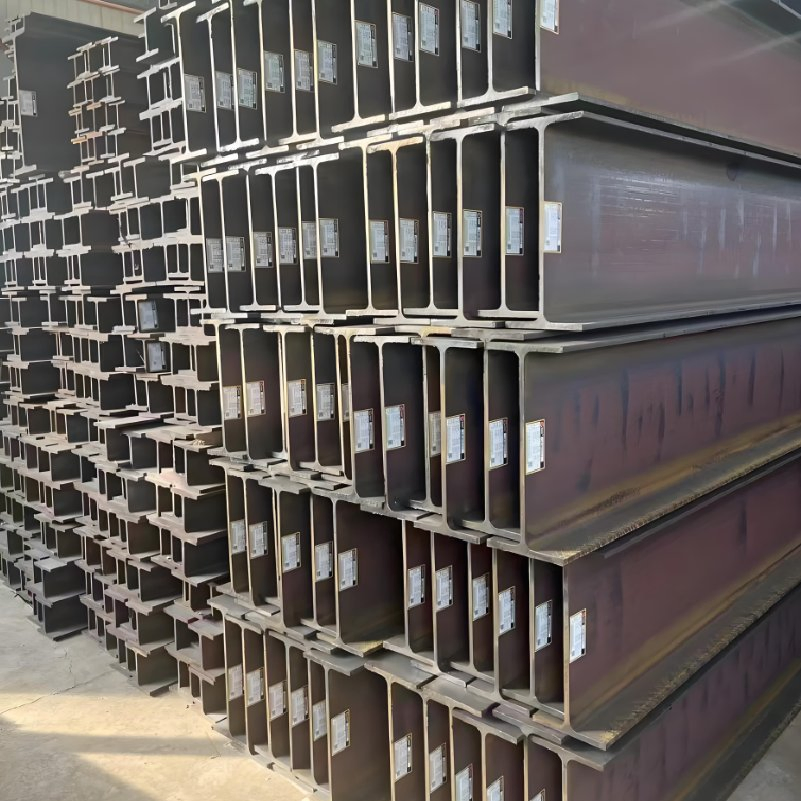

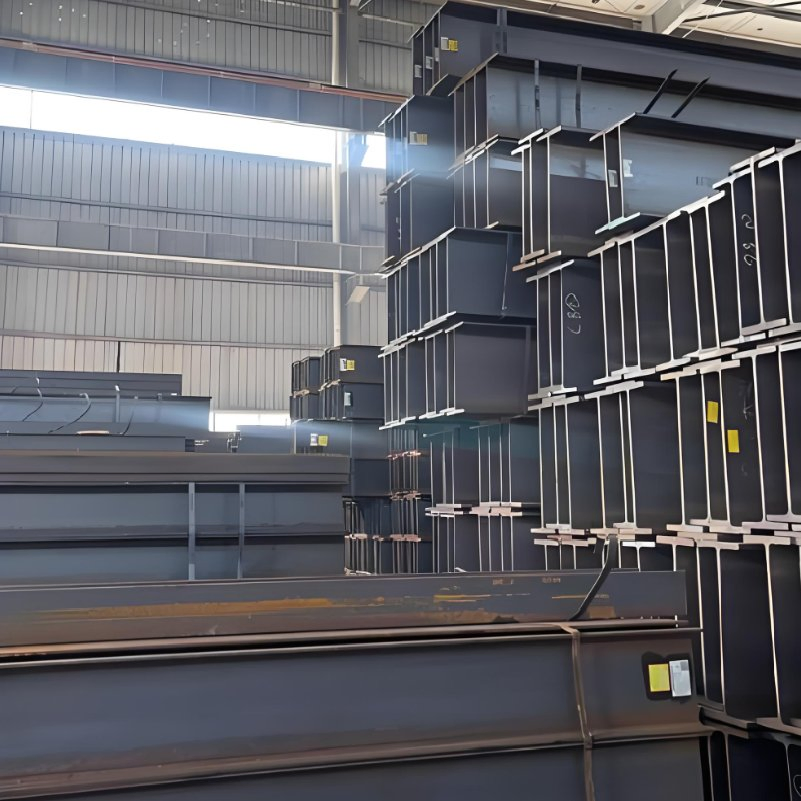

H beam steel boasts an iconic 'H' silhouette in its cross-section. Renowned for its unparalleled strength and expansive surface area, it forms the backbone of numerous construction projects. It is mainly used for civil and industrial building structures, expansive industrial plants, and modern high-rises, particularly in seismically active zones.
Standard Compliance:

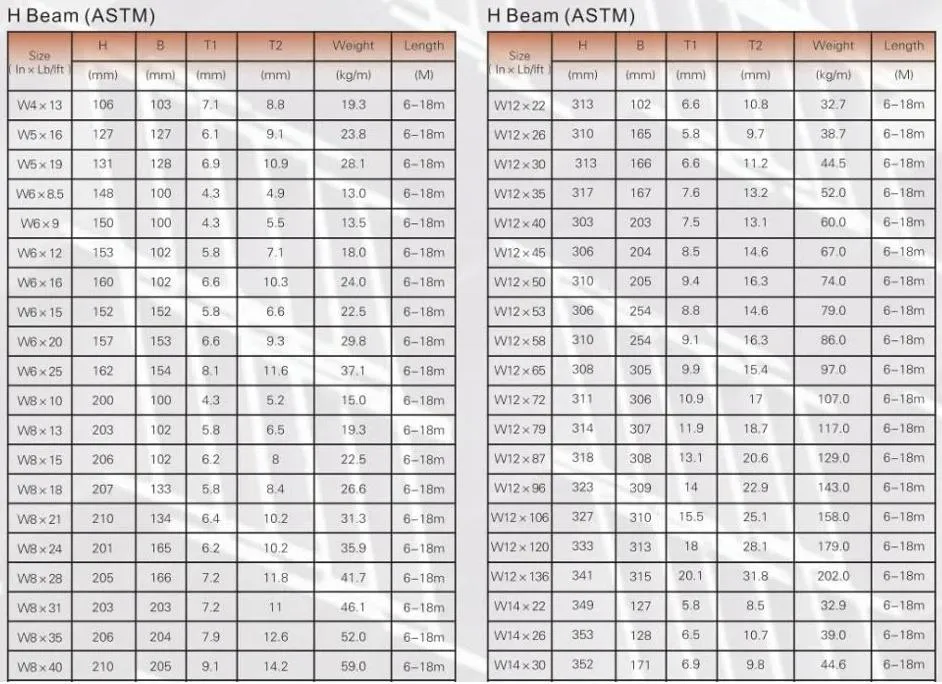

● ASTM Grades: A36, A572, and A992.
● European Standard: UB series, BS EN 10365-2017.
● Materials: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0.
| Specification | Height (mm) | Width (mm) | Web Thickness (mm) | Wing Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| IPE80 | 80 | 46 | 3.8 | 5.2 | 6.0 |
| IPE100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120 | 64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140 | 73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160 | 82 | 5.0 | 7.4 | 15.8 |
| IPE200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| IPE400 | 400 | 180 | 8.6 | 13.5 | 66.3 |
| IPE600 | 600 | 220 | 12.0 | 19.0 | 122.0 |

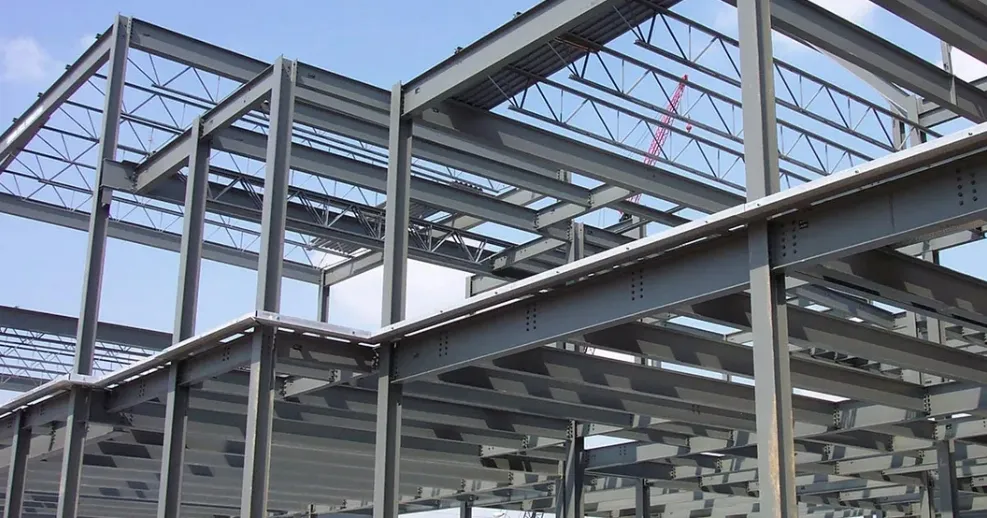

H-Beams are the quintessential choice in construction, recognized for exceptional strength. They are pivotal in crafting expansive open spaces with minimal reliance on support channels. Beyond foundations, they are integral to trolley ways, elevators, trailers, and truck beds. Distinguished by thicker flanges, they are ideal for mezzanines, platforms, and bridges.
Our professional steel manufacturing facility employs cutting-edge technology such as Automatic Width Control (AWC) and Automatic Thickness Control (AGC). With state-of-the-art finishing and hot rolling production lines, we ensure all products adhere strictly to international standards.
