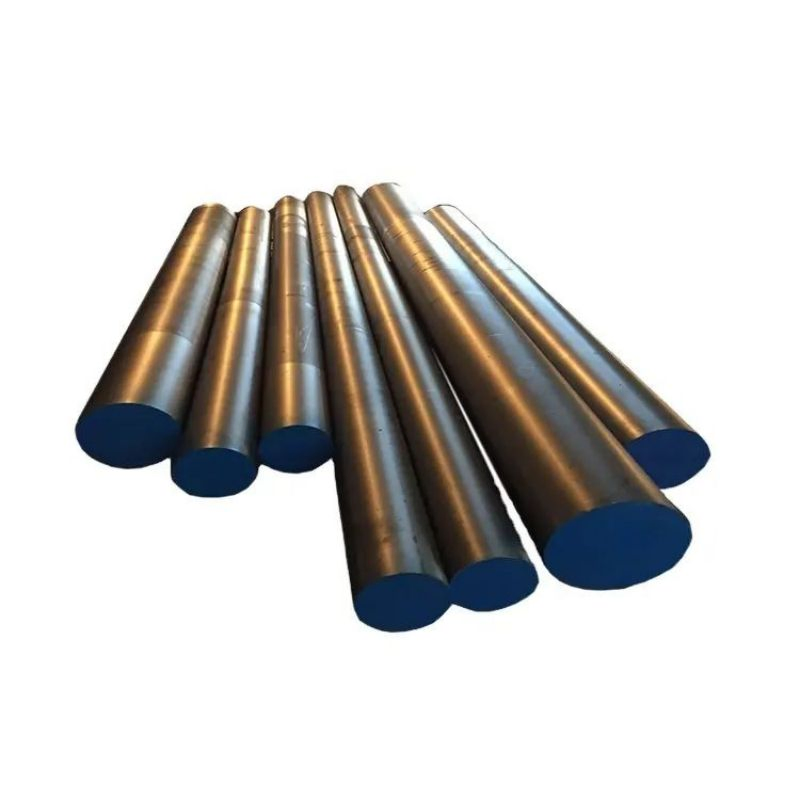

Alloy Steel Plates / Hot Forged Tool Steel Round Flat/ Milling 40cr P20/Cr12MOV/1.2601/D5/X12m/Std11/C45/S45c/H13/SKD61/40crmo4 Forging Round Steel Bar

i

Basic Specifications

Model NO.

P20/Cr12MOV/C45/S45c/X12m/Std11/SUS410/H13/SKD61/

Composition

Mould /Tool Steel

Technique

Cold Drawn

Shape

Bar

Surface Treatment

Coated

Special Use

High-strength Steel Plate, Wear Resistant Steel, Mold Steel

Annealed Hardness

265~310hbs

Origin

China

P

Product Description

Raw material	Tool steel d2 k110 skd11 Bar
Material Categories	Hot work die steel: H13, 8407, 8418, FDAC, 4Cr5MoVSi, 1.2343, 1.2344, M302, M360 Cold work die steel: Cr12MoV, D2, Cr12, DF-2, XW-41, XW-42, DC53, SKD11, K110, 1.2379 Plastic mold steel: S136, 718H, CALMAX, S136H, NAK80, 1.2711, 1.231, P20, P20+Ni
Available Sizes	Width: 1000mm - 2500mm Length: 2000mm - 6000mm Thickness: 0.35mm - 200mm
Applications	Reinforcement, bolts, mechanical parts, seamless steel tube blanks

Die steel is used to make cold die, hot forging die, die casting die and other steel types. Moulds are the main processing tools for manufacturing parts in machinery manufacturing, radio instruments, motors, electrical appliances and other industrial sectors. The quality and service life of the mold are mainly affected by the mold material and heat treatment in addition to the reasonable structure design and processing accuracy.

S

AISI H13 Steel Equivalent & Composition

Country	China	Japan	Germany	USA
Standard	GB/T 1299	JIS G4404	DIN EN ISO4957	ASTM A681
Grade	4Cr5MoSiV1	SKD61	1.2344/X40CrMoV5-1	H13

Chemical Composition (%)

Grade	C	Mn	Si	Cr	V	Mo
H13	0.32-0.45	0.2-0.6	0.8-1.25	4.75-5.5	0.8-1.2	1.1-1.75

H

Heat Treatment Processes

Annealing: Heat slowly to 1550°-1650°F, hold until entire mass is heated through, and cool slowly in the furnace (40F per hour).
Stress Relieving: Heat slowly to 1050°-1250°F, allow to equalize, and then cool in still air.
Hardening: H13 tool steel has very high hardenability. Temperature employed is usually 1800°-1850°F.
Quenching: Quench in still air or dry air blast. For complicated forms, an interrupted oil quench can be used.

D

Delivery Condition

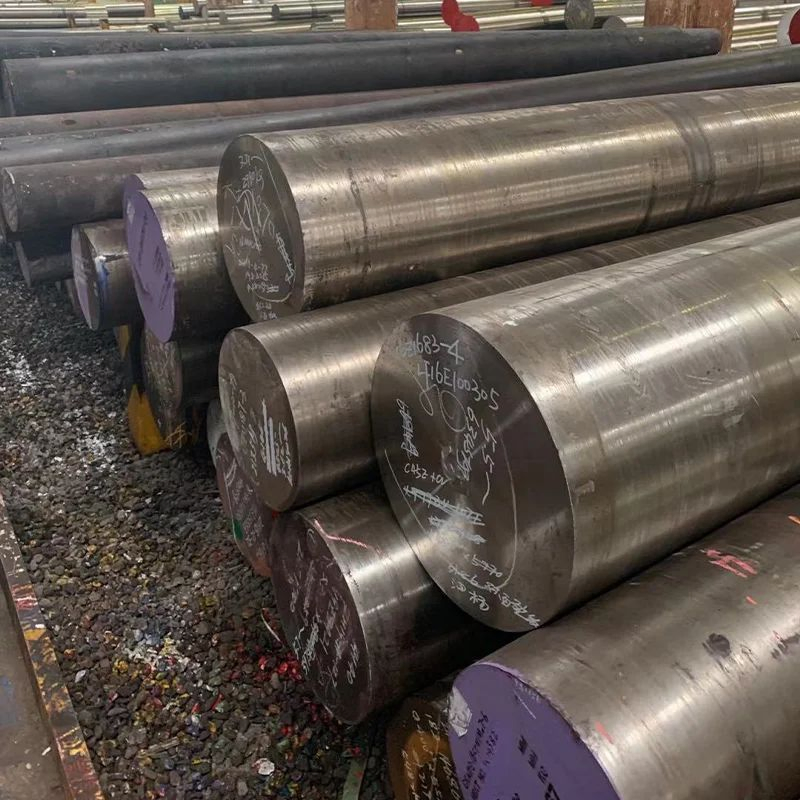

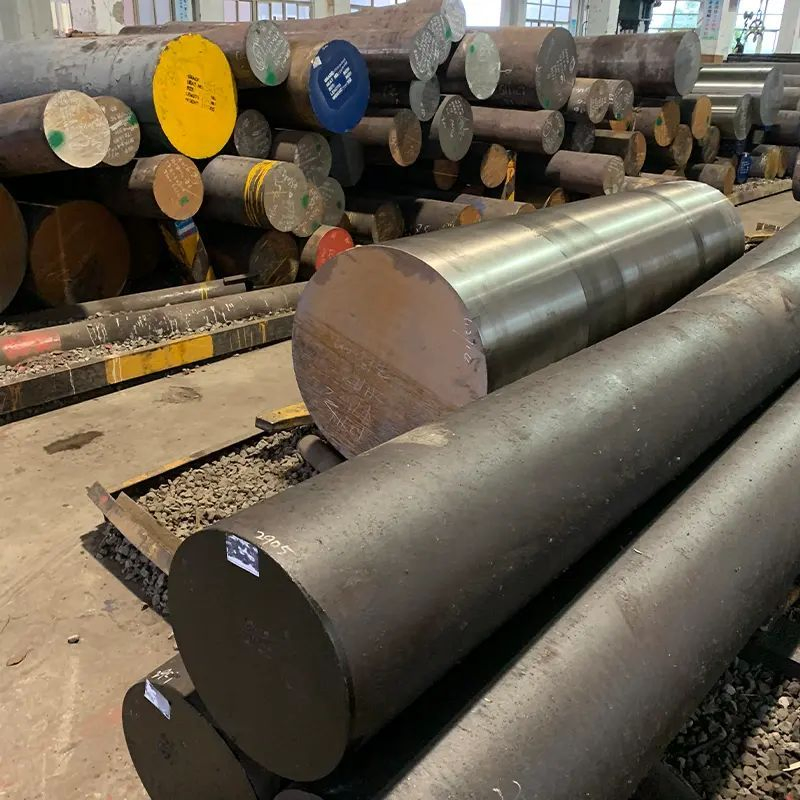

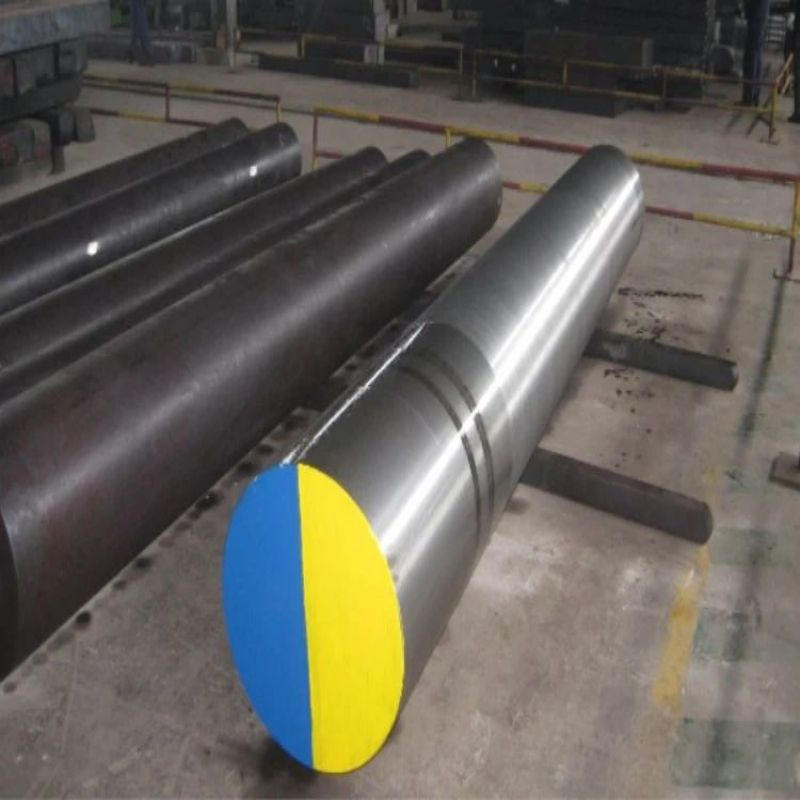

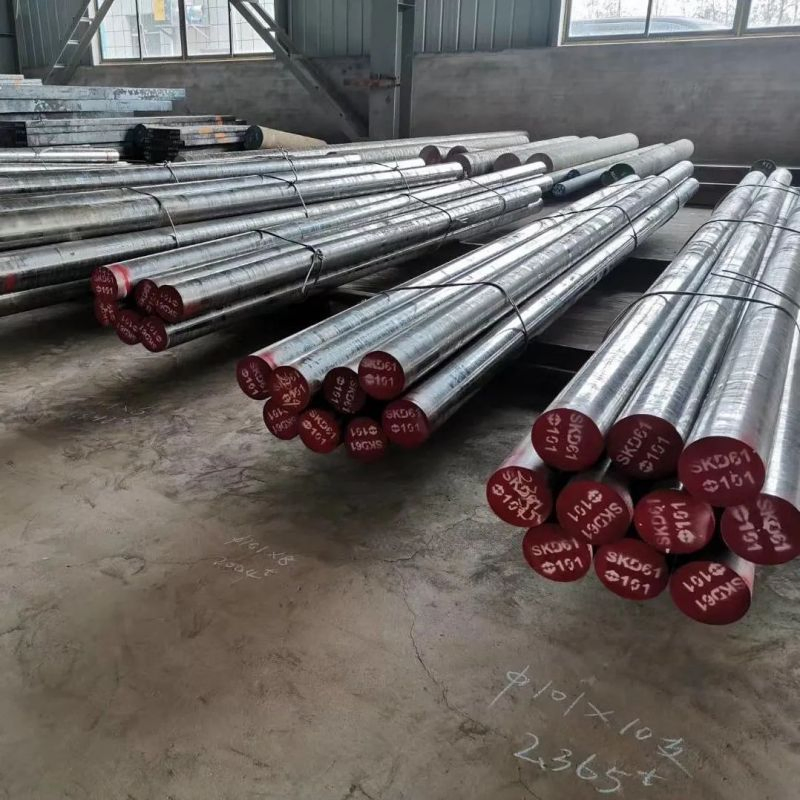

Hot Forged/Rolled Bar: Usually delivered as hot forged or rolled, annealed, rough turned.
Hot Forged Plate: Usually delivered as hot forged, annealed, milled surface.
Hot Rolled Plate: Usually delivered as hot rolled, annealed, black surface.

?

Frequently Asked Questions

What product information is required for a purchase?

Please provide the grade, width, thickness, surface treatment requirements, and the specific quantities you require.

Which shipping ports do you use?

We normally ship from major Chinese ports including Shanghai, Tianjin, Qingdao, and Ningbo.

What are the standard payment terms?

Our standard terms are 30% T/T in advance and 70% balance before shipment, or based on BL copy / LC at sight.

Are samples available for quality testing?

Yes, we offer free samples and can arrange express shipping to customers worldwide.

Do you provide customization for specific steel products?

Yes, we offer customized services and can produce steel products according to your unique specifications and drawings.

What is the typical delivery timeframe?

Our standard delivery time is within 7 working days after receiving the balance payment.
