| Model NO. | RA150S |
| Material | Metal |
| Feature | High Range, High Accuracy, High Resolution |
| Application | Test Roughness Value and Profile |
| Transport Package | Wooden Box |
| Specification | International Standards |
| Production Capacity | 500 Sets |

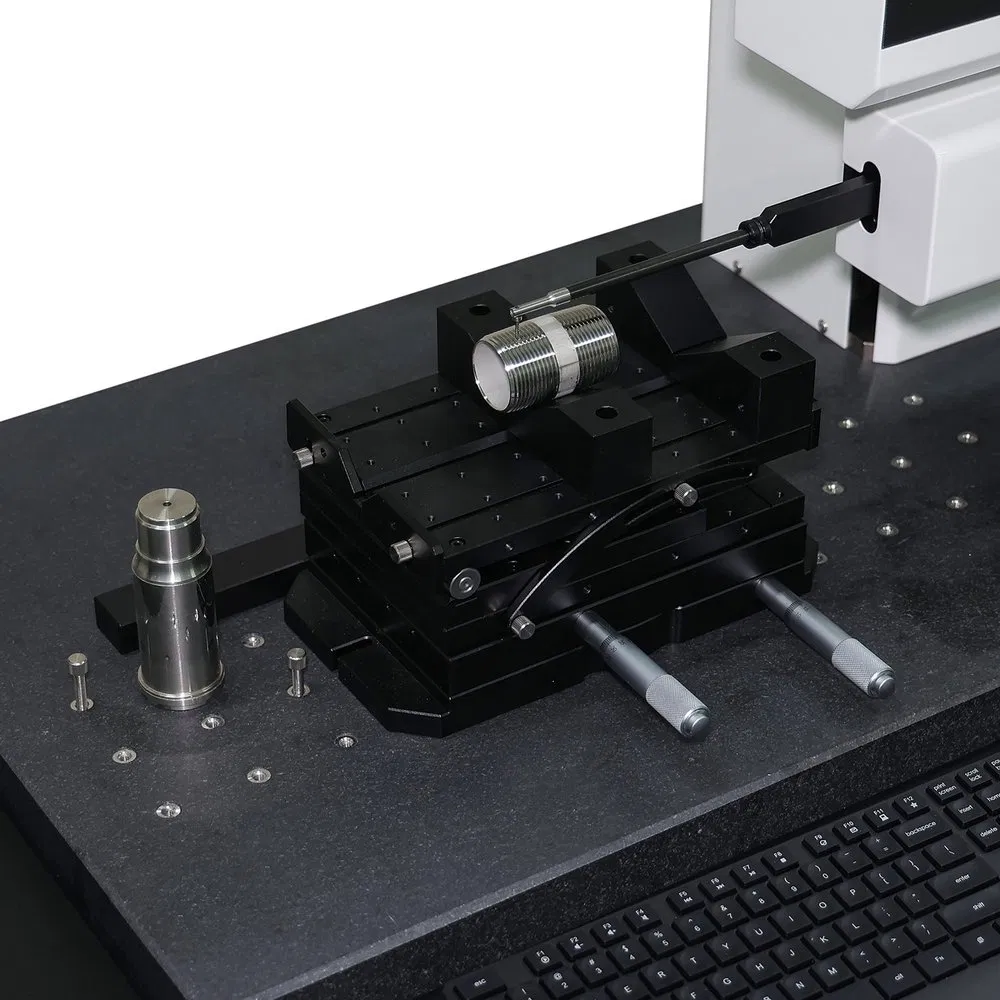

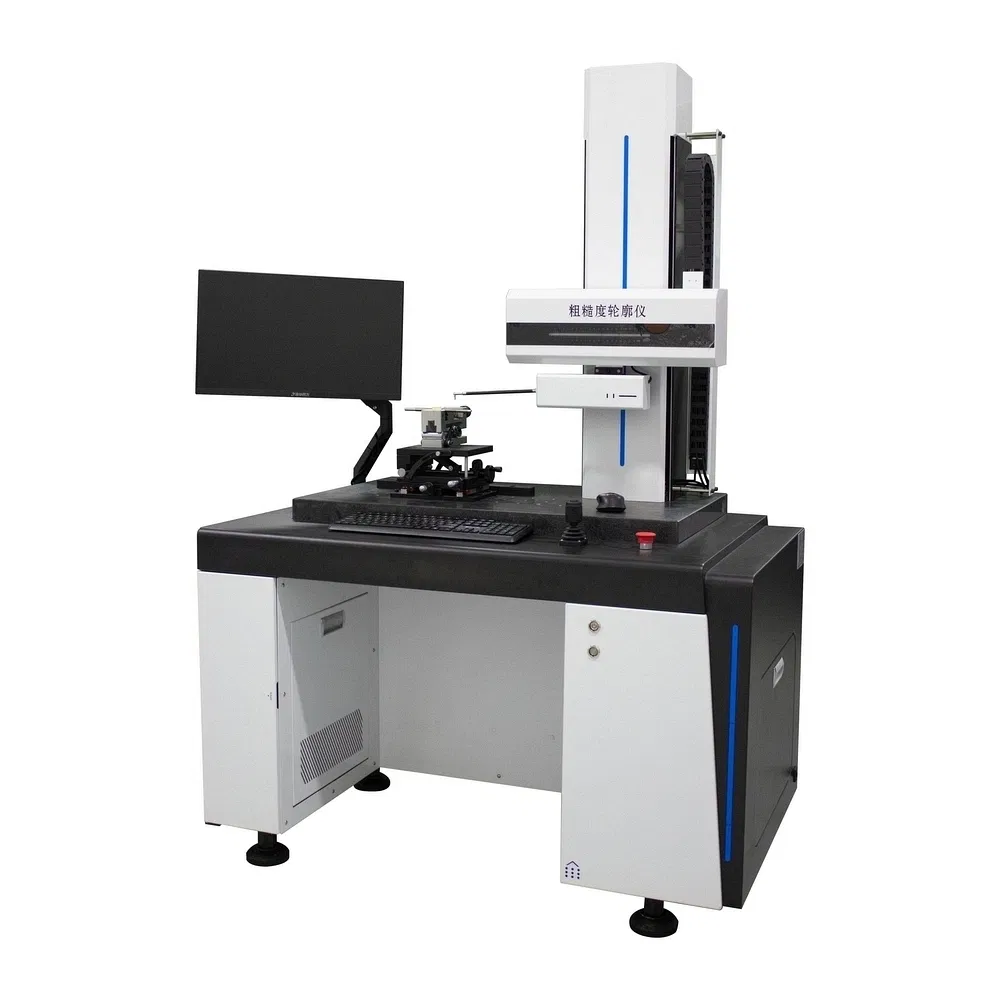

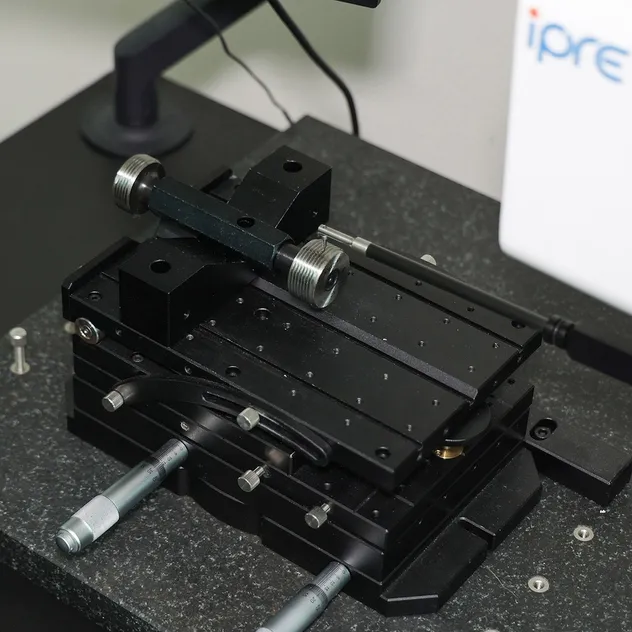

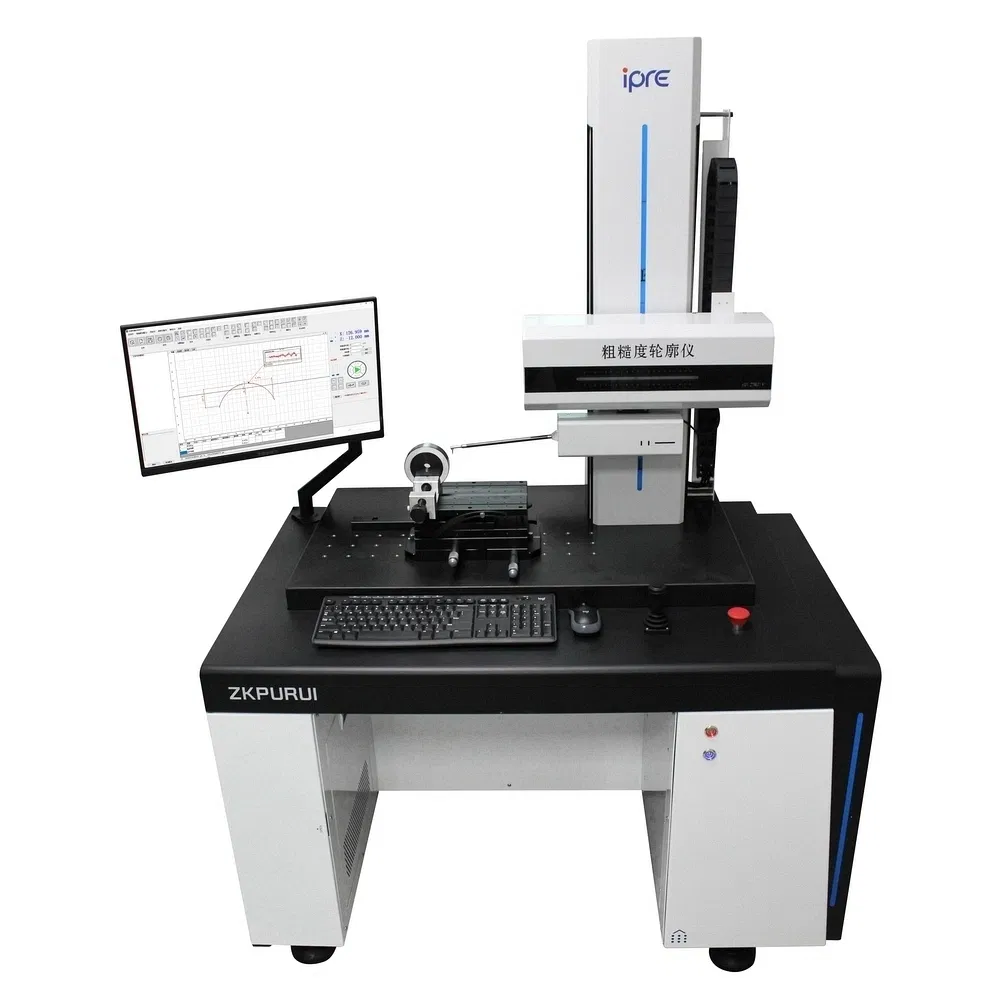

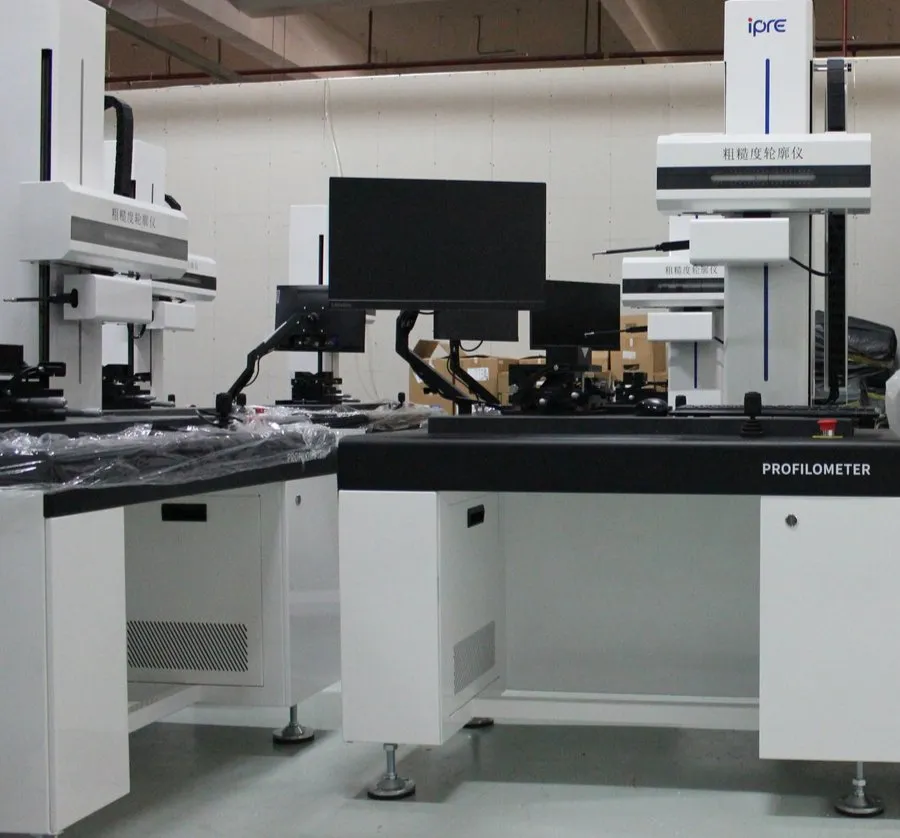

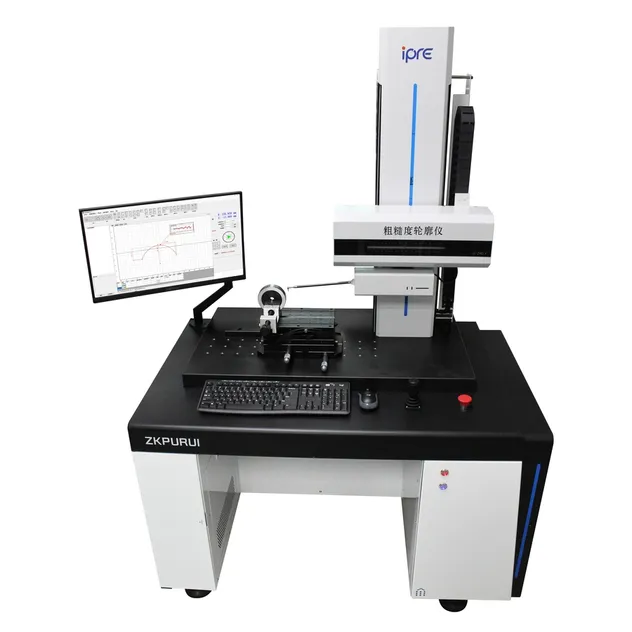

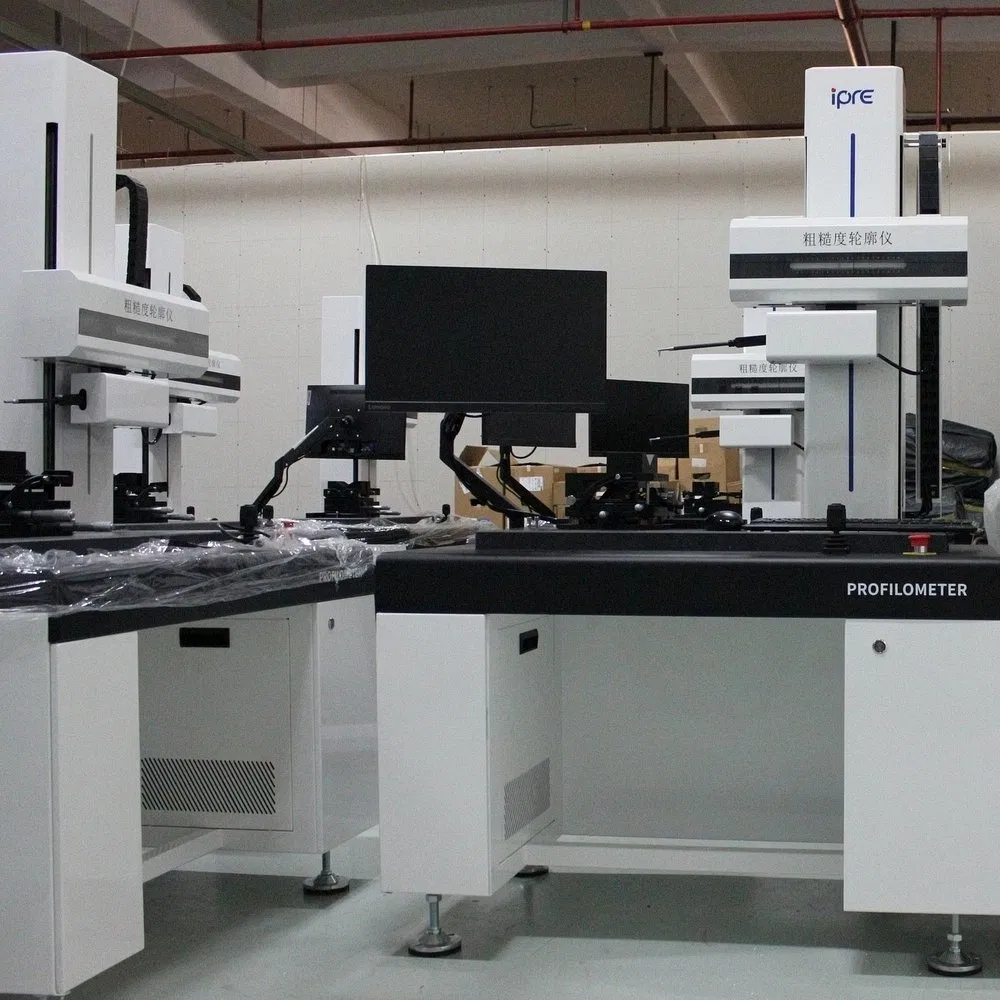

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION
Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

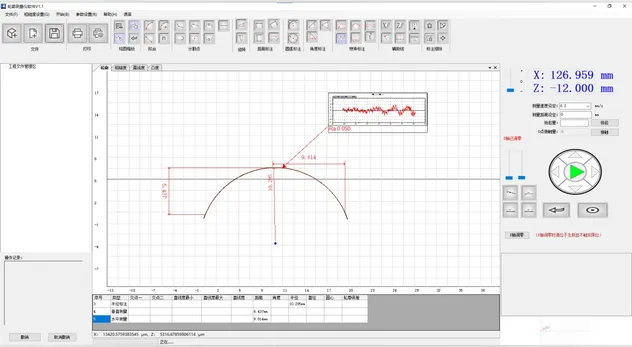

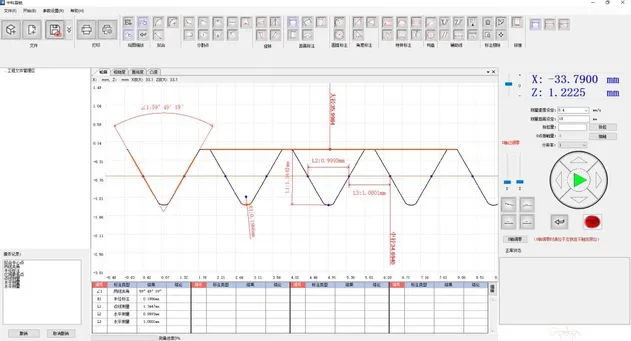

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability. Ideal for industries demanding micron-level precision.
| Project / Model | RA150S | |
| X-axis Sliding Linear Guide Rail | Moving accuracy | ≤±(1+|0.02L|)μm |
| Resolution | 0.01μm | |
| Data Sensor | Resolution | 0.001μm (Roughness test) |
| Linear precision | ≤±(0.8+|0.05H|)μm | |
| Circular arc | ≤±(1.2+R/12)μm | |
| Straightness | ≤0.5μm/100mm | |
| Roughness Measurement | ||
| Test range | Z1 axis | ±20mm (Full range measurement) |
| Evaluation parameters |
Roughness: Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c); Ripple: Wa, Wz, Wq, Wt, Wp, Wv, Wc, Wdc, Wsk, Wku, Wsm, Wmr, Wmr(c); Original Profile: Pa, Pz, Pq, Pt, Pp, Pv, Pc, Pdc, Pdq, Psk, Pku, Psm, Pmr, Pmr(c) |
|
| Sampling length L | 0.08, 0.25, 0.8, 2.5, 8 (mm) | |
| General Information | ||
| Work environment | 20 ± 2℃, Humidity 20-80% RH | |
| Instrument size | 1200 × 750 × 1800 (mm) | |
| Instruments weight | About 350Kg | |

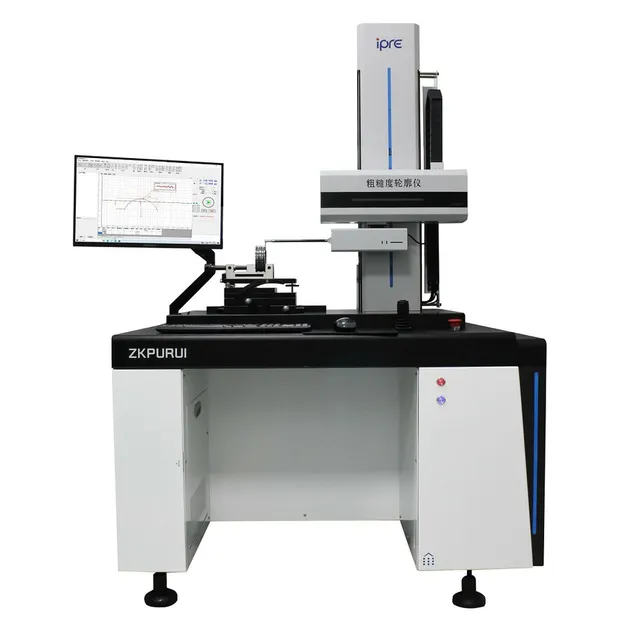

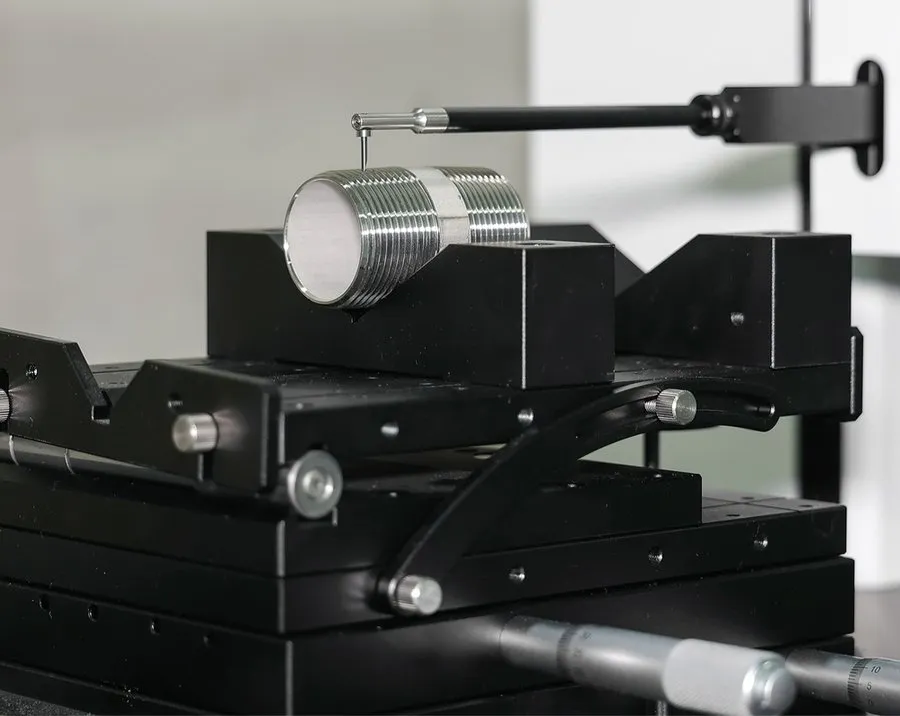

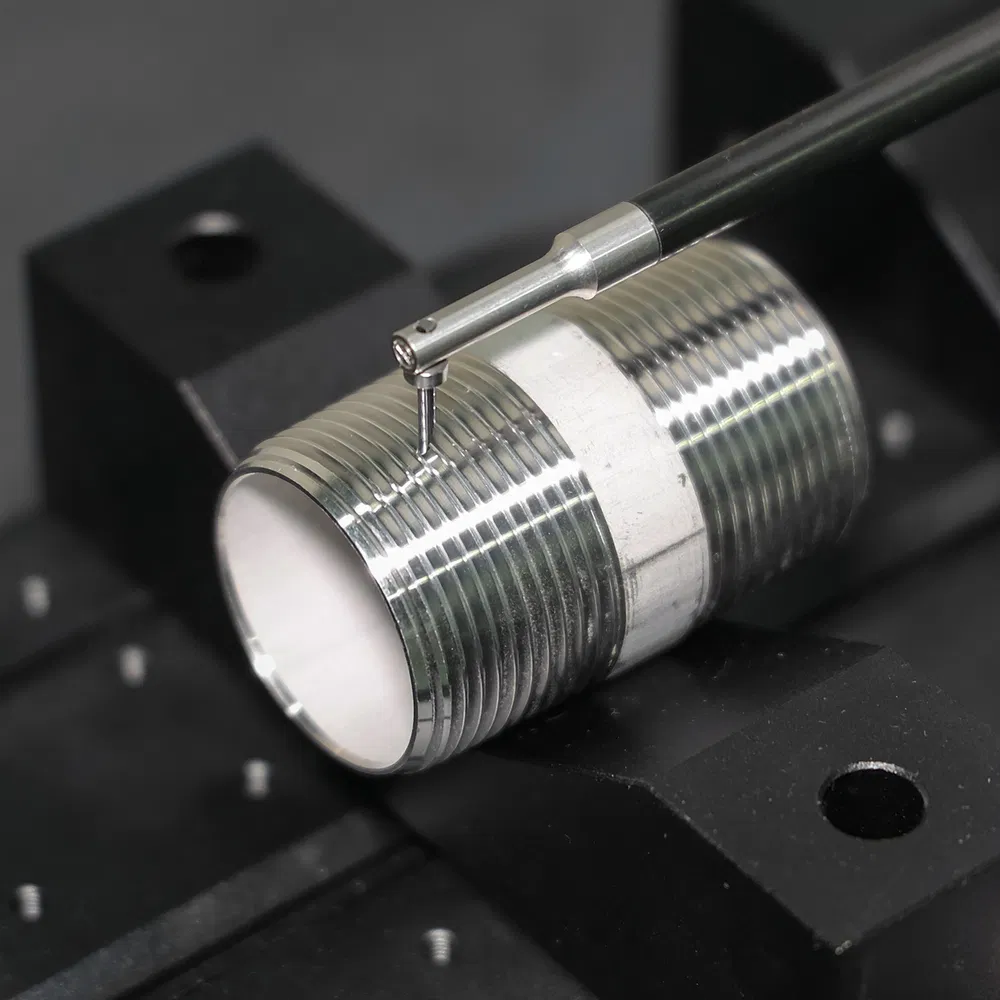

HIGH-PRECISION GRATING MEASUREMENT SYSTEM
Equipped with advanced grating sensor technology that ensures exceptional measurement accuracy and repeatability for even the most demanding surface analysis tasks.

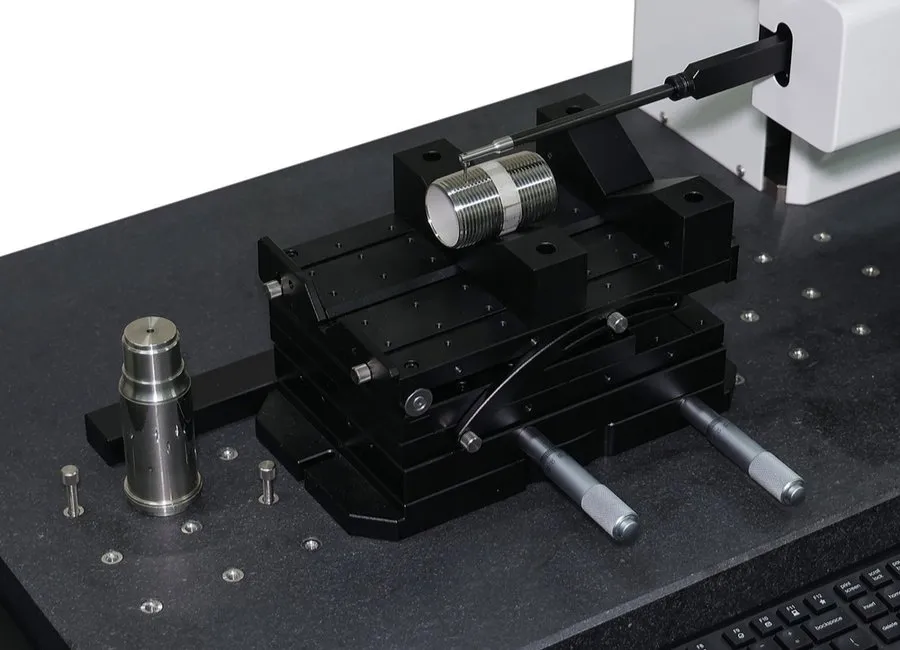

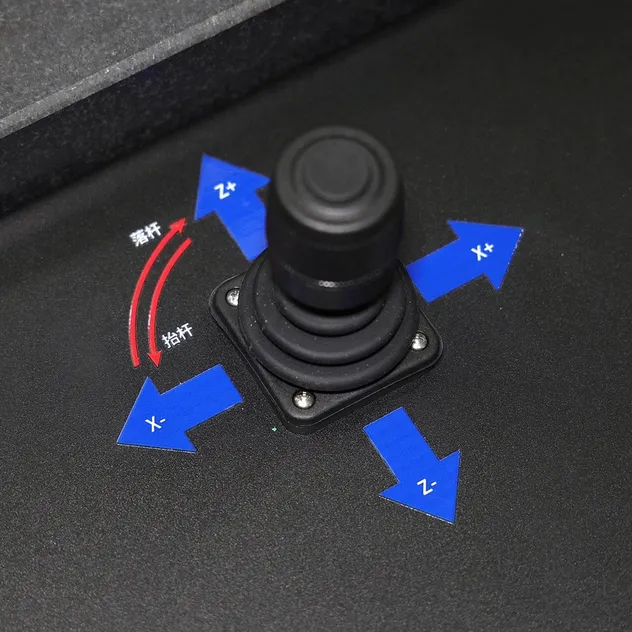

NON-CONTACT LINEAR MOTOR DRIVE
Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent and distortion-free measurement results.
