Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer

1 / 5

Stability Rugged Ra150s Bench Top High-Precision Surface Roughness Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Send Inquiry

Product Description

Basic Information

Model NO.	RA150S	Material	Metal
Feature	High Range, High Accuracy, High Resolution	Application	Test Roughness Value and Profile
Transport Package	Wooden Box	Origin	Shandong, China
Production Capacity	500 Sets

Product Description

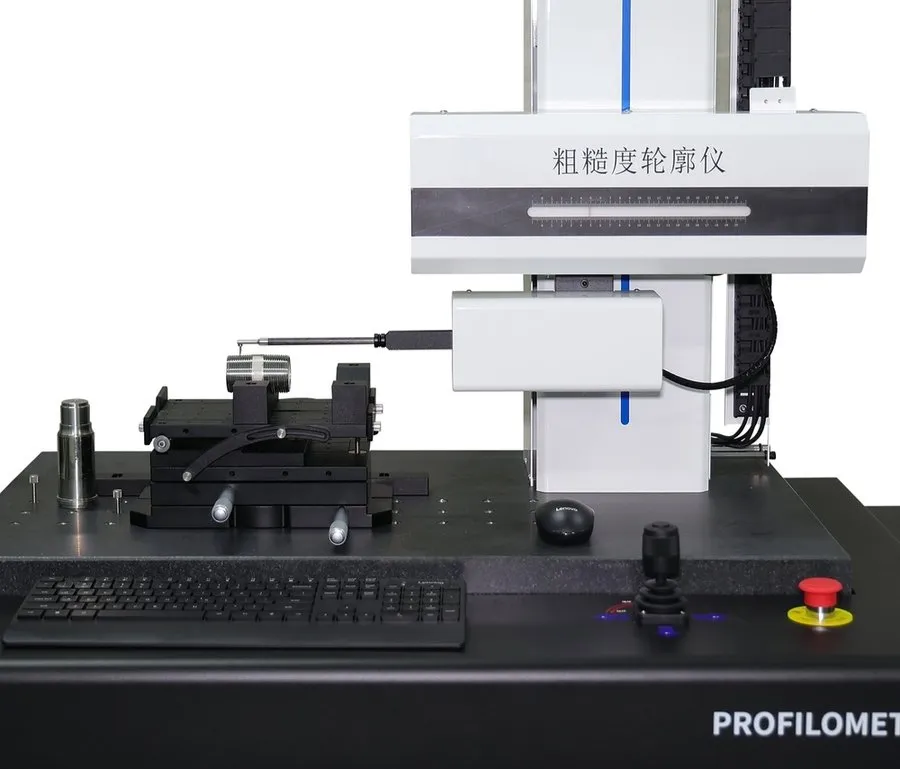

Precision Surface Roughness Profilometer

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability.

Technical Specification

Project / Model	IPRE-RA150S
X-axis Guide Rail	Moving accuracy	≤±(1+\|0.02L\|)μm
X-axis Grating Ruler	Resolution	0.01μm
Date Sensor	Resolution	0.001μm (Roughness test)
Linear Precision	≤±(0.8+\|0.05H\|)μm
Circular Arc / Angle	≤±(1.2+R/12)μm / ≤±1′
Straightness	≤0.5μm/100mm
Roughness Assessment	Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c); Wa, Wz, Wq, Wt, Wp, Wv, Wc, etc.
Sampling Length	0.08, 0.25, 0.8, 2.5, 8 (mm)
Measure Range	X-axis: ≤180mm; Z-axis: ≤500mm; Z1-axis: ±20mm
Instrument Weight	About 350Kg

Key Features & Technology

High-Precision Grating System: Advanced grating sensor technology ensures exceptional measurement accuracy and repeatability.

High-Resolution Detection: Captures micro-level surface details with superior resolution for subtle profile variations.

Non-Contact Linear Motor: Vibration-free scanning ensures consistent and distortion-free measurement results.

Comprehensive Analysis: Measures roughness, waviness, straightness, inclination, arc radius, and groove geometry.

Intelligent Software System

Automatically processes data and prints reports in various formats.
Meets almost all types of workpiece contour measurement (wire rod, bearing, thread, etc.).
Supports multiple standards including ISO, DIN, JIS, and ANSI.
Large-capacity database storage for all verification results.
4-gear speed adjustment for Z and X axis for fast positioning.

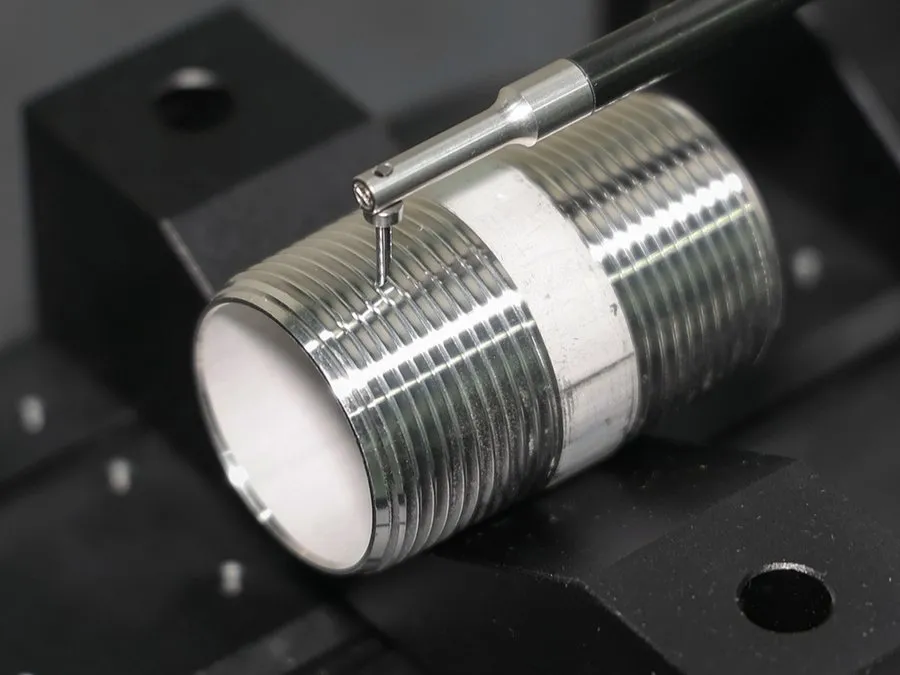

Application Scenarios

Frequently Asked Questions

Q1: Are you a professional manufacturer of profilometers? A1: Yes. Established in 2013, we operate our own specialized factory focused on precision measurement equipment.

Q2: What international quality certifications do the products hold? A2: Our products and systems have passed ISO9001, ISO14001, ISO45001, and EU CE certifications, ensuring international quality standards.

Q3: What is the typical lead time for an order? A3: Most standard models are in stock and can be delivered within 7 days. For customized requirements, the lead time is approximately 1 week.

Q4: Which payment methods do you accept? A4: We accept a variety of methods including T/T, L/C, D/P, PayPal, Western Union, and MoneyGram.

Q5: What is the Minimum Order Quantity (MOQ)? A5: The MOQ for our high-precision instruments is 1 set.

Q6: Does the software support international standards? A6: Yes, our intelligent software system supports ISO, DIN, JIS, and ANSI multi-standard and multi-parameter settings.
