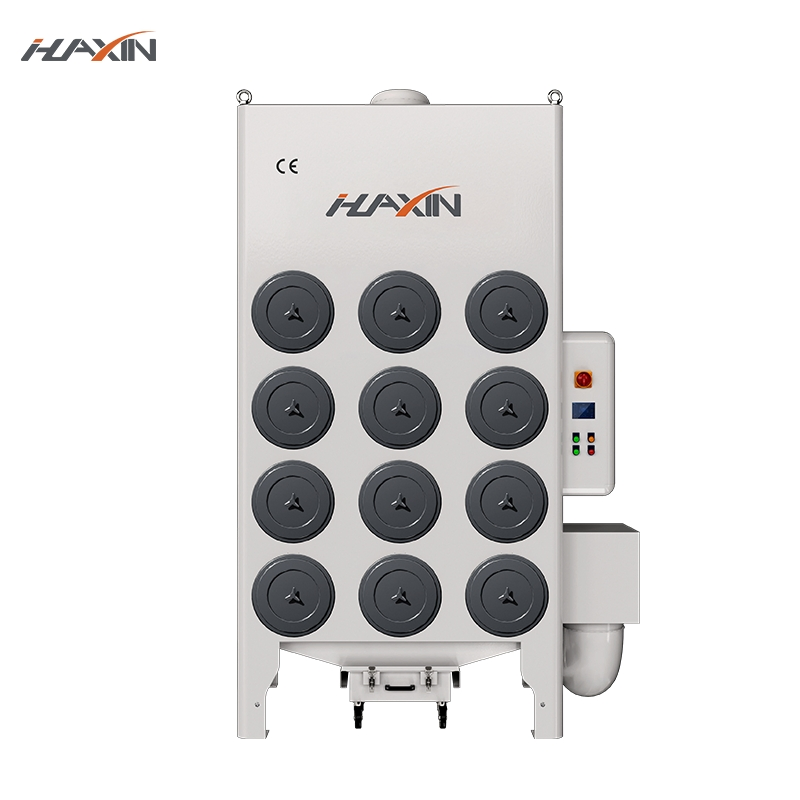

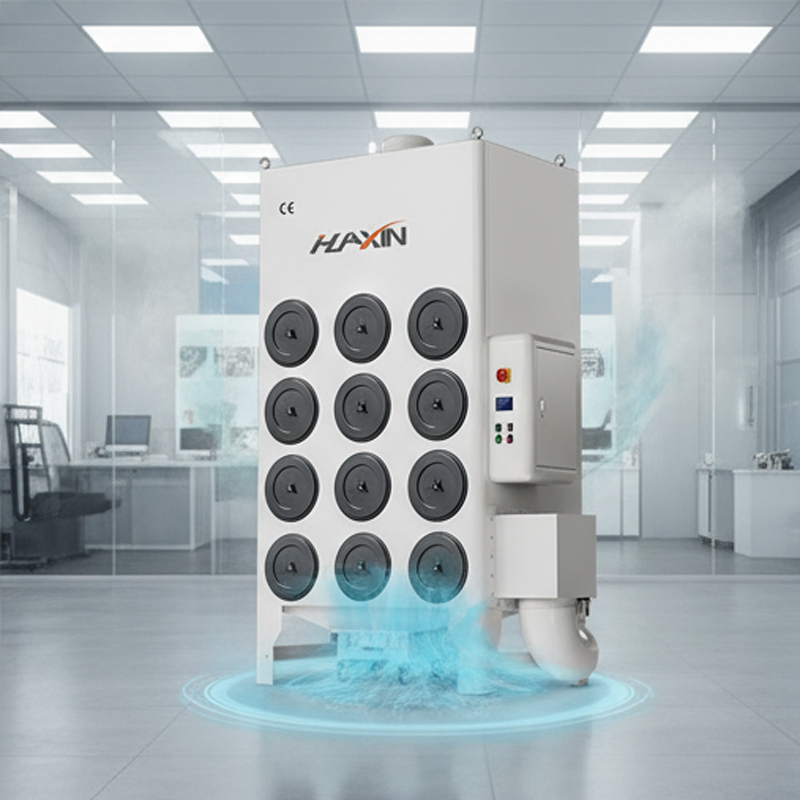

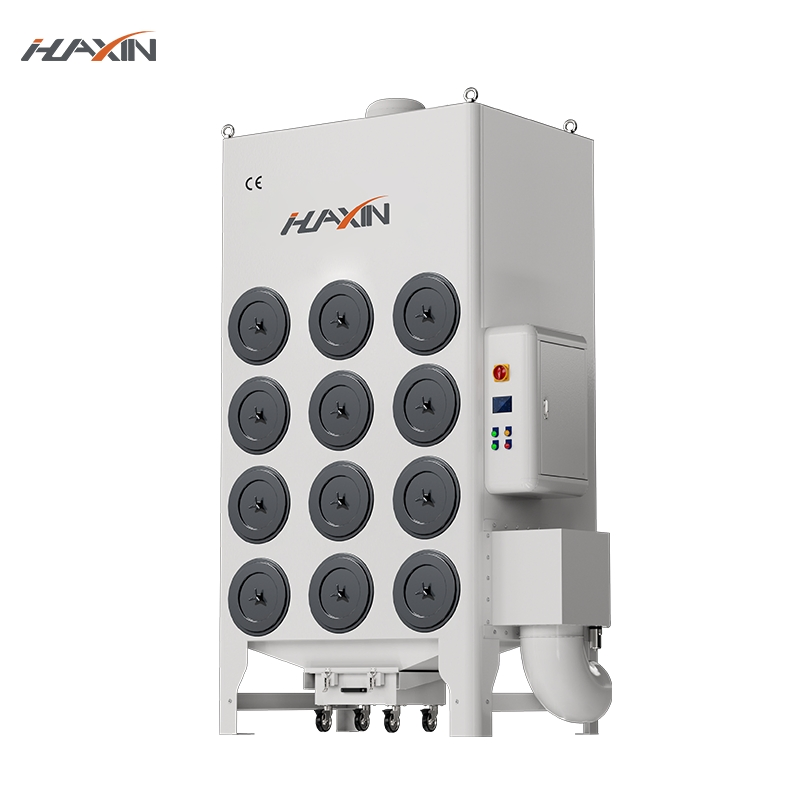

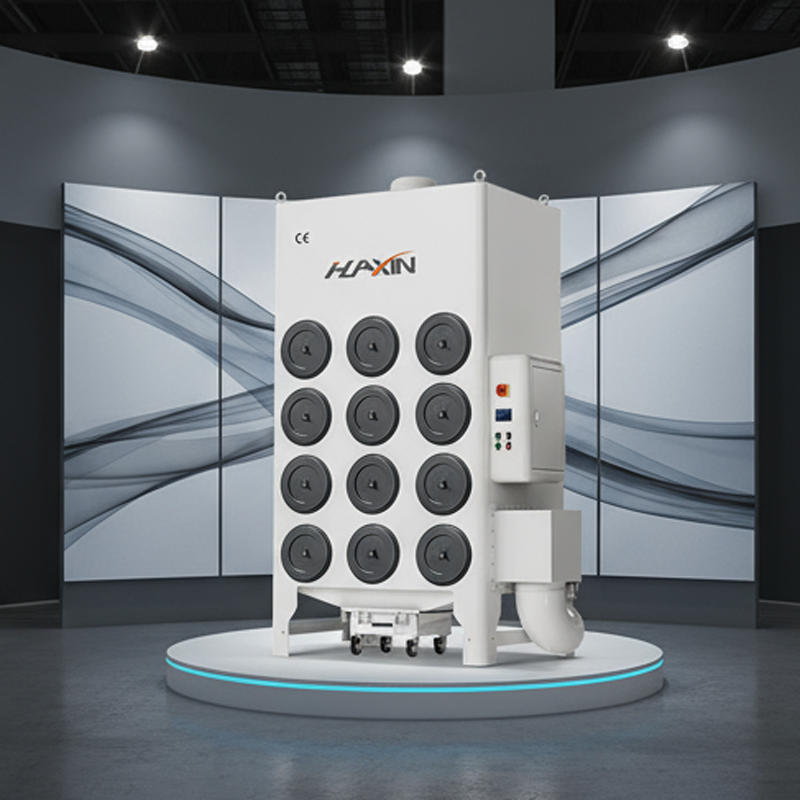

High-Flow Fume Extraction System for Laser Cutting and Welding, Advanced 9000m3/H Capacity Industrial Dust Collector with 11kw Fan System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

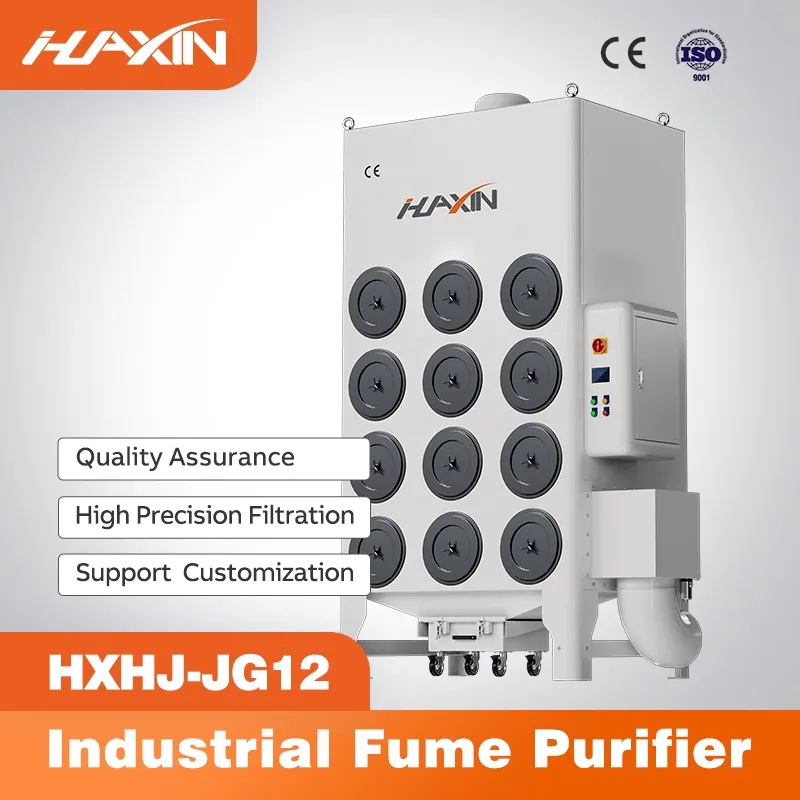

Model NO.	HXHJ-JG12	Operation Type	Automatic
Medium Material	Chemical Synthetic Fiber	Dust Collecting Method	Dry
Type	Filter Cartridge Dust Collector	Power	15kw
Voltage	380V/400V/415V/220V	Filtration Efficiency	99.99%
Filtration Area	156m2	Filter Size	0.3um
Weight	910kgs	Specification	180012003300mm

🔍 Product Description

Ideal For Capturing:

1. Features a remarkable large air flow capacity with a robust fan motor for superior performance.

2. Smart split-type design ensures adaptability to diverse industrial requirements.

3. Equipped with a unique sound isolation box to significantly reduce noise levels.

4. Multi-stage fire resistance devices ensure high operational safety.

📊 Technical Parameters

Airflow (m³/h)	Power (kW)	Voltage (V)	Filter Area (m²)	Precision (%)	Noise dB(A)	Size (mm)
4000	5.5	380V/415V	94	99.50%	82	13009402200
6000	7.5	380V/415V	140	99.50%	83	180010502200
9000	11	380V/415V	188	99.50%	84	180011002820
10000	15	380V/415V	284	99.50%	85	180012003300

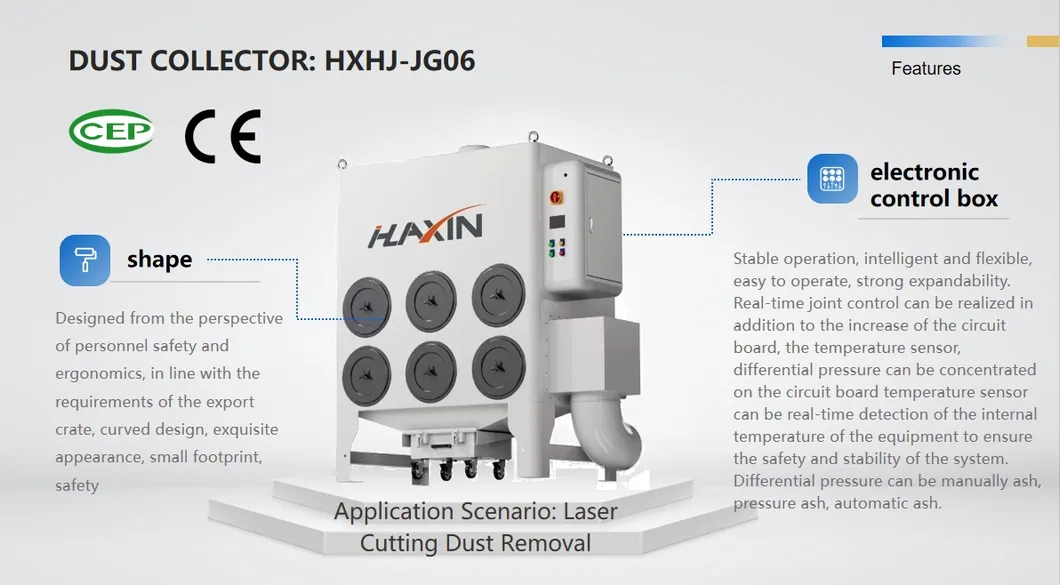

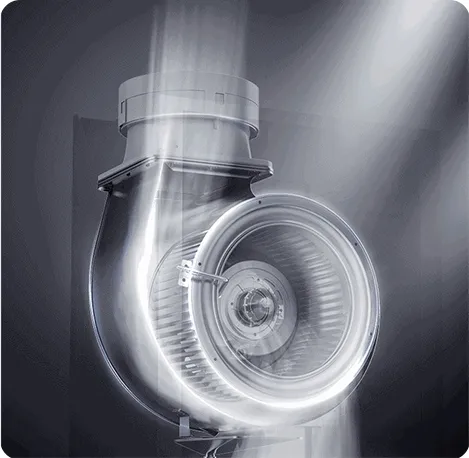

⭐ Our Advantages

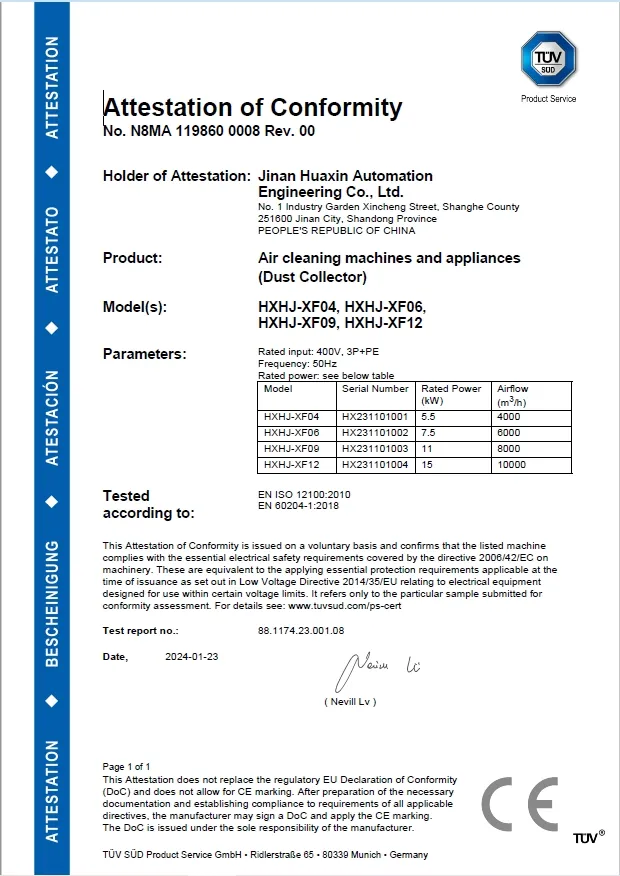

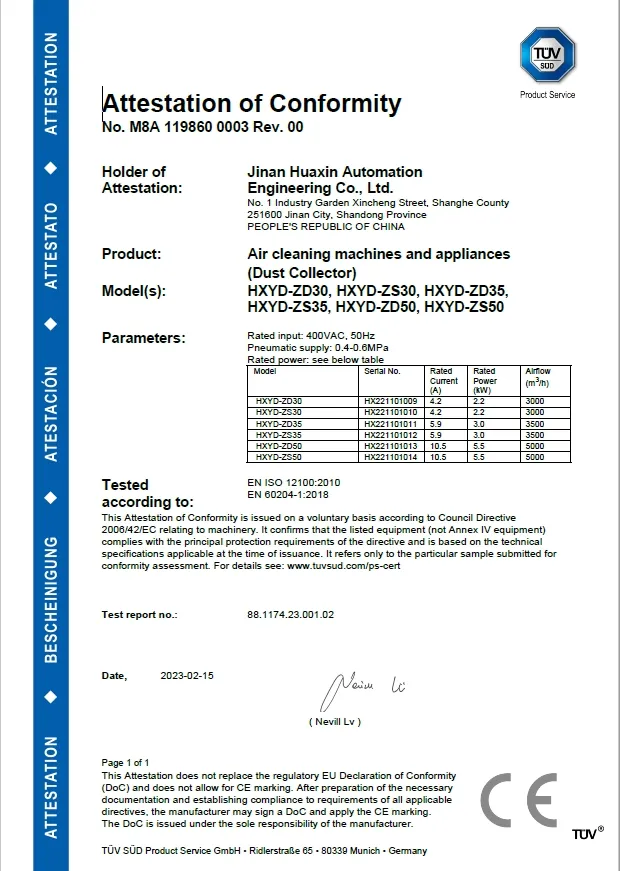

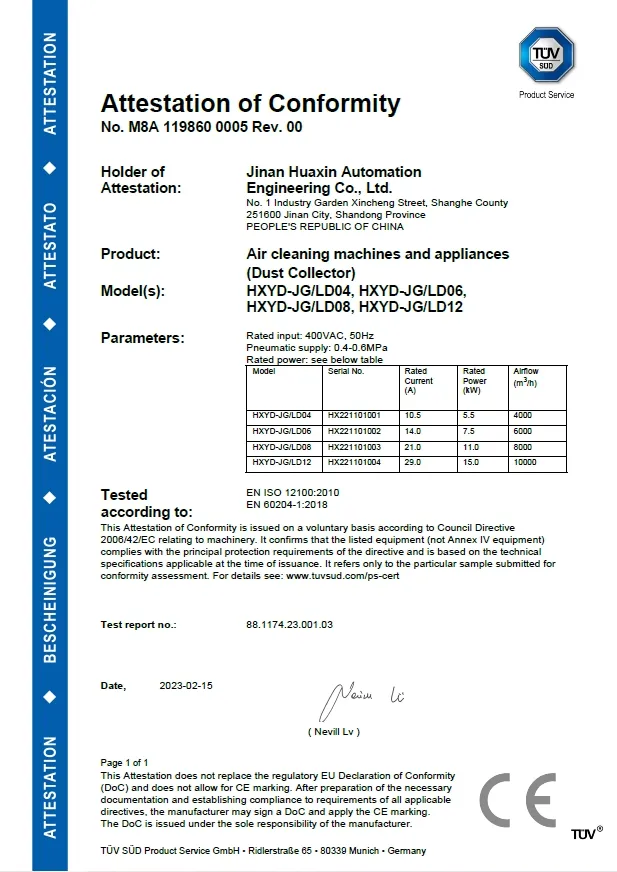

📜 Certifications

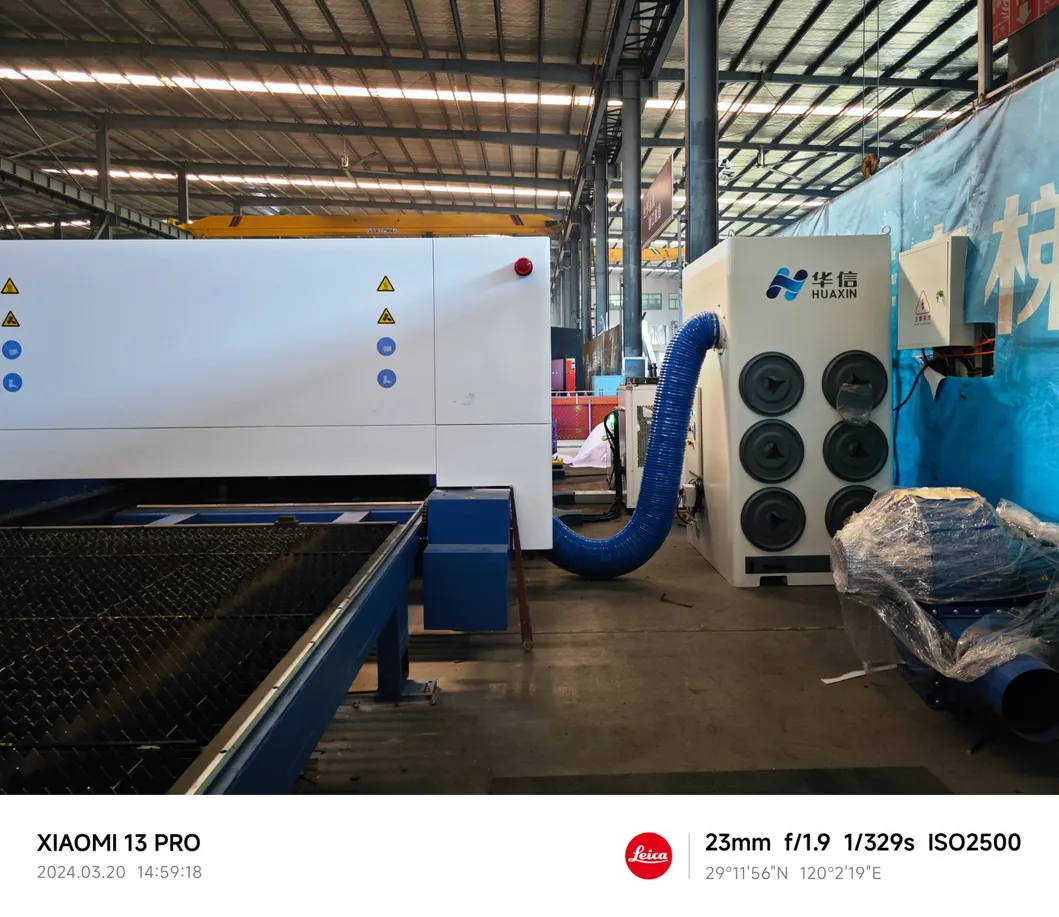

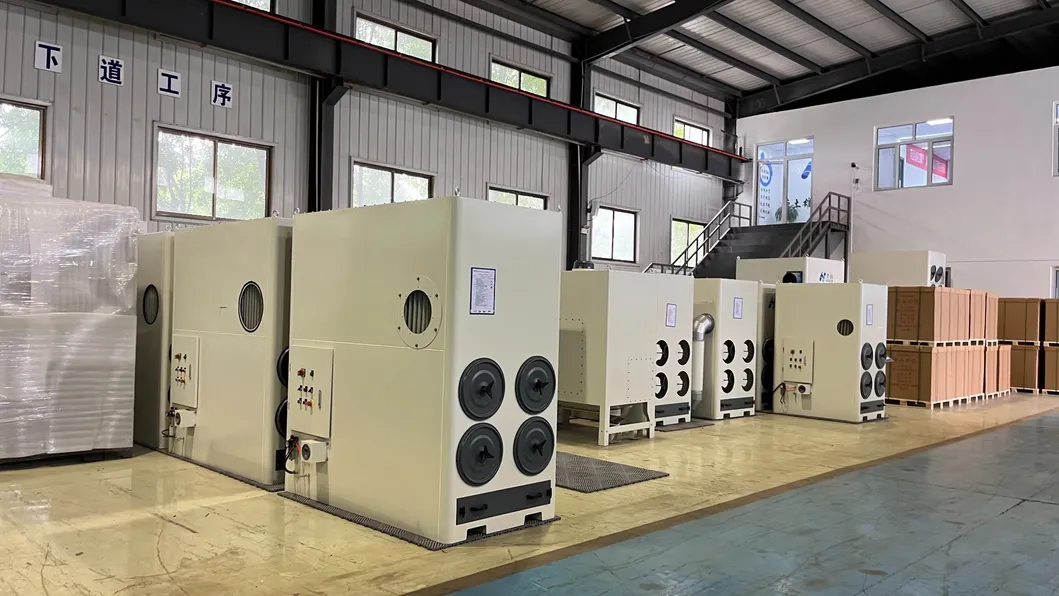

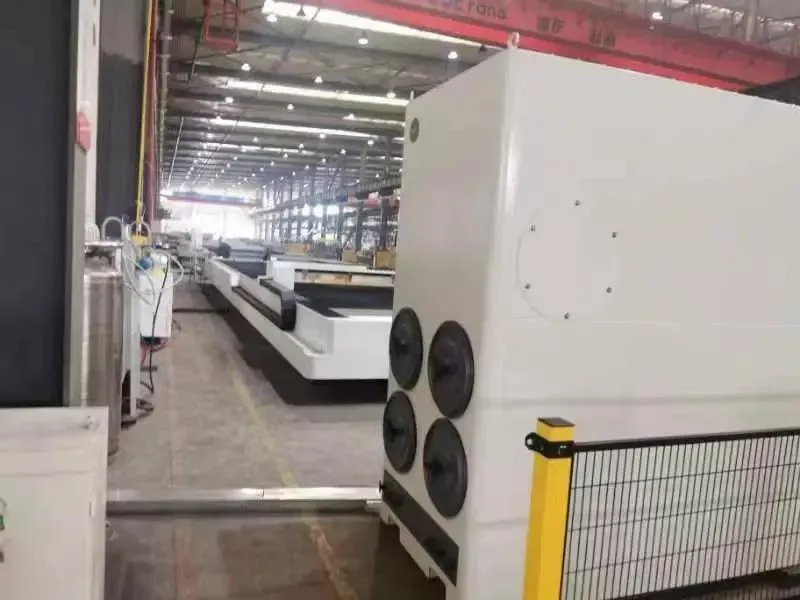

📷 Detailed Photos

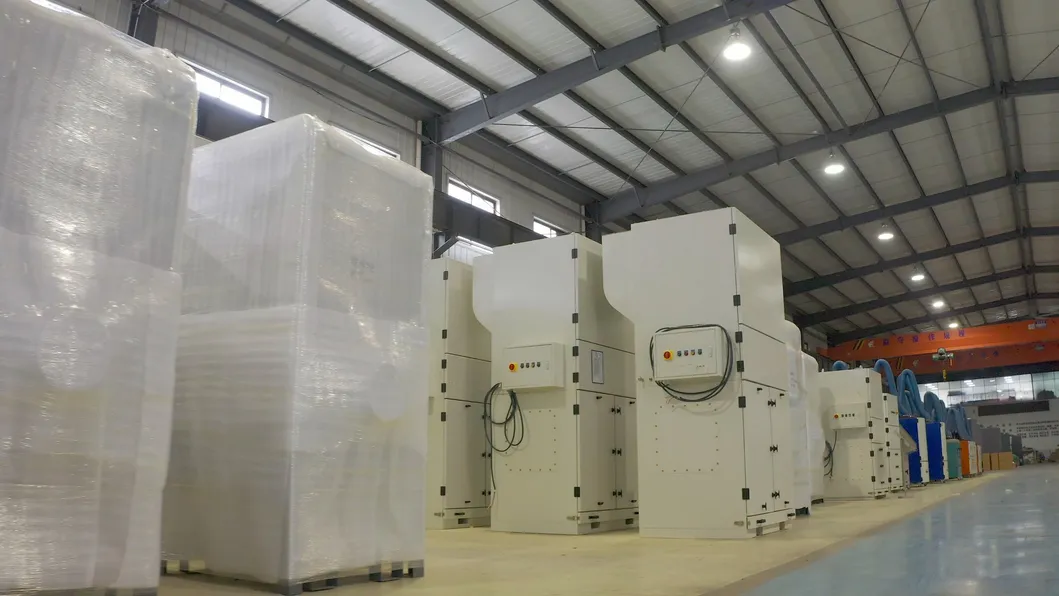

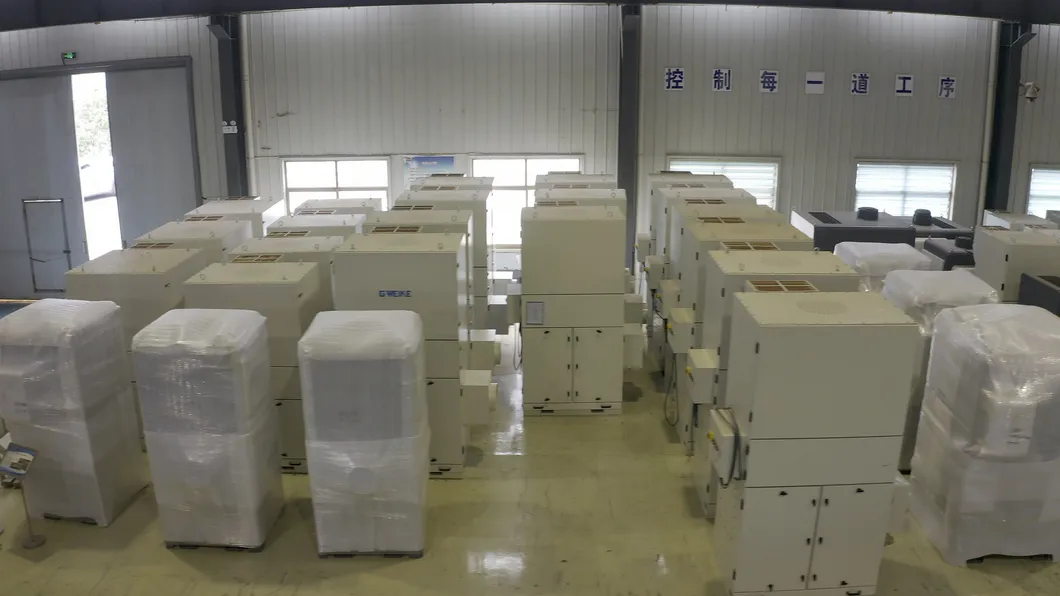

🚢 Packaging & Shipping

❓ FAQ

Q1 Is there any noise during operation?

The fans are equipped with sound insulation cotton and will not produce excessive noise.

Q2 Why use plastic spraying for surface treatment?

This process ensures the paint is durable and resistant to falling off, providing better protection for the machine.

Q3 How is the air volume configured?

By measuring the exhaust port diameter of your cutting platform, we can calculate the exact air volume required for your collector.

Q4 How are sparks handled to prevent fire accidents?

We install specialized spark catchers (labyrinth structure) that extinguish sparks by forcing them into cold plates.

Q5 Does it require an external chimney?

No, high-precision filter materials (over 99% efficiency for 0.3um dust) allow air to be safely discharged directly indoors.

Q6 Is it easy to install and maintain?

Yes, it is designed for easy installation. We provide a one-year warranty with free maintenance during this period.
