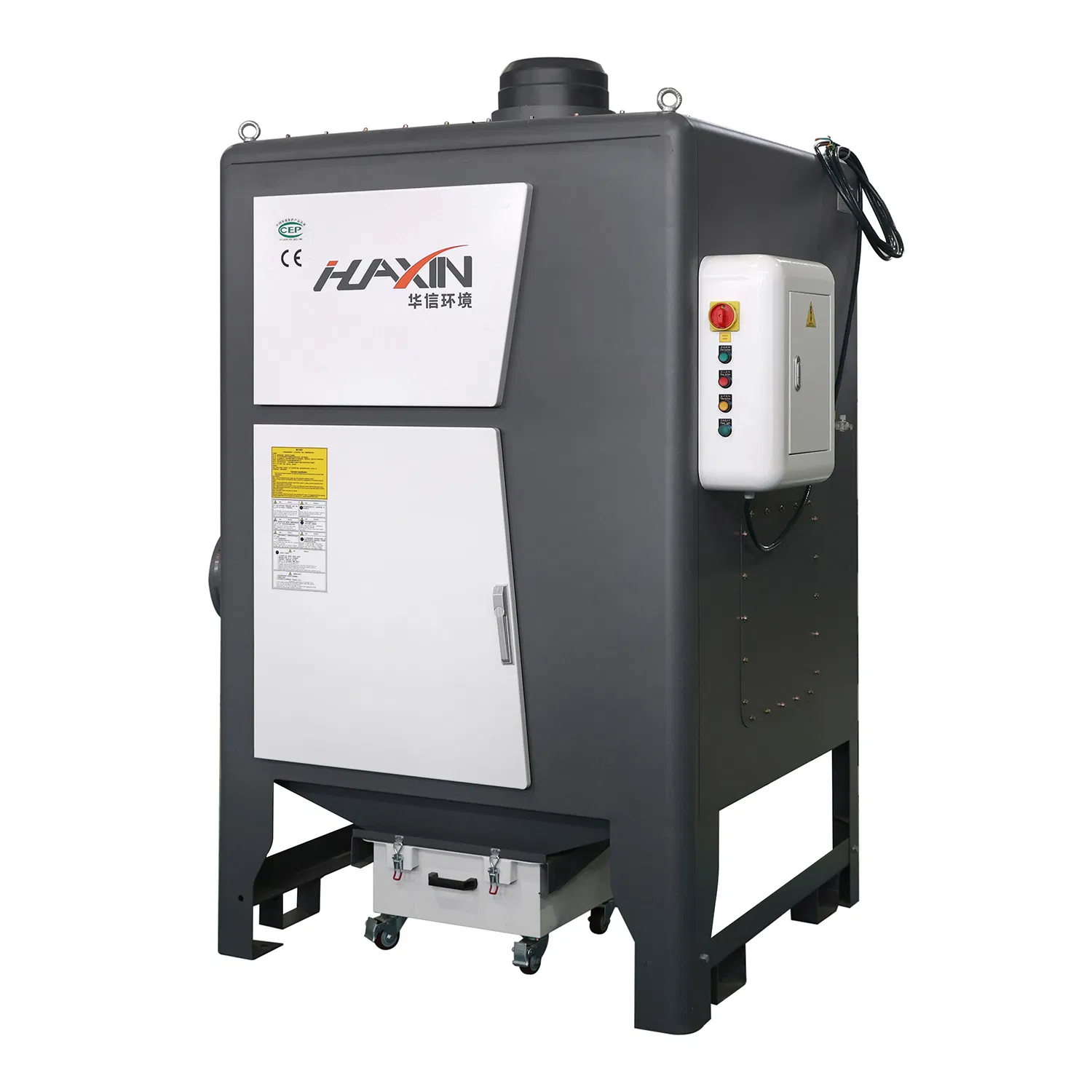

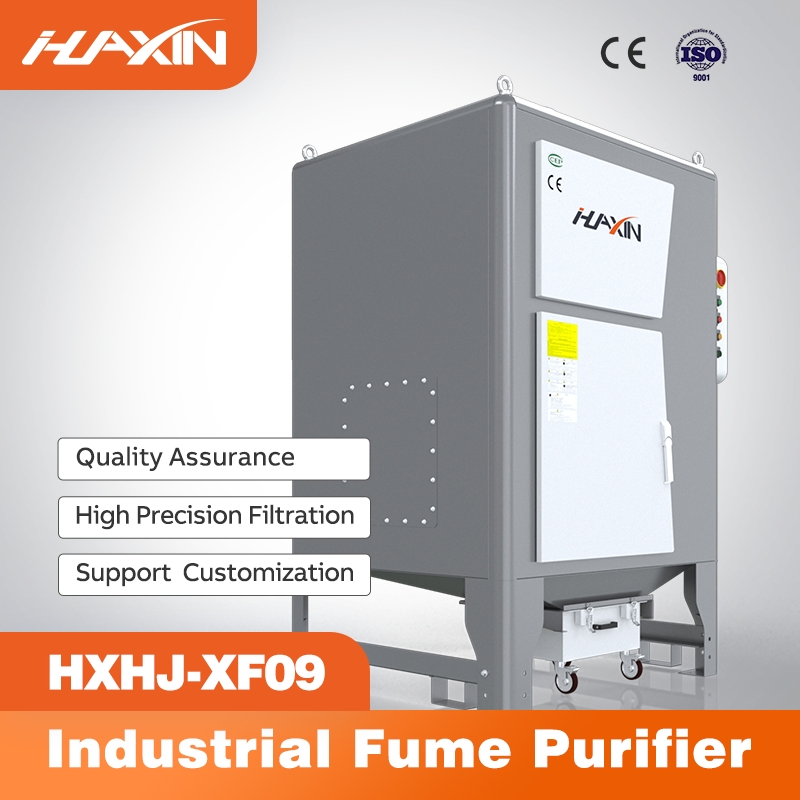

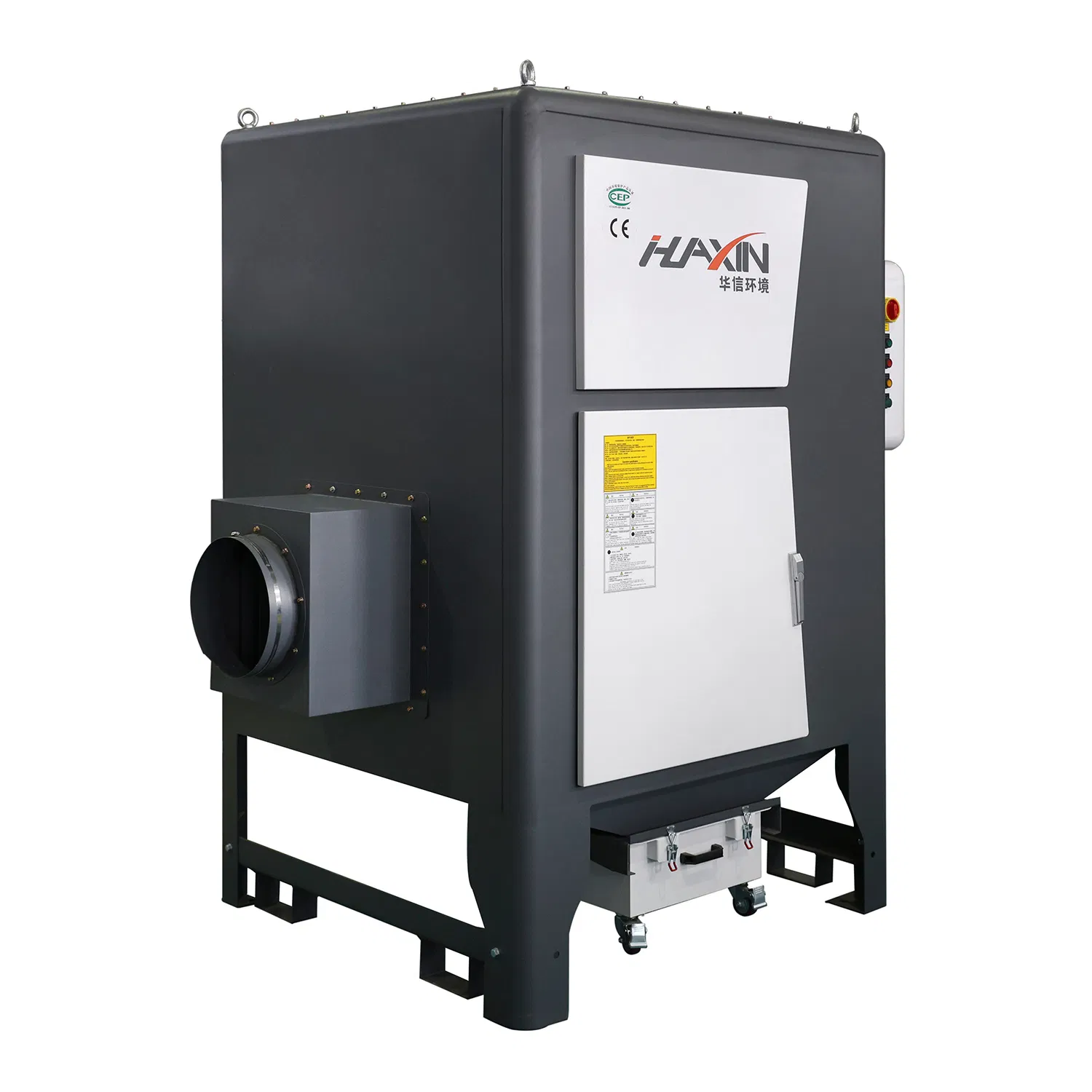

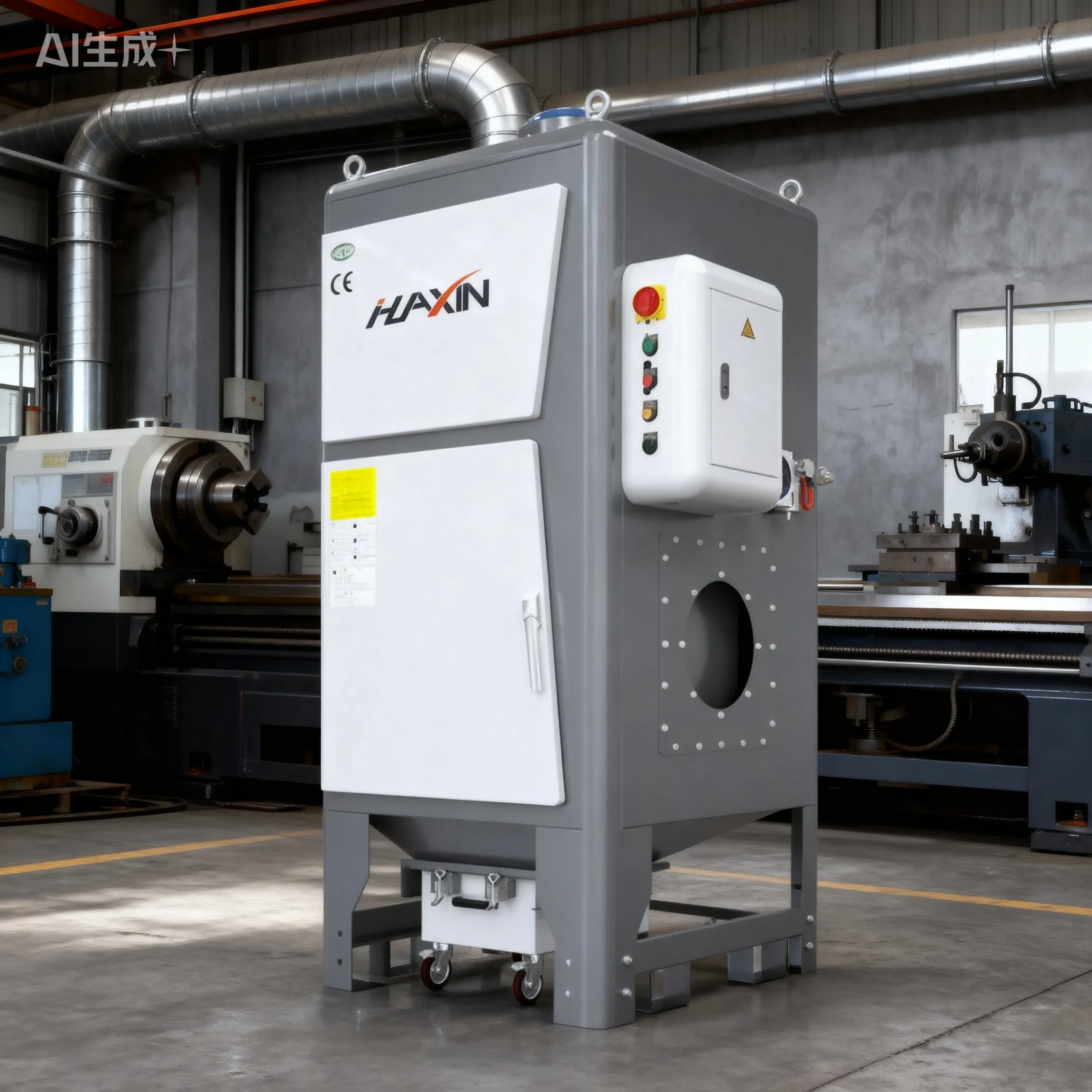

High-Efficiency 9000m3/H Dust Collector/Air Filter/Fume Extraction for Welding and Grinding

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
HXHJ-XF09
Operation Type
Automatic
Medium Material
Chemical Synthetic Fiber
Dust Collecting
Dry Method
Type
Filter Cartridge Dust Collector
Power
11kw
Voltage
380V/415V/220V
Application
Welding/Soldering/Lasering Position
Filtration Area
117m²
Accuracy
99.99%
🔍 Product Description
⚡ High - Efficiency Filtration

These dust collectors are crafted with an exceptional high-efficiency filtration system that expertly captures a vast range of particulate matter, including the finest dust and fume generated during meticulous laser - cutting processes. The remarkable filtration efficiency frequently achieves an astounding 99.99% or even higher.

🔄 Adaptability to Different Dust Types

Laser cutting operations inevitably produce diverse types of dust. The dust collectors adeptly handle varying dust characteristics such as metal fines, fume, plastics, or composites.

💪 Powerful Suction Capacity

Robust dust collectors boast an impressive suction capacity. The formidable suction power instantly captures dust upon its creation, preventing its dispersion across the workspace.

📏 Compact and Space - Saving Design

Innovatively designed to be compact, enabling easy installation adjacent to the laser - cutting machine without occupying excessive floor space.

🔇 Low Noise Operation

Engineered to function at a commendably low noise level (typically below 80 decibels), ensuring a tranquil working environment.

🛡️ Safe and Reliable Operation

Incorporates essential safety features such as over-temperature protection and over-current protection, ensuring equipment safety.

📋 Product Parameters
Model Airflow (m³/h) Power (kW) Voltage (V) Filter Area (m²) Precision (%) Noise dB(A) Size (mm)

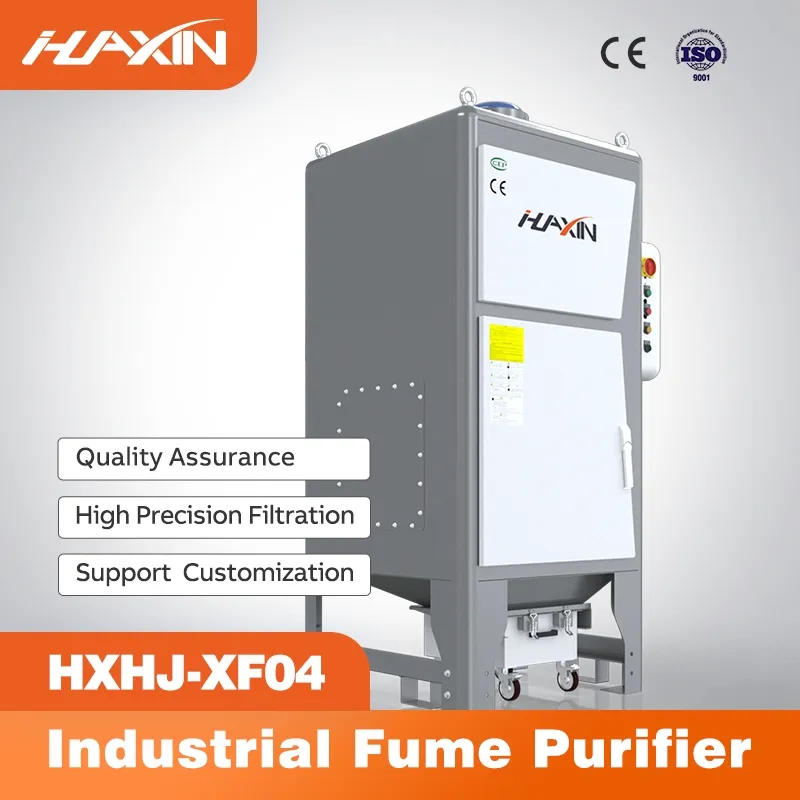

HXHJ-XF0440005.5KW380/415/2205299.99%77±31200*1100*2500

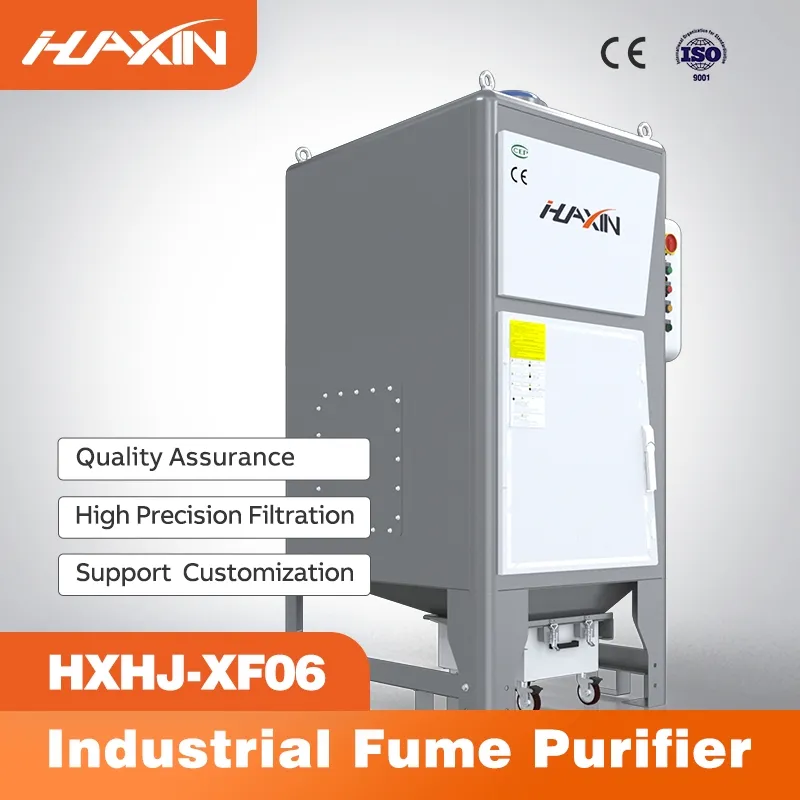

HXHJ-XF0660007.5kW380/415/2207899.99%77±31200*1400*2500
HXHJ-XF09900011kW380/415/22011799.99%77±31600*1400*2500
HXHJ-XF121200015kW380/415/22015699.99%77±31600*1700*2500
HXHJ-XF161600018.5kW380/415/22020899.99%77±32000*1700*2700
HXHJ-XF202000022kW380/415/22026099.99%77±32100*2200*2800

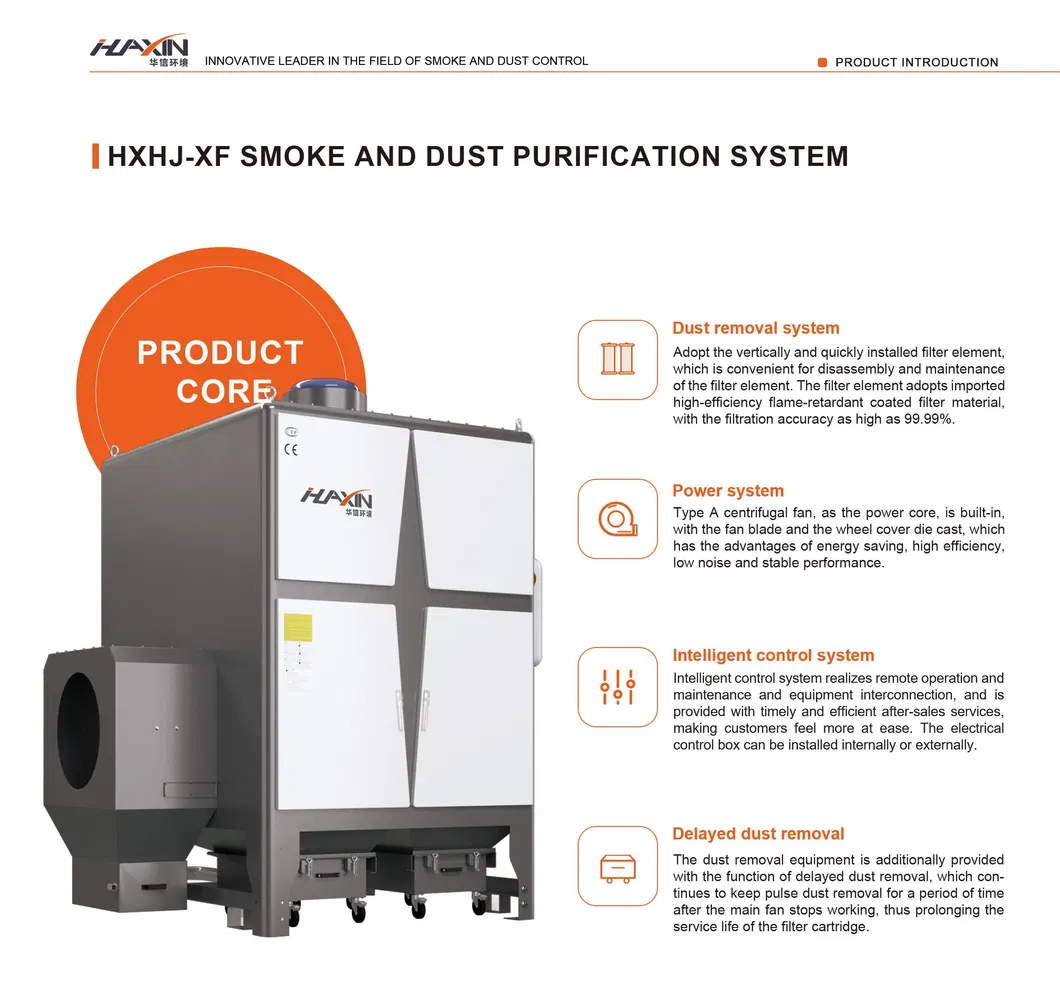

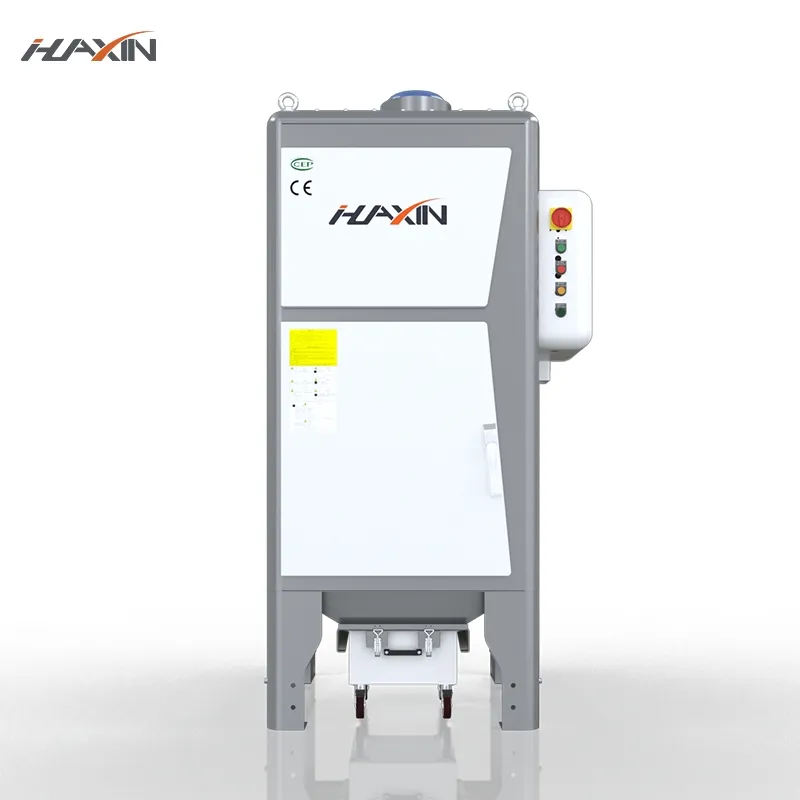

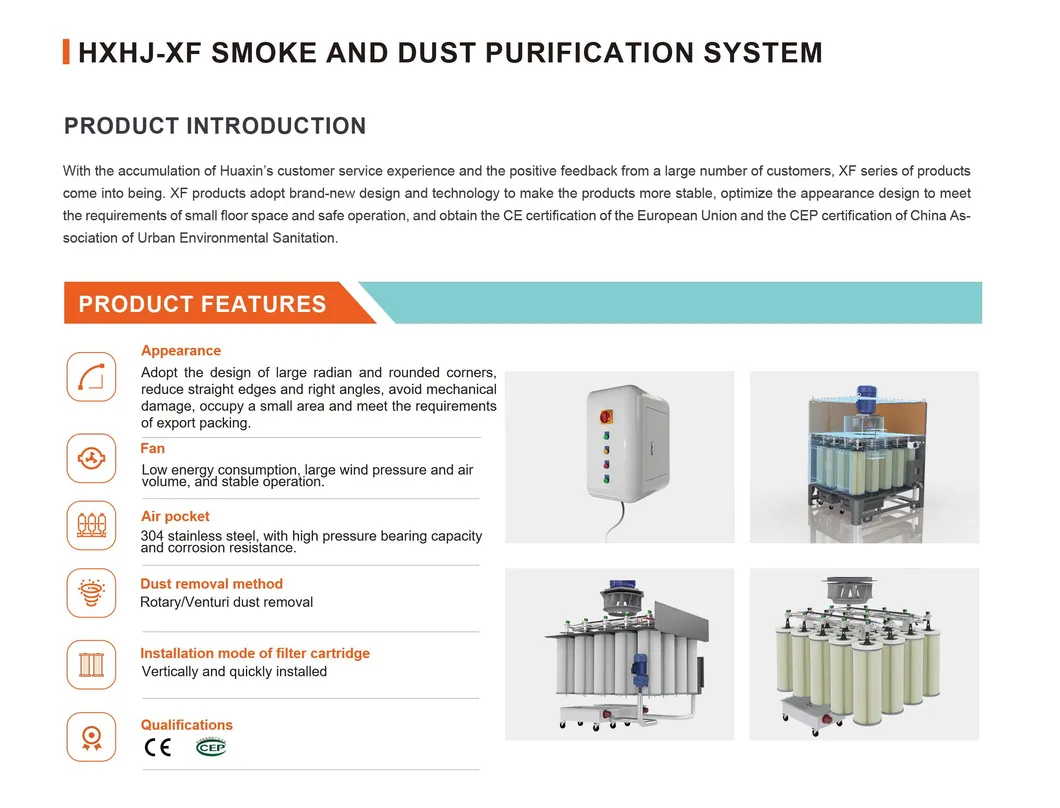

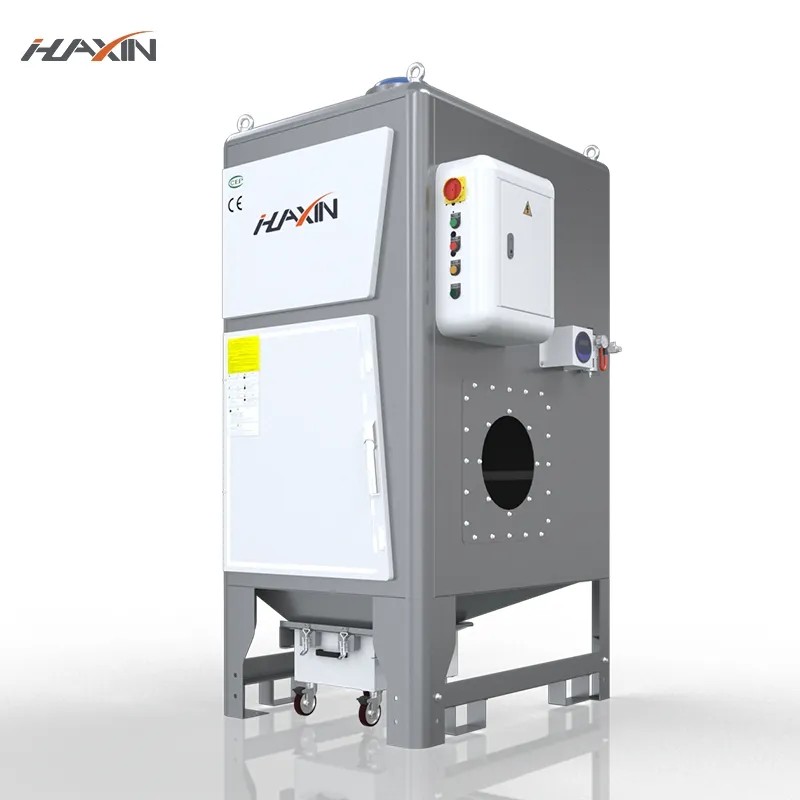

Our Advantages & Details

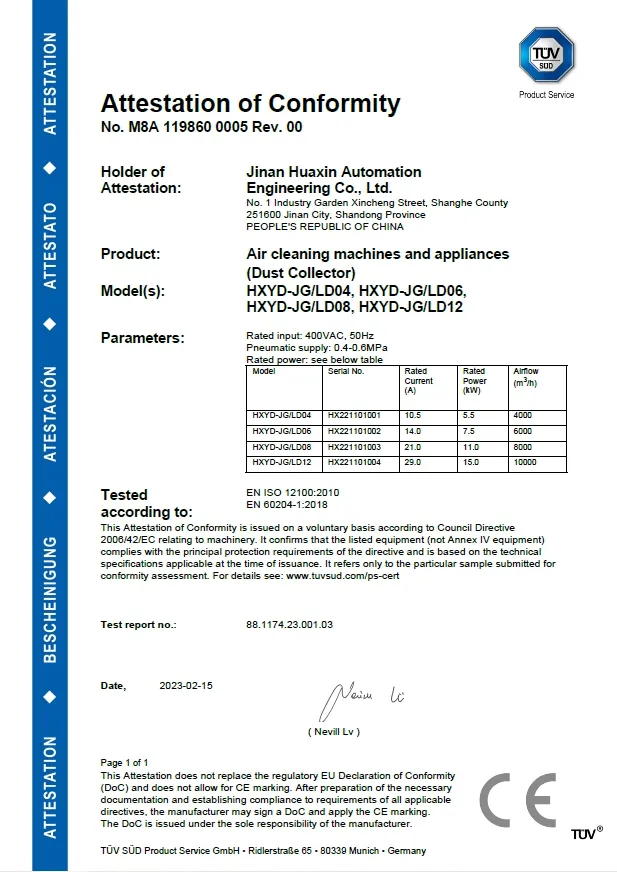

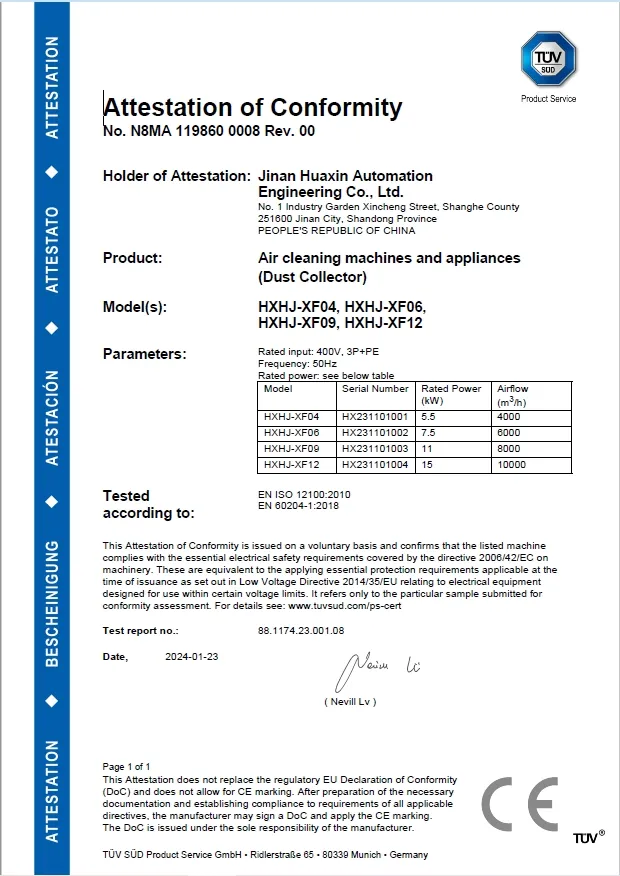

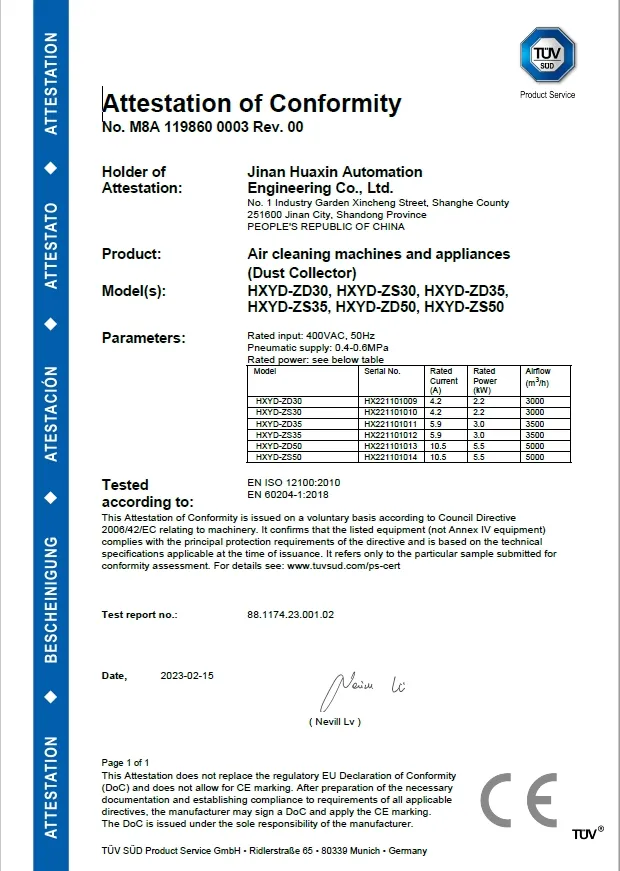

📜 Certifications

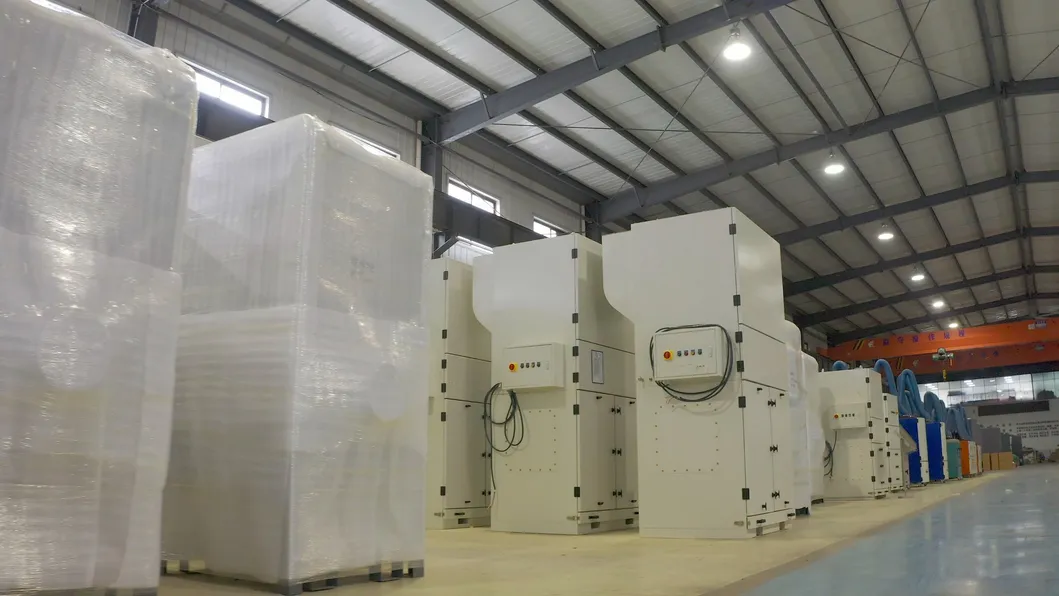

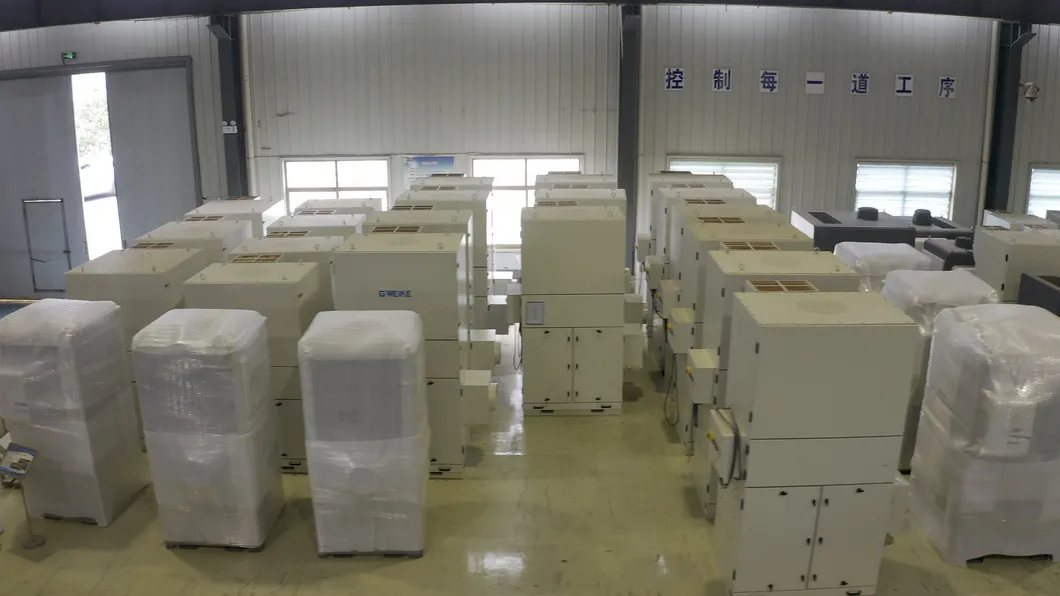

📦 Packaging & Shipping
Frequently Asked Questions
Q1: Is there any noise during operation?
A1: The fans include sound insulation cotton to ensure they do not produce excessive noise, maintaining a quiet work environment.
Q2: Why is plastic spraying recommended for surface treatment?
A2: This process ensures the paint is durable and resistant to falling off, providing a longer-lasting finish for the equipment.
Q3: Do I need to vent a chimney for exhaust?
A3: No chimney is required. We use high-precision filter materials (0.3um) with over 99% efficiency, allowing air to be discharged directly indoors safely.
Q4: How do you handle sparks during the cutting process?
A4: We install spark catchers (baffle or swirl type) which use a labyrinth structure to extinguish sparks before they reach the filter material.
Q5: What is the warranty and after-sales policy?
A5: The warranty period is one year with free maintenance. After the warranty, we only charge for the cost of replacement parts.
Q6: Can you provide OEM or ODM services?
A6: Yes, we provide full OEM and ODM services. We can produce products under your brand name and customize sizes according to your requirements.
