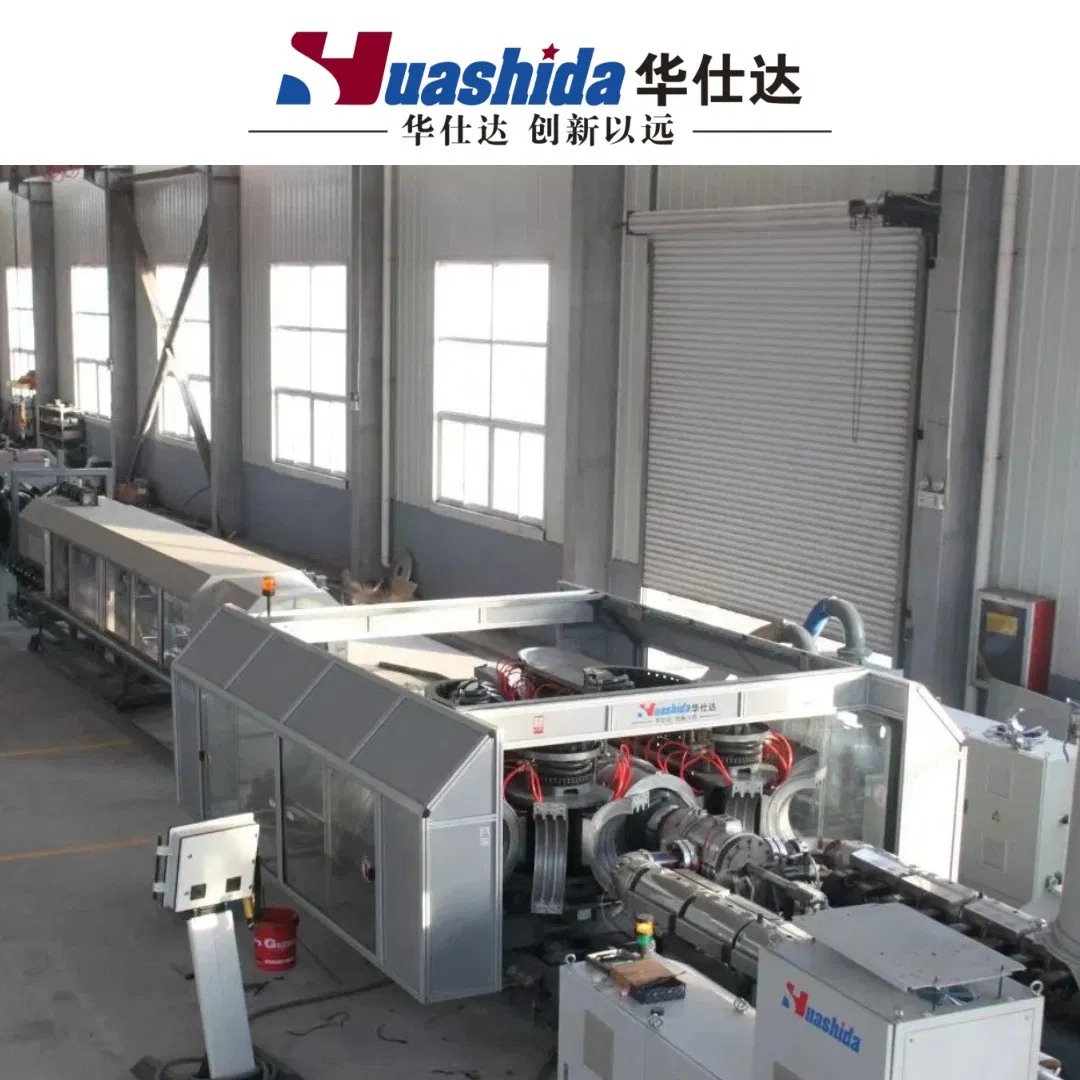

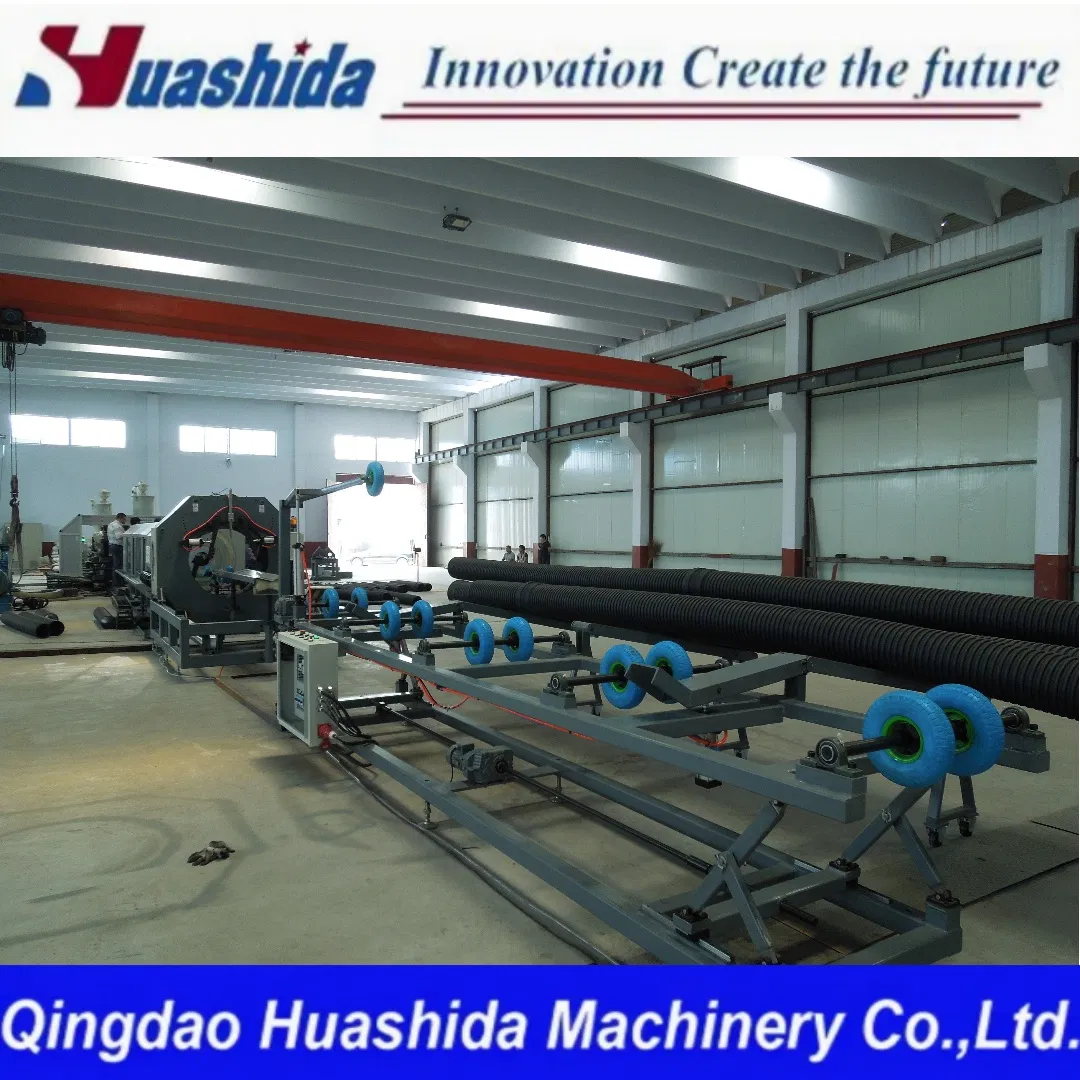

High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
1 / 5
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line
High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line

High-Efficiency PP/HDPE Single & Double Wall Corrugated Pipes Production Line

Customization: Available
Warranty: 12 Months
Product Type: Corrugated Pipe
Send Inquiry

Product Description

Overview & Basic Info
Model NO.200-1000mm
Screw No.Single-screw
AutomationAutomatic
CertificationCE, ISO9001:2008
Max Speed6m/Min, 1.2m/Min
MaterialPP/HDPE
Max Output1000kg/H
LayersDouble Layer
Product Description
⚙️
High-Efficiency PP/HDPE Corrugated Pipes Production Line

Designed for high-speed water-cooled production using PP or HDPE raw materials. Produces lightweight, impact-resistant pipes suitable for urban drainage, agricultural irrigation, and cable laying.

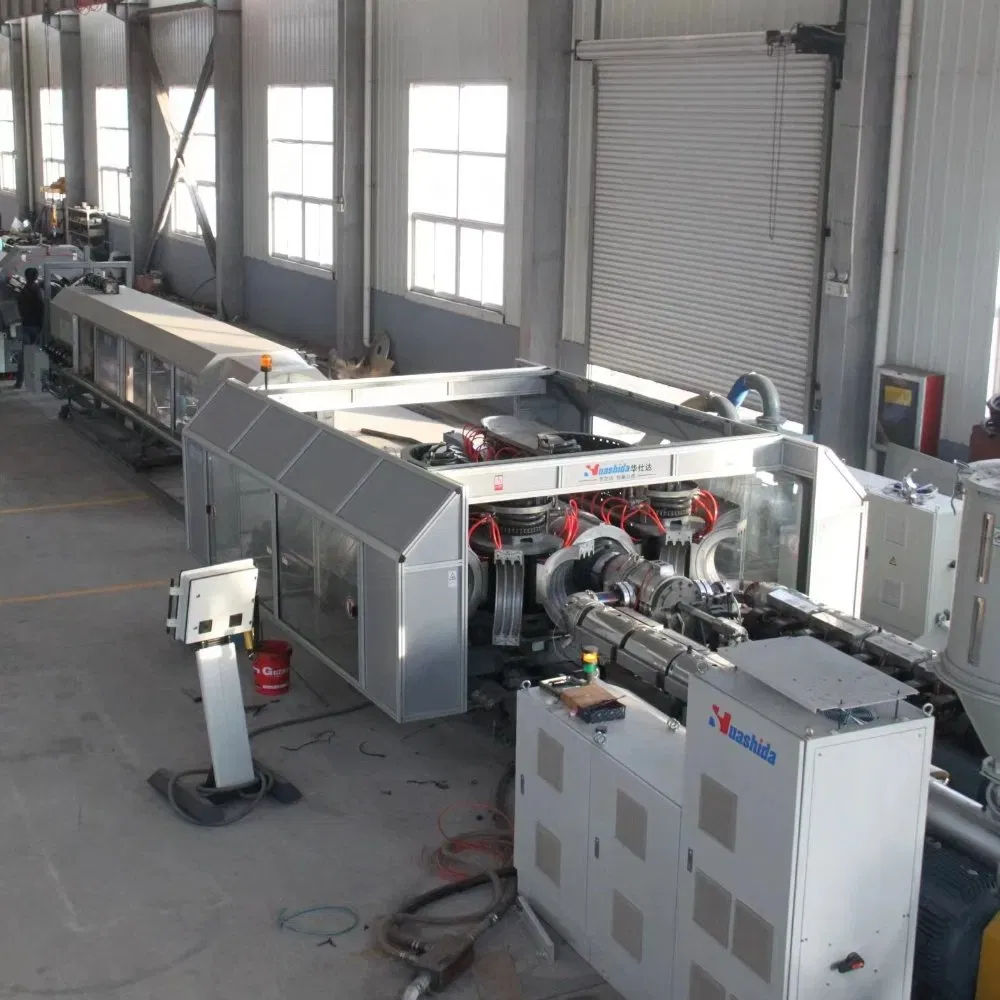

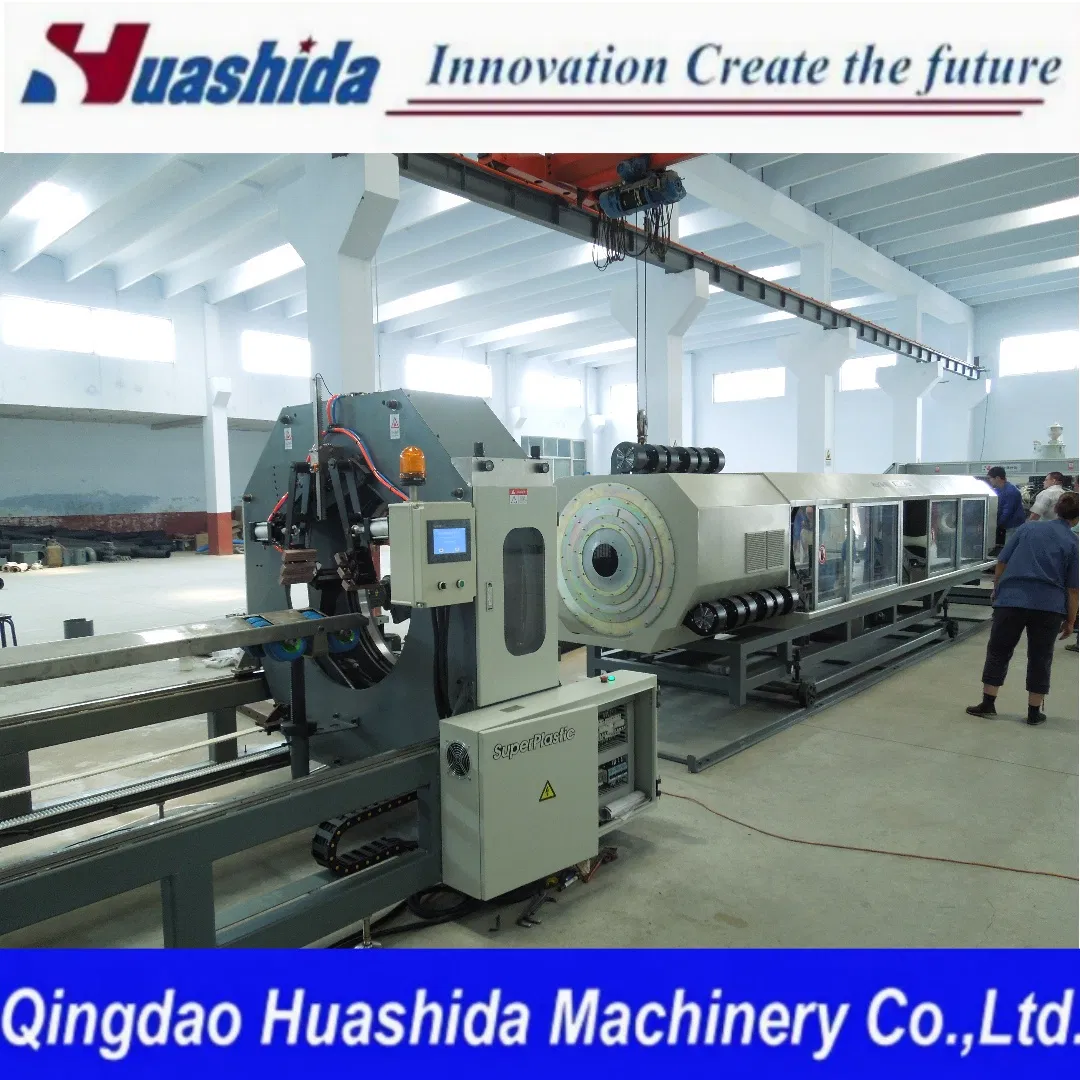

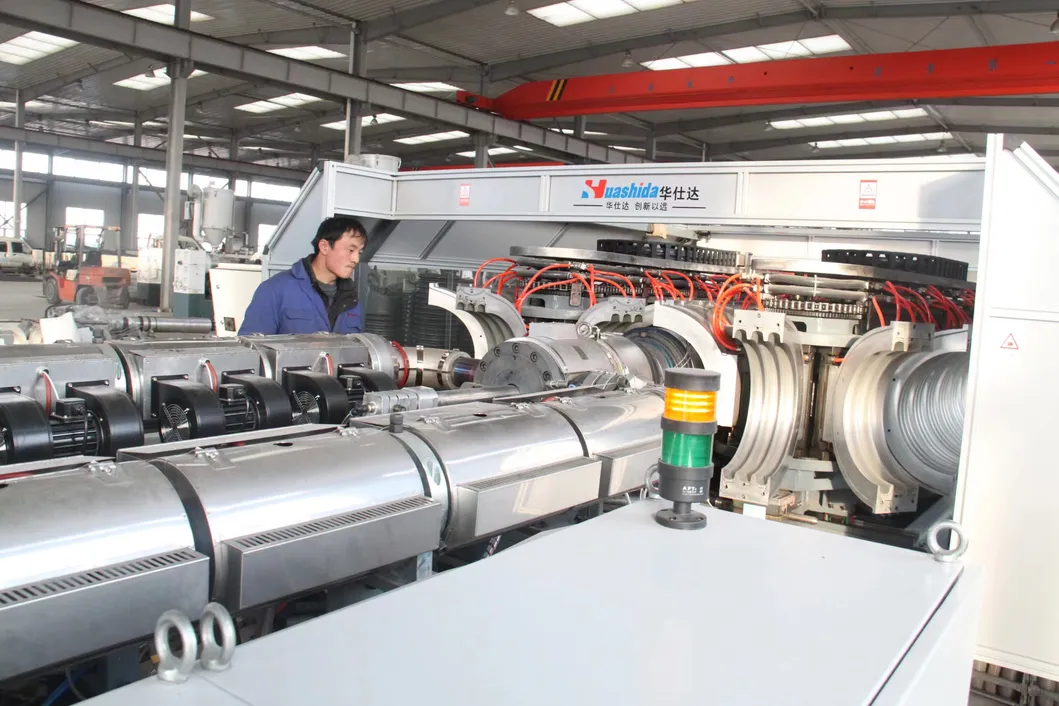

Production Line View Corrugated Pipe Forming Machine
🛠️

Core Components

  • Extruder: High-stability single or twin-screw options.

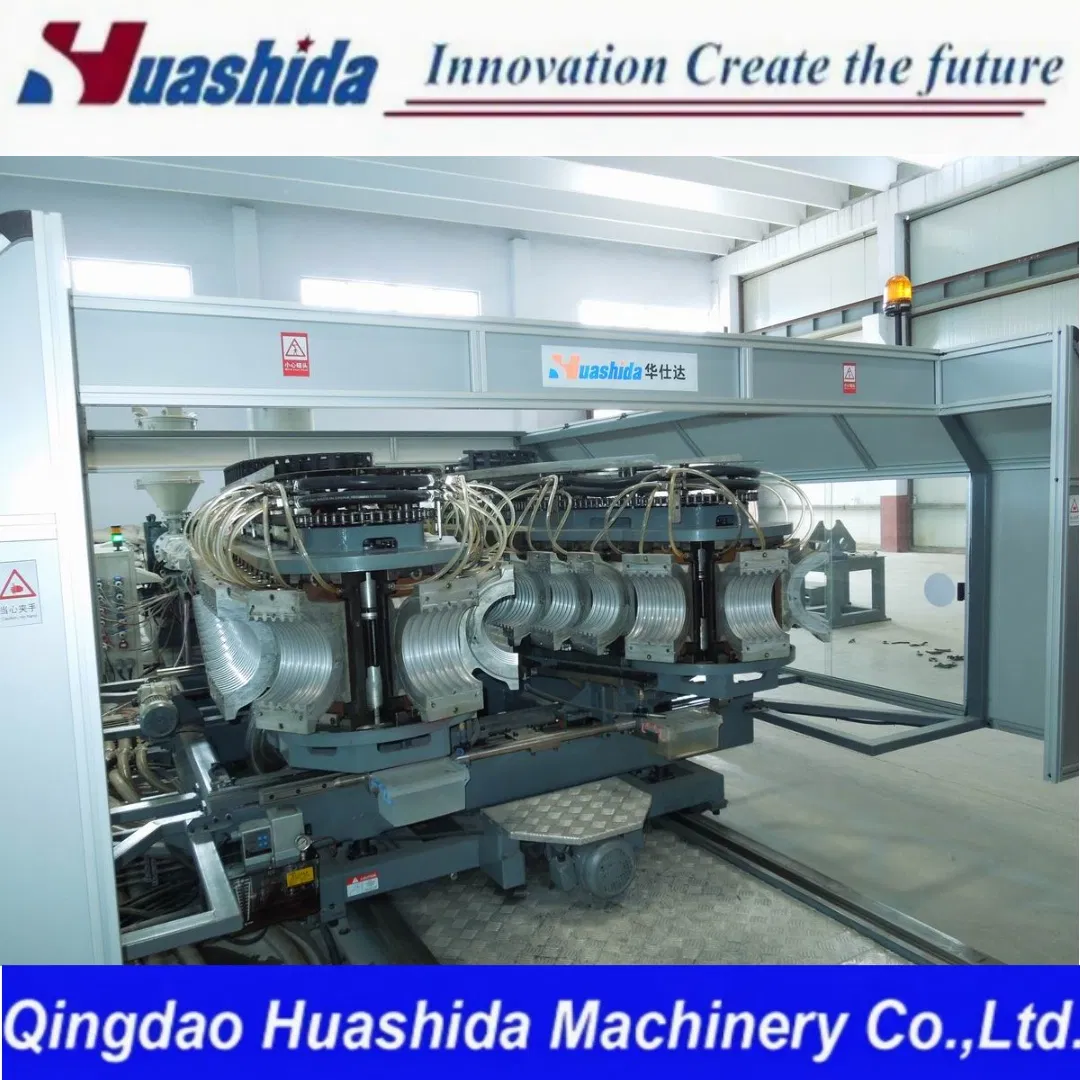

  • Corrugator: Continuous vacuum and cooling functions.
  • Cooling System: Advanced water/air cooling combinations.
  • Cutting Equipment: Planetary or automatic cutters for high precision.
  • Control System: Integrated PLC for coordinated operation.

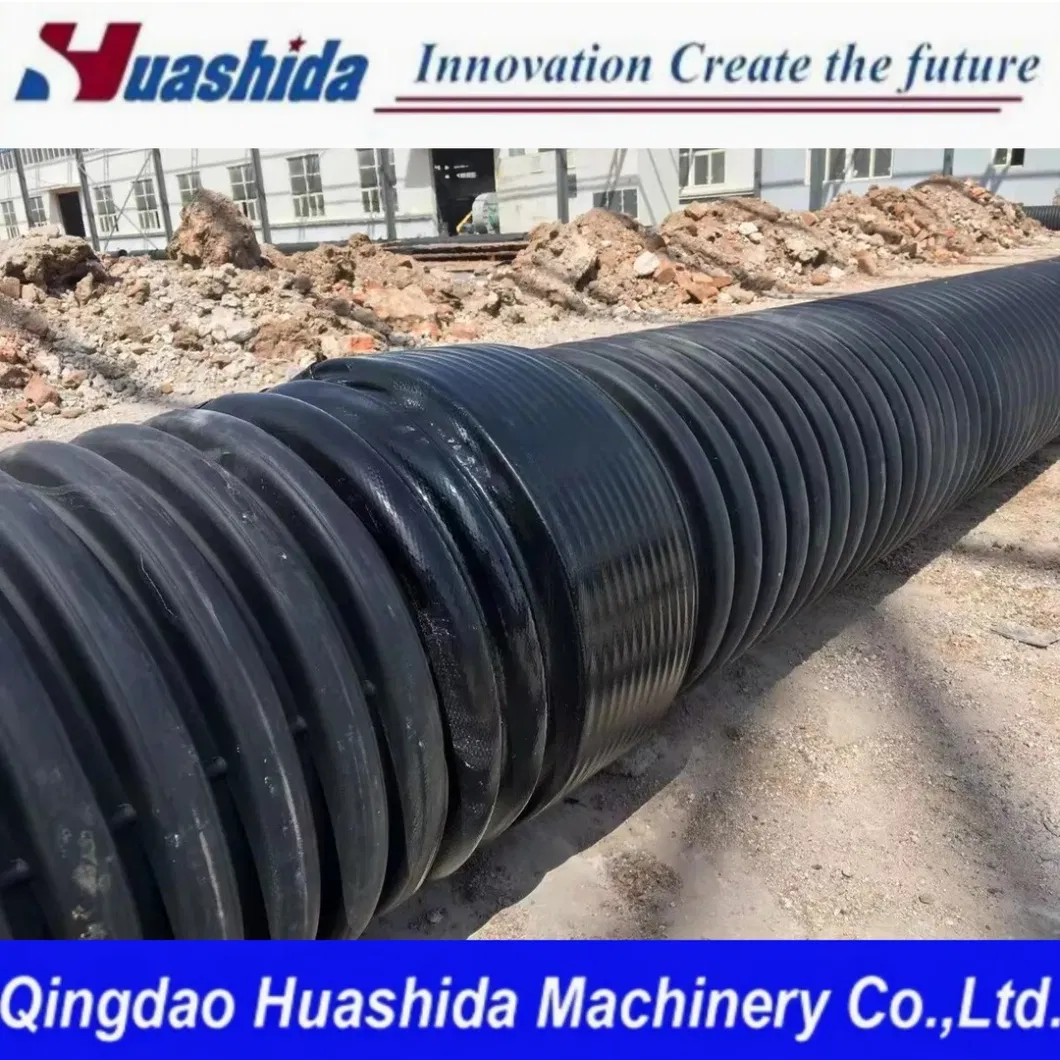

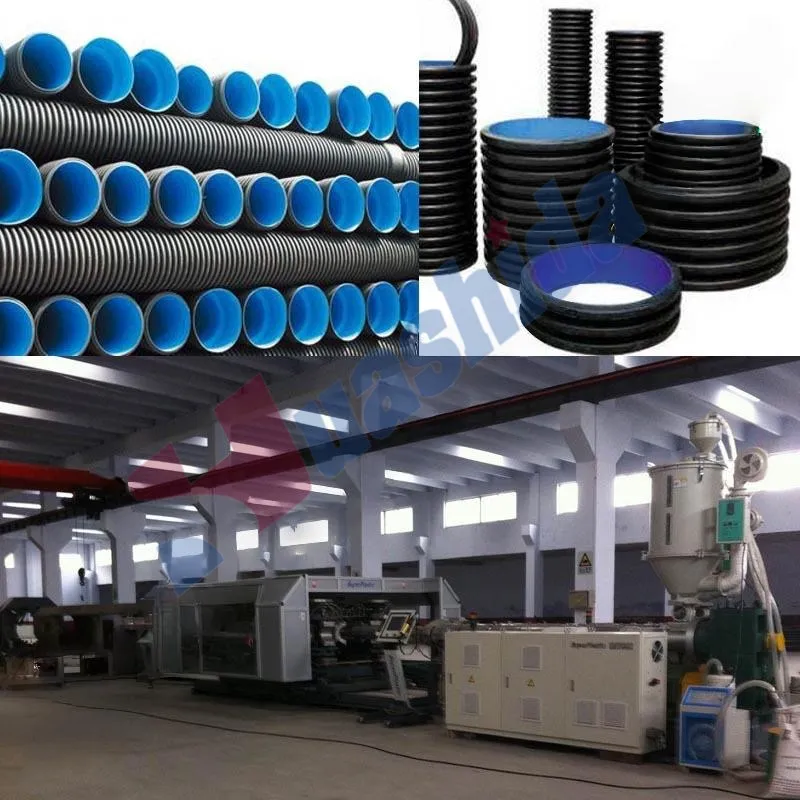

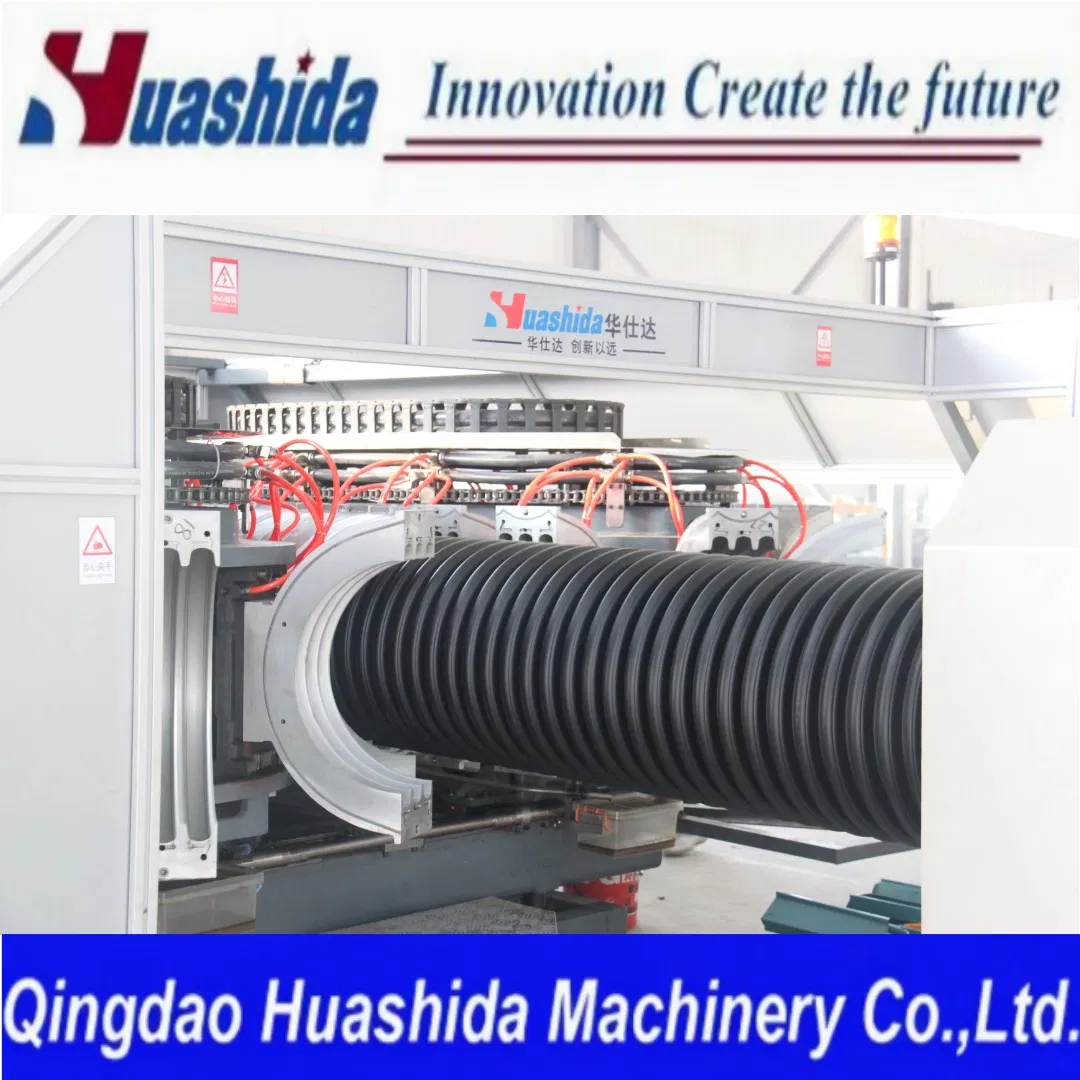

Component Details 1 Component Details 2
Technical Parameters

Available diameter range: Φ10mm to Φ1200mm

Model Diameter Range (mm) Max. Capacity (kg/h) Power Consumption (kW)
S-55/30Φ10 - Φ328040
S-65/30Φ20 - Φ6312055
S-75/33Φ50 - Φ16025085
S-90/33Φ75 - Φ250300110
S-90/33 (High)Φ110 - Φ315400130
S-120/33Φ250 - Φ630800300
S-150/33Φ315 - Φ8001100380
S-120/38Φ710 - Φ12001300480
Certifications & Cases

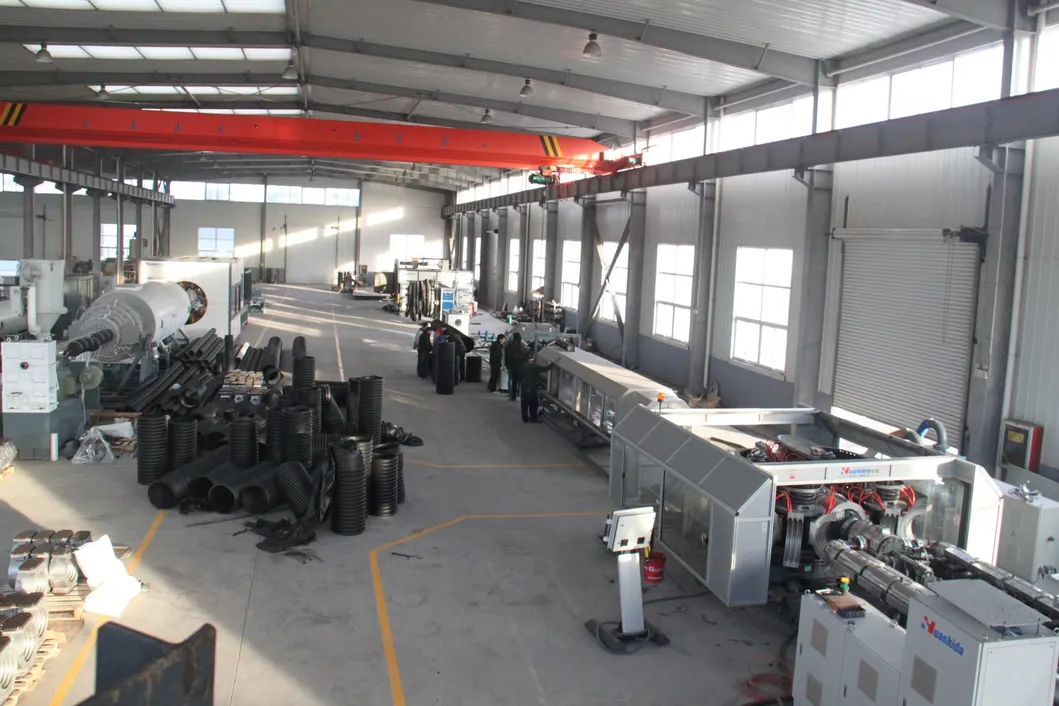

Factory Site Certification Showcase Client Case Exhibit
Frequently Asked Questions (FAQ)
What materials can be used with this production line?
The production line primarily uses Polypropylene (PP) and High-Density Polyethylene (HDPE) as raw materials to produce high-quality corrugated pipes.
What are the main applications of the produced pipes?
These pipes are widely used in urban drainage, sewage discharge, agricultural irrigation, wire and cable laying, and bridge steel cable sheaths.
How does the cooling system work?
It uses a closed water-cooled structure with a unique circulating water circuit design, ensuring efficient cooling and continuous production reliability.
What pipe diameters can this equipment produce?
The system is versatile and can produce pipes with diameters ranging from a minimum of Φ10mm up to a maximum of Φ1200mm depending on the model.
What is the advantage of the double-wall structure?
The double-wall structure provides high impact resistance, excellent corrosion resistance, and light weight, making it superior for heavy-duty geographical infiltration.
Is the production line automated?
Yes, the line is fully automatic and computerized, utilizing a PLC control system for precise coordination of all components.
