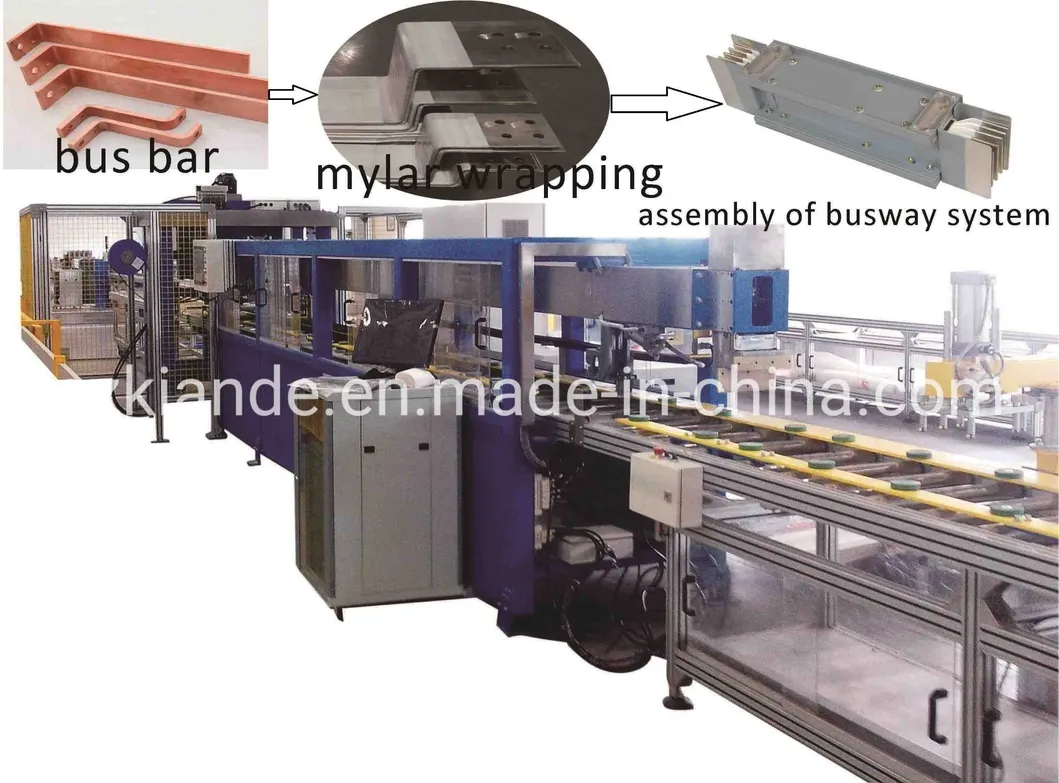

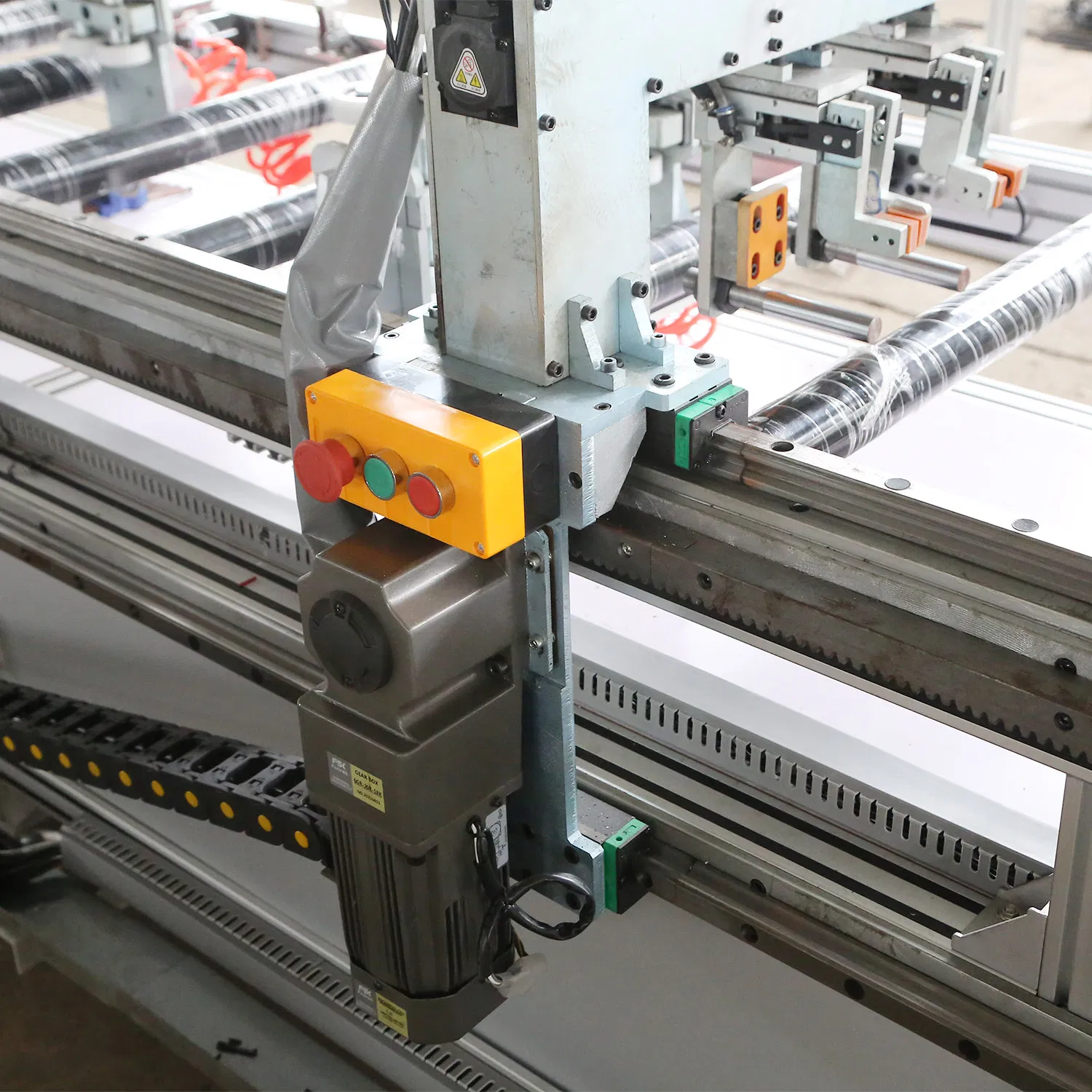

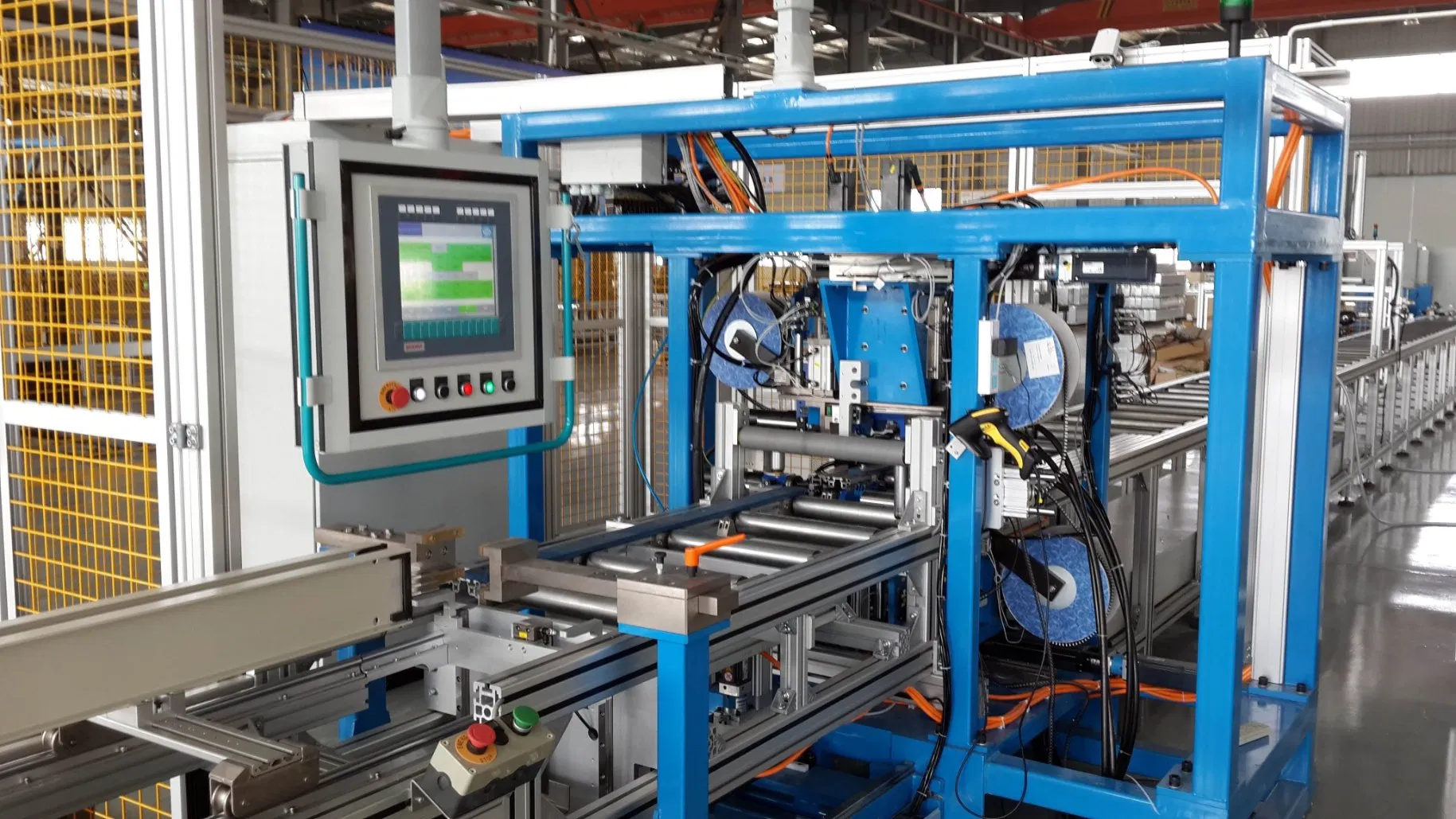

The automatic assembly machine realizes automatic assembly of busbars, reducing manpower and improving product quality and working efficiency. By scanning barcodes, the machine automatically recognizes busbar types and adjusts all parameters. It features interconnection with PLC, network, touch screens, and IPC, supporting integration with ERP systems.
| Parameters | Details |
|---|---|
| Model No. | KD-ZDX/NC-2(4)D-6(4.5) |
| Max Busbar Height | 350mm (Single layer) |
| Max Busbar Length | 6000mm |
| Working Efficiency | 2 min / 3 Meter |
| Control Axis | 5 Axis |
| Control System | Network Control, Online Maintenance |
| Riveting Station | 4 sets (Four Piece) / 2 sets (Two Piece) |
| Total Power | 20kW |
| Equipment Size | L25000mm * W2000mm * H19000mm |
Specialized in busbar machinery including mylar sleeve forming, riveting, testing, inspection, and packing systems.
Prepare all finished busbar components for assembly.
Copper Bar Punching
Utilizes gas-hydraulic punching for one-time forming, ensuring high accuracy and preventing short circuits.
Mylar Sleeve & Film Forming
Automatic film forming ensures gapless wrapping, superior to manual workmanship.
End Wrapping & Capping

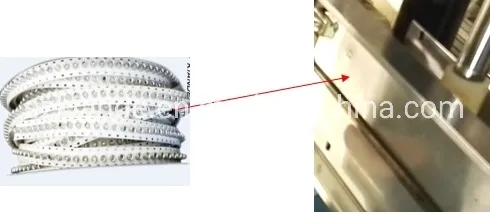

Riveting, Inspection & Packing
Joint Insulation & Stable Connection
