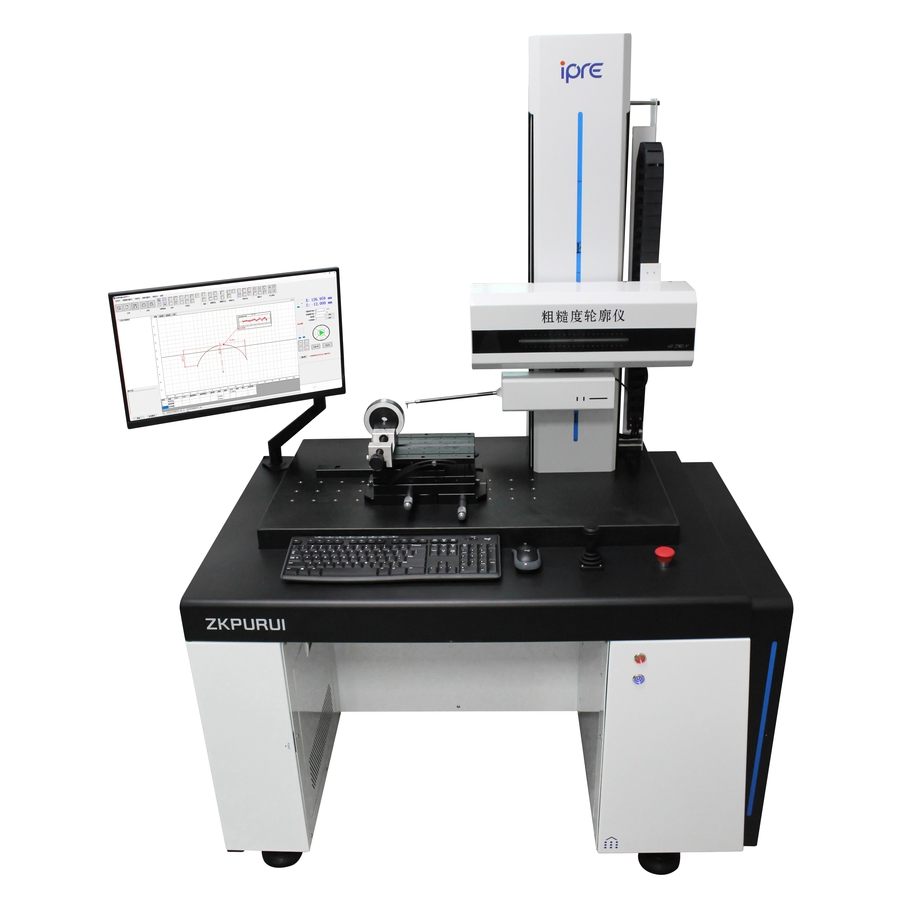

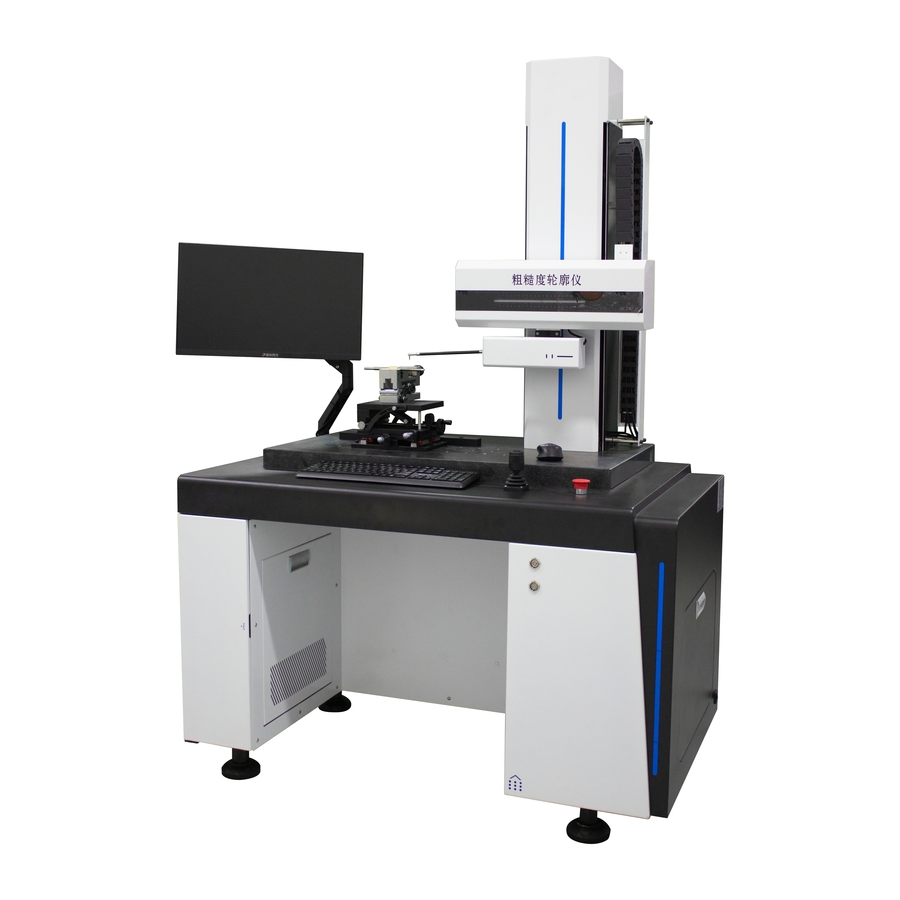

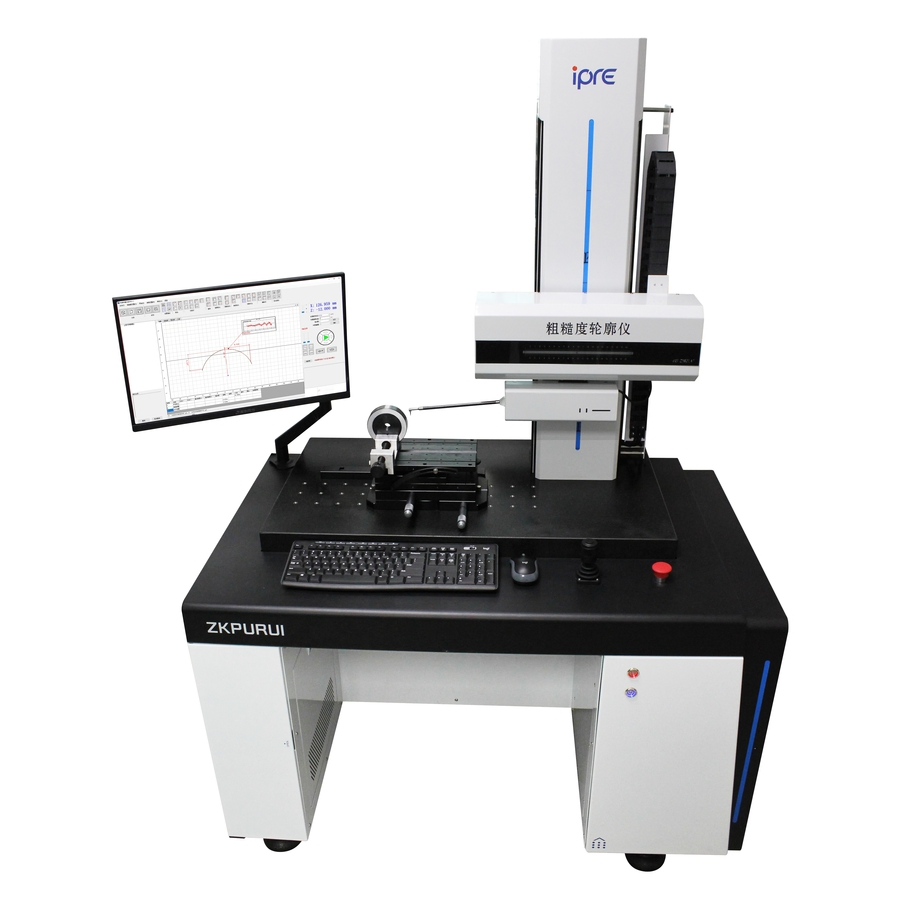

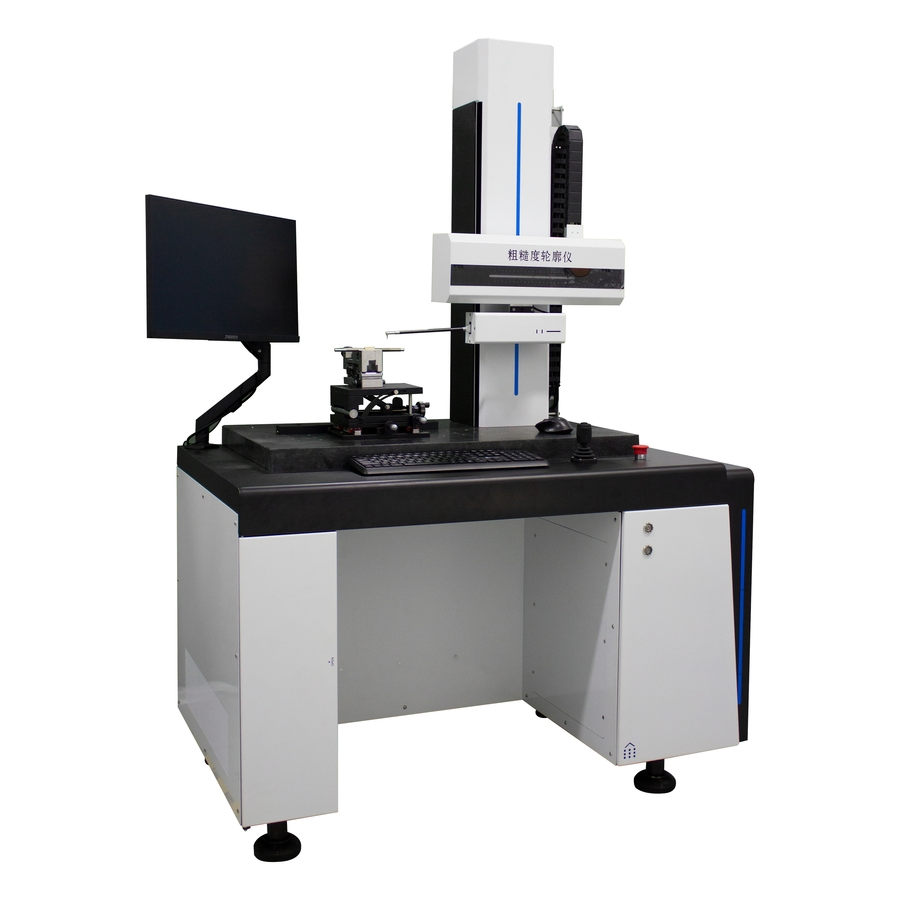

High Accuracy Ra150s Surface Roughness Finish Form Contour Meter Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

Basic Information

Model: RA150S
Material: Metal
Production Capacity: 500 Sets

Features: High Range, High Accuracy, High Resolution
Application: Test Roughness Value and Profile
Package: Wooden Box

Product Description

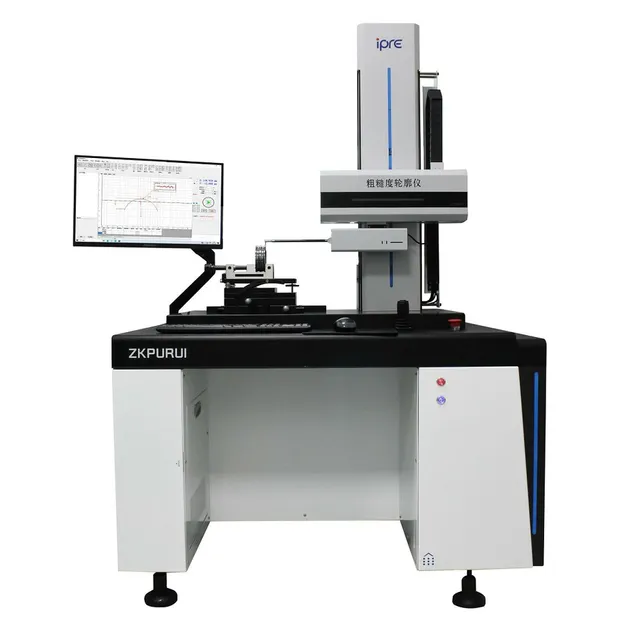

PRECISION SURFACE ROUGHNESS PROFILOMETER

Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor.

✓ High-performance computer control system
✓ Multi-functional analysis software
✓ Measures roughness, profile contours, and waviness
✓ Reliable micron-level precision

Technical Specifications

Project / Model		IPRE-RA150S
X-axis Guide Rail	Moving Accuracy	≤±(1+\|0.02L\|)μm
X-axis Grating	Resolution	0.01μm
Date Sensor	Roughness Res.	0.001μm
Linear Precision	≤±(0.8+\|0.05H\|)μm
Straightness	≤0.5μm/100mm
Roughness Test Range	Z1 Axis	±20mm
Power Supply	220V 50Hz, 0.5Kw
Dimensions	1200×750×1800 (mm)

Key System Features

✦ High-Precision Grating
Ensures exceptional measurement accuracy and repeatability for demanding analysis.

✦ Non-Contact Linear Motor
Smooth, vibration-free scanning for distortion-free measurement results.

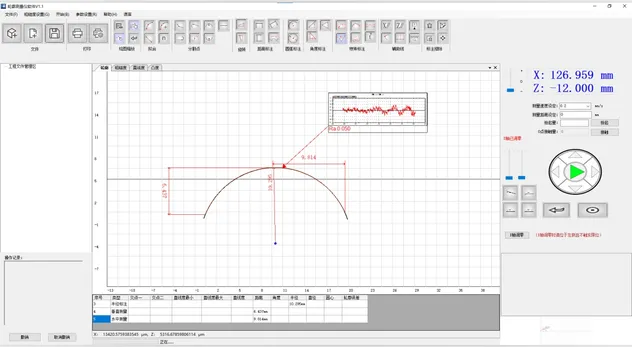

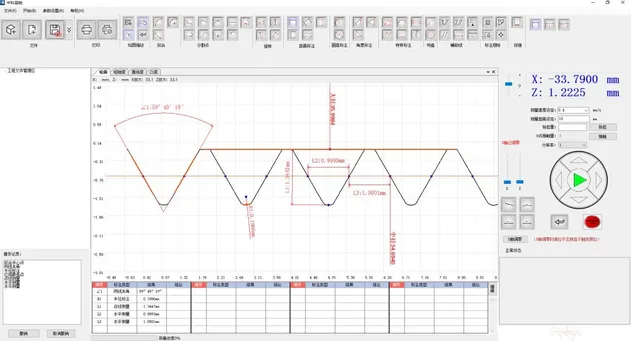

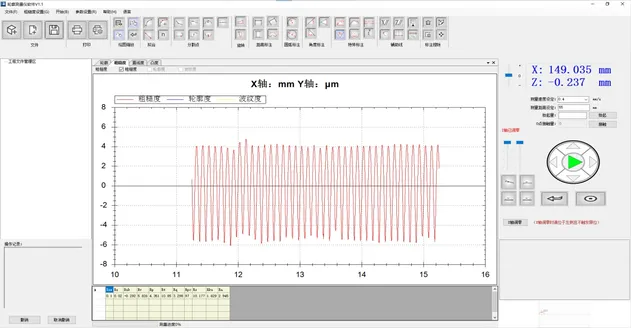

Intelligent Software System

● Processes data automatically and prints reports in various formats.
● Supports multi-standard parameter settings (ISO, DIN, JIS, ANSI).
● Specialized measurement functions for bearings, threads, and wire rods.
● Large-capacity database storage for archiving all verification results.

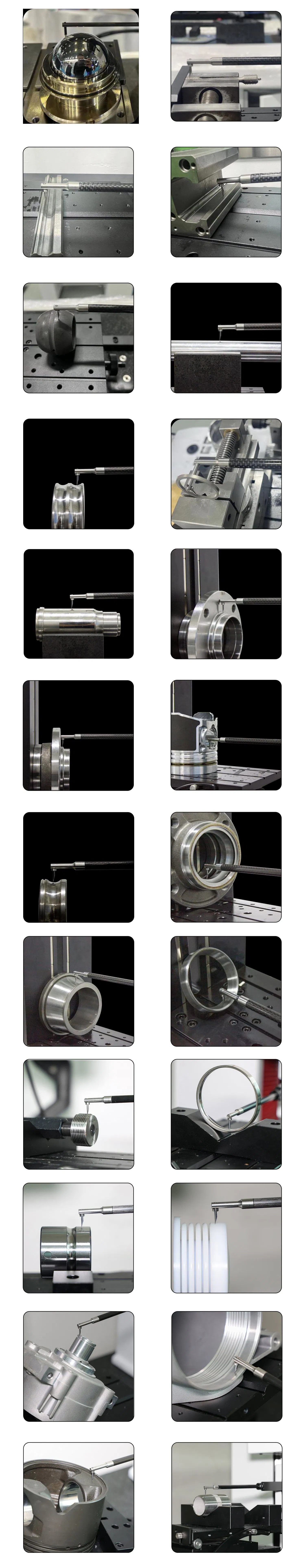

Application Scenarios

Frequently Asked Questions

Q1: What parameters can the RA150S measure?

It measures a comprehensive range of parameters including Ra, Rz, Rq, Rt, Rp for roughness; Wa, Wz for waviness; and various profile assessment parameters like Pa, Pz, and Pt.

Q2: Does the software support international standards?

Yes, the intelligent software system supports multi-standard settings including ISO, DIN, JIS, and ANSI to meet global inspection requirements.

Q3: What is the delivery time for regular orders?

Most regular products are in stock. Depending on the quantity, delivery typically takes no more than 7 days. Custom orders usually require about 1 week for preparation.

Q4: What are the primary industries for this profilometer?

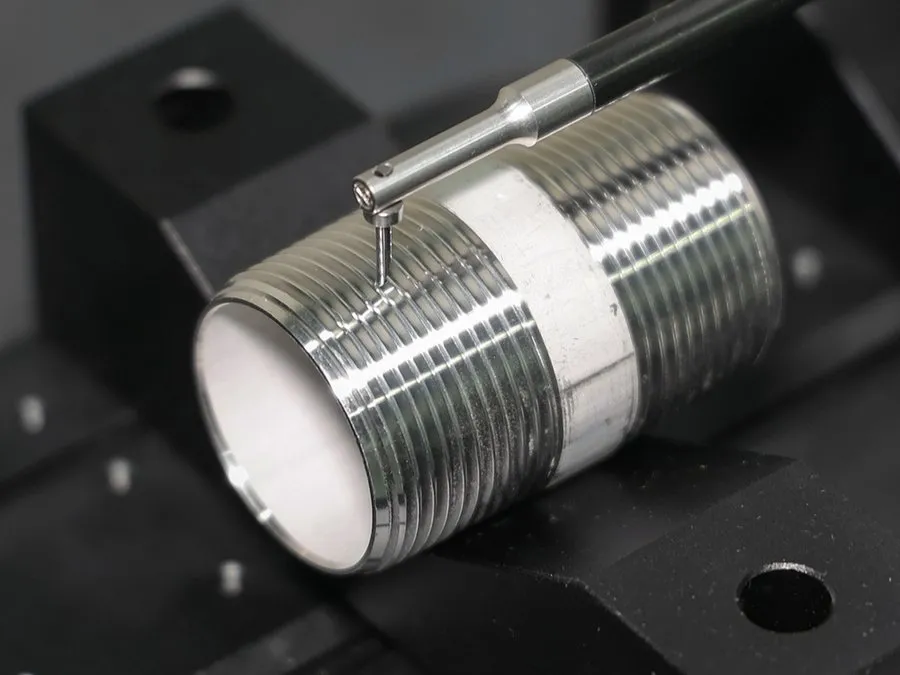

It is ideal for high-precision manufacturing industries, specifically for testing bearings, threads, wire rods, and other components requiring micron-level surface analysis.

Q5: Is the system capable of automated data processing?

Absolutely. The system features powerful software that automatically processes data, queries measurement records, and generates formatted reports for easy archiving.
