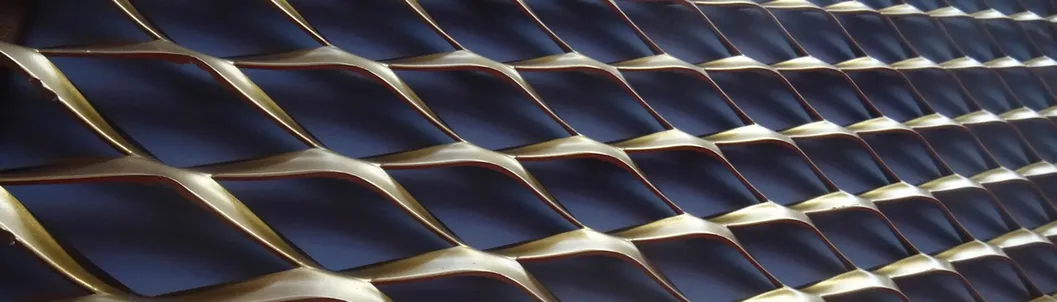

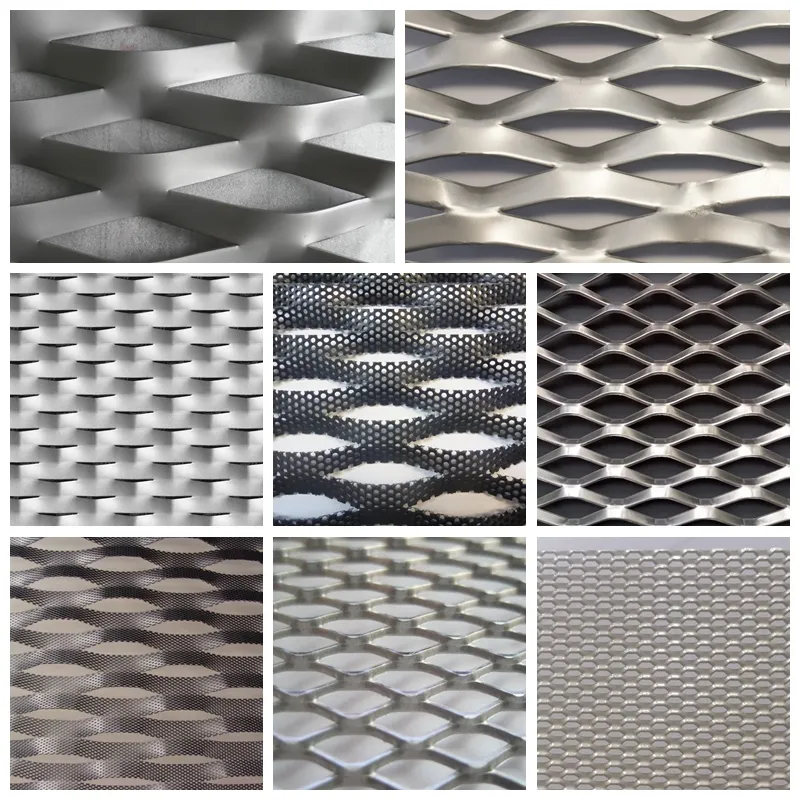

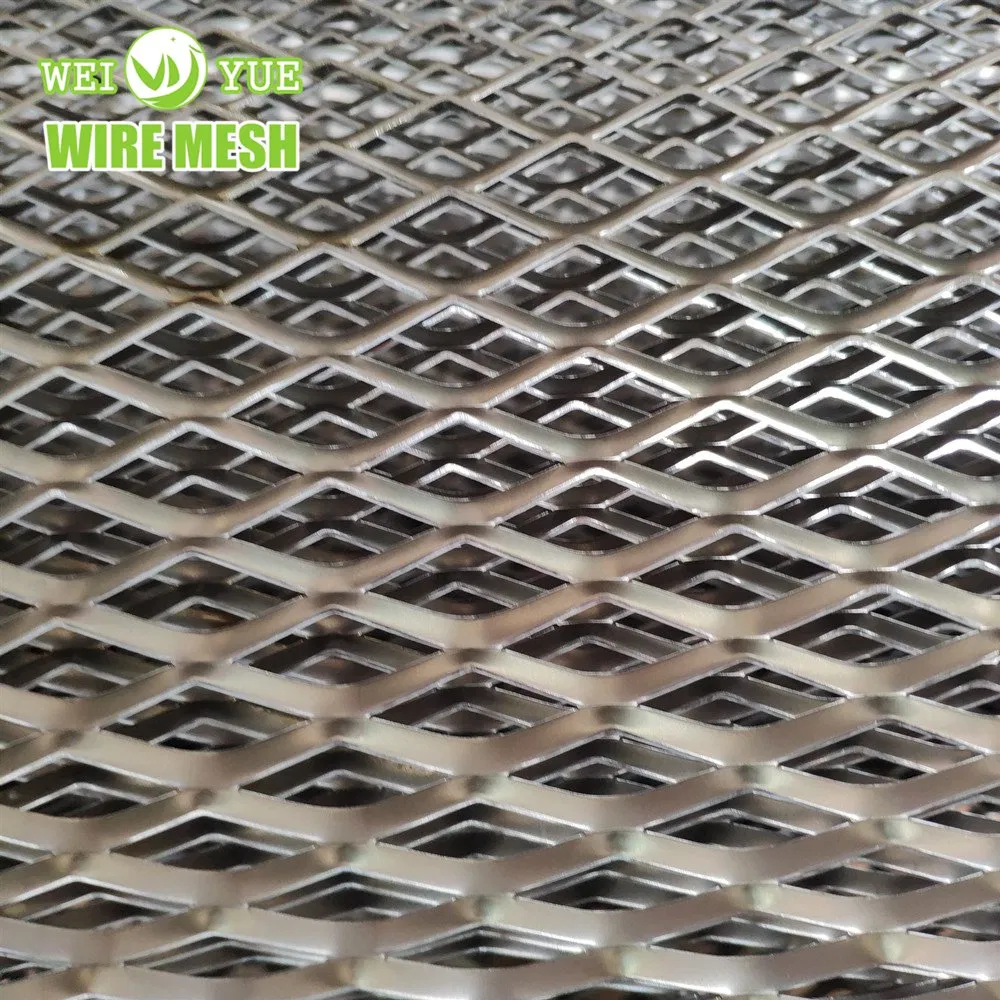

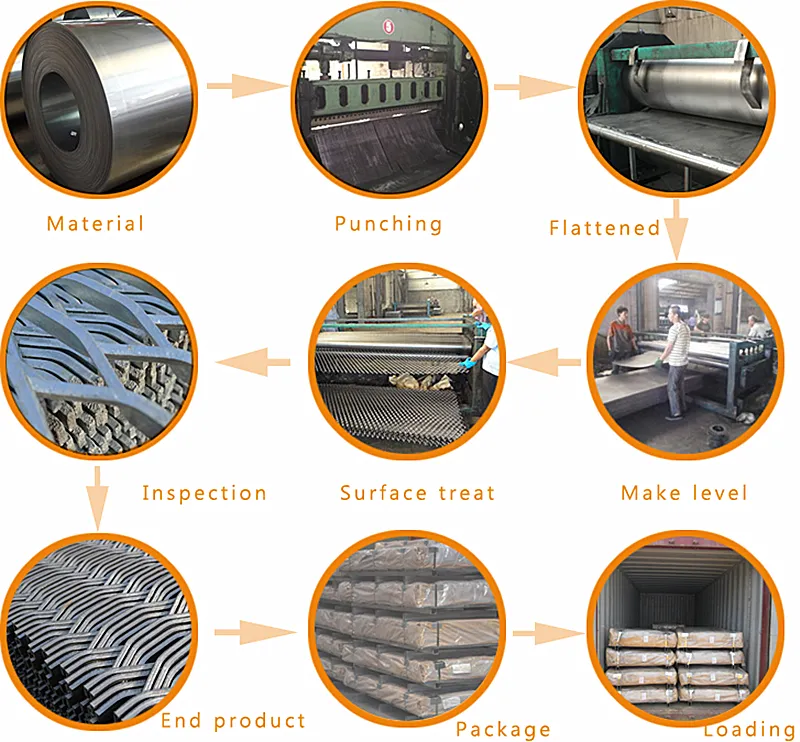

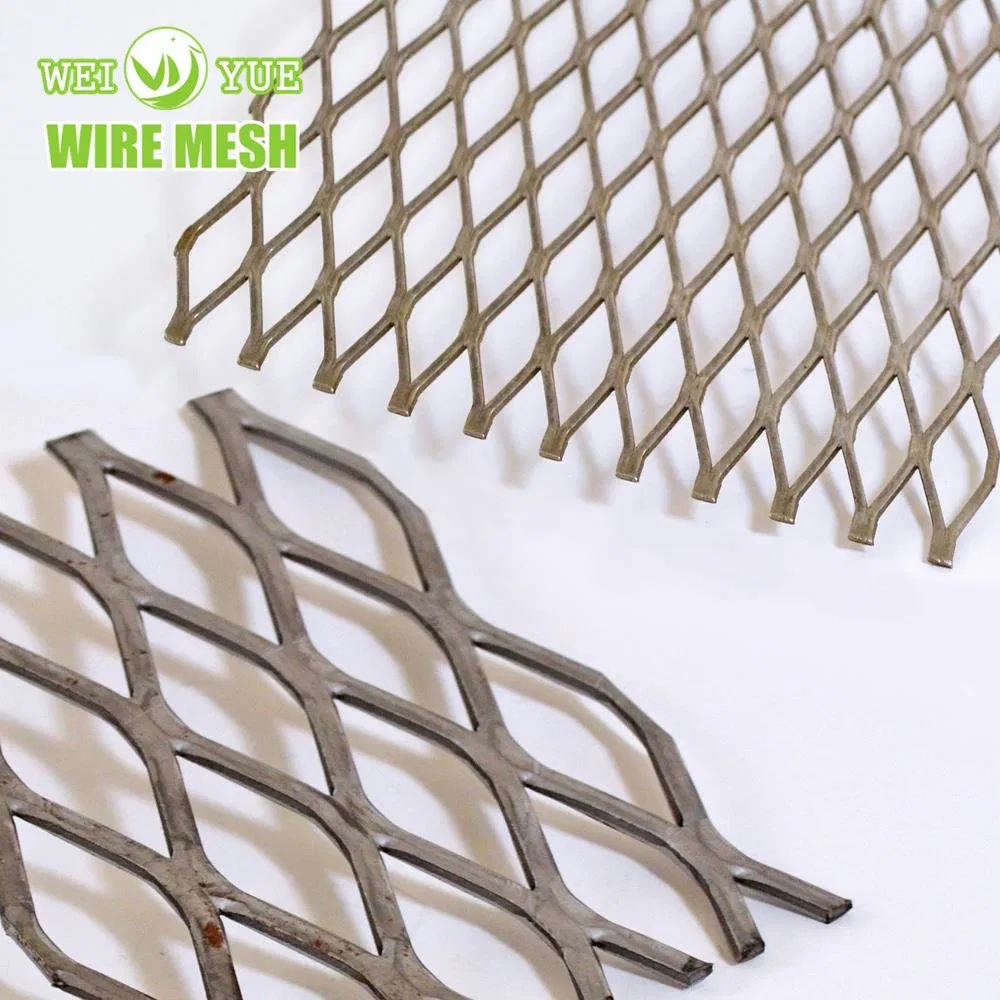

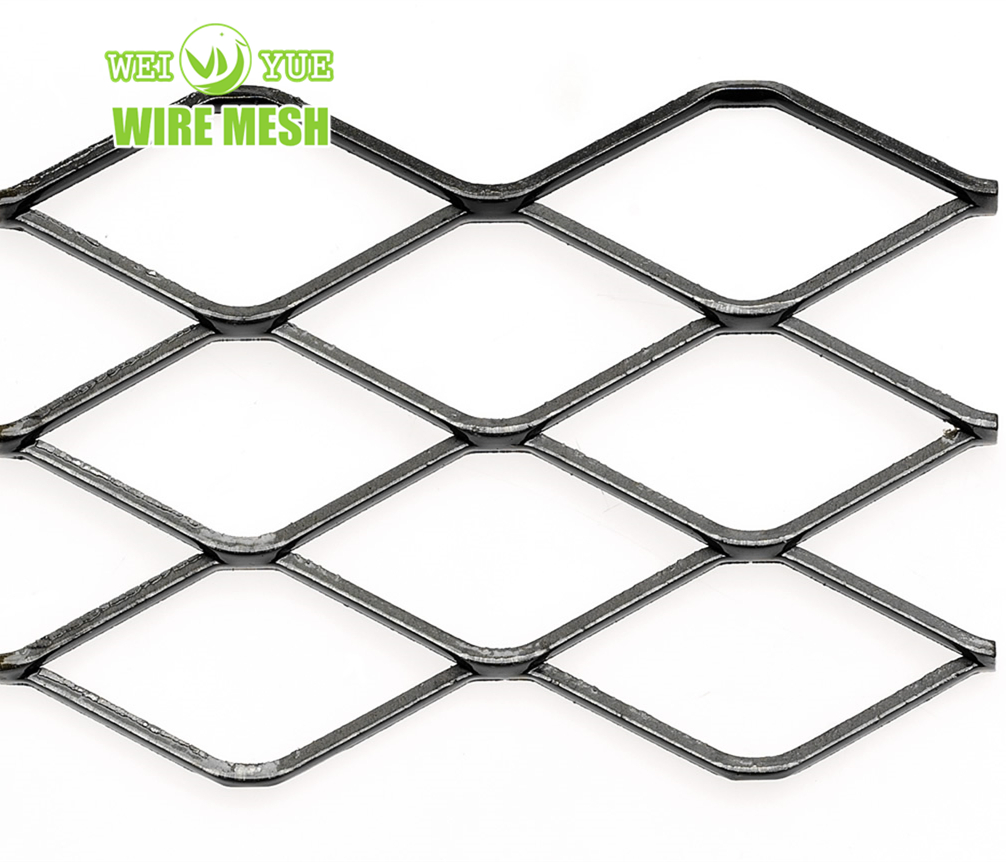

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press. The sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

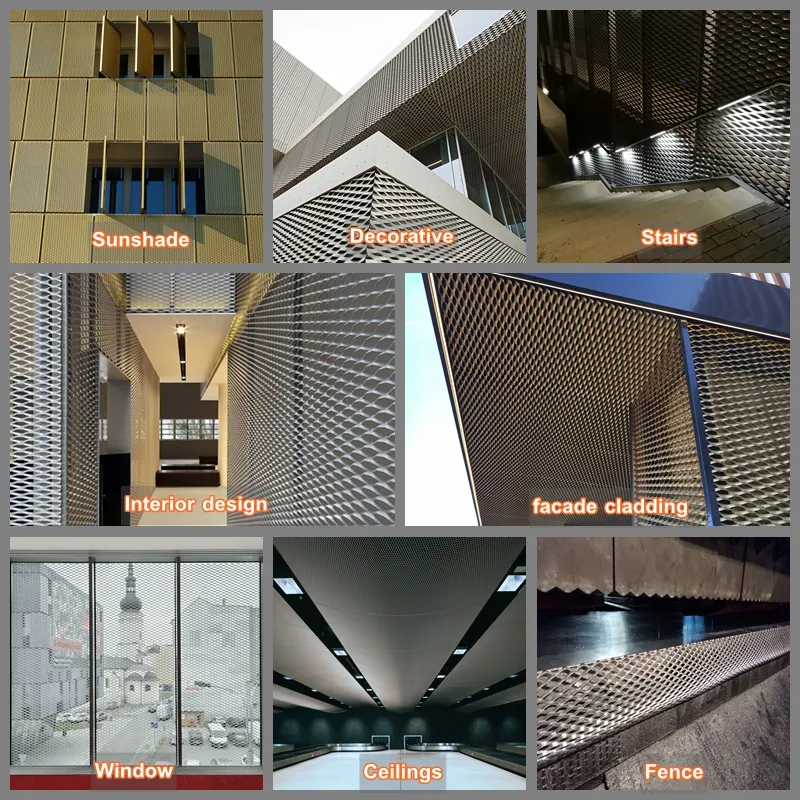

It is a very economical and practical way to assure strength and safety, ideal for EMI/RFI shielding, furniture, security walls, protection cover, floors, doors, and fencing.
| Thickness(mm) | Short Dist(mm) | Long Dist(mm) | Strip(mm) | Width(m) | Weight(kg/m2) |
|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.8 |
| 0.8 | 10 | 25 | 1 | 0.6 | 1.25 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 2.77 |
| 2.0 | 18 | 50 | 2.1 | 2 | 3.69 |
| 4.0 | 50 | 100 | 4 | 2 | 11.15 |
| 8.0 | 50 | 100 | 8 | 2 | 28.26 |
