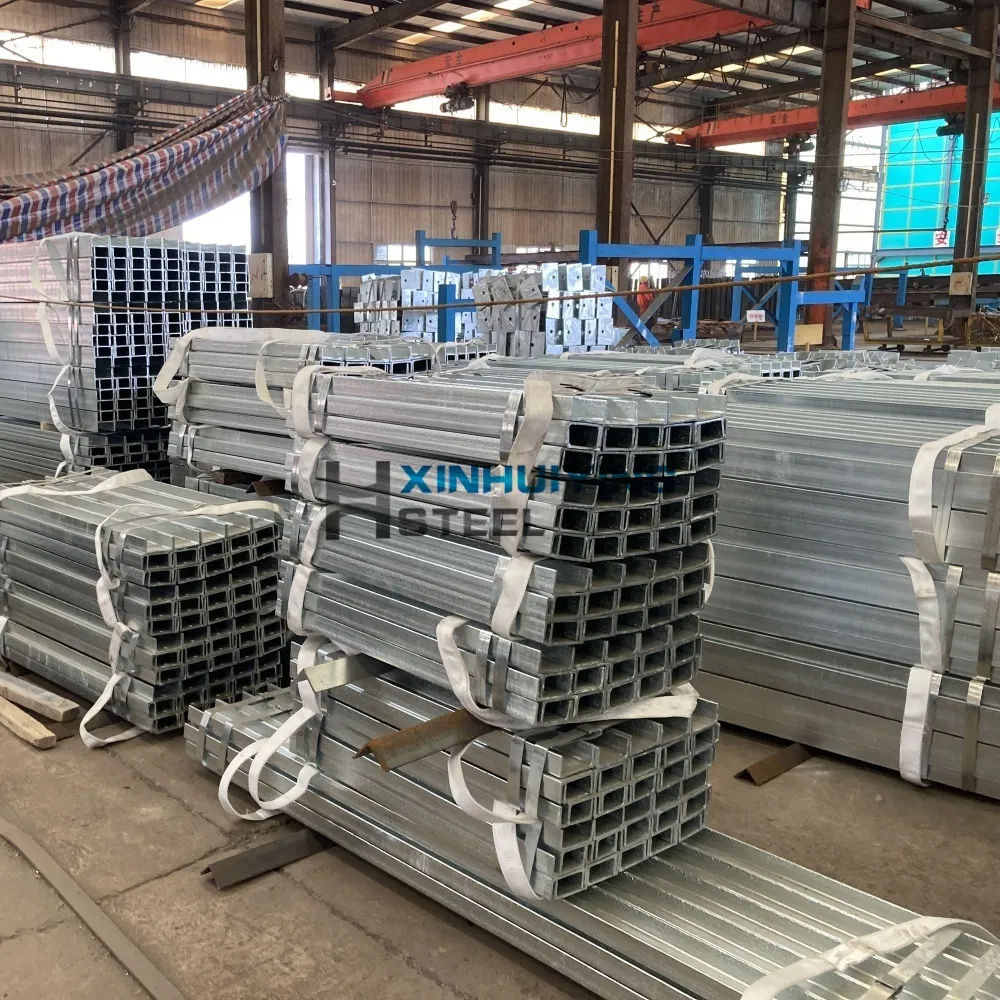

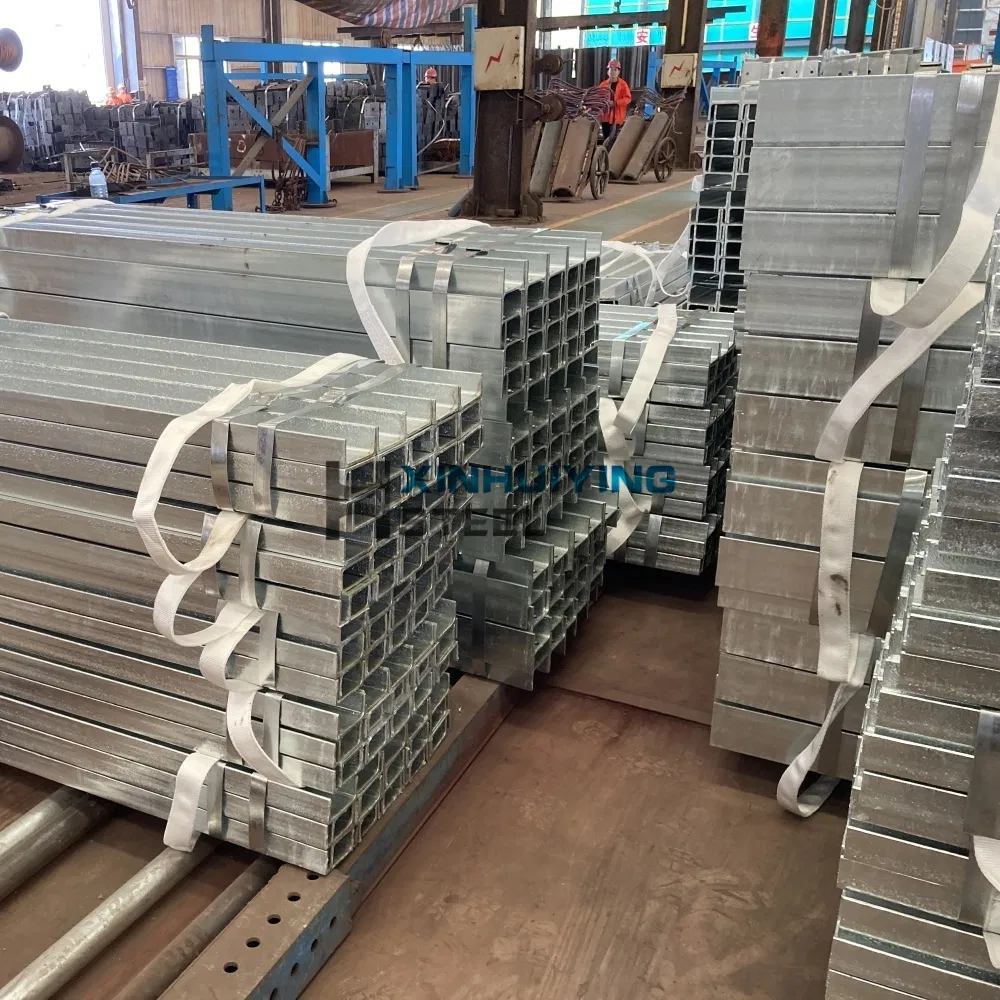

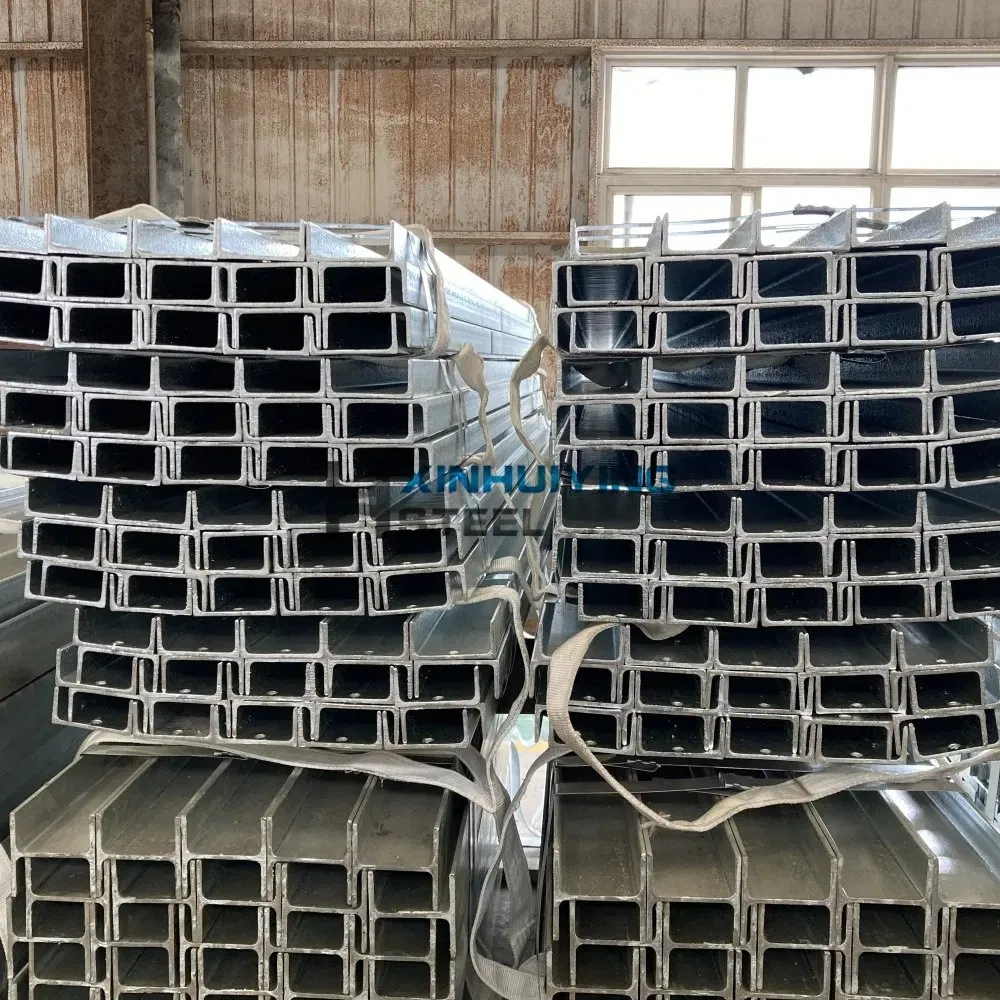

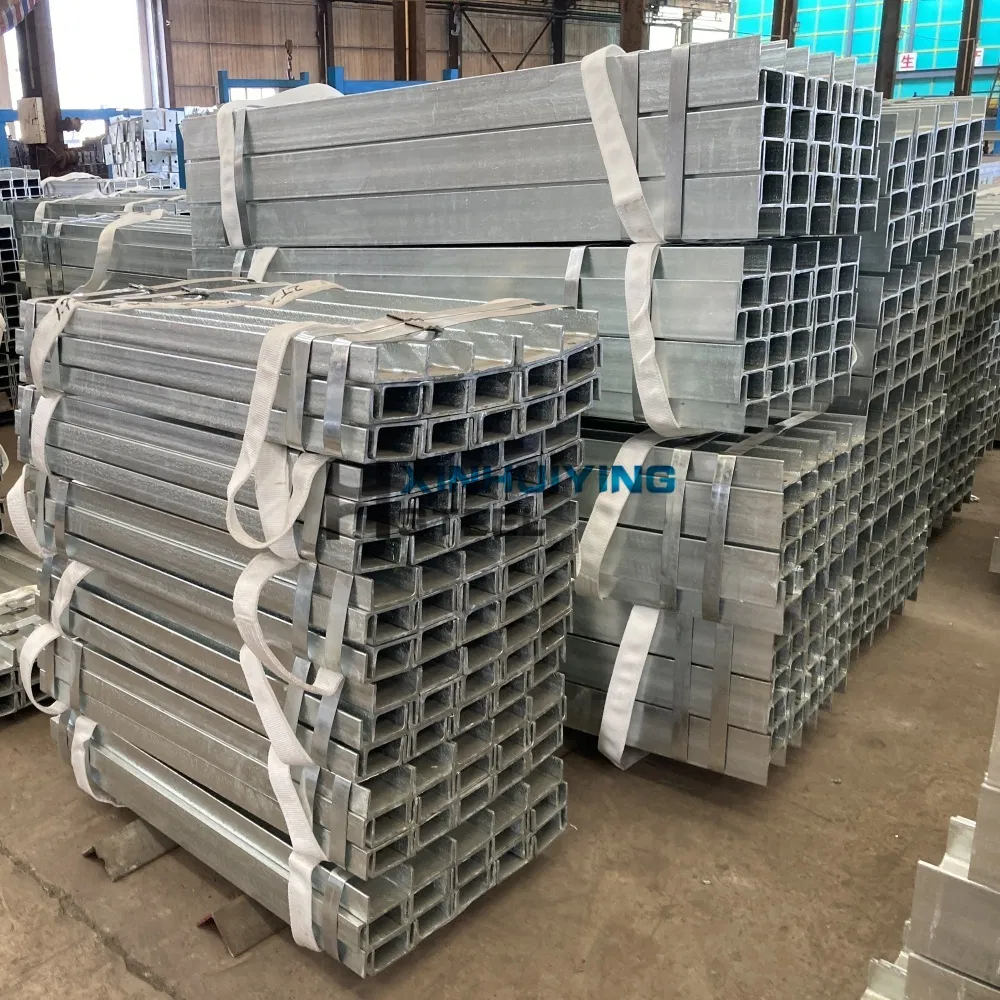

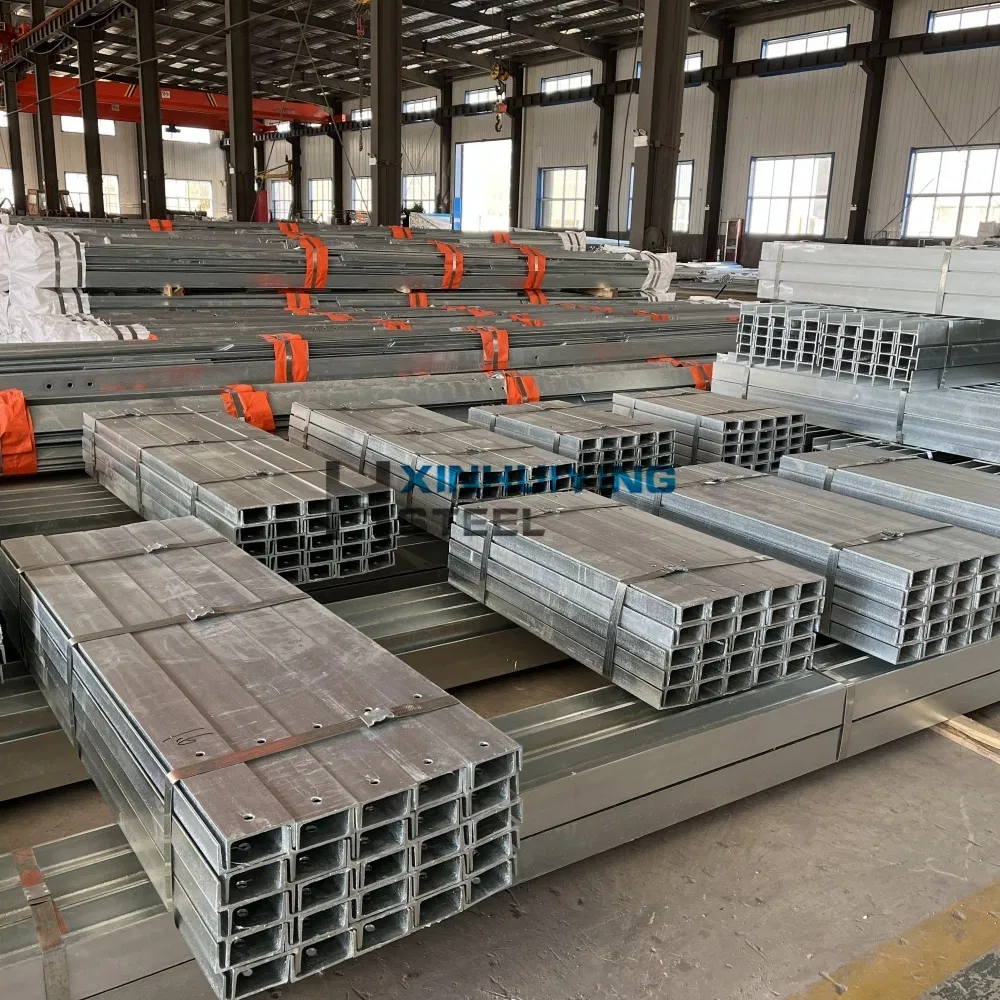

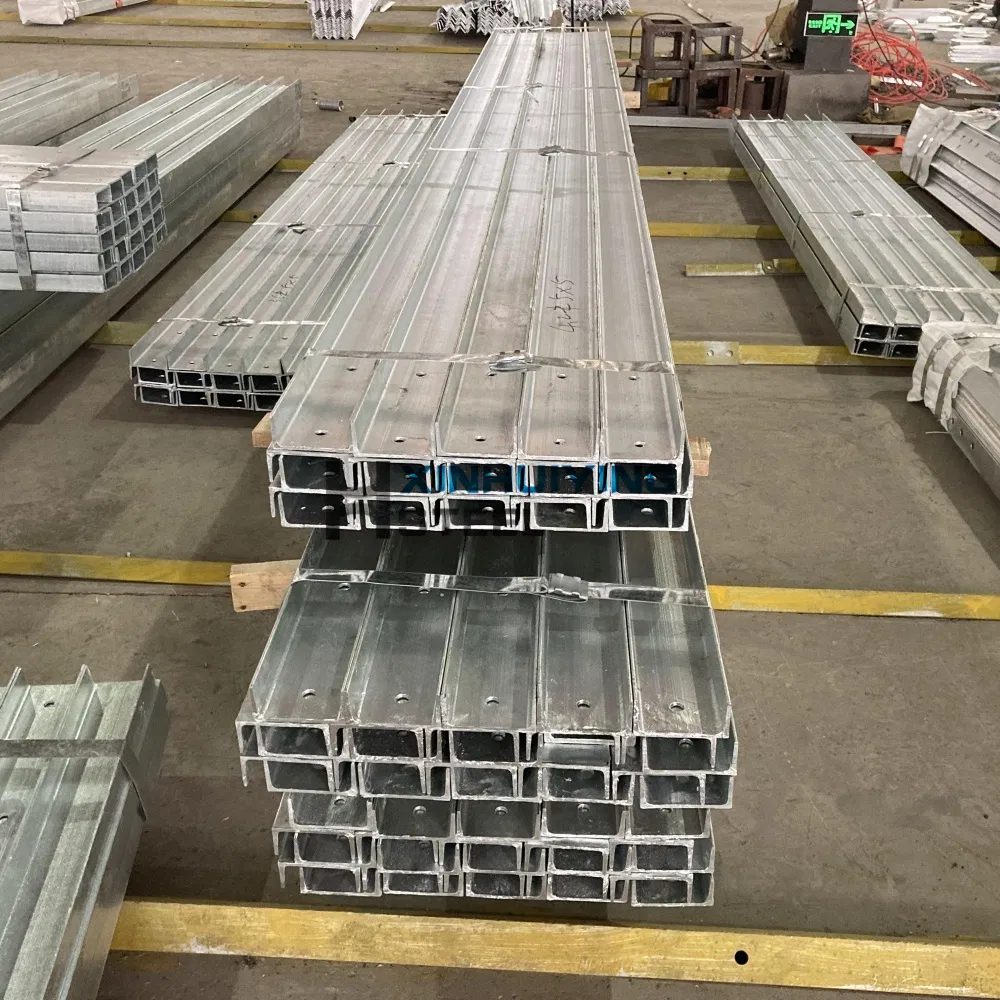

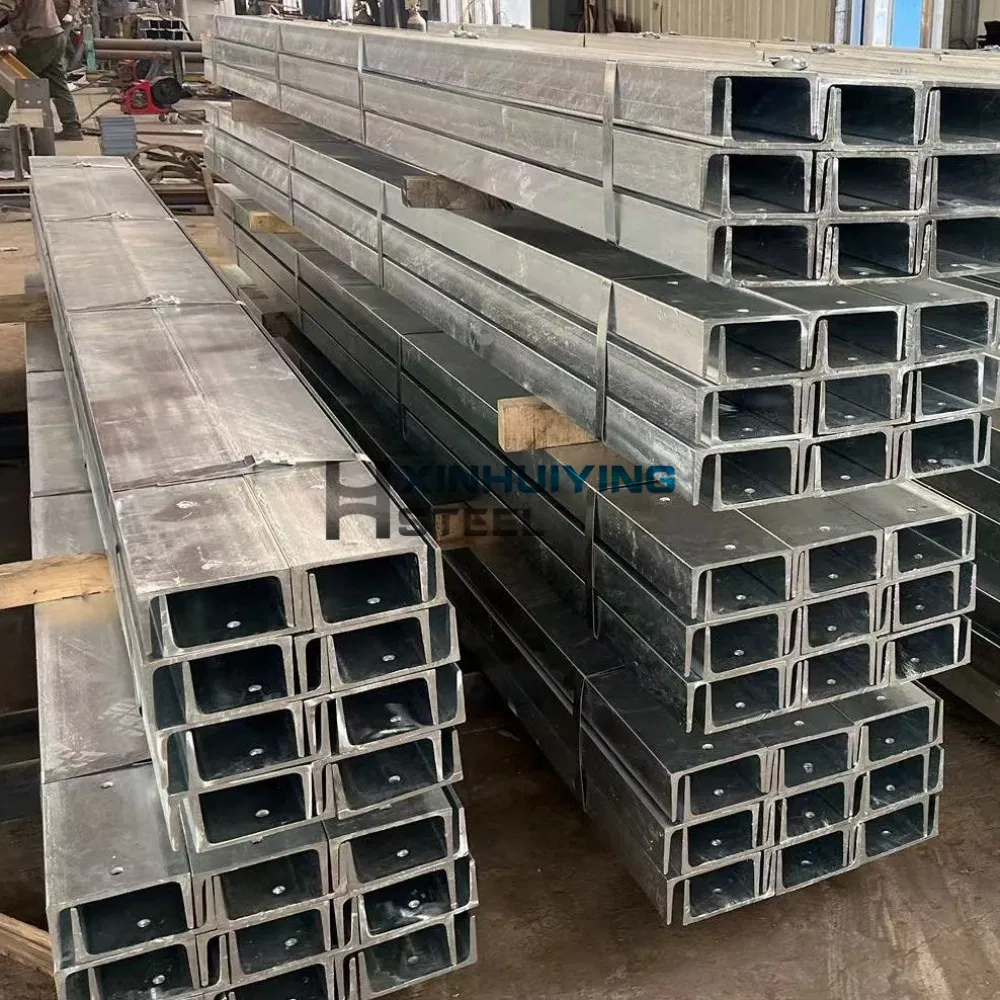

G300/G350 Retaining wall steel C section Steel PFC Channels
Parallel flange channels (PFCs for short) are some of the most versatile types of steel beams. Generally made from hot-rolled structural steel, PFC channel dimensions, thicknesses and sizes can vary significantly, with all products retaining that noticeable C-shaped cross-section. This is why they are commonly referred to as C channel beams or C sections.
PFCs are used as a load-bearing element in construction and engineering projects. They come in various sizes, each with different features and benefits. They are made from hot-rolled steel, and their cross-sectional shape allows them to bear significant weight without distorting. The unique shape and design of parallel flange channels make them incredibly versatile, robust and suitable for a variety of construction applications.
| Type | Specifications (mm) | Weight (kg/m) |
|---|---|---|
| PFC75*40 | 75*40*3.8*6.1 | 5.9 |
| PFC100*50 | 100*50*4.2*6.7 | 8.31 |
| PFC125*65 | 125*65*4.7*7.5 | 11.9 |
| PFC150*75 | 150*75*6*9.5 | 17.7 |
| PFC200*75 | 200*75*6*12 | 22.9 |
| PFC230*75 | 230*75*6.5*12 | 25.1 |
| PFC250*90 | 250*90*8*15 | 35.5 |
| PFC300*90 | 300*90*8*16 | 40.1 |
| PFC380*100 | 380*100*10*17.5 | 55.2 |
Steel channels can withstand significant weight without bending or twisting due to their hot-rolled construction.
Suitable for various projects including building frames, bridges, and industrial structures.
More economical than other load-bearing elements like concrete or timber for many applications.
Requires minimal labor compared to reinforced concrete, making installation quick and efficient.
Highly fire resistant, making them a popular choice where safety and compliance are critical.

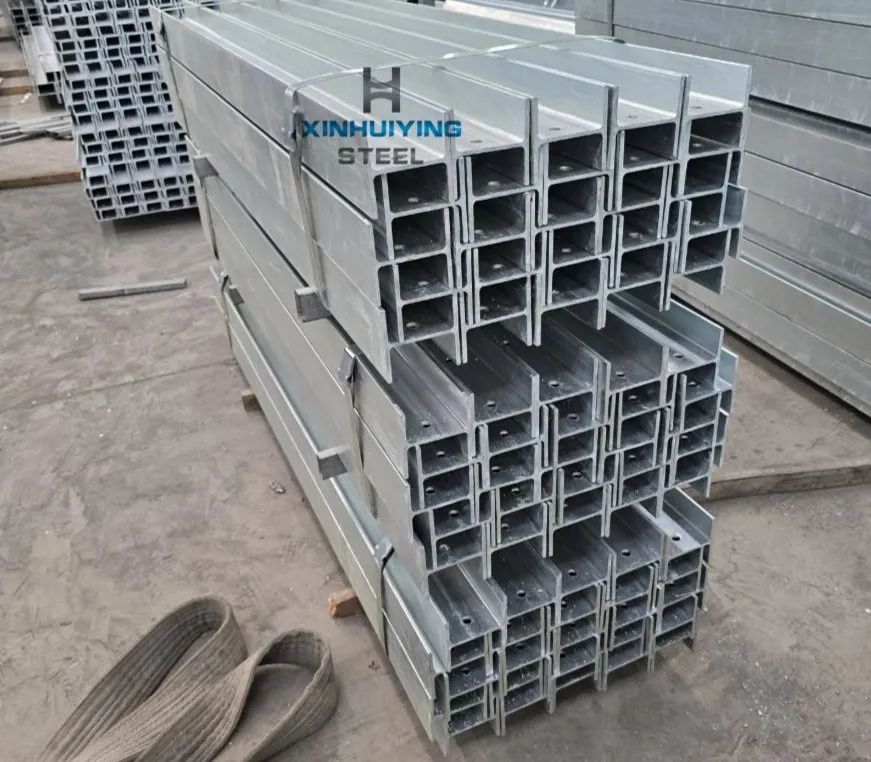

Galvanized Steel H post / H Beam
Ideal solution for supporting the straight middle panels of your structural retaining wall projects. This UC (Universal Column) post is long-lasting and compatible with any concrete sleepers.

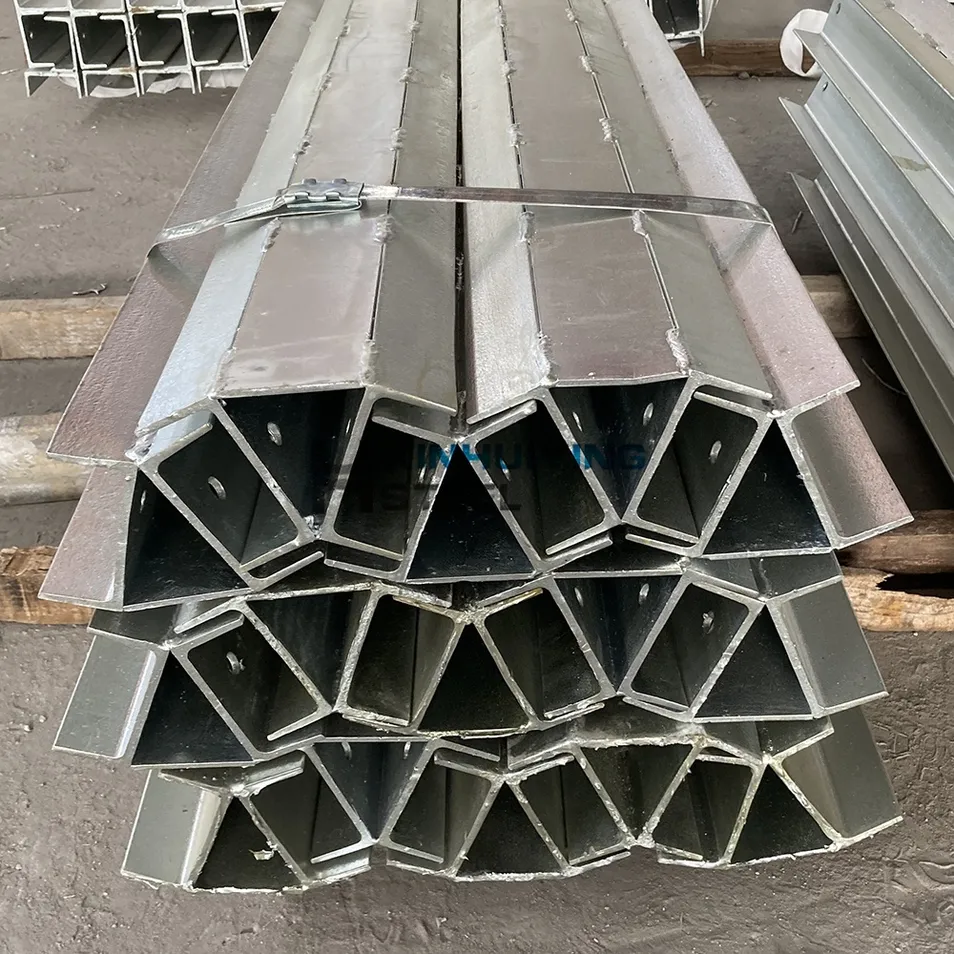

Galvanized Steel 45 Degree Corner Channel Posts
Manufactured by welding two PFC Posts, this corner steel post is ideal for gentle deviations in the middle panels of your concrete sleeper retaining wall.

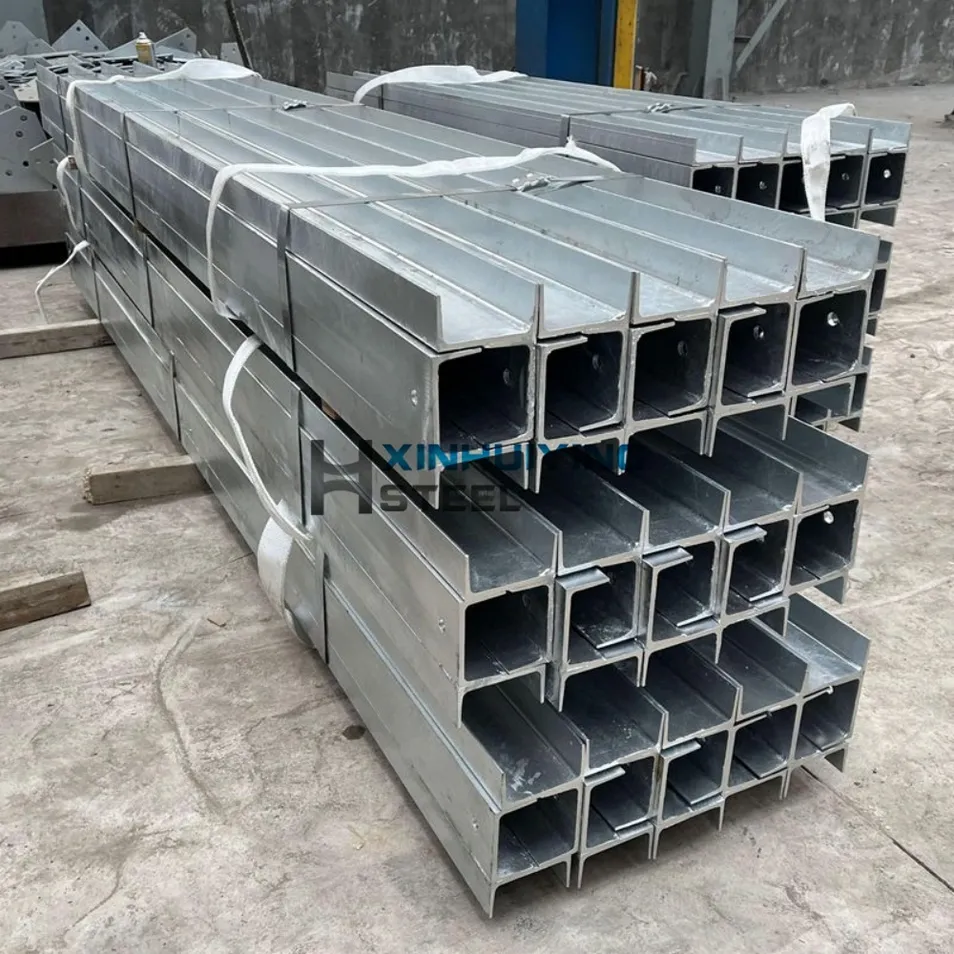

90 Degree Corner Joiner Steel Posts
Designed for hard 90° corners, these heavy-duty galvanized posts are compatible with heavy-duty and super heavy-duty concrete sleepers.

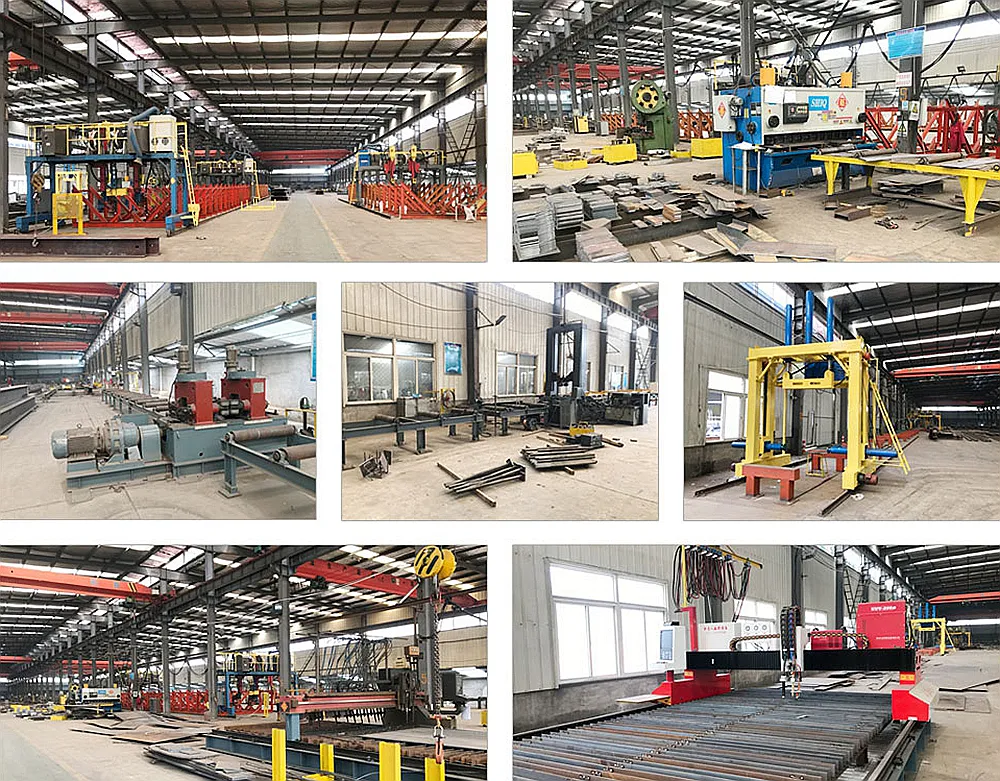

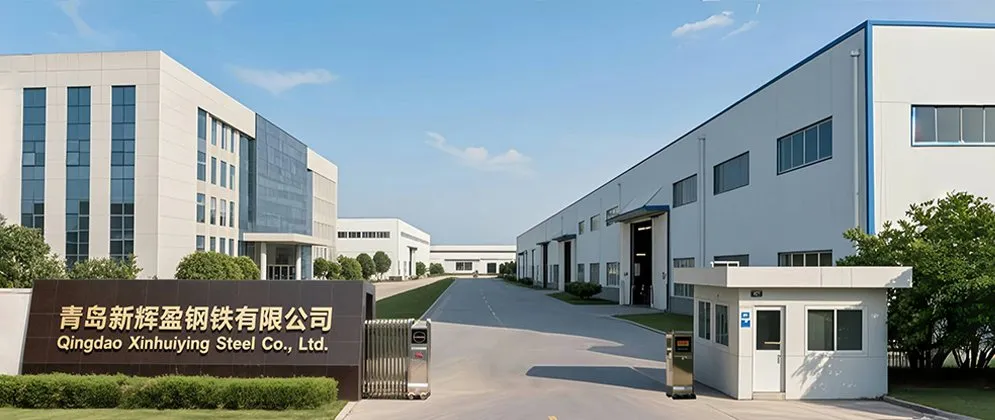

As a leading steel manufacturer, our facility covers 20,000 square meters equipped with modern production lines for all kinds of steel fabrications and precision CNC machinery. We specialize in designing and building structural steel fabrications, pressure vessel tanks, metal sheet fabrications, and galvanized steel sections.
Our "one-stop material purchase" operation mode ensures a fast, convenient, and efficient production cycle. We adhere to the principle of "customer first" to provide high-quality steel products globally.
