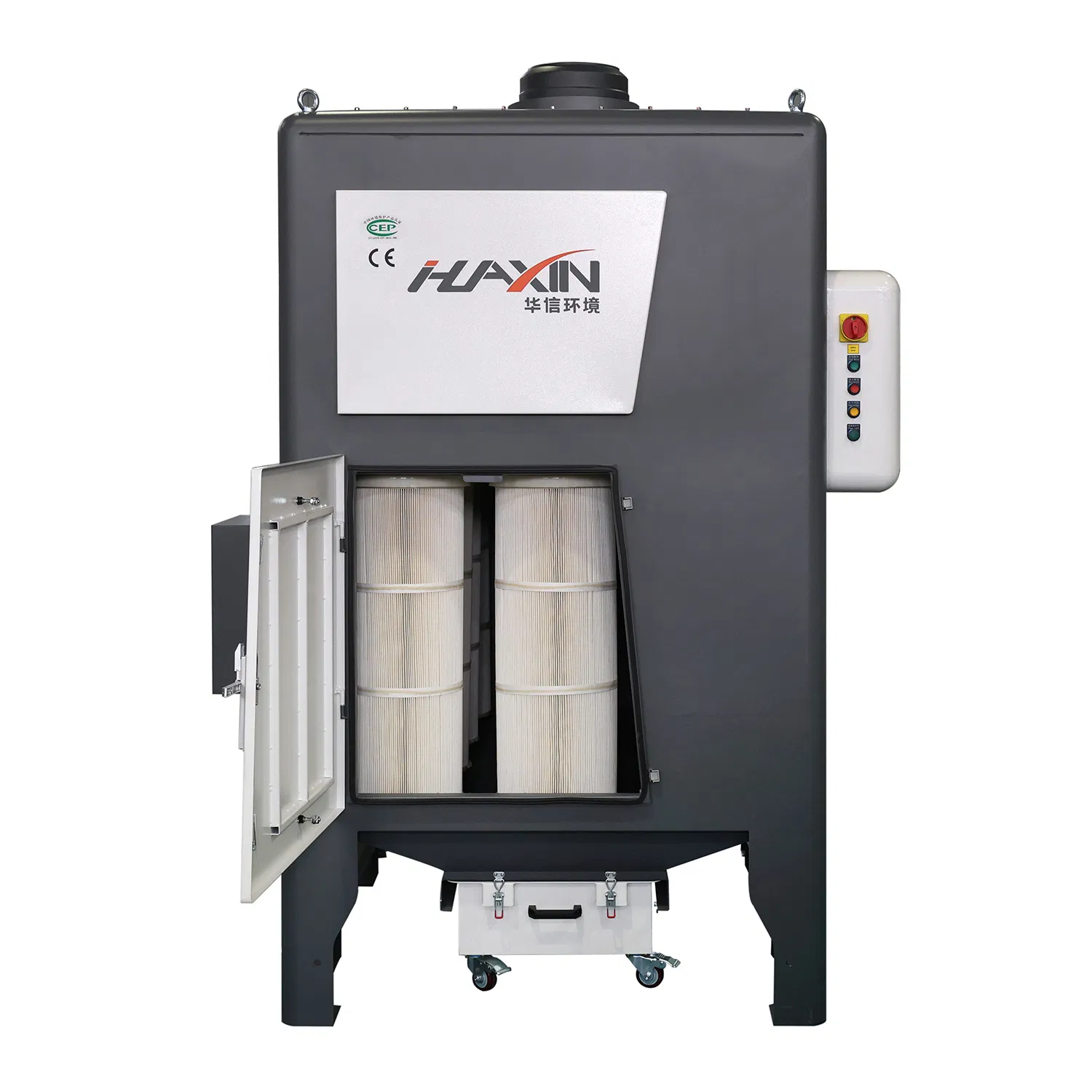

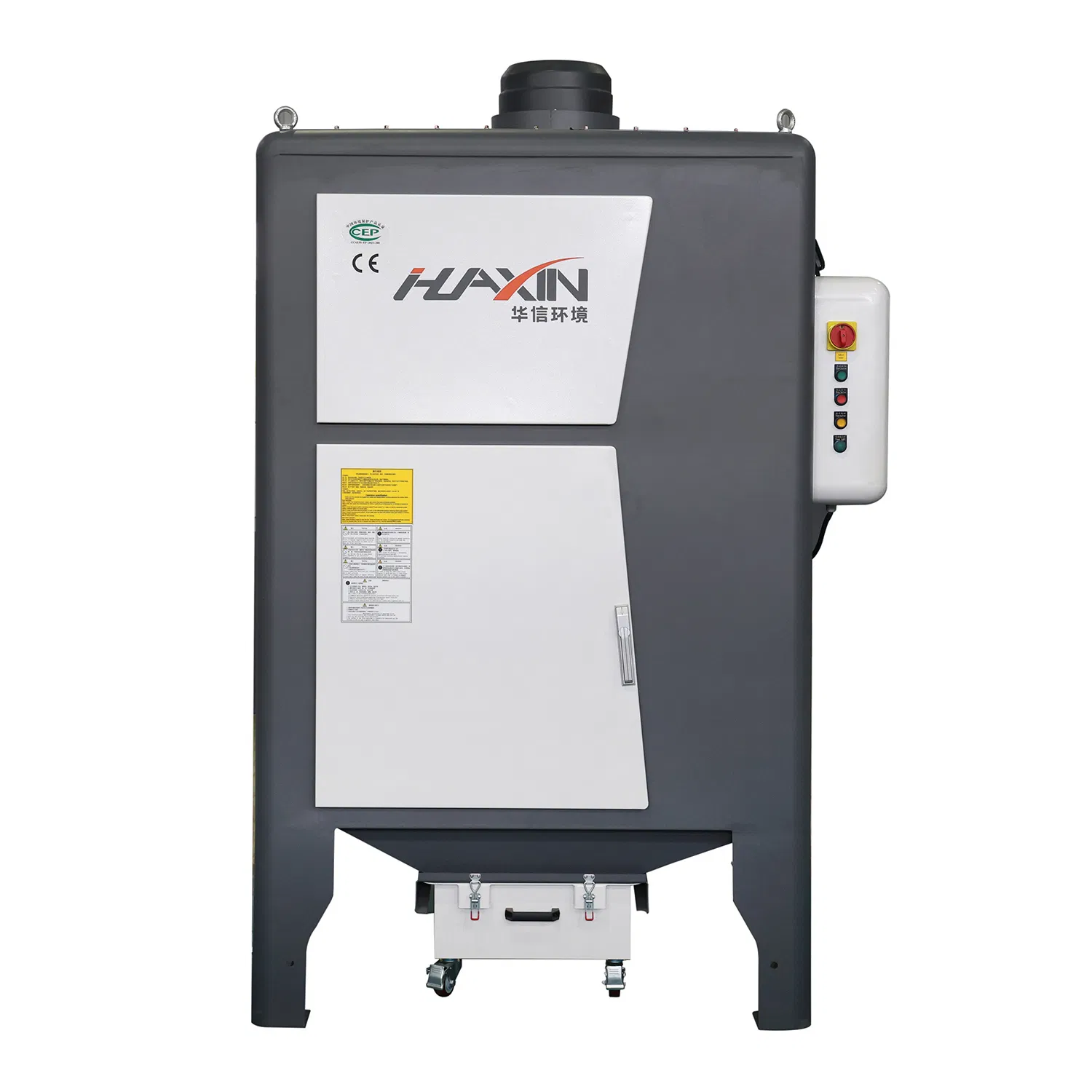

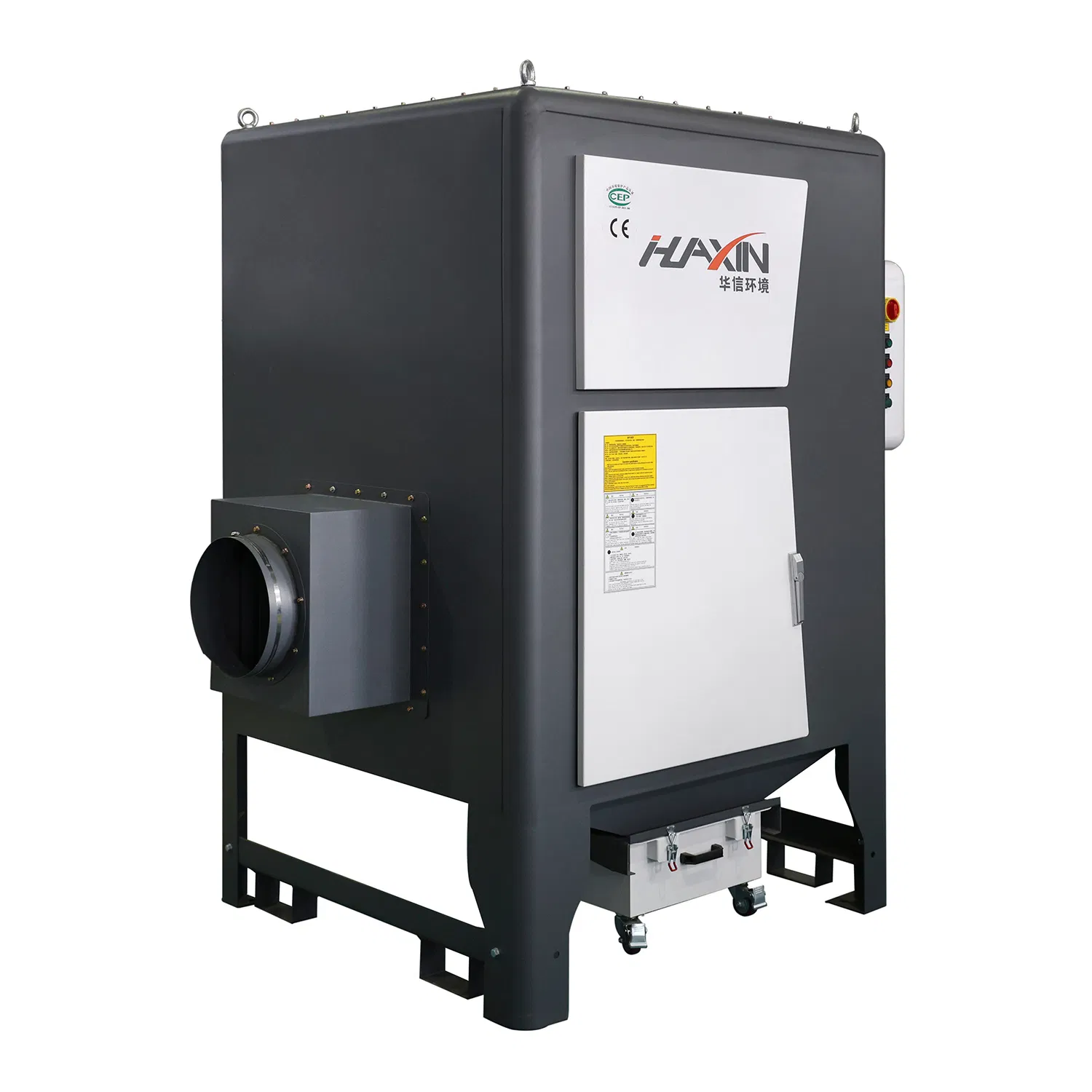

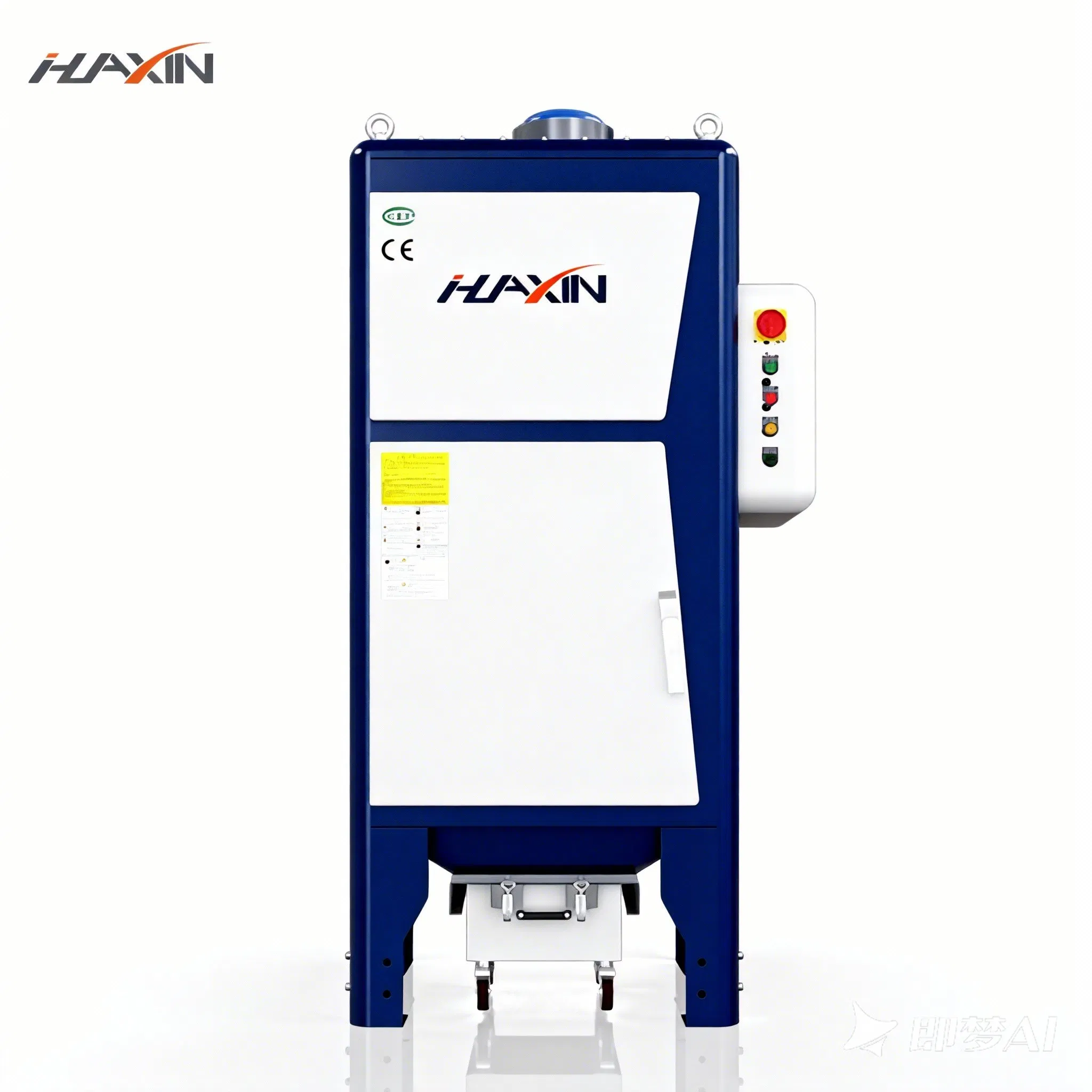

Fume Extraction/Dust Collector/Air Filter/Air Purifier with 380V/3phase for Welding, Grinding, Polishing, Cutting and Laser Cutting Machine

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Overview - Basic Info
Model NO.
HXHJ-XF09
Operation Type
Automatic
Medium Material
Chemical Synthetic Fiber
Dust Collecting
Dry
Type
Filter Cartridge Dust Collector
Power
11kw
Voltage
380V/415V/220V
Filtration Area
117m2
Filtration Accuracy
99.99%
Mini Particle Size
0.3um
⚙️ Product Description

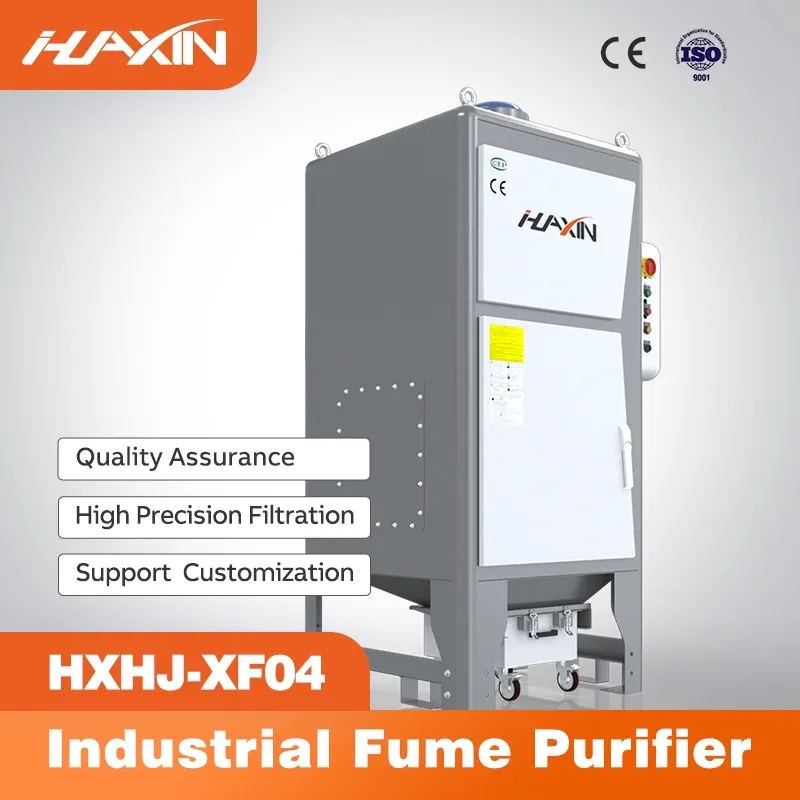

Fume Extraction
Dust Collector
Air Filter
High - Efficiency Filtration These dust collectors are designed to have a high - efficiency filtration system. They can capture a wide range of particulate matter, including fine dust and fume during the laser - cutting process. The filtration efficiency can often reach up to 99.99% or even higher. Adaptability to Different Dust Types Capable of handling different dust characteristics. For example, when cutting metal, the dust collector can effectively deal with metal fines and fume, and when cutting plastics or composites, it can also adapt to unique material properties. Powerful Suction Capacity The suction force is strong enough to draw in the dust as soon as it is produced, preventing it from spreading in the workshop. This is crucial for protecting the precision components of the laser cutting machine. Compact and Space - Saving Design Designed to be compact. They can be easily installed near the laser - cutting machine without taking up too much valuable floor space. Low Noise Operation Engineered to operate at a relatively low noise level, typically below 80 decibels, so that workers can focus on their tasks without disturbance. Safe and Reliable Operation Equipped with safety features such as over-temperature protection and over-current protection to ensure safe and reliable operation.

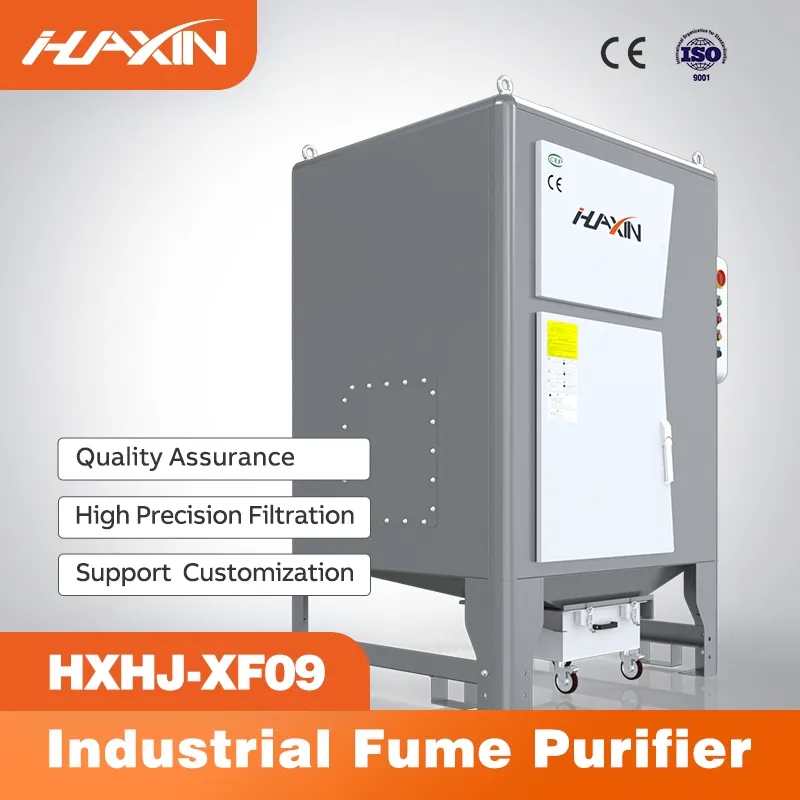

Operation View
📋 Product Parameters
Model Airflow (m³/h) Power (kW) Voltage (V) Filter Area (m²) Precision (%) Noise (dB) Size (mm)
HXHJ-XF0440005.5KW380/415/220V5299.99%77±31200*1100*2500
HXHJ-XF0660007.5kWSame7899.99%77±31200*1400*2500
HXHJ-XF09900011kWSame11799.99%77±31600*1400*2500
HXHJ-XF121200015kWSame15699.99%77±31600*1700*2500
HXHJ-XF161600018.5KwSame20899.99%77±32000*1700*2700
HXHJ-XF202000022kWSame26099.99%77±32100*2200*2800
🌟 Our Advantages & Details

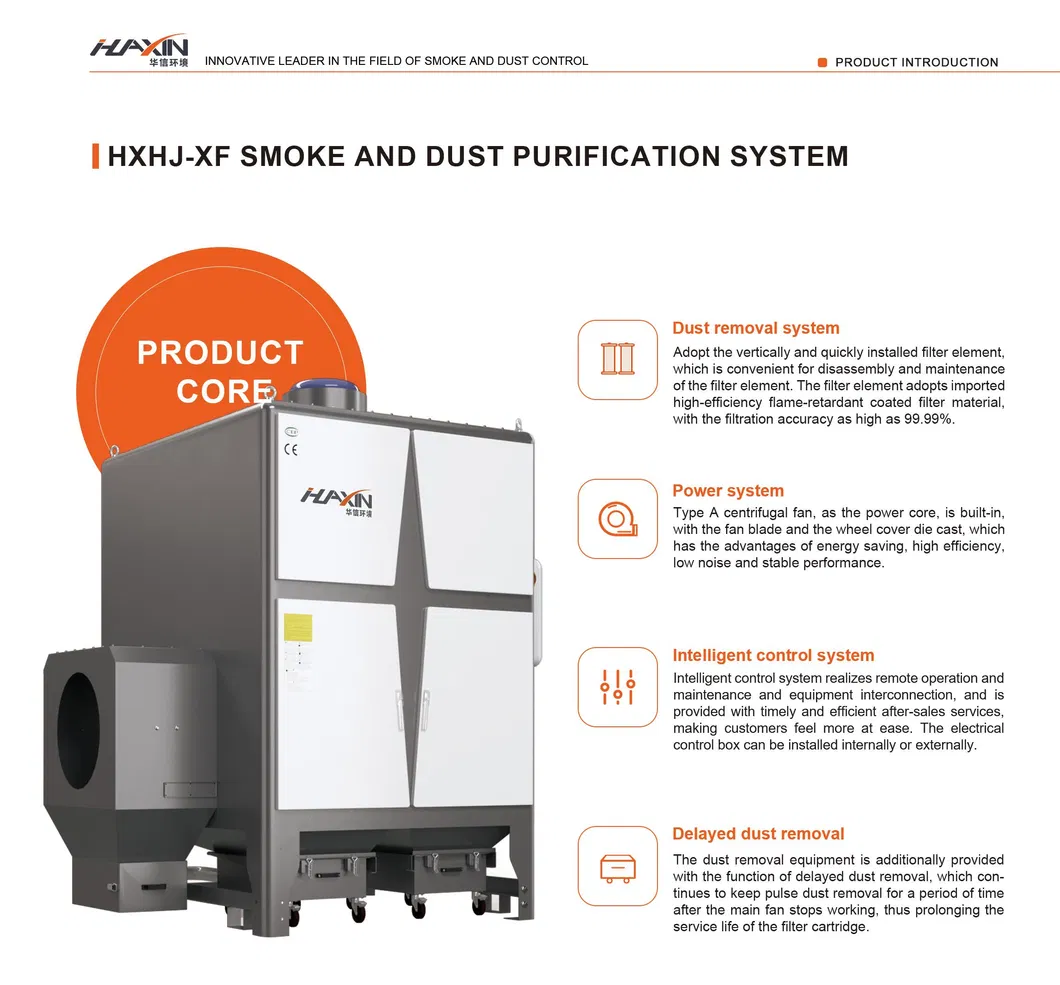

Advantage 1
Advantage 2

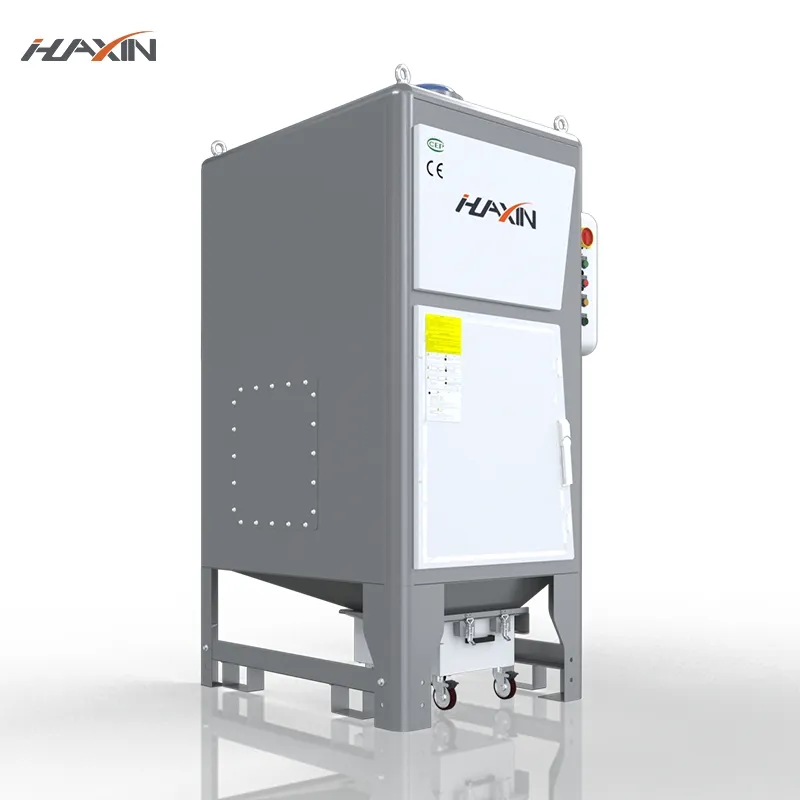

Detail 1

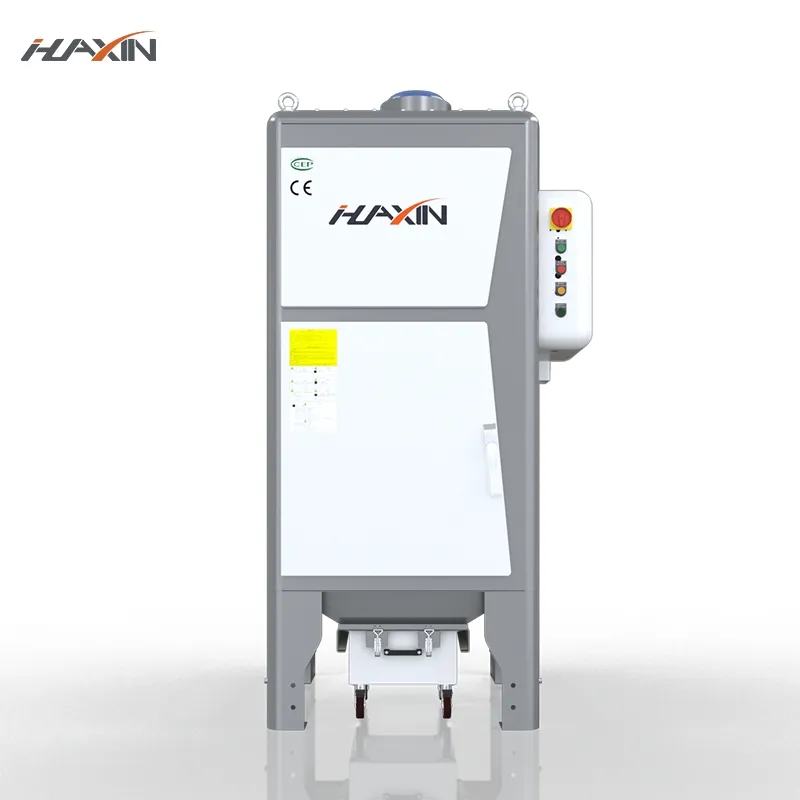

Detail 2

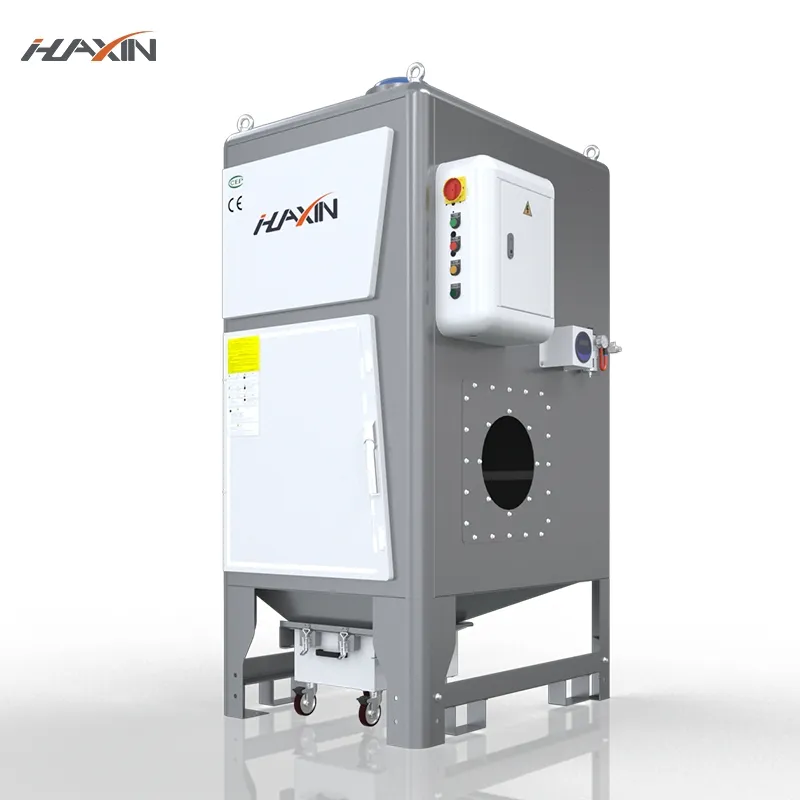

Detail 3
📜 Certifications

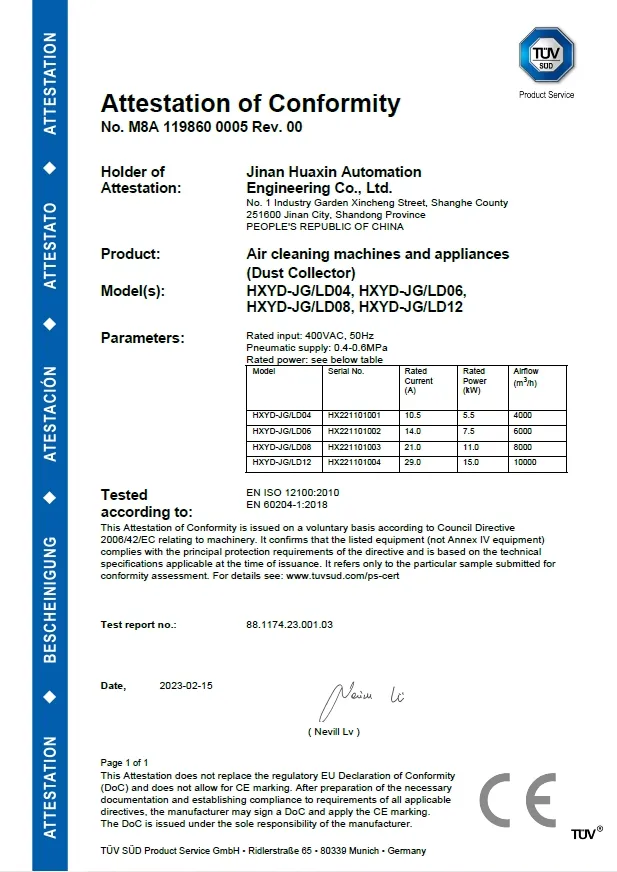

Cert 1

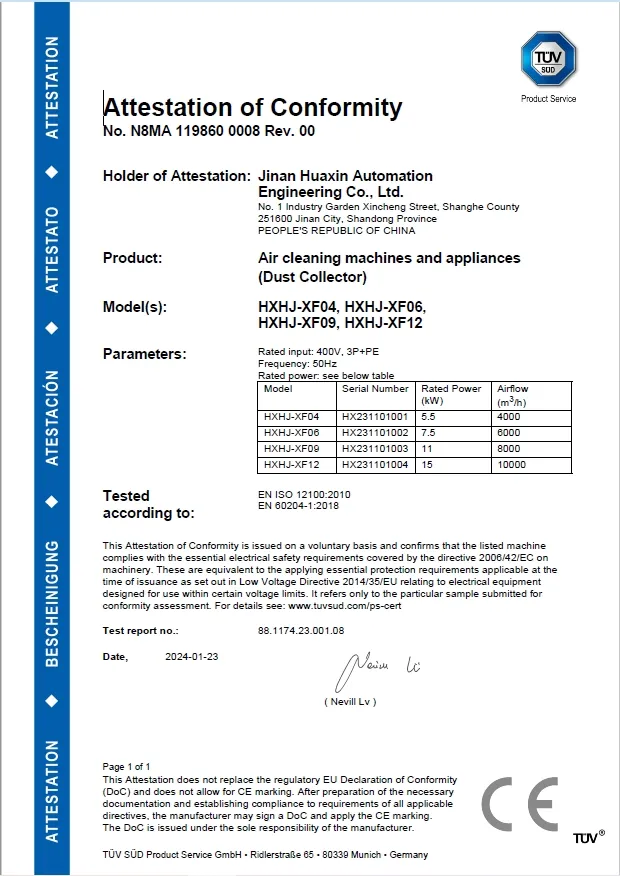

Cert 2

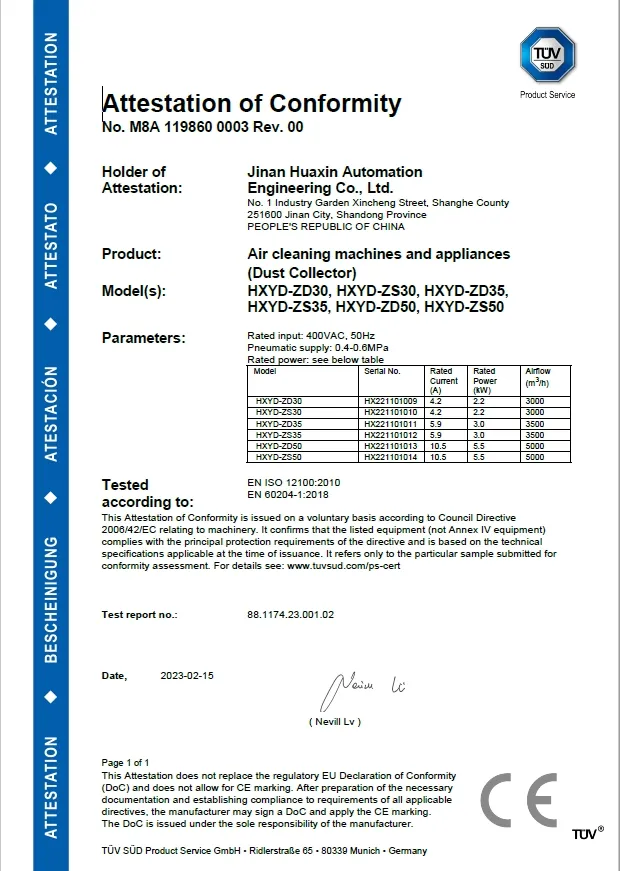

Cert 3
📦 Packaging & Shipping

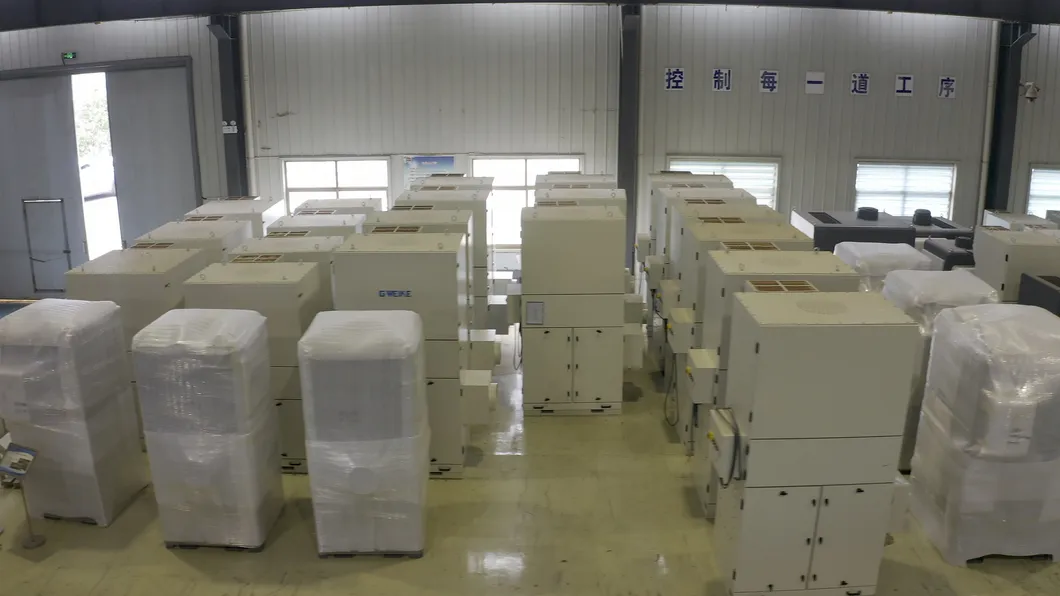

Packing 1
Packing 2
Frequently Asked Questions
Is there any noise?
The fans will have sound insulation cotton and will not produce excessive noise.
Why is the plastic spraying process recommended?
The paint is not easy to fall off, making it more durable for surface treatment.
How to configure the air volume?
Simply measure the diameter of the exhaust pipe on your cutting platform and tell us; we can calculate the required air volume for you.
How to avoid fire accidents from sparks?
We install spark catchers (labyrinth structure) which extinguish sparks by forcing them against cold plates multiple times.
Do you need to vent a chimney?
No. High-precision filter material filters 0.3um dust with >99% efficiency, allowing for direct indoor discharge.
Is there an after-sales warranty?
The warranty period is one year with free maintenance. Outside this period, only the cost of replacement parts is charged.
