| Model NO. | DV-RPR1000 |
| Certification | ISO, CE, FDA |
| Voltage | 220V/380V/415V/440V/480V |
| Application | Metal Sheet |
| Working Width | 800mm, 1000mm, 1300mm |
| Function | Deburring / Chamfering / Buffing / Polishing |
| Key Components | Japan NSK Bearing / Taiwan Airtac Solenoid Valve |
| Processing Thickness | 1-80mm |
| Applied Material | Carbon Steel, Stainless Steel, Aluminum, Brass |
| Feeding Speed | 0.8-7m/Min |

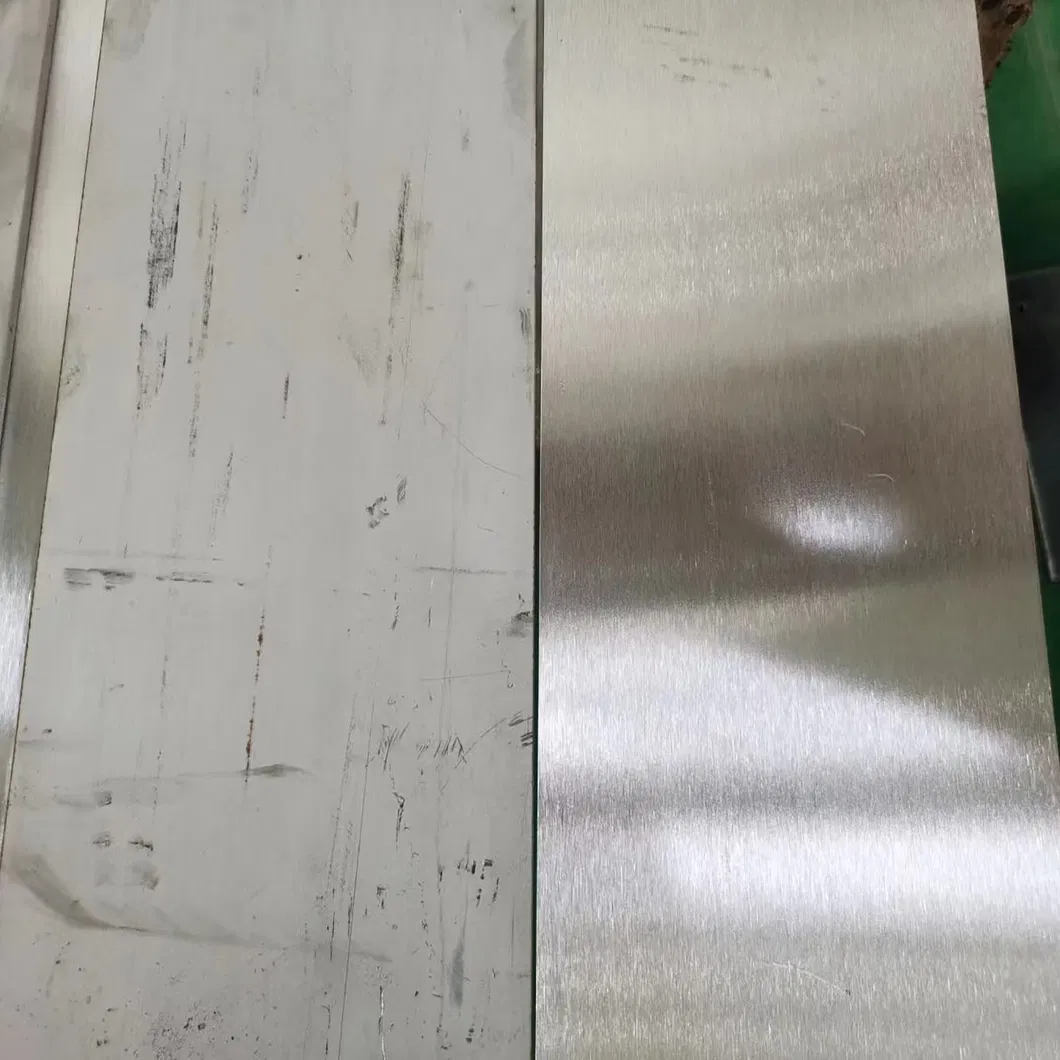

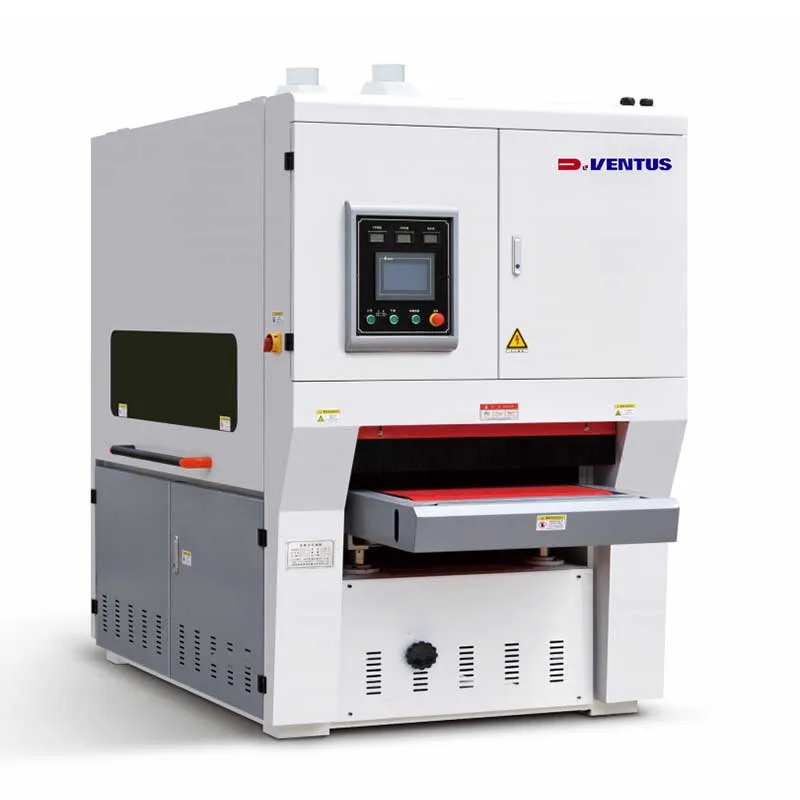

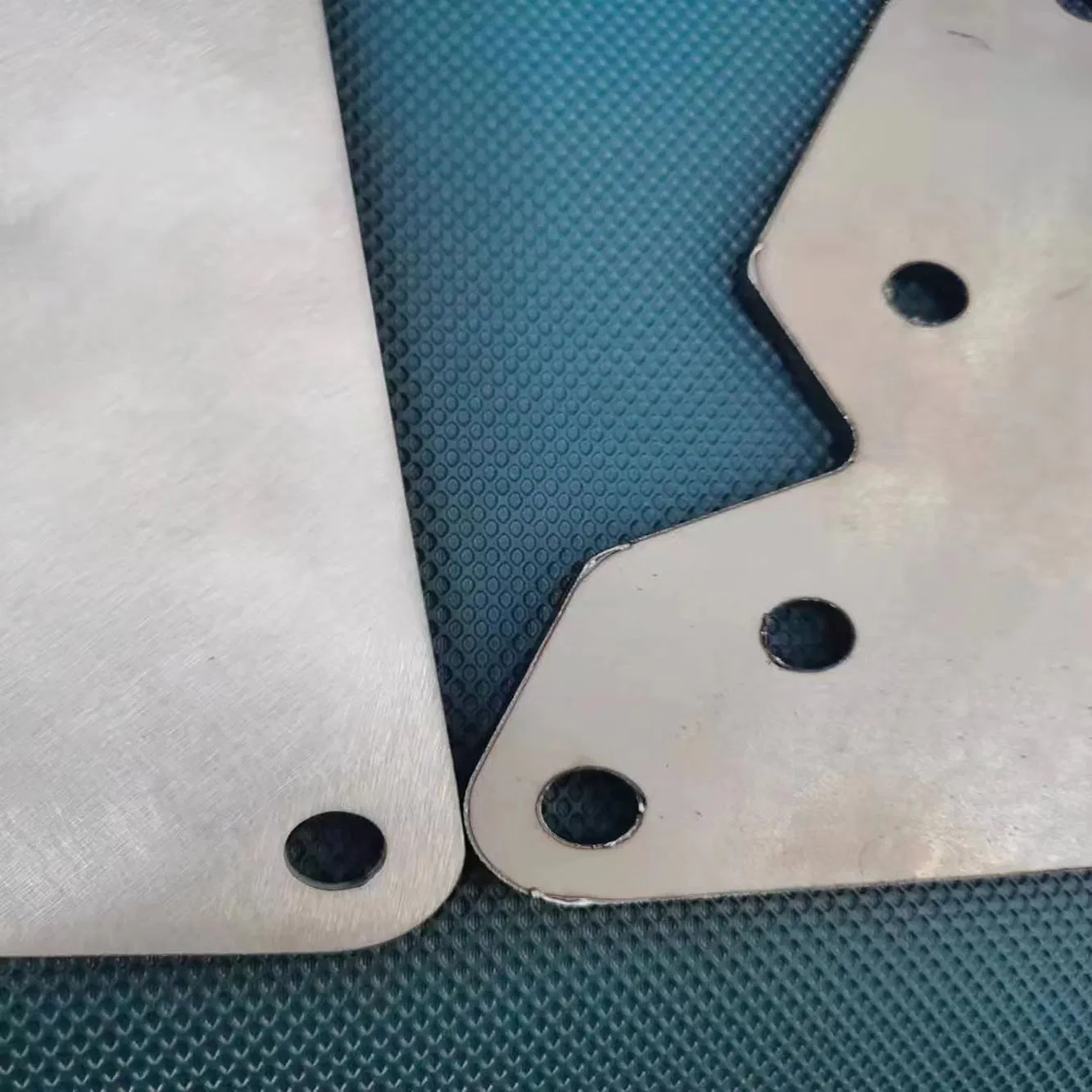

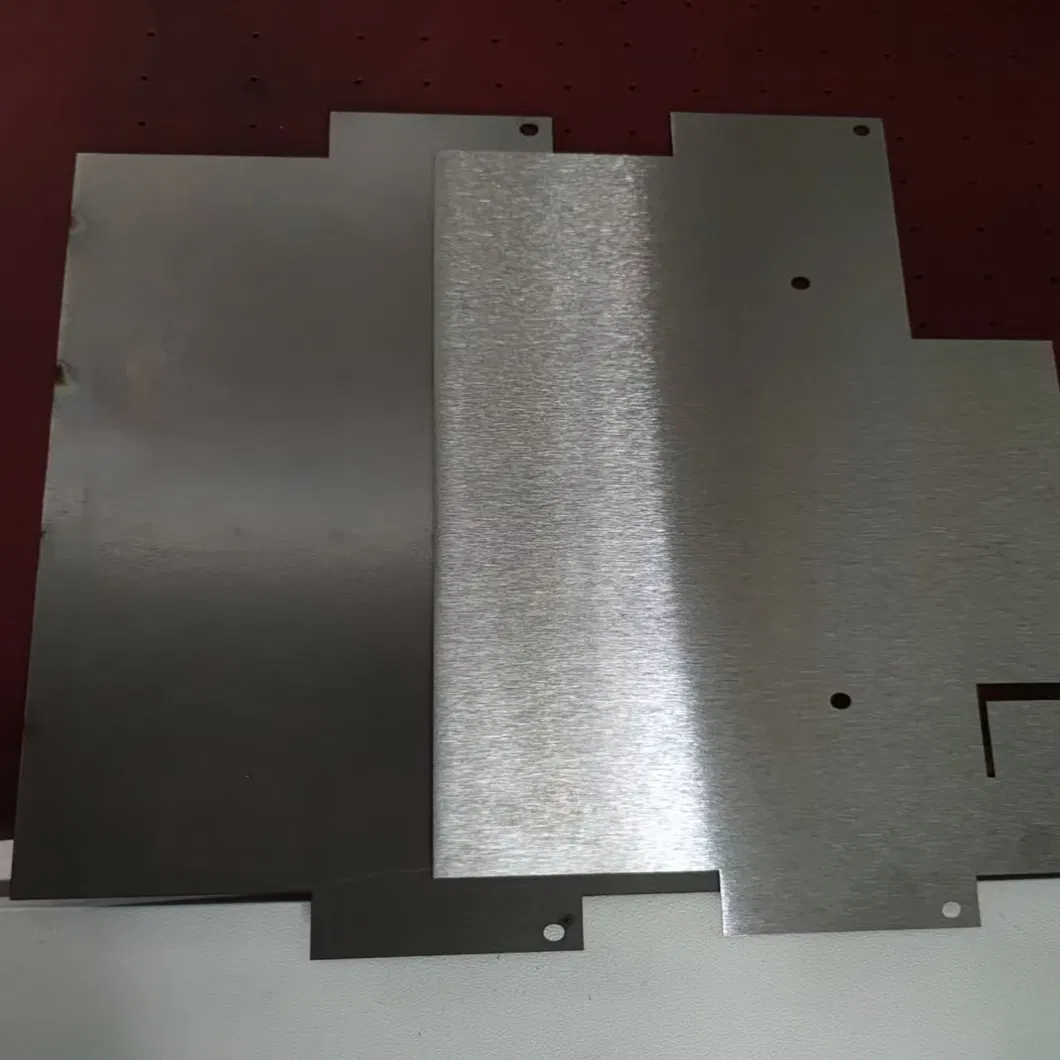

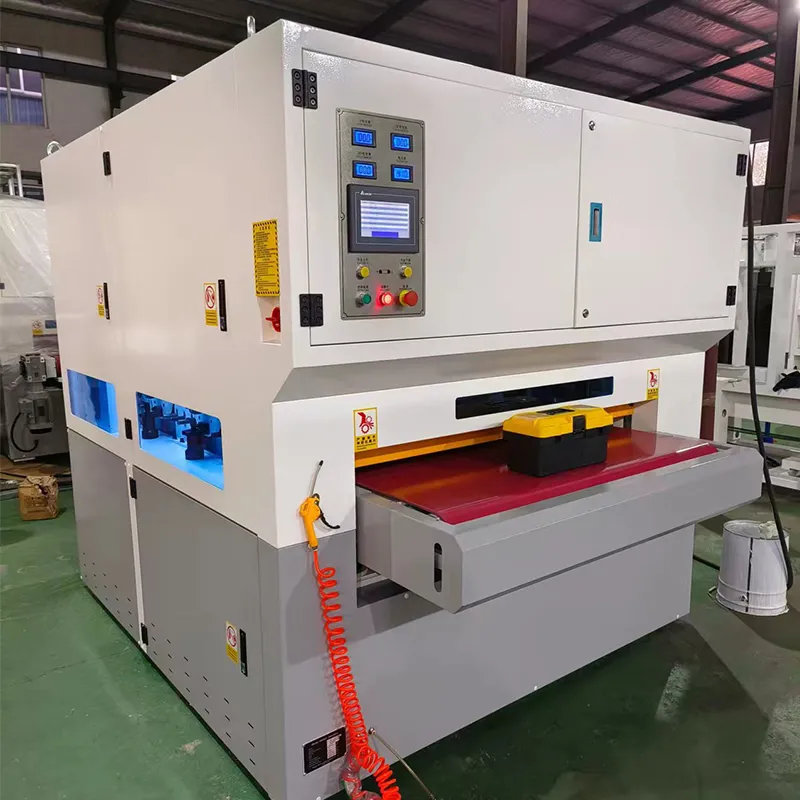

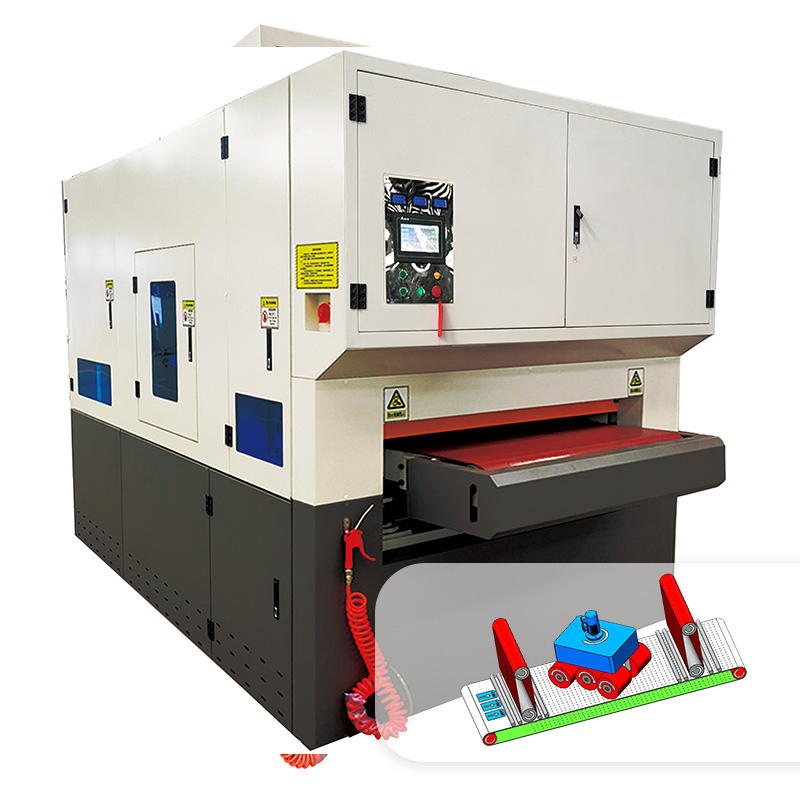

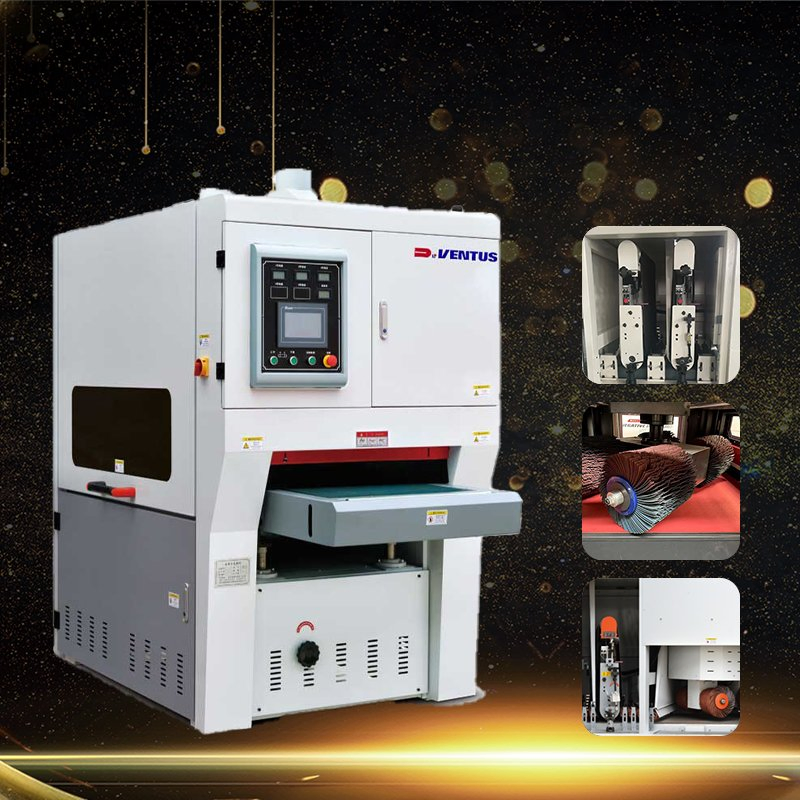

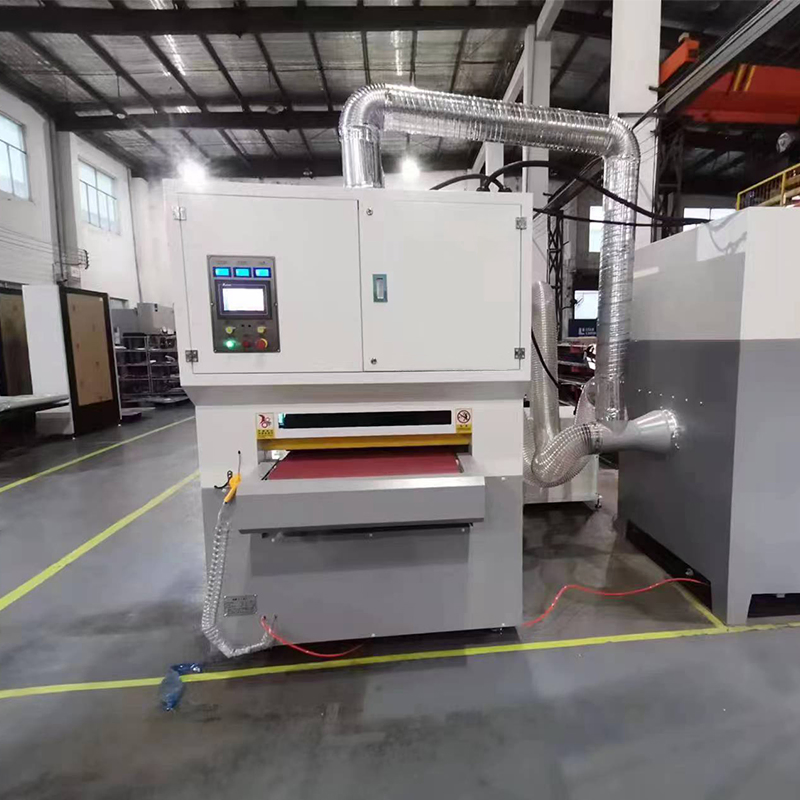

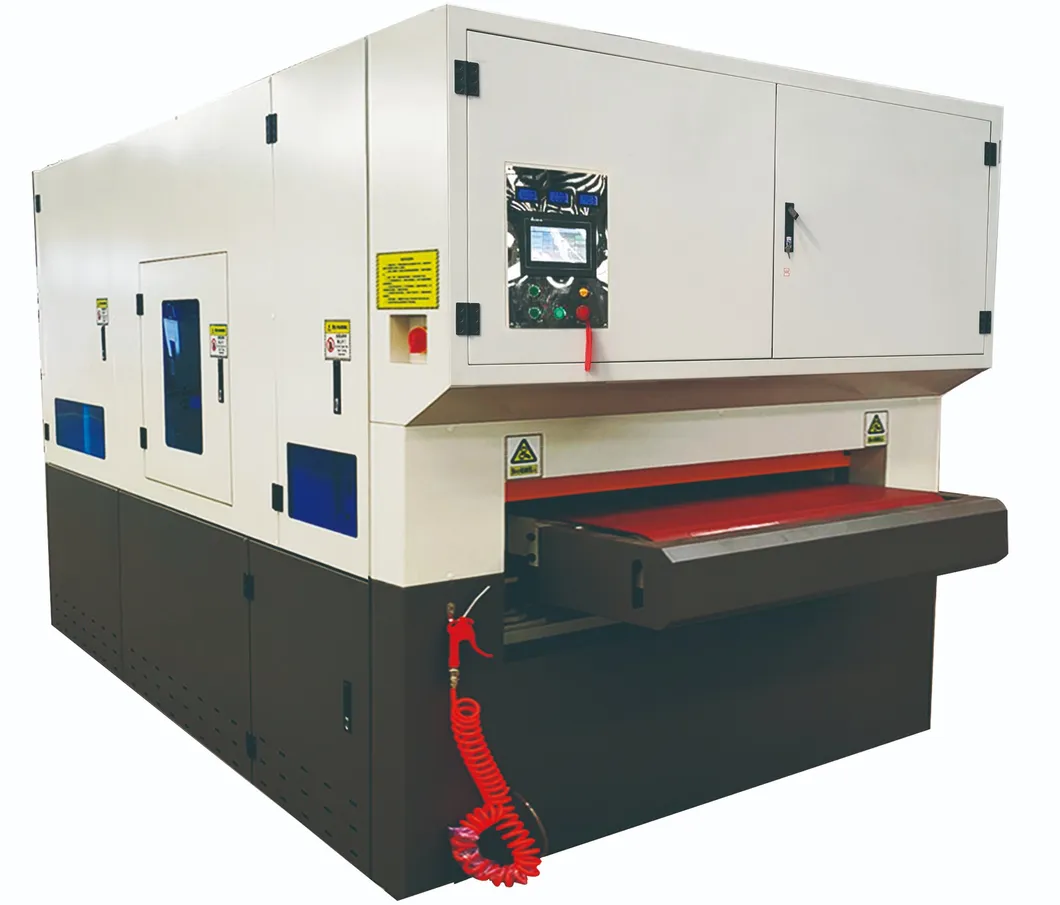

This Flat Sheet Deburring Chamfering Machine is primarily used for wire drawing and chamfering of stainless steel, copper, aluminum, and other metal materials. It achieves a delicate surface texture while removing burrs and sharp angles to increase safety and assembly quality.
| Min Processing Size | 30x30mm |
| Max Processing Width | 800mm / 1000mm / 1300mm |
| Conveyor Speed | 1~10m/min |
| Motor Power (1st Sand Frame) | 11kW |
| Motor Power (2nd Sand Frame) | 7.5kW |
| Noise Level | ≤70dB |
| Machine Weight | 3600kg |

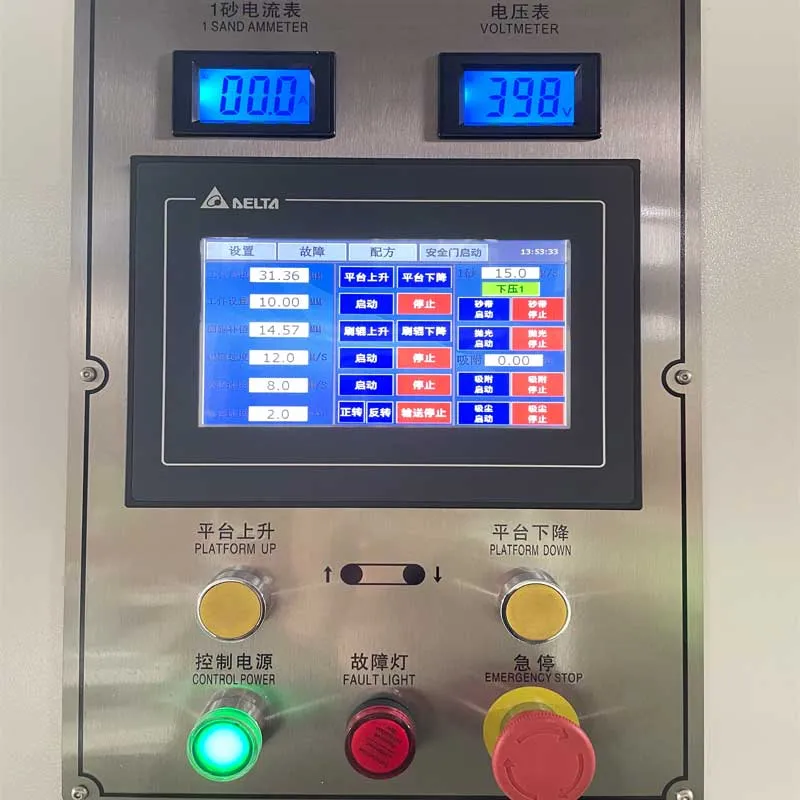

Smart PLC Panel: Digital display for precision lifting and separate unit control.

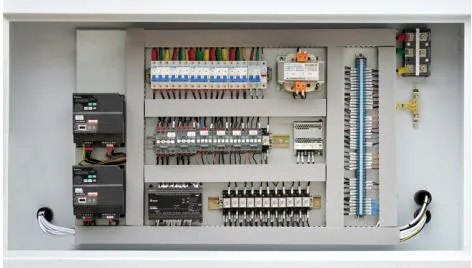

Electrical Box: Tidy wiring and stable performance components.

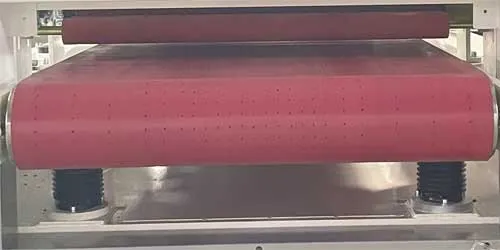

Conveyor Belt: Multi-layer thickened material for long service life.

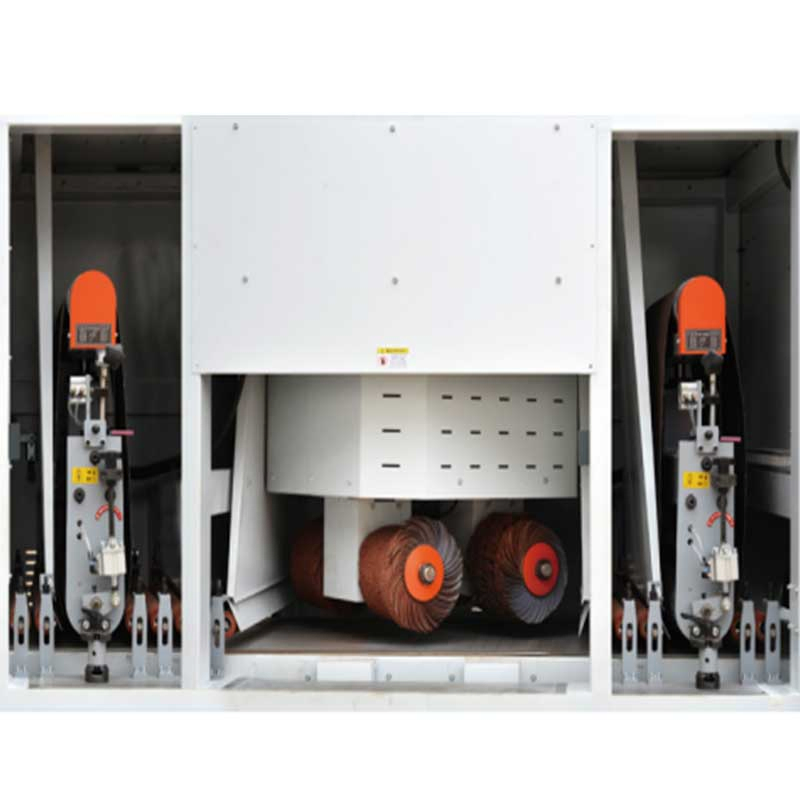

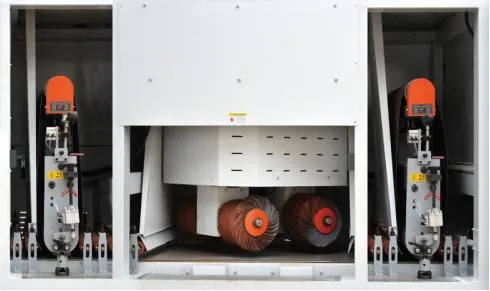

Hybrid System: Sand belts + Rotary brushes for 3-step finishing.

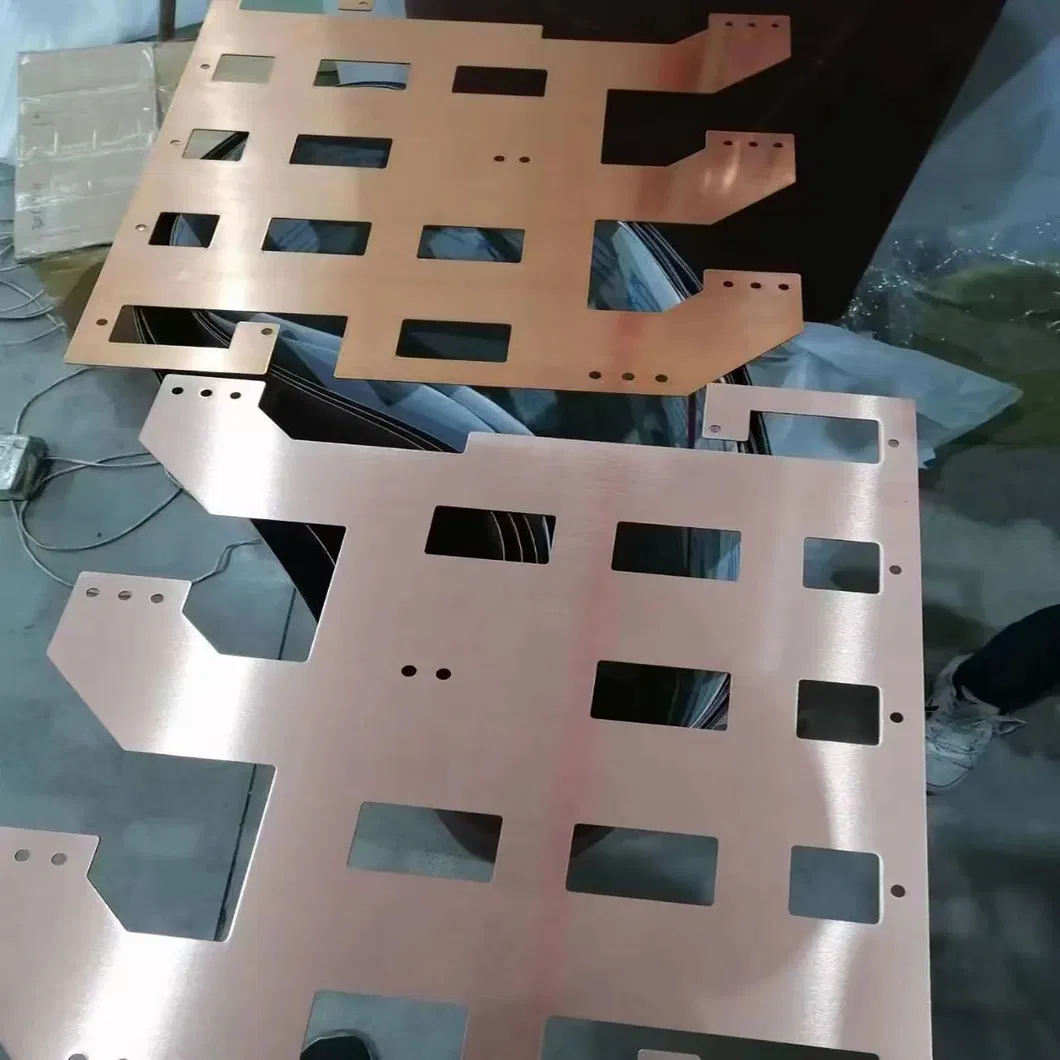

A: It is ideal for stainless steel, carbon steel, aluminum, brass, and other metal sheets.
A: The machine supports a processing thickness range of 1mm to 80mm.

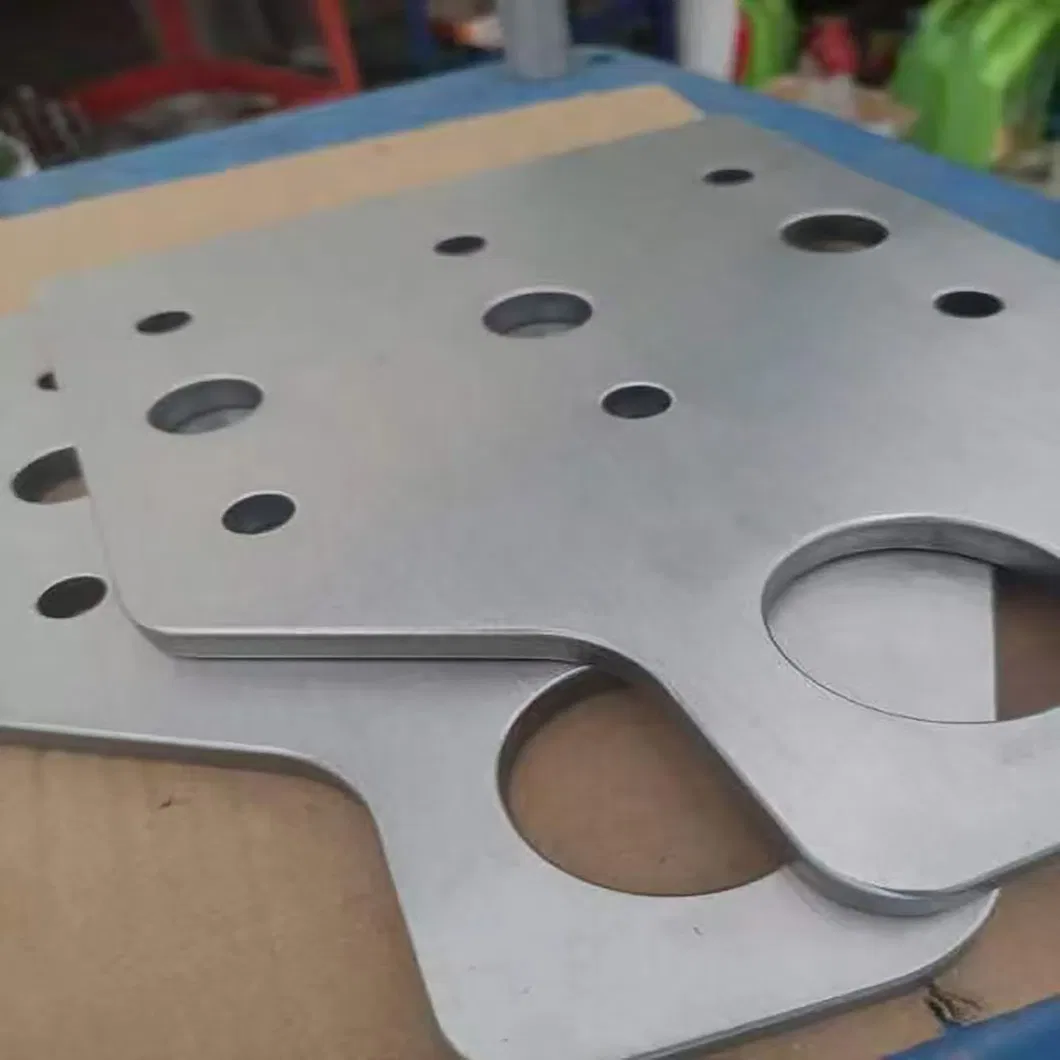

A: Yes, it effectively removes burrs and slag generated by CNC punching, laser cutting, flame cutting, and plasma cutting.
A: This model is a dry abrasive belt system, which can be equipped with an optional wet dust collector for efficient dust management.
A: Not at all. It features a smart PLC control panel with digital displays and multi-language support for easy operation.
A: The belt is made of multi-layer thickened material to prevent deviation, requiring minimal routine inspection for long-term use.
