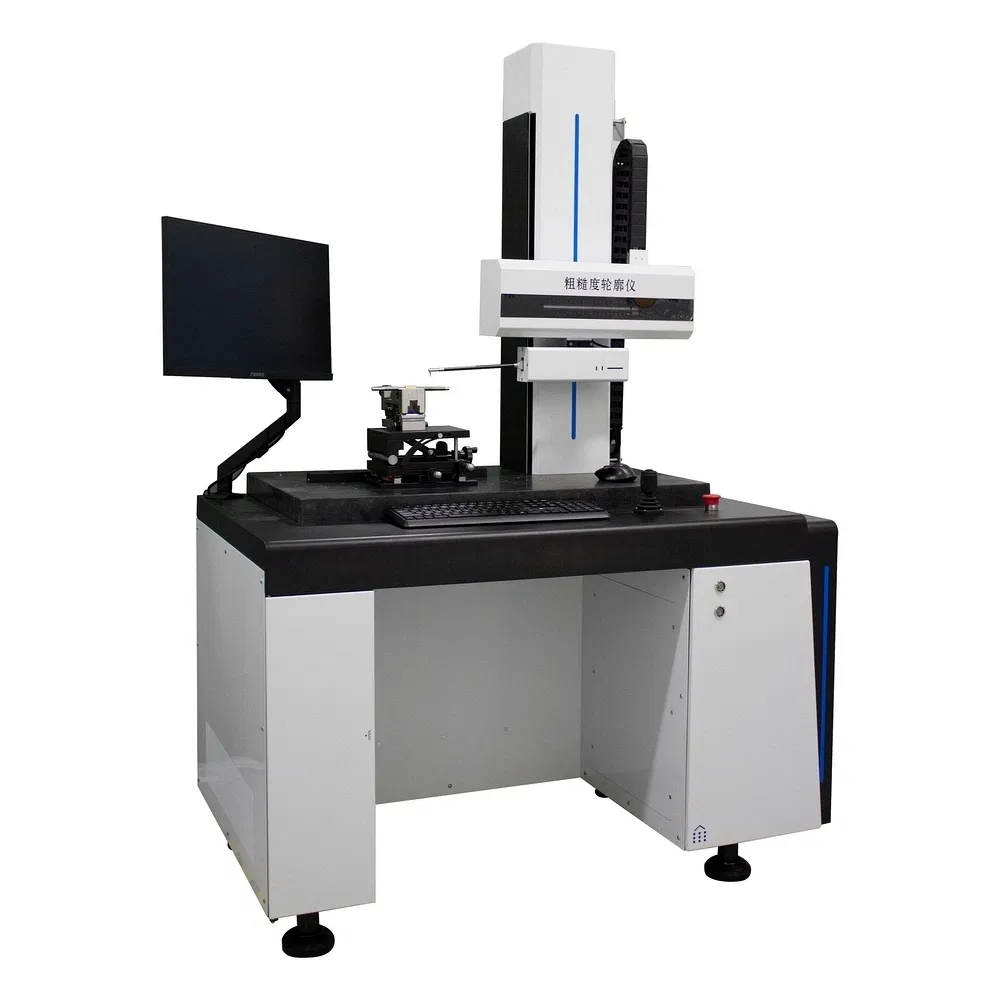

Dustproof Accurate Data Ra150s Bench Top Surface Photometry Profilometer

Customization:	Available
Product Name:	Surface Roughness Profilometer
Keywords:	Roughness Contour Meter

📊 Basic Information

Model No. RA150S

Material Metal

Key Features High Range, High Accuracy, High Resolution

Application Roughness Value and Profile Testing

Package Wooden Box

Standard International Standards Compliance

🔍 Product Description

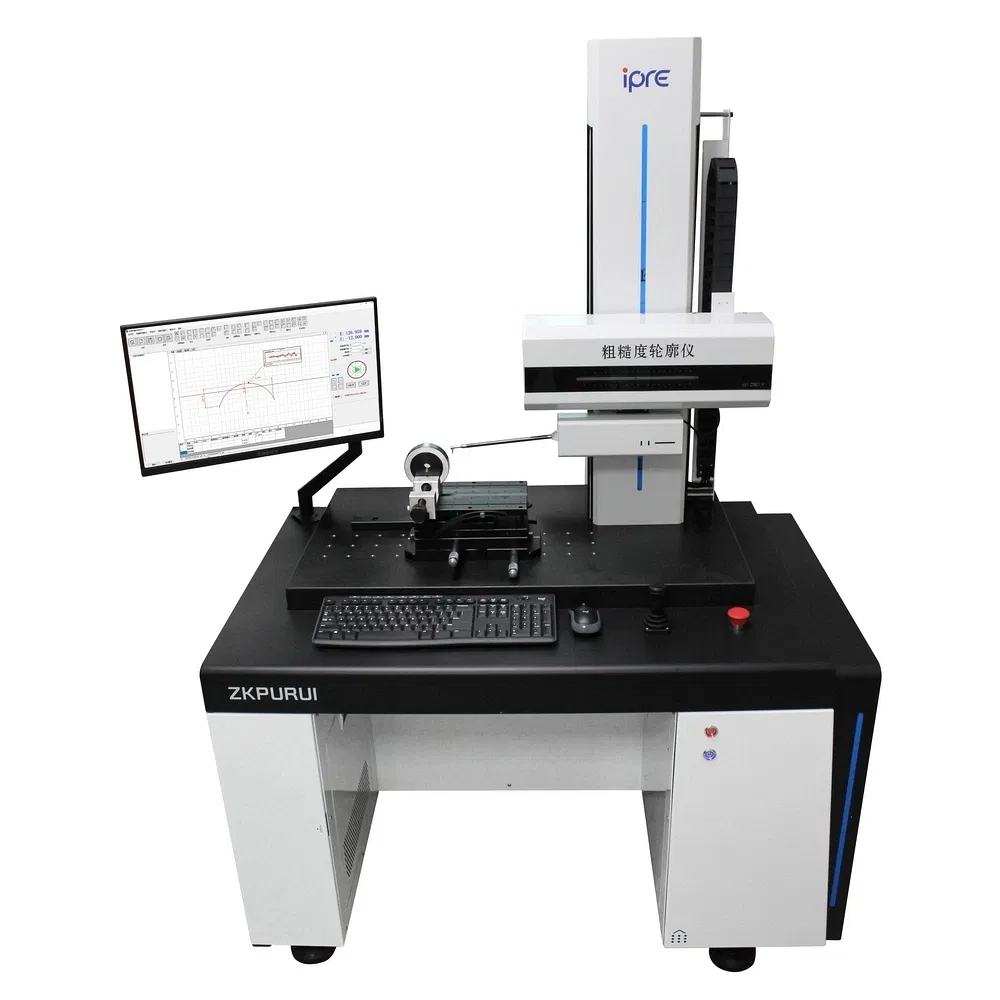

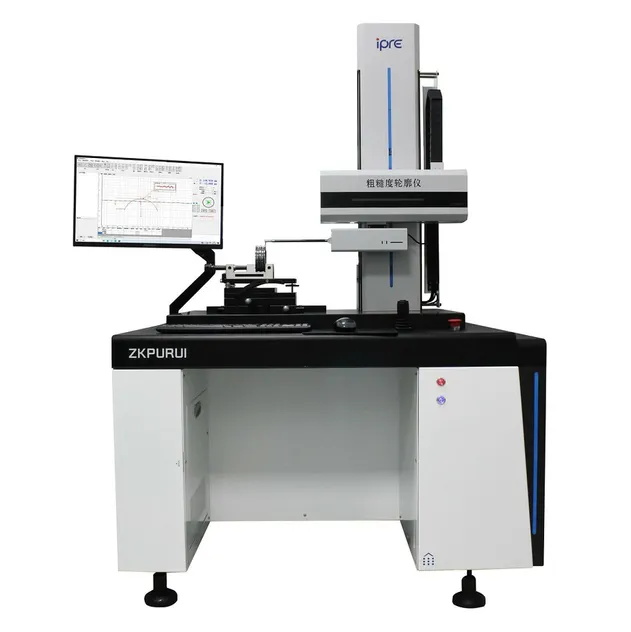

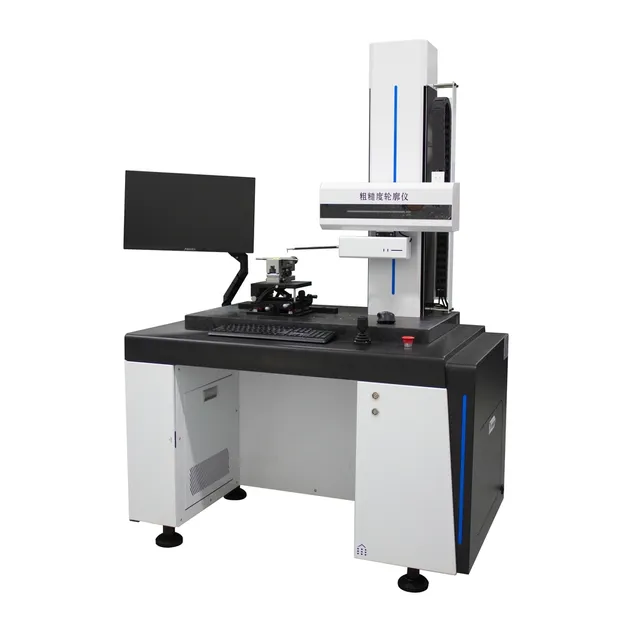

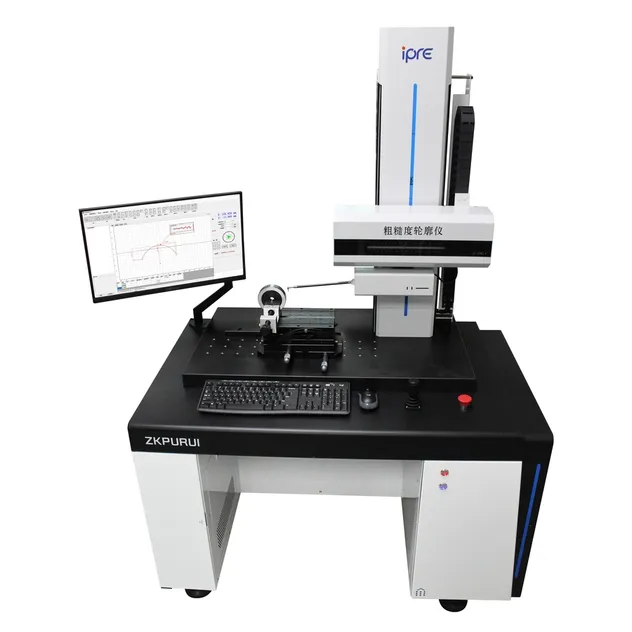

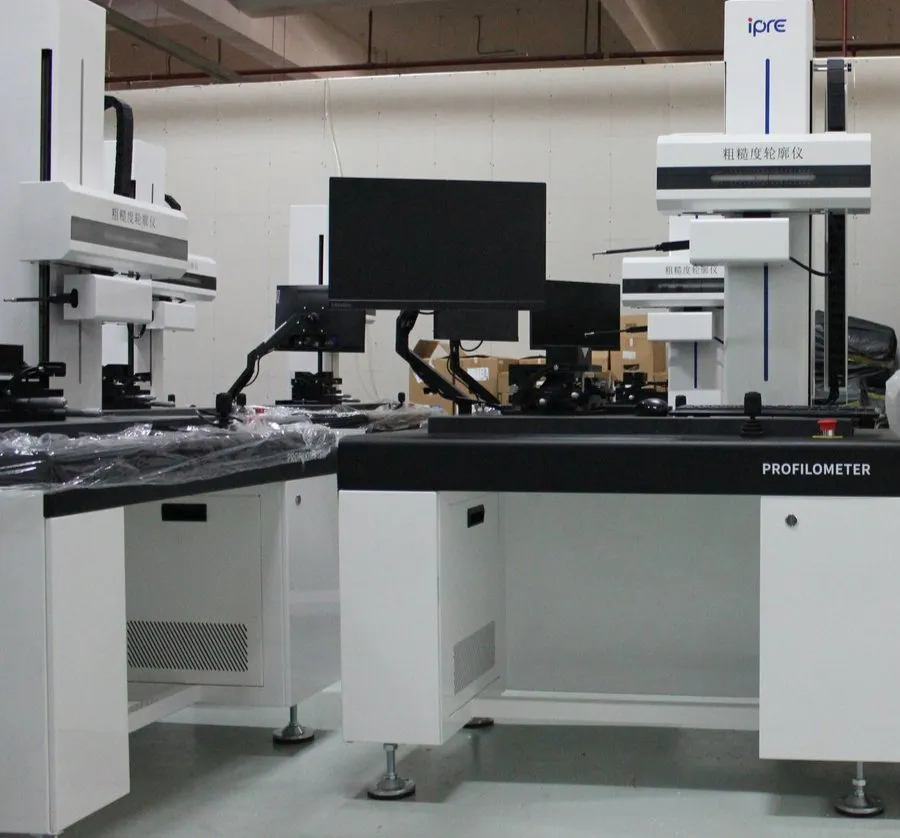

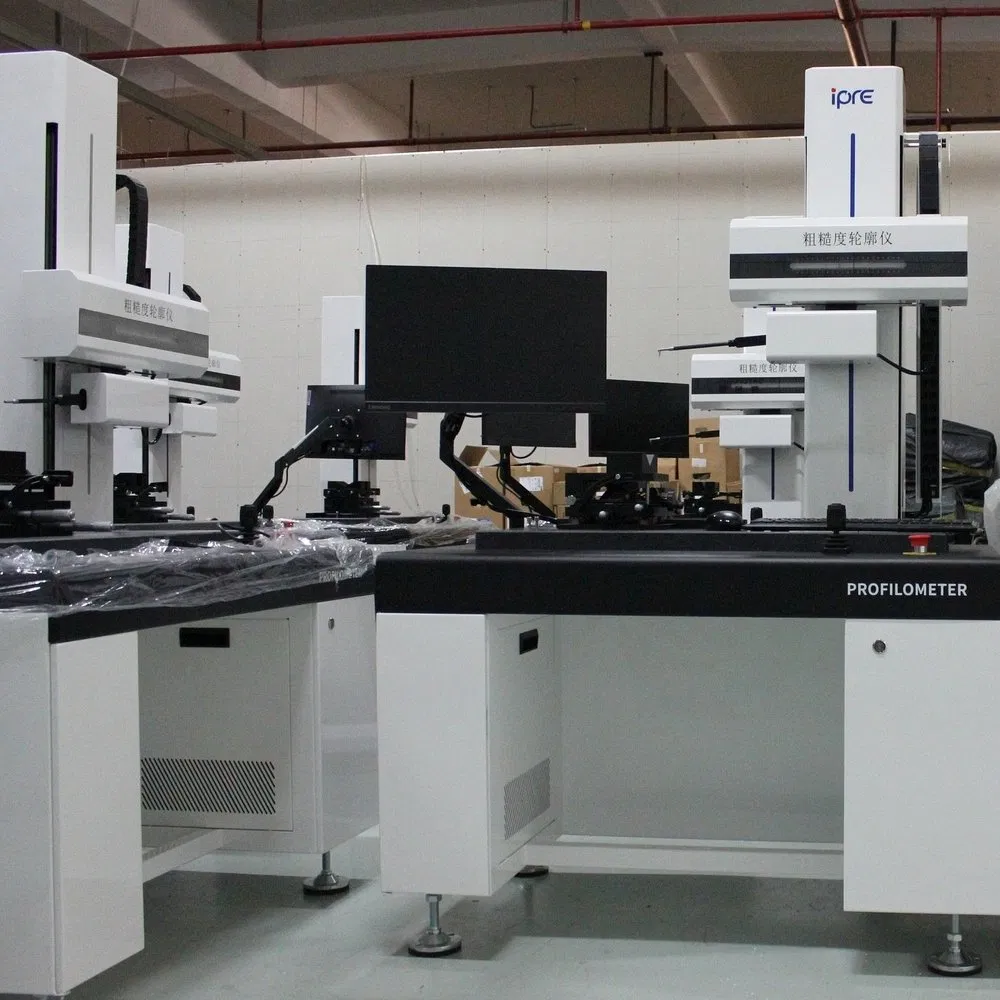

Precision Surface Roughness Profilometer

Engineered for precision manufacturing, this advanced system combines high-precision grating measurement technology with ultra-smooth grinding guide rails and a non-contact linear motor.

It is capable of measuring surface roughness parameters, profile contours, and waviness with exceptional reliability, making it ideal for industries demanding micron-level precision and high-quality dimensional inspection.

⚙️ Technical Specifications

Project / Model		RA150S
X-axis Linear Guide	Moving accuracy	≤±(1+\|0.02L\|)μm
X-axis Grating Ruler	Resolution	0.01μm
Data Sensor	Resolution	0.001μm (Roughness test)
Linear Precision		≤±(0.8+\|0.05H\|)μm
Circular Arc		≤±(1.2+R/12)μm
Straightness		≤0.5μm/100mm
Z1 Axis Range		±20mm (Full range roughness)
Evaluation Parameters		Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Wa, Wz, Wq, Wt, Pa, Pz, Pq, Pt, etc.
Dimensions		1200 × 750 × 1800 (mm)
Weight		Approx. 350Kg

💡 Key System Advantages

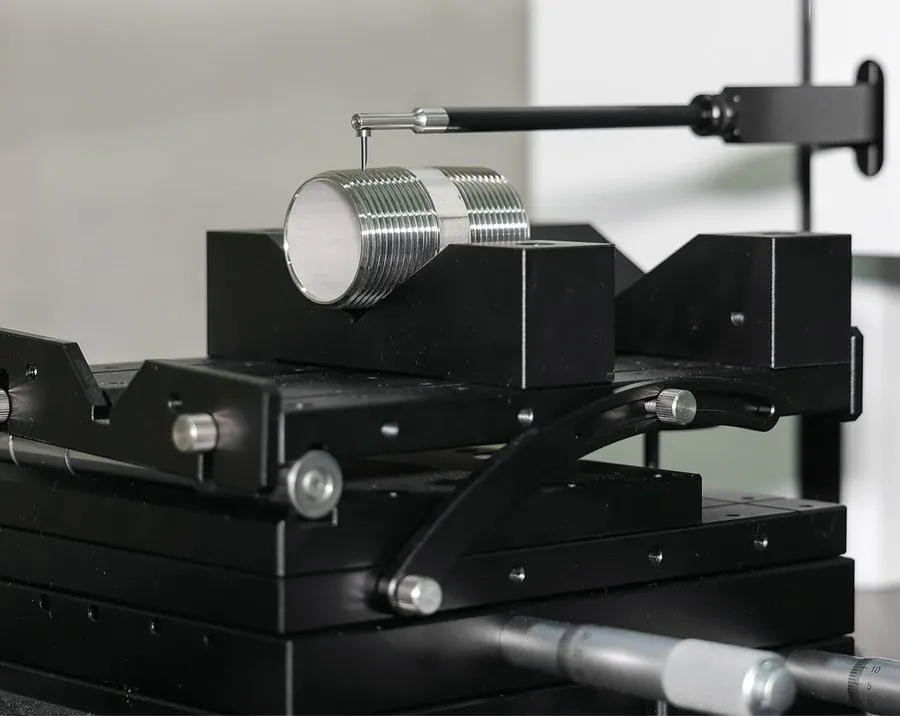

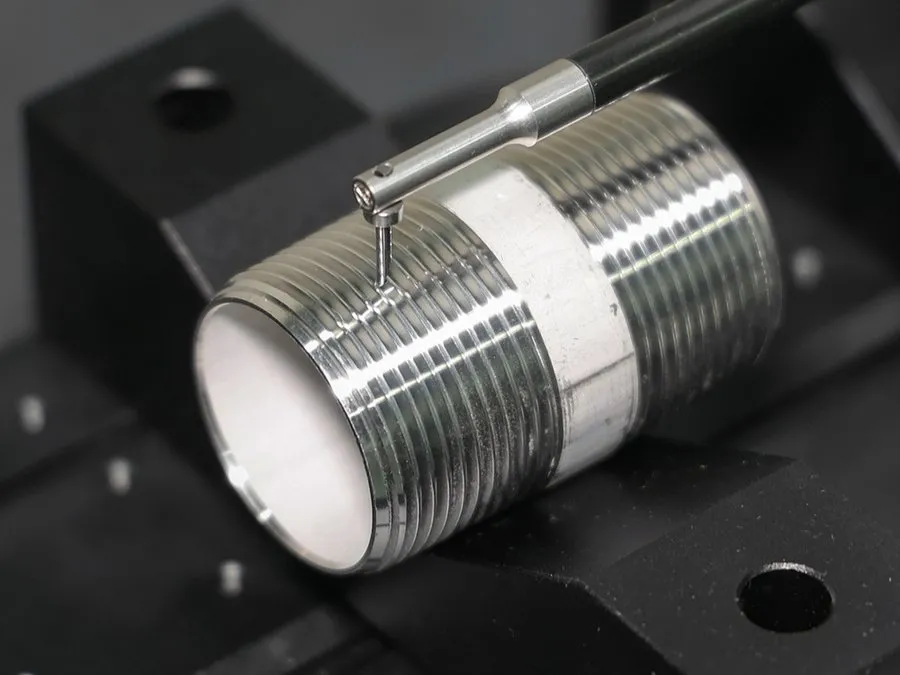

Grating Measurement System: Advanced grating sensor ensures exceptional accuracy and repeatability.

Non-Contact Motor: High-performance linear motor drive for smooth, vibration-free scanning.

High Resolution: Captures micro-level surface details for precise evaluation.

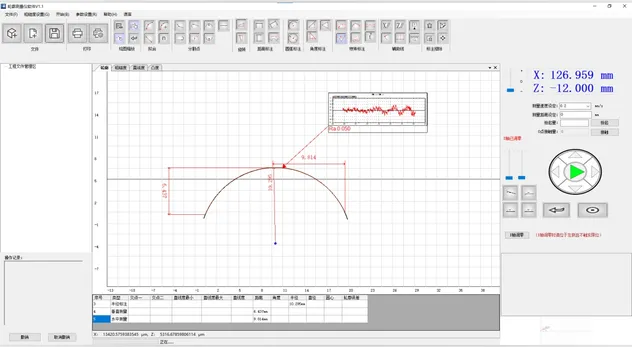

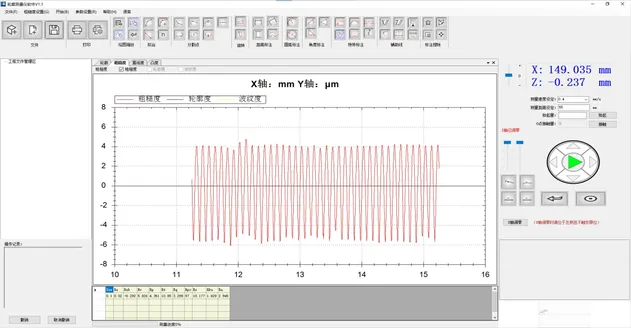

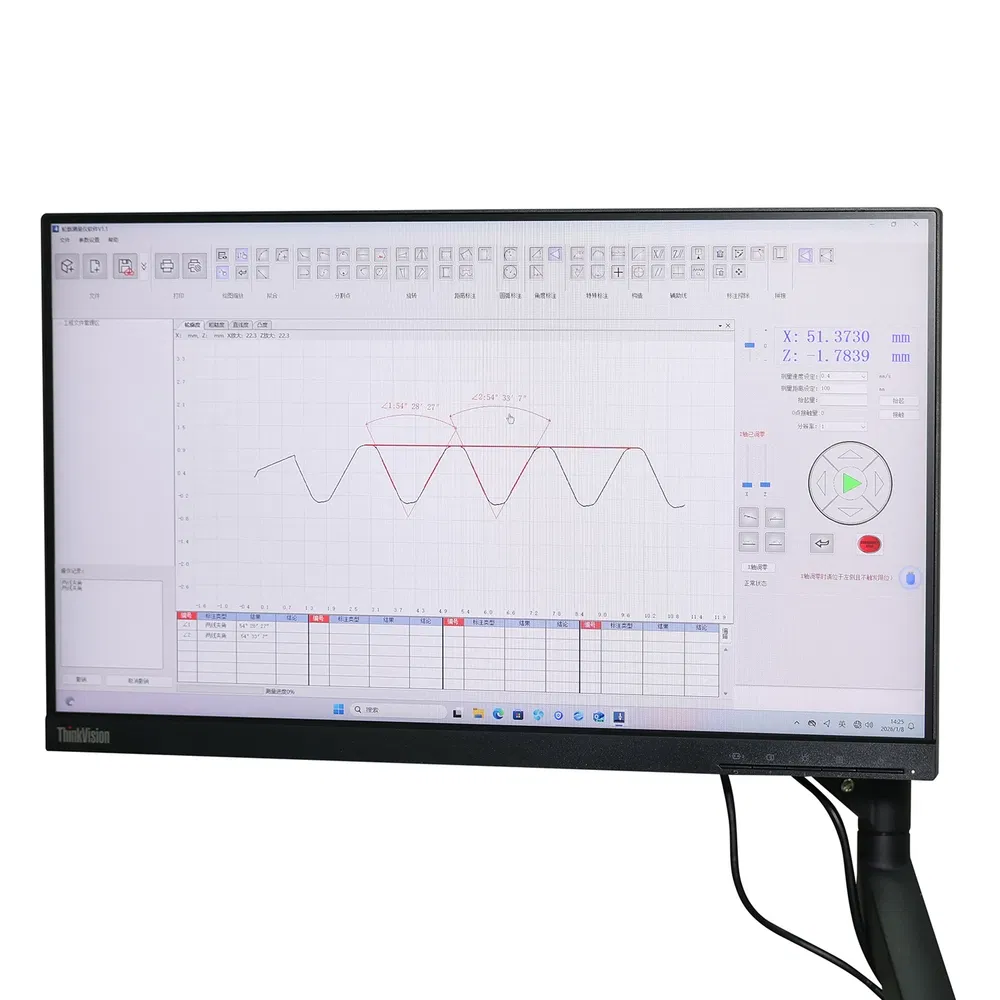

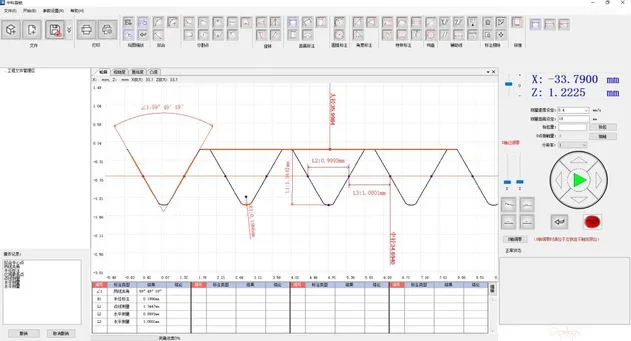

💻 Intelligent Software System

Data Processing: Automatically processes measurements and prints reports in various formats.
Broad Compatibility: Supports ISO, DIN, JIS, and ANSI multi-standard settings.
Database Storage: Large-capacity storage for recording and saving all verification results.
User-Friendly Controls: Features 4-gear speed adjustment for fast positioning and convenient measurement.
Customizable: Software functions can be tailored to specific customer application requirements.

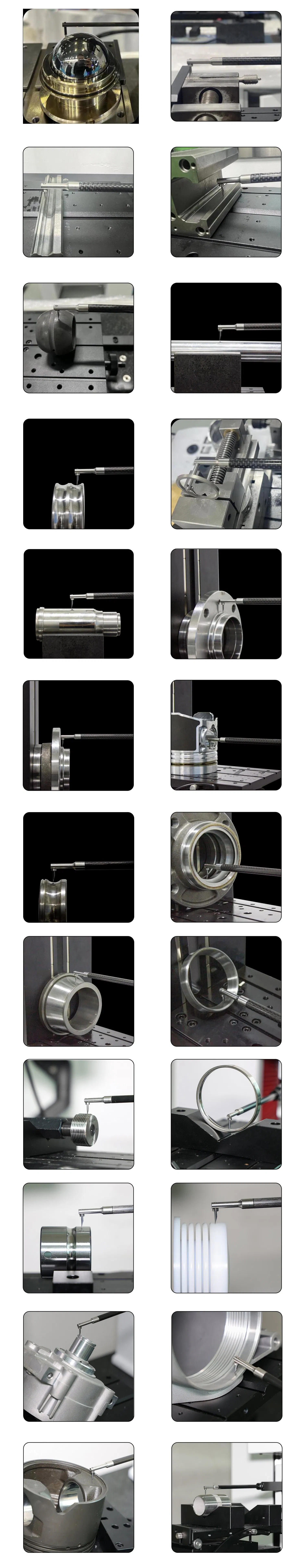

🏭 Application Scenarios

❓ Frequently Asked Questions

Q1: What parameters can this profilometer measure? A: It can measure surface roughness (Ra, Rz, Rq, etc.), ripple degree (Wa, Wz, Wq), and original profile rating parameters (Pa, Pz, Pq) according to international standards.

Q2: Which international standards is the software compatible with? A: The software supports ISO, DIN, JIS, and ANSI multi-standard settings, allowing for global quality control compliance.

Q3: How long is the delivery time for regular orders? A: For stocked models, delivery typically occurs within 7 days. For customized configurations, the lead time is approximately 1 week.

Q4: What are the primary payment methods accepted? A: We accept multiple methods including T/T, L/C, D/P, PayPal, and Western Union to ensure convenient transactions.

Q5: What is the Minimum Order Quantity (MOQ)? A: The MOQ for this precision measurement equipment is 1 set.

Q6: What certifications does the equipment hold? A: The systems have passed ISO9001 quality management, ISO14001 environmental management, and EU CE certification.
