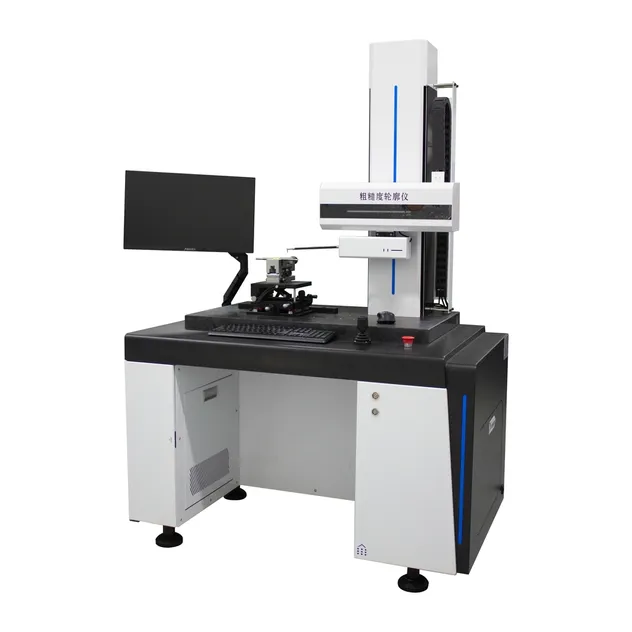

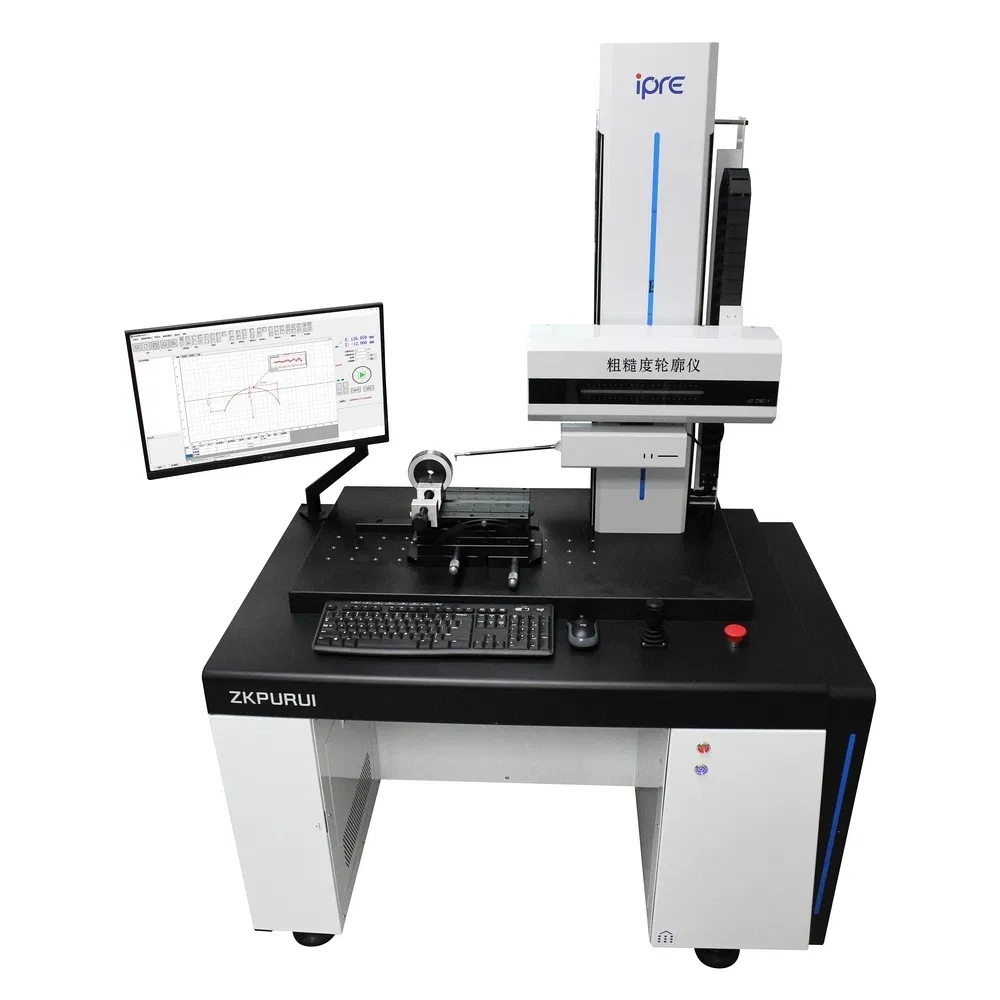

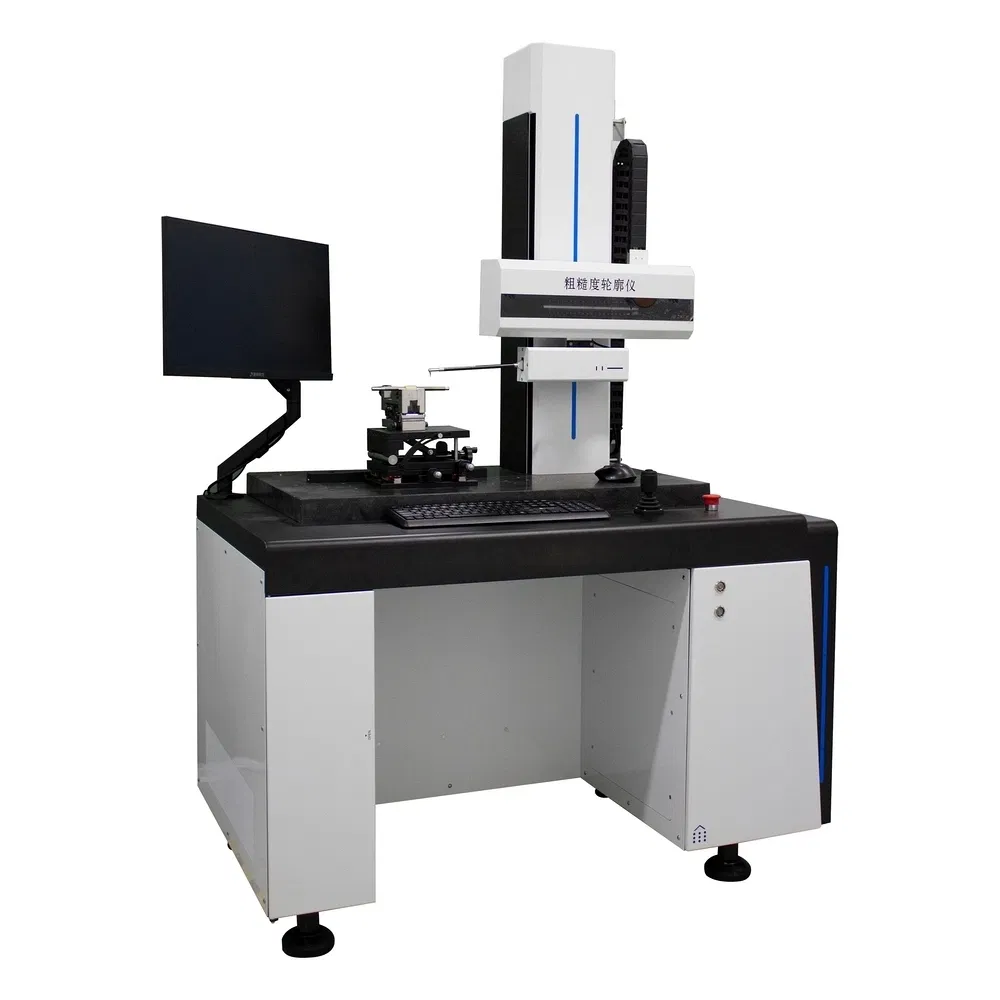

PRECISION SURFACE ROUGHNESS PROFILOMETER – ALL-IN-ONE MEASUREMENT SOLUTION
Discover the ultimate surface roughness and contour measurement machine engineered for precision manufacturing. This advanced roughness profiler integrated system combines high-precision grating measurement technology, ultra-smooth grinding guide rails, and a non-contact linear motor to deliver unparalleled accuracy.

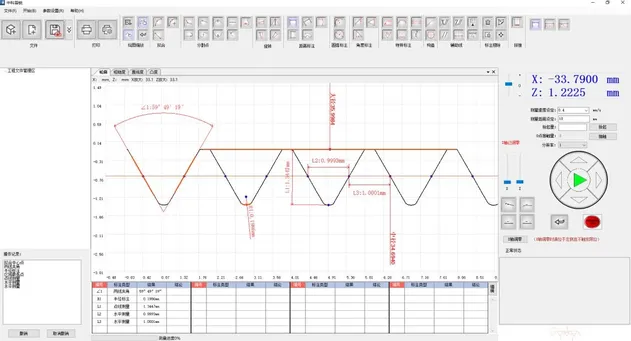

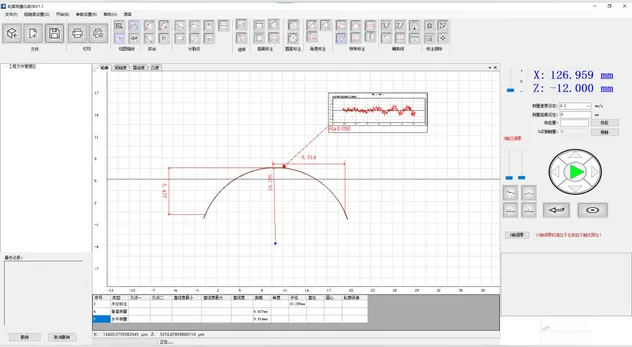

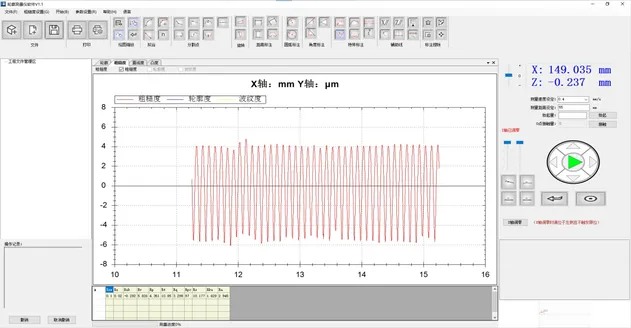

Equipped with a high-performance computer control system and multi-functional analysis software, it measures surface roughness parameters, profile contours, and waviness with exceptional reliability. Ideal for industries demanding micron-level precision.
| Project / Model | IPRE-RA150S | |
| X-axis Accuracy | Moving accuracy | ≤±(1+|0.02L|)μm |
| X-axis Grating | Resolution | 0.01μm |
| Date sensor | Resolution | 0.001μm (Roughness test) |
| Linear precision | ≤±(0.8+|0.05H|)μm | |
| Roughness Measurement Parameters | ||
| Evaluation parameters | Ra, Rz, Rq, Rt, Rp, Rv, Rc, Rdc, Rsk, Rku, Rsm, Rmr, Rdq, Rmr(c); Wa, Wz, Wq, Wt, Wp, Wv, Wc, Wdc, Wsk, Wku, Wsm, Wmr and Wmr(c); Pa, Pz, Pq, Pt, Pp, Pv, Pc, Pdc, Pdq, Psk, Pku, Psm, Pmr and Pmr(c) | |
| Sampling length L | 0.08, 0.25, 0.8, 2.5, 8 (mm) | |
| Contour Measurement Range | ||
| X-axis | ≤180mm | |
| Z-axis | ≤500mm (Adjustable) | |
HIGH-PRECISION GRATING MEASUREMENT SYSTEM
Equipped with advanced grating sensor technology ensures exceptional measurement accuracy and repeatability for demanding surface analysis tasks.
NON-CONTACT LINEAR MOTOR DRIVE
Utilizes a high-performance non-contact linear motor for smooth, vibration-free scanning, ensuring consistent results.
A1: Established in 2013, we have our own factory and simultaneously operate trade business to serve global needs.
A2: We have passed ISO9001, ISO14001, ISO45001, and EU CE certifications, ensuring the highest quality and safety standards.
A3: Most products are in stock. Delivery typically takes no longer than 7 days. Custom orders usually require about 1 week.
A4: We accept LC, T/T, D/P, PayPal, Western Union, and MoneyGram for your convenience.
A5: The minimum order quantity for our precision instruments is 1 set.
A6: Best performance is achieved at 20 ± 2℃ with 20-80% RH humidity in an environment without obvious vibration sources.
