📊 Basic Information
Model NO.:KR320
Type:Roughness Tester
Display:Digital LCD Touch Screen

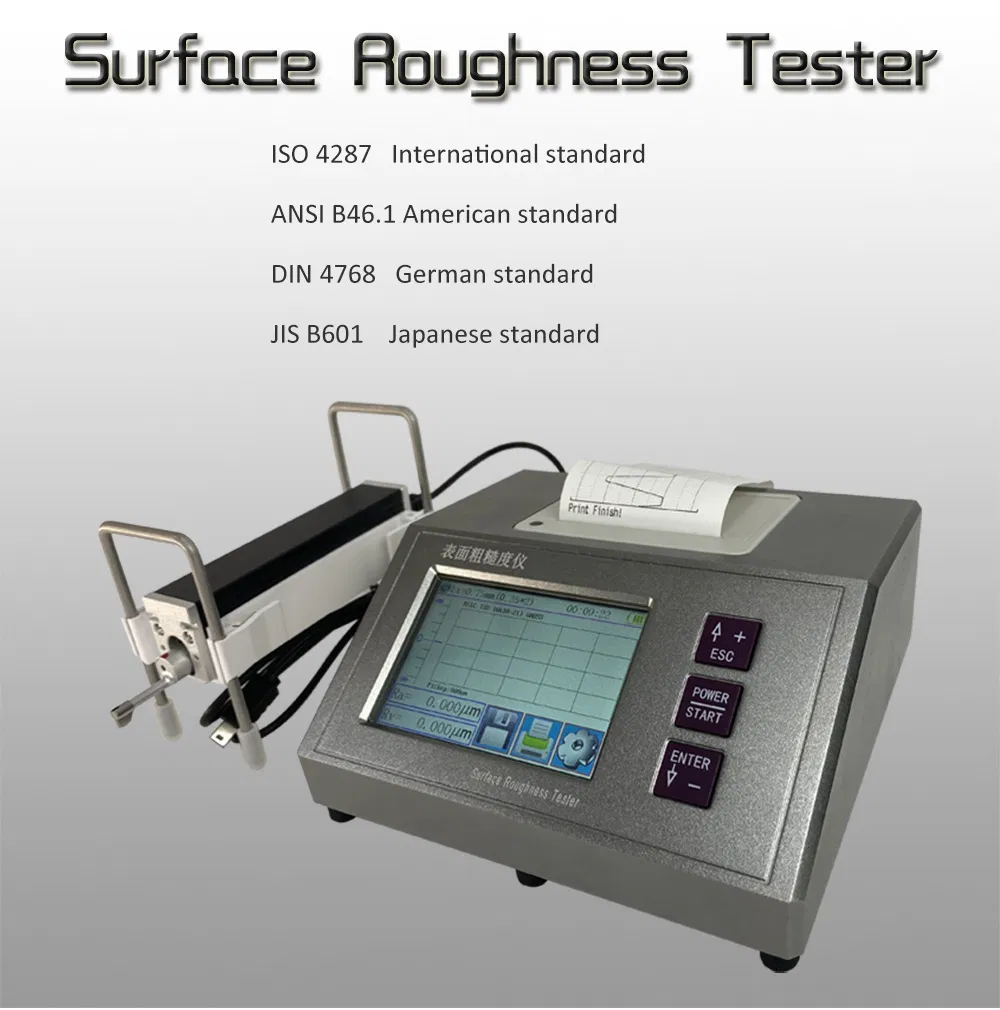

Standards:ISO4287, ANSI B46.1, DIN4768, JISB601
Stroke Rail:17.5mm
Resolution:0.001μm
Weight:4kg (Gross) / 1000g (Main)
Power:3600mAh Lithium Ion Battery
🔍 Product Overview

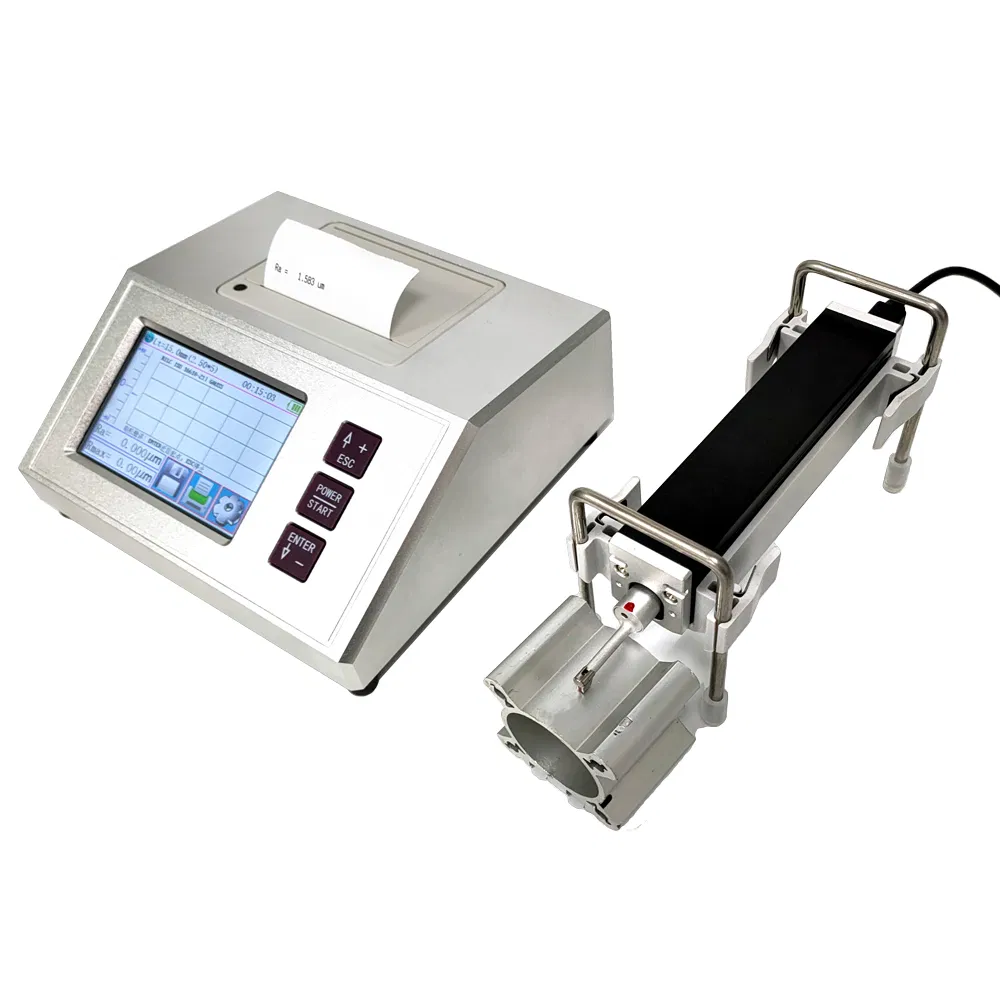

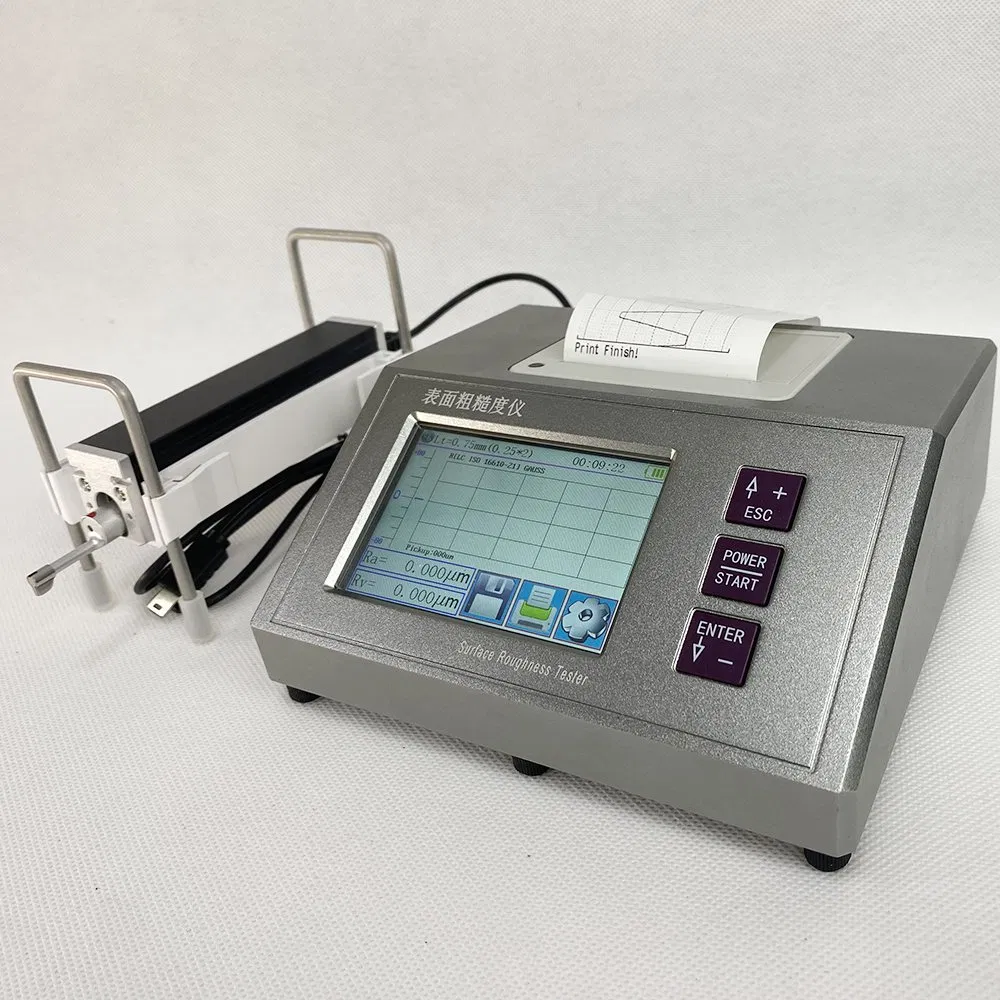

Digital Surface Roughness Tester Gauge with embedded printer, compatible with international standards. This mechatronics design is suitable for surface roughness measuring on hard surfaces, widely used for metal and non-metal parts across manufacturing, testing, and quality control departments.
⭐ Key Advantages

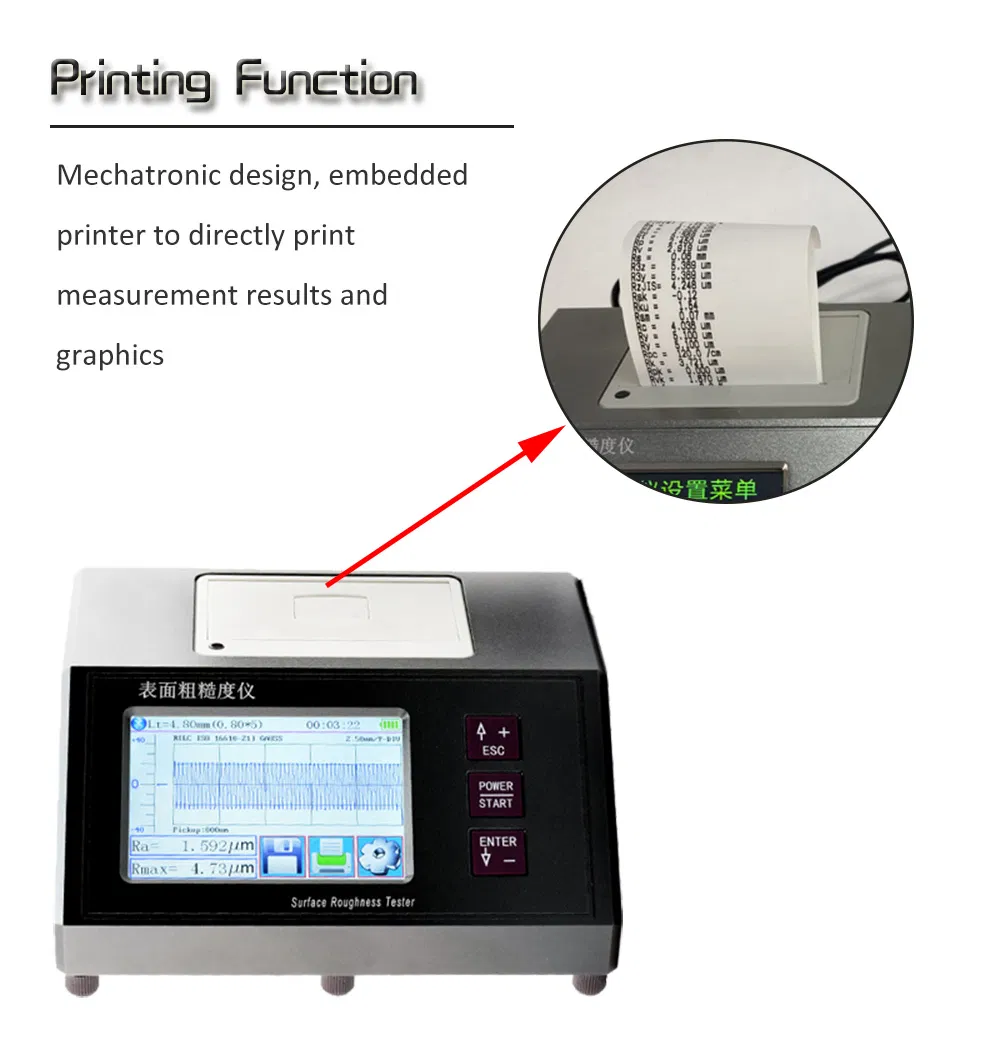

- Mechatronics design with embedded printer for instant results.

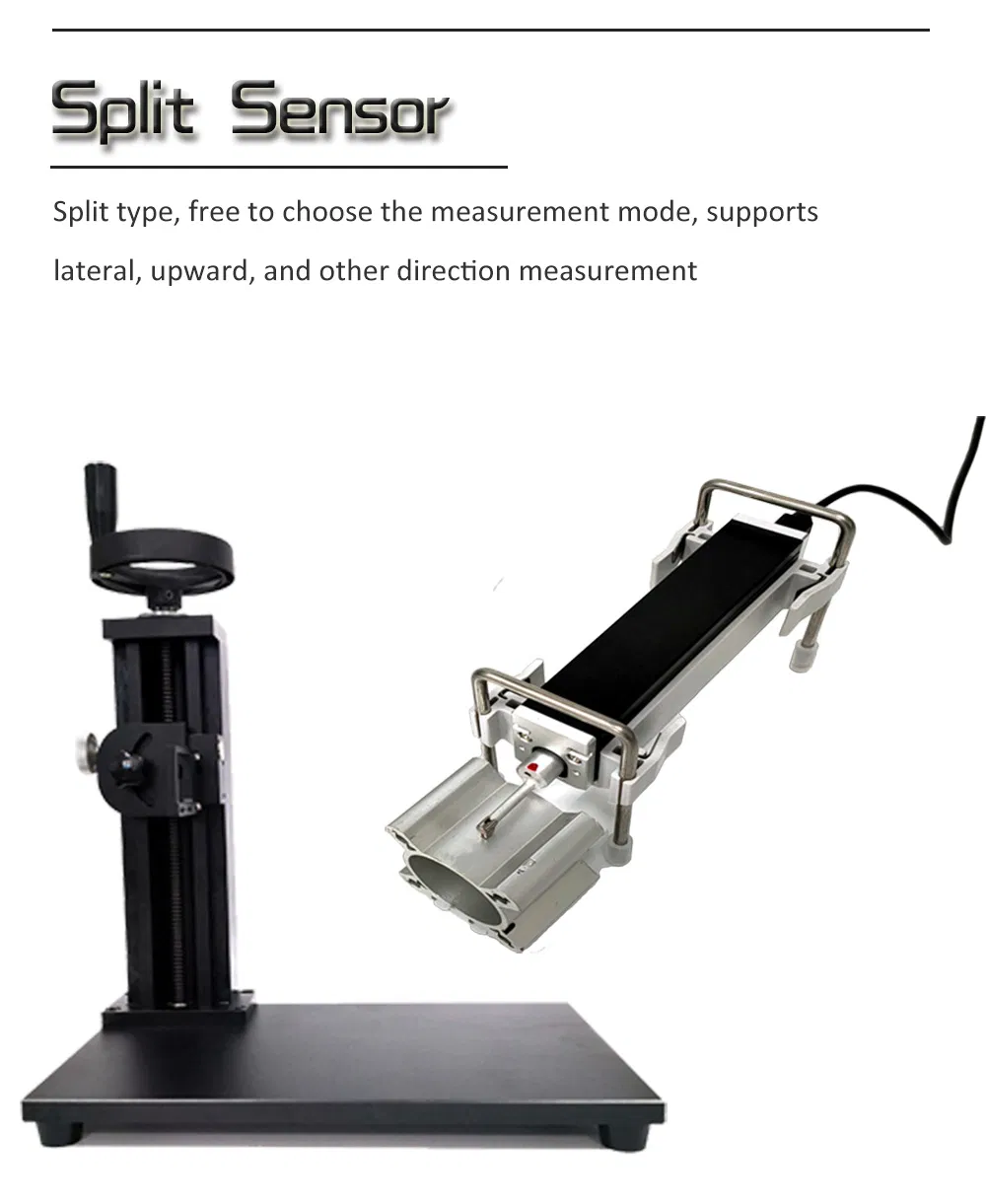

- External drive unit for flexible side and upward measurements.

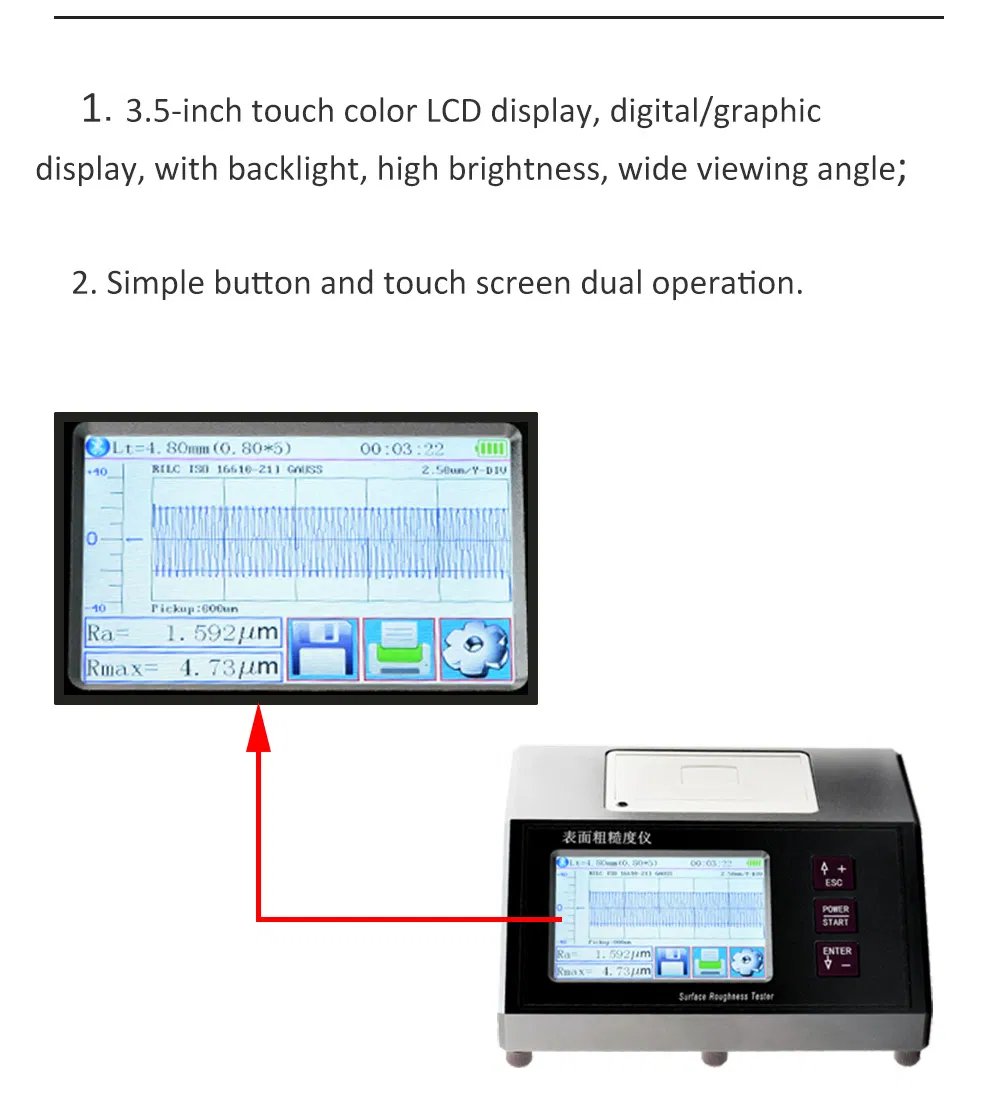

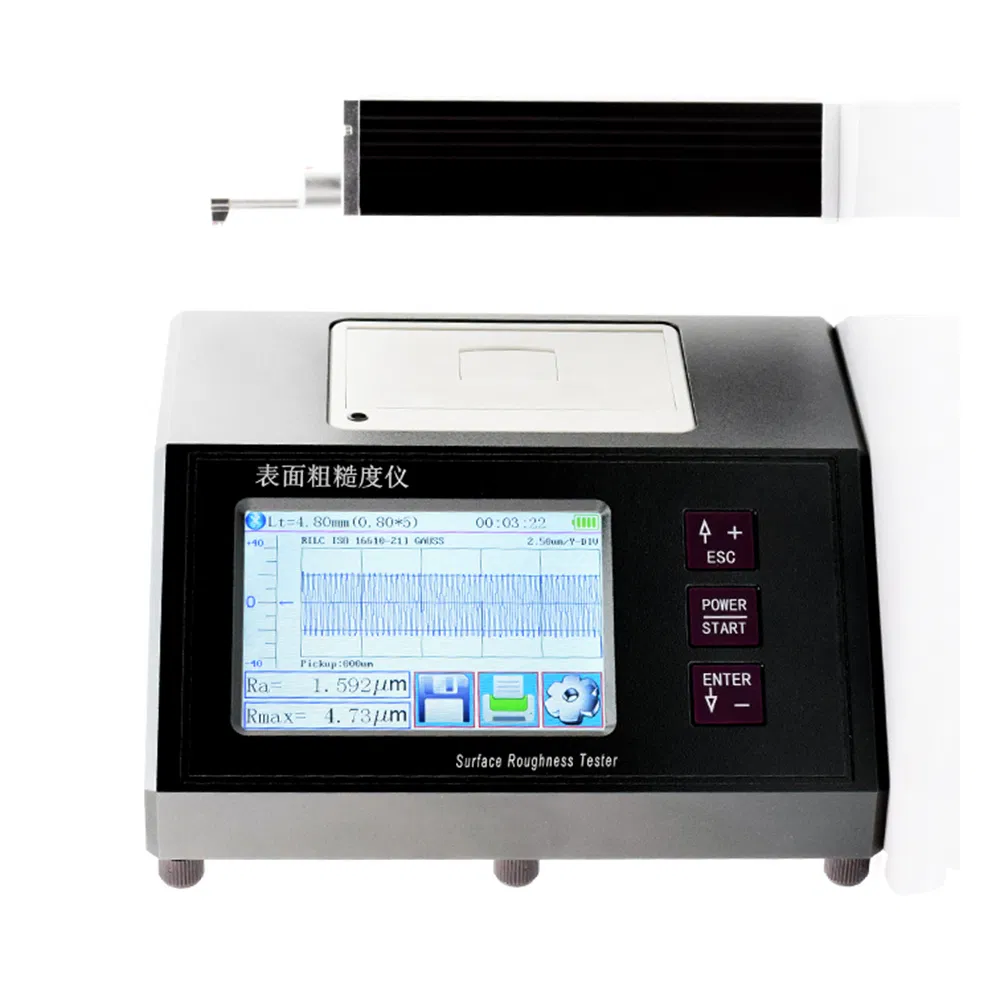

- 3.5 inches color graphic LCD touch screen with high brightness.
- Large internal memory: stores 100 groups of data and waveforms.
- Long battery life: Over 50 hours of continuous working time.
- Dual operation: Easy button and touch screen control.
🖼️ Product Showcase
⚙️ Technical Specifications
| Parameter |
Specification Range |
| Z axis (Vertical) Range | 800μm (-400μm~+400μm) |
| X axis (Transverse) Range | 17.5mm |
| Measurement Parameters | Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz(JIS), Ry, etc. |
| Filters | RC, PC-RC, Gauss, D-P |
| Stylus Tip | Diamond, 90° cone angle, 5μm/2μm |
| Accuracy | 0.001μm |
| Repeatability | ≤3% |

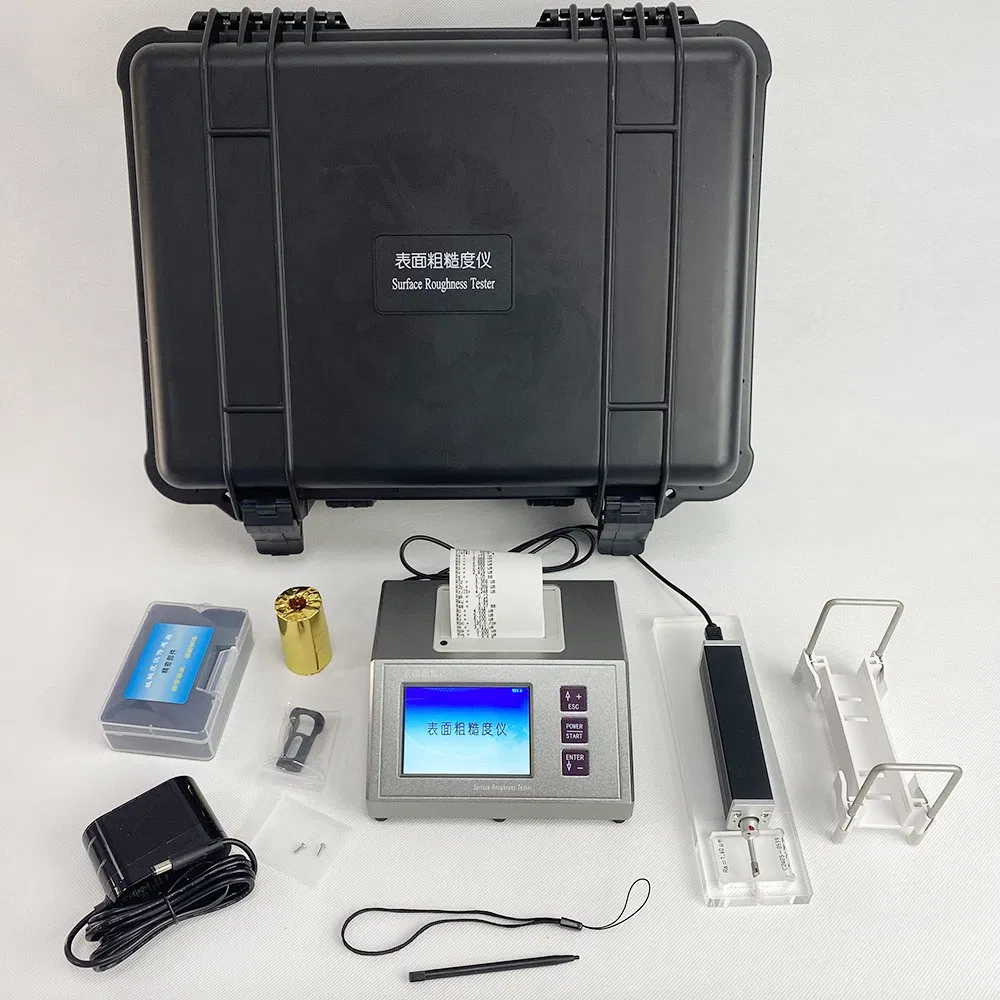

📦 Packing List
1. Main Unit1 Qty
2. Groove Sensor1 Qty
3. 40mm Adapter1 Qty
4. Calibration Specimen1 Qty
5. Power & USB Cable1 Set

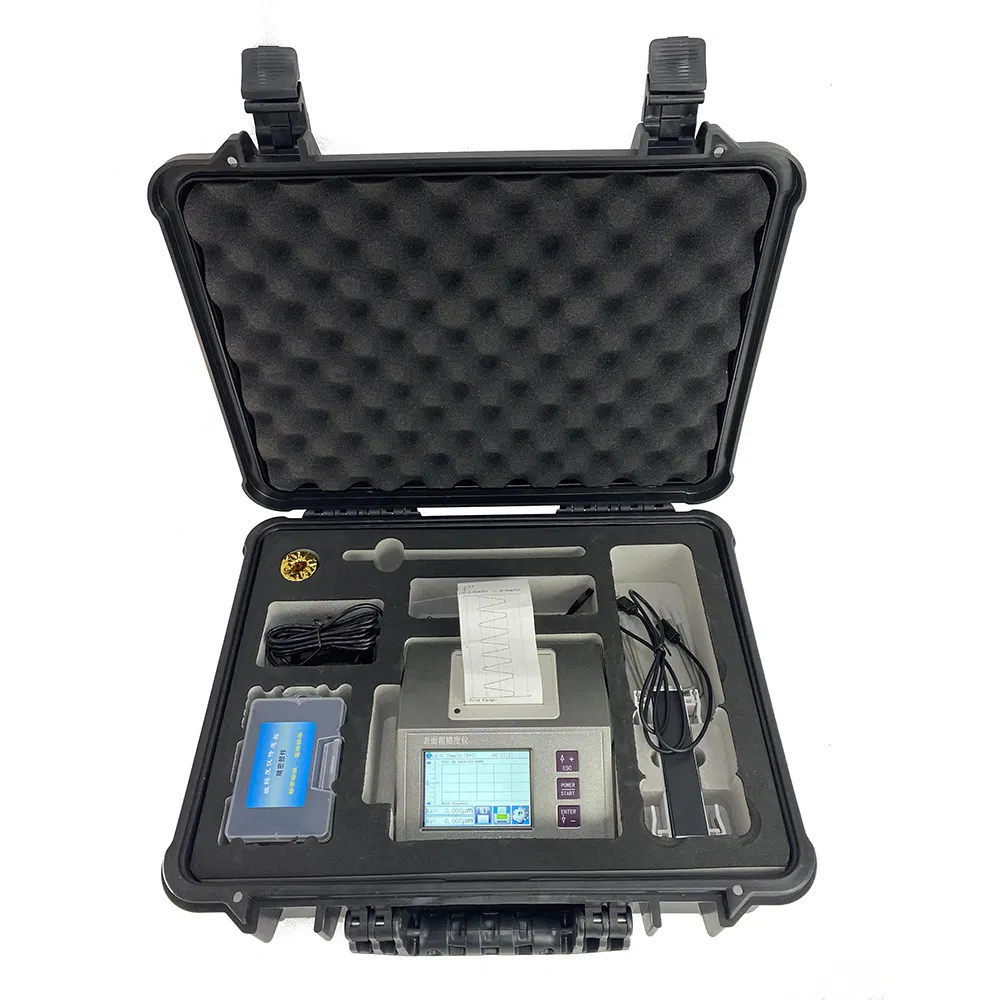

6. Instrument Case1 Qty
