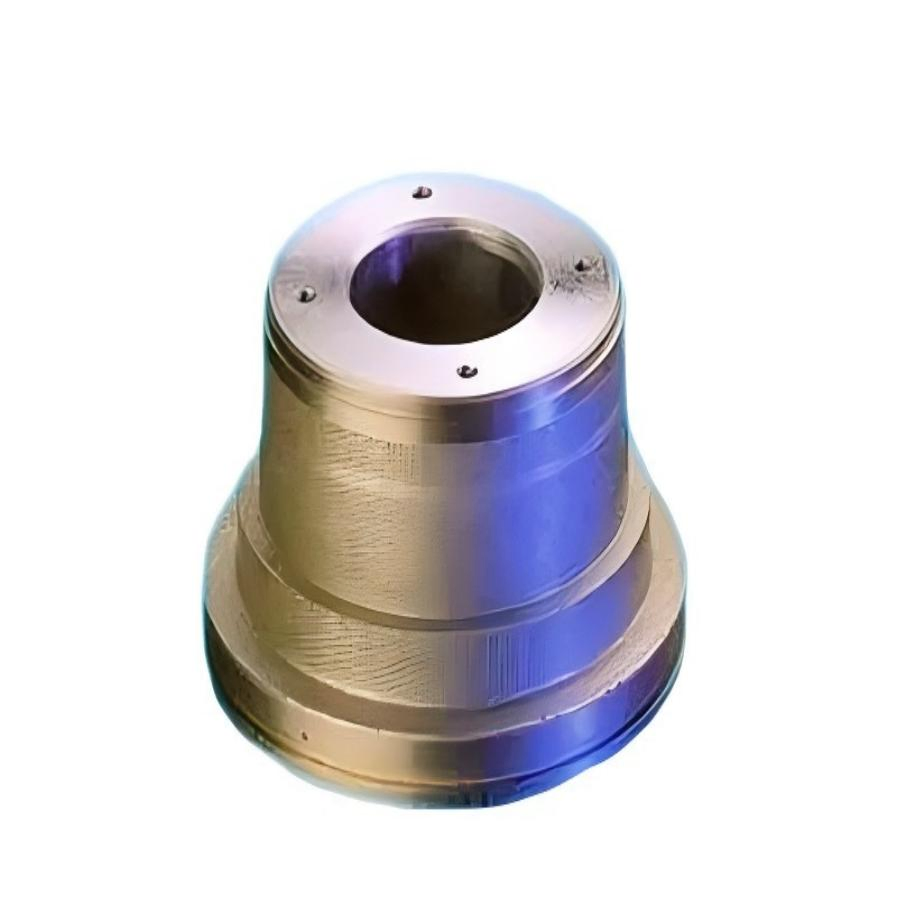

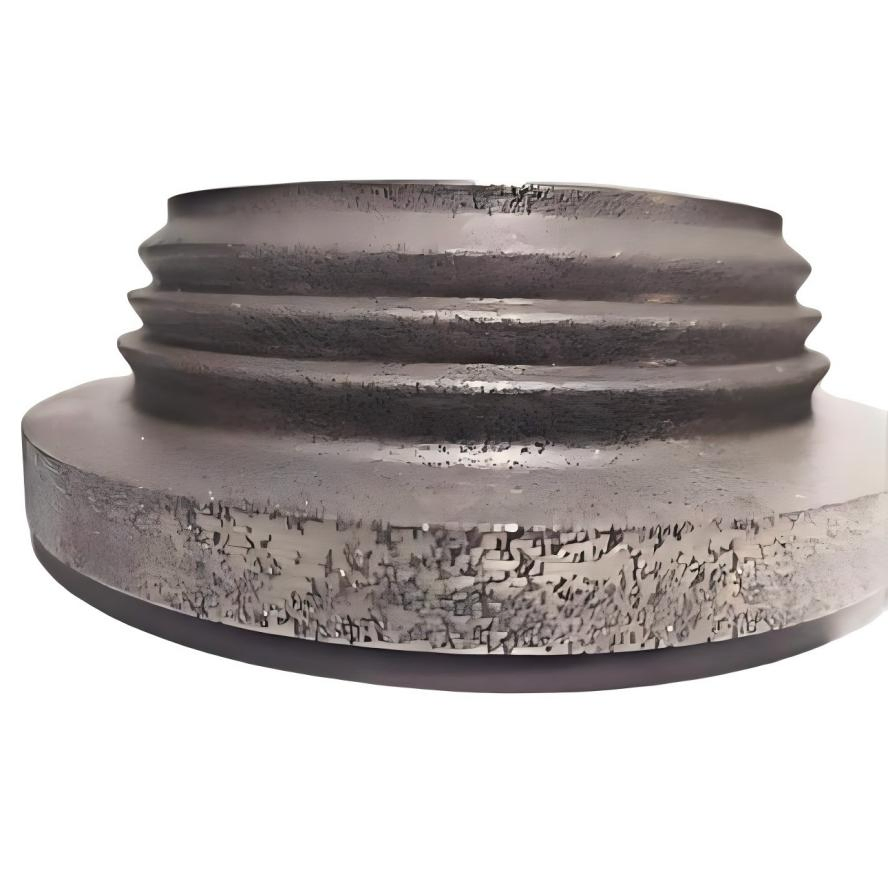

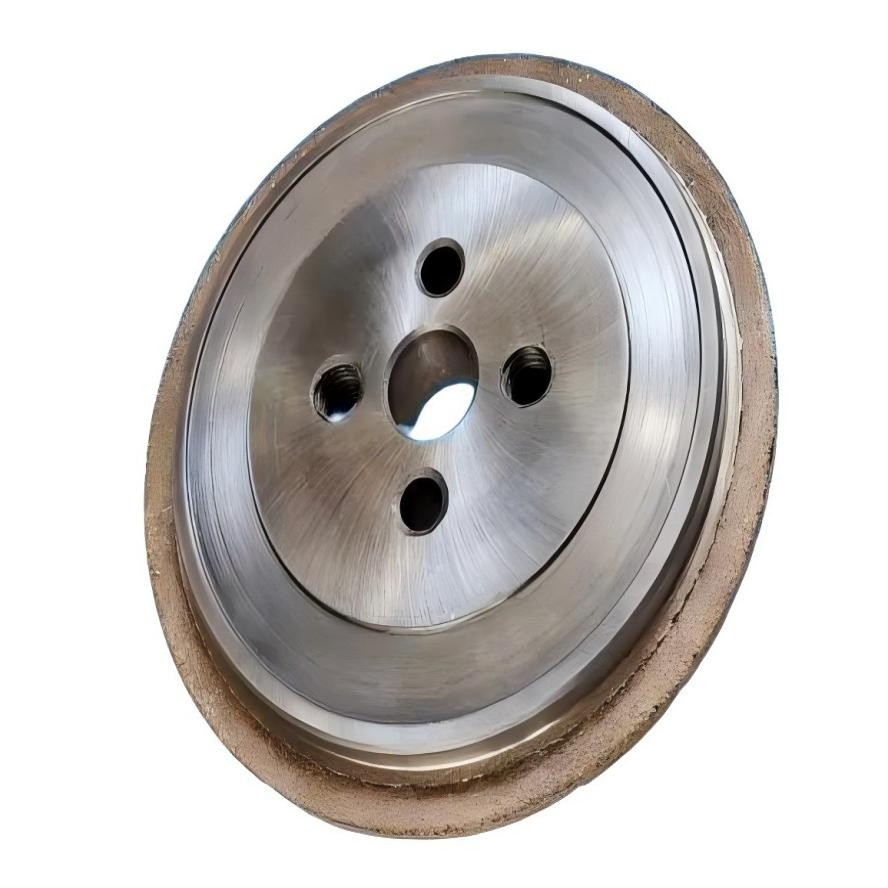

Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
1 / 5
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots
Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots

Custom-Geometry Diamond Roller for Dressing Creep-Feed Grinding Wheels for Turbine Blade Roots

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.customer specific product
ShapesCustomer Specific Product
TypesCustomer Specific Product
Grain SizeCustomer Specific Product
Cylindricity<1
TechnicsElectroplating
Working StyleTool Grinding
Tolerance2um / 0.5 Degree
Production CycleWithin 50 Days
OriginChina
HS Code6804210000
Capacity25000 Pieces/Year
Company Profile

We source our products direct from the manufacturer to ensure the best prices.

If you want our products to solve your production issues, please feel free to leave me a message. We will provide one-on-one application communication and offer product selection services.

Background
Product Description & Applications
Application 1
Application 2

Application Fields

  • Auto parts: crankshaft, valve body, piston ring, oil pump.
  • Gear industry: double piece single cone, gear tooth tip.
  • Machine tool: guide rail, sliding block, ball screw.
  • Bearing industry: ball bearing groove, linear track.
  • Cutting tools: caliper, drill, saw blade, milling cutter.

Our Advantages

  • High Efficiency: Simple operation, long service life.
  • Stable Accuracy: Trim complex surface grinding wheels.
  • Small Tolerance: Arc guaranteed within 2um.
  • Time Saving: Reduces dressing time significantly.
  • Customization: Tailored services per drawings.
Product Video Showcase
Tips of Installation
Installation
  • Clean motor shaft with a clean towel.
  • Check dressing shaft runout (< 0.002mm).
  • Apply lubricating oil to inner hole.
  • Avoid overtightening screws (Nuts: ~100Nm, Bolts: 10-32Nm).
  • Check axial and radial runout after installation.
  • Note: Do not use brute force or hammers!
Bond Types & Cooling

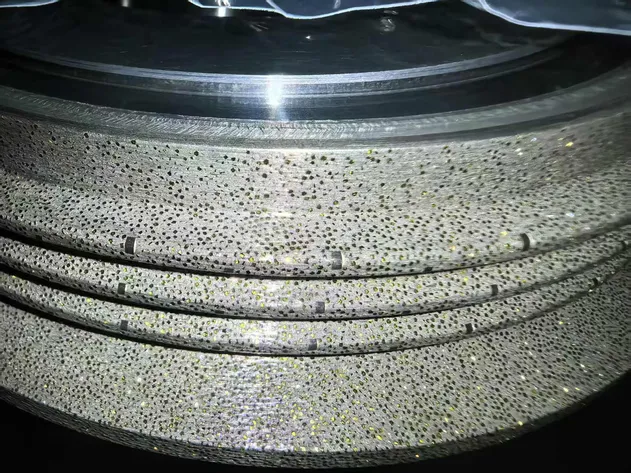

Electroplating

Electroplating

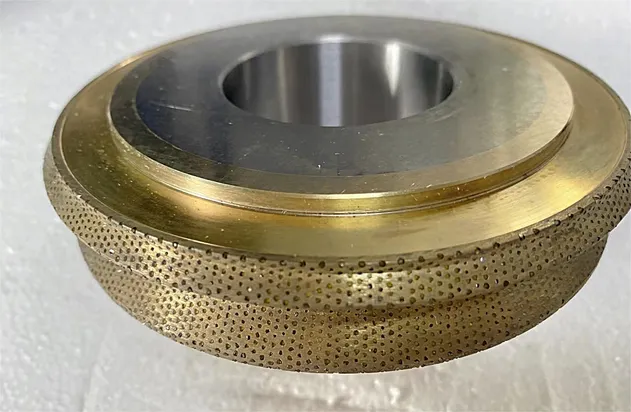

Sinter

Sinter

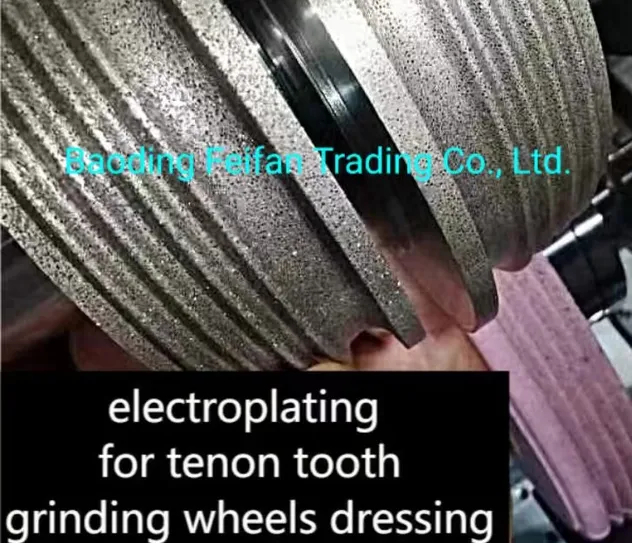

Application

Application

Cooling Requirements

• Cooling pressure should not be less than 10Bar.

• Flow rate should equal the speed of the grinding wheel.

Selection Chart (Customized)
Required Information for Customization
DrawingsNecessary for all custom orders
Grinding Wheel SpecDimensions and bond type
Roughness RequirementSpecific surface finish targets
Production CycleWithin 50 days after confirmation
Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Can I request a customized size?
Absolutely! We offer tailored attachments based on your specific drawings and requirements.
What documents do you provide for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
How do I place an order?
Please contact us via message or email for a formal quote, followed by a Purchase Order (PO) confirmation.
What is the minimum tolerance you can guarantee?
We guarantee a minimum arc tolerance within 2um and angular symmetry tolerance controlled at 0.5 degrees.
Do you support OEM/ODM projects?
Yes, we have full OEM/ODM/OBM capabilities and can provide turnkey project solutions for global clients.
