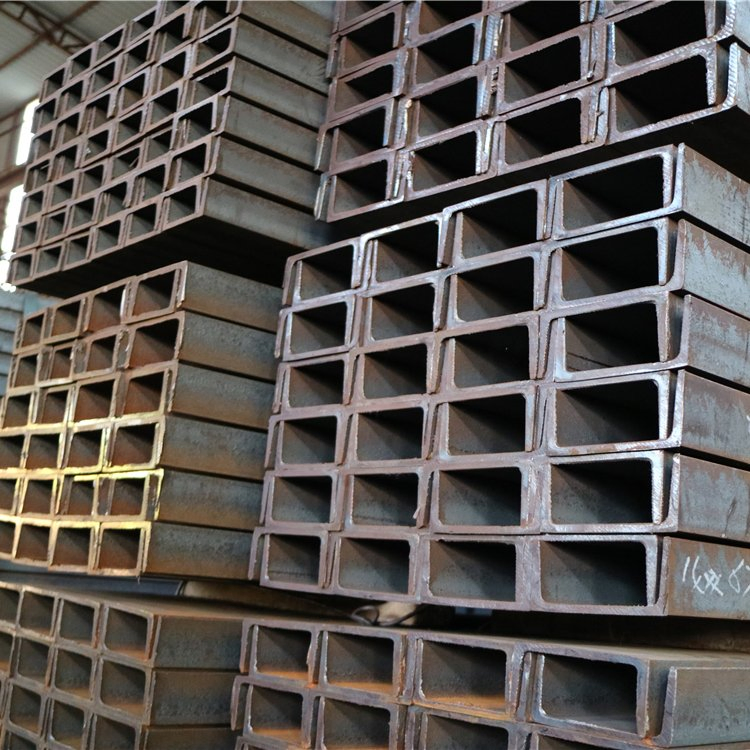

Blue/Gray, Slightly Grainy Cold Bending Equal Channel Metal Wall Stud U Section

1 / 5

Blue/Gray, Slightly Grainy Cold Bending Equal Channel Metal Wall Stud U Section

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

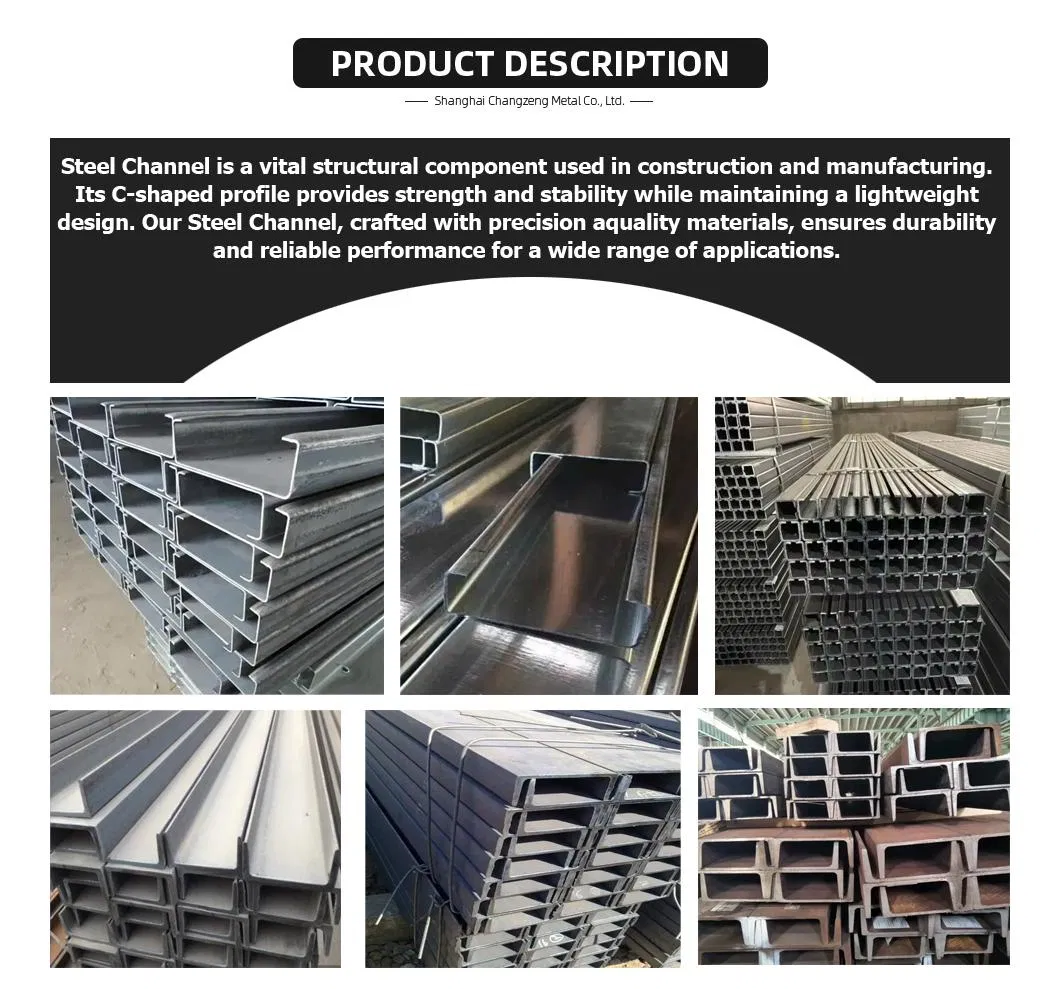

Product Description

Basic Specifications

Model NO.1566

ShapeU Channel

PerforatedNot Perforated

Length6-15m

OriginChina

Dimensions5#, 6.3#, 6.5#~30#, 36#, 40#

Item TypeSteel U Channel

MOQ1 Ton

FinishBlue/Gray, Slightly Grainy

AlloyHot Dipped Galvanized

Capacity5000tons/Month

CharacteristicsSemi-Rough, Grey Finish. Tapered Legs

Cold Bending Equal Channel Metal Wall Stud U Section

Product Parameters

Parameter	Details
Product Name	Channel Steel
Thickness	1.5mm~25mm
Standard Length	6M/9M/10M/12M, OR Cut as demands
Processing Services	Hot dip Galvanized, Pre-galvanized, Color Painting, Cutting, Bending, Punching
Material Grade	Q235B, Q345B, SS400, S235JR/S235J0/S235J2, S275JR/S275J0/S275J2, S355JR

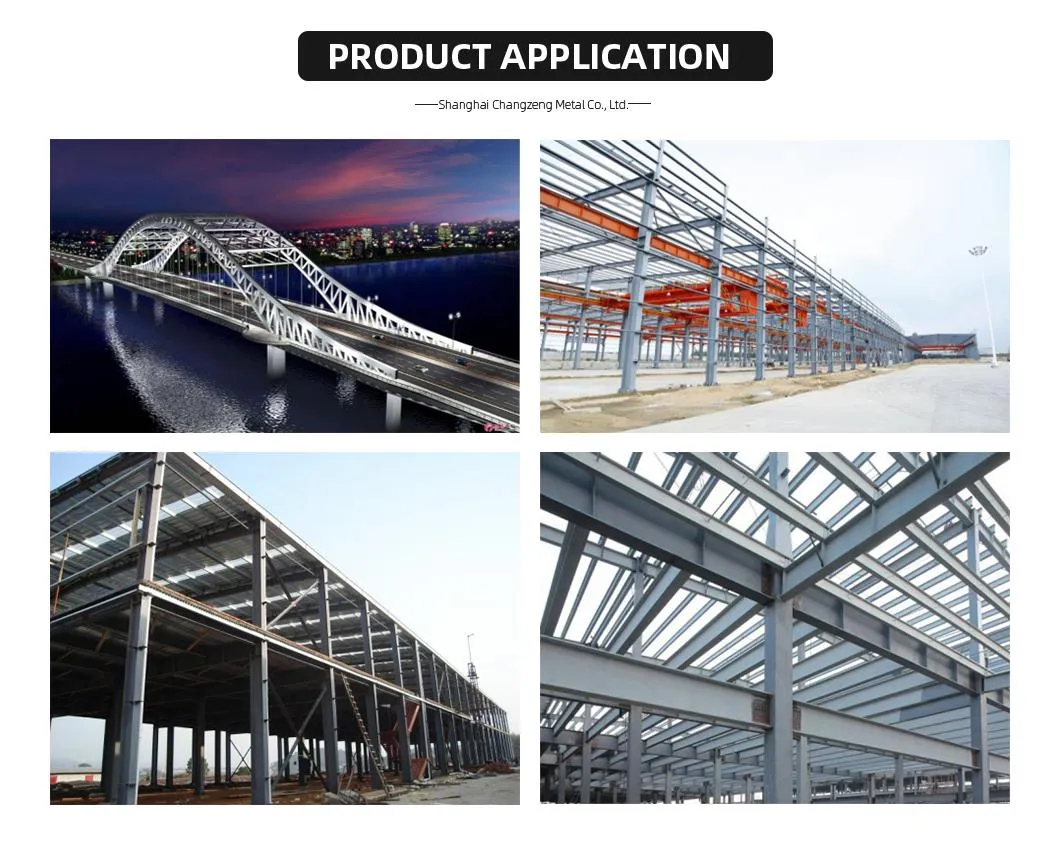

Usage	Mechanical & Manufacture, Steel structure, Shipbuilding, Bridging, Automobile Chassis
Packing	Tied up with steel strips and wrapped with water proof paper
Delivery Time	3-7 days after the receipt of deposit
Payment Terms	L/C at sight, T/T (30% prepaid, balance against B/L or L/C)

Product Size Chart

Type	Height (mm)	Width (mm)	Thickness (mm)	Theoretical Weight (kg/m)
6.3#	63	40	4.8	6.634
8#	80	43	5.0	8.045
10#	100	48	5.3	10.007
12#	120	53	5.5	12.059
14#a	140	58	6.0	14.535
14#b	140	60	8.0	16.733
16#a	160	63	6.5	17.240
16#b	160	65	8.5	19.752
18#a	180	68	7.0	20.174
18#b	180	70	9.0	23.000
20#a	200	73	7.0	22.637
20#b	200	75	9.0	25.777
25#a	250	78	7.0	27.410
25#b	250	80	9.0	31.335
30#a	300	85	7.5	34.463
30#b	300	87	9.5	39.173

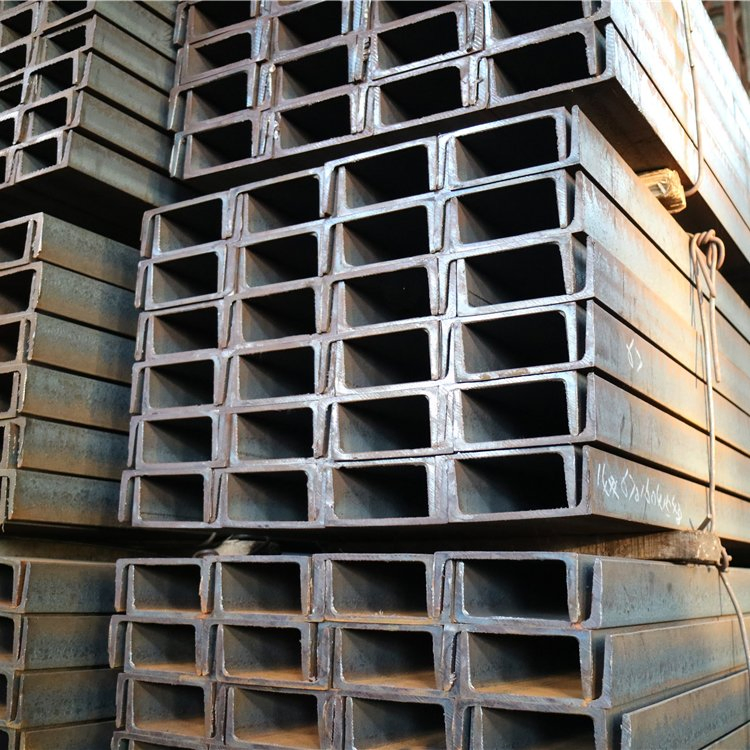

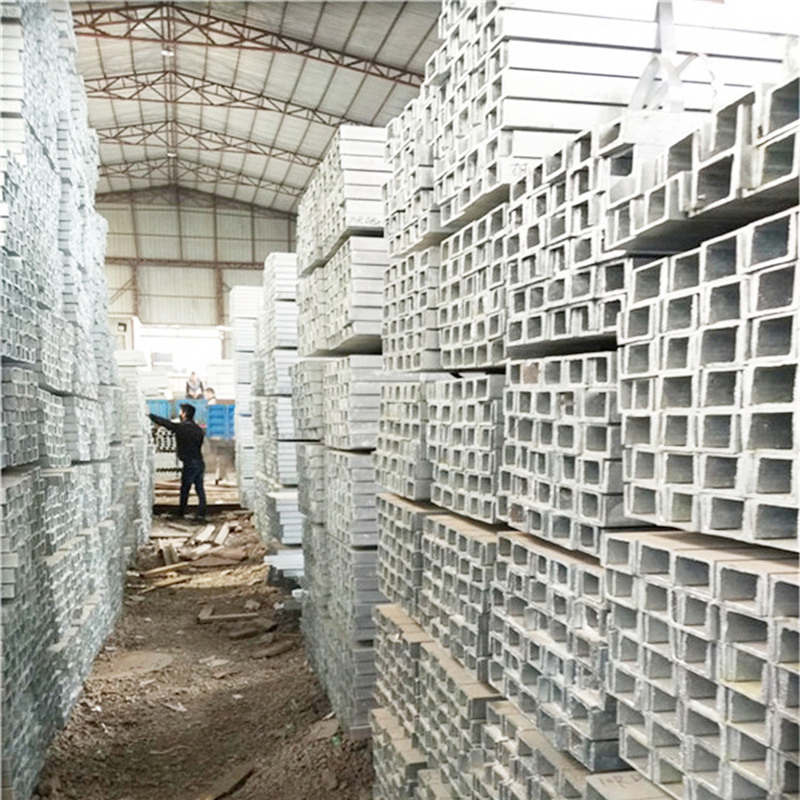

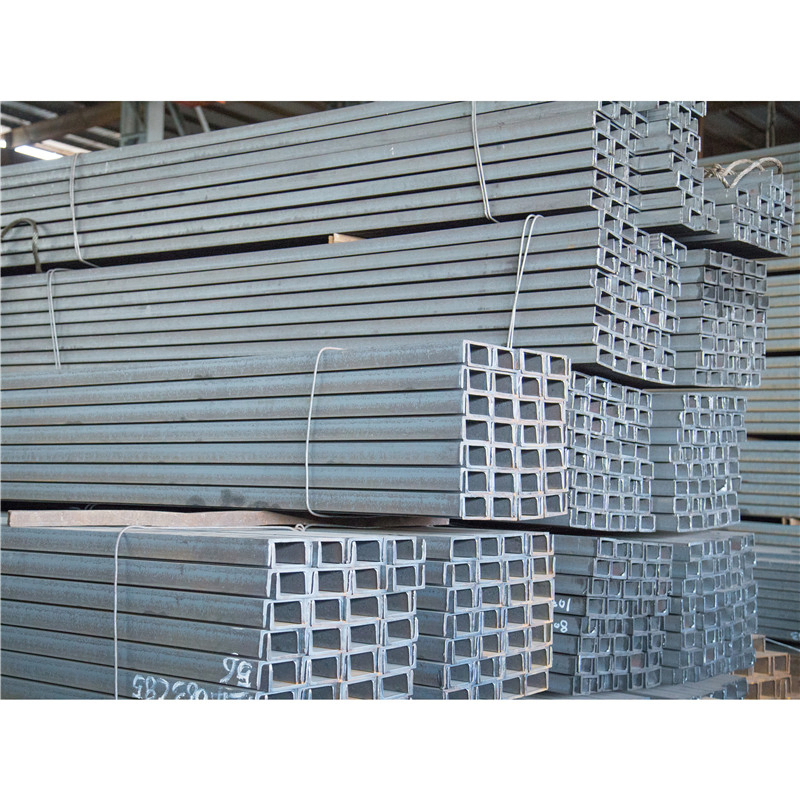

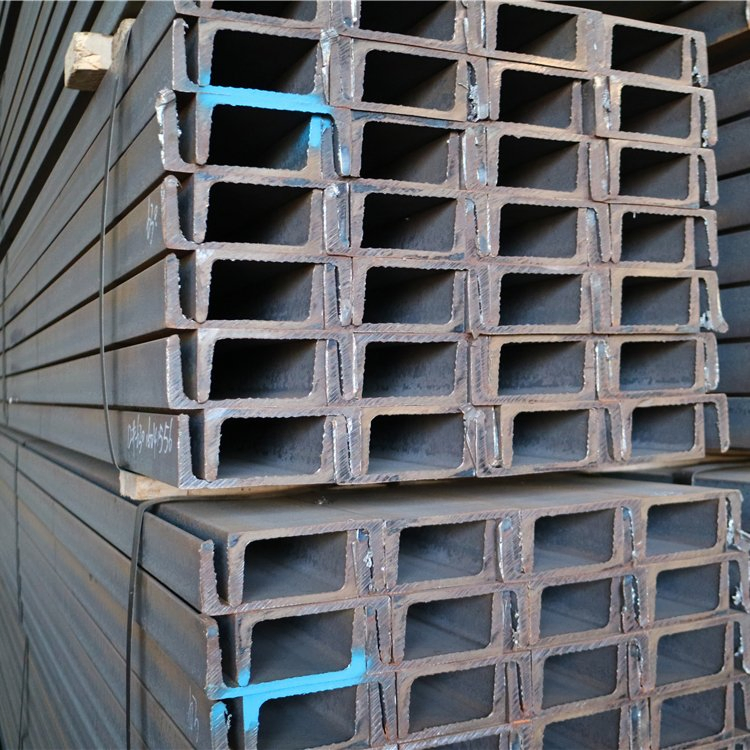

Product Display

Frequently Asked Questions

What materials are used for the Steel U Channels?

Our U channels are manufactured using high-quality steel grades including Q235B, Q345B, SS400, and various S235, S275, and S355 series standards.

What are the available surface treatment options?

We provide several finishes including Hot Dipped Galvanized, Pre-galvanized, Blue/Gray painting, and slightly grainy textures for specific industrial needs.

Can the length of the channels be customized?

Yes, while standard lengths are 6m, 9m, 10m, and 12m, we offer cutting services to match your specific project requirements.

What is the typical delivery time for an order?

Orders are typically delivered within 3 to 7 days after the receipt of the deposit, depending on the specifications and quantity.

What is the minimum order quantity (MOQ)?

The minimum order quantity for our steel U channels is 1 Ton.

What additional processing services do you provide?

We offer comprehensive processing services including bending, punching, precise cutting, and various coating options to deliver ready-to-use components.
