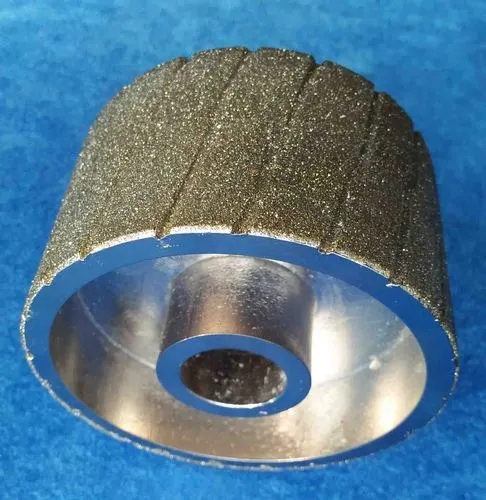

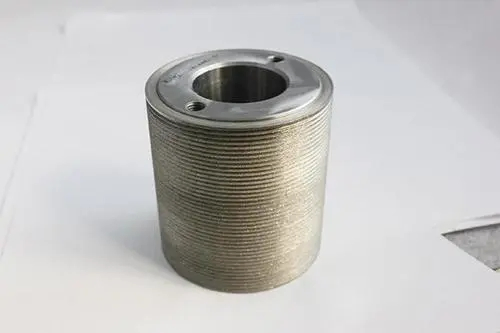

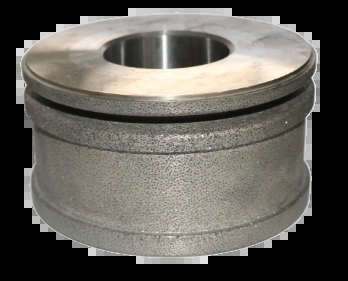

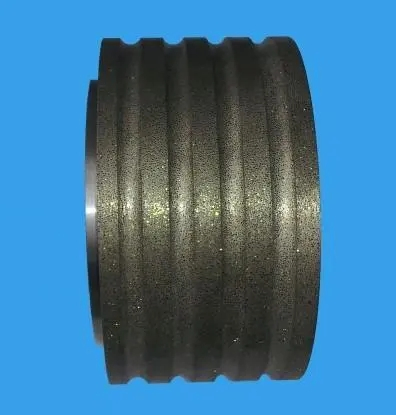

CNC-Profiled Diamond Form Roller for Gear Grinding

We source our products direct from the manufacturer to ensure the best prices.

If you want our products to solve your production issues, please feel free to leave me a message. We will provide one-on-one application communication and can also offer product selection services.

Application Fields:

• Auto parts: crankshaft, valve body, piston ring, ball cage universal joint, etc.
• Gear industry: double/single cone, gear tooth tip, full tooth surface.
• Machine tool: guide rail, sliding block, ball screw.
• Bearing industry: ball bearing groove, linear track, textile bearing.
• Hydraulic industry: plunger pump connecting rod, etc.

Our Advantages:

✅ High Efficiency: Simple operation and long service life.
✅ Stable Accuracy: Perfect for complex surfaces; quality is consistent.
✅ Small Tolerance: Angular symmetry controlled at 0.5°, arc within 2um.
✅ Short Prep Time: Reduces dressing time and equipment wear.

• The motor shaft must be cleaned with a clean towel.
• Check dressing shaft runout (should be < 0.002mm).
• Apply lubricating oil to the inner hole of the roller.
• Do not overtighten screws (Nuts: ~100Nm; Bolts: 10-32Nm).
• Note: Do not use brute force, hammers, or high temperatures during installation.

• Cool the alignment grinding area effectively.
• Coolant flow rate should equal the grinding wheel speed.
• Cooling pressure should not be less than 10 Bar for forming rollers.
