🏗️ Product Description

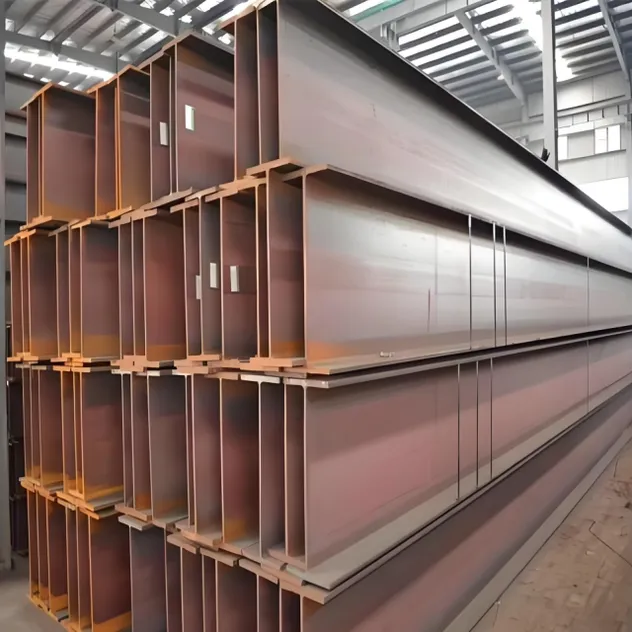

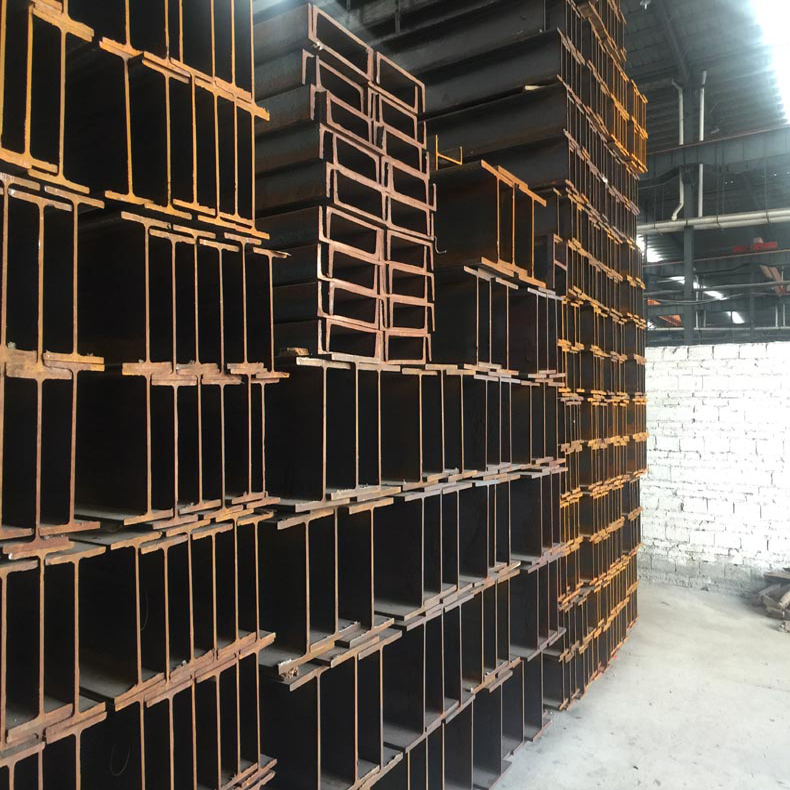

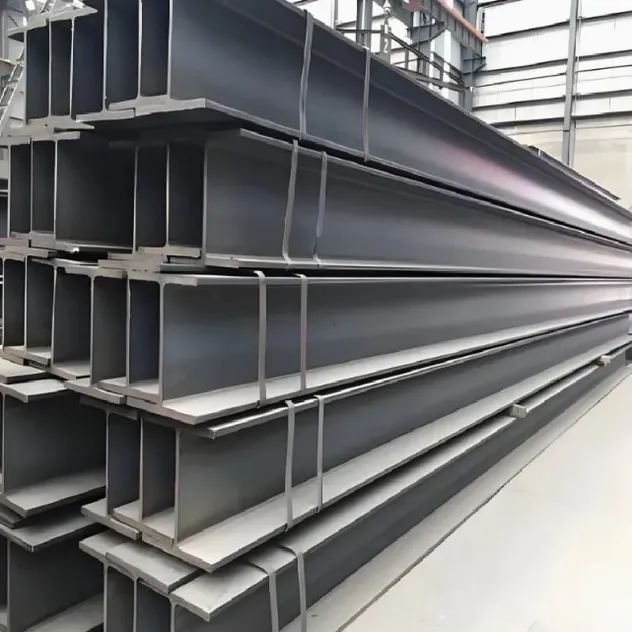

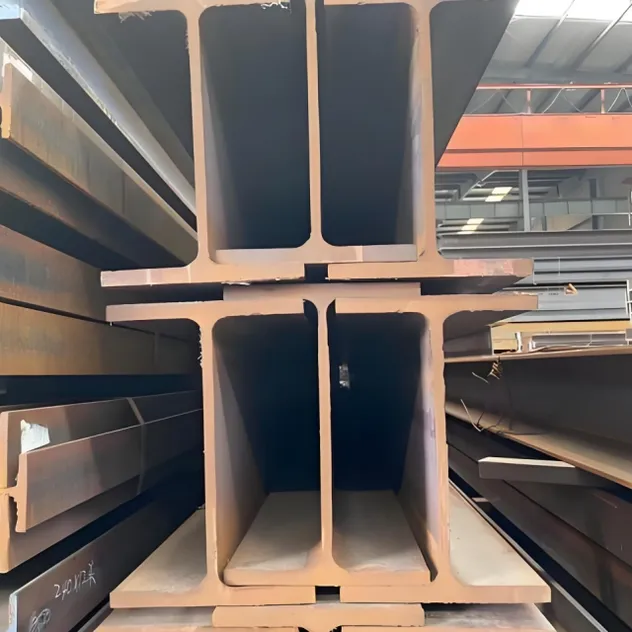

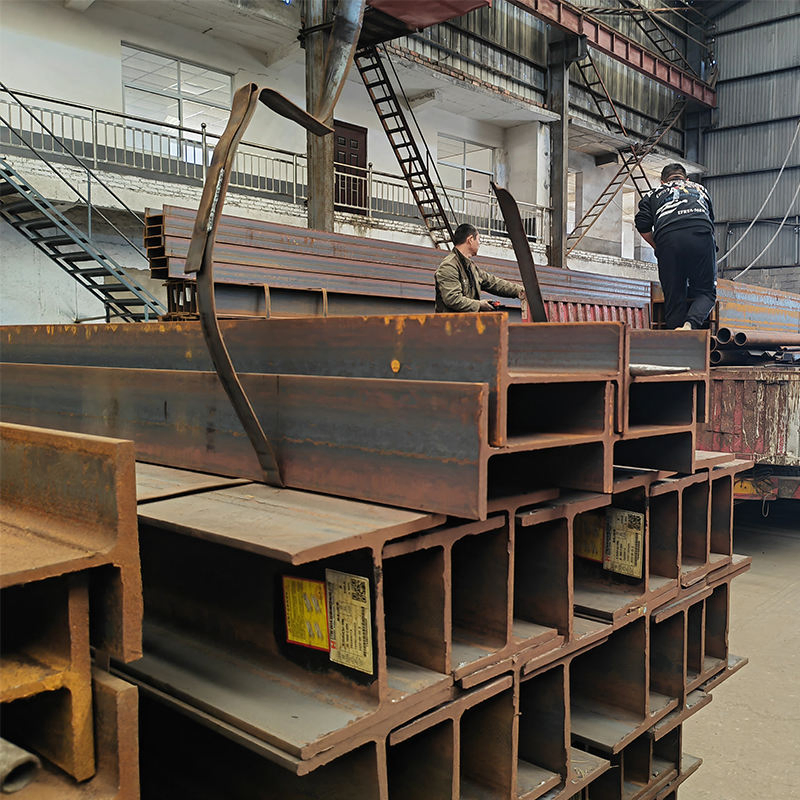

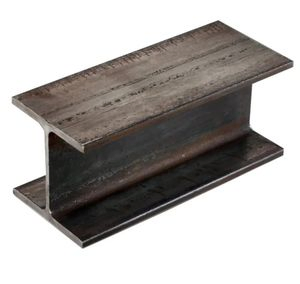

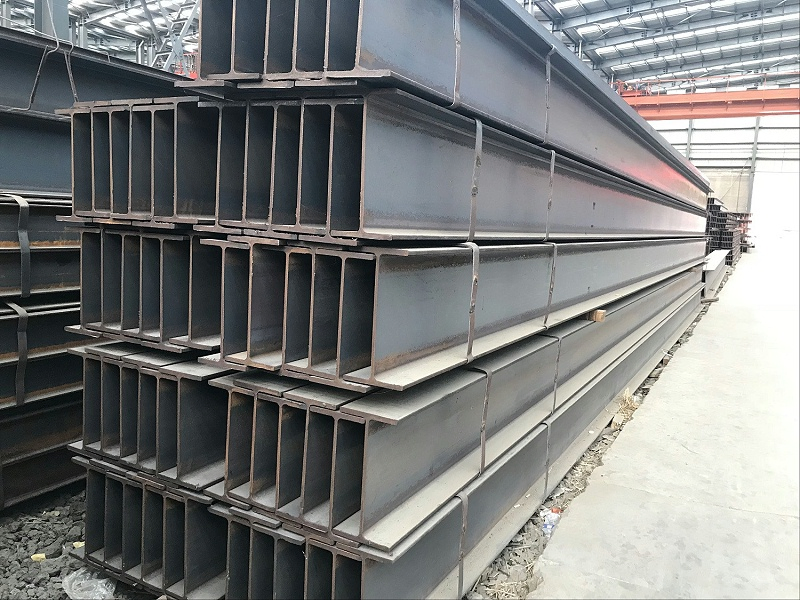

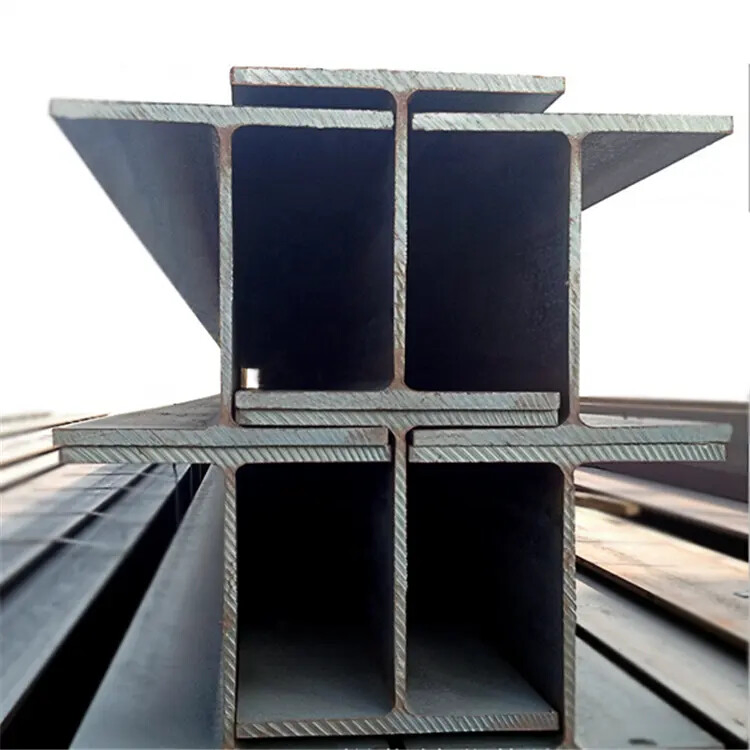

H Beam Steel
H Beam Steel is a high-performance structural steel with an H-shaped cross-section, renowned for its excellent load-bearing capacity, uniform stress distribution and high structural stability. It is a core material widely used in building construction, bridge engineering, industrial steel structures, factory buildings and prefabricated construction projects worldwide.
| Technical Specifications |
|---|
| Grade | Q235B SM490 SS400 Q345B G300 G350 S275JR S355JR |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Technique | Hot rolled/Cold rolled |
| Size | Customized according to customer needs |
| Application | Civil and Industrial Building Structures |
| Shape | H-Section |
| Trade Terms | FOB CFR CIF EXW |
📐 Detailed Specifications
| Standard |
Series |
Model |
Dimension (h×b×t1×t2) |
Weight (kg/m) |
Scenario |
| GB/T 11263 | HN | HN100×50 | 100×50×5×7 | 9.54 | Light Beams |
| GB/T 11263 | HN | HN200×100 | 200×100×5.5×8 | 23.59 | Main Beams |
| GB/T 11263 | HW | HW200×200 | 200×200×8×12 | 50.58 | Heavy Frames |
| EN 10034 | HEA | HEA200 | 200×200×6.5×10 | 35.50 | Bridge Side Beams |
| EN 10034 | HEB | HEB200 | 200×200×8×12 | 45.80 | Heavy Beams |
| ASTM | W Series | W12×35 | 305×152×6.4×10.7 | 52.20 | Commercial Buildings |
Notes:
1. Custom lengths available (standard 6m/9m/12m, customizable 1-12m).
2. Compliance with EU CBAM and North American ASTM standards; MTC, CE, SGS provided.
3. Galvanizing treatment adds approximately 5%-8% to the weight.
🏢 Professional Profile
We supply a full range of steel products, including pre-coated coil, galvanized coil, steel plate, stainless steel, pipe products, and section steel. With a robust monthly sales volume of 30,000 tons, we provide professional custom processing and logistics services. Our advanced facilities and supply network link major mills to global markets. Products are distributed worldwide, complying with international standards including ISO, ASTM, JIS, EN, and GB.
❓ Frequently Asked Questions
What are your main steel products?
Our main products include H-beams, steel plates, coils, round/square pipes, bars, and various structural channels.
How is the quality of the H-beams controlled?
Mill test certification is supplied with every shipment. We also support third-party inspections to ensure all technical standards are met.
What are the advantages of choosing your company?
We offer highly competitive pricing, professional technical support, and comprehensive after-sales service compared to other steel suppliers.
Which countries do you typically export to?
We have exported to more than 50 countries, including the USA, Russia, UK, Kuwait, Egypt, Turkey, Jordan, and India.
Can you provide samples before a bulk order?
Yes, we provide small samples from our store for free. Customized samples typically take about 5-7 days to prepare.
What standards do your H-beams follow?
Our H-beams comply with various international standards including GB/T, ASTM, JIS, and EN 10034.
