Architectural Metalwork Specialist: Precision V Groover Slot Press Cut Machine for Decorative Panels

Basic Specifications

Model NO.V4200

CertificationRoHS, ISO 9001, CE

AutomationAutomatic

TypeV Grooving Machine

Driven ModeFull Electro Servo

Grooving Thickness0.3-10 mm

Grooving Length0-4200 mm

Reposition Accuracy± 0.03 mm

CNC SystemTaiwan Syntec

Knife Blade Nos.6 PCS

Product Overview

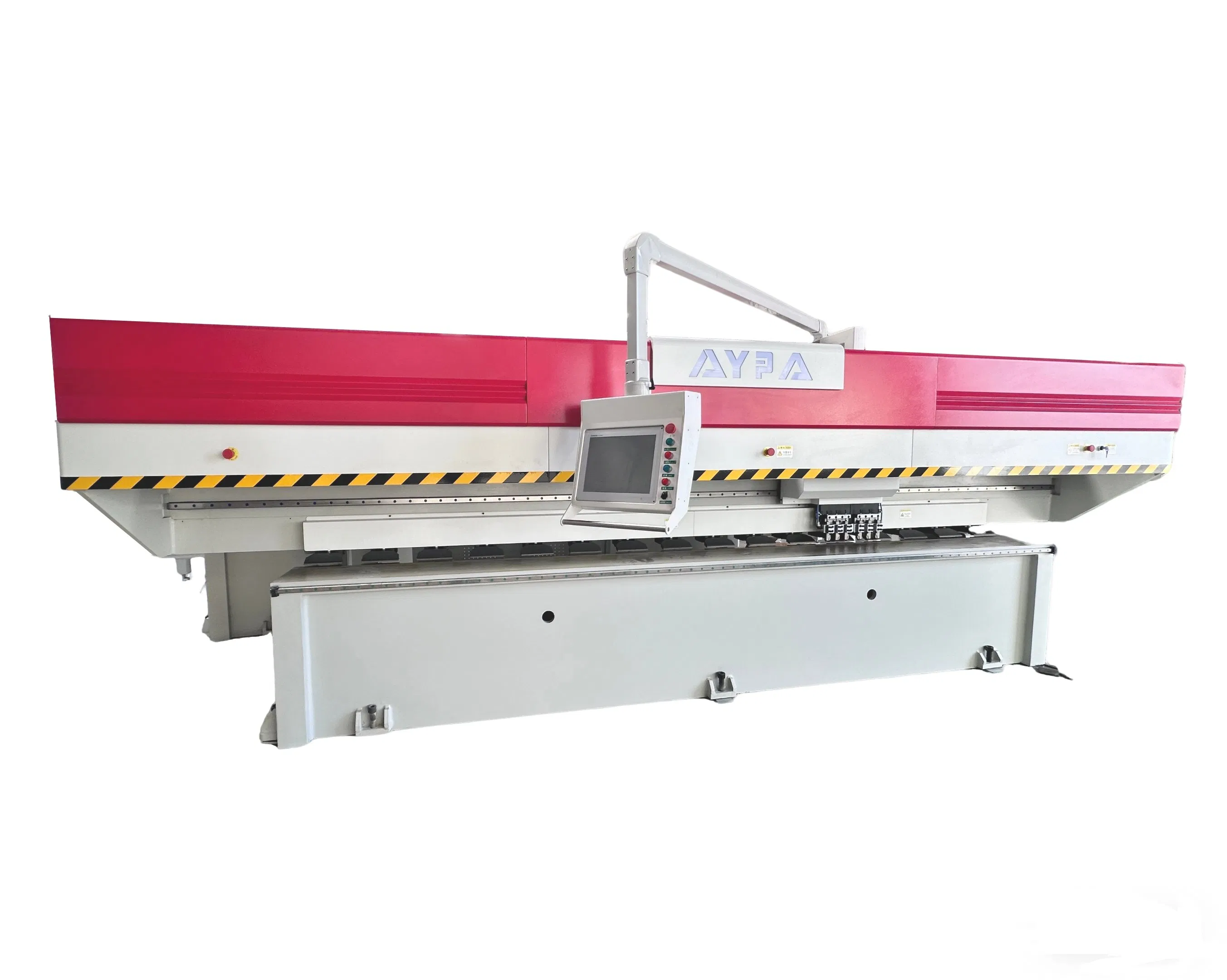

Precision V Groover Slot Press Cut Machine for Decorative Panels

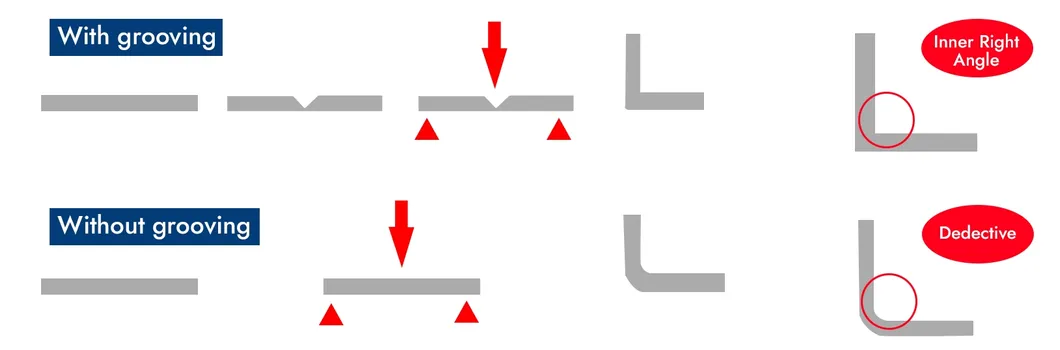

This vertical CNC V grooving and folding machine is engineered for high-precision bending preparation, delivering deep, straight grooves on metal sheets efficiently.

Reciprocate Grooving: Exceptional efficiency throughout the entire process.
SIX Knife Blades: Significantly improves production speed.
Easy CNC System: User-friendly operation with interlocking protection.
Quick Clamping: Designed to optimize workflow and productivity.

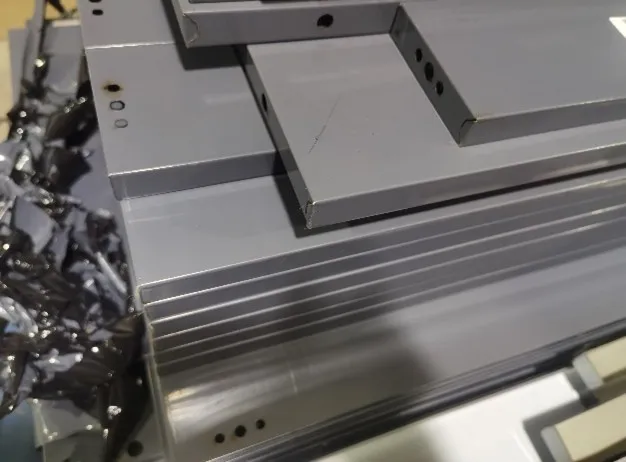

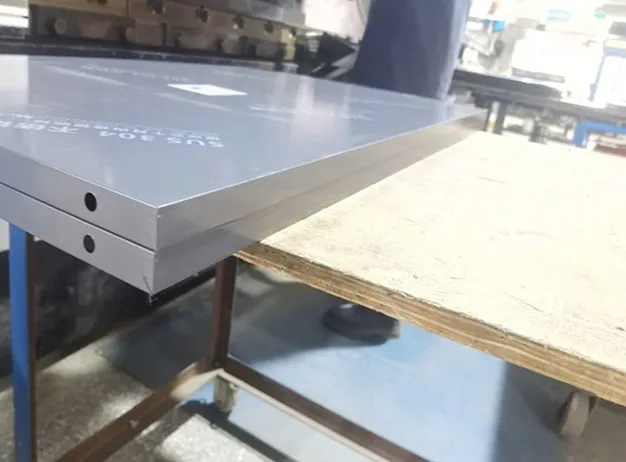

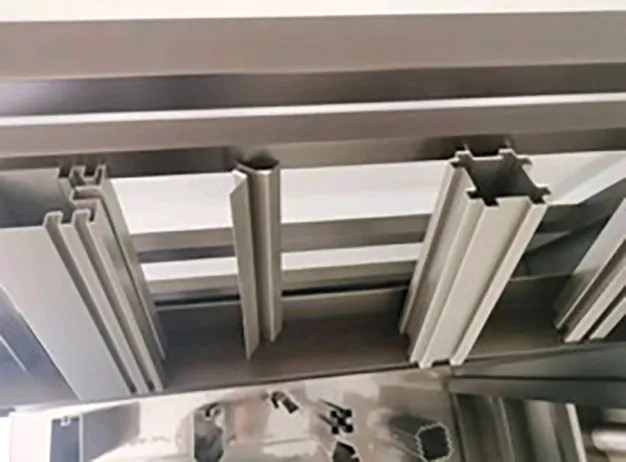

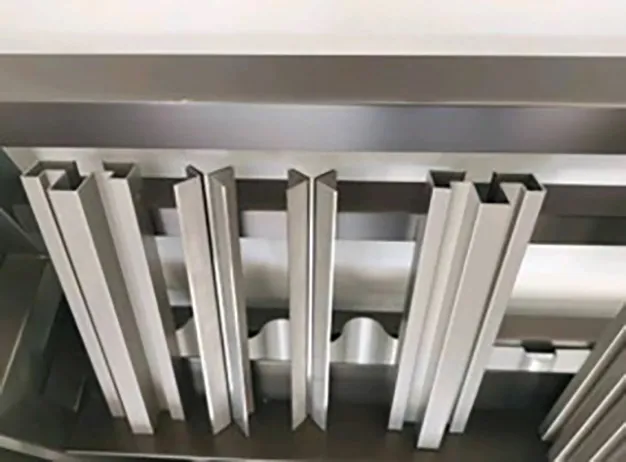

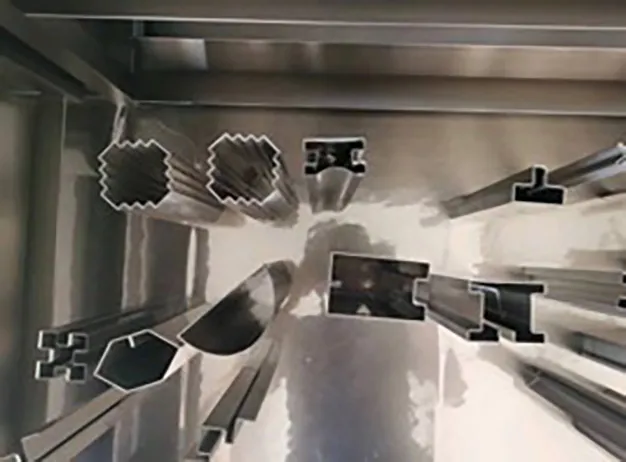

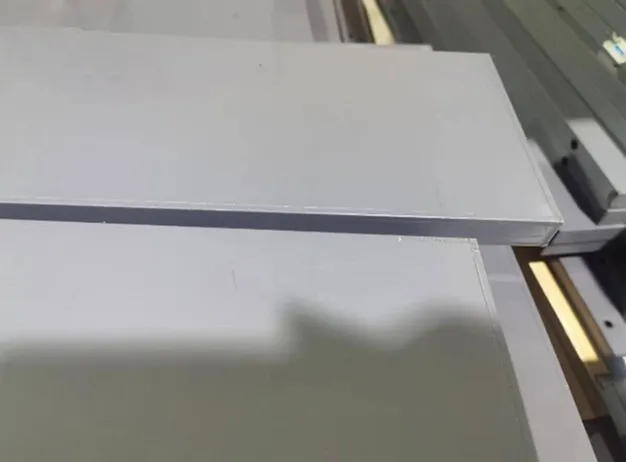

Bending Workpiece Display

Technical Features

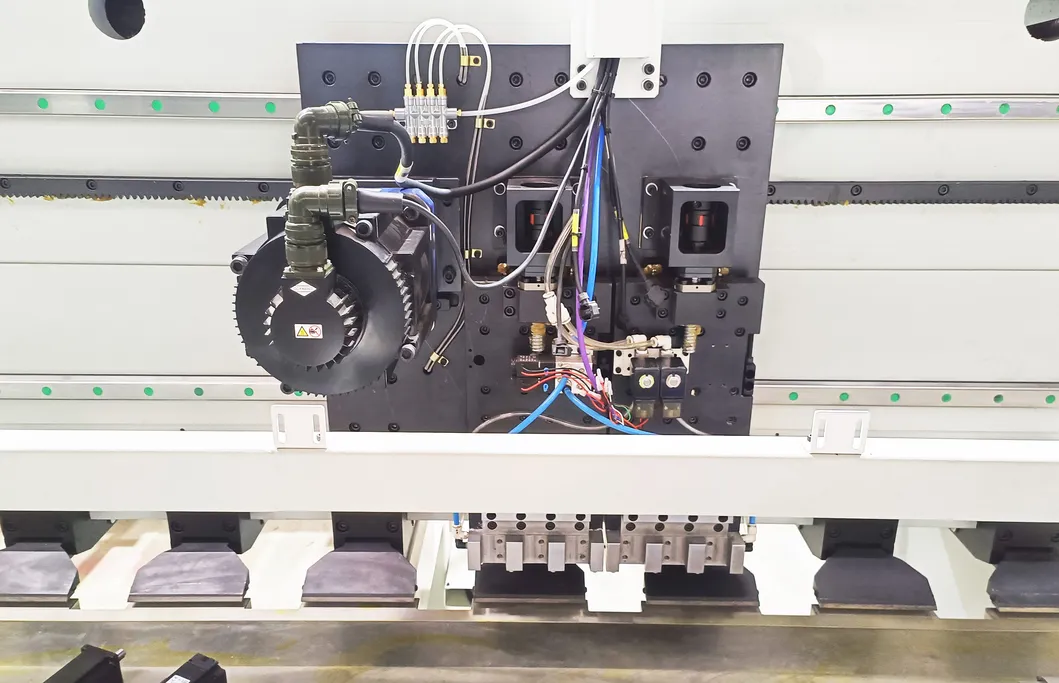

📍 X-axis Installment Device

Made from precision-machined, stress-relieved material. This rigid panel provides a perfectly flat and stable platform for the cutting head, effectively absorbing vibration to maintain high accuracy during the cut.

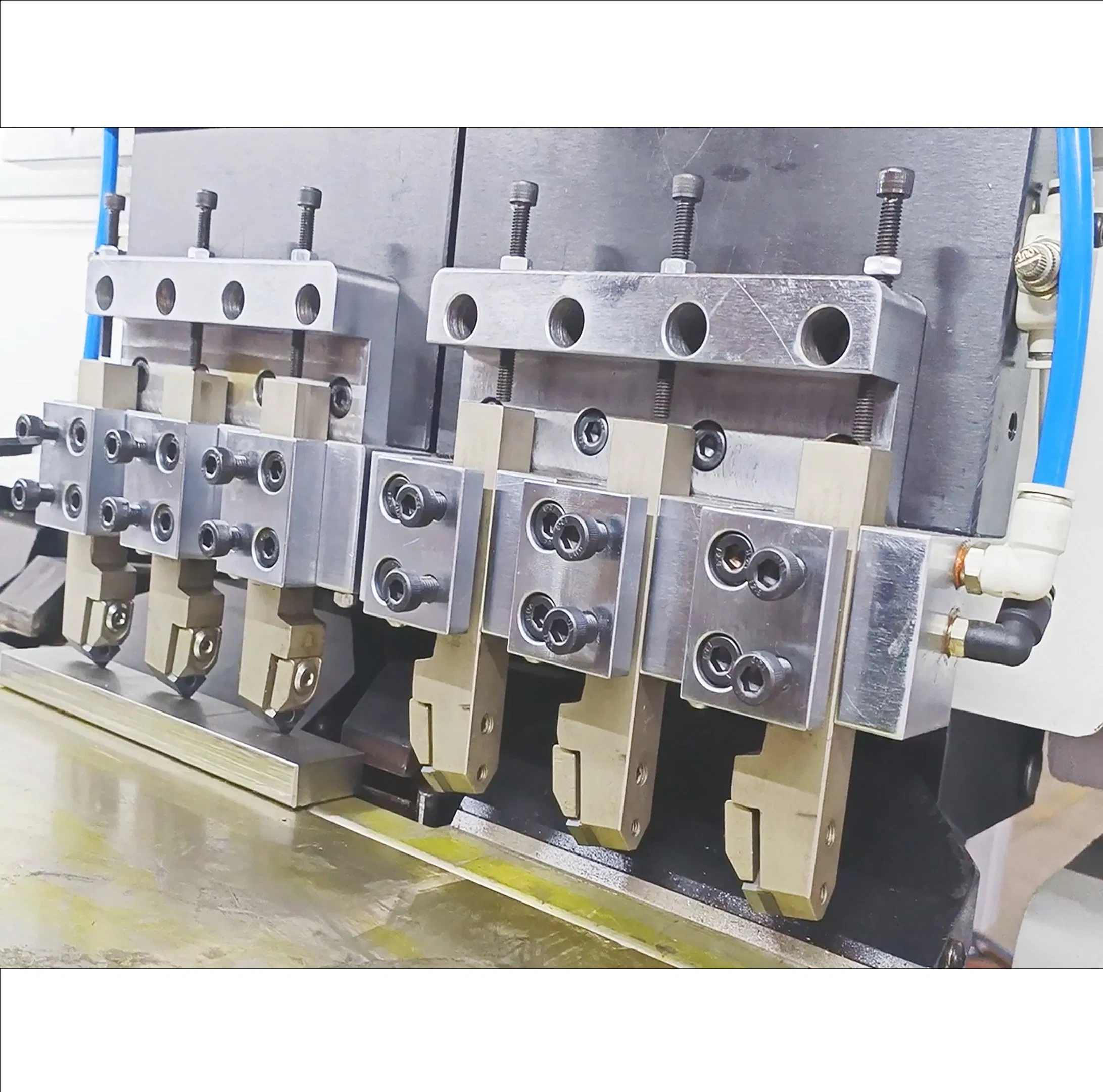

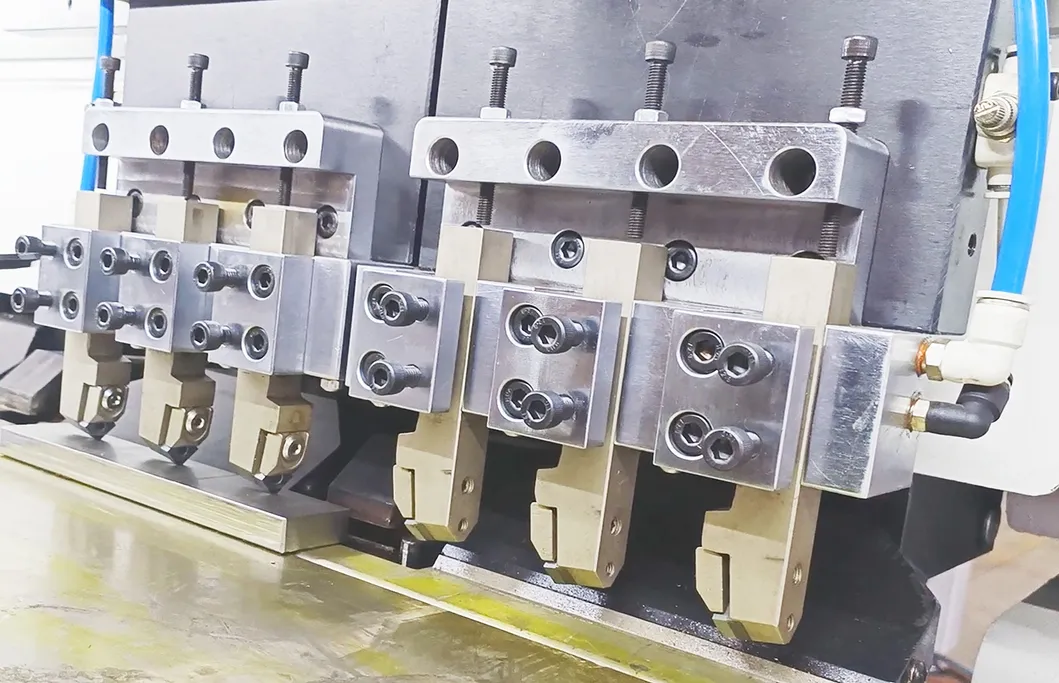

📍 SIX Alloy Blade Tooling

Rigid blade holder designed for alloy inserts, ensuring stable and durable grooving performance. These tools are engineered for longevity and sharpness, delivering clean, burr-free grooves.

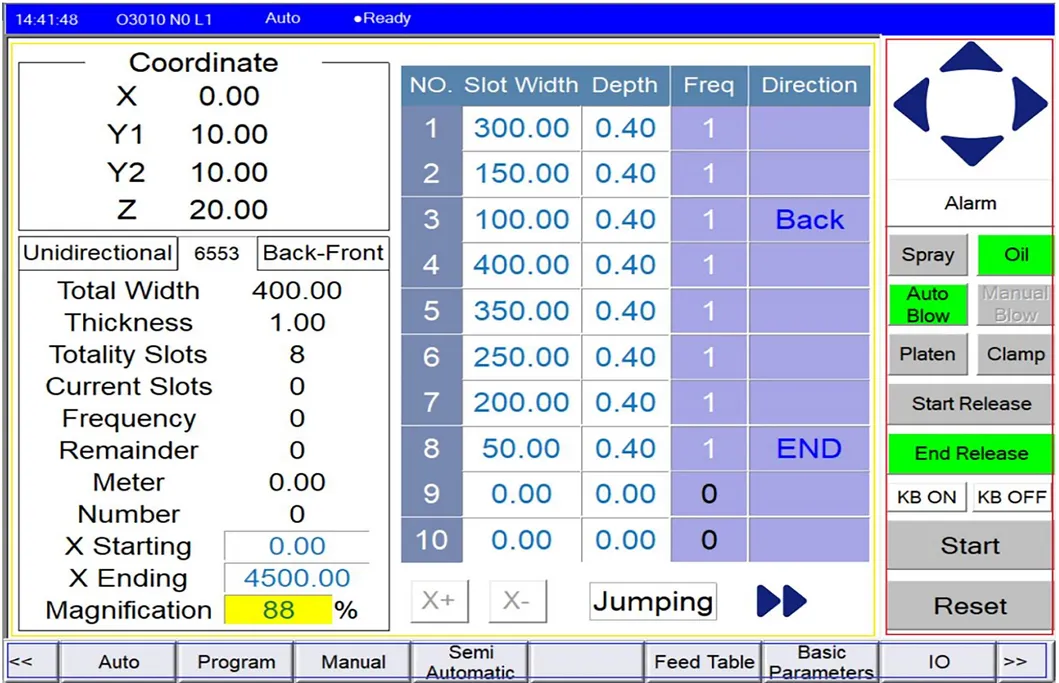

📍 Advanced CNC System

User-friendly touchscreen interface for precise parameter setting and fully automatic operation. It stores multiple programs, significantly reducing human error.

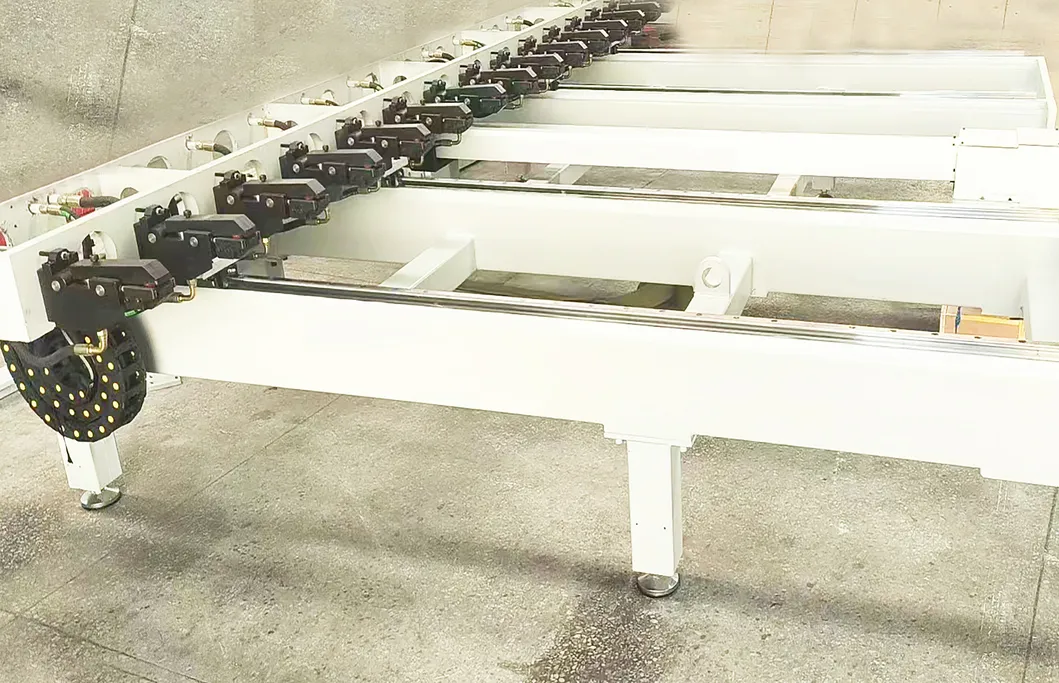

📍 Feeding Mechanism

Driven by a high-precision servo motor and ground ball screw. This ensures smooth, stable, and accurate longitudinal movement for every groove.

Product Parameters

ITEMS	SPECIFICATIONS	UNIT
Processing Sheet Size	4200 * 2000	mm
Grooving Thickness	0.3 - 10	mm
Reposition Accuracy	± 0.03	mm
X-axis Servo Power	5.5	kW
Y-axis Servo Power	2	kW
Idle Rate	150	m/min
Workbench Height	880	mm
Machine Weight	13.5	ton

Related Product Categories

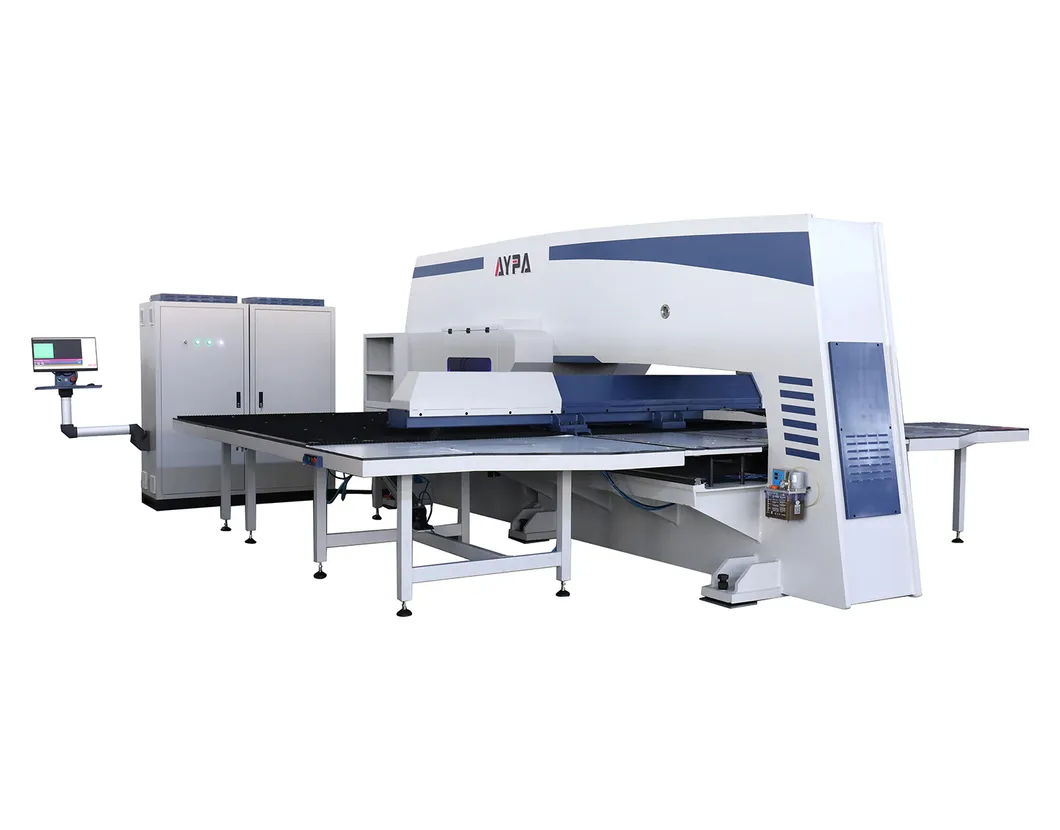

CNC TURRET PUNCH

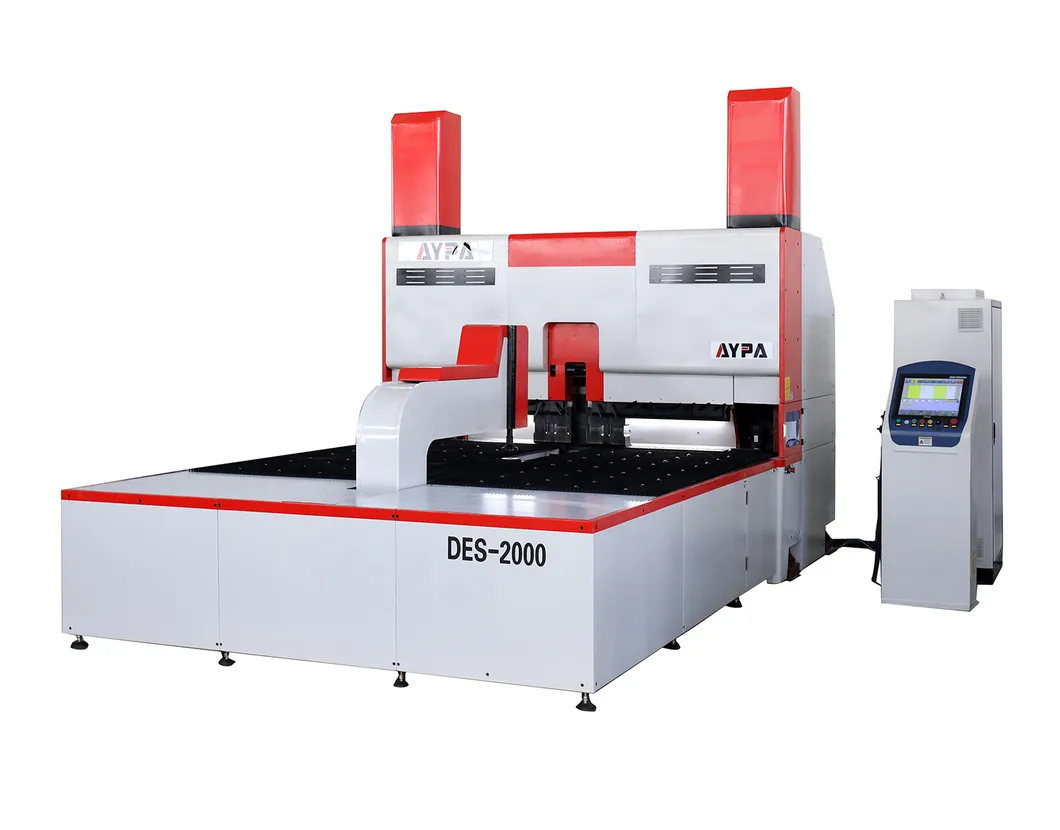

AUTO PANEL BENDING

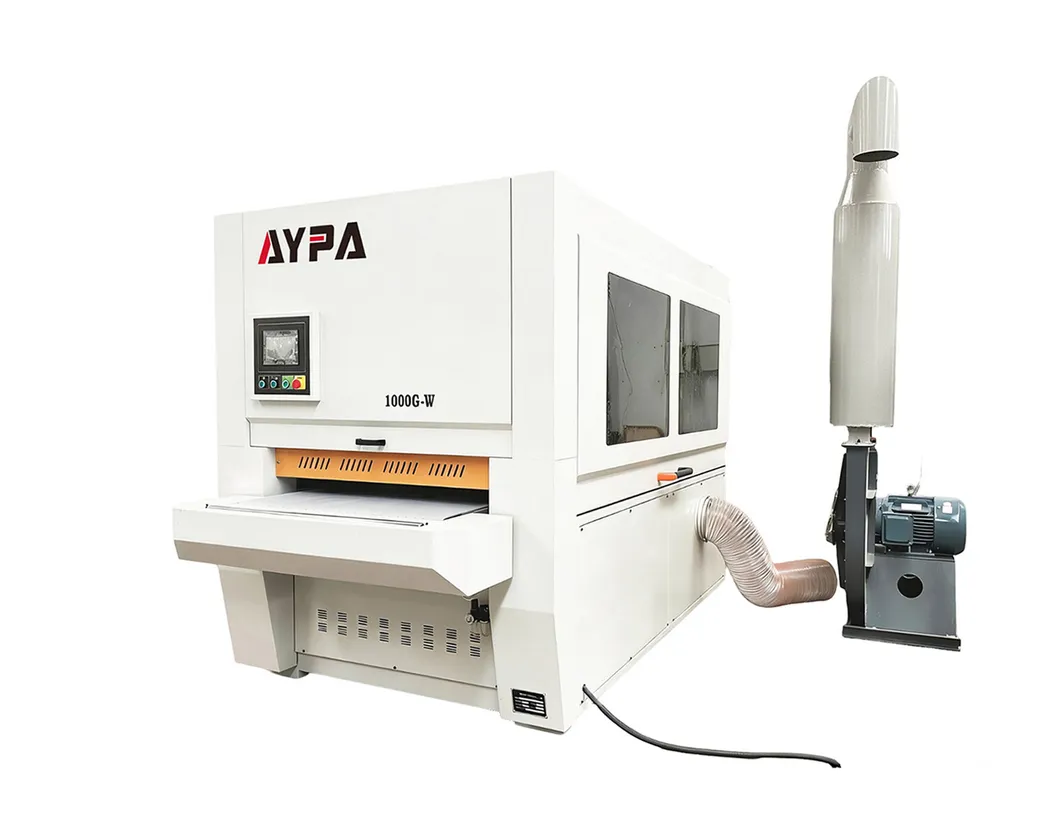

CNC GRINDING MACHINE

Packaging & Logistics

Frequently Asked Questions

What materials can this machine process?

This machine is designed to groove various metal sheets, including stainless steel, mild steel, aluminum, and copper. It is ideal for architectural decoration and elevator manufacturing.

How is the groove depth accuracy ensured?

The combination of a high-precision servo motor for the feeding mechanism and a rigid X-Axis mounting panel ensures the cutting head remains stable, guaranteeing +/-0.03mm accuracy.

Is the operation difficult for new users?

Not at all. The machine features a user-friendly PLC touch-screen interface with pre-set programs. Most operators can learn the basic operations within a few hours.

What is the typical delivery time?

Generally, the delivery lead time is between 15 to 30 days depending on the specific model and customization requirements.

How often should the blades be replaced?

Blade longevity depends on the material type and usage frequency. Our specialized carbide blades are designed for long service life and the quick-change design minimizes downtime.

What kind of technical support is provided?

We provide comprehensive English manuals, wiring diagrams, and video tutorials. Online technical support is also available to assist your team.
