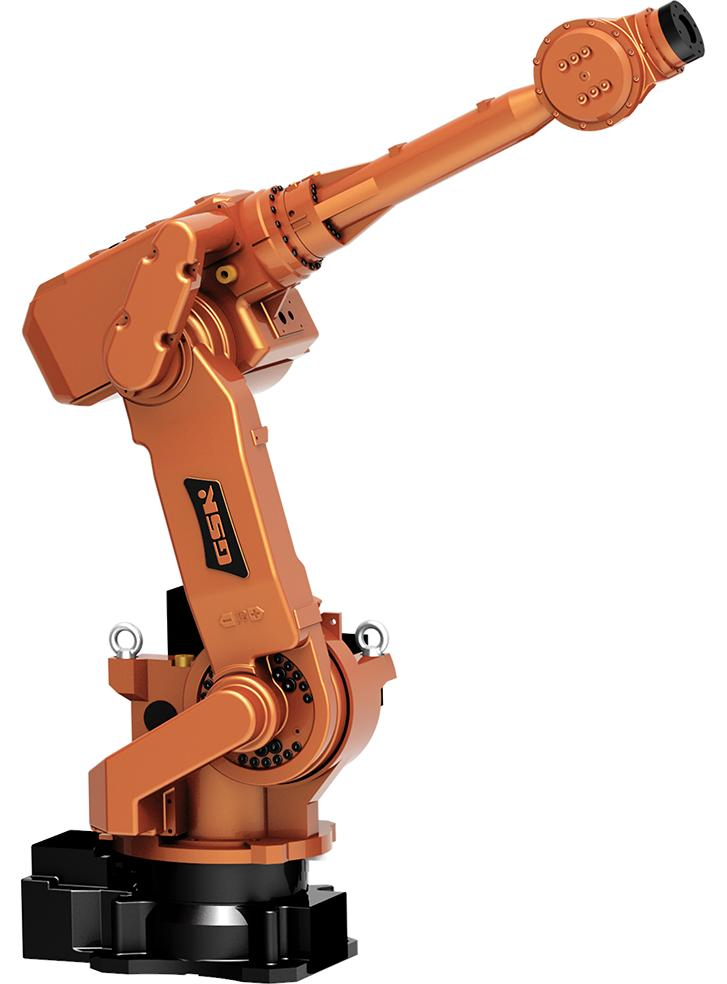

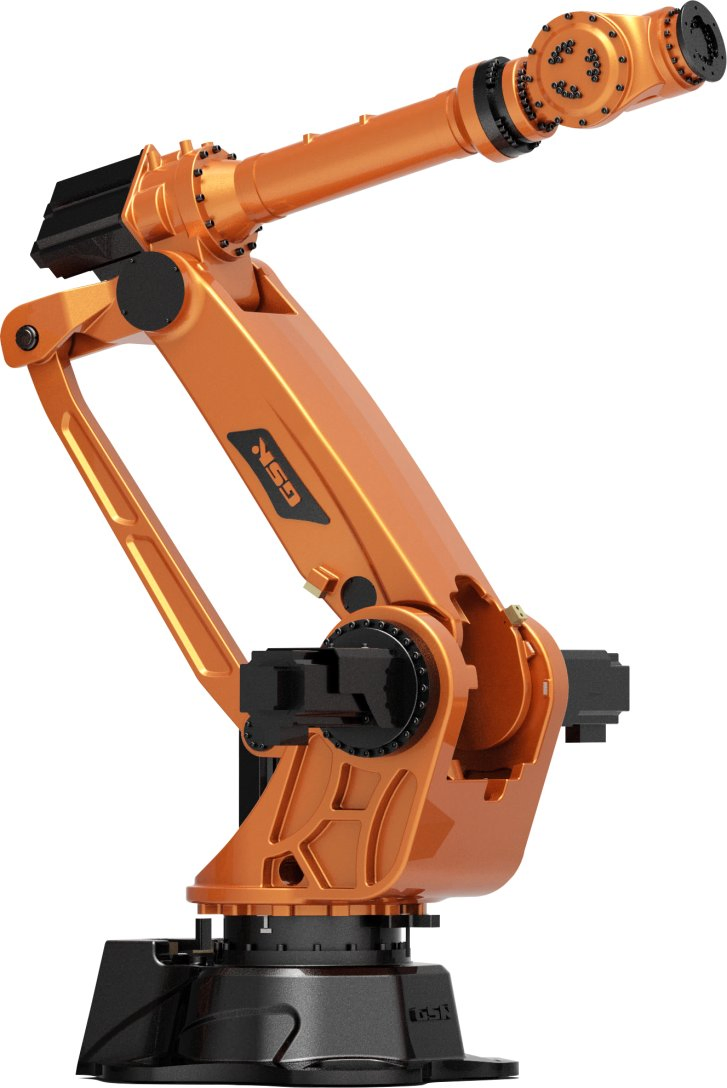

This dynamic industrial robot brings a remarkable payload of 300kg with an exceptional reach of 2850mm, specifically engineered for efficient packing and loading tasks. Its versatility shines in burnishing, polishing, spraying, and punching automation production lines.

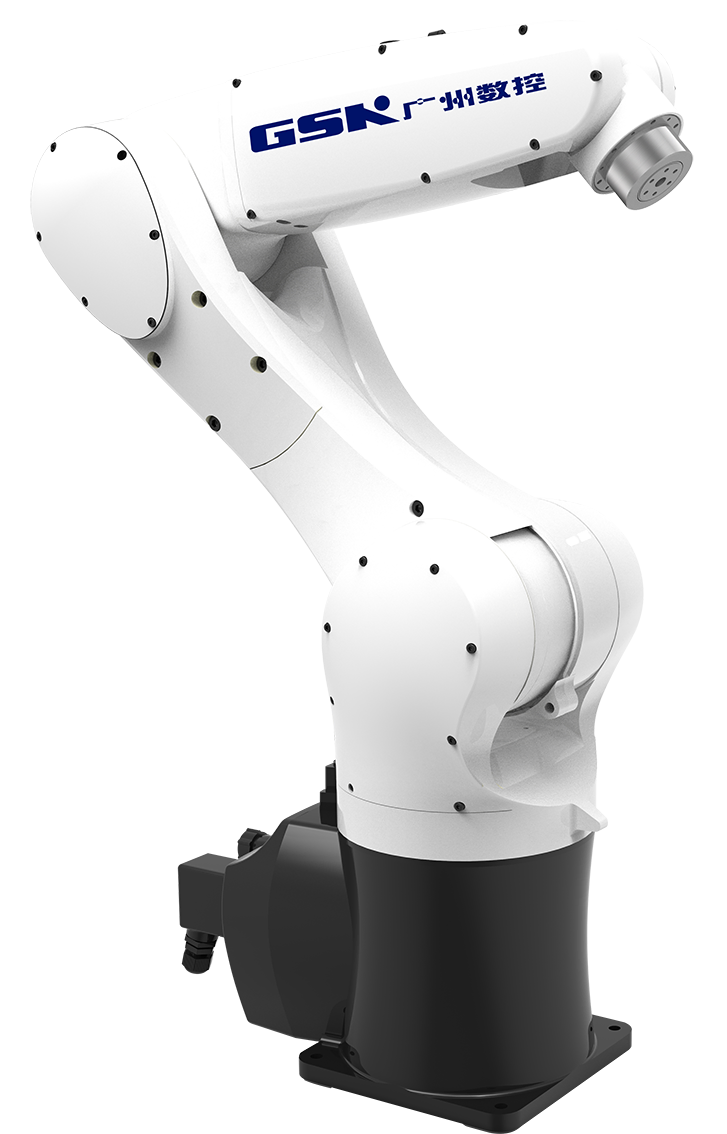

| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Radius (mm) | Weight (kg) | J1 Range | J2 Range | J3 Range |
|---|---|---|---|---|---|---|---|---|
| RB03A1-562 | 6 | 3 | ±0.02 | 562 | 36 | ±150° | +136°/-51° | +64°/-131° |

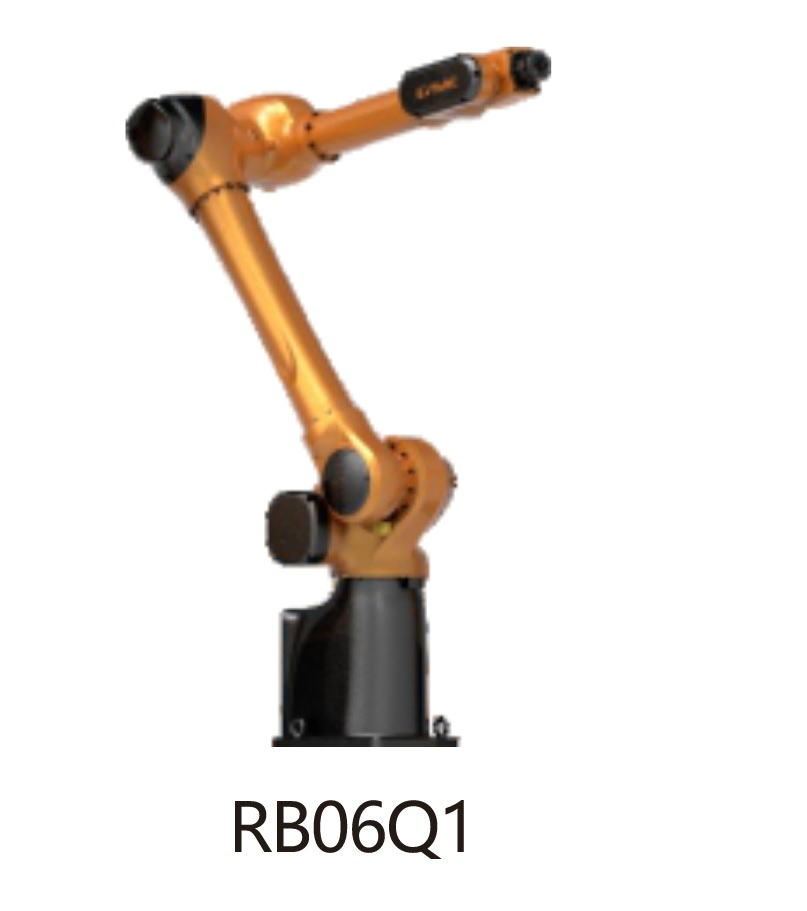

| RB06-900 | 6 | 6 | ±0.03 | 900 | 60 | ±170° | +135°/-100° | +155°/-110° |
| RB08A3-1490 | 6 | 8 | ±0.04 | 1490 | 185 | ±170° | +120°/-85° | +83°/-150° |
| RB20A3-1700 | 6 | 20 | ±0.04 | 1700 | 265 | ±170° | +160°/-80° | +76°/-112° |
| RB50-1956 | 6 | 50 | ±0.05 | 1956 | 650 | ±178° | +130°/-90° | +75°/-200° |

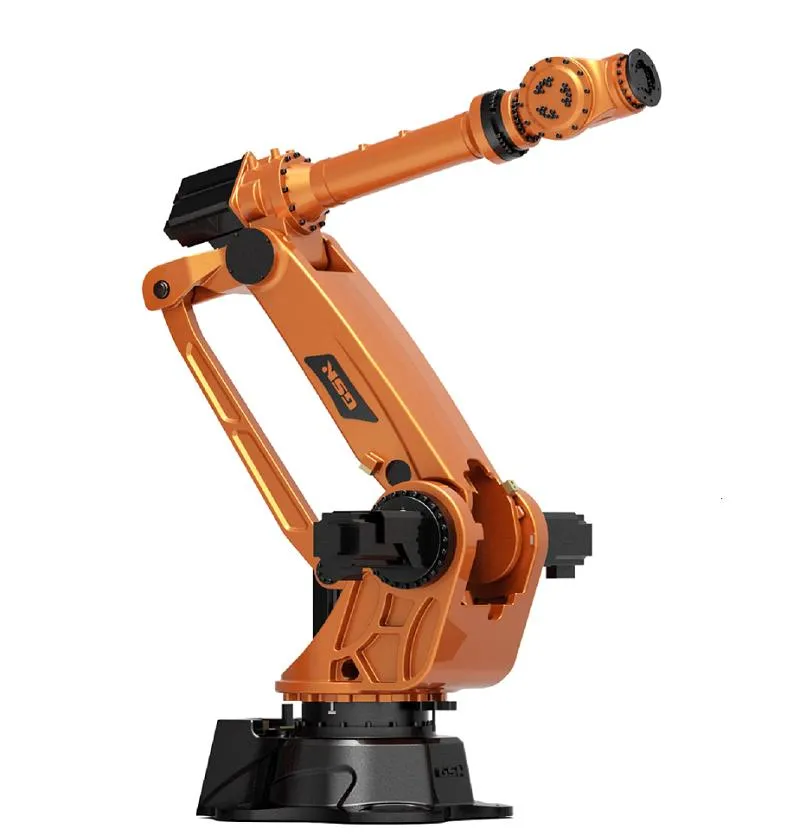

| RB300A1-2850 | 6 | 300 | ±0.1 | 2850 | 1650 | ±175° | ±70° | -85°/+130° |

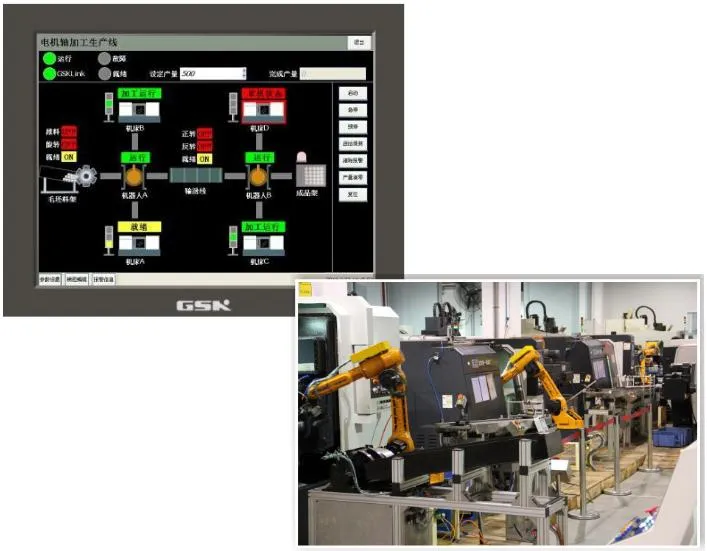

Unit Control System: Designed for high-speed bus connection between machines and robots.

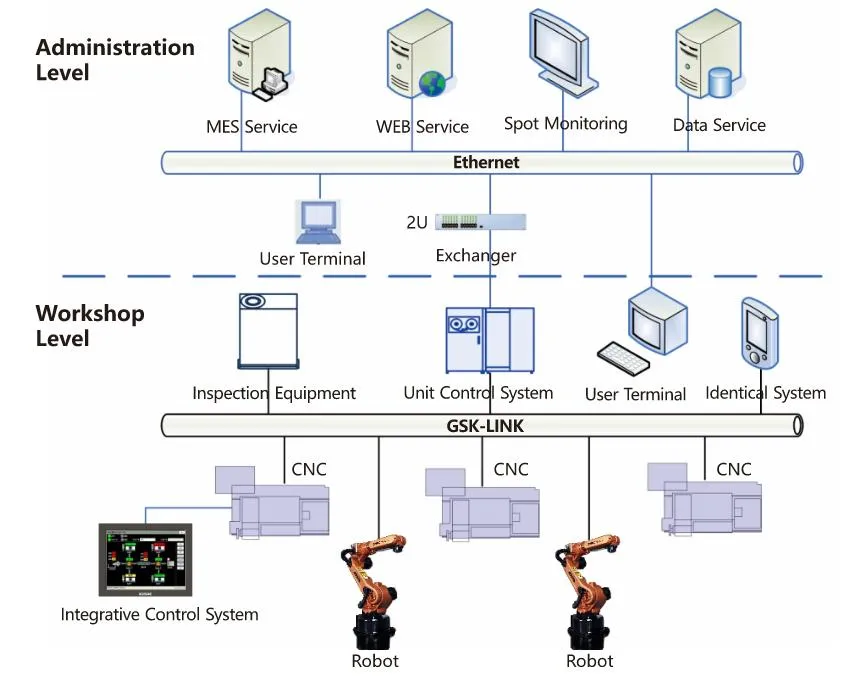

General Management: Digitalized factory management for intelligent workshops.

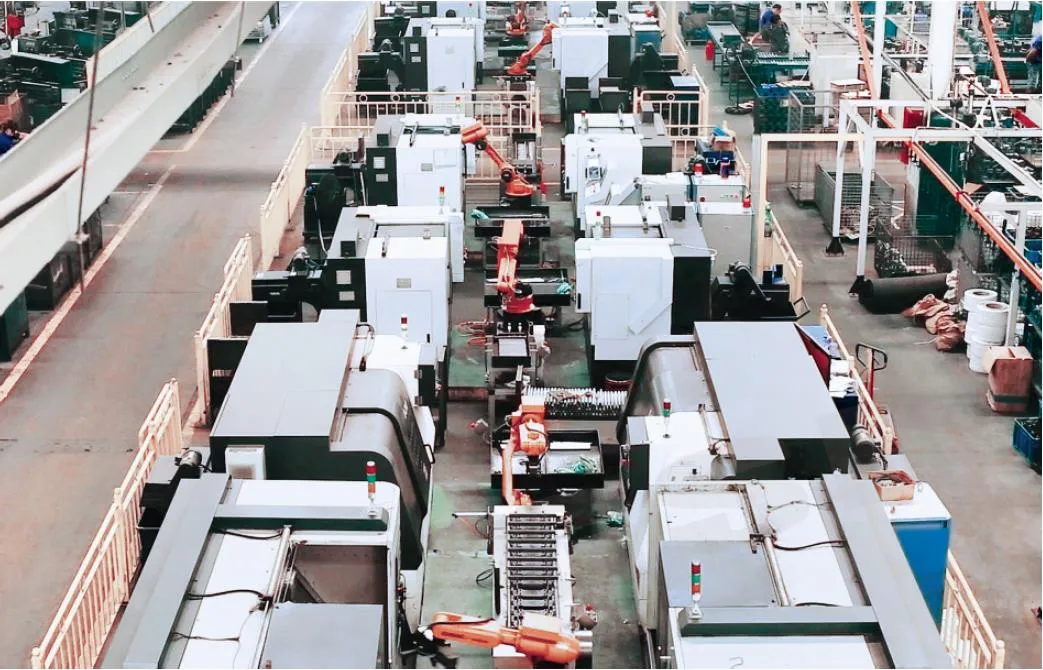

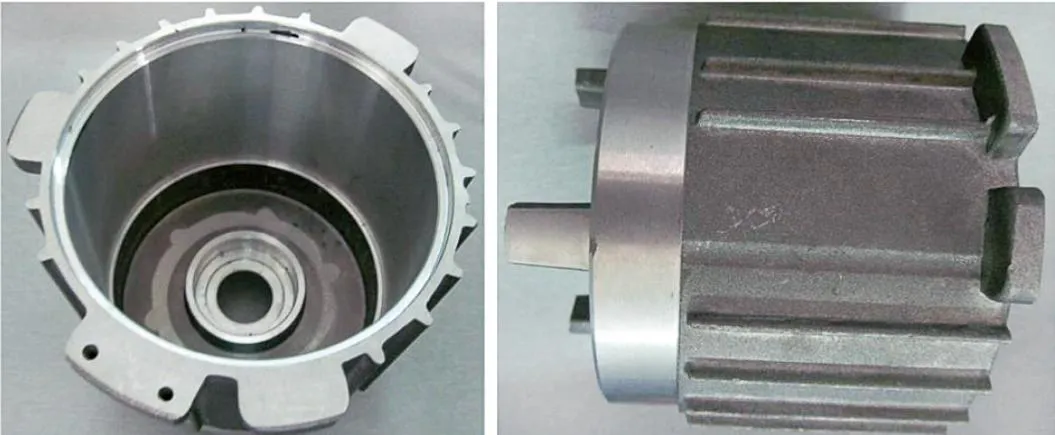

Integrates robots with CNC turning machines for seamless automation. Features secure grippers with position confirmation to prevent accidents during power failures.

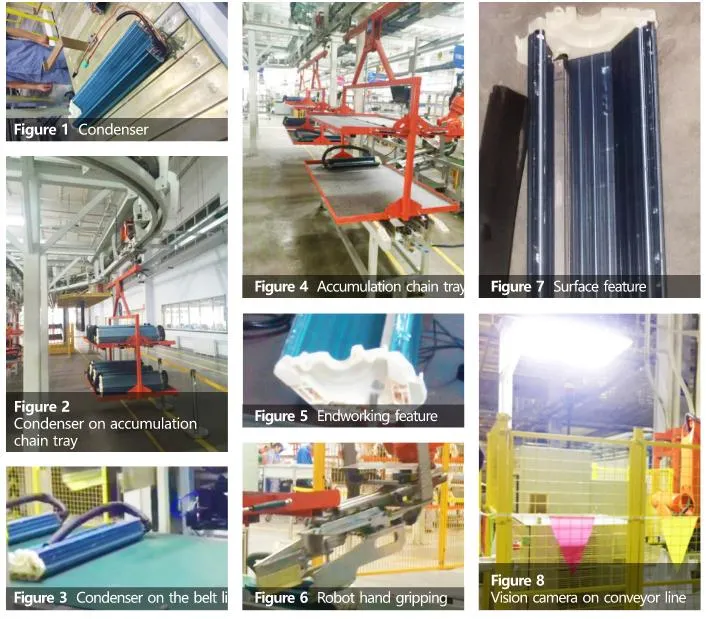

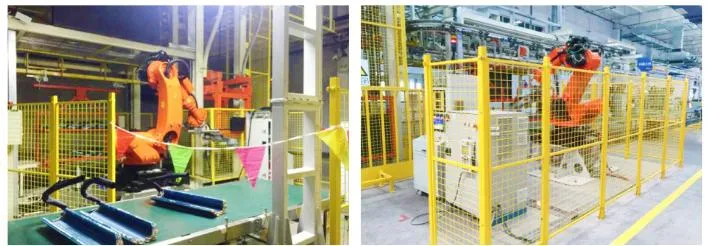

Utilizes advanced 3D vision guidance for irregular workpieces like condensers. Achieving a 10-second production pace with 24/7 autonomous identification.

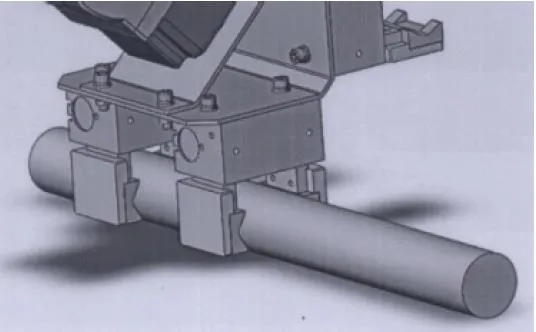

Organization of up to 180 rods for 3-hour continuous machining. Adapts to diameter changes and ensures precise positioning for high-speed production.

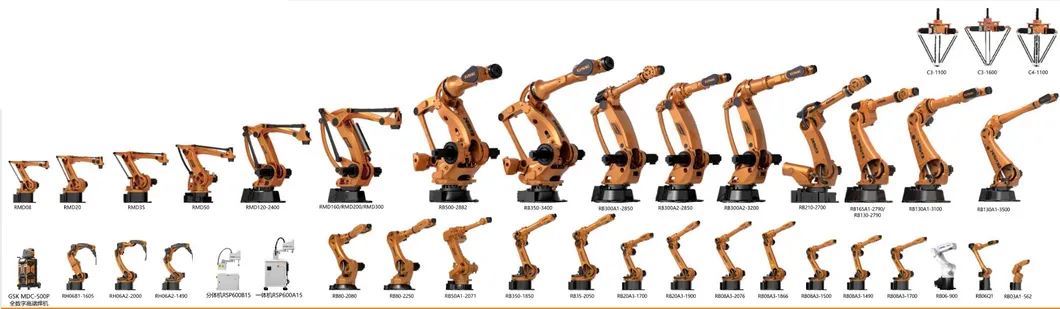

Categorized into six distinct series, offering tailored solutions for transportation, welding, polishing, painting, stacking, and paralleling applications. Totaling 30 product variations built on decades of industry R&D.
