Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
1 / 5
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection
Advanced Metal Polishing Machine for Optimal Corrosion Protection

Advanced Metal Polishing Machine for Optimal Corrosion Protection

Customization: Available
After-sales Service: One-Year After-Sales Warranty
Warranty: One-Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
DRL-SL
Certification
ISO, CE
Condition
New
Voltage
380V
Application
Metal Sheet
Product Name
Deburring Machine
Effective Working Width
650-1350mm
Deburring Thickness
0.5-80mm
Feed Rate
0.5-9m/Min
Control System
PLC
Production Capacity
50000pieces/Year
✓

Product Description

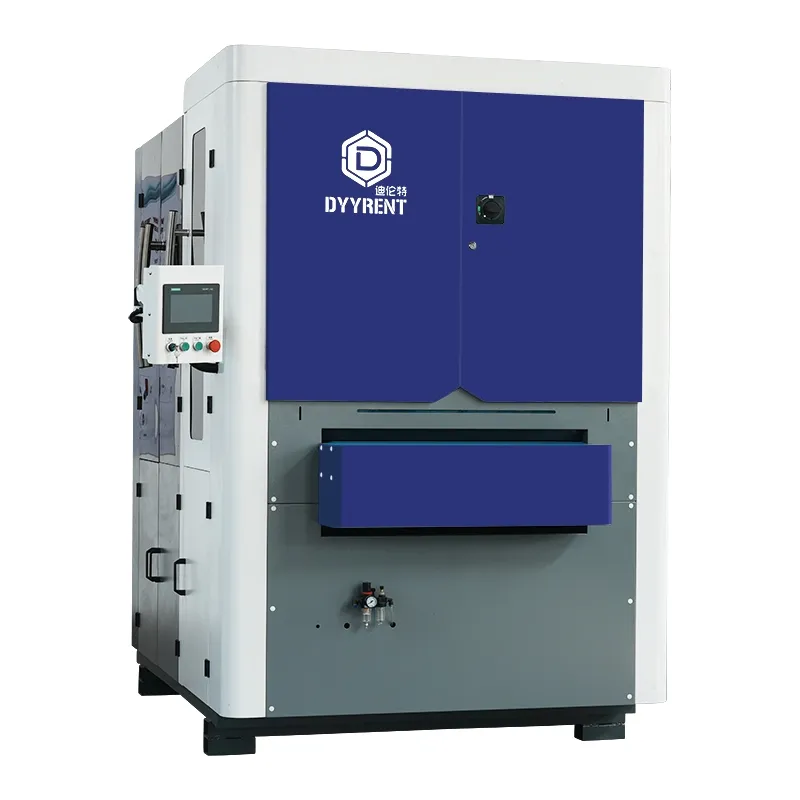

Advanced Metal Polishing Machine
Polishing roller mechanism
Polishing Roller Mechanism Principle
The polishing roller mechanism of this equipment is arranged in a wide and longitudinal direction. It can polish the workpiece with high-speed rotation and slap on the workpiece according to the lifting and lowering of the abrasive material, and can swing left and right for processing. The surface of the workpiece is polished and wire-drawn, creating a distinct texture effect.
Sample 1

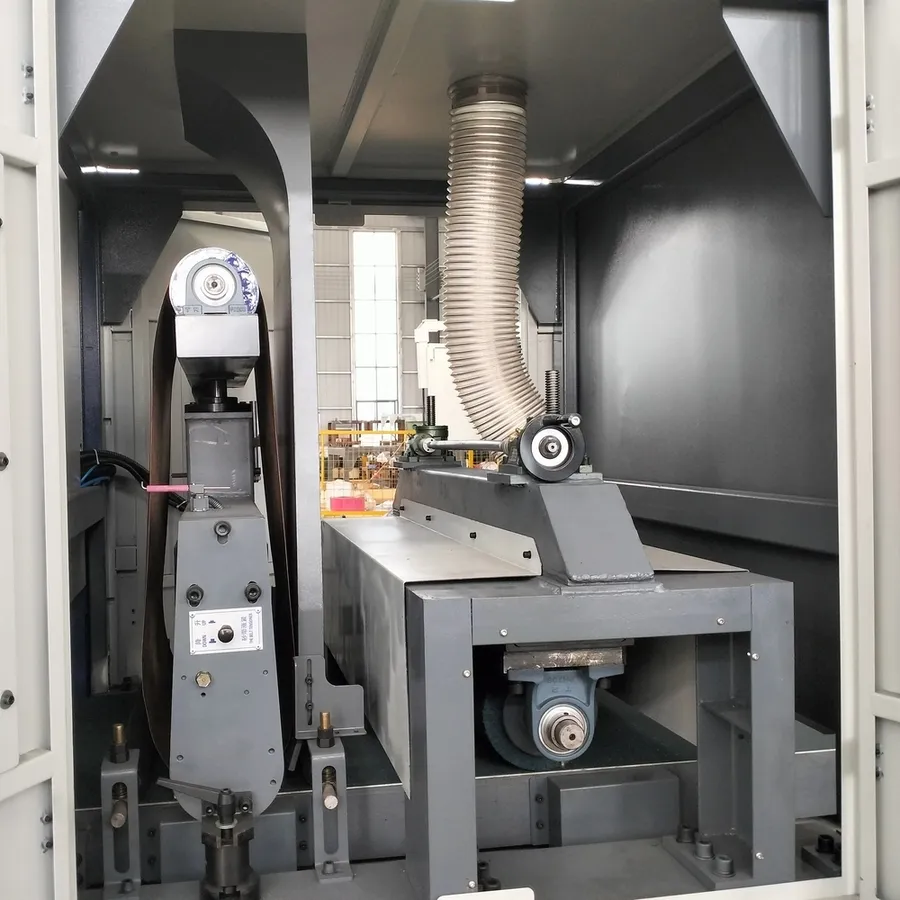

Sample 2

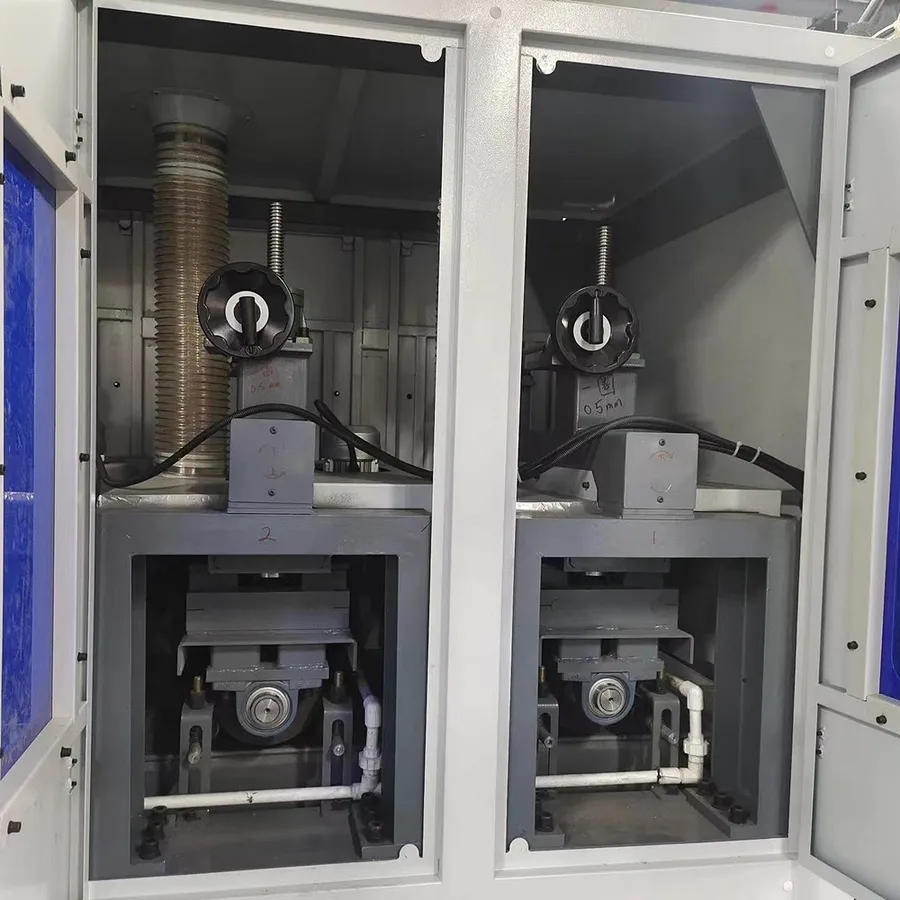

Sample 3
⚙

Product Parameters

MODEL DRL-600SL DRL-800SL DRL-1000SL DRL-1300SL
Effective working width 650mm 850mm 1050mm 1350mm
Deburring thickness 0.5-80mm
Feed rate 0.5-9m/min
Belt size (mm) 1900×650 1900×850 2200×1050 2200×1350
Polishing roller motor 5.5kw 5.5kw 7.5kw 11kw
Equipment noise ≤80dB
Control system PLC / 7inch Touch Screen
📷

Detailed Photos & Features

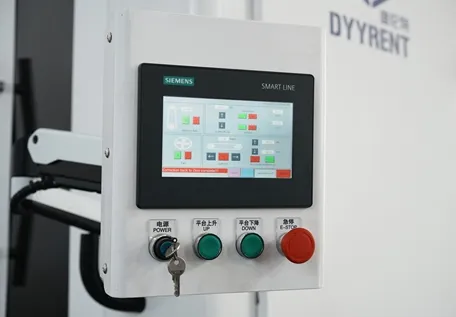

CNC Controller
CNC Controller
Just press the positioning button to locate the thickness of the plate automatically. The thickness can be corrected automatically when processing different materials.

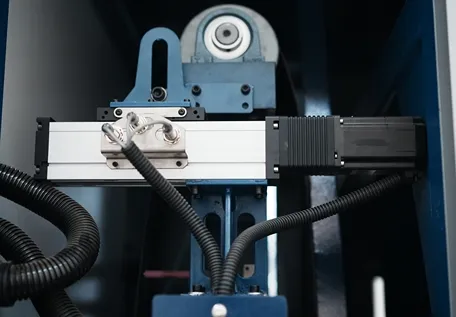

Abrasive Belt Servo Correction Device
The servo correction device automatically finds the correct position of the abrasive belt, replacing pneumatic devices for better reliability regardless of air pressure.
Servo Correction
Servo Positioning

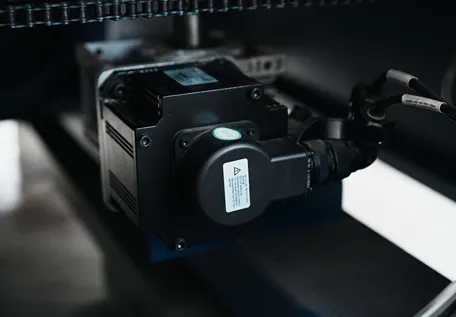

Servo Positioning Workpiece Thickness
High-precision positioning through a servo motor with an error of ±0.05mm. Features both manual and automatic height adjustment modes.
Machine Detail 1
Machine Detail 2

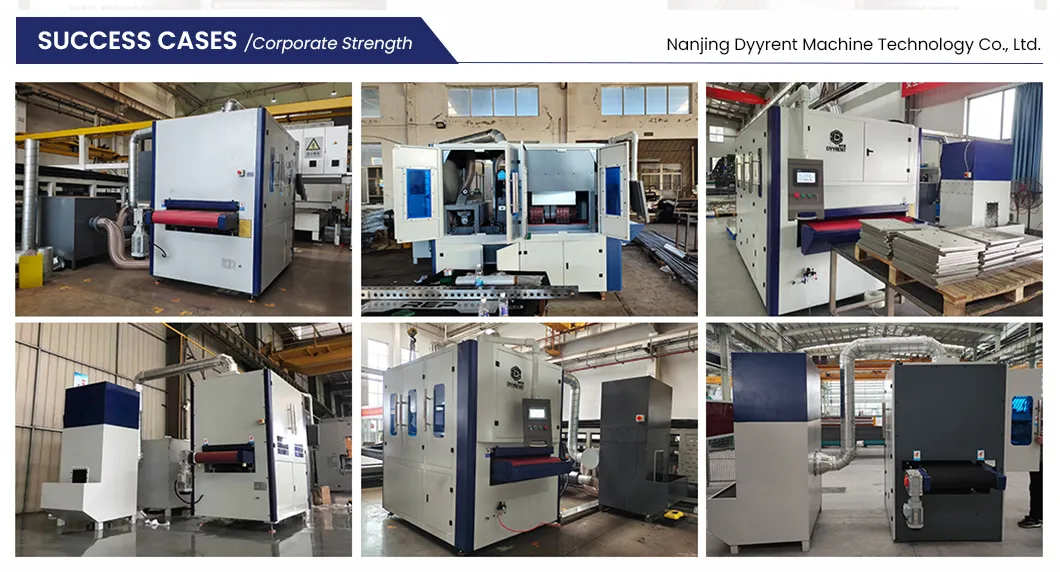

Machine Detail 3
Processing View
Internal Components
Safety Features
?

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a manufacturer integrating industry and trade. We welcome customers to visit our production facilities.
What is the processing range of the deburring machine?
The machine can handle deburring thicknesses from 0.5mm to 80mm, with effective working widths ranging from 650mm to 1350mm depending on the model.
Is the machine height adjustment automated?
Yes, it features servo positioning for workpiece thickness with high accuracy (±0.05mm). You can switch between manual and automatic height adjustment modes.
What safety features are included?
The equipment is equipped with safety lights that monitor normal operation. If any issue occurs, the light status changes to immediately alert the operator.
Can the abrasive belt correction be trusted?
We use a servo correction device instead of pneumatic ones. This ensures reliable belt positioning without interference from air pressure fluctuations or water in the compressor.
What control system does the machine use?
The machine is powered by a PLC control system paired with a 7-inch user-friendly touch screen for real-time monitoring and easy adjustments.
