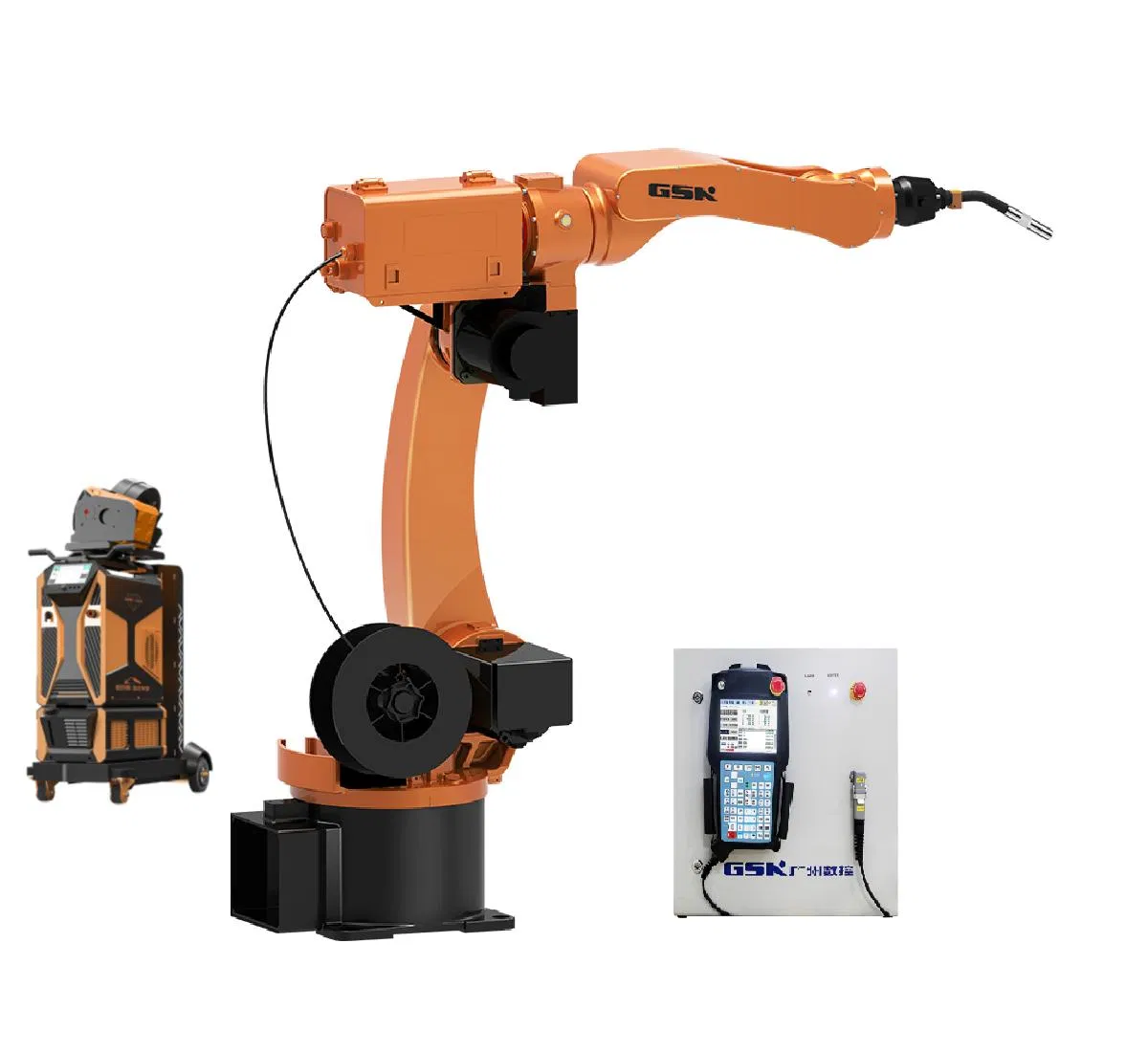

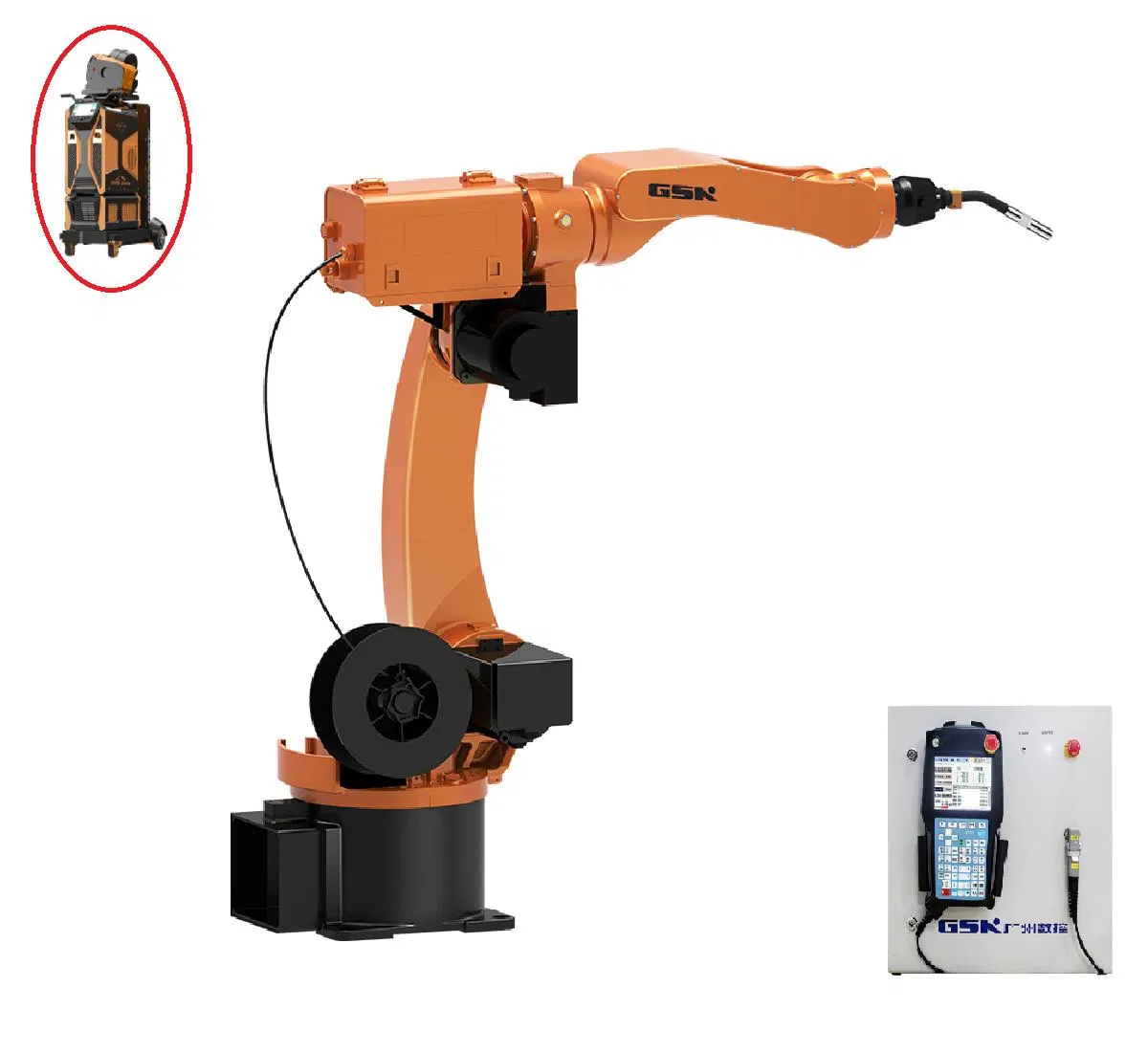

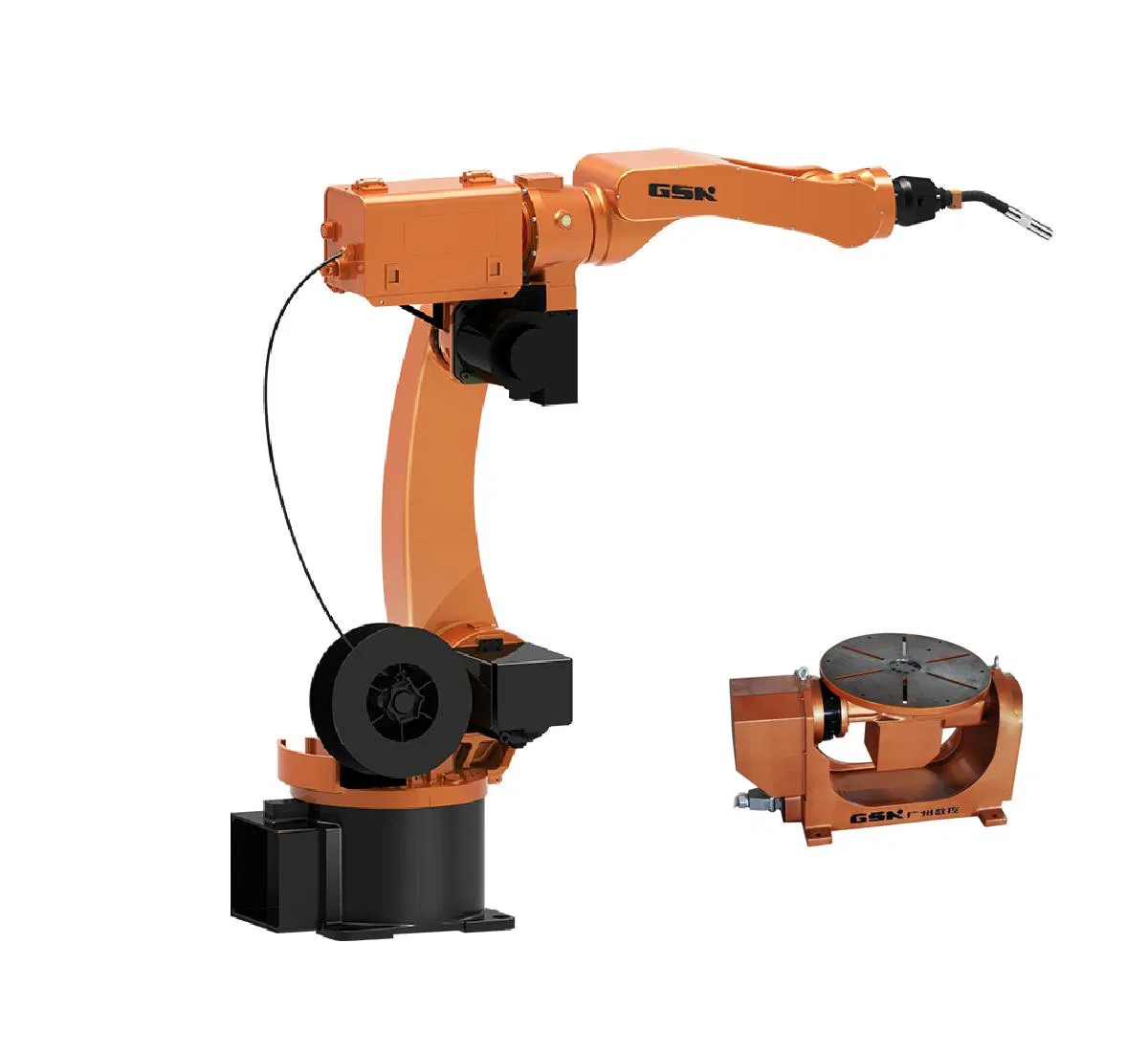

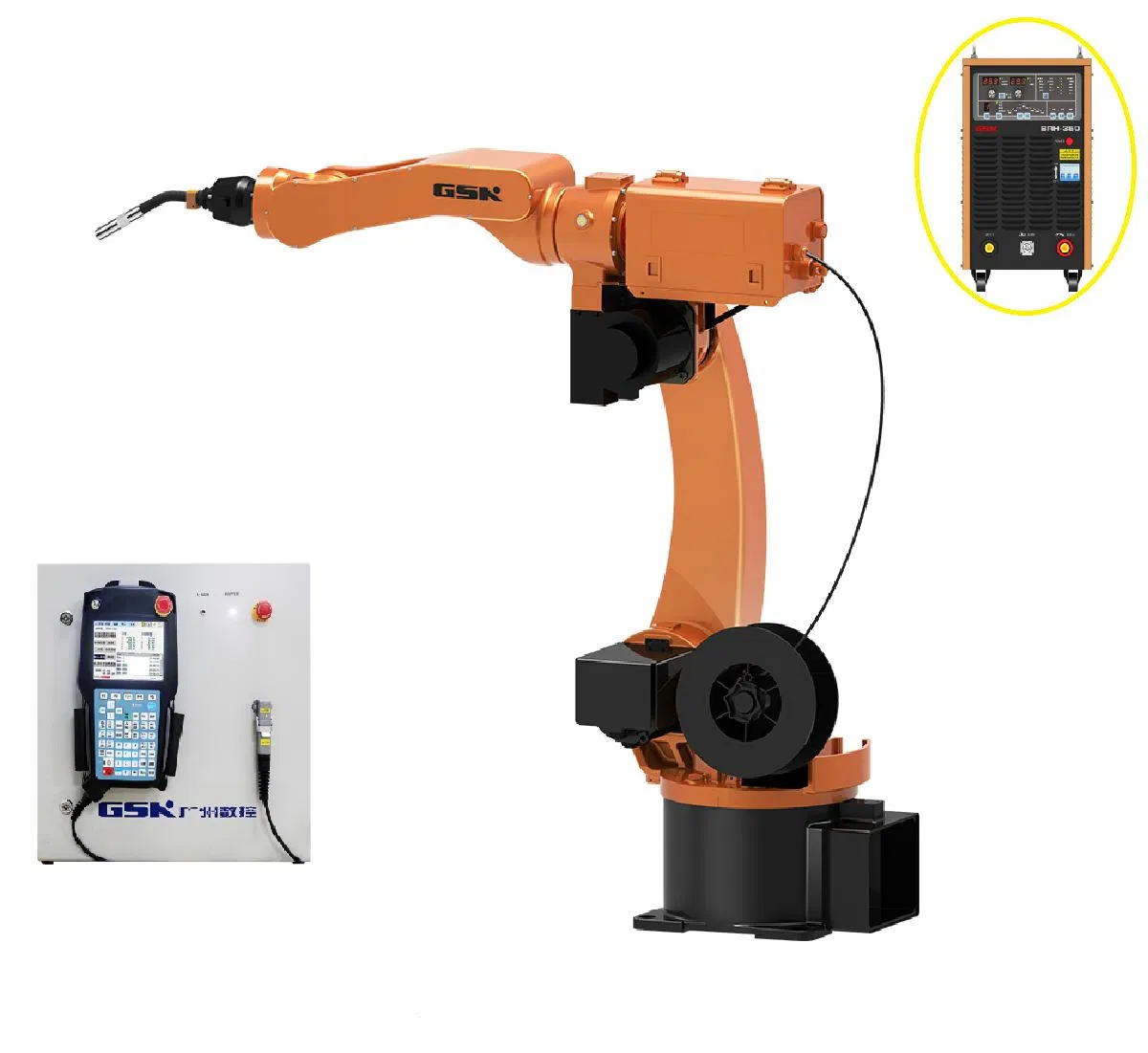

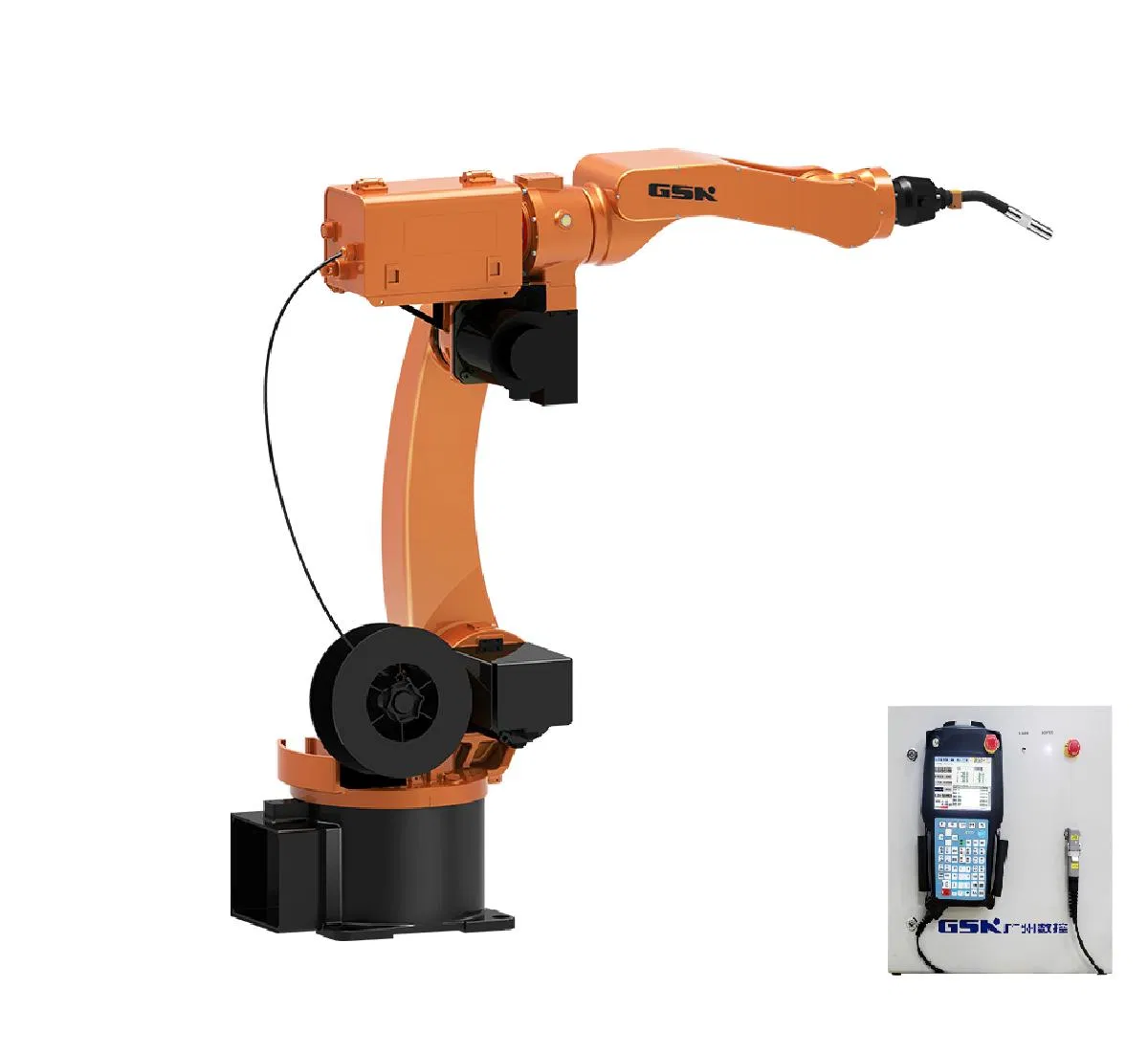

Application field: It is widely used in automobiles and their accessories, motorcycles, agricultural machines, engineering machines, and other hardware welding fields.
| Type | Dof | Payload (kg) | Repeatability (mm) | Motion Radius (mm) | Weight (kg) |
|---|---|---|---|---|---|
| RH06A2 | 6 | 6 | ±0.05 | 1490 | 185 |
| RH06A3-1490 | 6 | 6 | ±0.05 | 1490 | 185 |
| RH06A3-1700 | 6 | 6 | ±0.05 | 1700 | 187 |

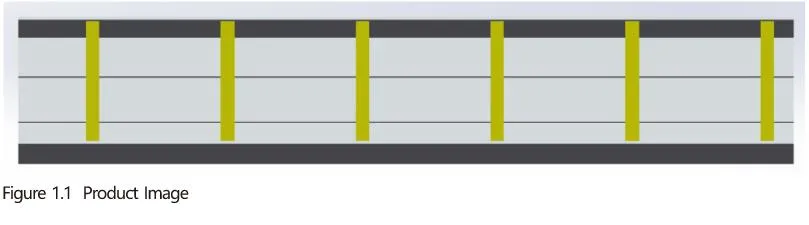

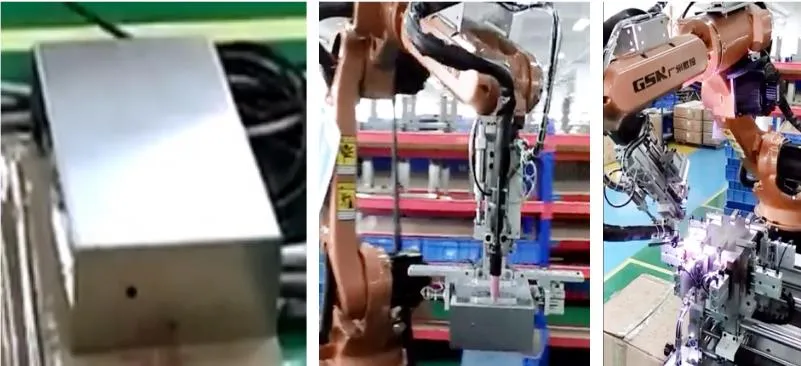

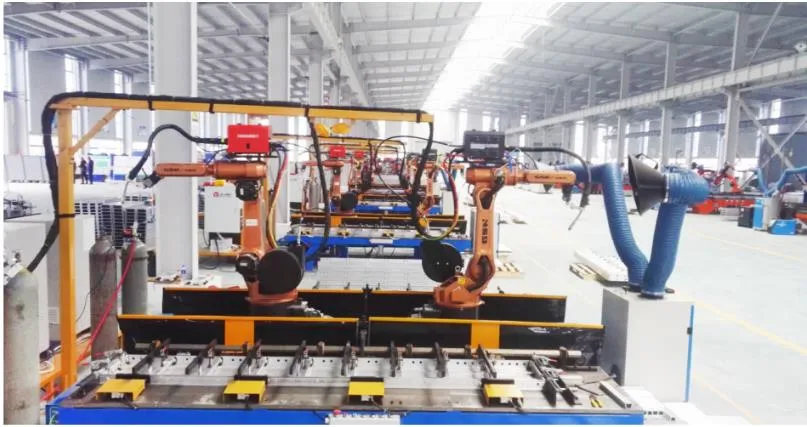

Robot replaces manual work with double-position alternative welding. Equipped with automatic torch cutting mechanism to guarantee production continuity.

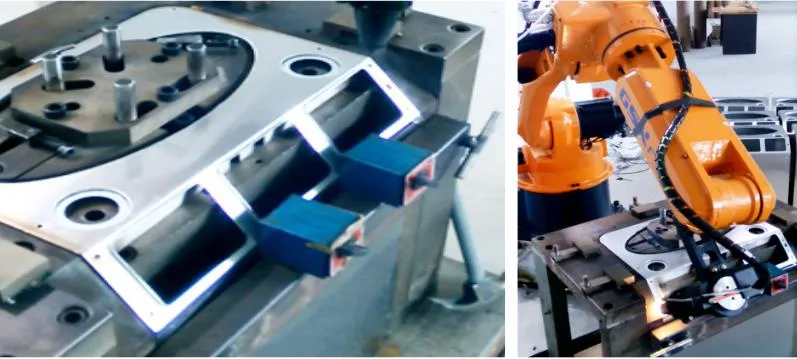

Precision welding for 0.6mm stainless steel sheets with no obvious deformation. Fiber transmission laser welding machine allows for high-speed operation.
Full-automatic welding with pneumatic clamping. Adjustable tooling handles various product widths and lengths automatically.

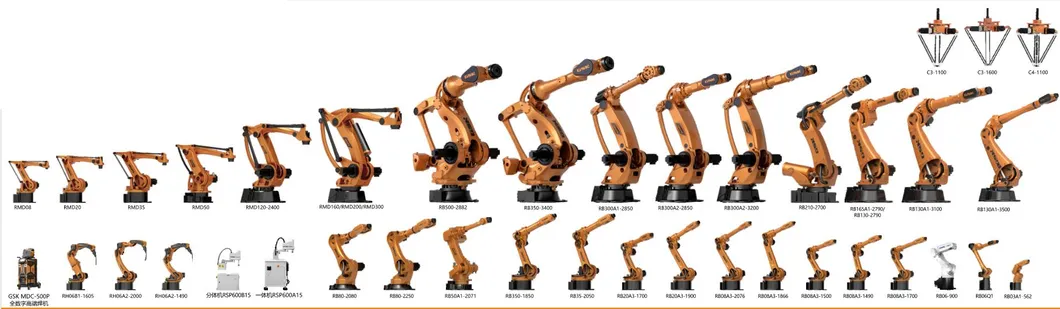

With over 30 years of R&D experience, the robot series covers transportation, welding, polishing, painting, stacking, and paralleling, offering up to 30 kinds of specialized products.
