Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
1 / 5
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs
Long - Service 3D Flexible Welding Platform with Low Maintenance Needs

Long - Service 3D Flexible Welding Platform with Low Maintenance Needs

Customization: Available
Type: Soldering Station
Structure: Platform
Send Inquiry

Product Description

Basic Specifications
Model NO.
D-28-1000*1000*200
Rotation Speed
0.3-3rpm
Max Eccentricity
100mm
Tilting Angle
0-90°
Voltage
110V/220V
Condition
New
Material
Steel/Cast Iron
Hole Size
28mm/16mm
Surface
Nitrided
Product Name
3D Welding Table
Usage
Laser Welding
Certificate
ISO 9001
Product Description

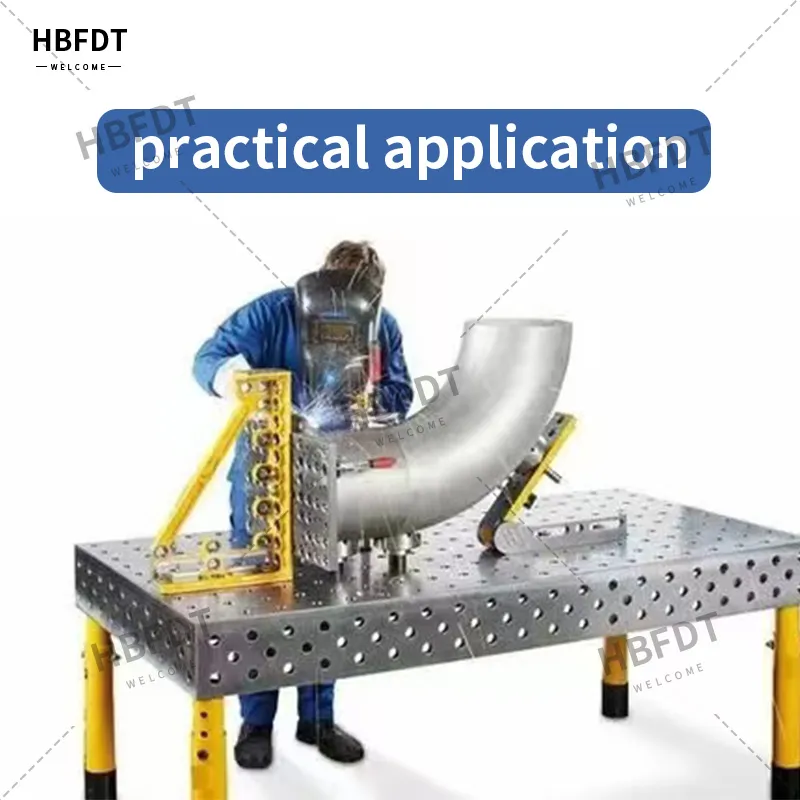

3D Welding Table

3D Steel New Metal Welding Workbench with Clamps

The 3D welding table/platform is a device used in welding processes, primarily for automated and precise welding operations. Equipped with a three-dimensional motion control system, it accommodates workpieces of various shapes and sizes, significantly improving manufacturing efficiency in automotive and aerospace industries.

Key Technical Specs:
• Material: Q355 steel plate or high hardness steel
• Aperture: φ28.065 -- φ28.149mm
• Hole Spacing: 100±0.05mm
• Flatness: 0.1/1000mm
• Hardness: HV450-HV630 (Nitriding layer)
How to use 3D fixture table efficiently
1. Choose a suitable work platform

Select based on workpiece size: D16 series for sheet metal/small structures; D28 series for heavy machinery.

2. Configure the corresponding fixtures

Use U-shaped or L-shaped square boxes for expansion when the platform size is insufficient.

3. Quick assembly and positioning

Utilize the modular design and standard hole system for quick locking and accurate positioning.

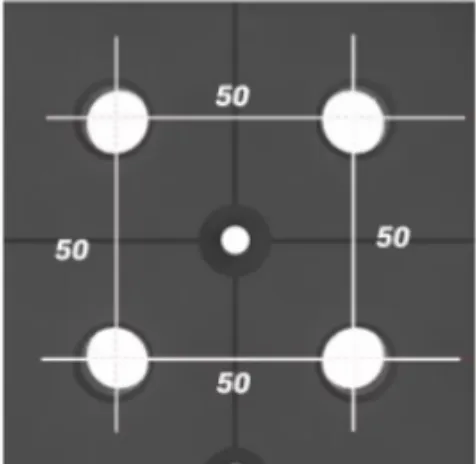

D16 Series

D16 Series

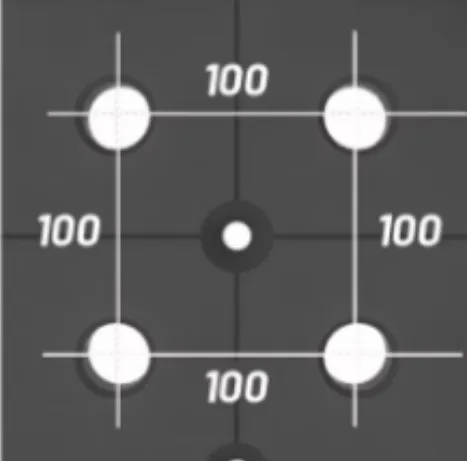

D28 Series

D28 Series

R-angle Processing

R-angle Detail

Production Specification
Item No. Specification (LxW) mm Height (mm) Material Hole Diameter (mm)
14000x2000200/150/100Q355/Q235/Cast ironD28/D16
23000x2000200/150/100Q355/Q235/Cast ironD28/D16
32000x1000200/150/100Q355/Q235/Cast ironD28/D16
41000x1000200/150/100Q355/Q235/Cast ironD28/D16
Visual Details & Clamps

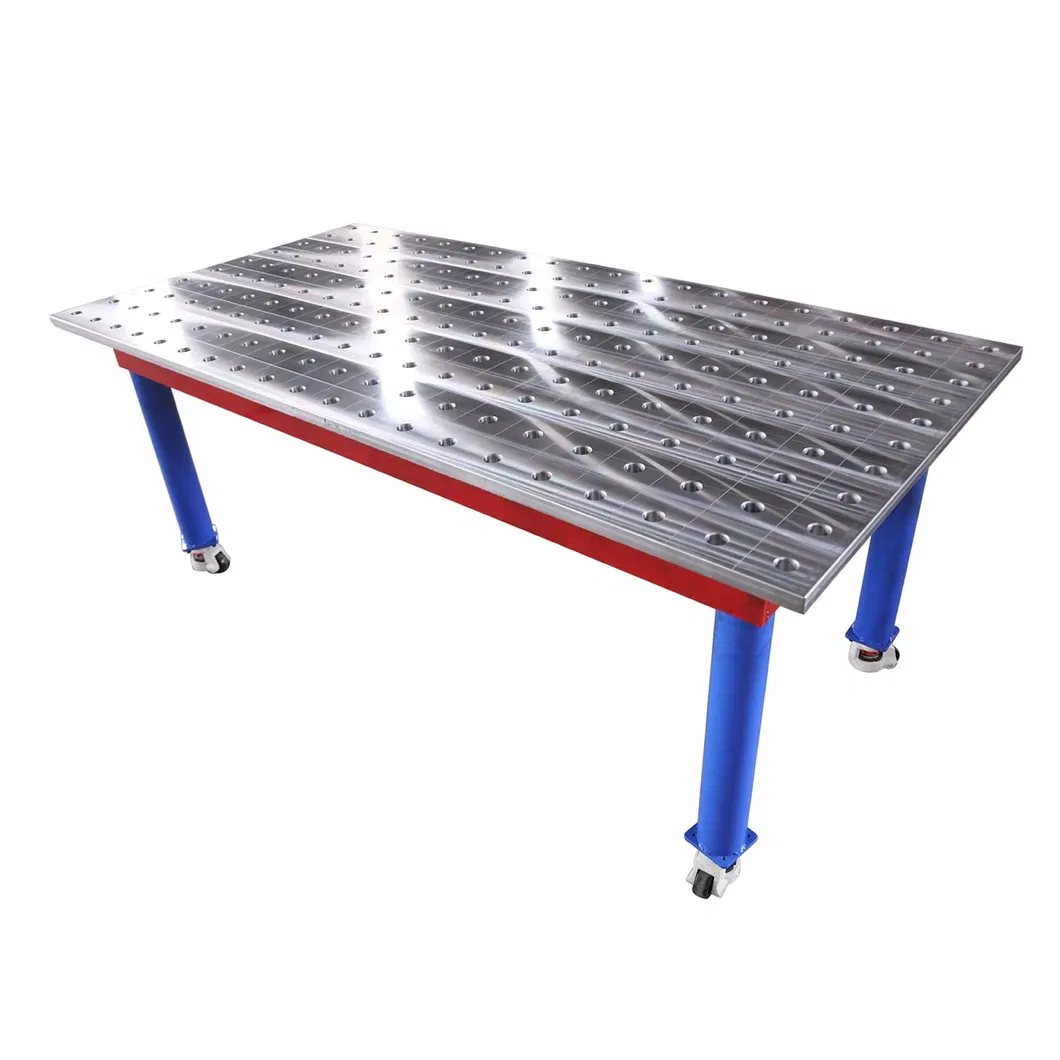

2D Steel Table

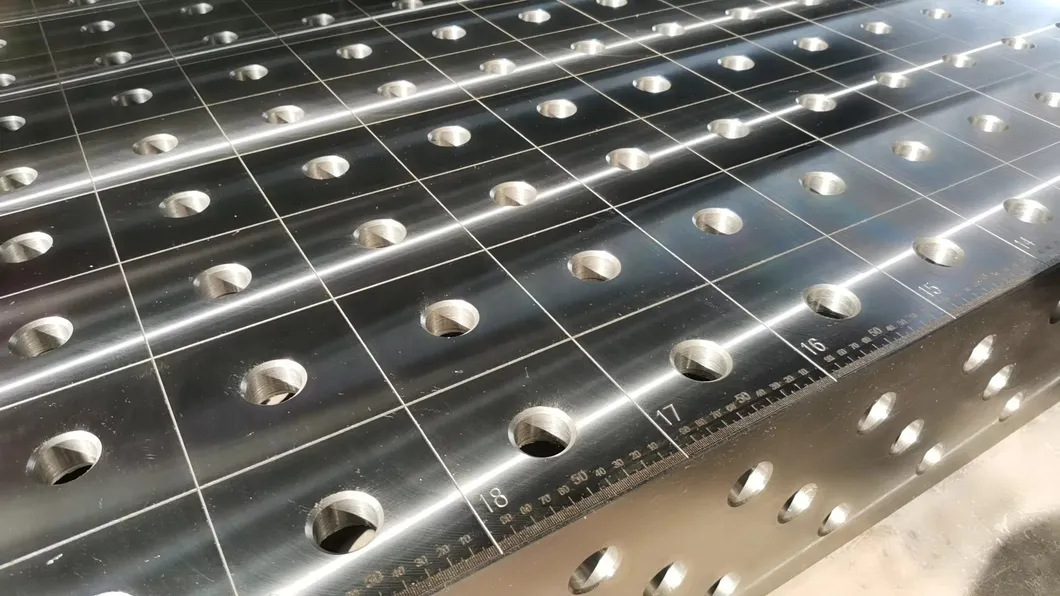

3D Steel Table
Nitrided Table

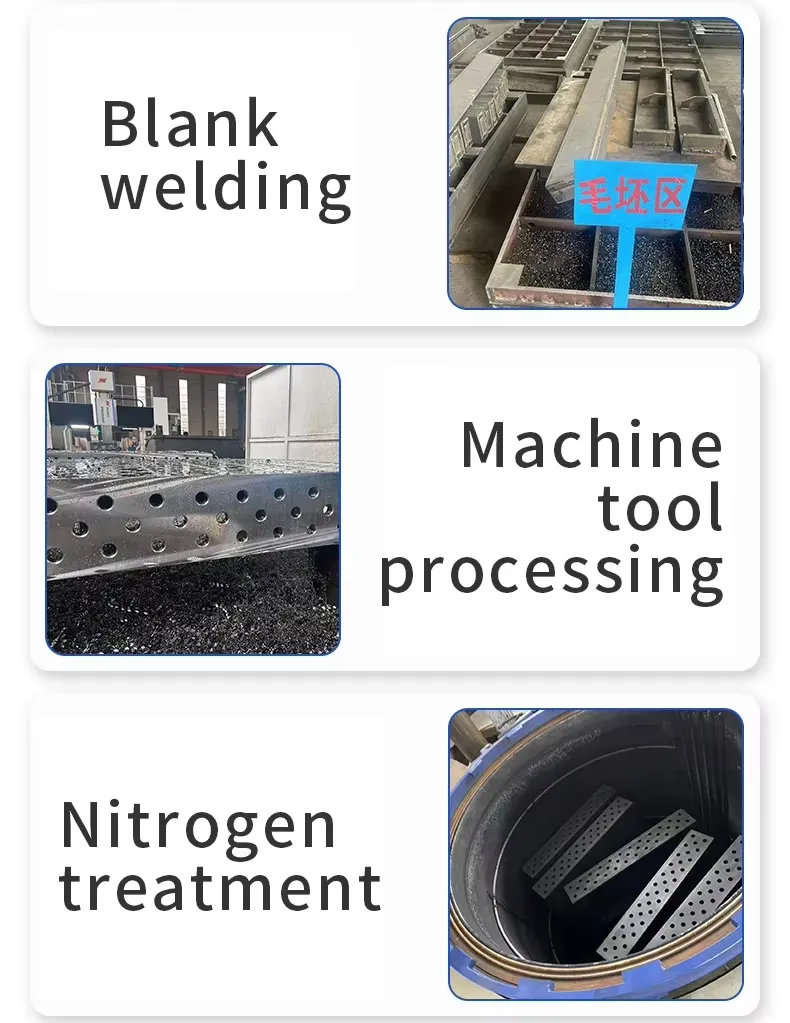

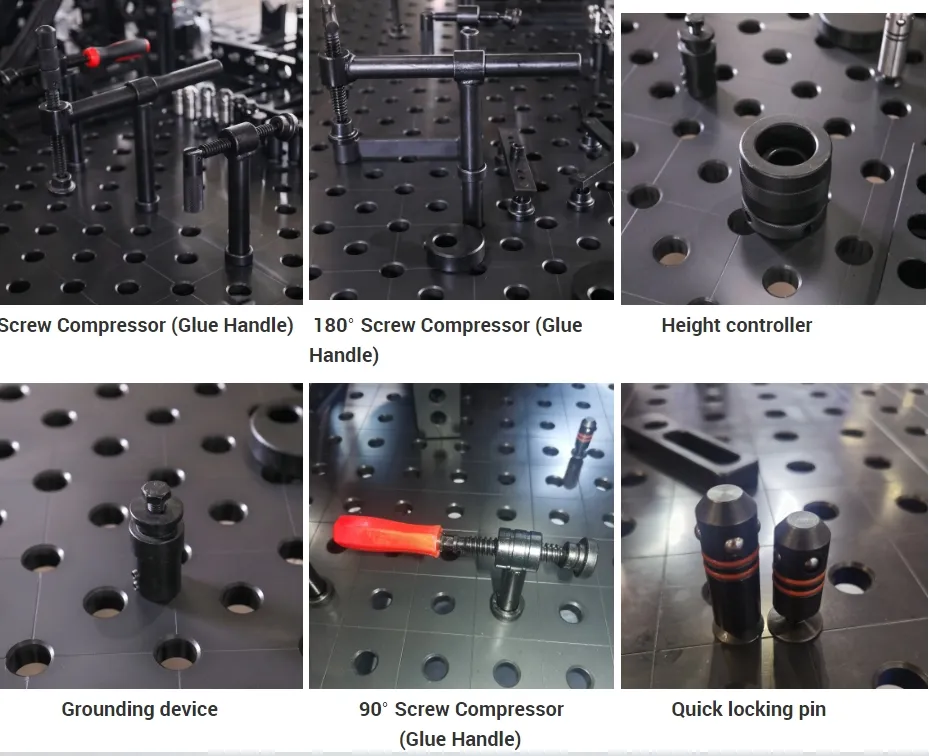

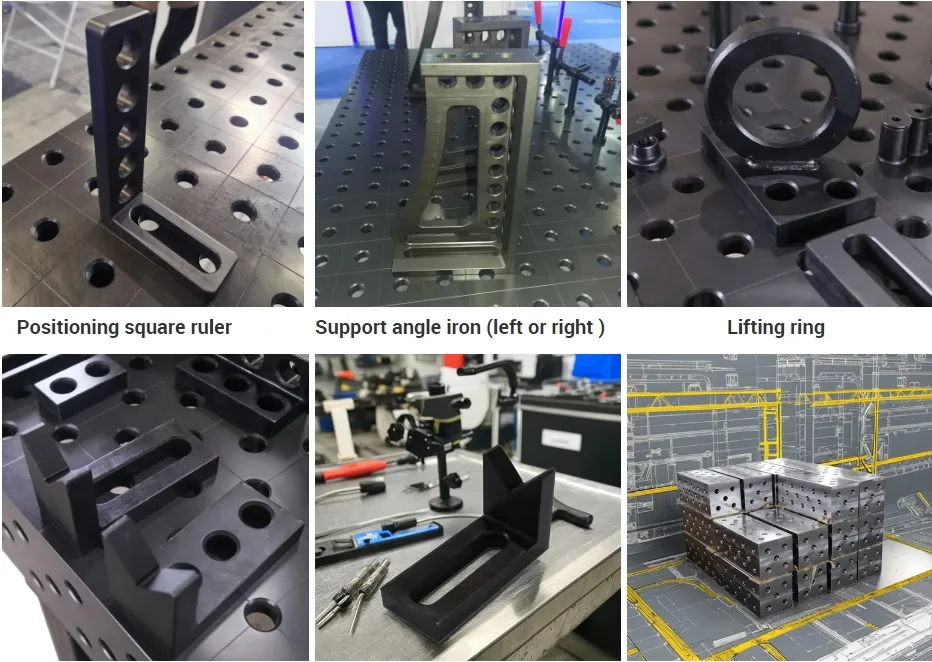

Process Clamps 1 Clamps 2
Packaging & Export

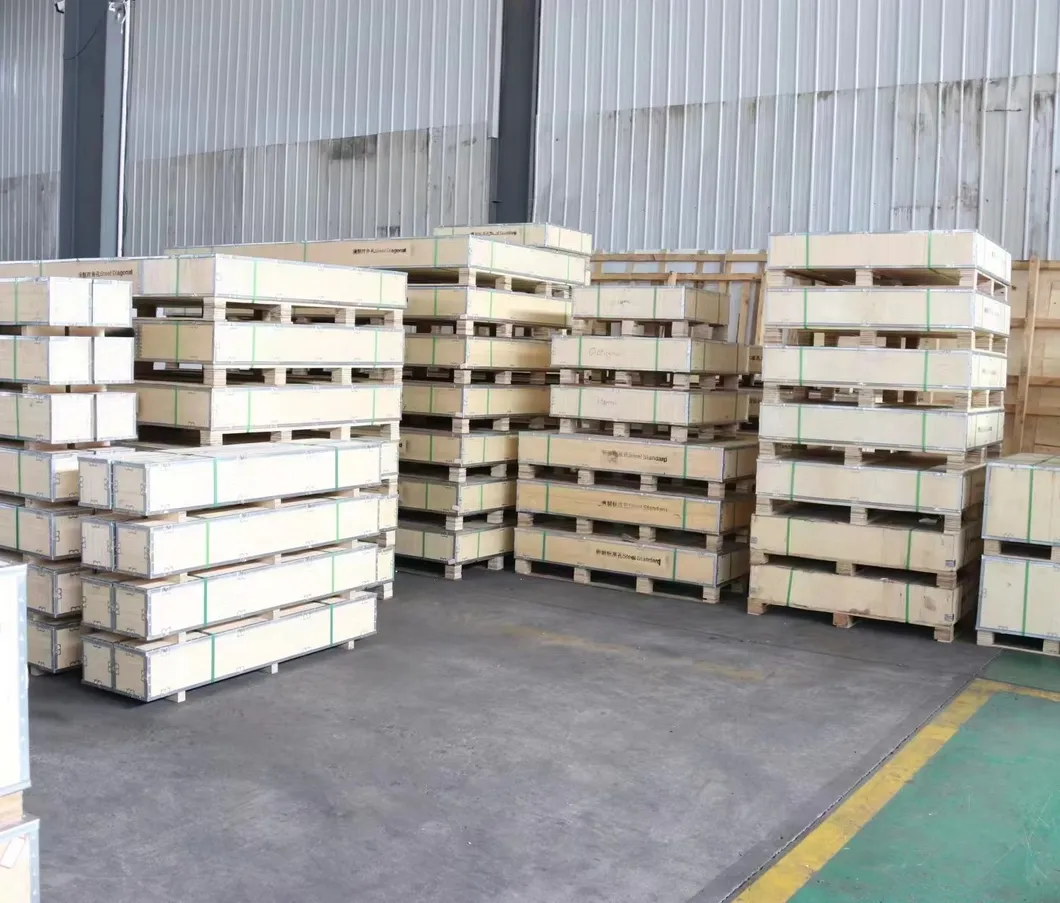

Package 1

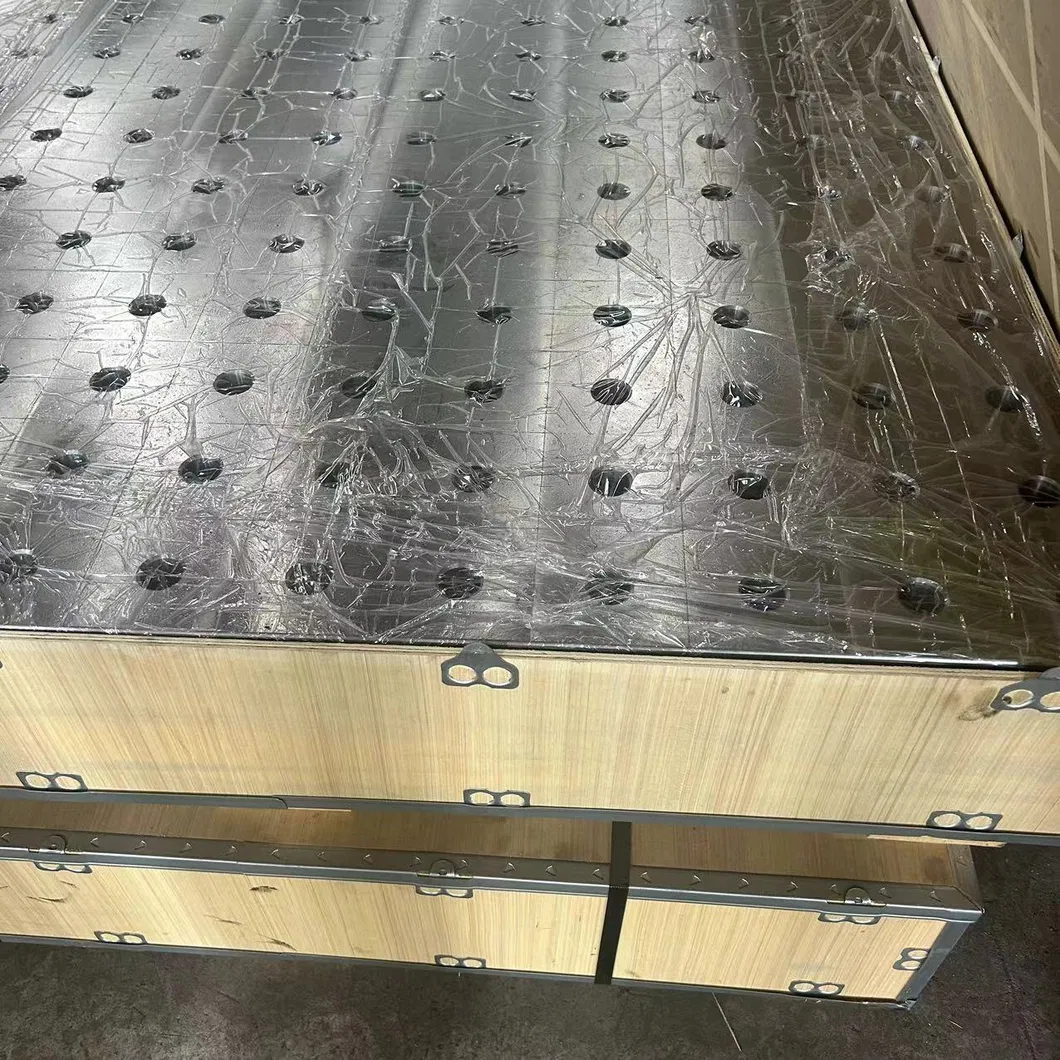

Package 2

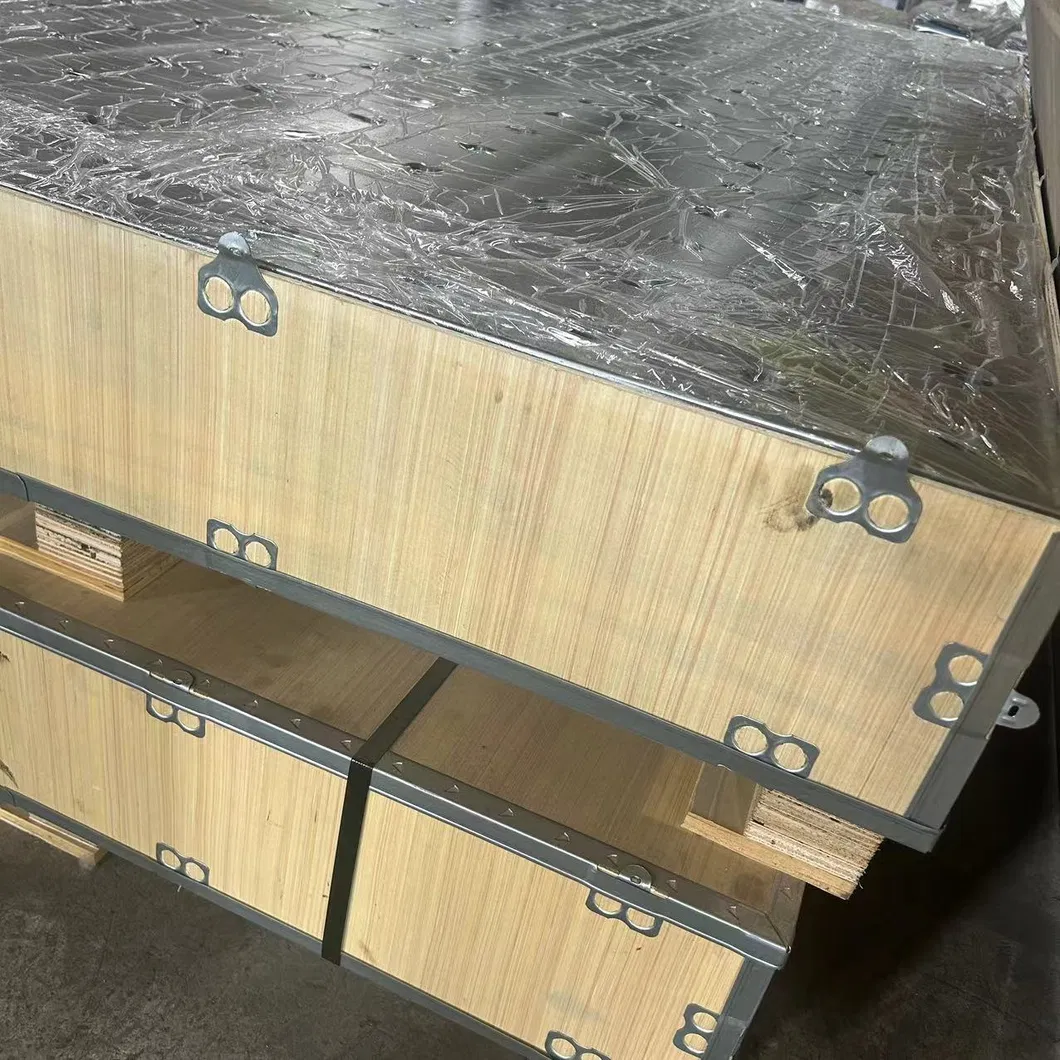

Package 3
Frequently Asked Questions
What materials are used for the welding tables?
Our welding tables are manufactured using high-quality Q355 steel or cast iron, which undergoes aging treatment and nitriding to ensure they are rust-proof and durable.
How do you ensure the quality of the products?
We maintain strict quality control by always providing a pre-production sample before mass production and performing a final inspection before every shipment.
Can the welding tables be customized?
Yes, we offer customization for sizes, hole patterns (D28/D16), scales, and surface treatments (nitriding) based on your specific industrial requirements.
What are the main advantages of your 3D welding system?
The system features a modular design with 5 precision-machined working surfaces and R-angle processing on holes to significantly increase service life and assembly speed.
What delivery terms and payment methods are accepted?
We accept various delivery terms including EXW, FOB, CIF, DAP, and DDP. Payment can be made via T/T, L/C, Credit Card, or PayPal in multiple major currencies.
What industries commonly use these welding workbenches?
These tables are widely used in general manufacturing, the automotive industry, aerospace, and for robotic welding or soldering stations.
